Amgo PRO-12 12,000lb 4 Post Car Lift

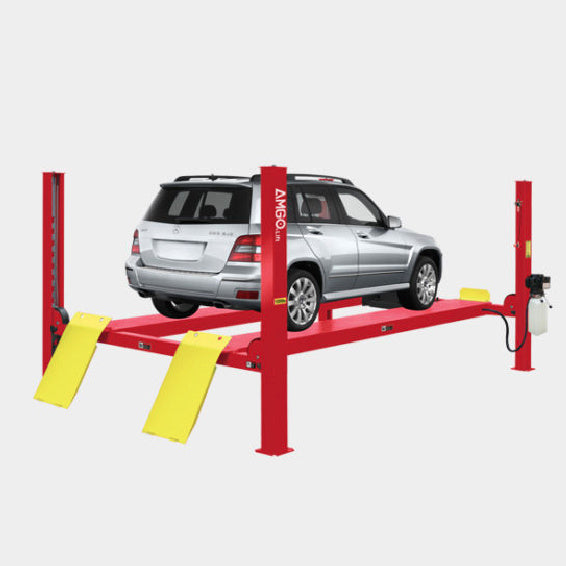

PRO-12 4 Post Car Lift by Amgo

Need a High-Capacity, Durable Lift for Your Service Shop? The Amgo PRO-12 12,000-lb 4 Post Car Lift is ideal for general service applications, providing quick, reliable lifting for cars, SUVs, pickups, and vans. With a lifting capacity of 12,000 lbs, it features stepless width adjustment technology to adapt to various wheel tracks. Whether you're in a busy garage or high-demand service shop, this lift ensures durability and safety for daily use.

Equipped with a mechanical self-locking safety device and air-driven lock release, the PRO-12 prioritizes safety. It uses high-quality aircraft standard cables for smooth, cable-driven operation. The hydraulic cylinder is designed with top-grade oil seals and a compensation valve for long-lasting performance. Non-skid diamond platforms and adjustable width between platforms make this lift versatile and user-friendly.

PRO12 Specifications:

• Model: PRO-12

• Lifting Capacity: 12,000 lbs

• Lifting Time: 63s

• Overall Length (Incl. Ramps) (A): 239 13/16"

• Outside Edge of Crossbeams (B): 197 3/4"

• Overall Width (C): 126 5/16"

• Width Between Columns (D): 112 1/4"

• Max. Lifting Height (E): 74 7/16"

• Max. Lock Height to Top of Runway: 71 1/4"

• Overall Height (F): 86"

• Minimum Height (G): 6 11/16"

• Max. Underneath Height (H): 68 7/8"

• Max. Lock Underneath Runway (I): 65 3/4"

• Drive-Thru Clearance (J): 98 3/8"

• Width Between Runways (K): 43 5/16"

• Outside Edge of Runways (L): 83 5/16"

• Min. 38" / Max. 50 7/8" (M):

• Min. 78" / Max. 90 7/8" (N):

• Gross Weight: 2,361 lbs

• Motor: 2.0 HP

• Pallet Dimension: 204" x 23" x 29"

PRO-12 12,000lb 4 Post Car Lift Special Features

• Stepless adjustable width between platforms for different wheel tracks

• Non-slip diamond platforms for safety and efficiency

• Mechanical self-locking safety device with air-driven lock release

• Primary multiple safety locks and cable-slack protection system

• High-quality hydraulic cylinder with oil seals and compensation valve

• ETL certified AMGO power unit for reliable performance

• Optional extension platform adds 26" in length (Kits No.: 41203)

• Optional air line kits available for rolling jacks (Kits No.: 40102A)

• Optional rolling jacks with 6,000 lbs capacity: RJ-6H (manual hydraulic) and RJ-6A (pneumatic hydraulic)

Warranty

• 5-Year Warranty: Steel structure

• 3-Year Warranty: Hydraulic components, bronze bushings, slider blocks, plastic parts

• 2-Year Warranty: Electrical components and cables

• No Warranty: Rubber pads

PRO-12 Manual

   Amgo PRO-12 Manual

   Amgo PRO-12 Installation Instruction

PRO-12 4 Post Car Lift Optional Items (sold separately):

• J6H - Rolling Jack Manual
• J6A - Rolling Jack Pneumatic
• Led lights: No. 40103
• Extension kit: No. 40203 (Adds 26" to platform)
• Airline kit: No. 40102
