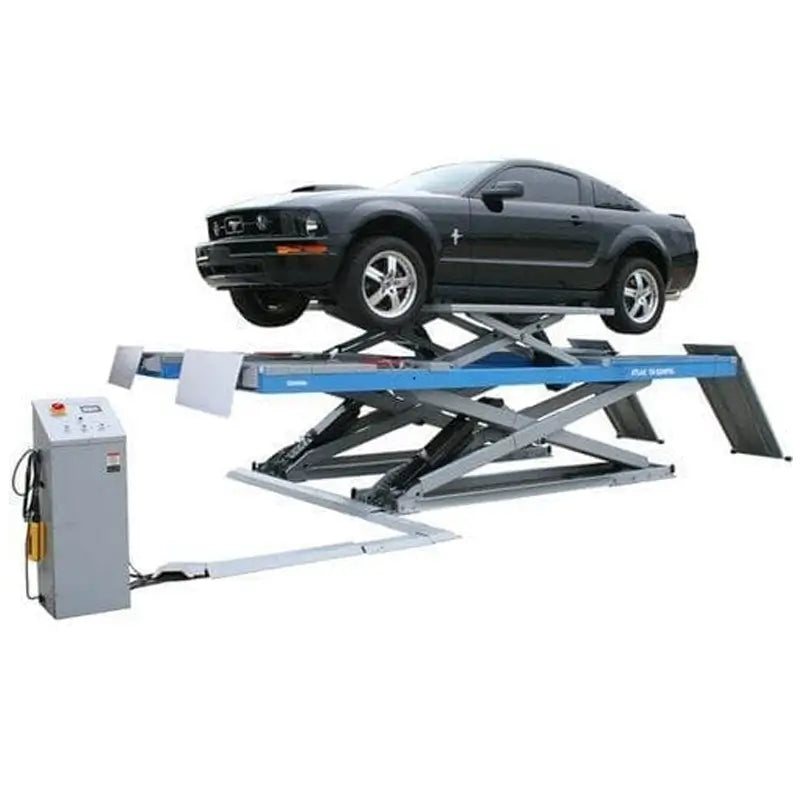

Atlas 12AWFSL Alignment Scissor Lift and RJ-6 Rolling Jack Combo

12AWFSL Alignment Scissor Lift and RJ-6 Rolling Jack Combo

The Atlas 12AWFSL Alignment Scissor Lift and RJ-6 Rolling Jack Combo is like the superhero your shop never knew it needed. With a 12,000 lb. lifting capacity and a towering height of over seven feet, it's ready to handle everything from your run-of-the-mill sedans to those three-ton, dual-wheel pickups that always seem to show up unannounced. Got a low-rider? No problem—the extra-long ramps make loading them a breeze, even if they’re practically scraping the ground. And if you’re after precision, the built-in slip plates and alignment turntables will make sure those alignments are spot on, because, let’s face it, close enough isn't good enough.

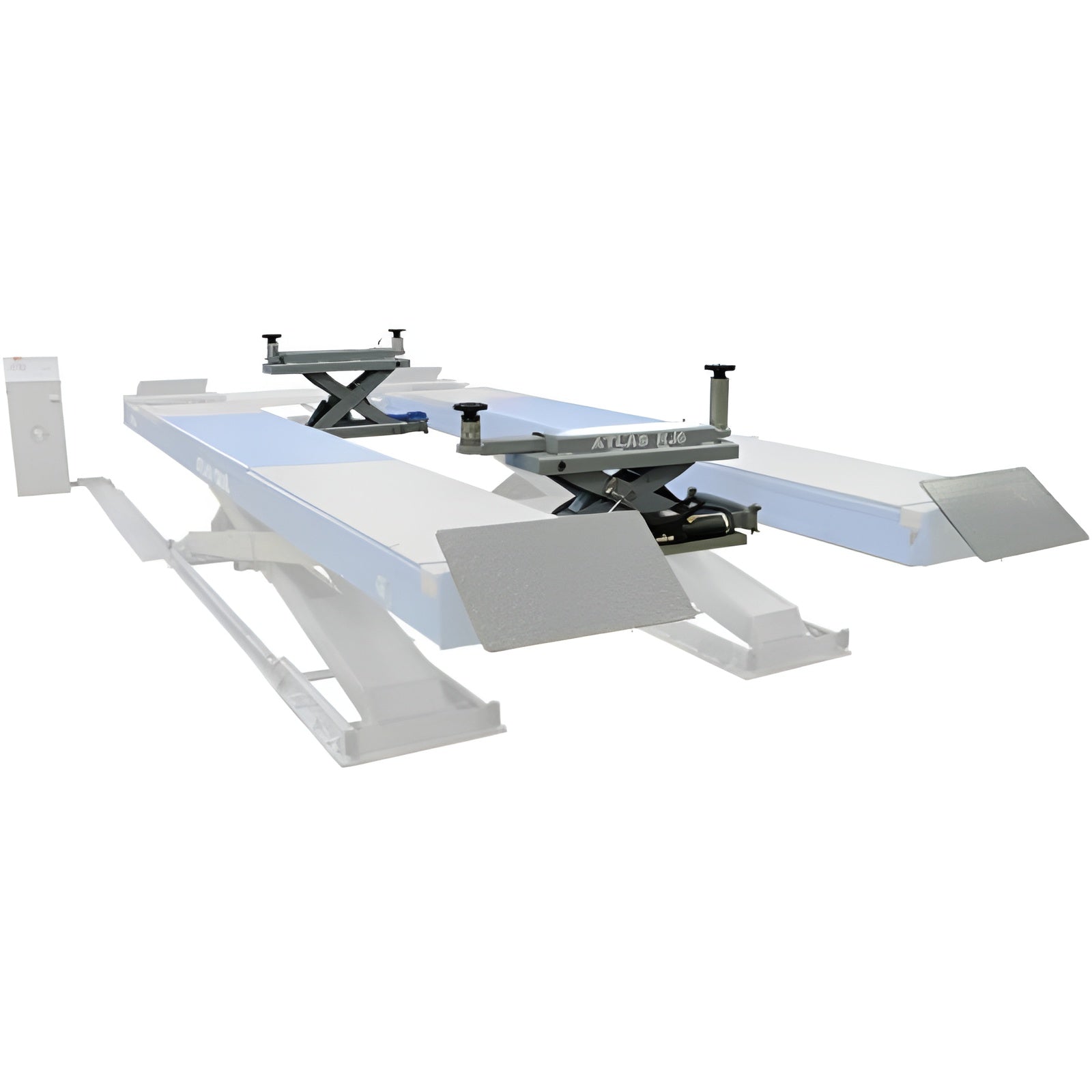

The combo deal throws in the Atlas RJ-6 Rolling Jack, perfect for when you need to get the wheels off and actually get some work done. It's air-powered, of course—because manual labor is so last decade—and has a 6,000 lb. capacity to lift those delicate vehicles with ease. Compact, powerful, and just a little bit showy, this lift-and-jack combo is ready to make your shop the go-to spot for serious alignment work.

Scissor Lift and Rolling Jack Atlas 12AWSL+RJ-6 Specification

12AWFSL

• Lifting Capacity: 12,000 LB
• Lifting Height: 84 1/4" (7' 1/4")
• "Wheels Free" in Ramp Jack System Height: 17" (1' 5")
• Overall Width: 86 3/8" (7' 2 3/8")
• Overall Length with Approach Ramps: 250" (20' 10")
• Overall Length without Approach Ramps: 197" (16' 5")
• Approach Ramp Length: 53" (4' 5")
• 4-Wheel Alignment Wheelbase:
  • Max: 168 in.
  • Min: 90 in.
• 2-Wheel Alignment Wheelbase:
  • Max: 172 in.
  • Min: 86 in.
• Runway Width: 23 3/4" (1' 11 3/4")
• Lowered Height: 11 1/2"
• Locking Positions: 19
• Width Between Runways: 39"

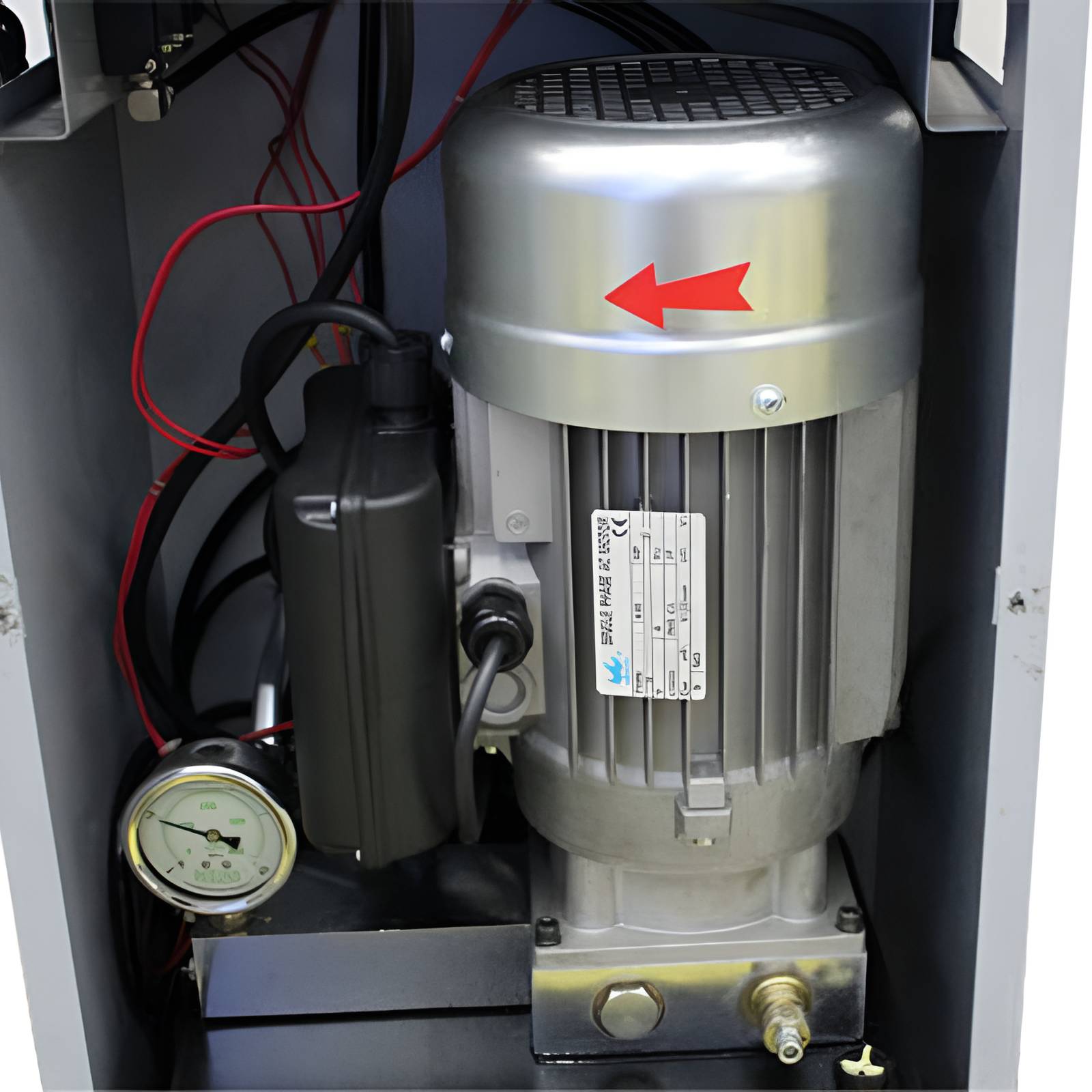

• Motor/Electrical Requirement: 220 volt +/- 5% (209-231 volts) single (1) phase. Requires a 30 amp breaker.
• Shipping Weight: 5,500 lbs.

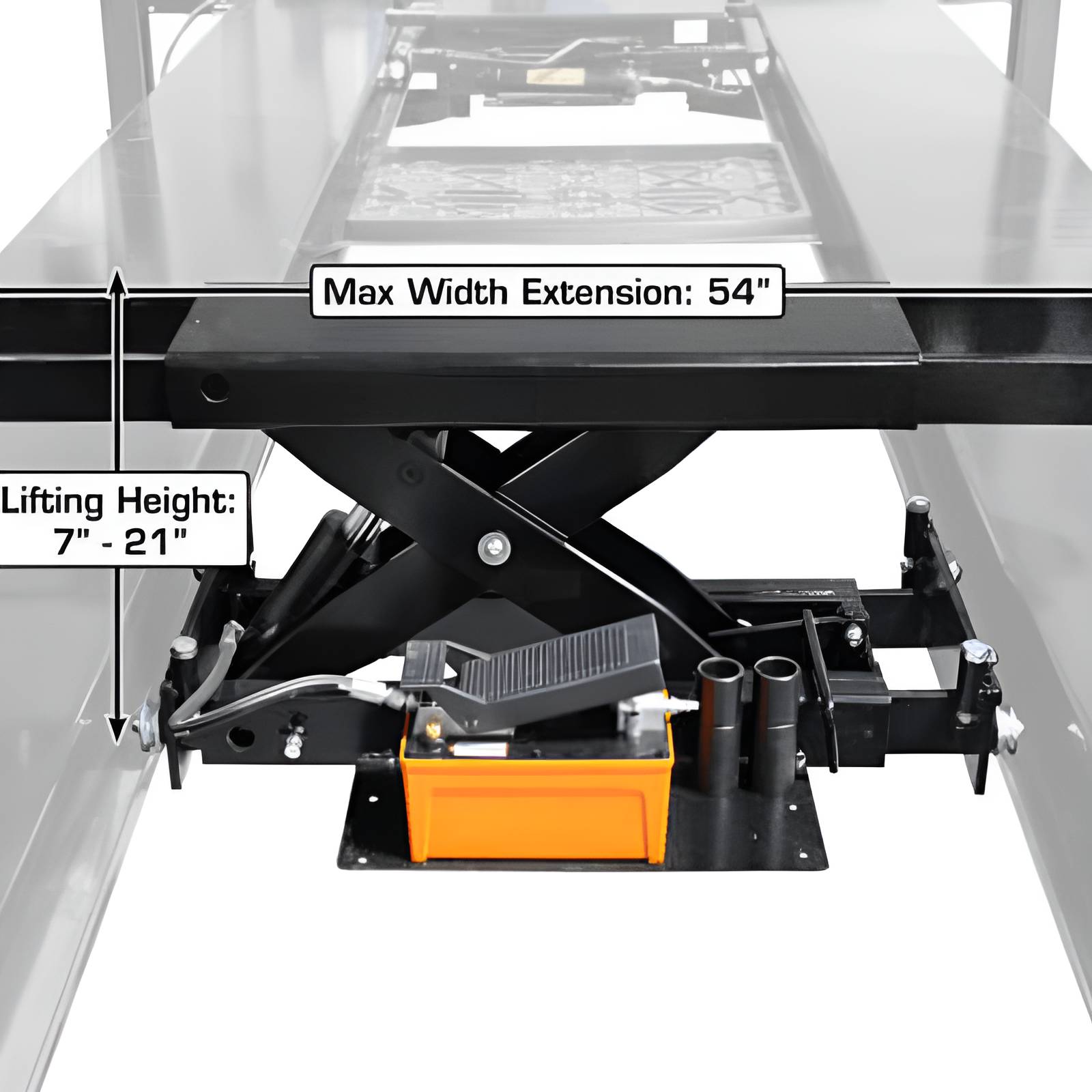

RJ-6 Rolling Jack

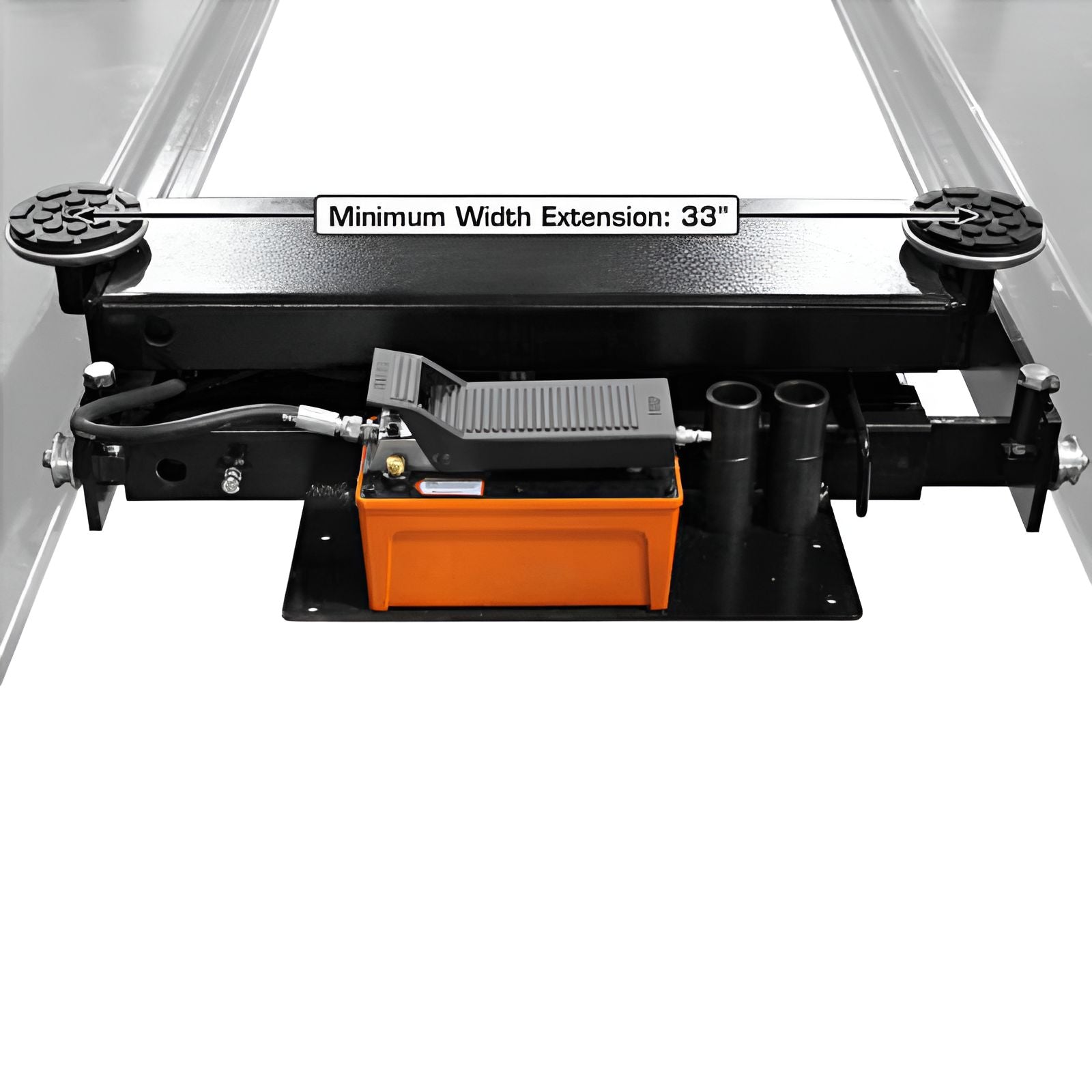

• Maximum Width: 64 1/2"
• Minimum Width: 30 1/2"
• First Locking Position: 7 1/4"
• Second Locking Position: 15"
• Minimum Pad Height: 3 1/2"
• Maximum Lifting Height: 17 5/8"
• Maximum Capacity: 6,000 LB
• Recommended Operating Air Pressure (PSI): 70-105 PSI
• Shipping Weight: 350 lbs.

12AWFSL Alignment Scissor Lift and RJ-6 Rolling Jack Special Features

12AWFSL

• 12,000 LB. Capacity
• Commercial Grade
• Scissor Alignment Lift
• Built in “Wheels Free” Lifting System
• Built in Slip Plates and Alignment Turntables Included
• Turntable Covers Included
• Open Center Design for Easy Access
• Air-Operated Single Point Lock Release (External Air Supply Required)
• Airline Kit Included
• Rear Cross Beam for Extra Stability Included
• Extra Long 72″ Ramps Standard
• Precise Platform Leveling Accuracy

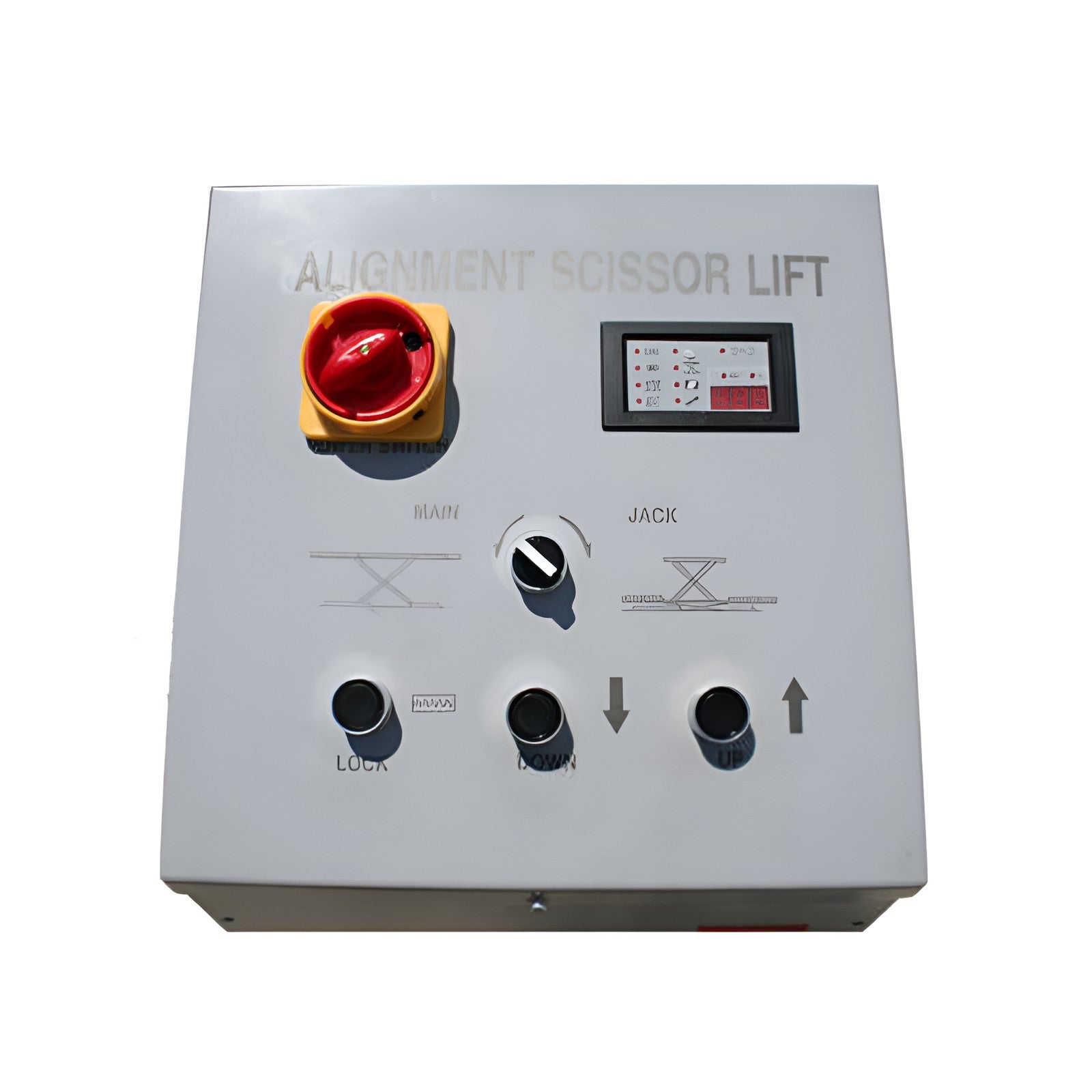

• Separate Self-Contained Control Panel
• Emergency Manual Pump for Lowering
• 19 Locking Positions
• CE Certified
• Can be Surface Mounted or Flush Mounted
• Mounting Hardware Included
• 220volt/1phase Electric Operation (Requires a 30amp Breaker)
• Shipping Weight: 5,000 lb.
• 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only

RJ-6

• 6,000 lb. Capacity
• Air/Hydraulic Operated (external air supply required)
• Multiple Safety Lock Positions
• Compact Size with Low Profile
• Smooth Rolling Action
• Scissor mechanism allows for level lifting
• Powder Coated Finish
• Double Screw-Up Adapters Included
• 4 Piece Truck Adapter Set Included
• 1 Year Parts Only Warranty
• Optional Item(Sold Separately)
  • Runway Extensions for 12ASL/12AWFSL

Atlas 12AWFSL + RJ-6 Documentation

   Atlas 12AWFSL Alignment Lift Product Manual
