Atlas 412 12,000 lb 4-Post Lift + (2) RJ6 Jacks Combo

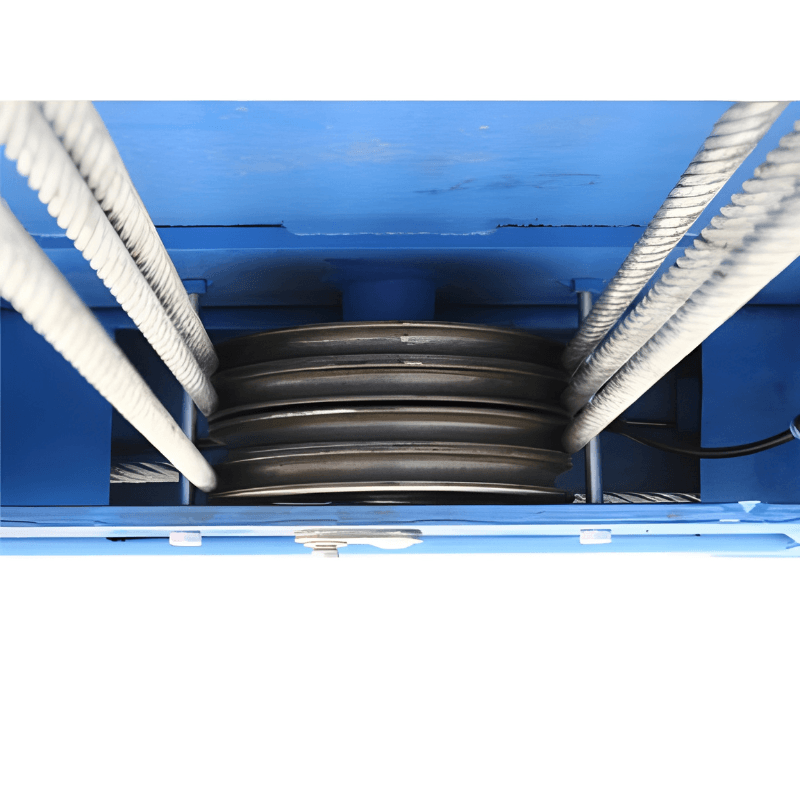

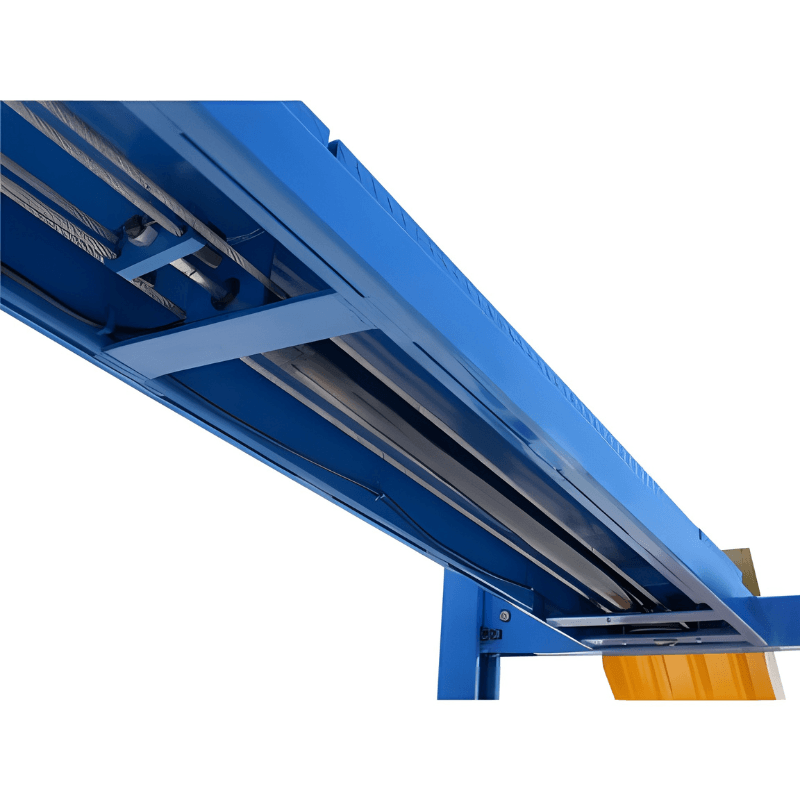

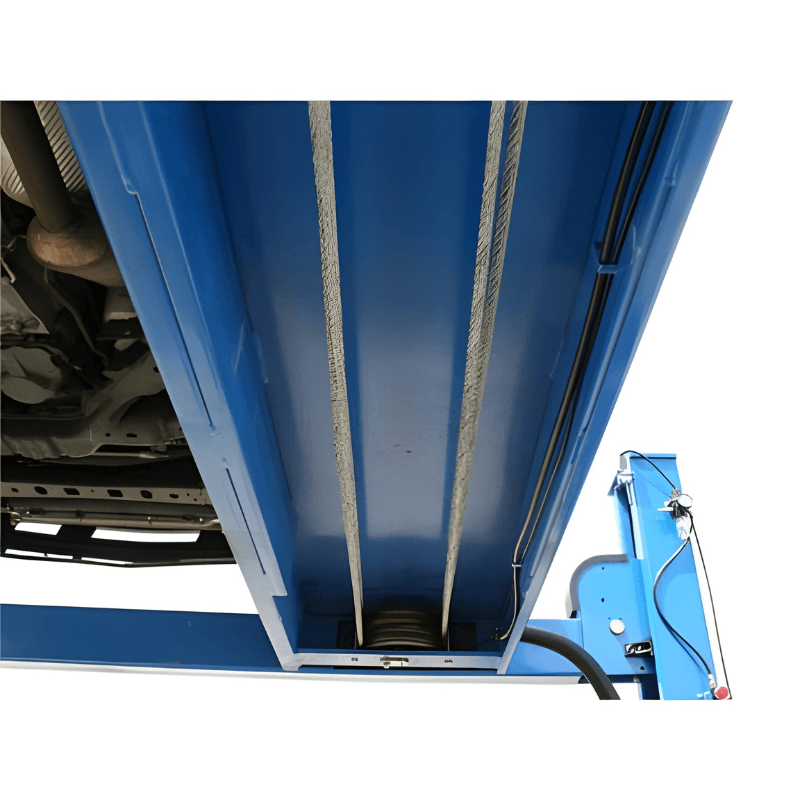

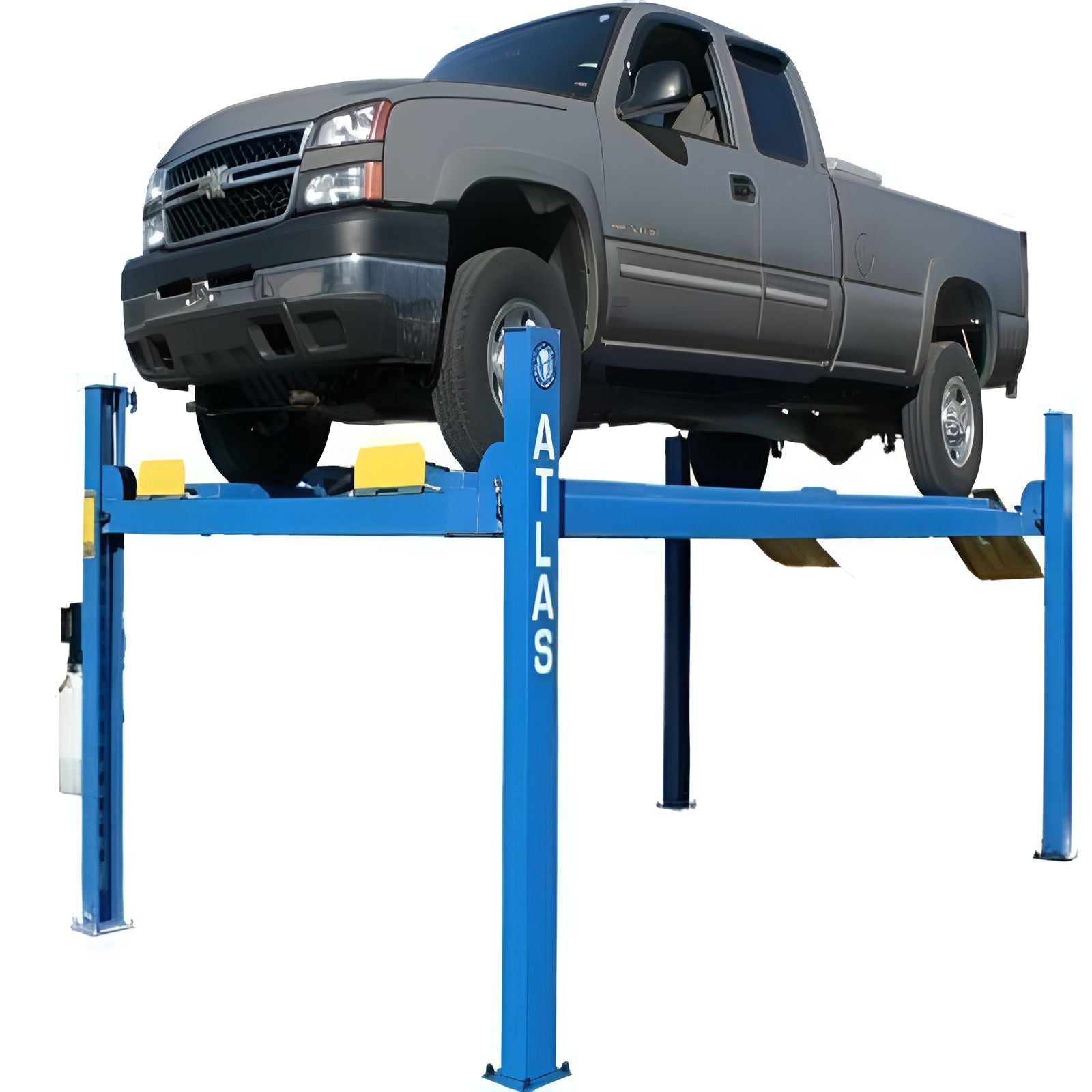

Your garage deserves a powerhouse duo that can handle any job. The Atlas 412 4 Post Lift boasts a 12,000 lb capacity, lifting vehicles to an impressive 77 3/4" high. With 194 1/2" long and 20" wide runways, it accommodates wheelbases up to 185". The high-strength cable system and underslung hydraulic cylinder, powered by a 220-volt single-phase unit, ensure smooth operation. This lift offers a generous 70 1/4" clearance under the runways, maximizing your workspace.

Paired with two Atlas RJ6 rolling bridge jacks, each with a 6,000 lb capacity, this combo is unbeatable. The RJ6 jacks offer a 21" maximum lifting height with adapters and adjust from 35" to 55" in width. They feature air/hydraulic operation (70-115 PSI required) and multiple safety lock positions. The 412's air-operated single-point lock release and powder-coated finish on both pieces provide durability and ease of use. Elevate your garage's capabilities today with this Atlas combo - it's the upgrade you've been waiting for.

4 Post Lift 412 Specifications:

• Capacity: 12,000 lb.

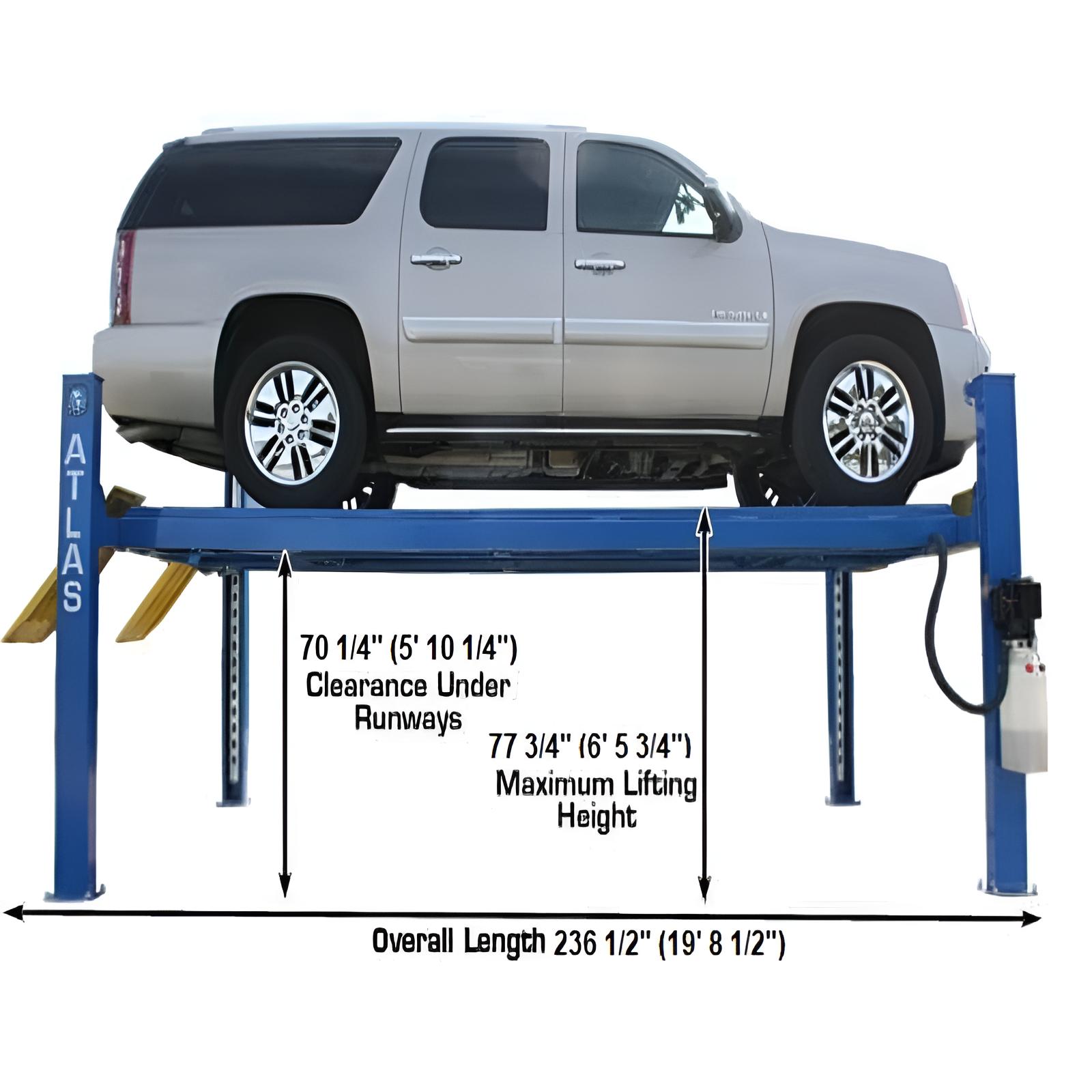

• Lifting Height: 77 3/4" (6' 5 3/4")

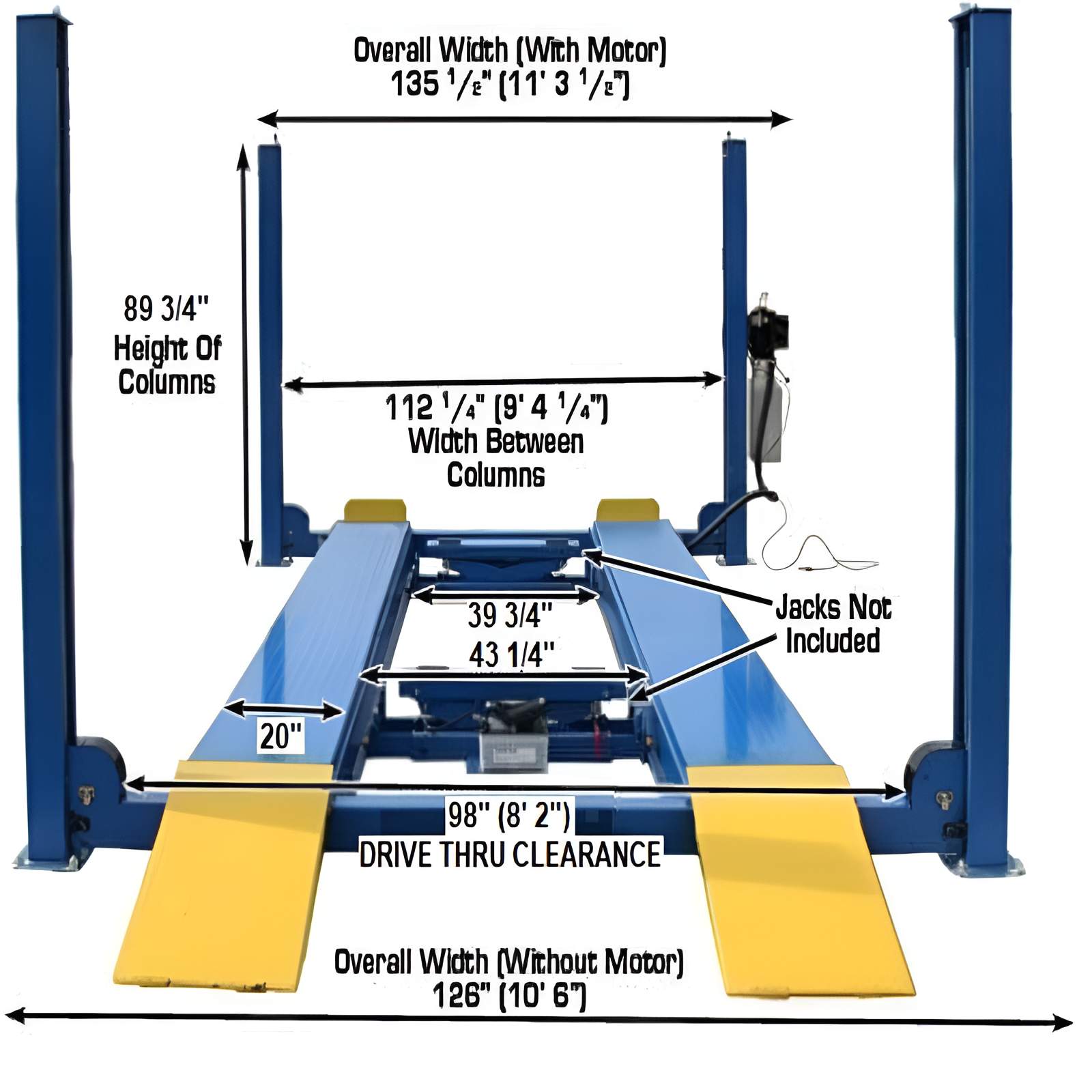

• Overall Width of Columns (Without Motor): 126 1/4" (10' 6 1/4")
• Overall Width of Columns (With Motor): 135 1/4" (11' 3 1/4")

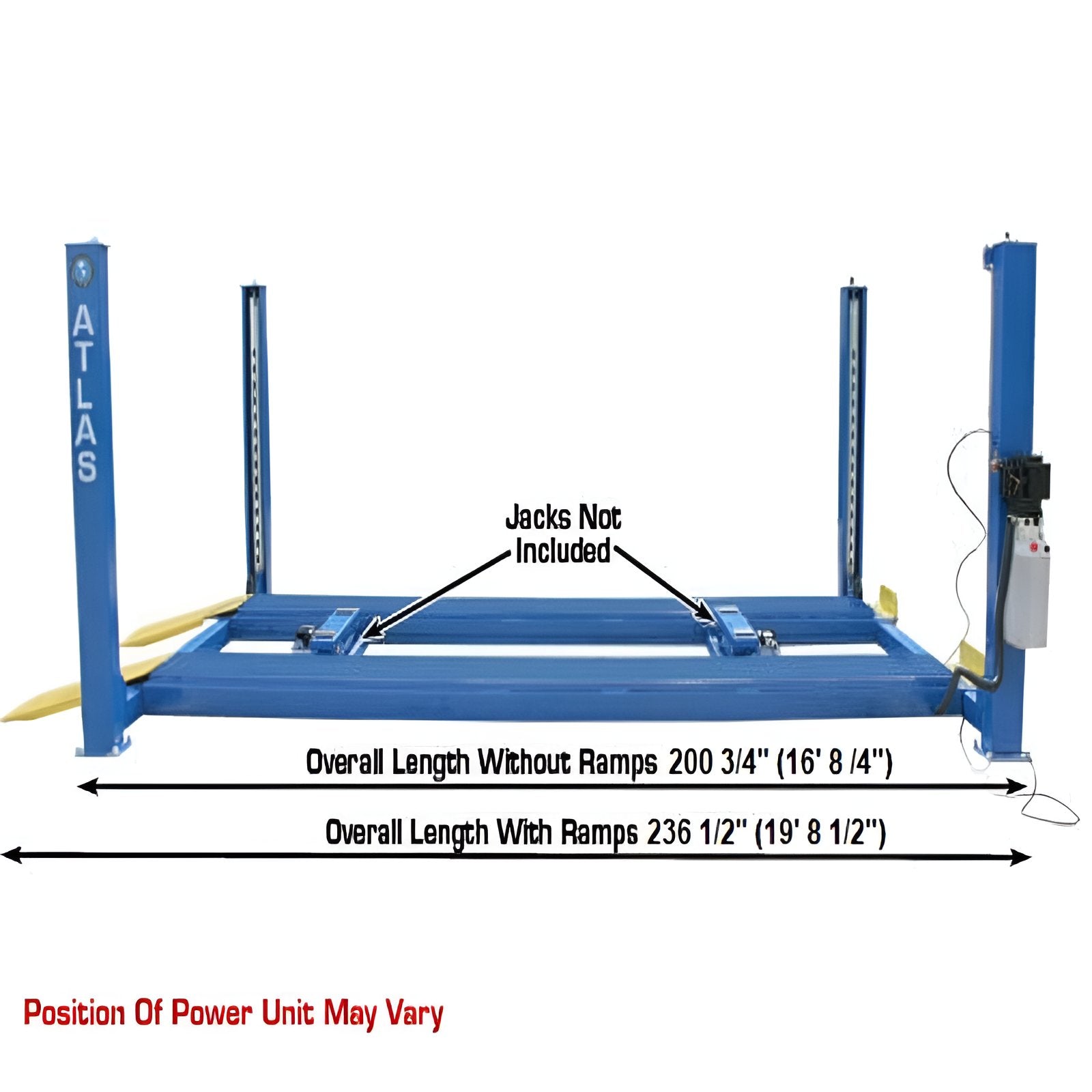

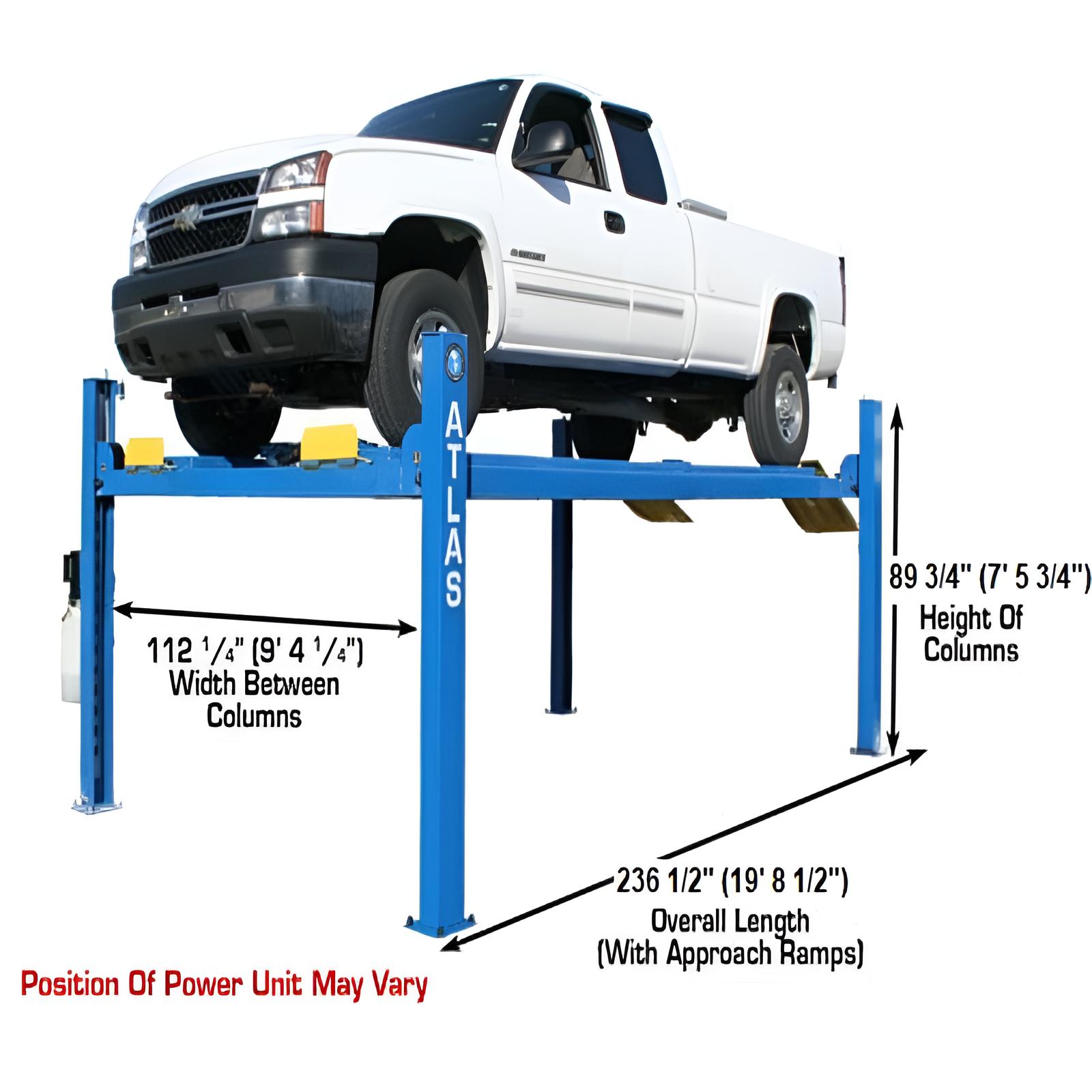

• Overall Length with Approach Ramp: 236 1/2" (19' 8 1/2")
• Length Between Columns: 183 1/4" (15' 3 1/4")
• Runway Length: 194 1/2" (16' 2 1/2")
• Runway Width: 20"
• Thickness of Runway: 7 1/2"
• Width Between Runways: 43 1/4" (w/ Rail 39 3/4")
• Outside Runway to Outside Runway: 83 1/4" (6' 11 1/4")

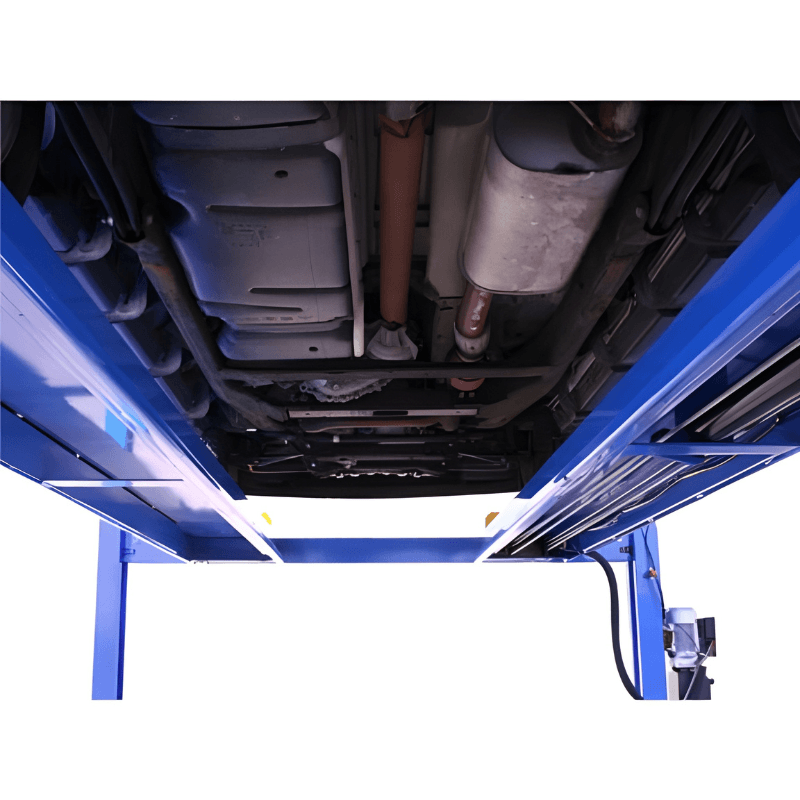

• Clearance Under Runways: 70 1/4" (5' 10 1/4")

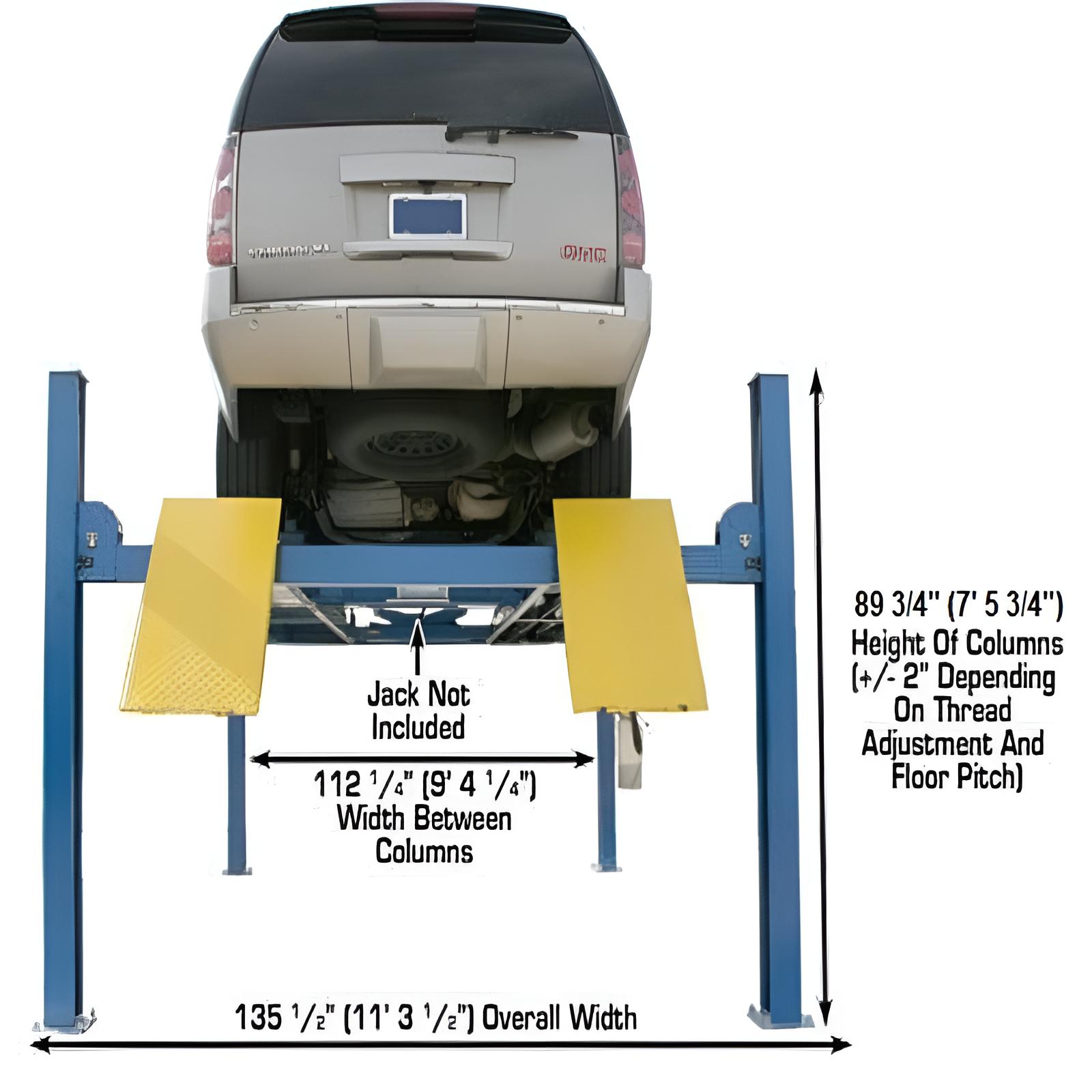

• Clearance Between Columns: 112 5/8" (9' 4 5/8")

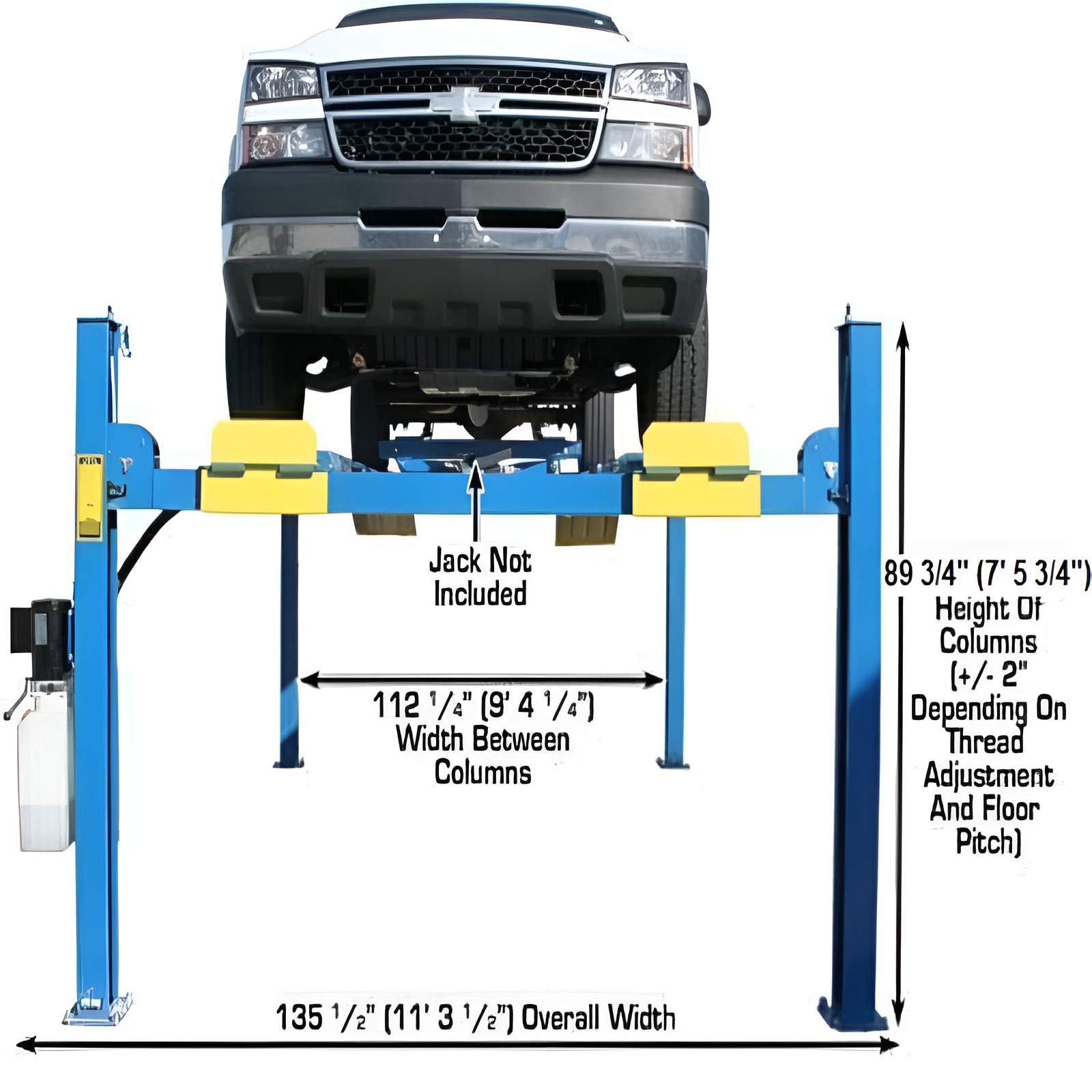

• Height of Columns: 89 3/4" (7' 5 3/4")
• Maximum Wheel Base: 185" (15' 5")
• Drive Thru: 98" (8' 2")
• Air Requirement: 85-115 PSI (External Air Supply Required)

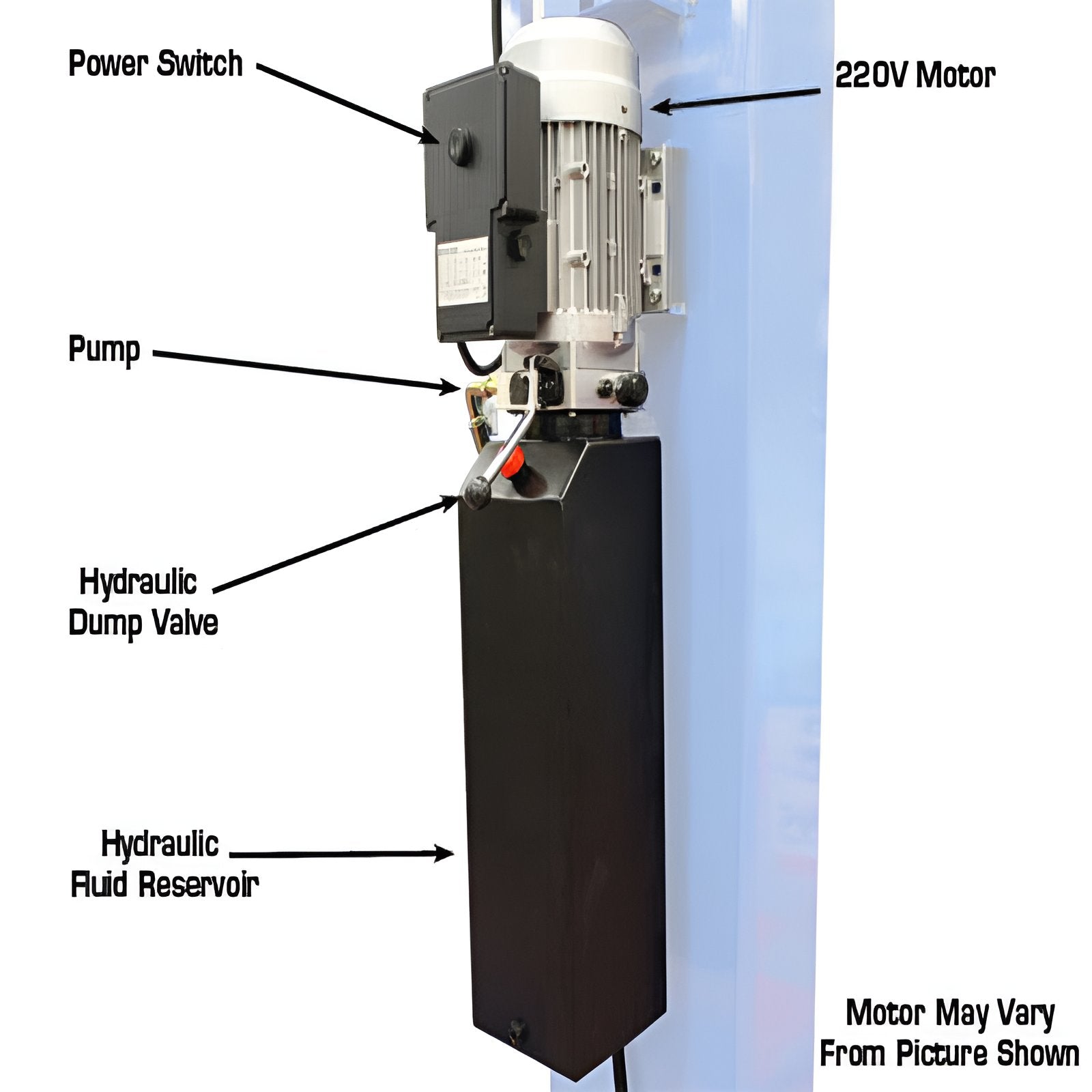

• Motor/Electrical Requirement: 220 volt single (1) phase. A 30 amp breaker is recommended
• Oil Requirement: 3-5 Gallons AW32/AW46 (Not Included)

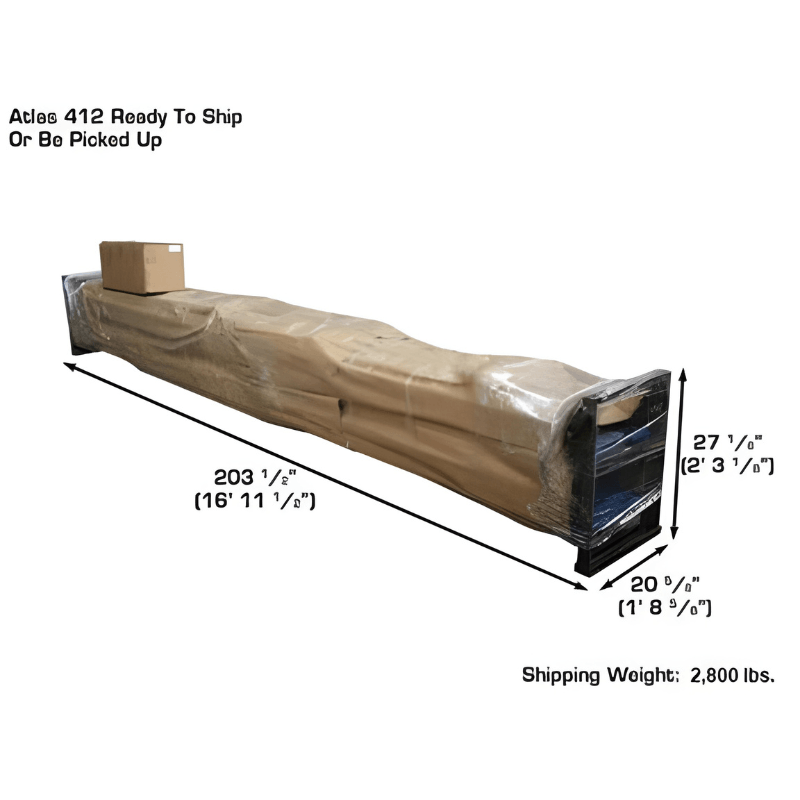

• Shipping Weight: 2,800 lbs.
• Concrete Requirement: Minimum of 6" with a 3000 psi rating

412 12,000 lb 4 Post Lift Special Features:

• 12,000 lb. Capacity
• Heavy Duty, Commercial Grade
• Extra Tall, Extra Wide & Extra Long
• Diamond Plated Runways

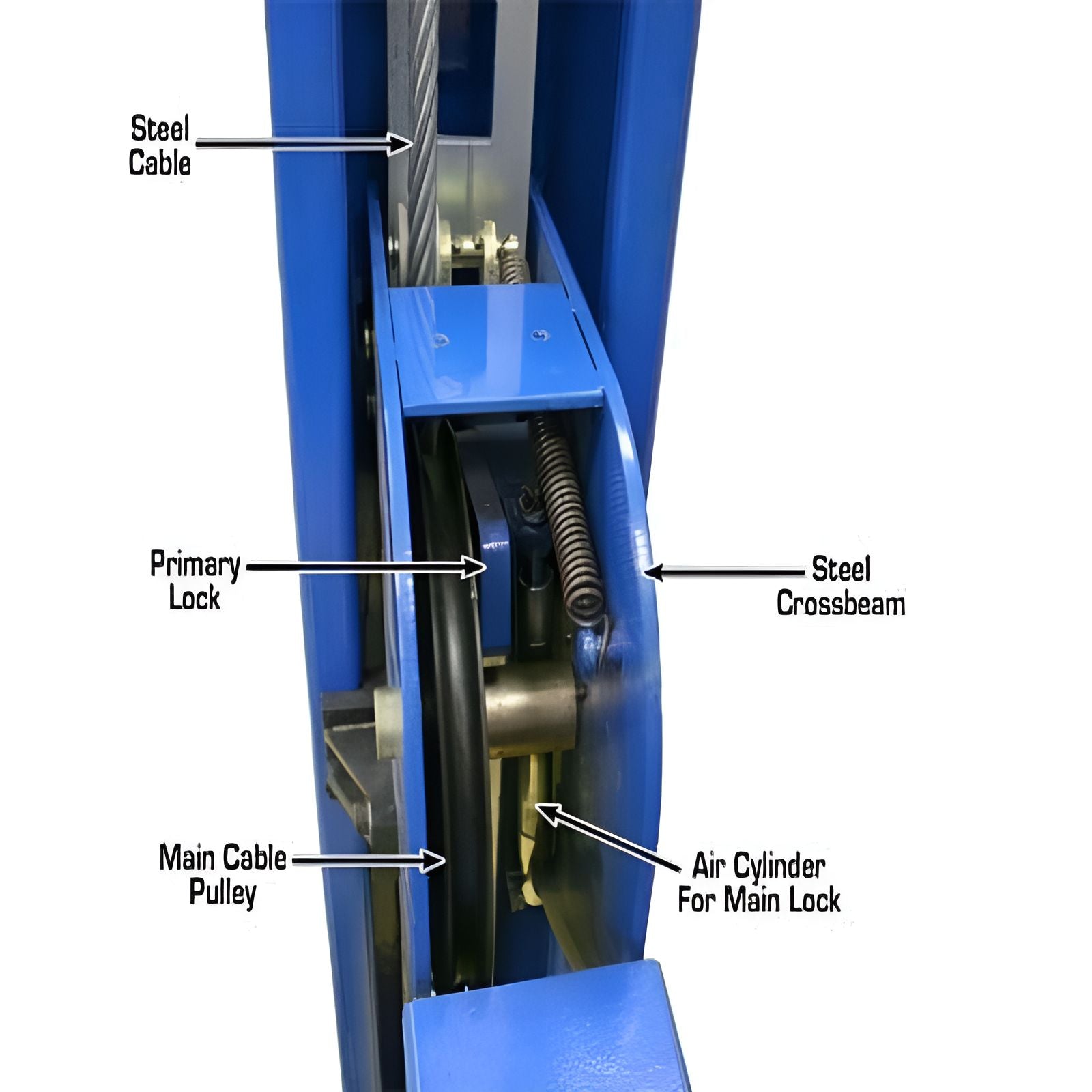

• Air Operated Single Point Lock Release (External Air Supply Required)
• Lock Ladder Design
• Double Lock Safety System
• Powder Coat Finish

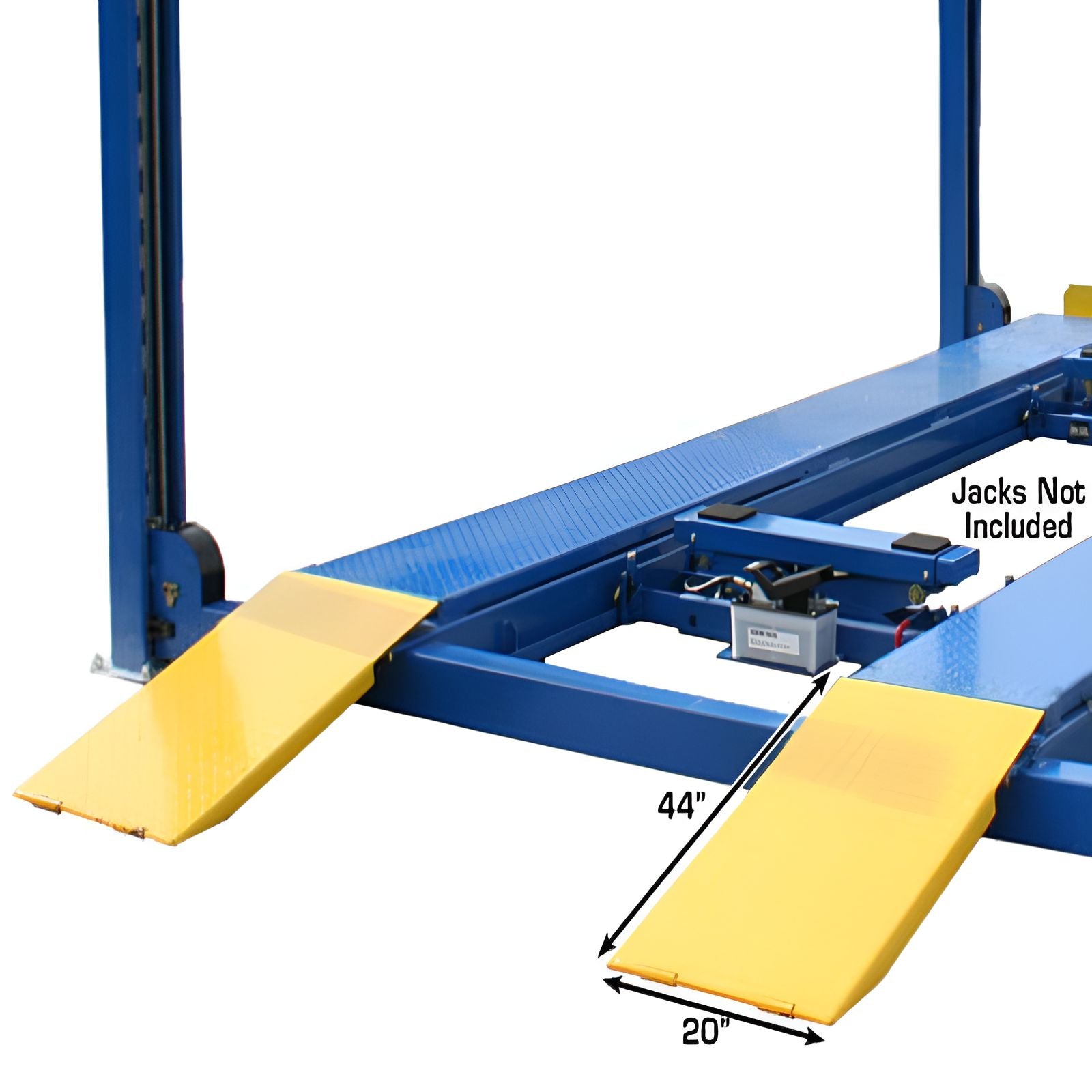

• Steel Approach Ramps Included
• Additional Drive off Ramps Available (Sold Separately)
• Runway Extensions Available (Sold Separately)

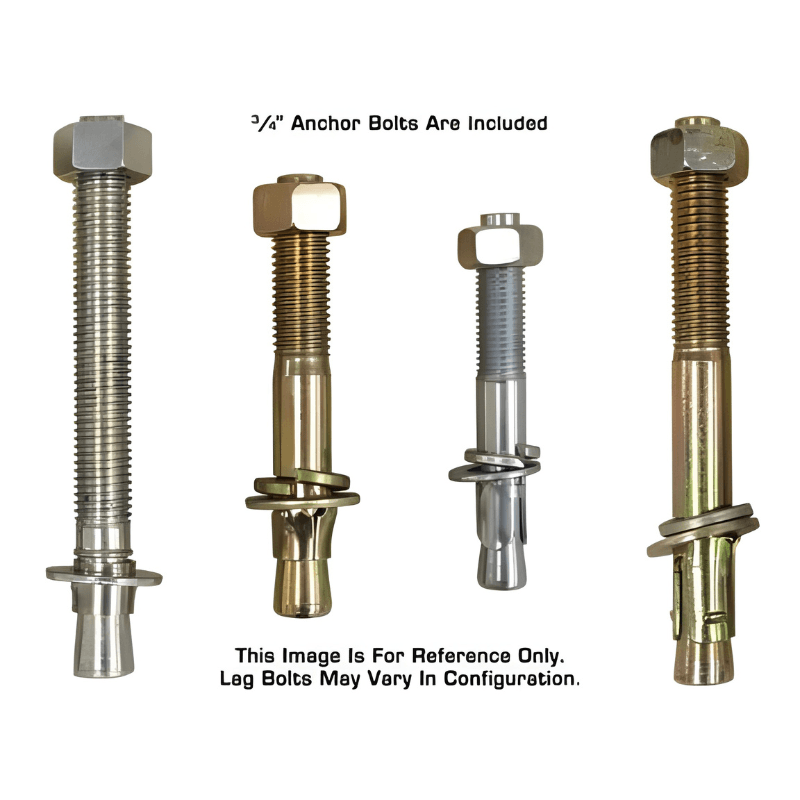

• Mounting Hardware Included
• 220volt/1phase Electric Operation (Requires a 30amp Breaker)
• Shipping Weight: 2,800 lbs.
• 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

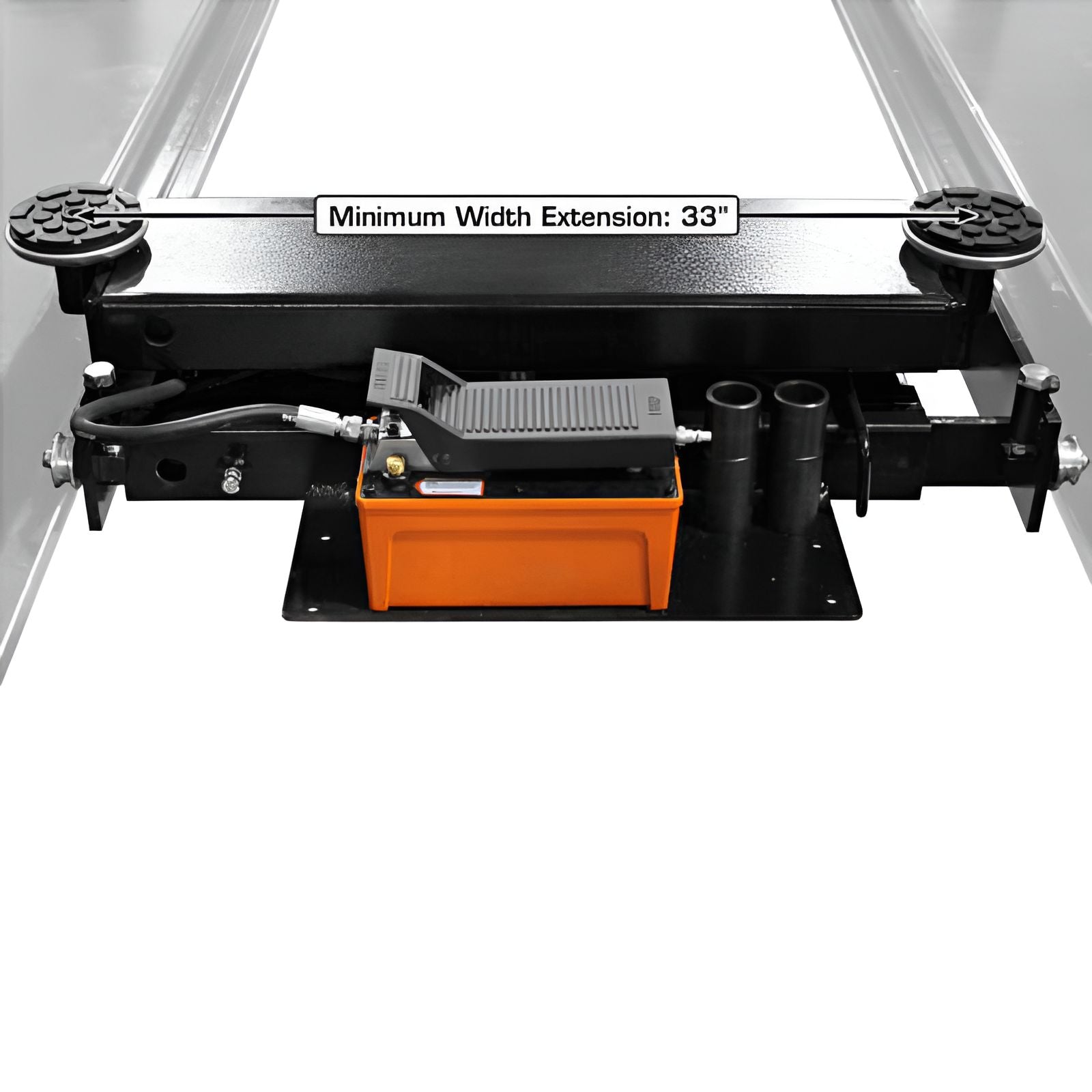

RJ6 Rolling Jack Specifications

• Qty: 2
• Maximum Capacity: 6,000 lb.

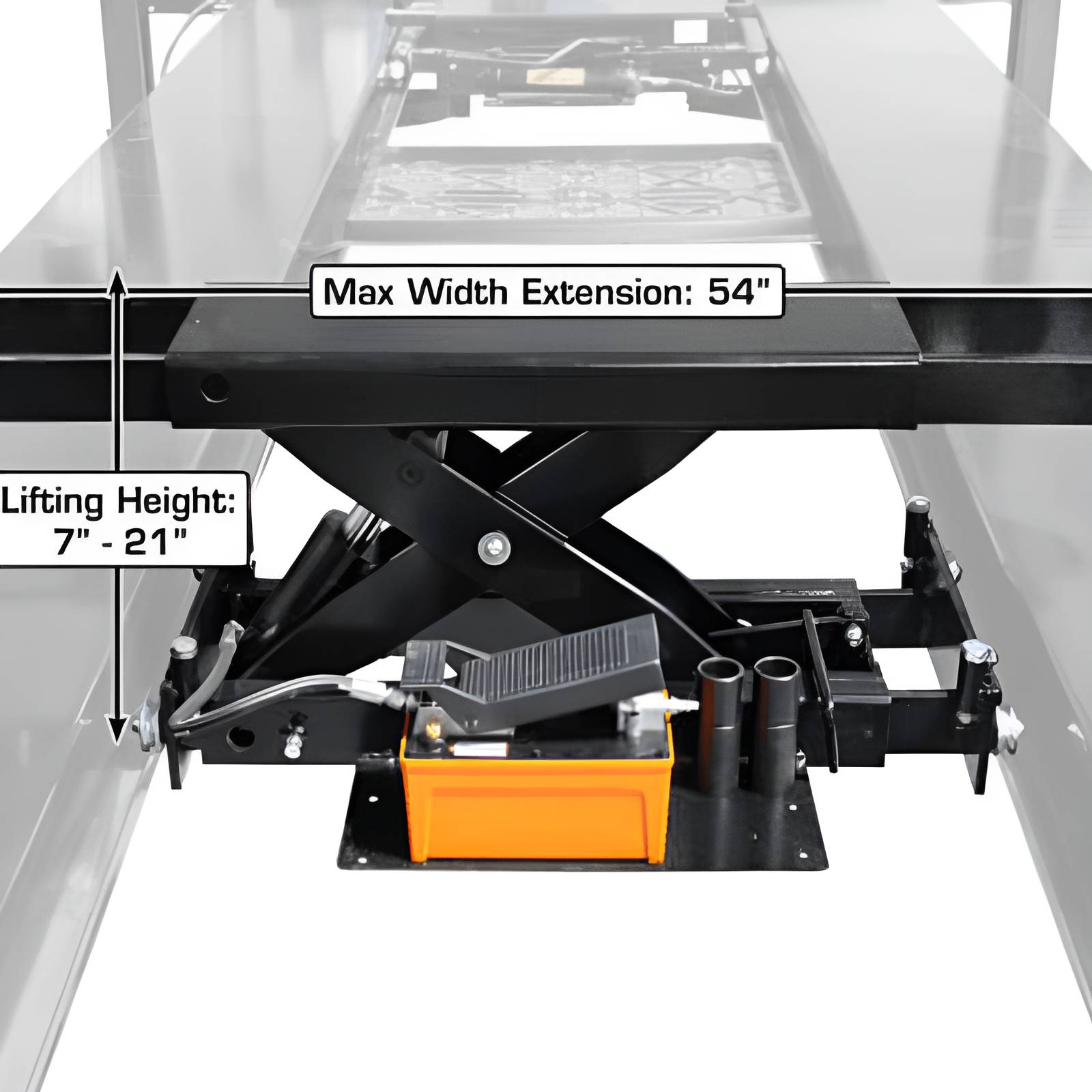

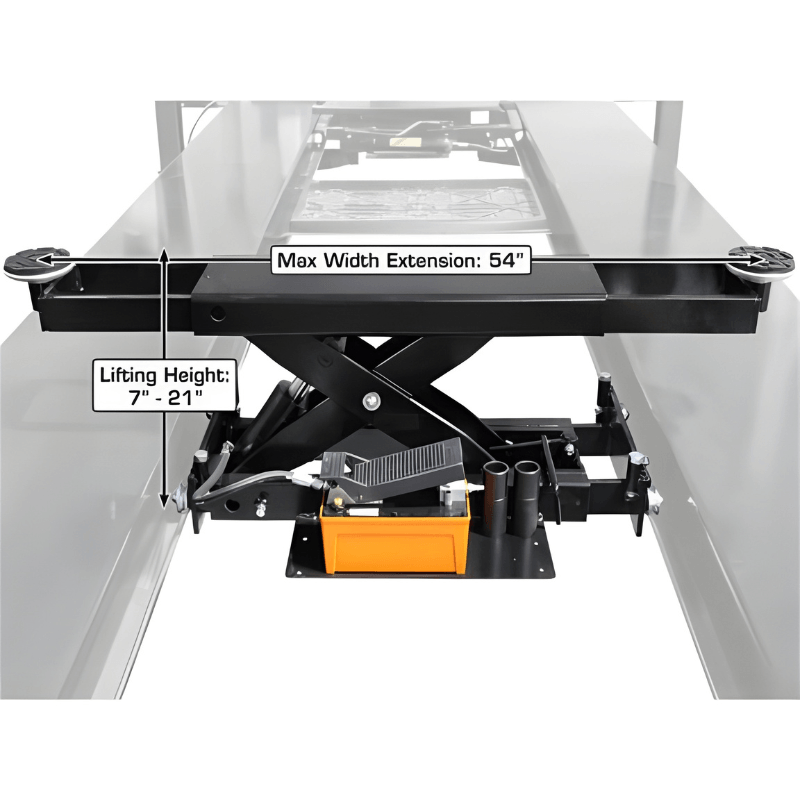

• Maximum Width: 55" (4' 7")

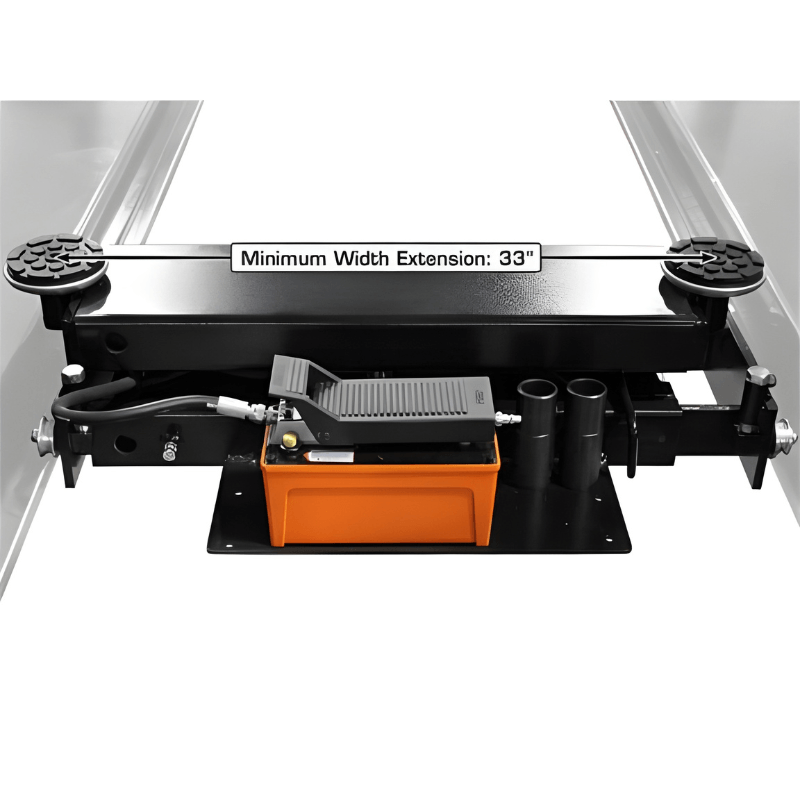

• Minimum Width: 35" (2' 11")
• Distance Between Runway Capability: 32"-52"

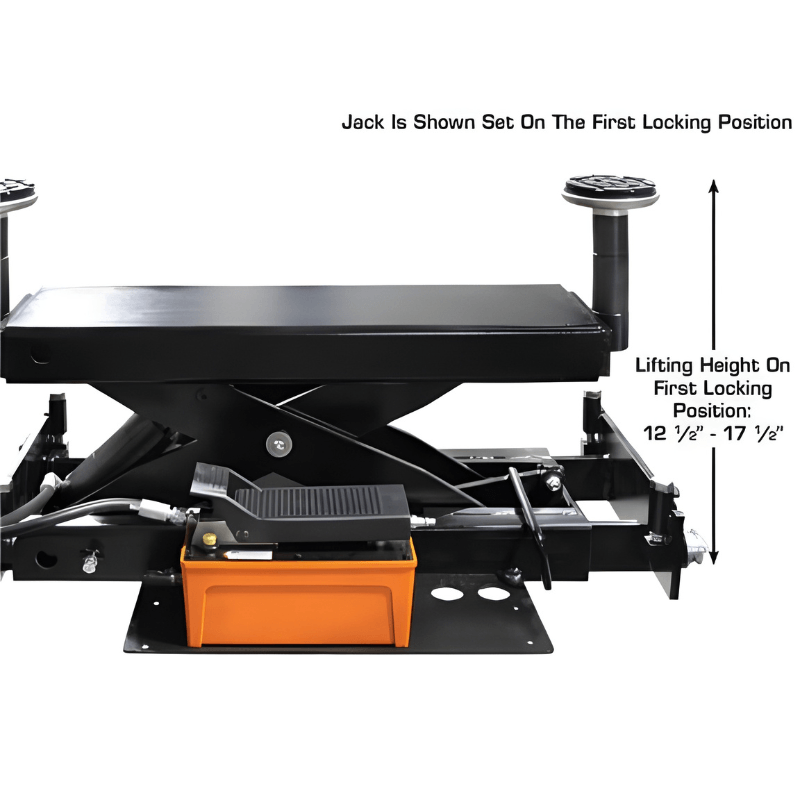

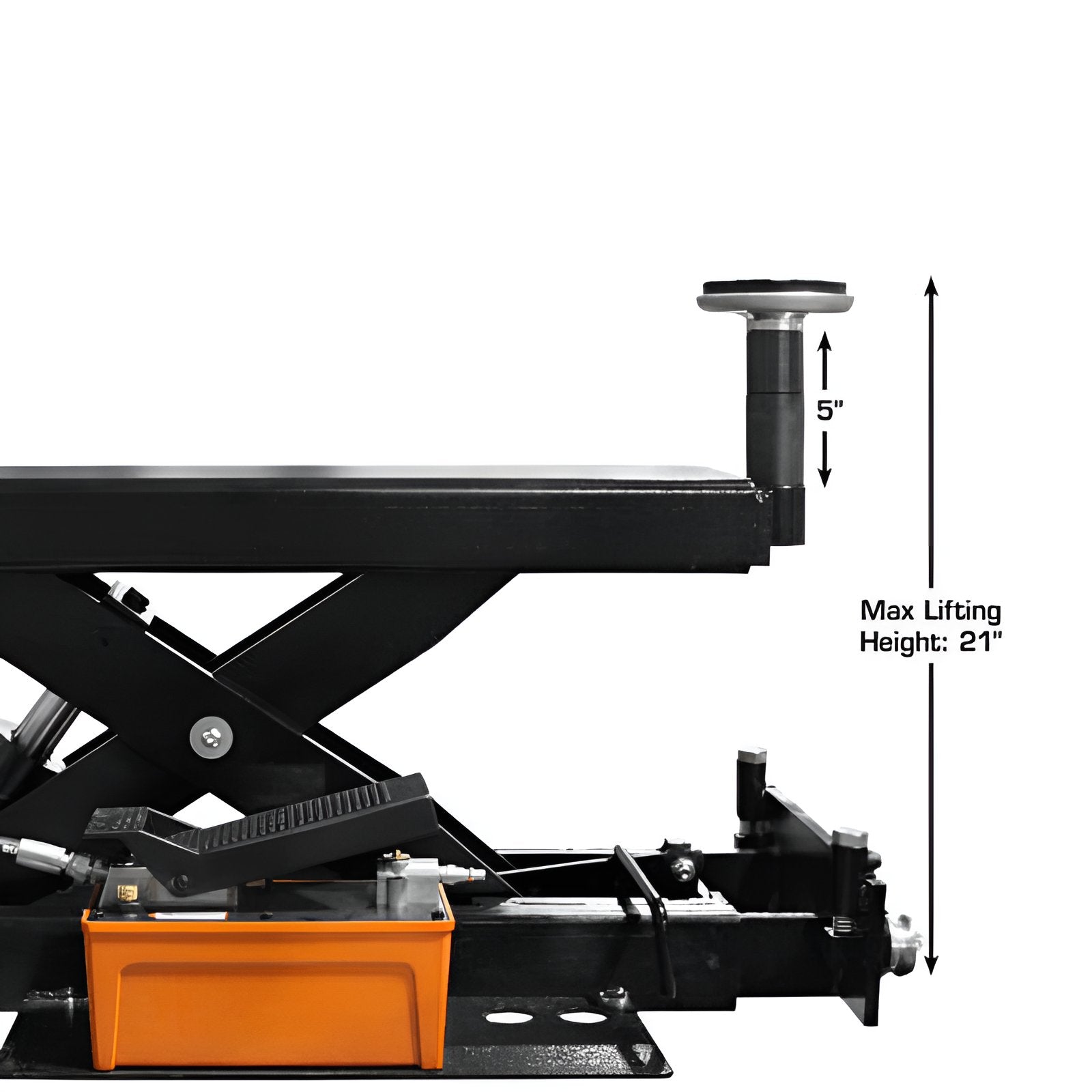

• Maximum Lifting Height (With Adapters): 21" (1' 9")
• Air Requirement: 70-115 PSI

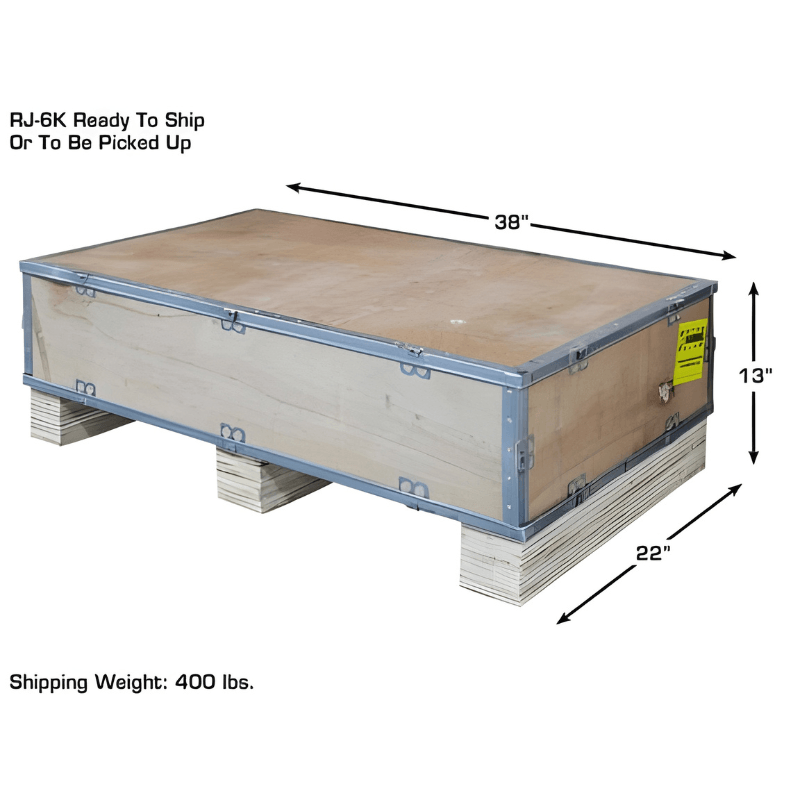

• Shipping Weight: 350 lbs.

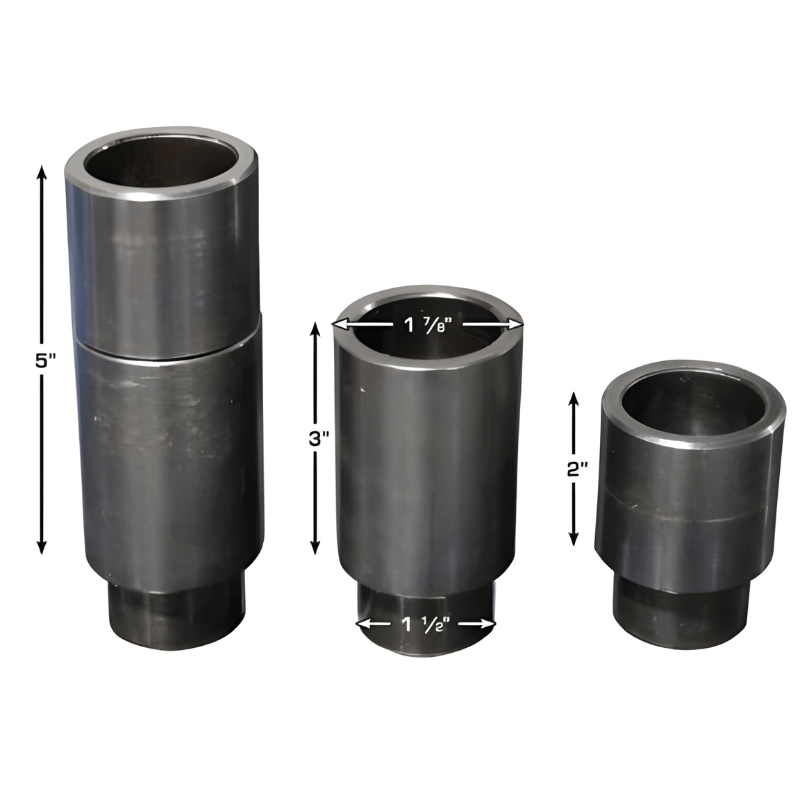

• Adapter Heights: 2 Each 2", 3"
• Arm Hole/Adapter Peg Size: 1.5"

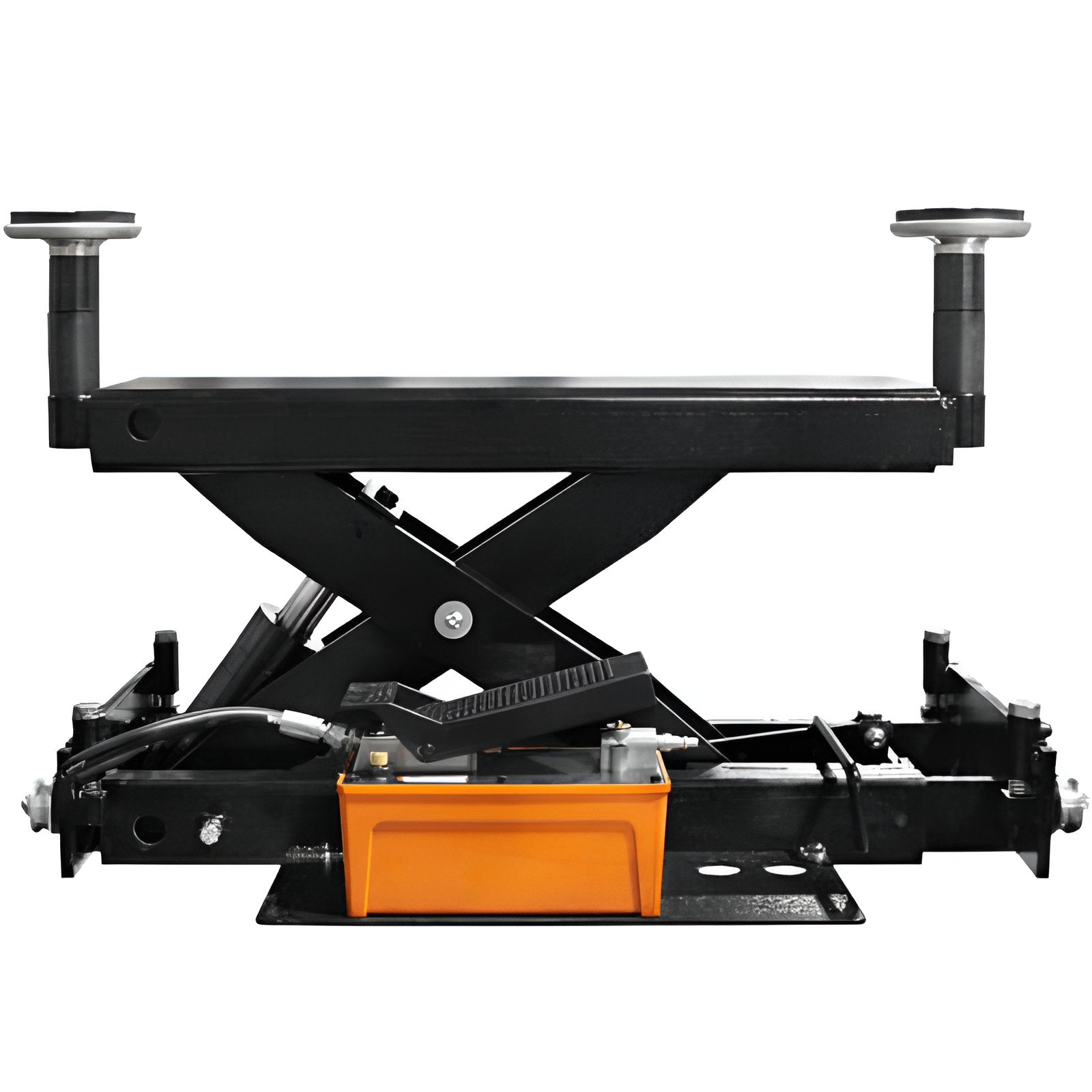

RJ6 Rolling Jack Special Features

• 6,000 lb. Capacity
• Air/Hydraulic Operated (external air supply required)

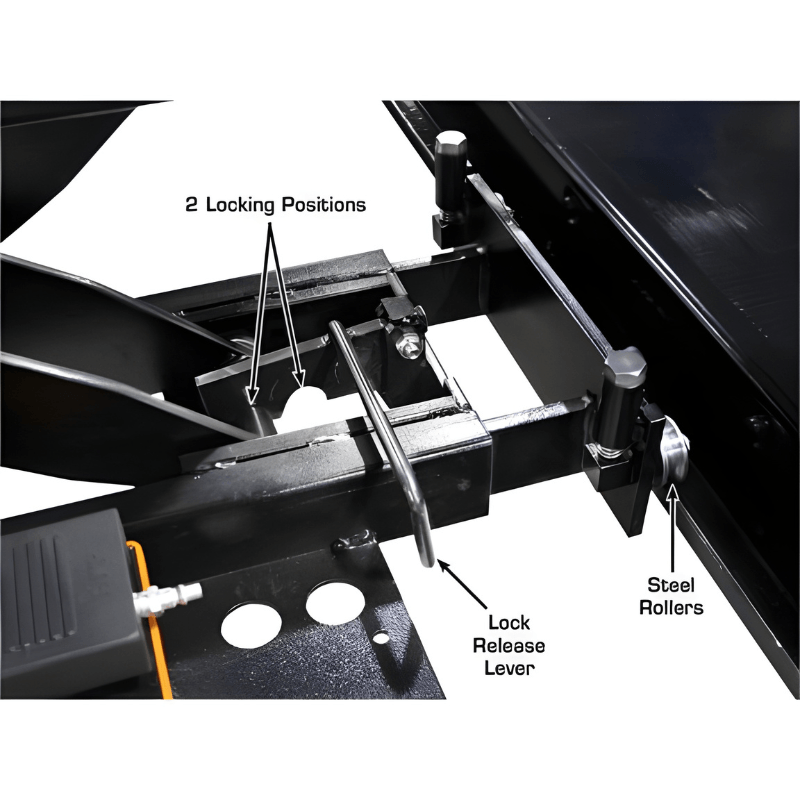

• Multiple Safety Lock Positions
• Compact Size with Low Profile

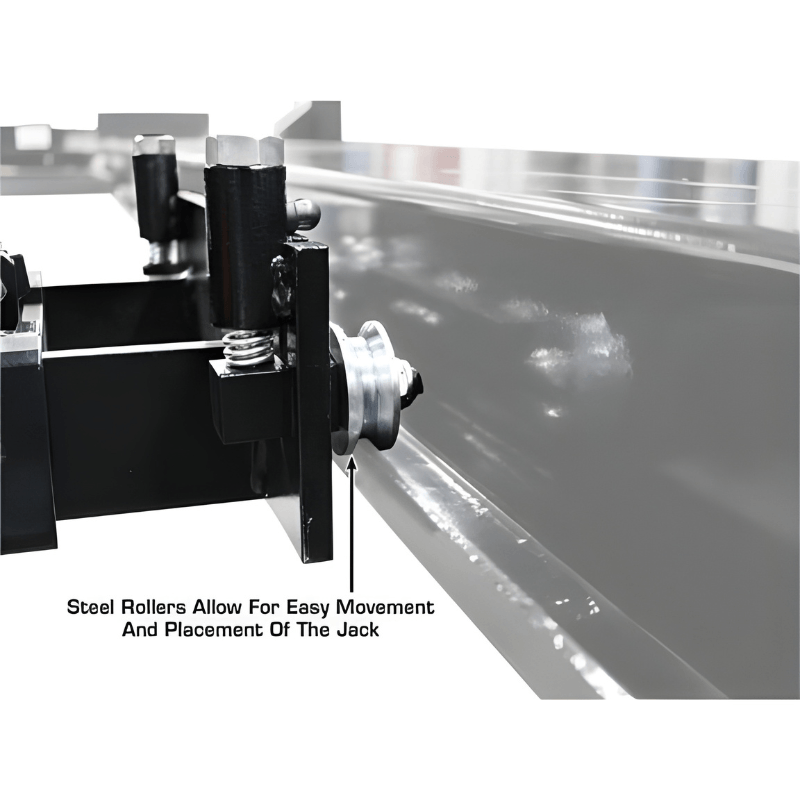

• Smooth Rolling Action
• Scissor mechanism allows for level lifting
• Powder Coated Finish
• 4 Piece Truck Adapter Set Included
• 1 Year Parts Only Warranty

Atlas 412 Documentation:

   Atlas 412 4 Post Lift Product Manual

This Item has a FLAT RATE SHIPPING FEE: $899

*Due to Extra Large Size, product cannot be delivered to a freight terminal.

Warehouse Pickup locations (No shipping charge):

• Atlanta, GA
• Dallas, TX
• Indianapolis, IN
• Phoenix, AZ
• Somerset, NJ
