Atlas 9OHSC 2-Post Lift + Lawn Mower Adapter Combo

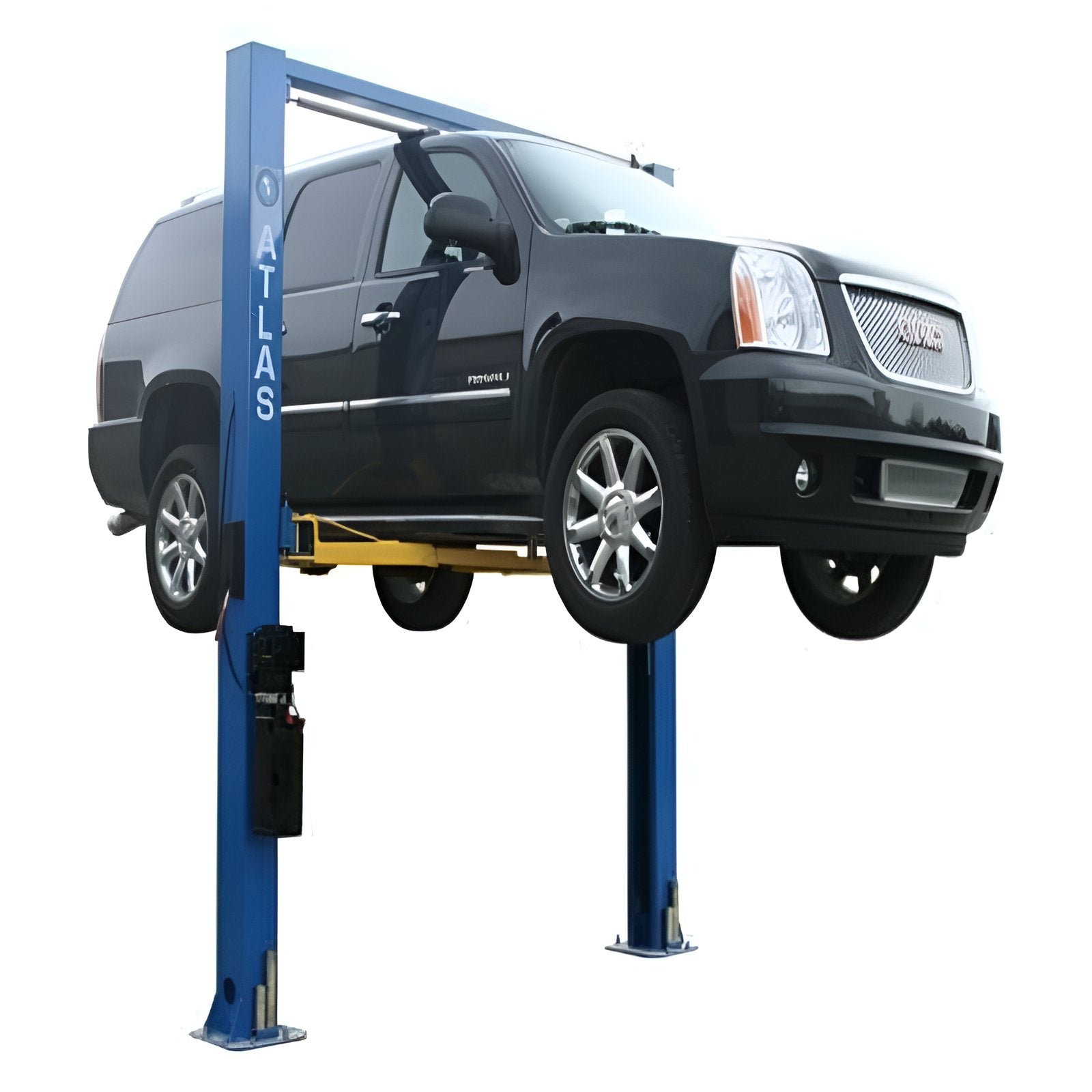

Struggling to lift more than just your spirits? The 9OHSC 2-Post Lift + Lawn Mower Adapter Combo by Atlas has got your back, literally. No more awkward balancing acts trying to lift everything from SUVs to lawnmowers. This 9,000 lb. capacity lift can handle everything, from your compact cars to your oversized trucks, thanks to its single-piece 11' 10" column that keeps things sturdy. Whether it's the 3-stage front arms or the dual hydraulic chain-drive cylinders, lifting has never been so simple.

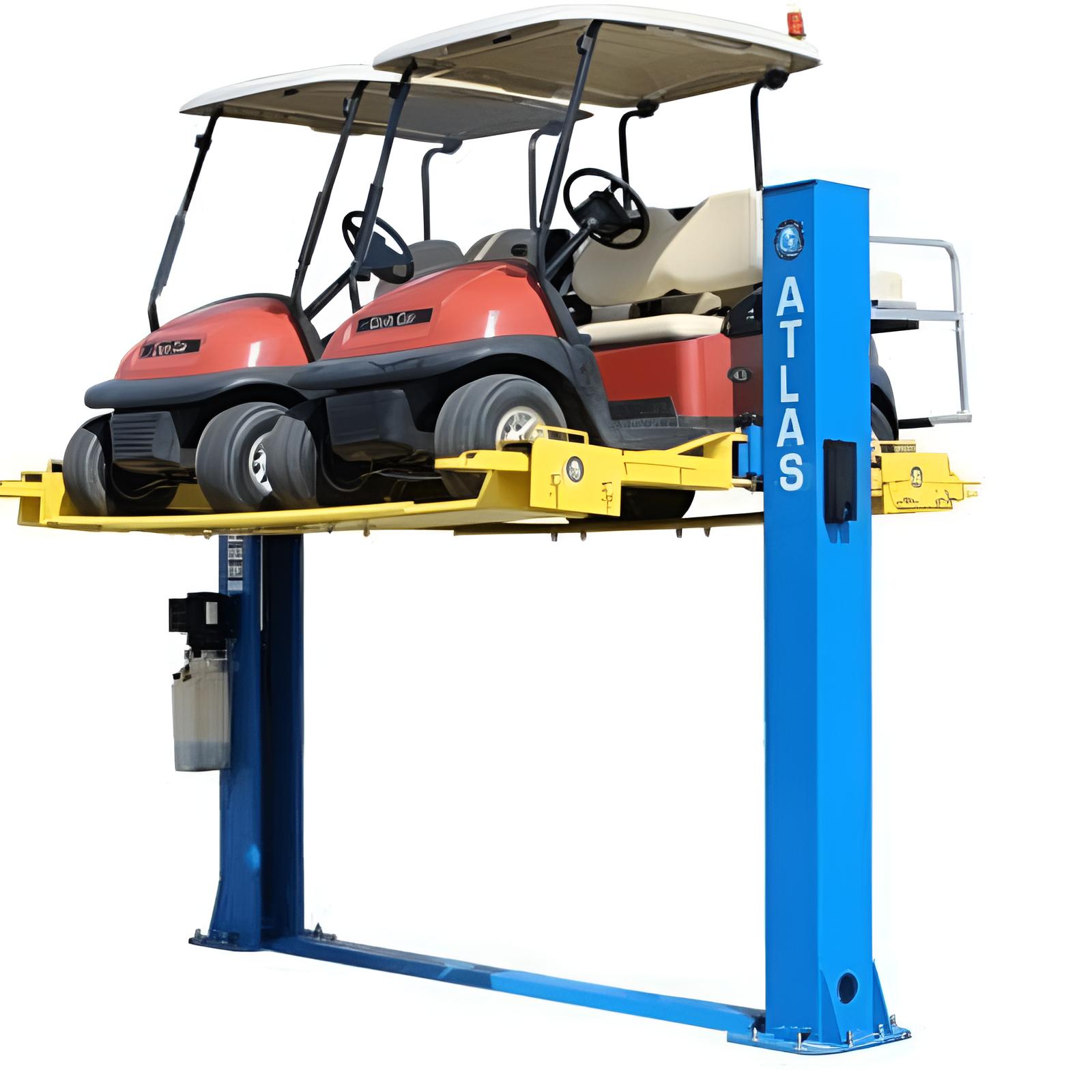

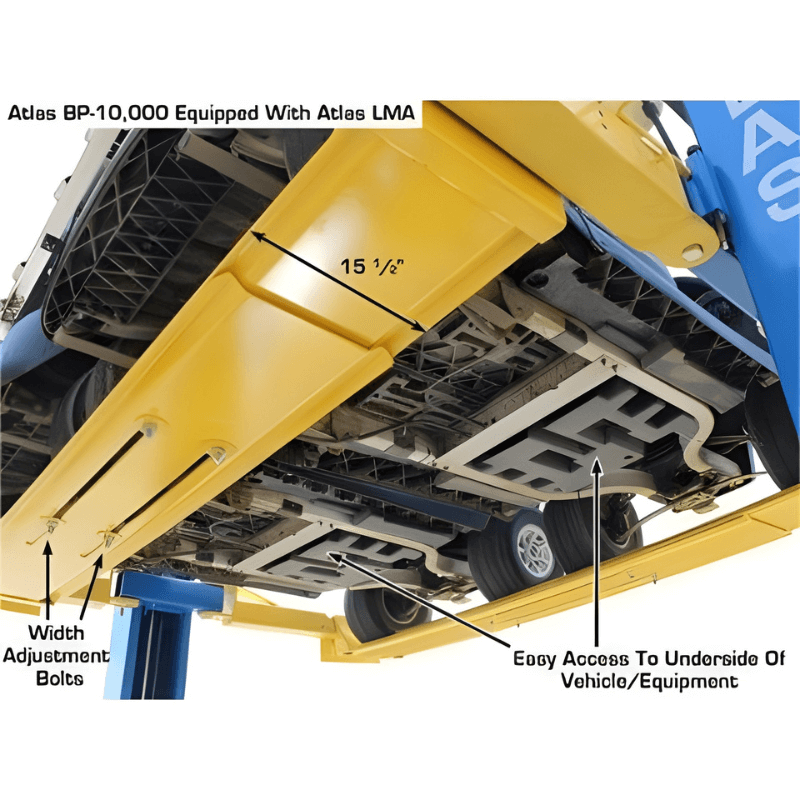

And when it comes to lawn mowers, the Lawn Mower Adapter (LMA) is the game changer. With a capacity of up to 5,000 lbs., adjustable wheel platforms, and steel plates that make sure your vehicle is perfectly balanced, it takes the hard work out of maintenance. All you need is the right setup and you’ll be lifting in no time!

2 Post Lift 9OHSC+LMA Specifications:

9OHSC-SS Specifications:

• Capacity: 9,000 lbs.

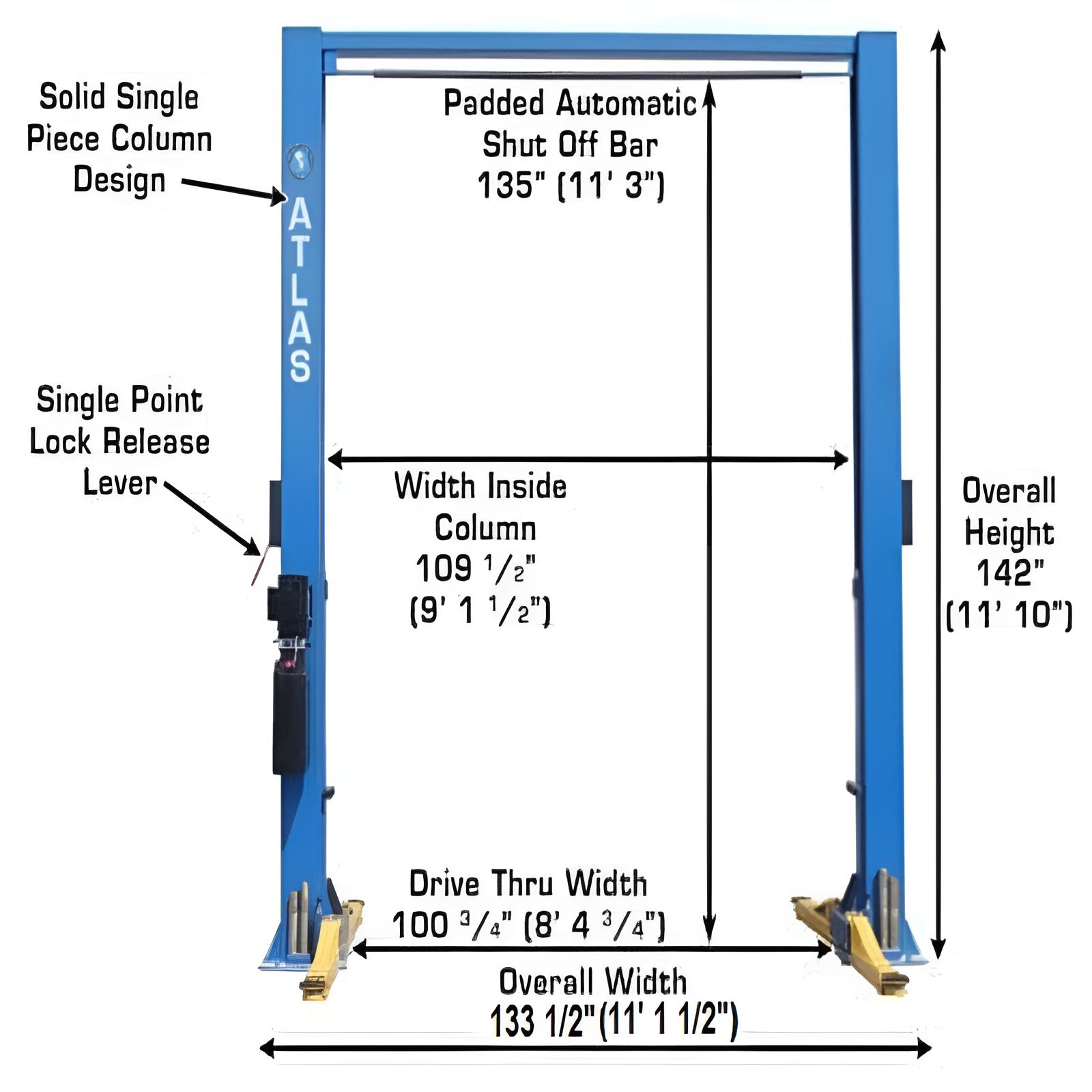

• Overall Height: 142" (11' 10")
• Overall Floor Width: 133 1/2" (11' 1 1/2")

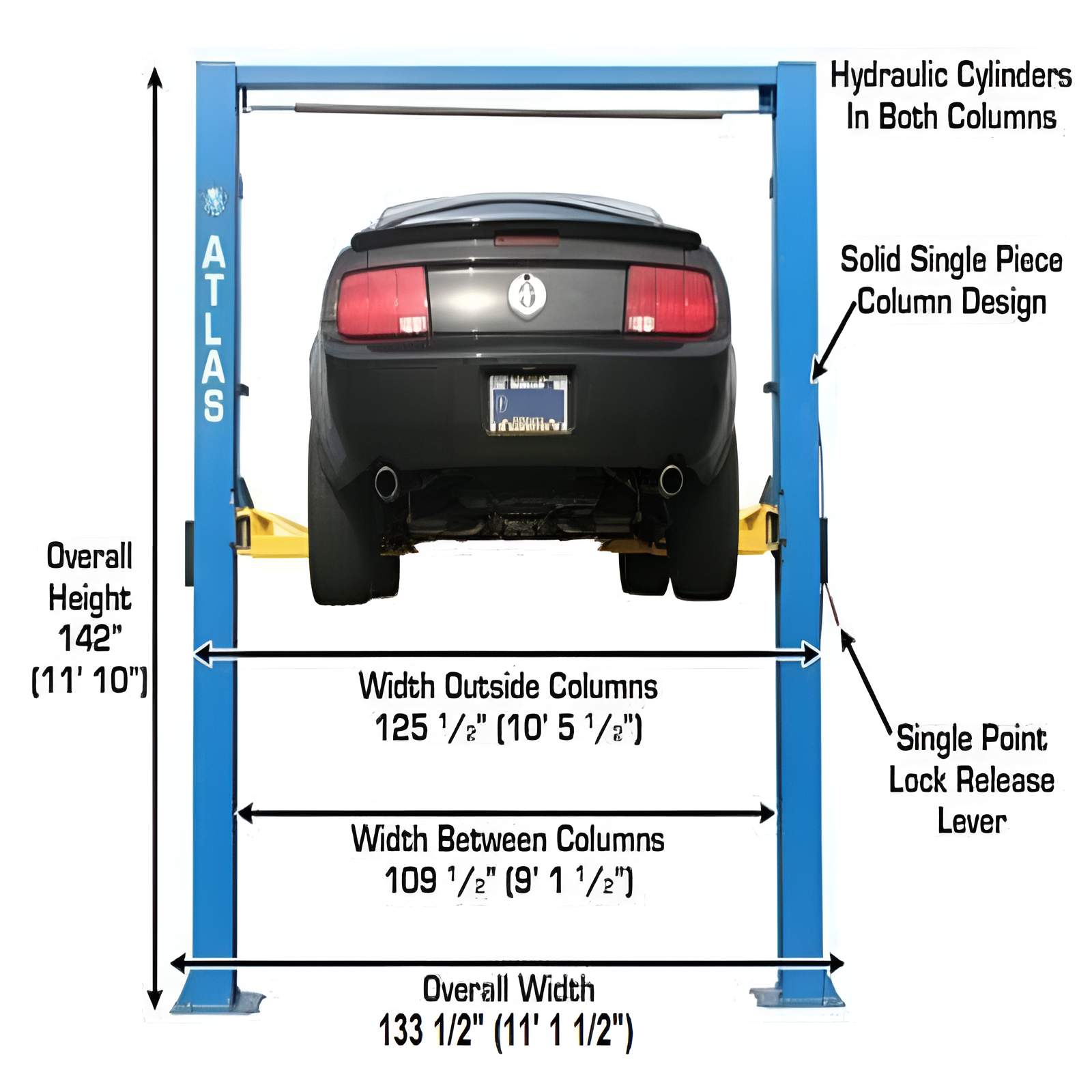

• Outside Column to Outside Column: 125 1/2" (10' 5 1/2")

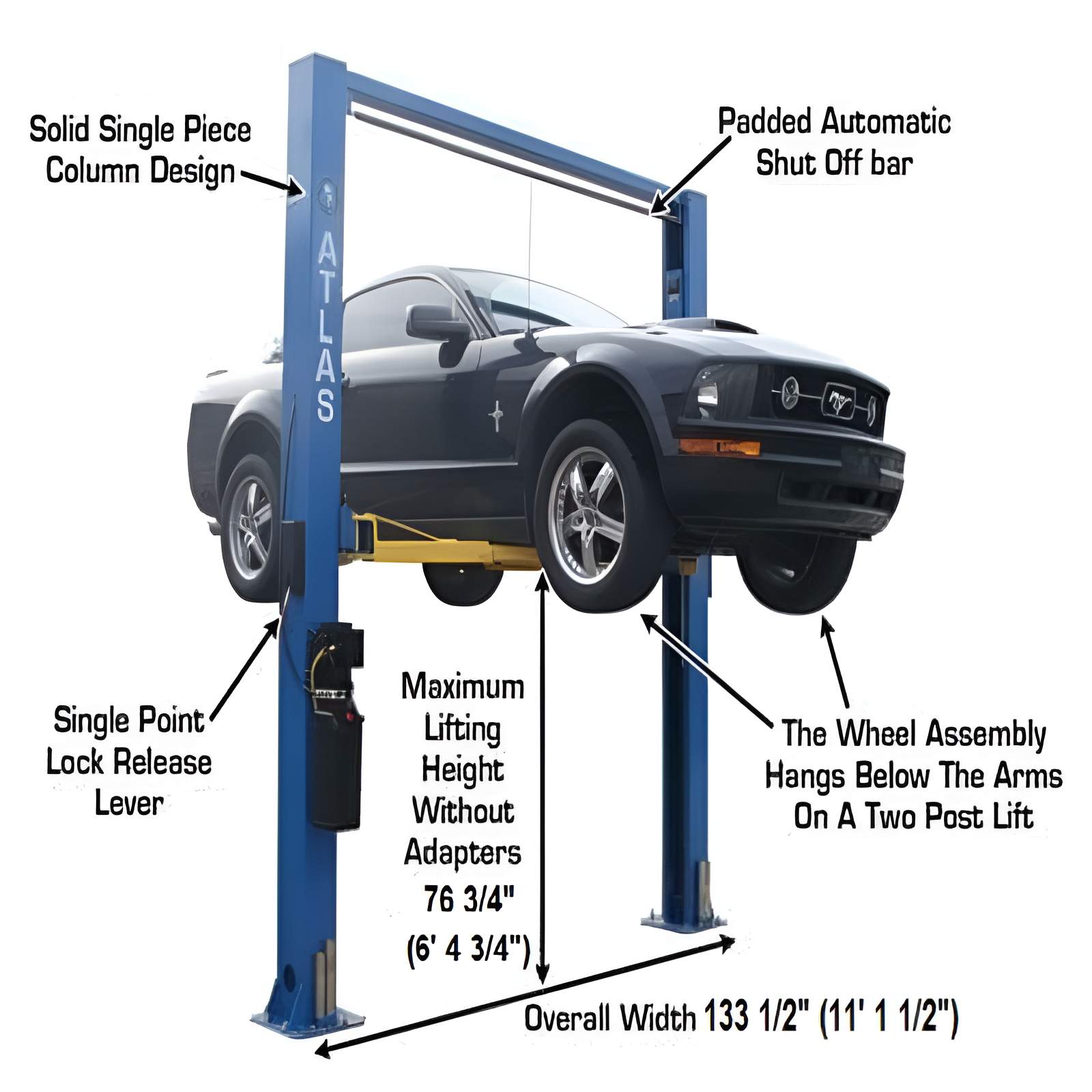

• Maximum Lift Height (Without Adapters): 76 3/4"

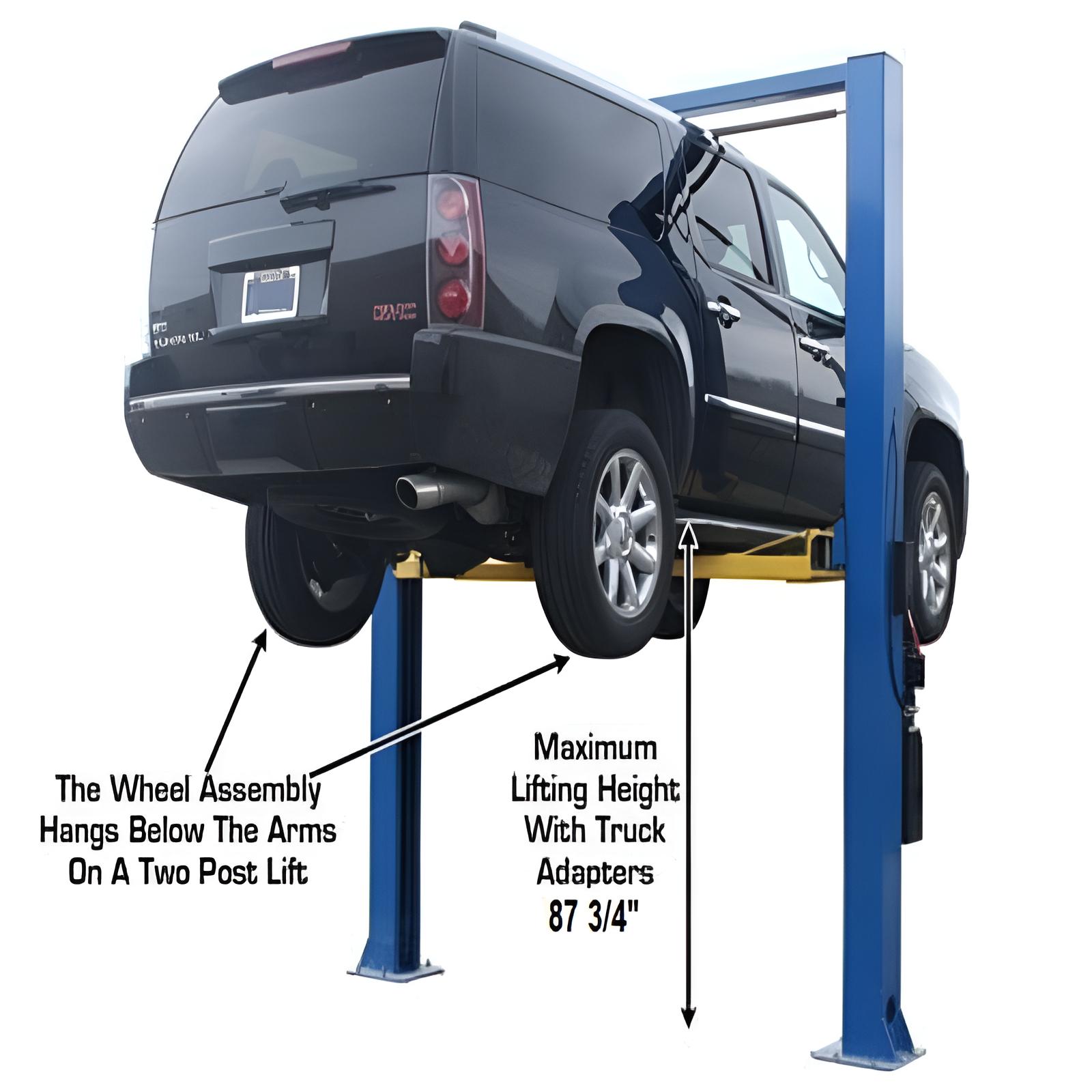

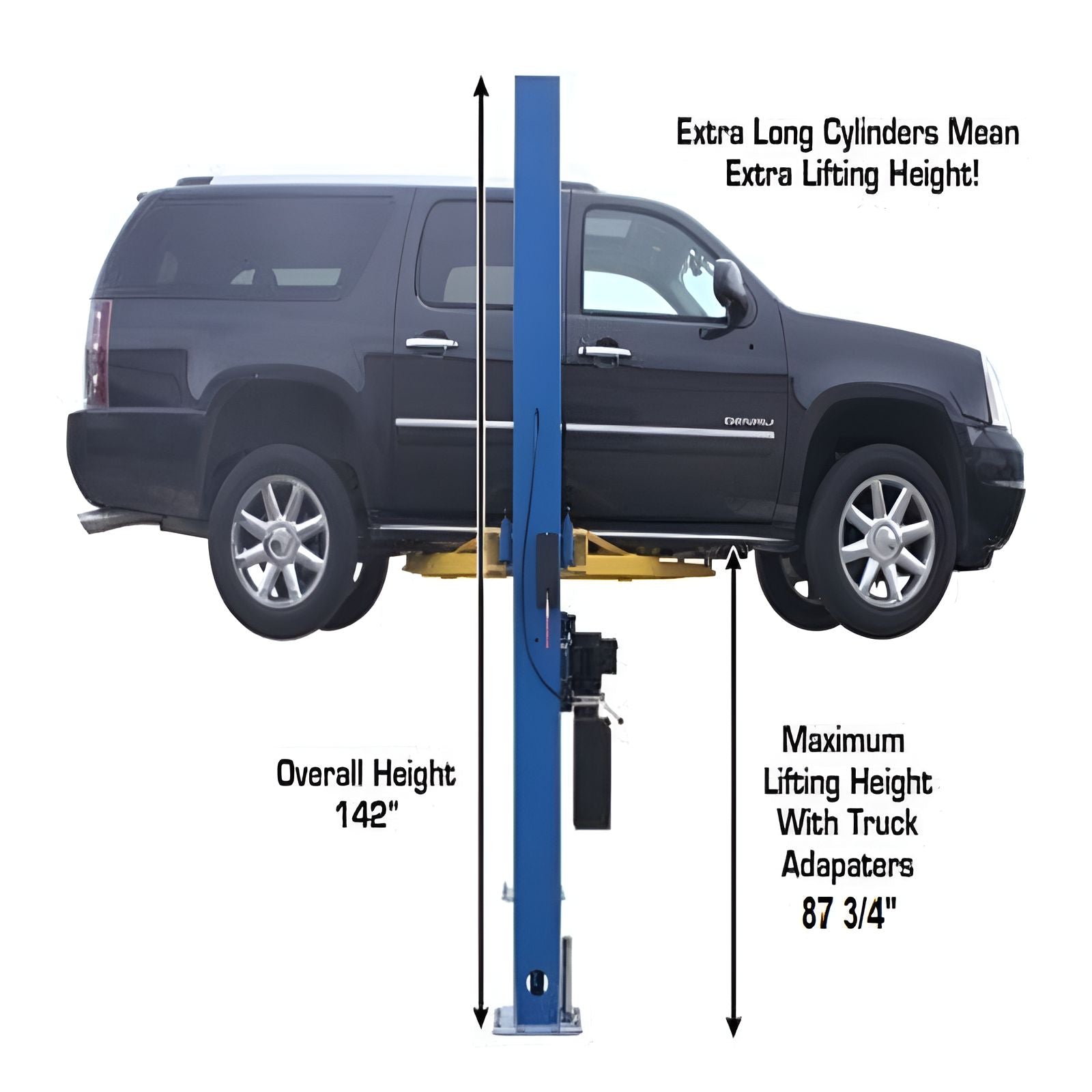

• Maximum Lift Height (With Adapters): 87 3/4"
• Minimum Arm Height: 4"
• Inside Column: 109 1/2" (9' 1 1/2")
• Drive Thru: 100 1/2" (8' 4 1/2")

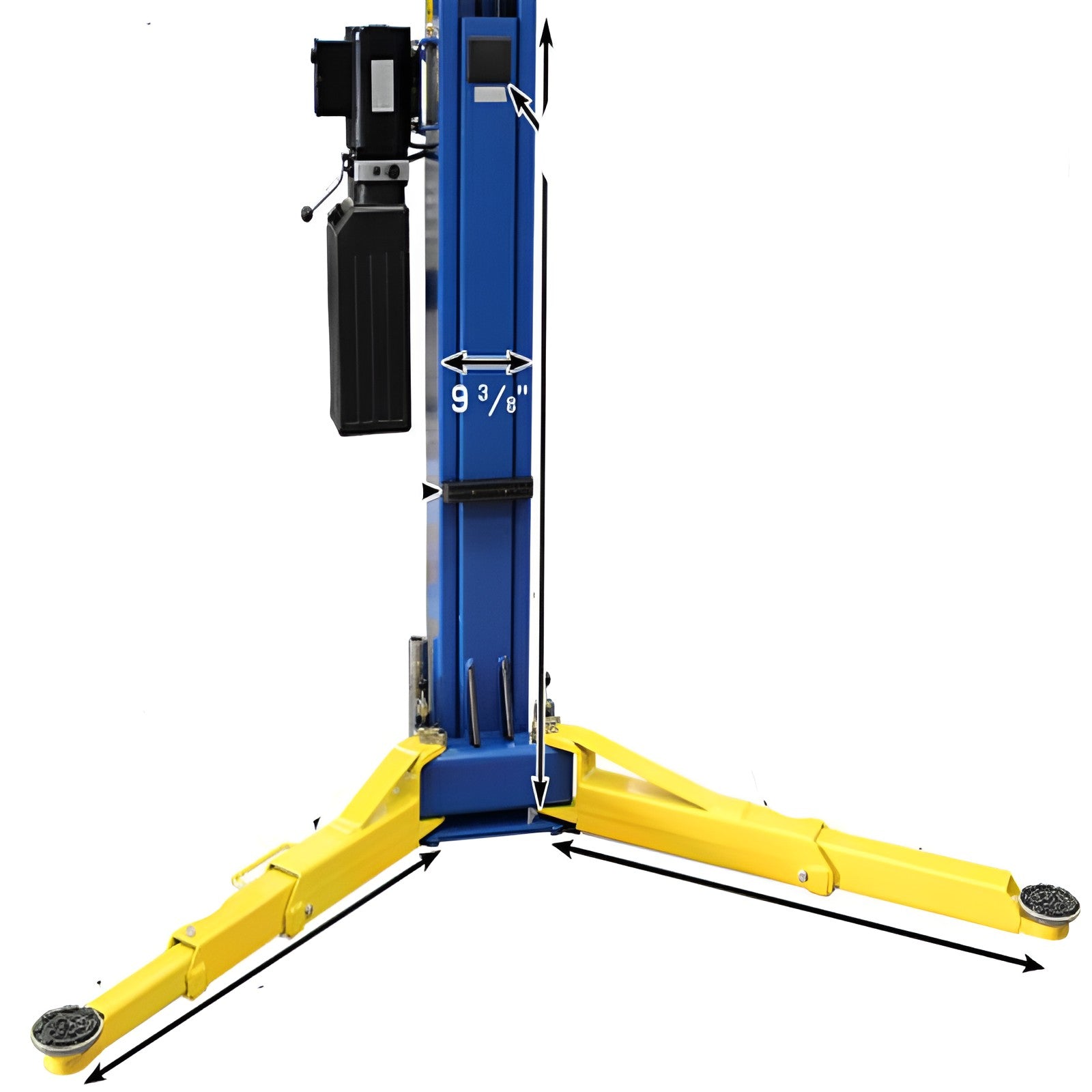

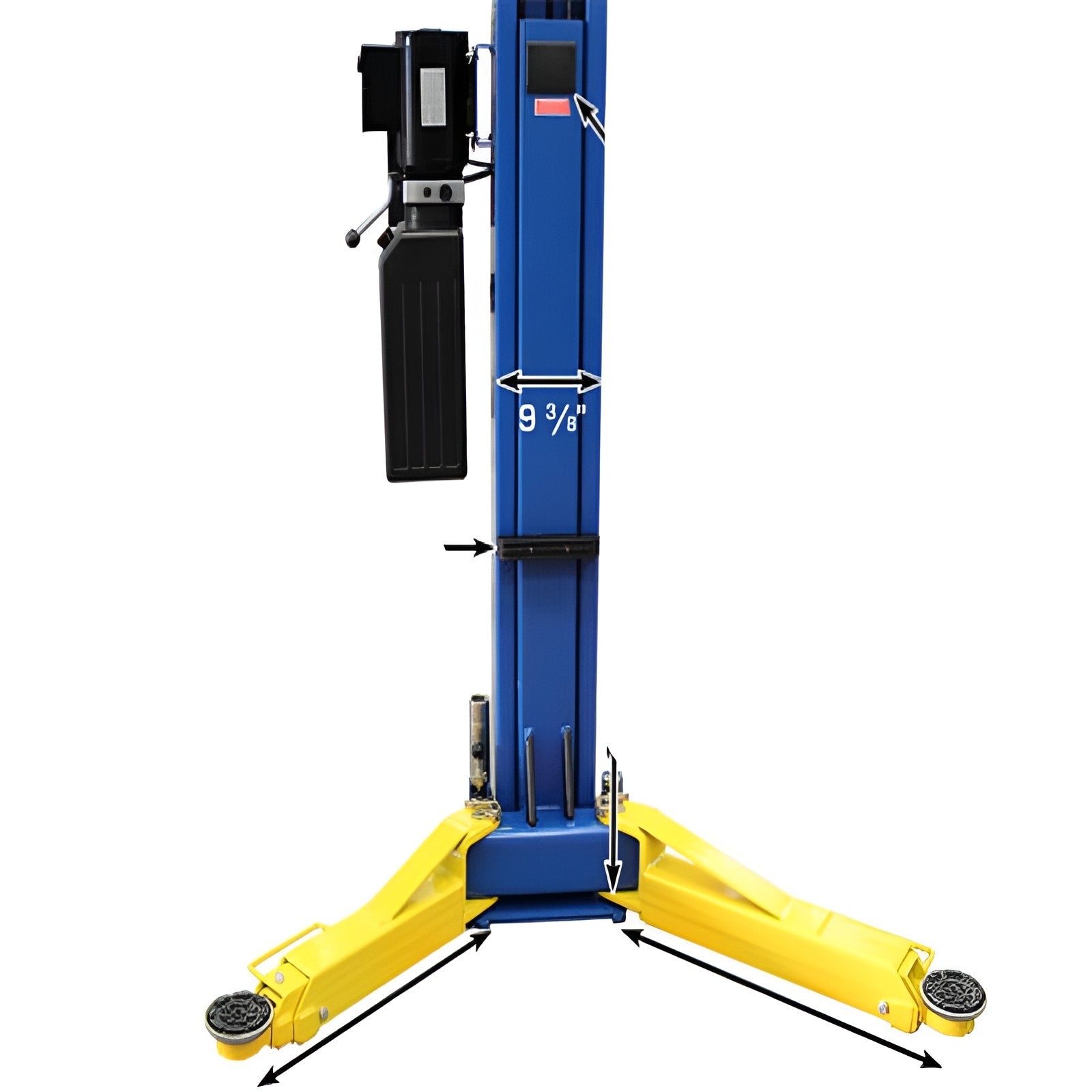

• Column Size: 8" x 9 3/8"
• Column Thickness of Steel: 5mm
• Base of Lift: 16 3/4" x 17 3/4"
• Motor/Electrical Requirement: 220 volt single (1) phase; 30 amp breaker recommended
• Oil Requirement: 3-5 gallons AW32/AW46 (not included)

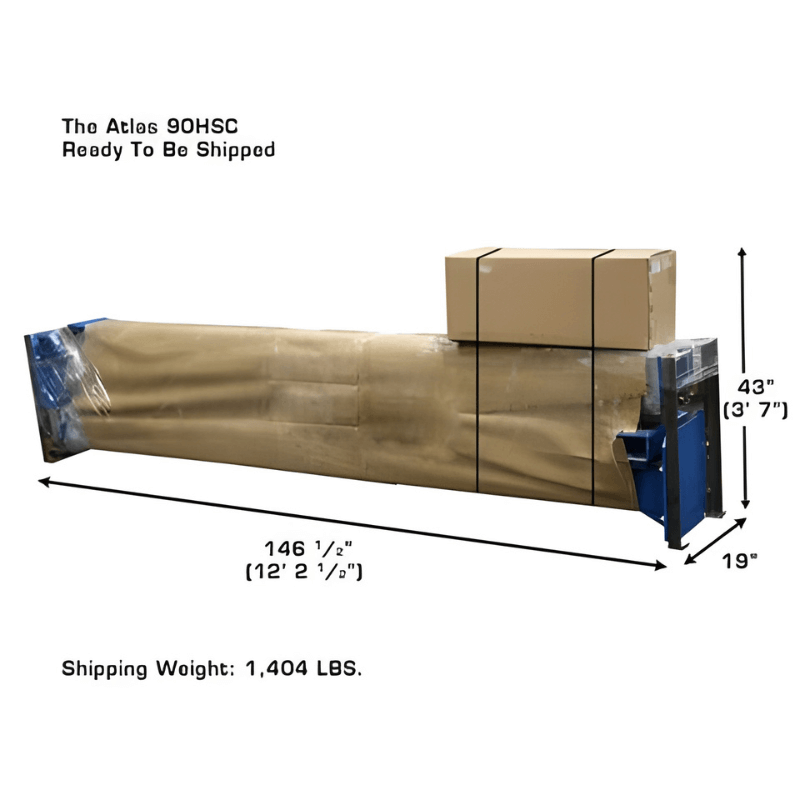

• Shipping Weight: 1,430 lbs.
• Adapter Heights: 4 each of 2", 3", 6"
• Arm Hole/Adapter Peg Size: 1.5"

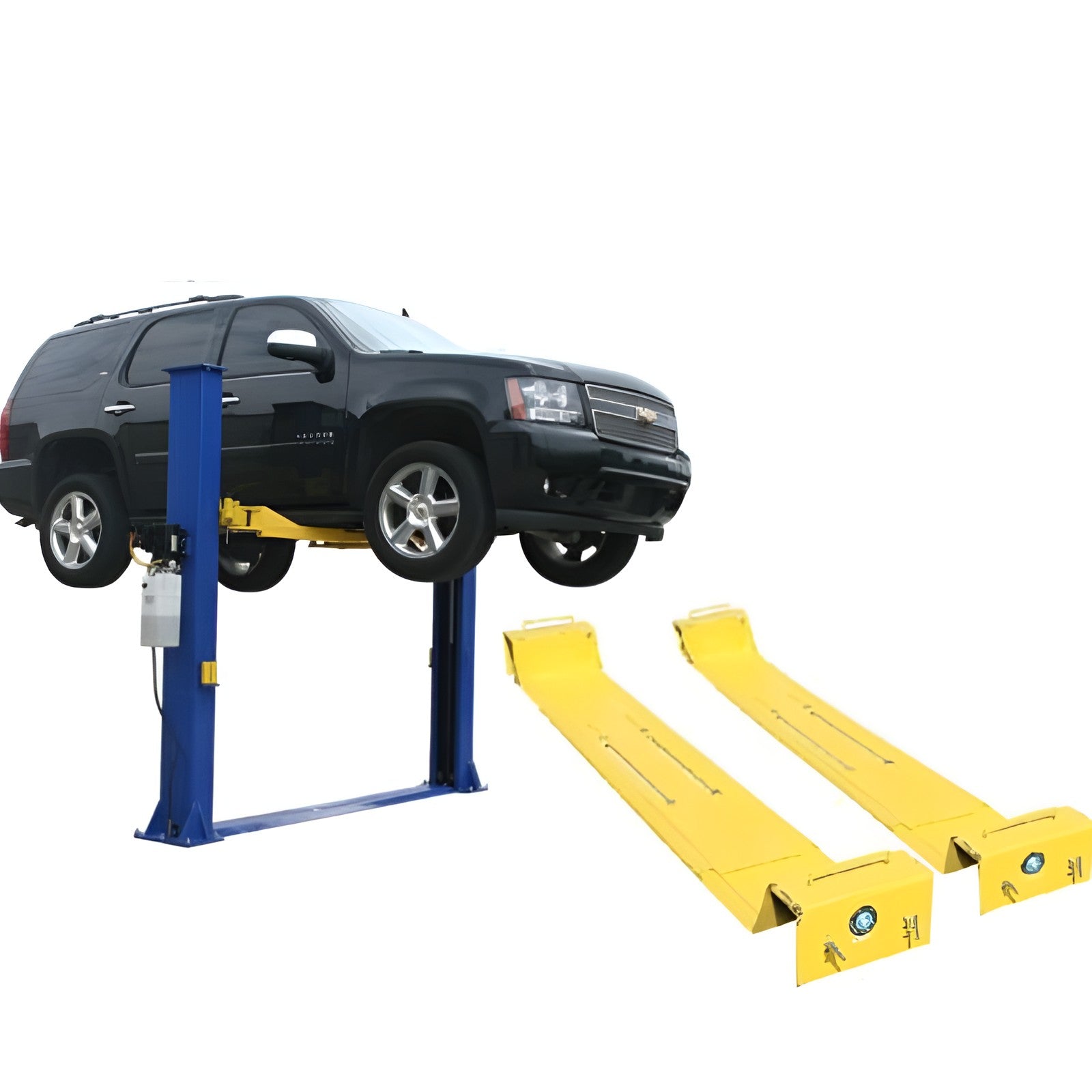

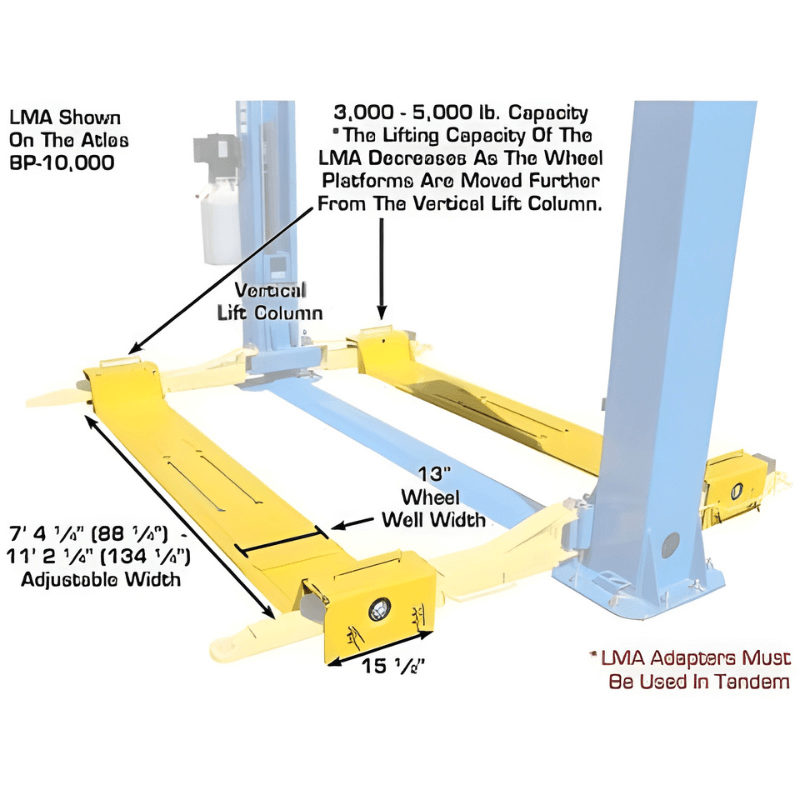

(LMA) Specifications:

• Capacity: Up to 5,000 lbs.* (may vary depending on lift and weight distribution; longer wheel bases will reduce capacity)

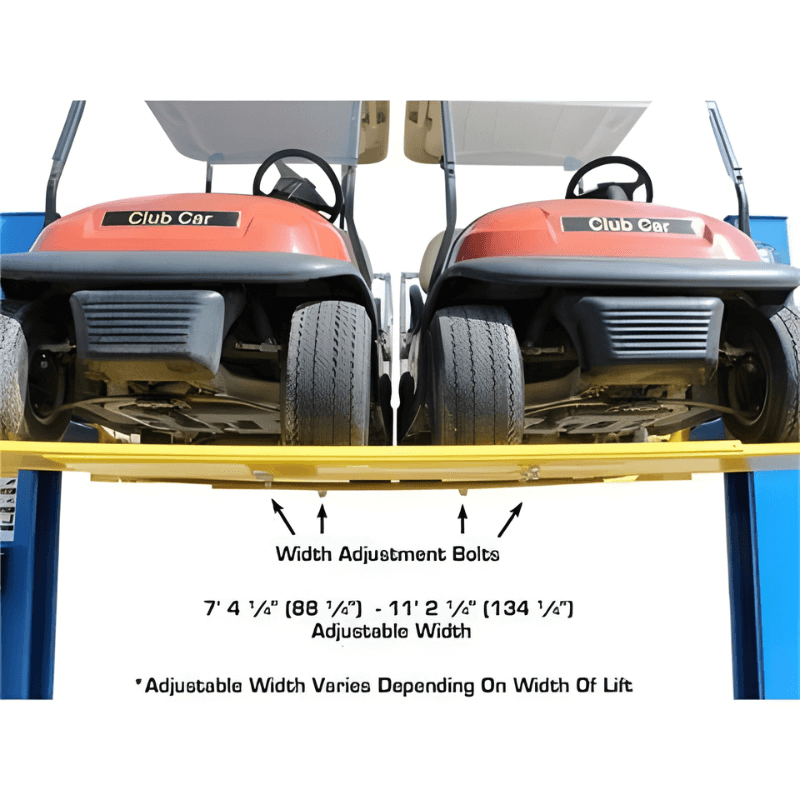

• Adjusts in Width: 8' 11"

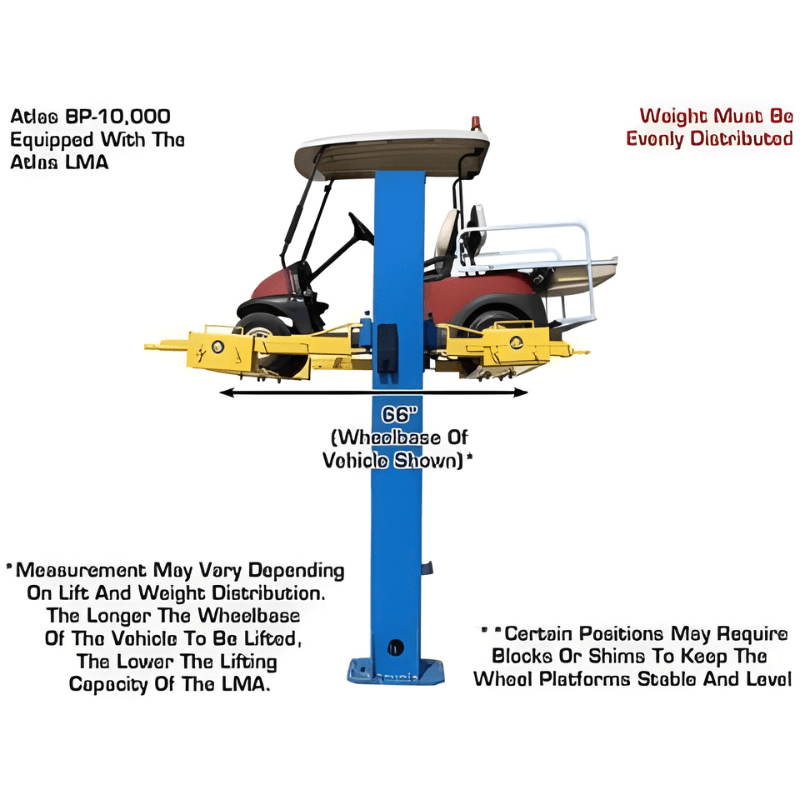

• Wheel Base: 32" to 90"**
• Wheel Well Width: 12"
• Thickness of Steel: 1/4" (2 gauge)

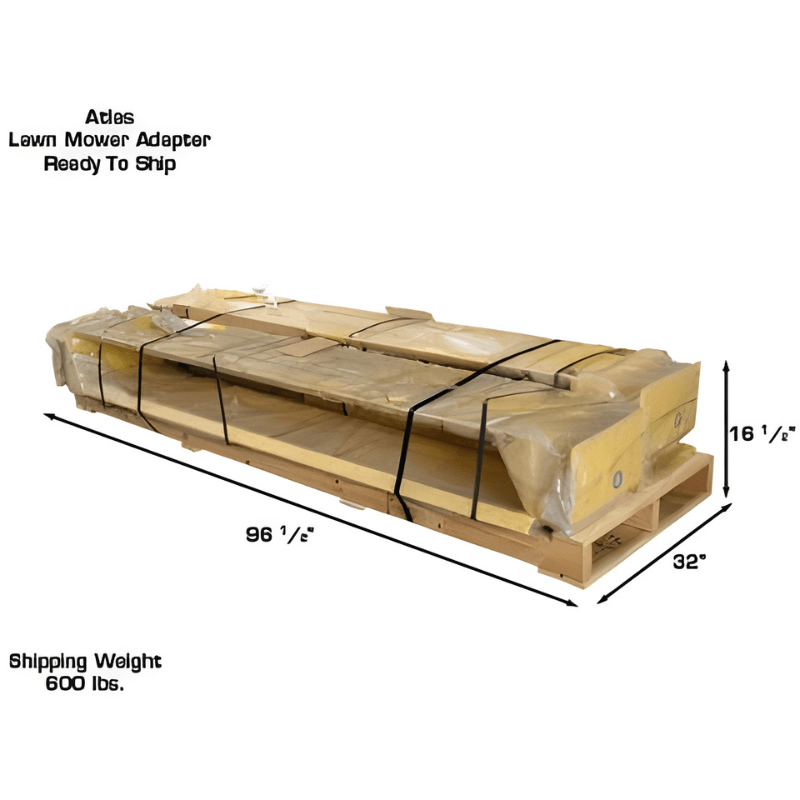

• Shipping Weight: 600 lbs.
• LMA Consists of: Two wheel platforms (lift not included)

9OHSC 2 Post Lift +LMA Special Features:

9OHSC

• 9,000 lb. Capacity
• Overhead, Open-Floor Lift
• Single-Piece Column Design
• Overall Height: 142″ (11′ 10″)
• 3-Stage Front Arms/2-Stage Rear Arms

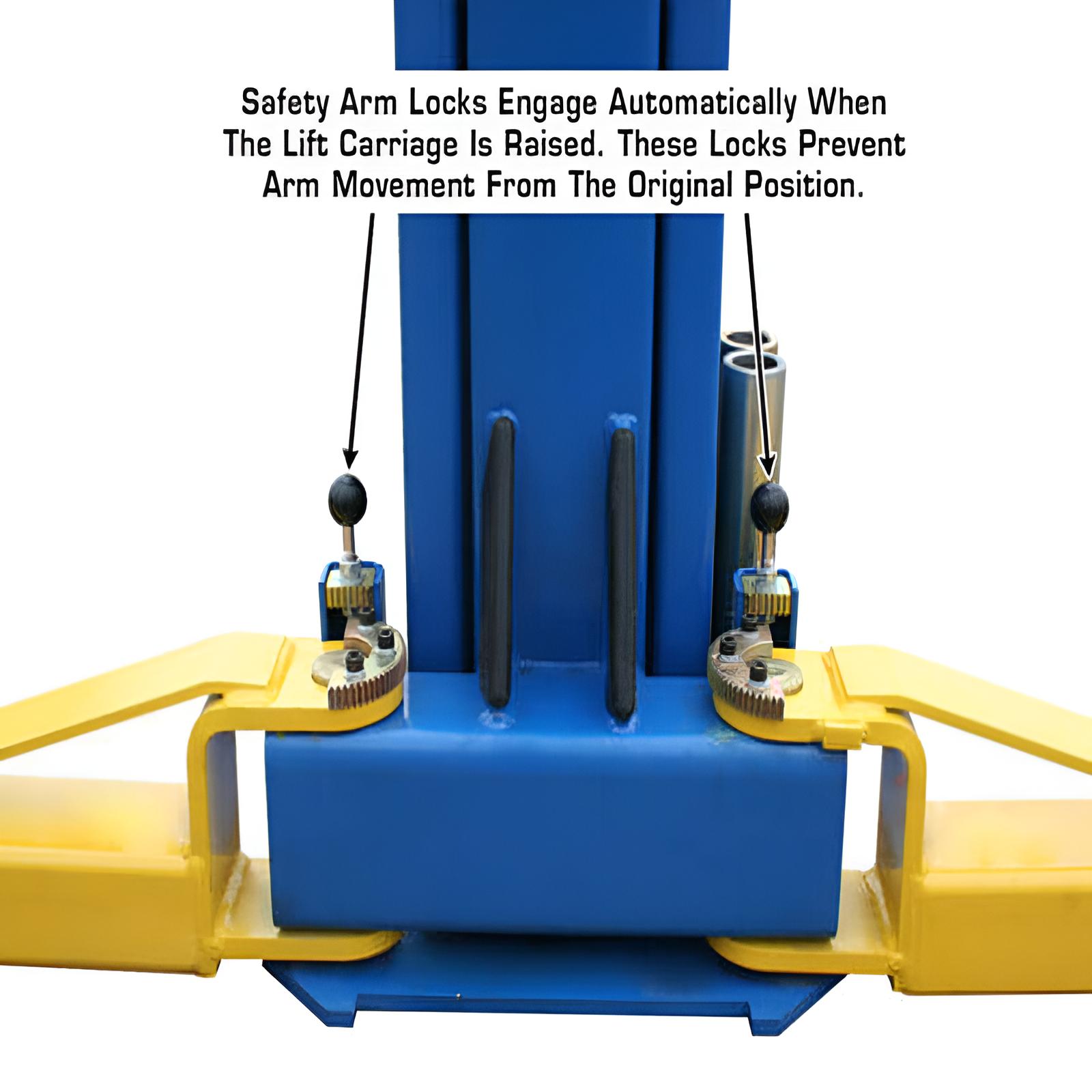

• Automatic Arm Restraints
• Single-Point Lock Release
• Rubber Guards on Carriages

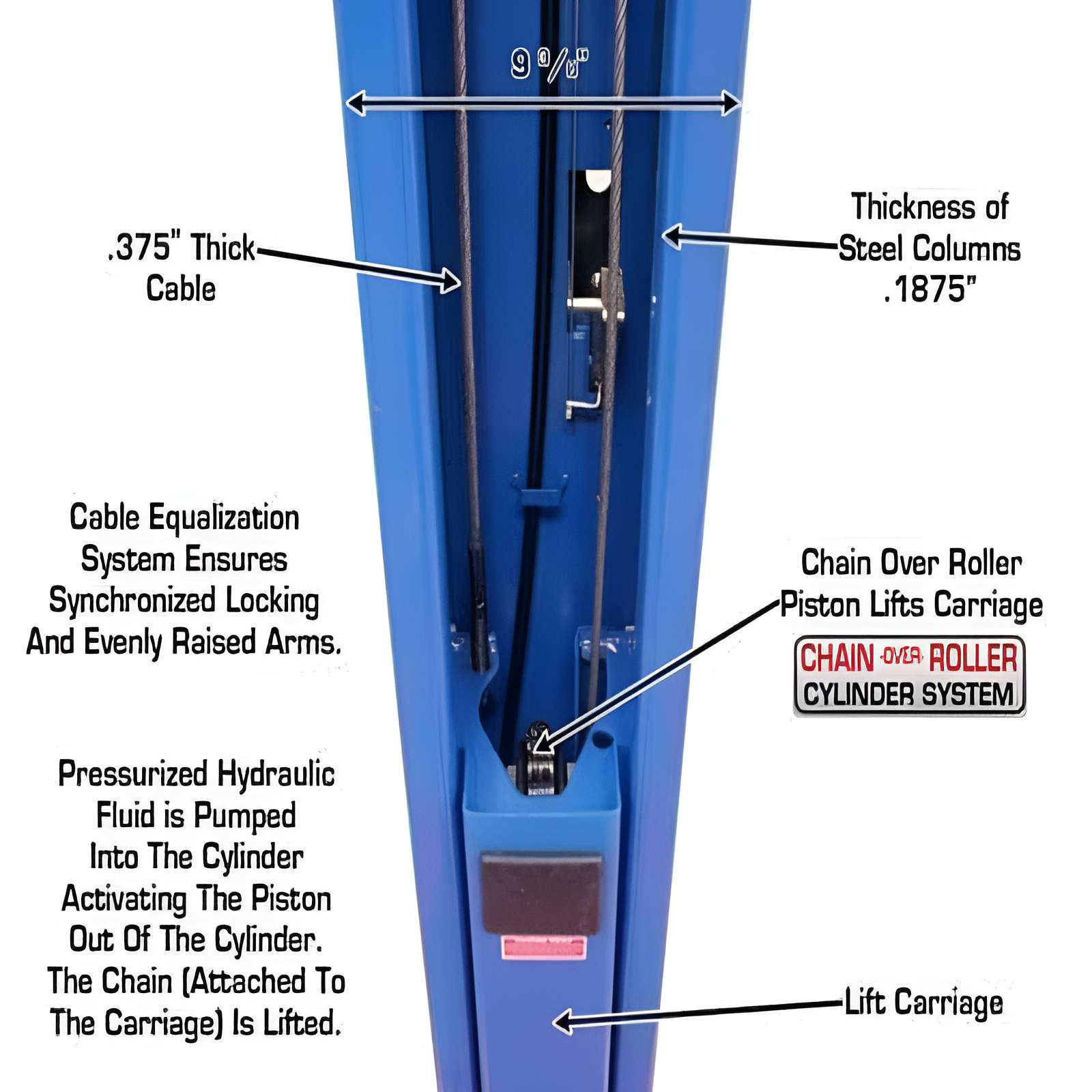

• Dual Hydraulic Chain-Drive Cylinders
• Free 12 Piece Truck Adapter Set
• Mounting Hardware Included
• Shipping Weight: 1,430 lbs.
• 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

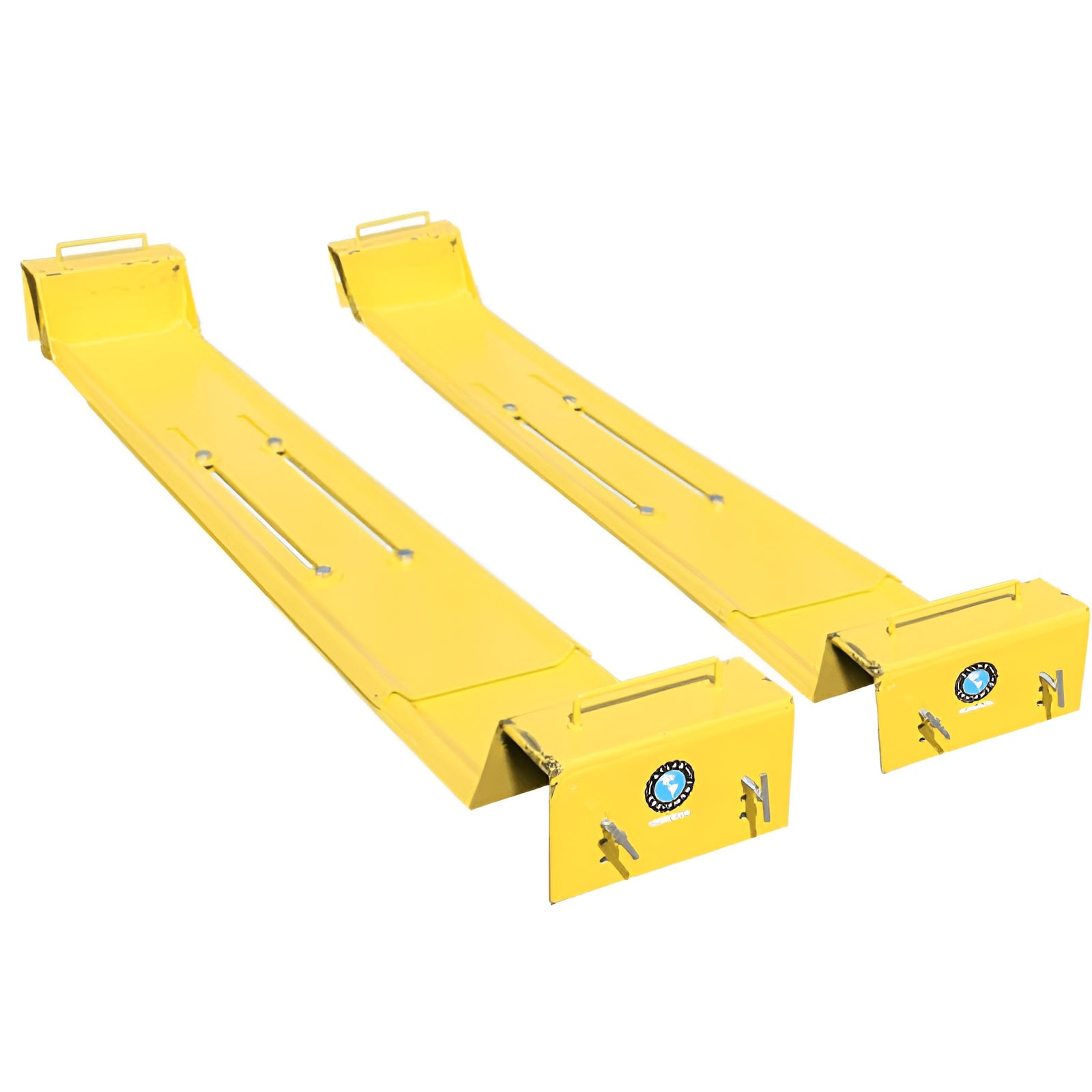

LMA

• “Lawnmower” Adapter for 2-Post Lifts
• Includes 4 plates and all hardware
• Adjustable to fit a variety of sizes and brands (MAY NOT WORK WITH ALL LIFTS)
• Up to 5,000 lb. capacity (WILL VARY BY LIFT AND WHEEL BASE)

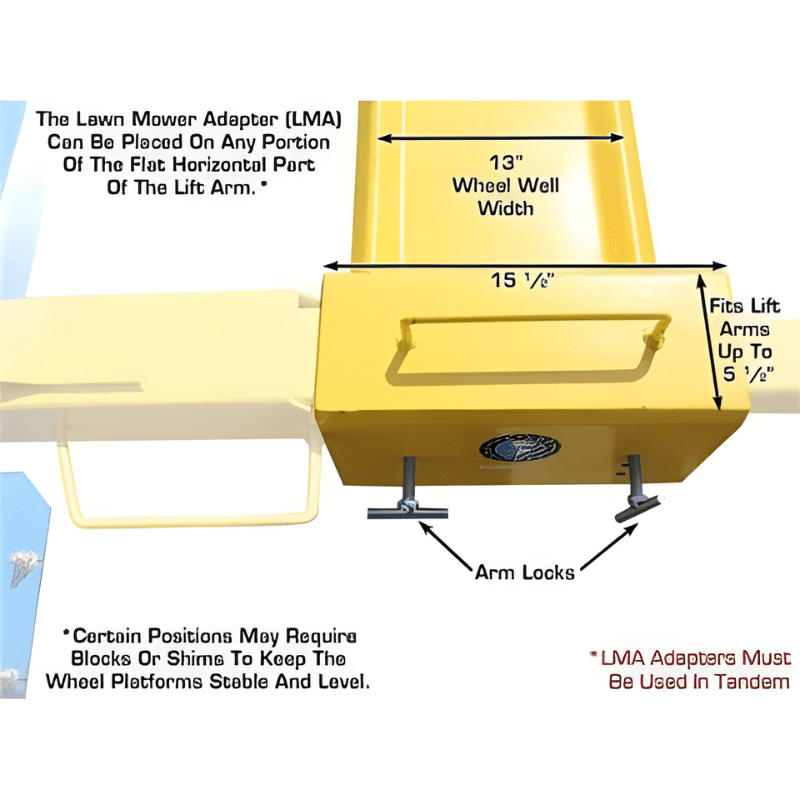

• Can be positioned along the length of the lift arms (LEVELING BLOCKS MAY BE REQUIRED)

Atlas 9OHSC+LMA Documentation:

   Atlas 9OHSC-SS 2 Post Lift Product Manual

   Atlas Cylinder Installation Instruction

This Item has a FLAT RATE SHIPPING FEE: $599

Warehouse Pickup locations (No shipping charge):

• Atlanta, GA
• Dallas, TX
• Fresno, CA
• Indianapolis, IN
• Phoenix, AZ
• Somerset, NJ
