Atlas STW 500 Commercial Spray Wash Cabinet

SKU ATEHT-STW-500
Save $300.00
Original Price $9,849.00
Current Price $9,549.00
  • *SALE* - Exclusive 2 Day Sale - Ends Friday, July 11
  • No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
  • Ships in 3-5 Business Days
  • Better Business Bureau (BBB) Accredited

Delivery Options

Notify me when back in stock

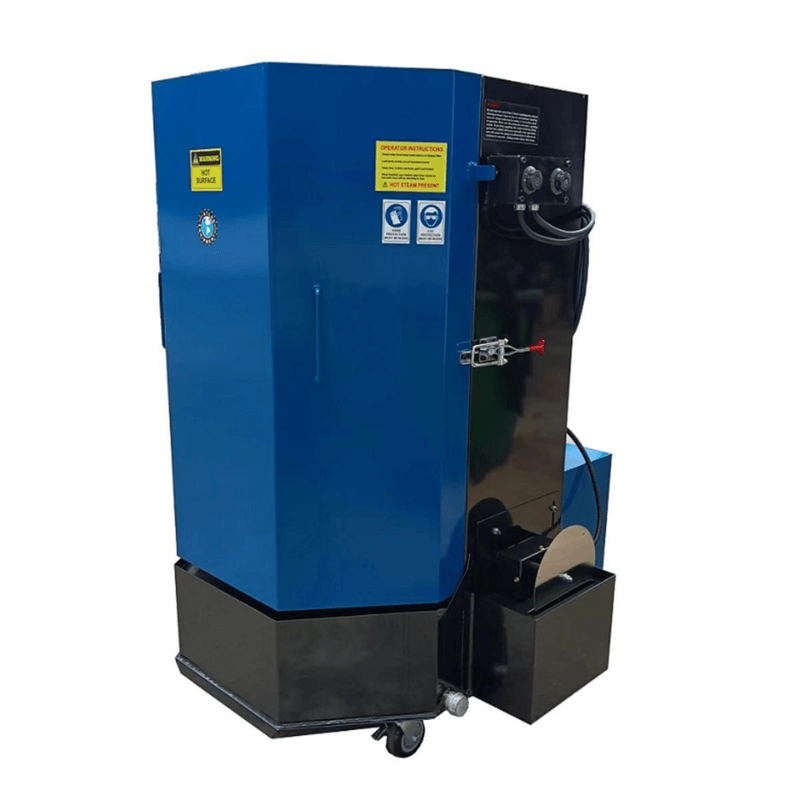

STW500 Commercial Spray Wash Cabinet by Atlas

The Atlas ATEHT-STW-500 Commercial Spray Wash Cabinet is a powerful, industrial-grade solution for automotive parts cleaning. Designed to handle even the toughest cleaning jobs, its heavy-duty 1,000 lb. turntable and high-pressure spray system remove grease and grime from engine blocks, components, and assemblies with ease.

The unit’s 50-gallon tank and 43 GPM water pump provide consistent and efficient washing performance, while the built-in 60-minute timer allows for unattended operation, maximizing productivity in any busy shop.

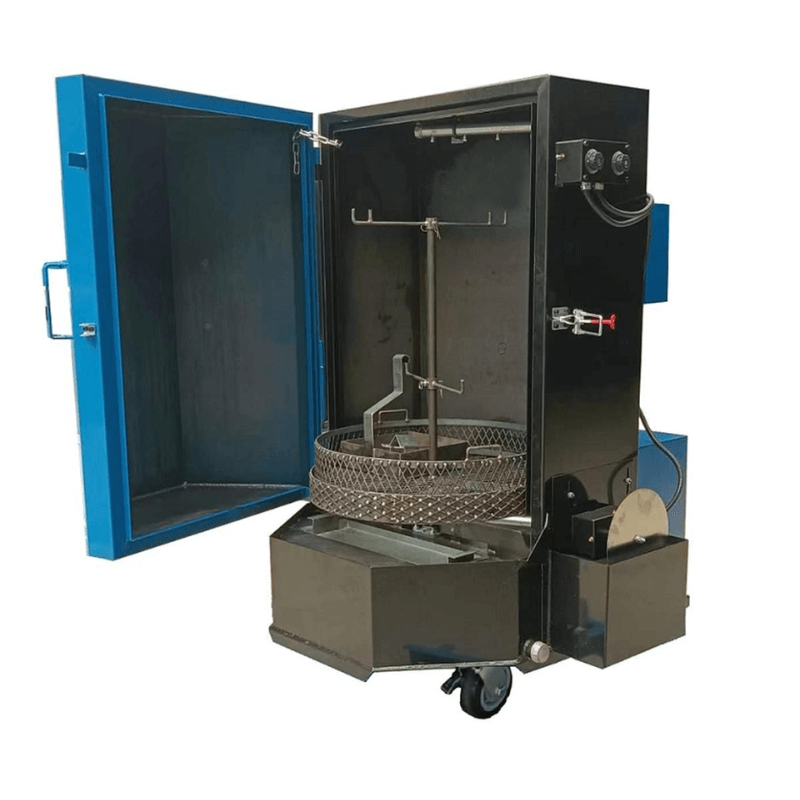

Built with a durable 12-gauge steel cabinet and finished in a two-step powder coat for long-lasting protection, the Atlas 500 ensures reliability and longevity. The octagonal, full-opening door design offers over 55% access to the turntable, allowing easy loading with an engine hoist.

Featuring 19 adjustable nozzles, a stainless steel oil skimmer, parts tree, and basket, this cabinet promotes environmentally safe cleaning using only hot water and biodegradable detergents—no harmful solvents required.

Spray Wash Cabinet ATEHT-STW-500 Specifications:

  • Tank Capacity: 50 Gallons

  • Inside Height: 42"

  • Inside Width: 32"

  • Turntable Diameter: 30"

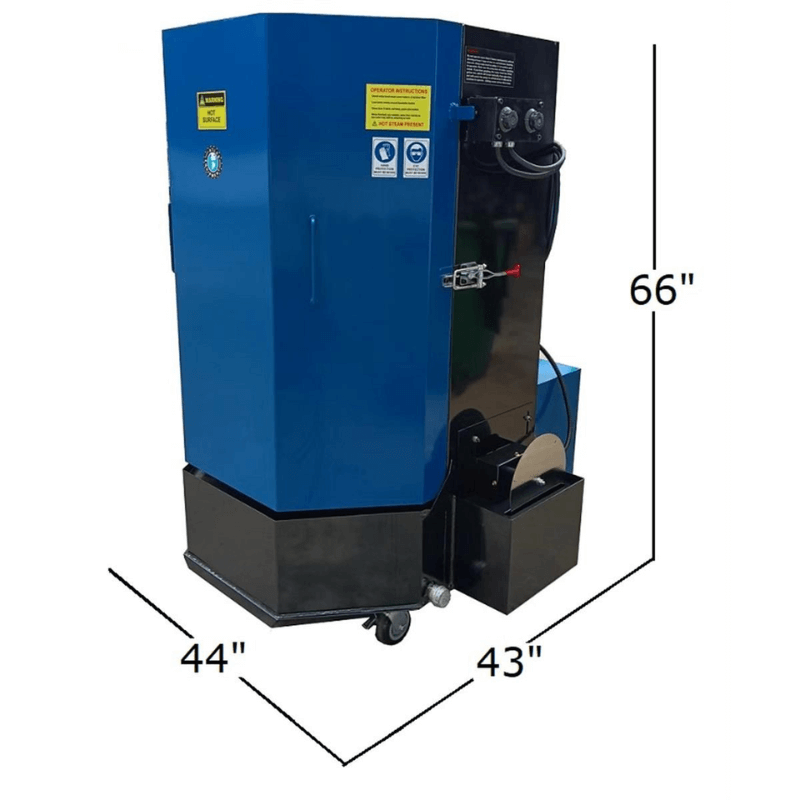

  • Overall Dimensions: 44 3/8" L x 44 1/8" W x 66 3/4" H

  • Turntable Load Capacity: 1,000 lb

  • Cycle Time: 60 minutes (standard)

  • Pump Output: 28 PSI @ 43 GPM

  • Power Supply: 220V / Single Phase (30 Amp breaker required)

  • Motor: 1.5 HP

  • Shipping Weight: 750 lbs

STW500 Spray Wash Cabinet Special Features

  • 1,000 lb. capacity heavy-duty turntable

  • 60-minute automatic shut-off timer for hands-free operation

  • 19 adjustable stainless-steel spray nozzles for thorough cleaning

  • Powerful 43 GPM water pump with 28 PSI output

  • 50-gallon tank for extended cleaning sessions

  • Built-in stainless steel oil skimmer extends detergent life

  • Durable 12-gauge steel cabinet with powder coat finish

  • Gasket-free, full-opening octagonal door for easier loading

  • Includes parts basket and parts tree rack

  • Uses hot water and biodegradable detergent — no harmful solvents

  • Ideal for engine components, automotive parts, and light truck assemblies

  • Freight prepaid with 1-year limited parts warranty

STW-500 Manual

Not Available
