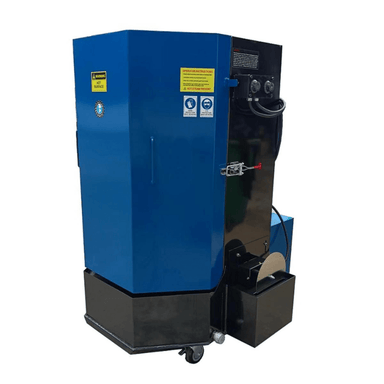

ATEHT-STW-500 Commercial Spray Wash Cabinet by Atlas

The Atlas ATEHT-STW-500 Commercial Spray Wash Cabinet is a powerful, industrial-grade solution for automotive parts cleaning. Designed to handle even the toughest cleaning jobs, its heavy-duty 1,000 lb. turntable and high-pressure spray system remove grease and grime from engine blocks, components, and assemblies with ease.

The unit’s 50-gallon tank and 43 GPM water pump provide consistent and efficient washing performance, while the built-in 60-minute timer allows for unattended operation, maximizing productivity in any busy shop.

Built with a durable 12-gauge steel cabinet and finished in a two-step powder coat for long-lasting protection, the Atlas 500 ensures reliability and longevity. The octagonal, full-opening door design offers over 55% access to the turntable, allowing easy loading with an engine hoist.

Featuring 19 adjustable nozzles, a stainless steel oil skimmer, parts tree, and basket, this cabinet promotes environmentally safe cleaning using only hot water and biodegradable detergents—no harmful solvents required.

Spray Wash Cabinet ATEHT-STW-500 Specifications:

Tank Capacity: 50 Gallons
Inside Height: 42"
Inside Width: 32"
Turntable Diameter: 30"

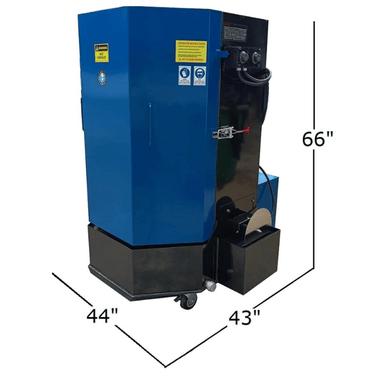

Overall Dimensions: 44 3/8" L x 44 1/8" W x 66 3/4" H
Turntable Load Capacity: 1,000 lb
Cycle Time: 60 minutes (standard)
Pump Output: 28 PSI @ 43 GPM
Power Supply: 220V / Single Phase (30 Amp breaker required)
Motor: 1.5 HP
Shipping Weight: 750 lbs

ATEHT-STW-500 Spray Wash Cabinet Special Features

1,000 lb. capacity heavy-duty turntable
60-minute automatic shut-off timer for hands-free operation
19 adjustable stainless-steel spray nozzles for thorough cleaning
Powerful 43 GPM water pump with 28 PSI output
50-gallon tank for extended cleaning sessions
Built-in stainless steel oil skimmer extends detergent life
Durable 12-gauge steel cabinet with powder coat finish
Gasket-free, full-opening octagonal door for easier loading
Includes parts basket and parts tree rack
Uses hot water and biodegradable detergent — no harmful solvents
Ideal for engine components, automotive parts, and light truck assemblies
Freight prepaid with 1-year limited parts warranty

ATEHT-STW-500 Manual

Not Available
