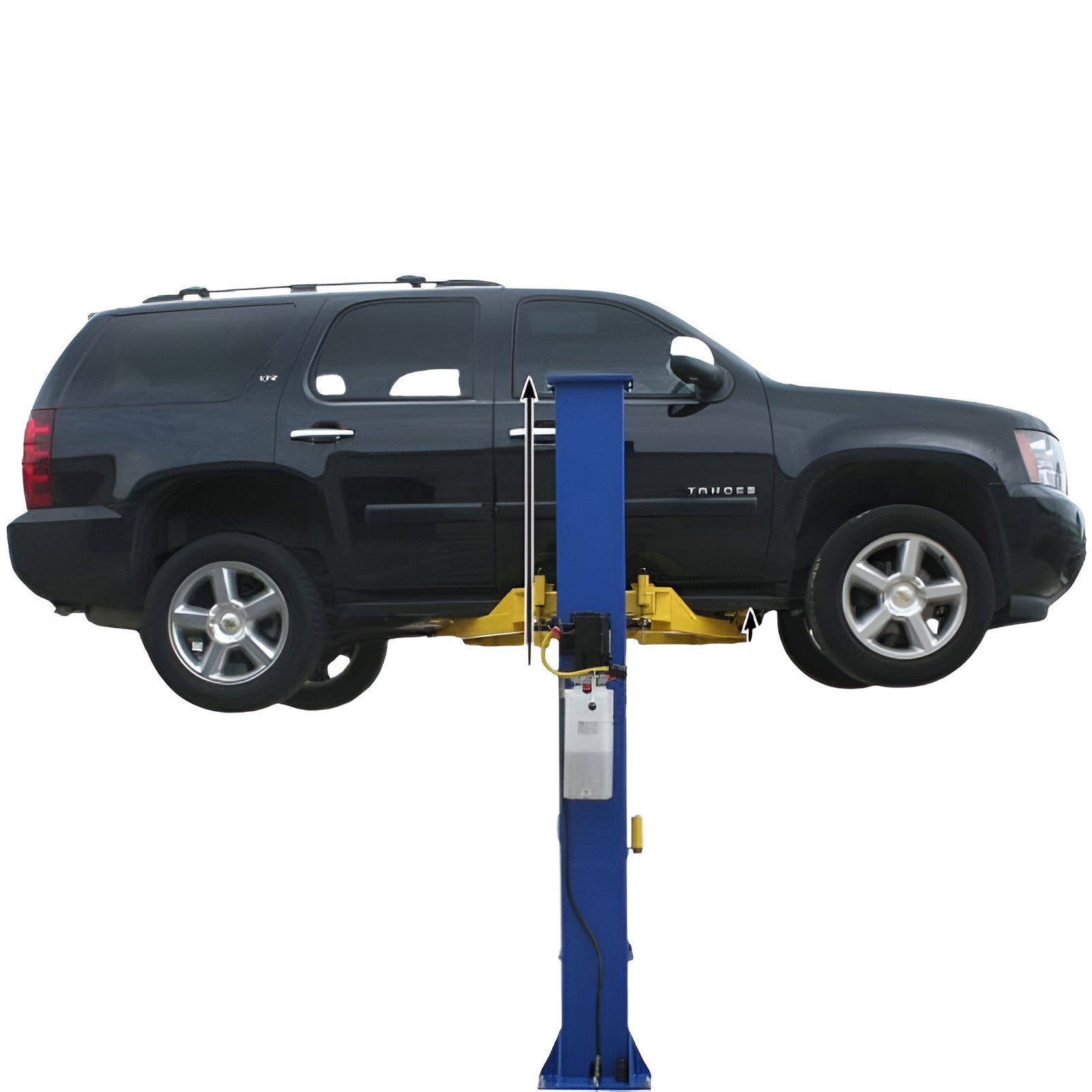

Atlas BP8000 2-Post Lift + Lawn Mower Adapter Combo

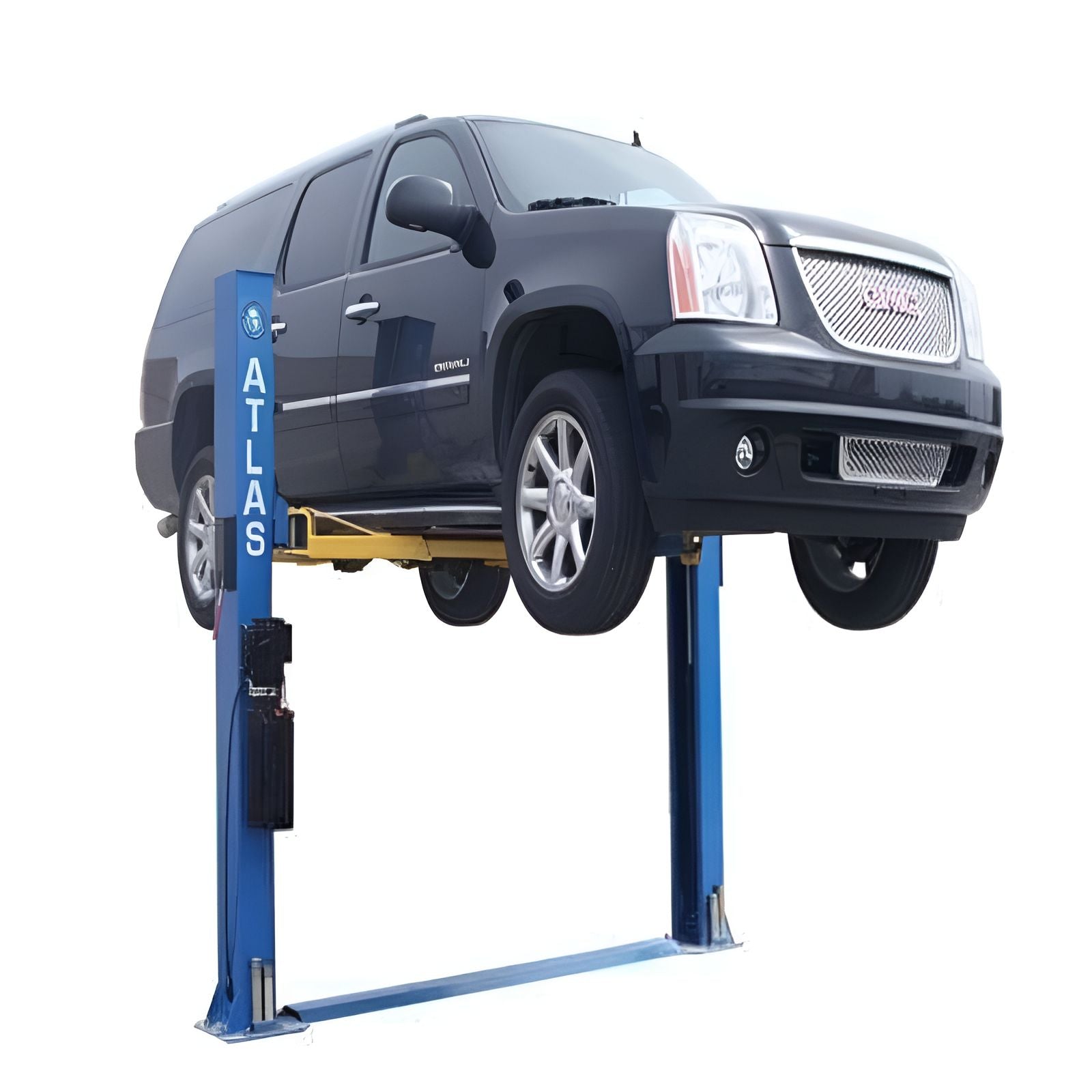

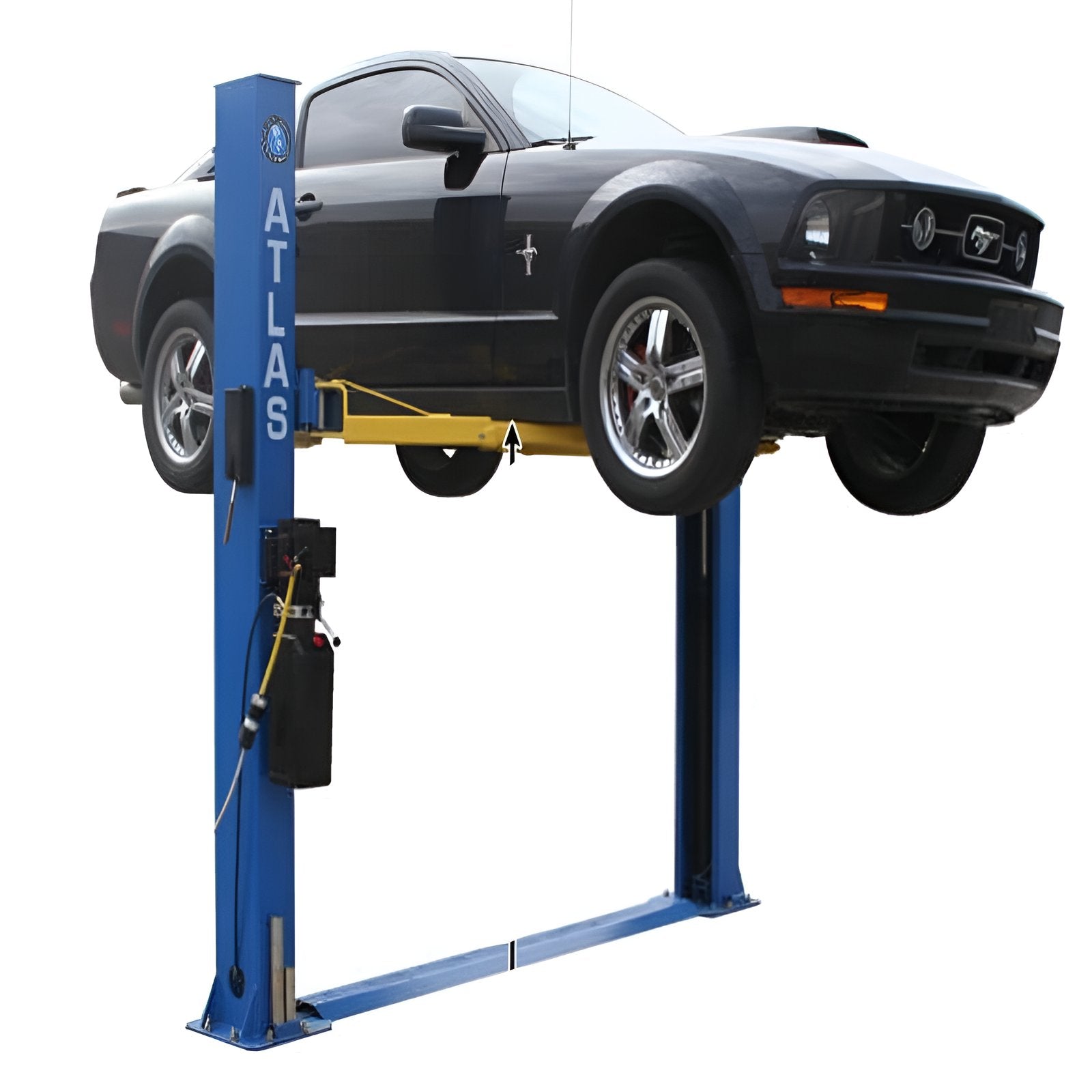

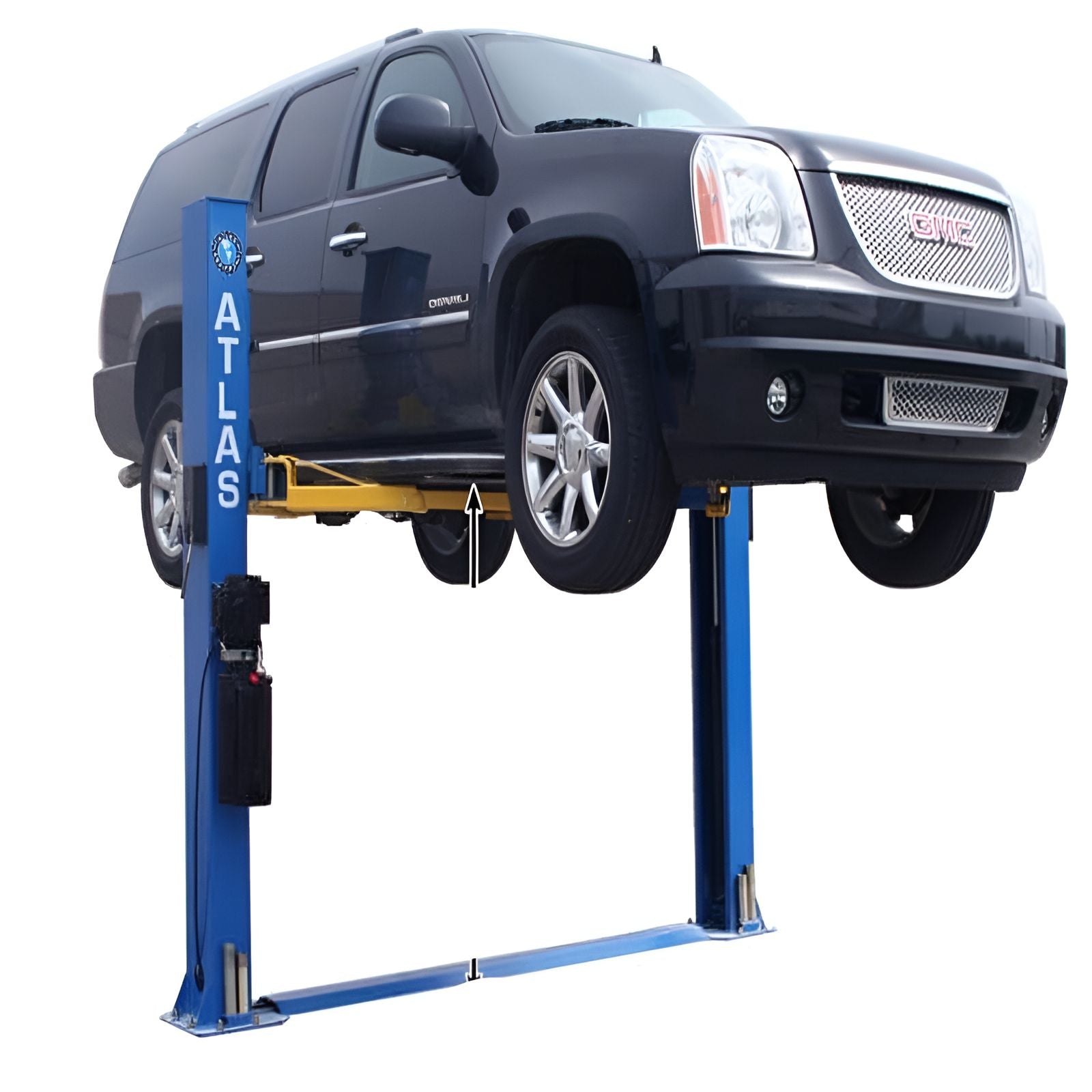

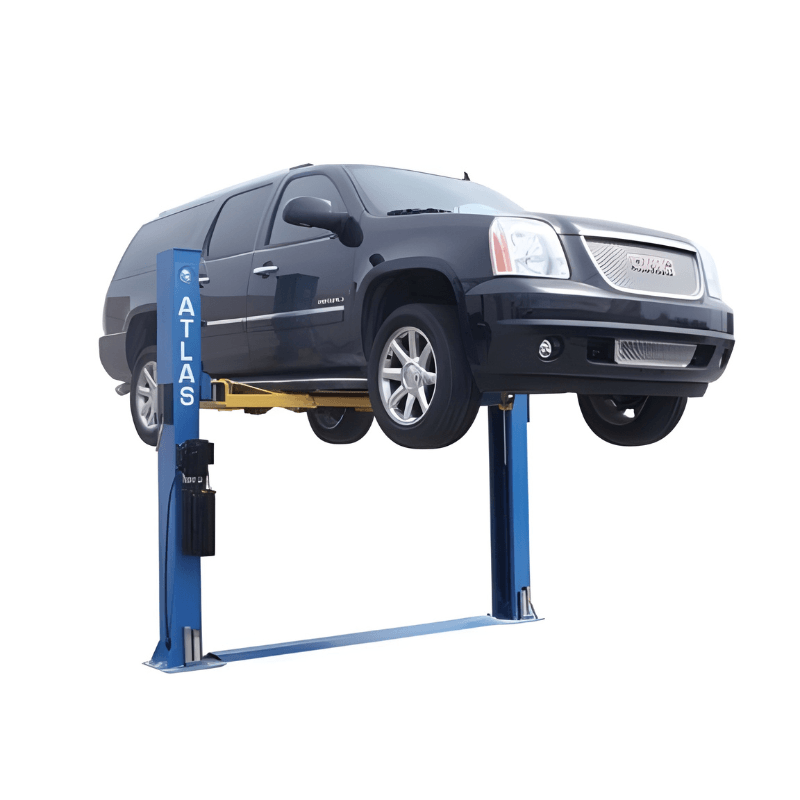

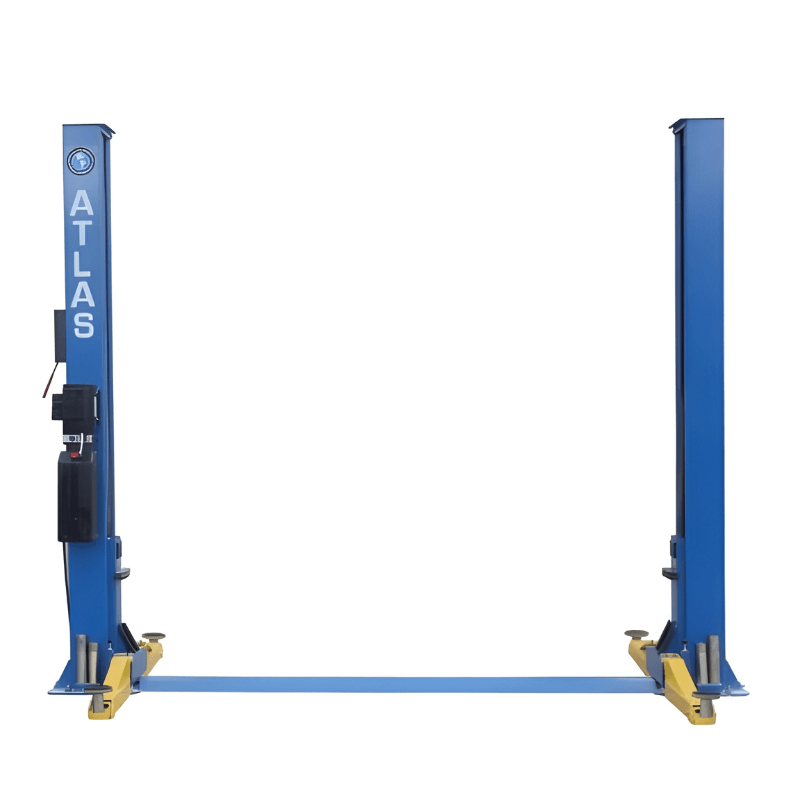

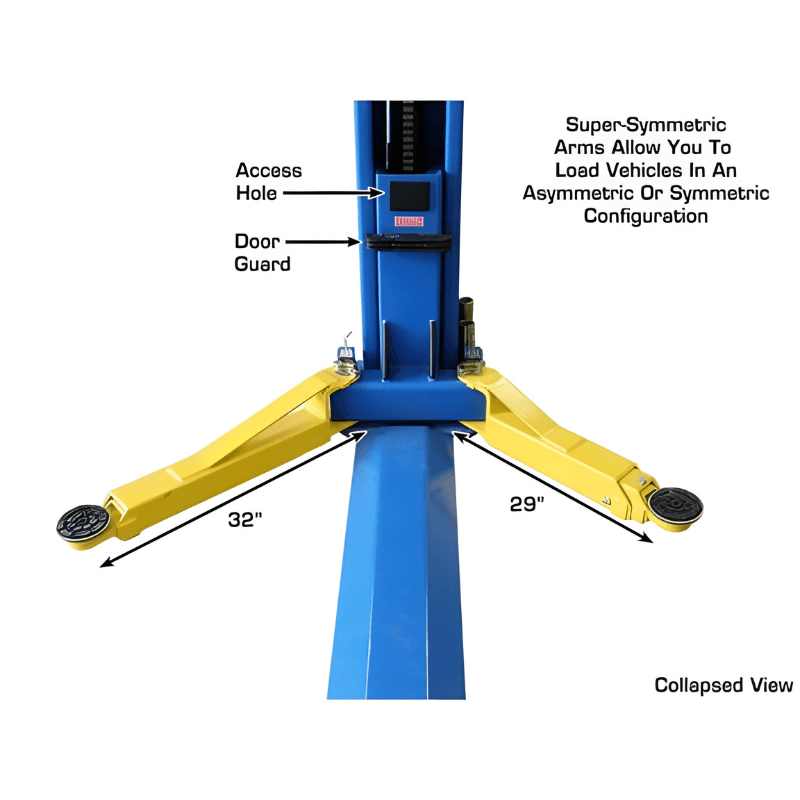

The Atlas BP8000 is a baseplate two-post lift designed for garages with lower ceilings, featuring a total column height of 108 inches (9 feet). This makes it suitable for both professional and home garages with ceilings as low as 9 feet 3 inches. Despite its compact size, the BP8000 offers many of the advanced features found in larger, more expensive lifts, such as a single-point lock release, Super-symmetric arms, and a twelve-piece truck adapter set.

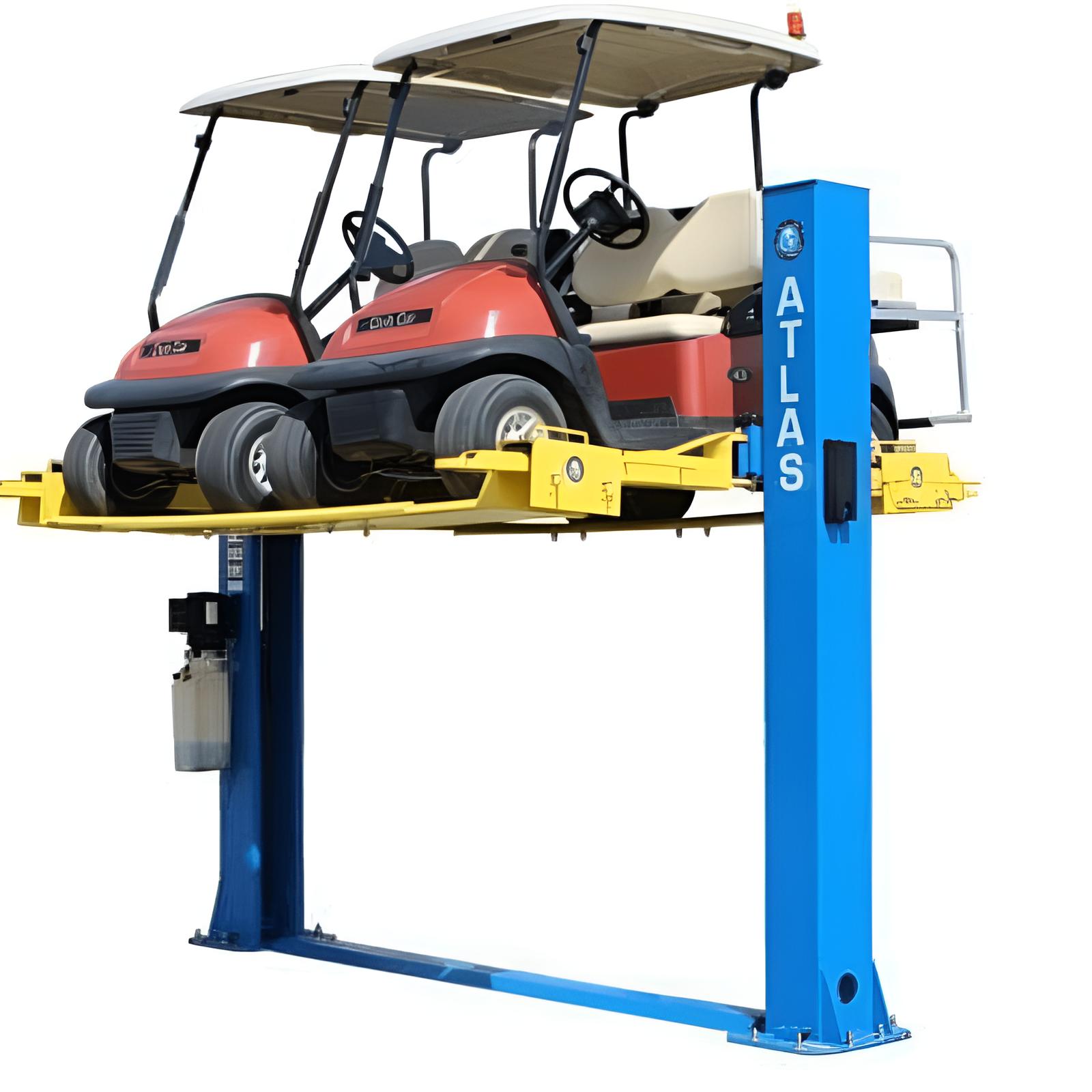

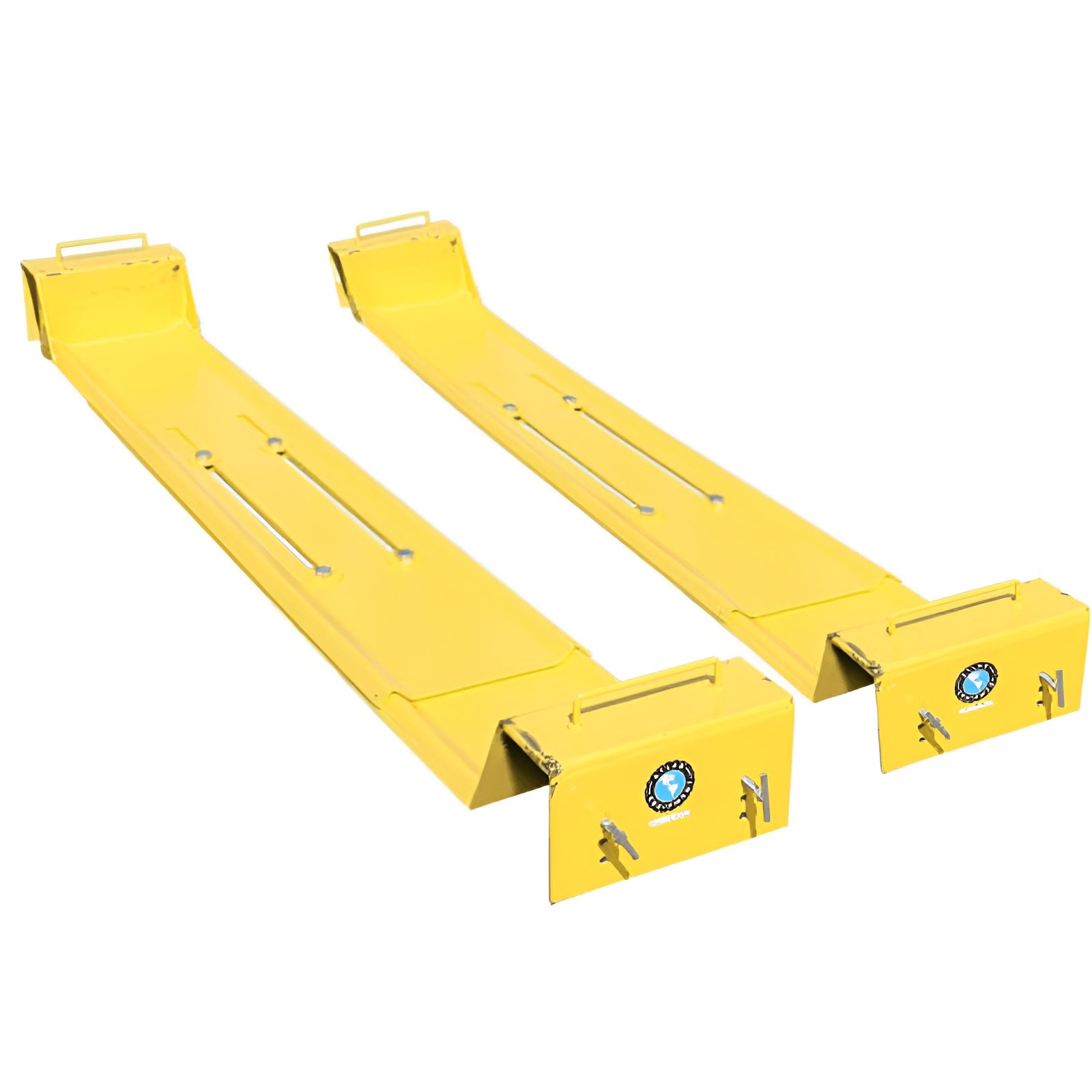

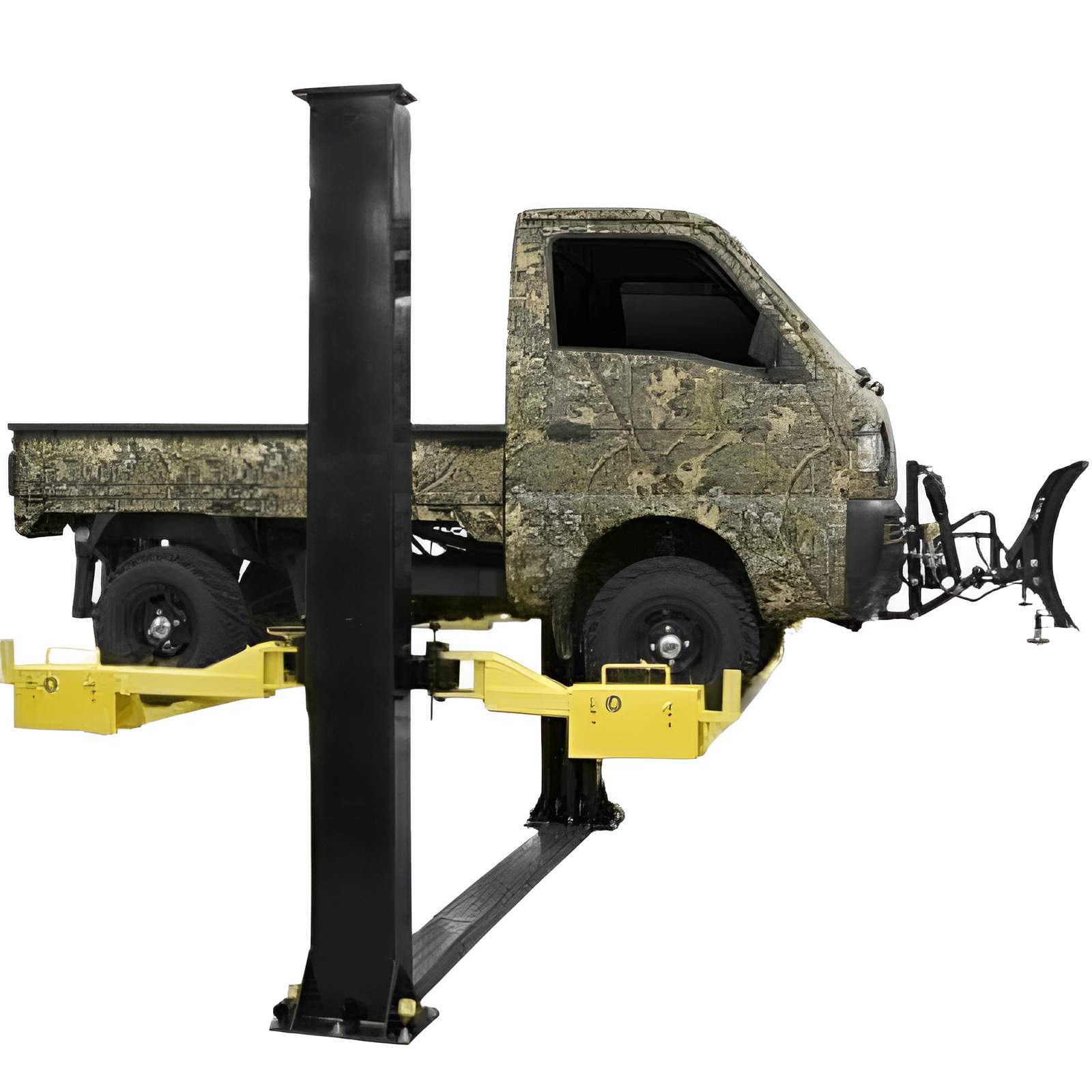

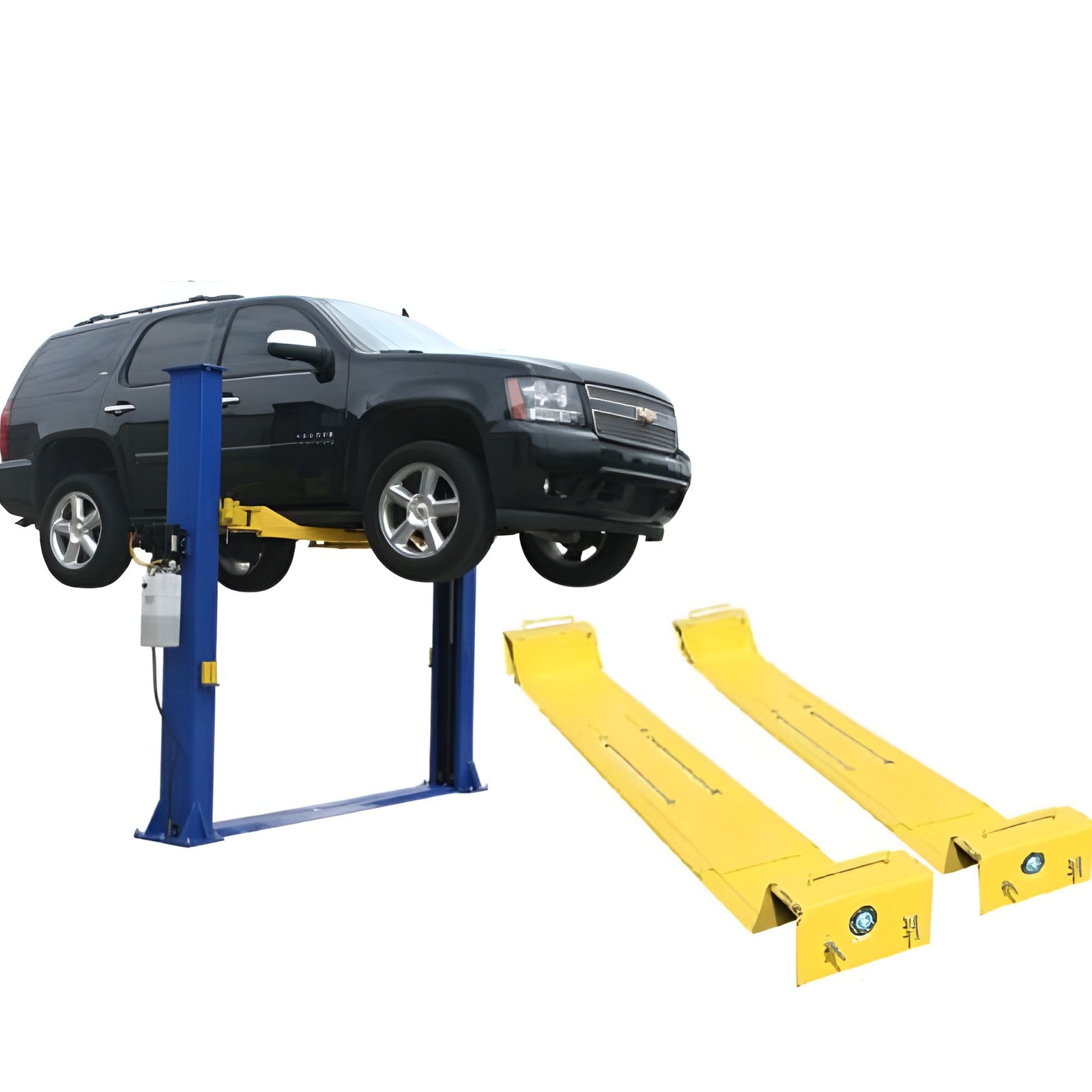

Included in this combo is the Atlas Lawn Mower Adapter (LMA), which enhances the lift’s ability to handle ATVs, UTVs, and lawn mowers. The LMA is adjustable along the length of the lift's arms to accommodate different wheelbase vehicles. Its weight capacity depends on the adapter's positioning—higher when the plates are closer to the columns—and the balance of the vehicle being lifted.

 2 Post Lift BP8000 + Lawn Mower Adapter Specifications:

Atlas ATTD-BP8000 Specifications

• Capacity: 8,000 lbs

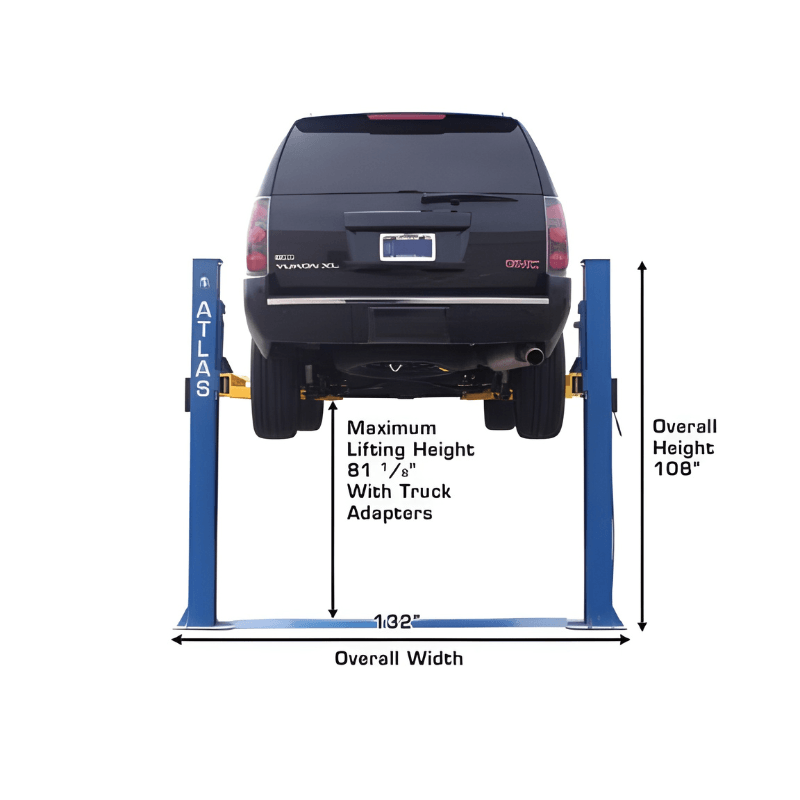

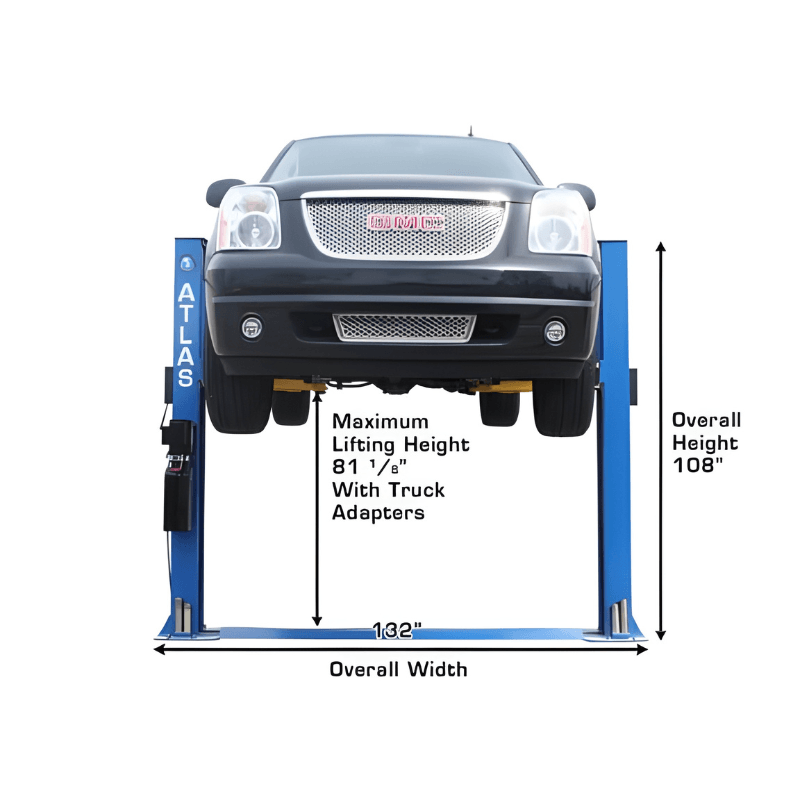

• Overall Height: 108" (9’)

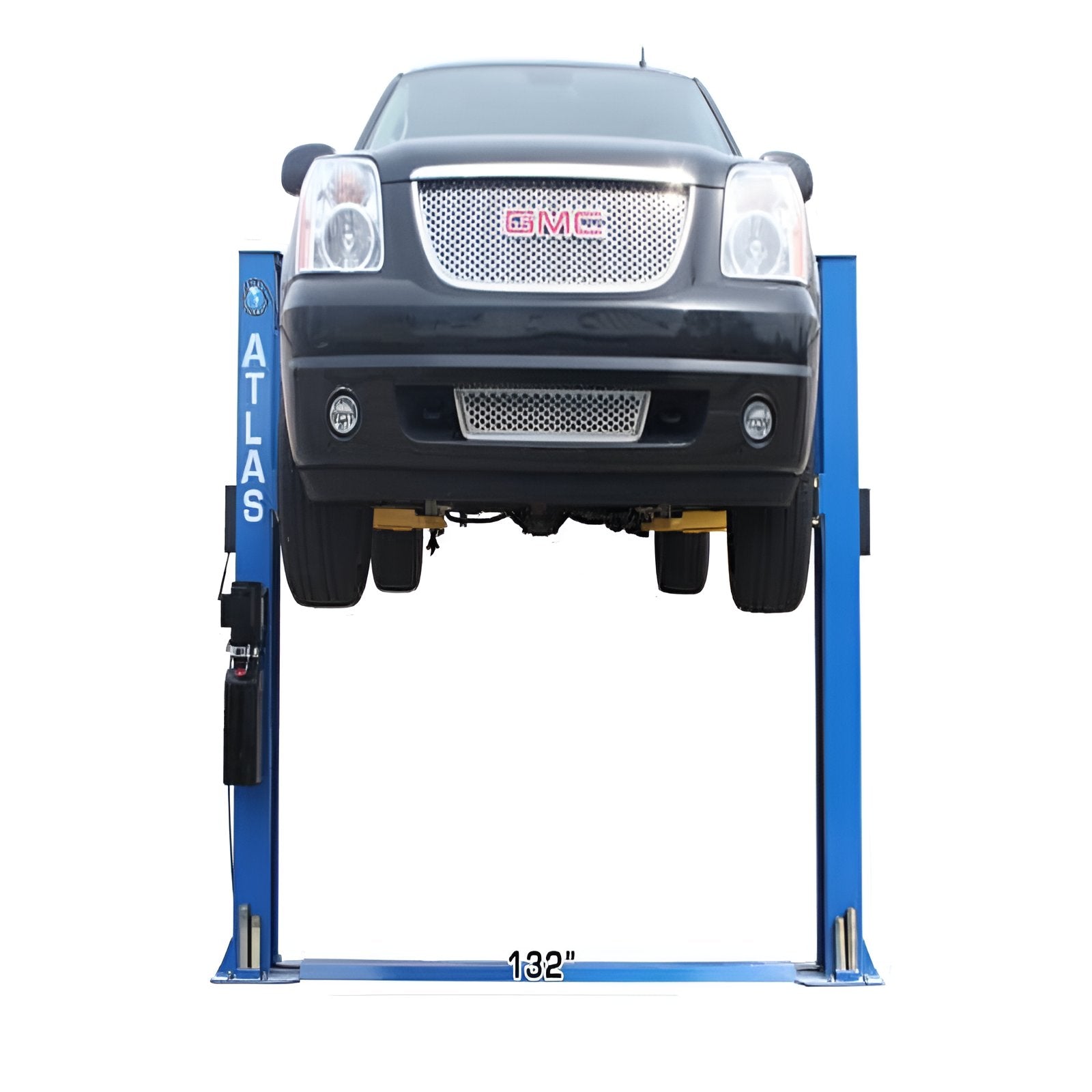

• Overall Floor Width: 132" (11’)
• Outside Column to Outside Column: 124" (10’ 4”)
• Maximum Lift Height (Without Adapters): 75 1/2"
• Maximum Lift Height (With Adapters): 86 1/2"
• Minimum Arm Height: 4"
• Inside Column: 109 1/8” (9’ 1 1/8”)

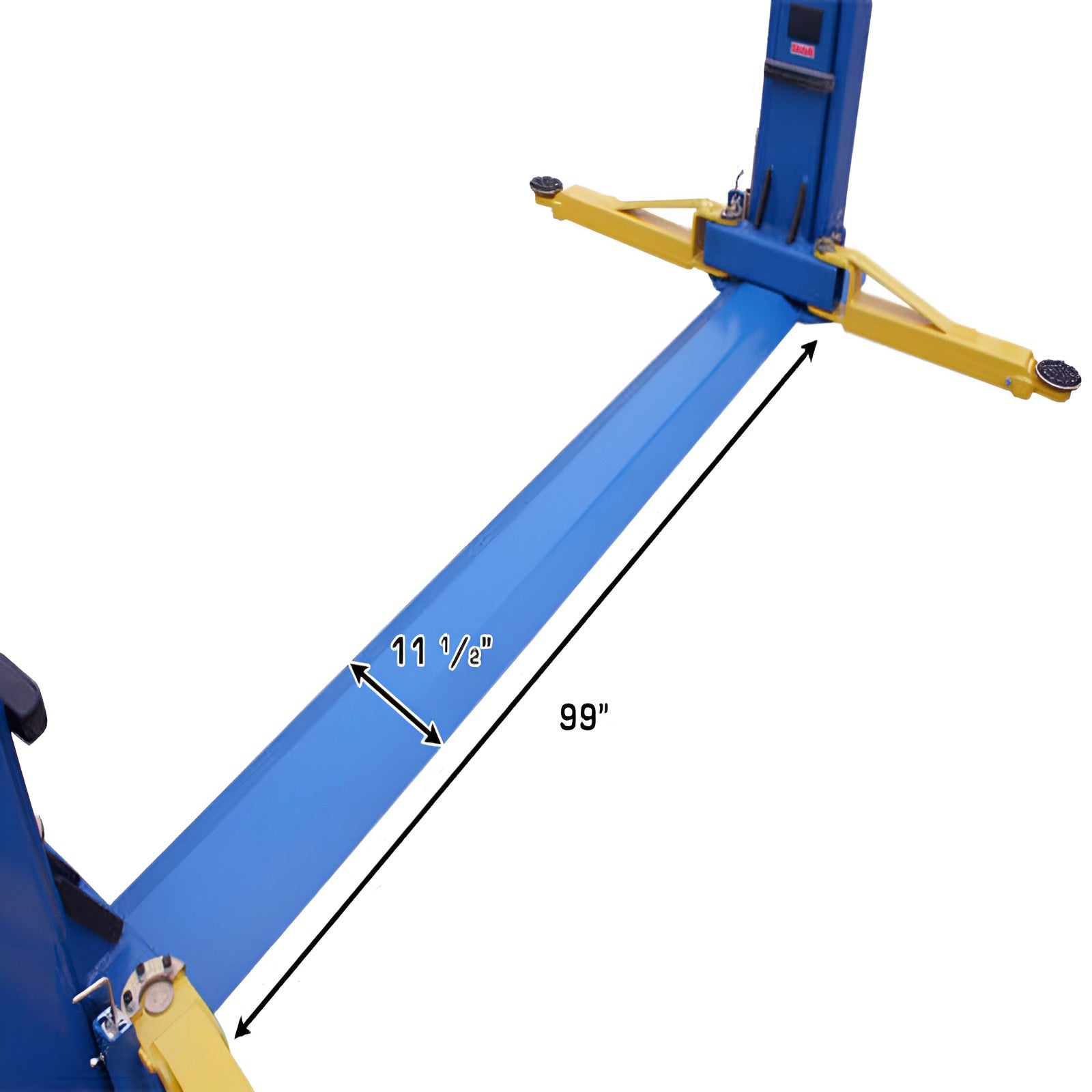

• Drive Thru: 99” (8’ 3”)

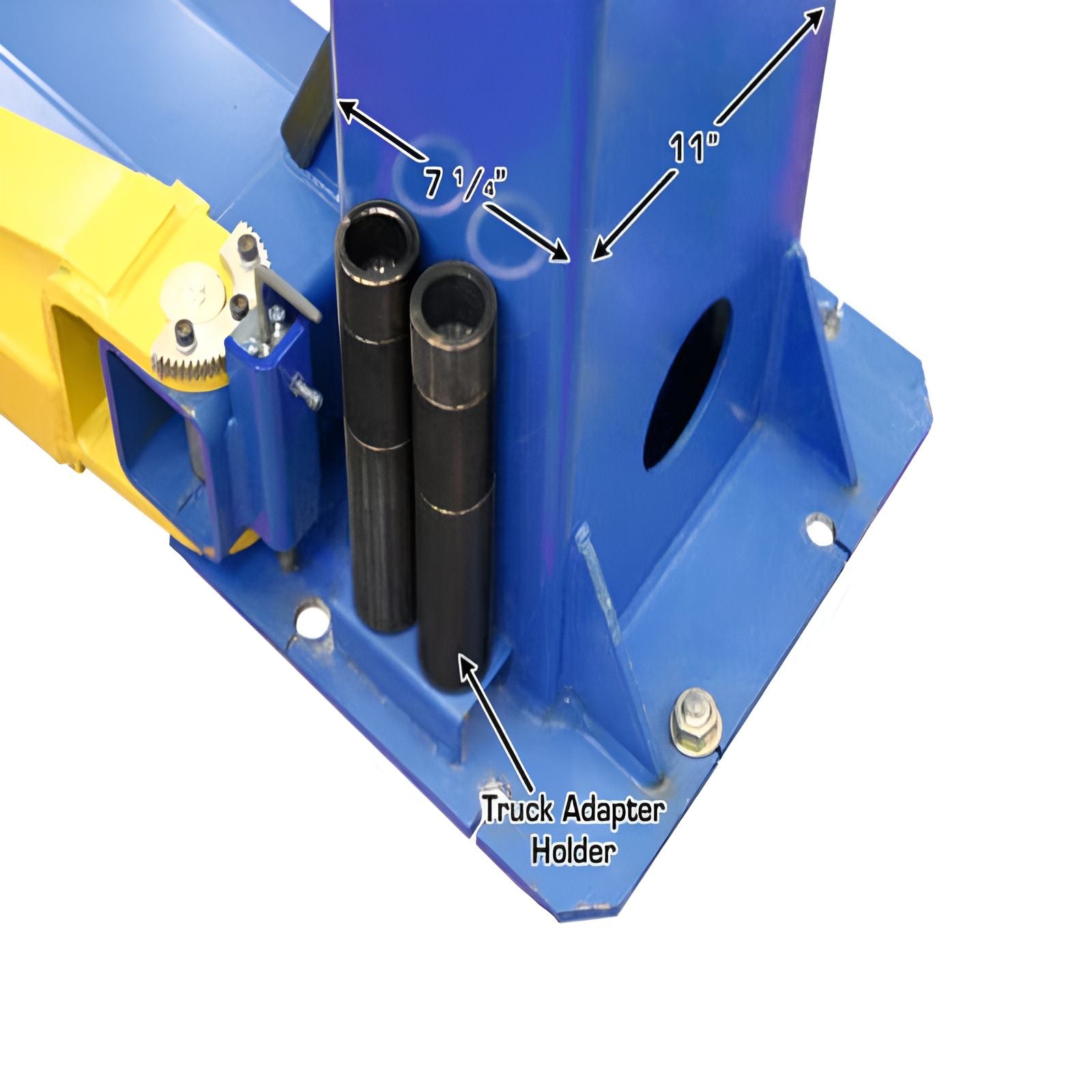

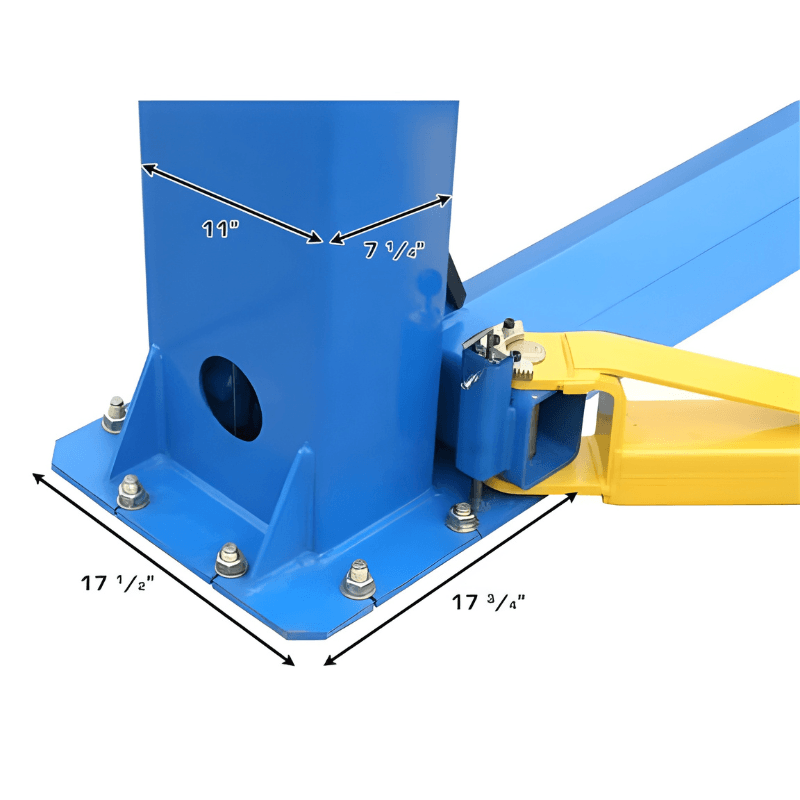

• Column Size: 7 1/4" x 11"
• Column Thickness of Steel: 6mm

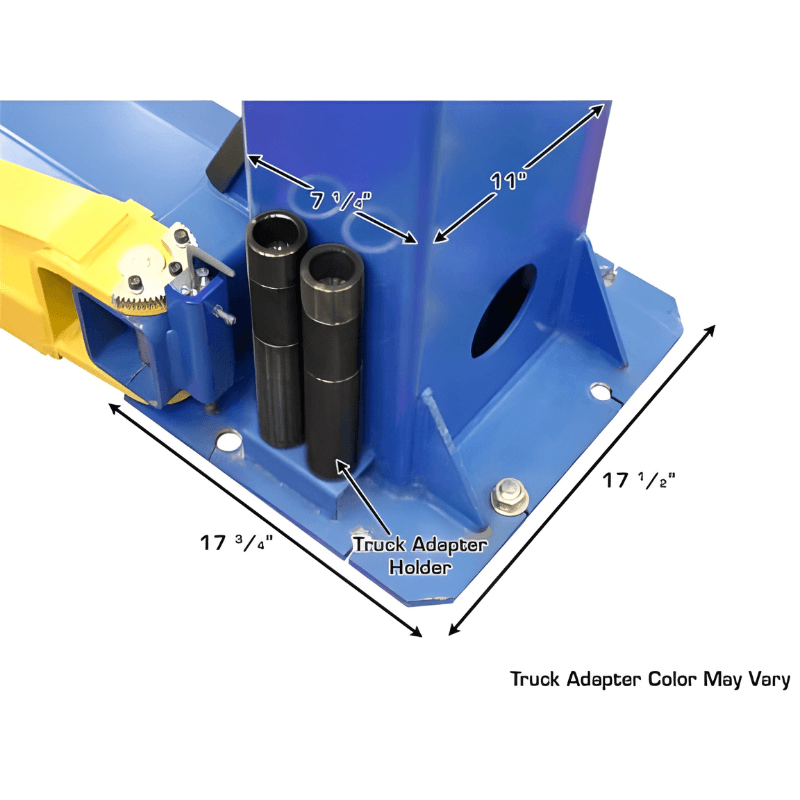

• Base Of Lift: 17 1/2" x 17 3/4"

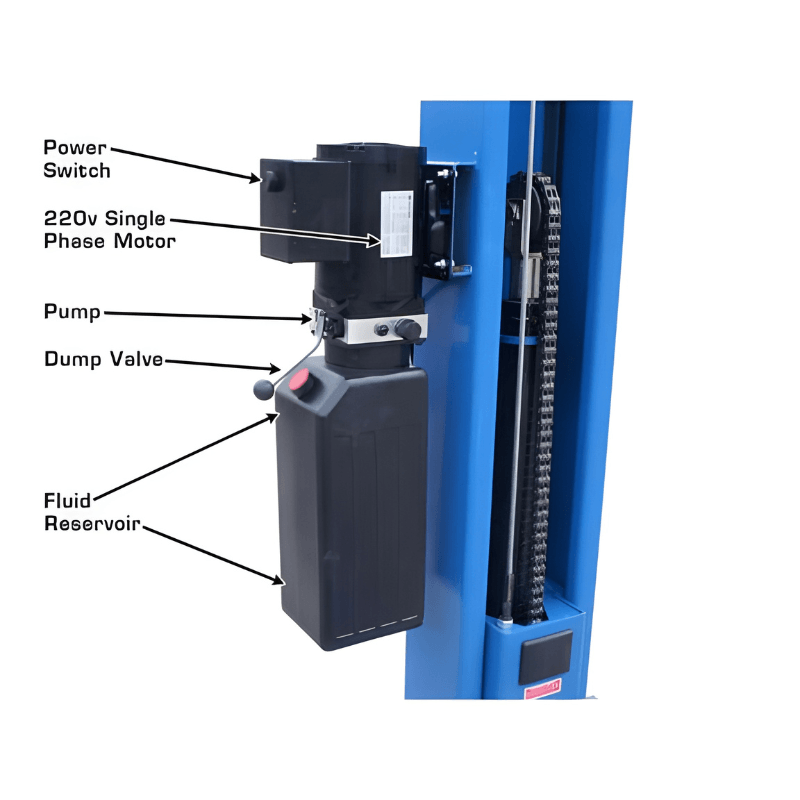

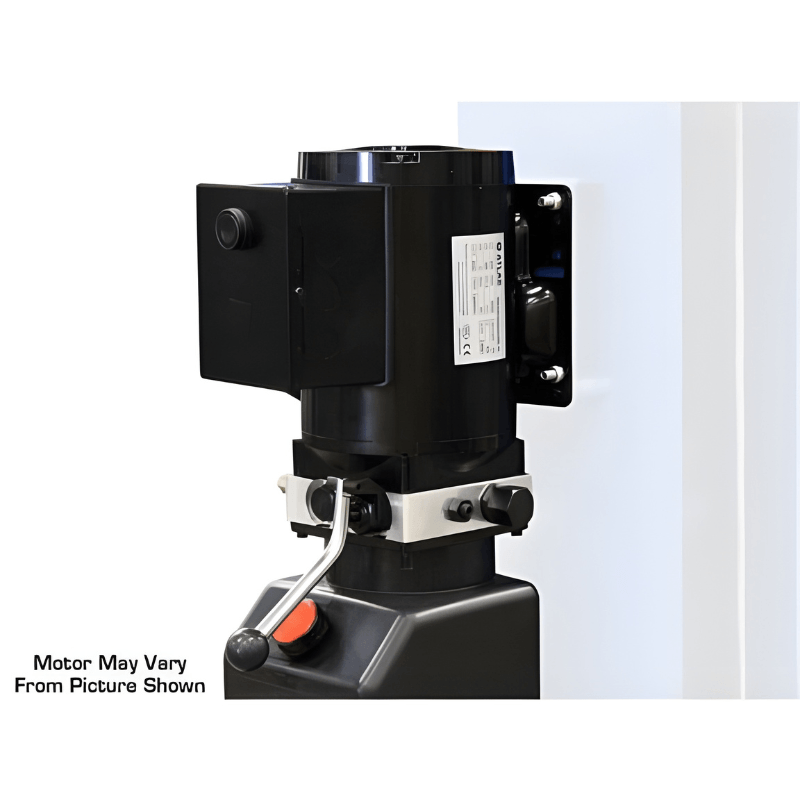

• Motor/Electrical Requirement: 220 volt single (1) phase; A 30 amp breaker is recommended
• Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)

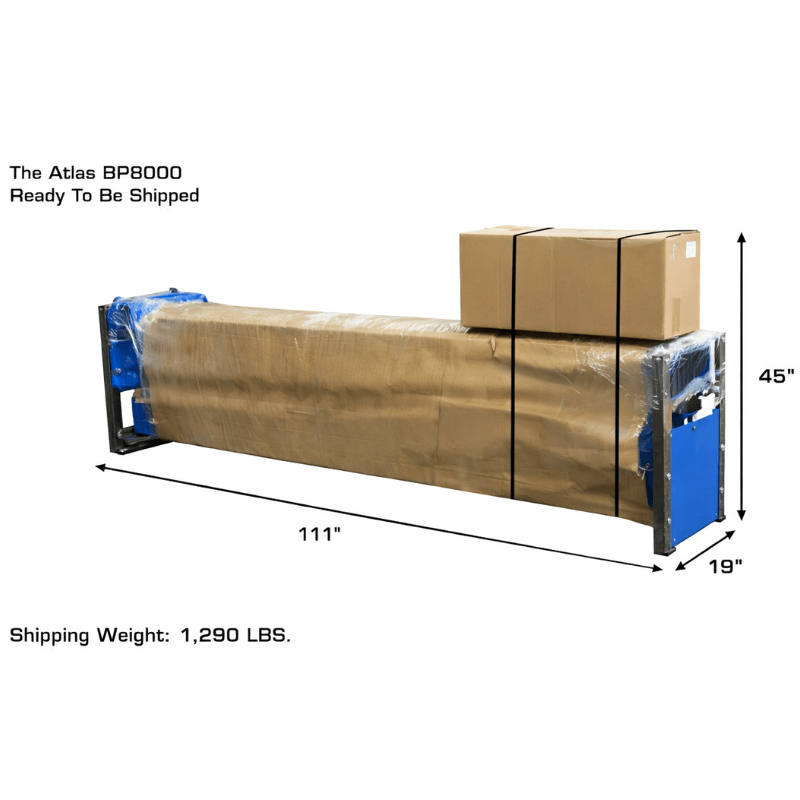

• Shipping Weight: 1,300 lbs

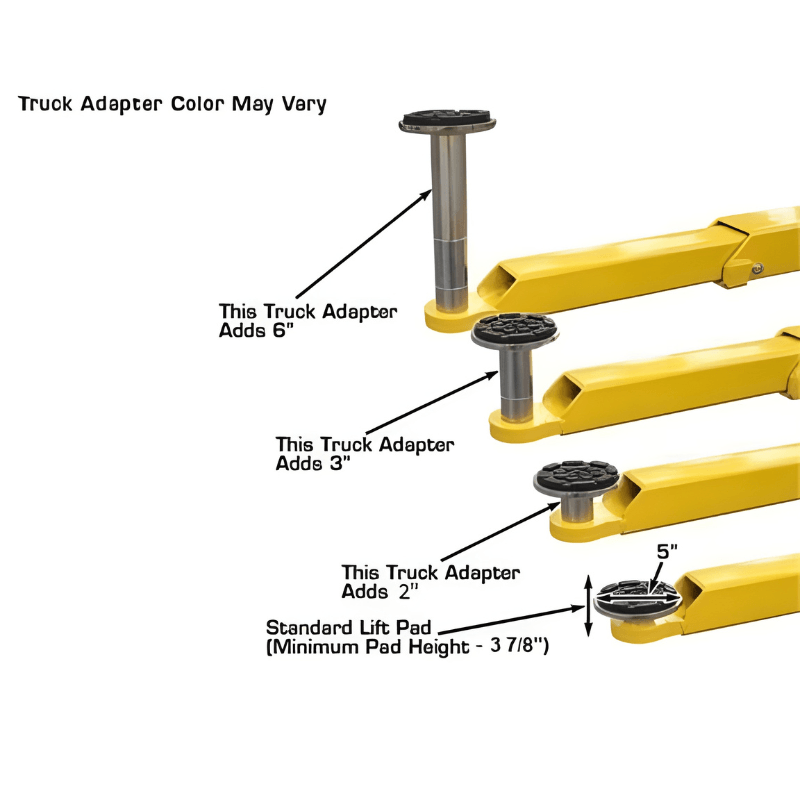

• Adapter Heights: 4 Each 2”, 3”, 6”
• Arm Hole/Adapter Peg Size: 1.5”
• Concrete Requirement: Minimum of 4" with a 3000 psi rating

Atlas Lawn Mower Adapter (LMA) Specifications

• Capacity: Up to 5,000 lbs
• Adjusts In Width: 8' 11"
• Wheel Base: 32" to 90"
• Wheel Well Width: 12"
• Thickness Of Steel: 1/4" (2 Gauge)
• Shipping Weight: 600 lbs

BP8000 8,000 2-Post Lift + Lawn Mower Adapter Special Features:

BP8000

• 8,000 lb. Capacity
• Hobbyist Grade Lift – Not intended for heavy commercial use
• Baseplate, Open-Top Style Lift

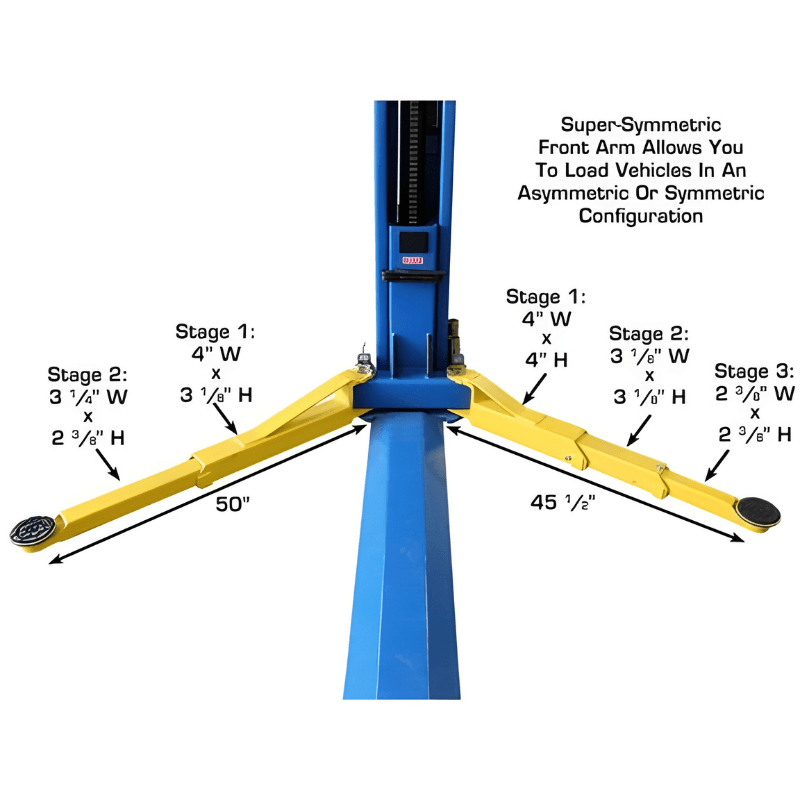

• 3-Stage front arms/2-Stage rear arms

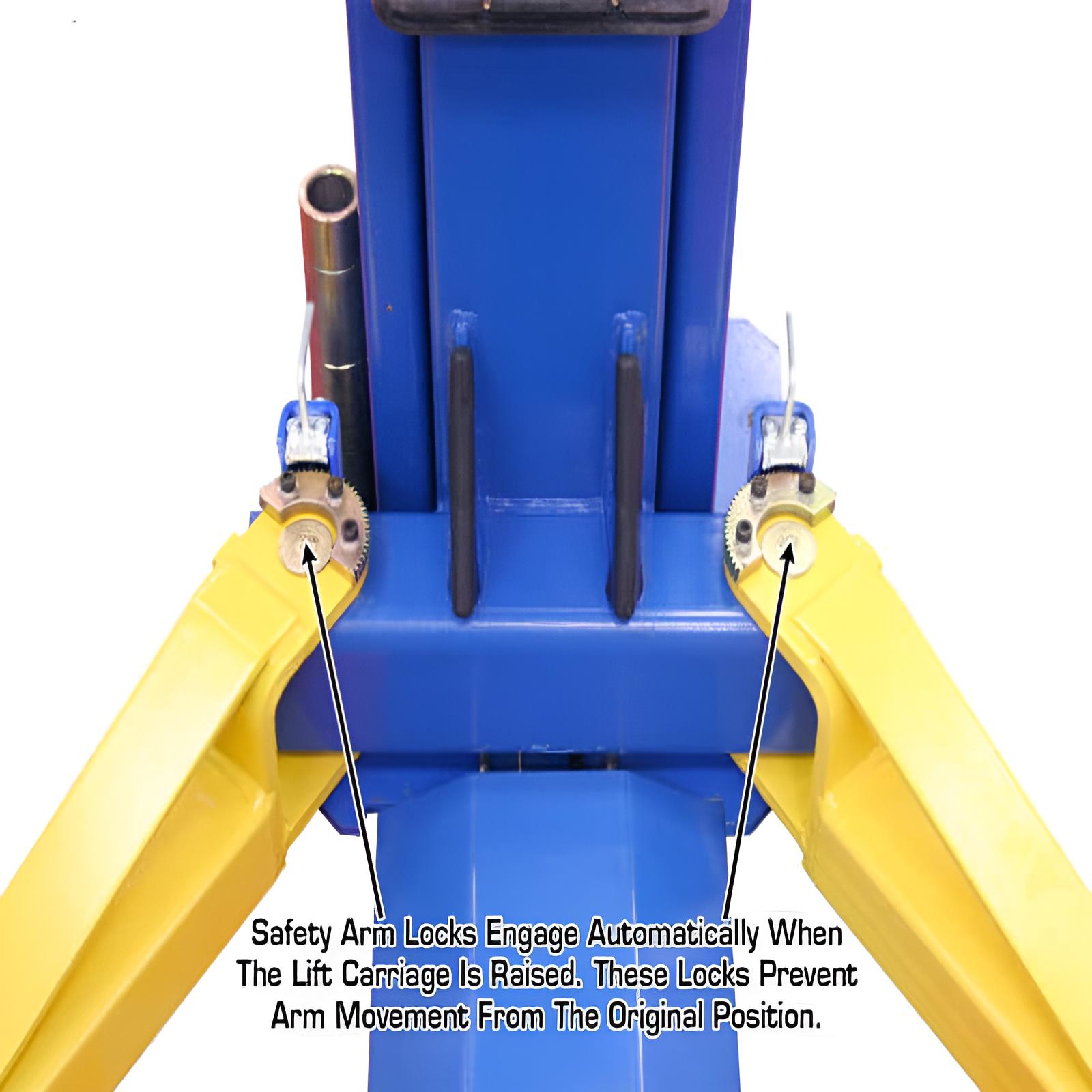

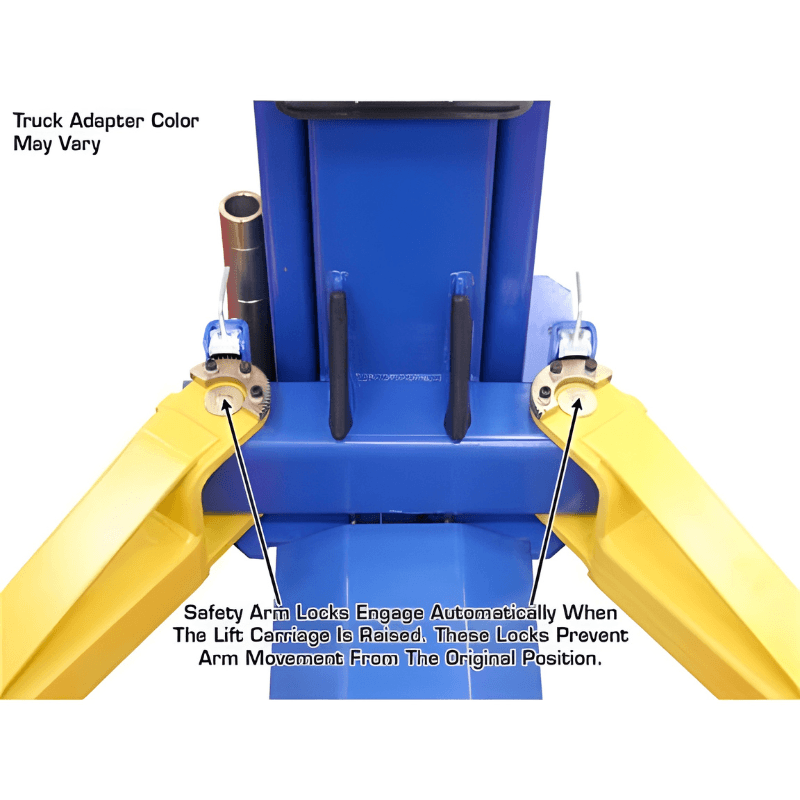

• Automatic Arm Restraints

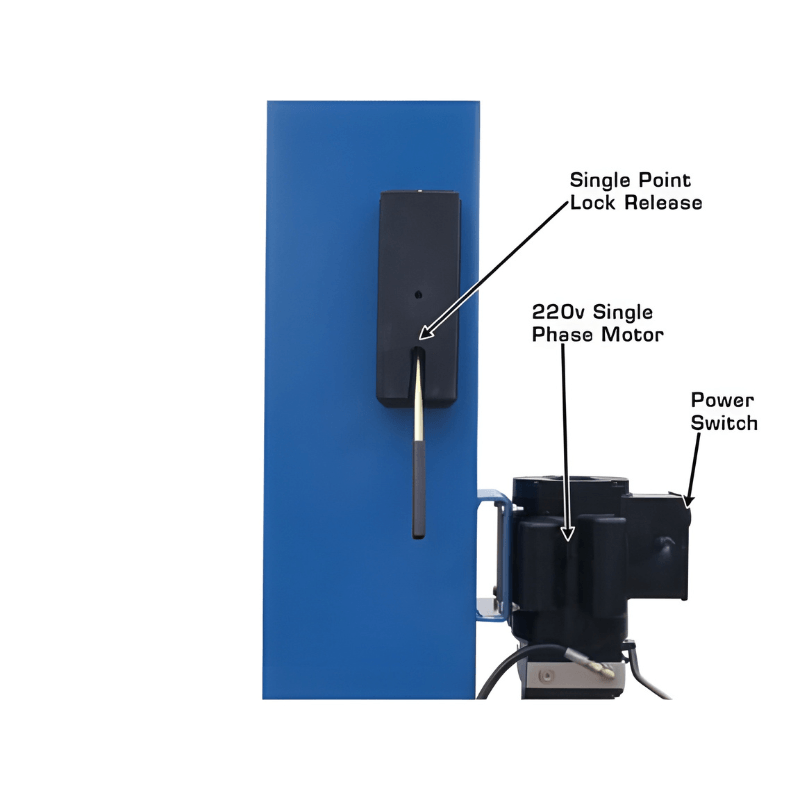

• Single-Point Lock Release
• Double Safety Lock System

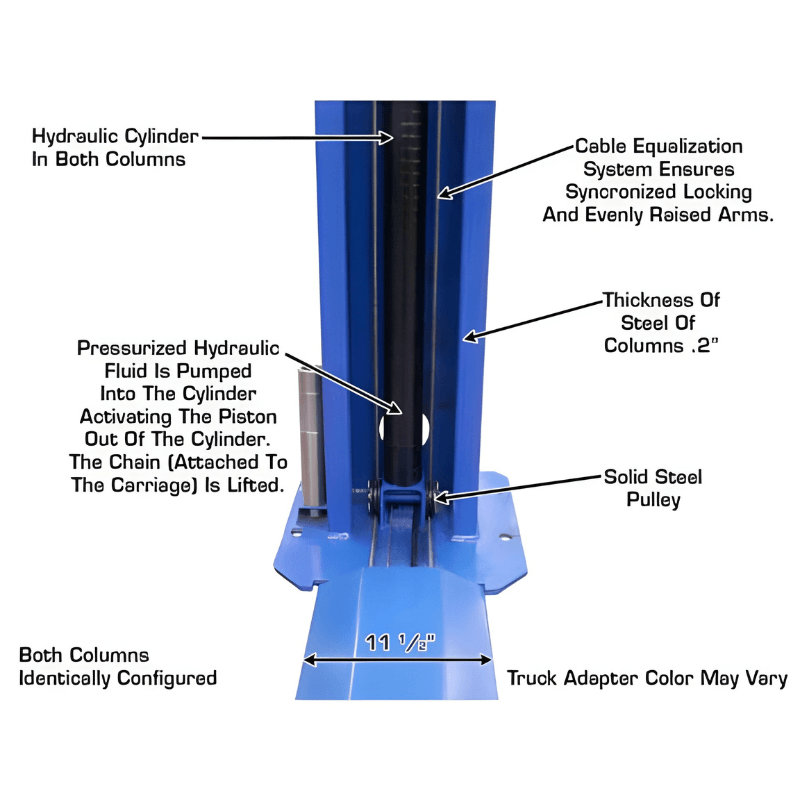

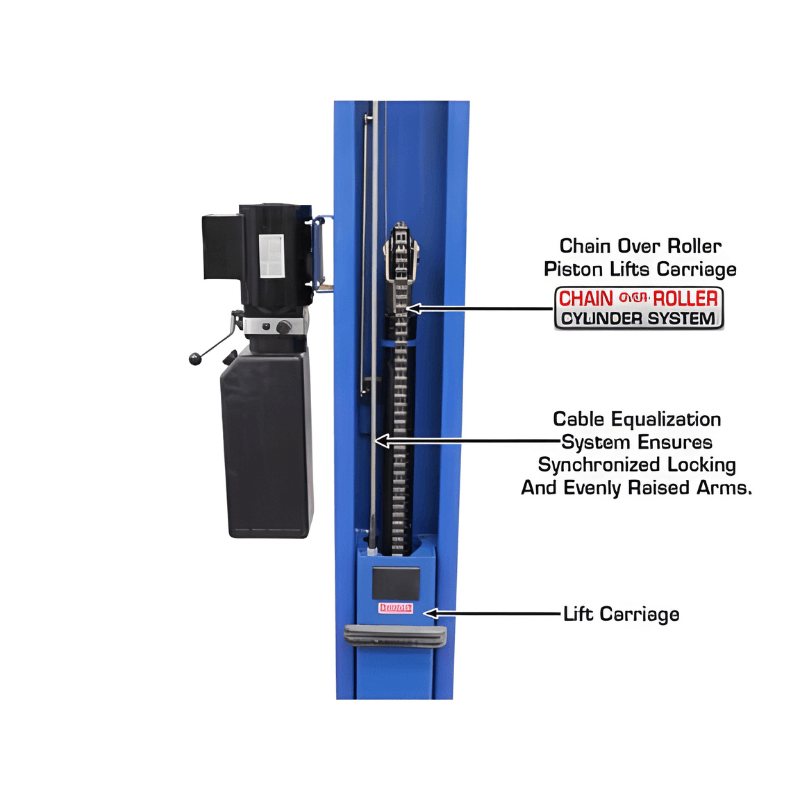

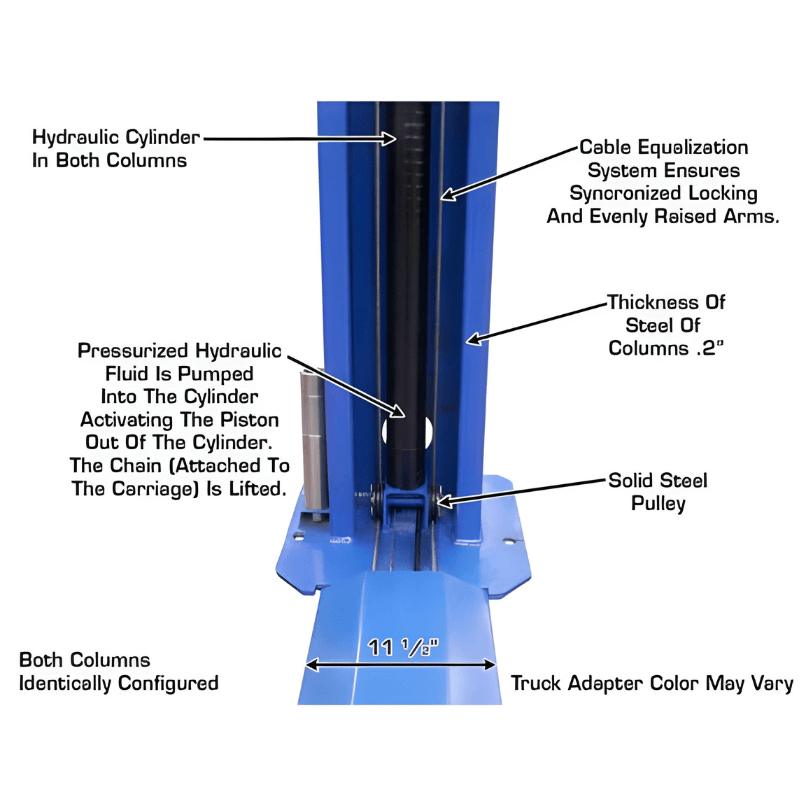

• Dual Hydraulic Chain-Drive Cylinders

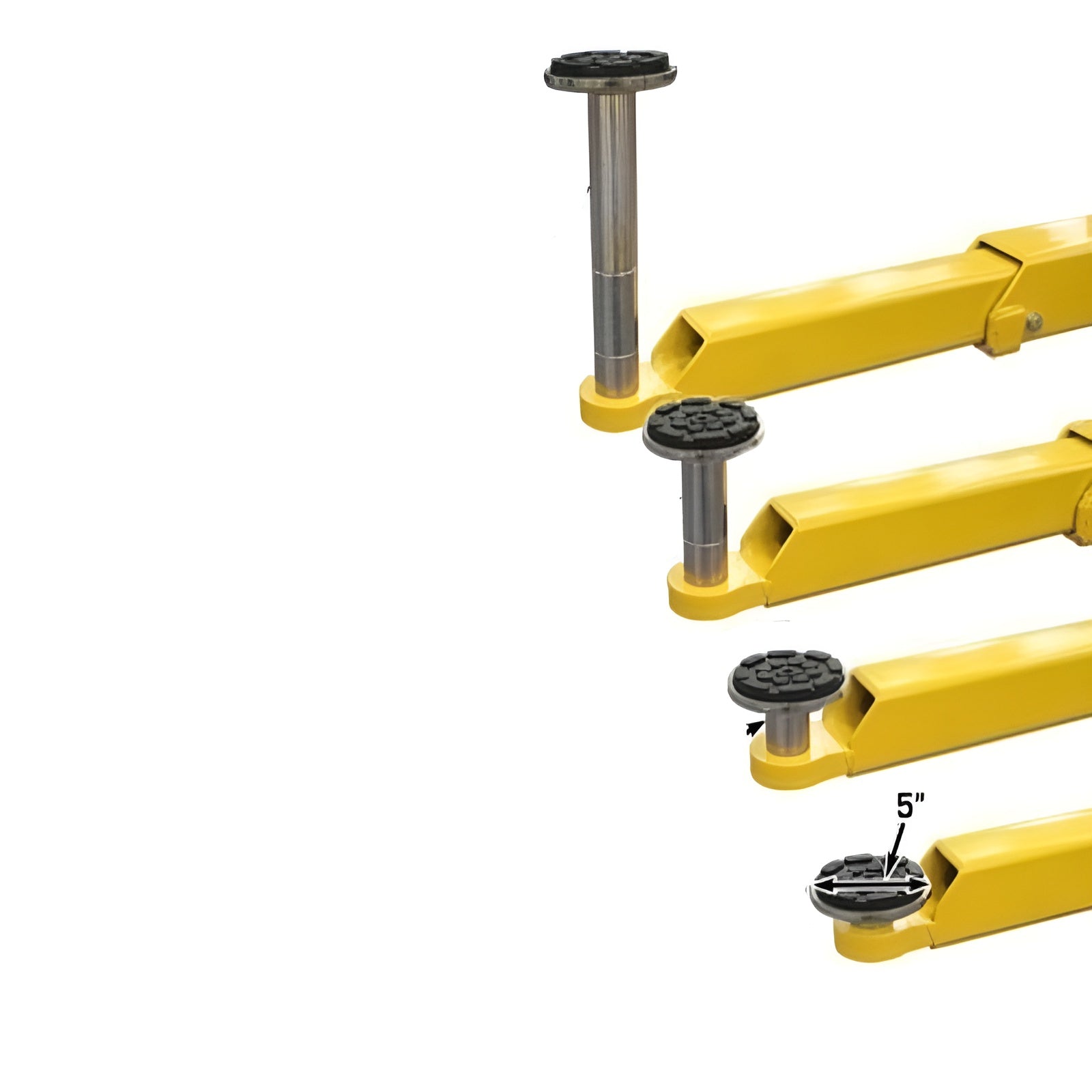

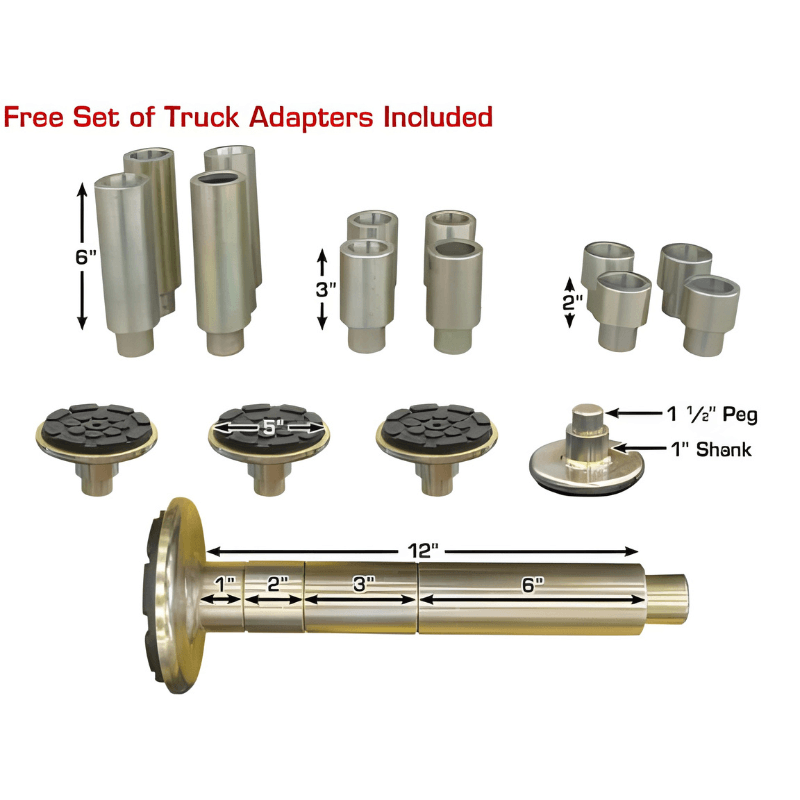

• Free 12 Piece Truck Adapter Set
• Mounting Hardware Included
• Shipping Weight: 1,300 lbs.
• 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only
  • Base Plate Extension Kit For BP8000

LMA

• “Lawnmower” Adapter for 2-Post Lifts
• Includes 4 plates and all hardware
• Adjustable to fit a variety of sizes and brands (MAY NOT WORK WITH ALL LIFTS)
• Up to 5,000 lb. capacity (WILL VARY BY LIFT AND WHEEL BASE)
• Can be positioned along the length of the lift arms (LEVELING BLOCKS MAY BE REQUIRED)

Atlas BP8000 2-Post Lift + Lawn Mower Adapter Documentation:

   Atlas BP8000 2 Post Lift Product Manual

 Atlas Cyclinder Installation Instruction

Atlas BP8000 2-Post Lift and Lawn Mower Adapter (LMA) - Sold Separately

• BP8000 2-Post Lift
• Lawn Mower Adapter
