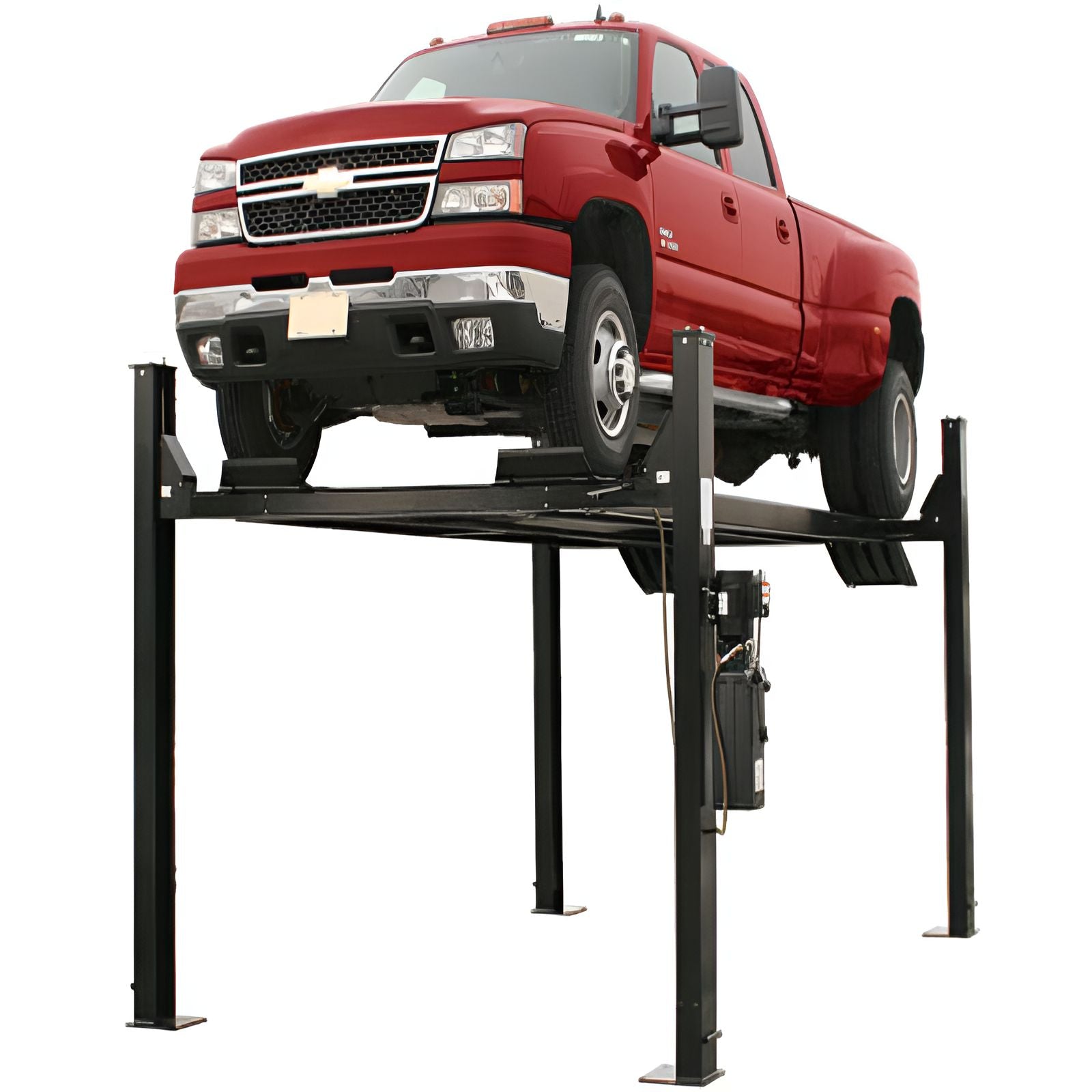

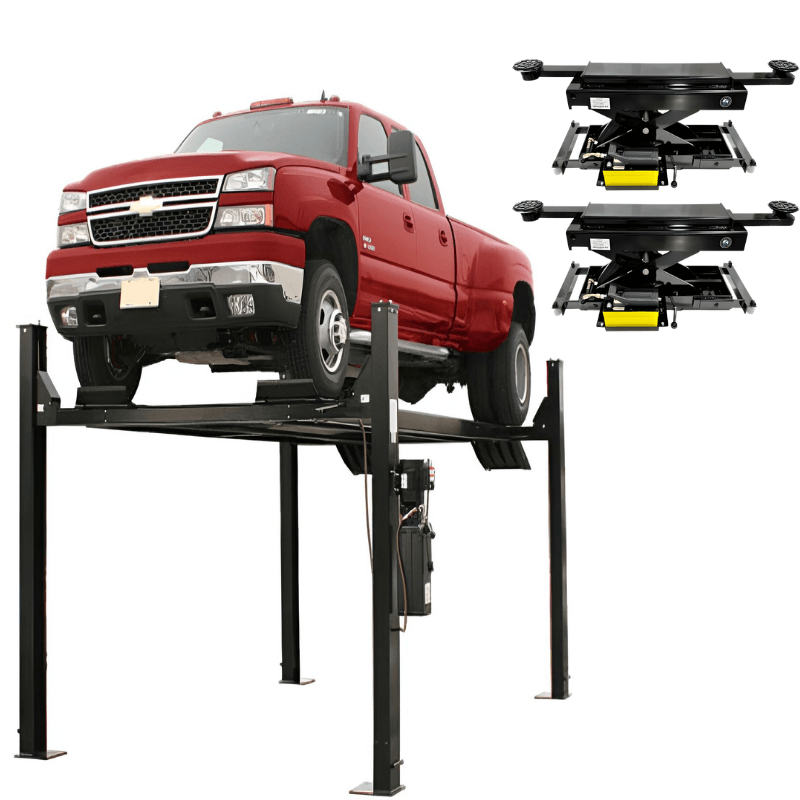

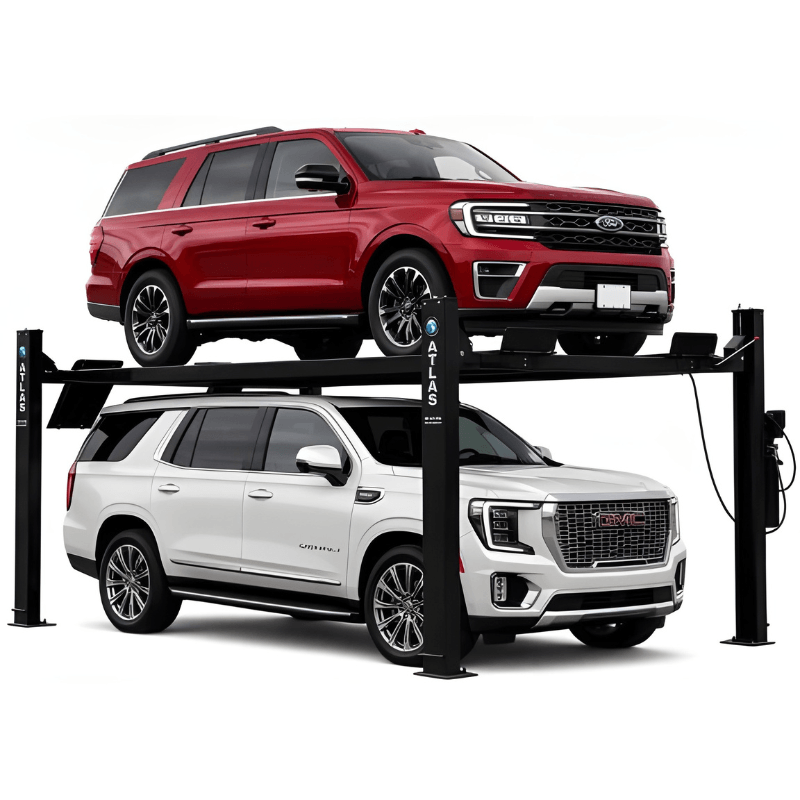

Atlas Garage Pro 9000 4-Post Lift + RJ45A Rolling Bridge Jack Combo

Working on larger vehicles can be difficult when your lift lacks the capacity, width, or runway length you need. The Atlas Garage PRO9000 4-Post Lift + RJ45A Rolling Bridge Jack Combo provides a heavy-duty lifting solution with a 9,000 lb capacity, extra-long runways, and an extra-wide design suitable for a wide range of vehicles, including diesel dually trucks.

The PRO9000 features a free-standing, portable design with a single-point lock release, lock ladder system, and double-lock safety system. The included caster kit, approach ramps, steel jack tray, drip trays, and wheel chocks add convenience for storage and service applications. The RJ45A Rolling Bridge Jack adds wheel-free service capability, allowing technicians to raise the vehicle from the runways for tire and brake work.

With its extra height, width, and length, the Garage PRO9000 is suitable for garages, automotive service centers, and vehicle enthusiasts who need a versatile four-post lift. The included rolling bridge jack provides added functionality for maintenance and repair tasks without requiring a separate lifting system.

Atlas Pro9000 Vehicle Storage Lift Specifications:

• Capacity: 9,000 lbs

• Lifting Height to Top of Runway: 85" (7' 1")

• Clearance Under Runways: 80 1/4" (6' 8 1/4")

• Height of Columns: 95 3/4" (7' 11 3/4")

• Overall Width (Without Motor): 123 1/2" (10' 3 1/2")

• Overall Width (With Motor): 131 1/2" (10' 11 1/2")

• Overall Length with Approach Ramp: 227 1/2" (18' 11 1/2")

• Approach Ramp: 31" (2' 7")

• Runway Width: 21 1/4" (with rails) or 20" (driving surface)

• Runway Length: 199 1/2" (16' 7 1/2")

• Runway Thickness: 4 3/4"

• Width Between Runways: 39 1/4" (3' 3 1/4")

• Width Between Runway Rails: 35 1/2" (2' 11 1/2")

• Outside Runway to Outside Runway: 79" (6' 7")

• Clearance Between Columns: 110 1/2" (9' 2 1/2")

• Length Between Columns: 184 1/2" (15' 4 1/2")

• Maximum Wheel Base: 187" (15' 7")

• Drive Thru (Outside of Tire to Outside of Tire): 97 1/4" (8' 1 1/4")

• Motor/Electrical Requirement: 110 Volt, 30 AMP breaker required

• Concrete Requirements: Minimum of 4"-3000psi


• Shipping Dimensions: 202 1/4" x 21 1/2" x 28 1/4" - 2,300 lbs

Rolling Jack RJ45A Specification:

• Capacity: 4,500 lbs

• Minimum Width (Roller Arms): 36"

• Maximum Width (Roller Arms): 54"

• Lift Arm Width (Center of Pad): 30" - 60 1/2"

• Air Requirement: 70-115 PSI

• Shipping Weight: 380 lbs

• Arm Hole/Adapter Peg Size: 1 1/2"

• Adapter Heights: 2 Each 1 1/4", 5"

9000 lb 4 Car Lift Special Features:

• 9,000 lb. capacity to handle a wide range of vehicles, from compact cars to heavy-duty trucks

• Extra tall, wide, and long design accommodates large vehicles, including diesel duallys

• Free-standing, portable design allows for easy relocation within the shop or even outdoors

• Single-point lock release and lock ladder design ensure easy, secure lifting

• Double-lock safety system for enhanced security during operation

• Caster kit with polyurethane wheels for effortless mobility

• Steel approach ramps for easy drive-on and access

• Plastic drip trays and steel jack tray included for added convenience

RJ45A 4500 lb. Rolling Jack Special Features:

• 4,500 lb Capacity for lifting heavy vehicles

• Air/Hydraulic Operation (External air supply not included)

• Multiple Safety Lock Positions for secure lifting

• Compact Size with Low Profile for better space management

• Smooth Rolling Action for easy positioning on the lift

• Scissor Mechanism allows for level lifting

• 4-Piece Truck Adapter Set Included for lifting larger vehicles

• 1 Year Parts Only Warranty for peace of mind

• Efficient Lifting for tire, brake, and component servicing

Atlas PRO9000 + RJ45A Manual:

   Atlas Garage Pro9000 Manual
