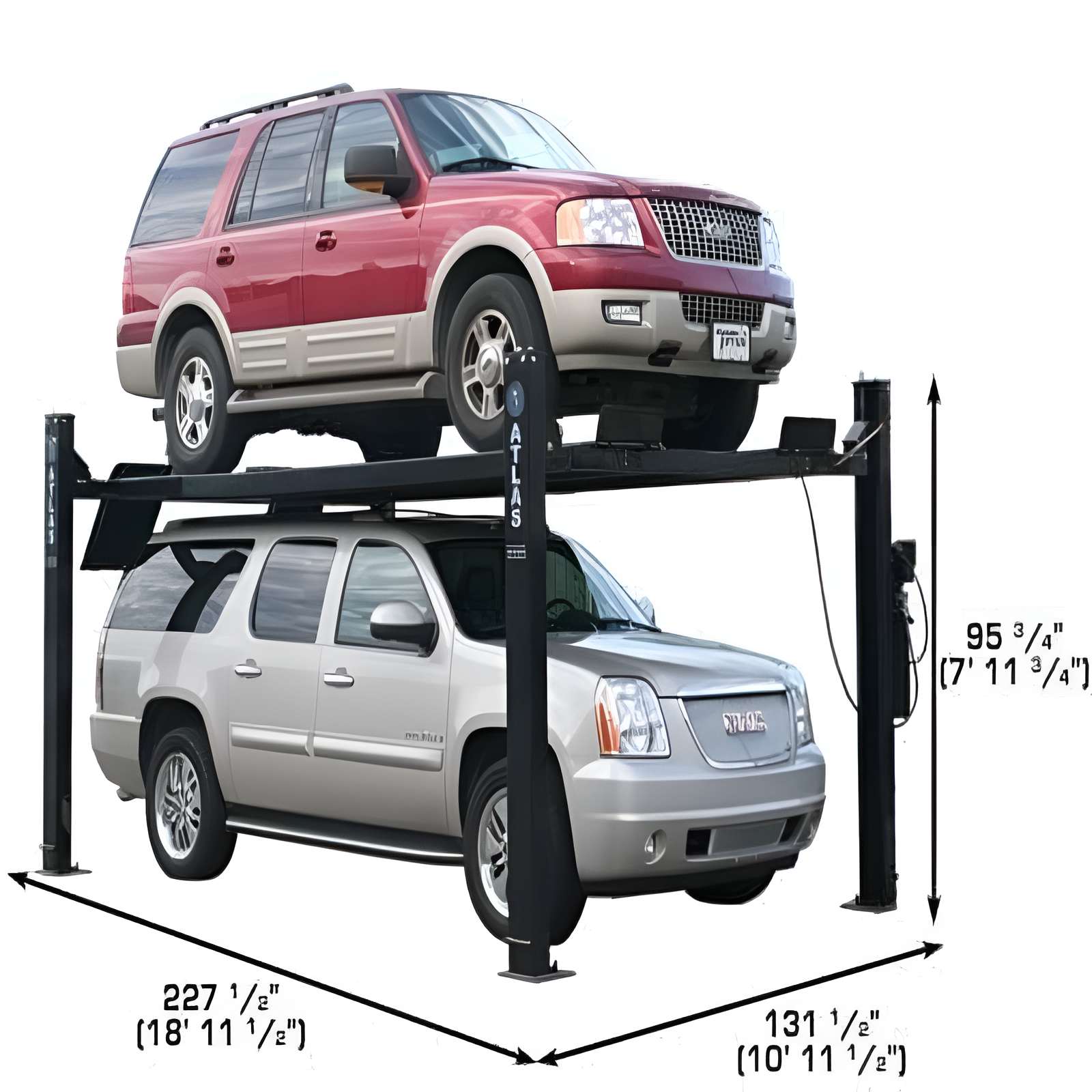

Garage Pro 9000 - 9,000lb Extra Large Vehicle Storage Lift Side View

Atlas Garage Pro 9000 - 9,000lb Extra Large Vehicle Storage Lift

SKU ATEXH-PRO9000
by Atlas Lifts
Save $200.00
$5,199.00
$4,999.00
  • ✓ 💥 Atlas Sale – Ends Sunday 11/16 – Order Today!
  • ✓ No Sales Tax - Except CA, FL, GA, IL, IN, MI, MN, OH, PA, TN, & WA
  • ✓ Ships in 3-5 Business Days
  • ✓ Better Business Bureau (BBB) Accredited

Delivery Options

Notify me when back in stock

Atlas 9000 4 Post Lift

Your garage is a chaotic mess. If your cars could talk, they’d tell you they’re suffocating. You’re dreaming of a more organized, functional space - and closing your eyes is the only way to not deal with the mess that is your garage. Hurts, doesn’t it?

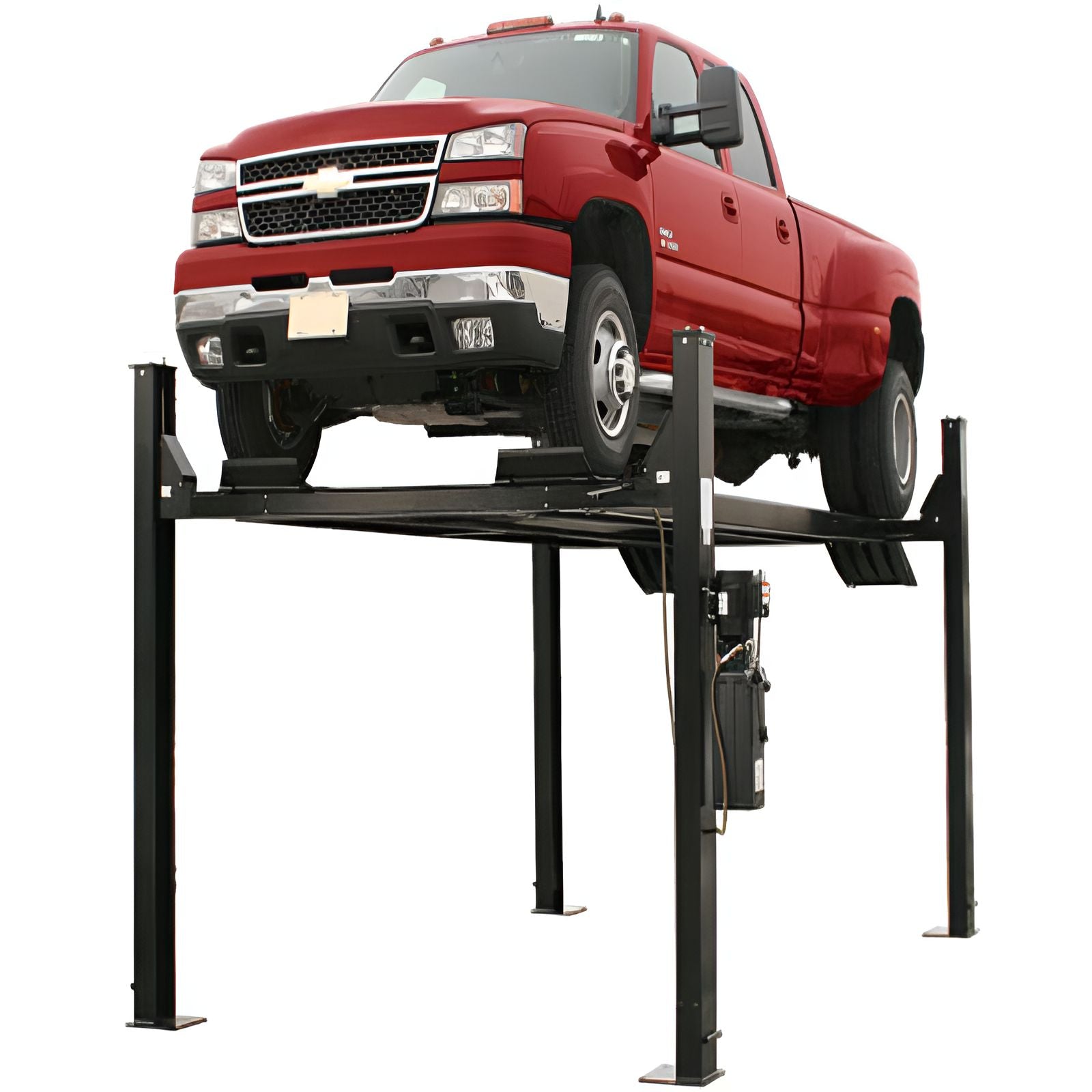

The Atlas® Garage PRO9000 will take the hurt away. This heavy-duty lift, capable of handling a massive 9,000 lbs, is the ultimate space-saver. Designed for hobbyists and shop owners it boasts extra length and width, accommodating vehicles from Smart Cars to Diesel Duallys with ease. Its 85” lifting height and 80 ¼” clearance under runways ensure even your tallest ride fits comfortably. And with a sturdy build and a double lock safety system, you can rest assured your car is secure. No more car Tetris. No more sacrificing precious space. And with our included goodies like drip trays and a jack tray, you’re set up for success from day one.

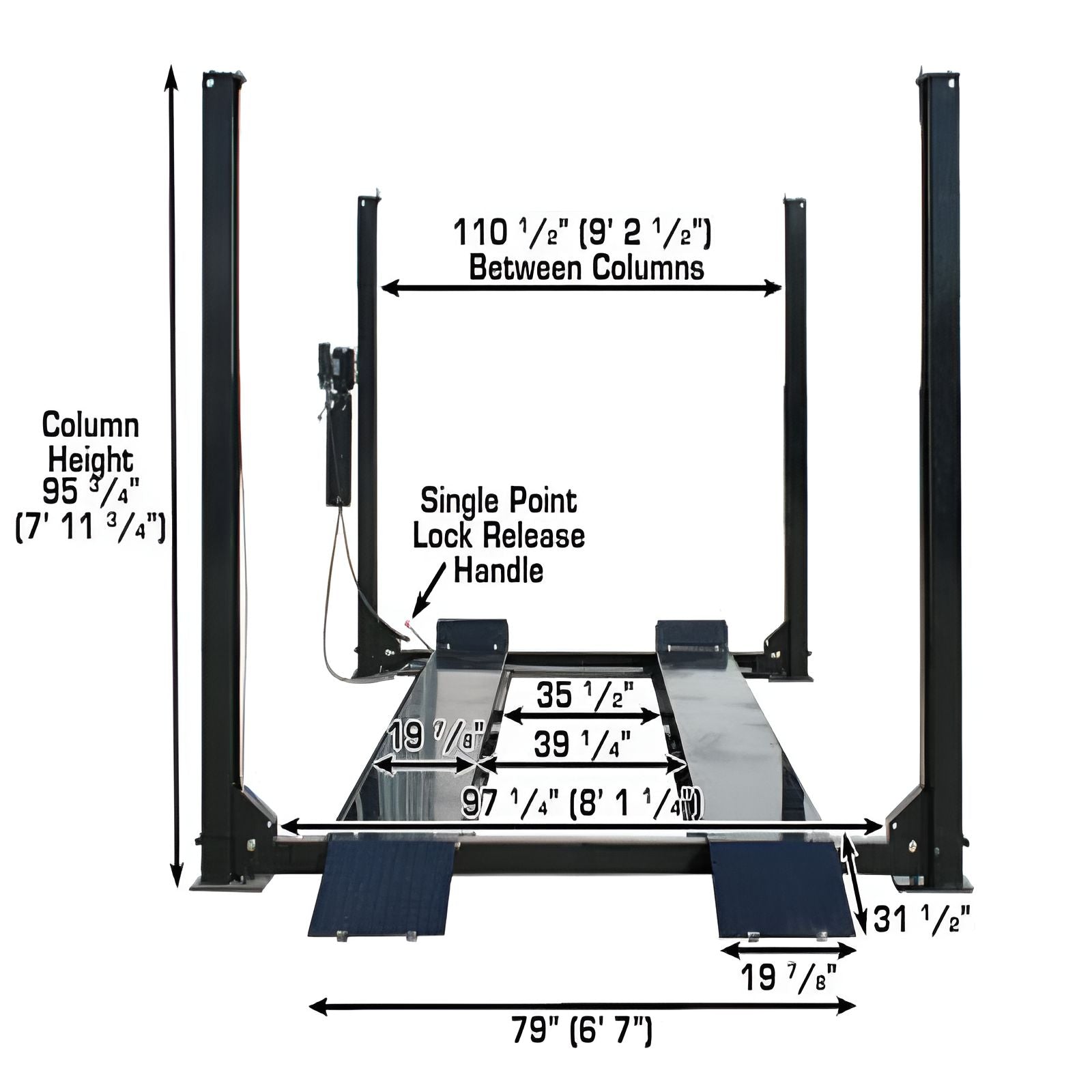

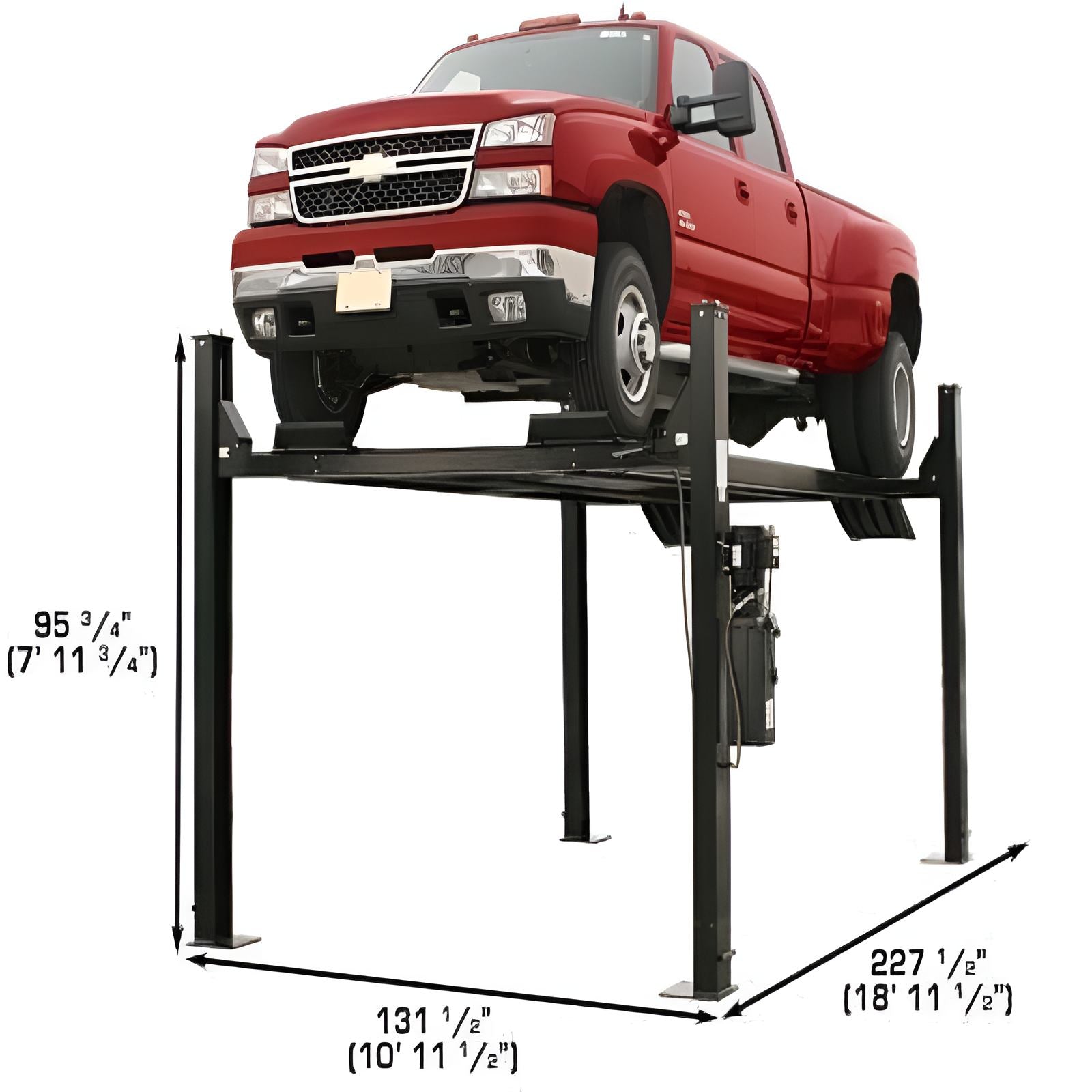

Atlas Pro9000 Vehicle Storage Lift Specifications:

  • Capacity 9,000 Lb.

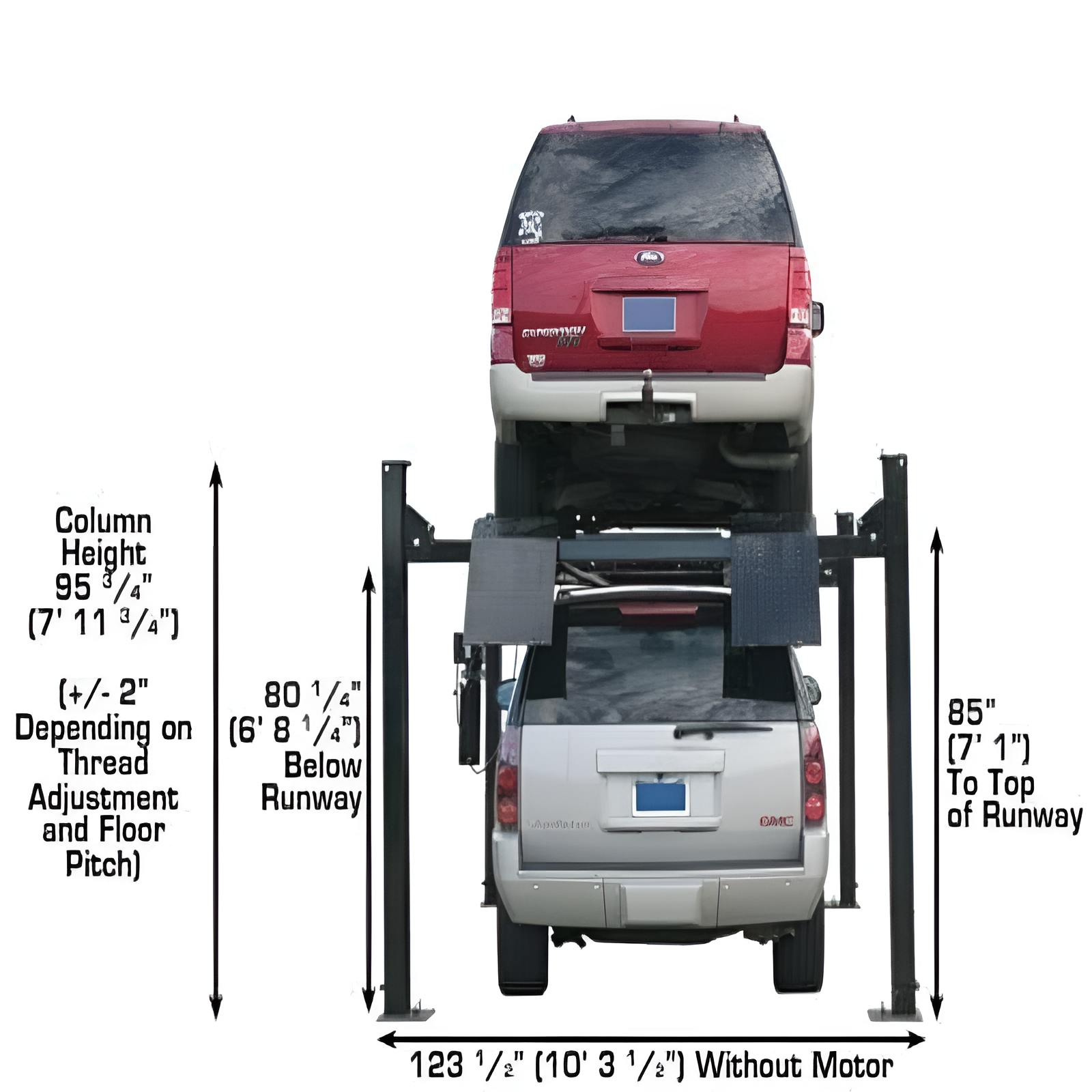

  • Lifting Height To Top Of Runway 85" (7' 1")

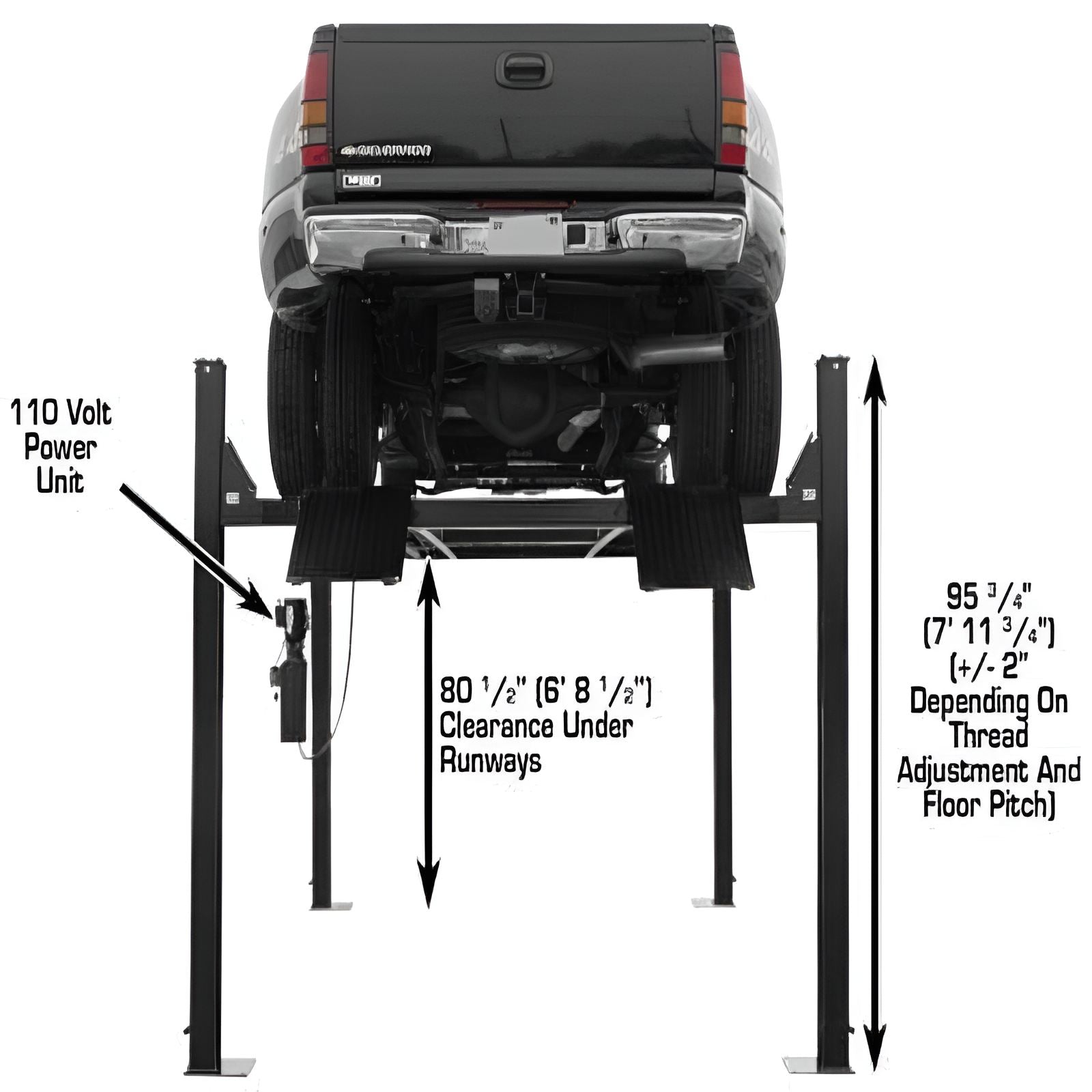

  • Clearance Under Runways 80 1/4" (6' 8 1/4")

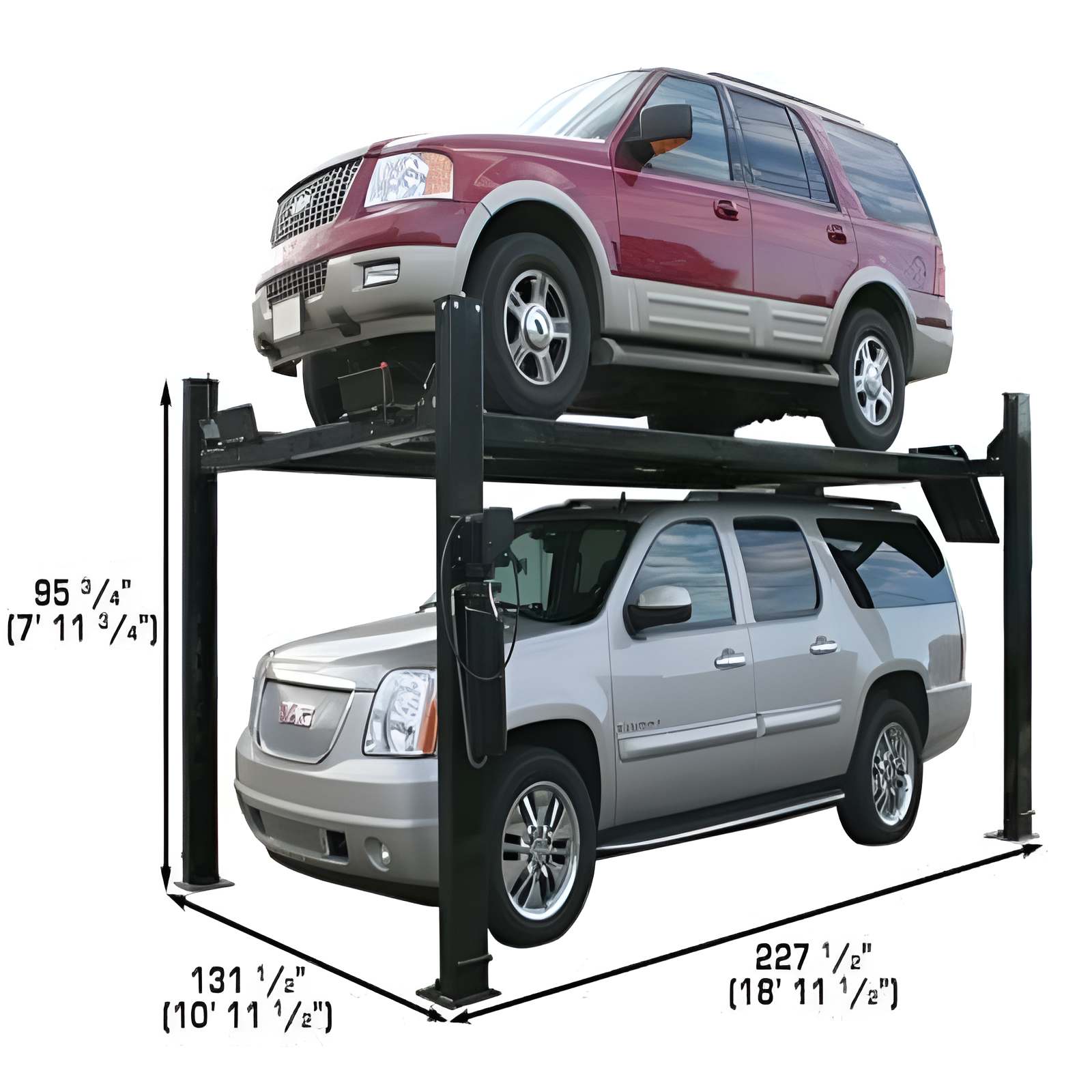

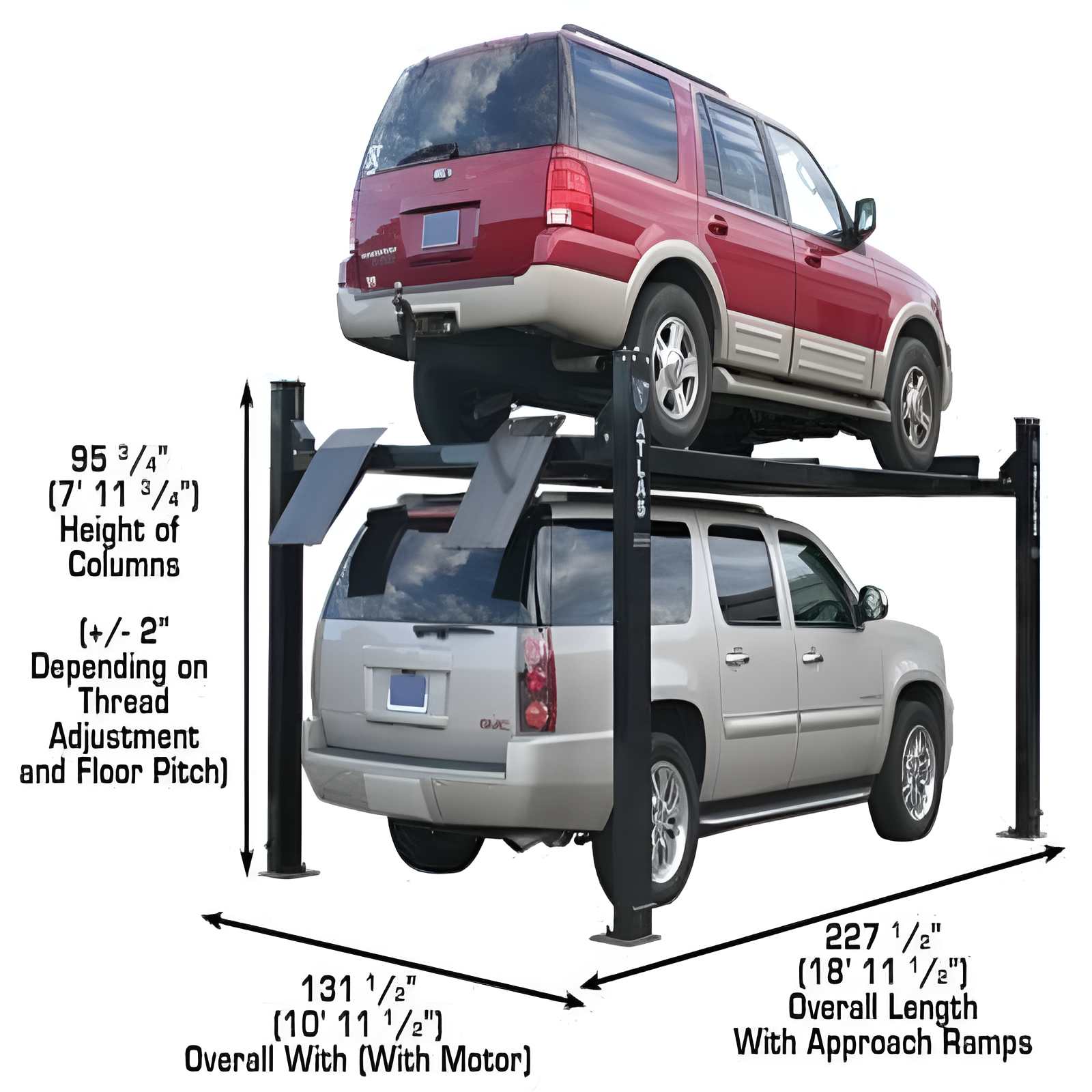

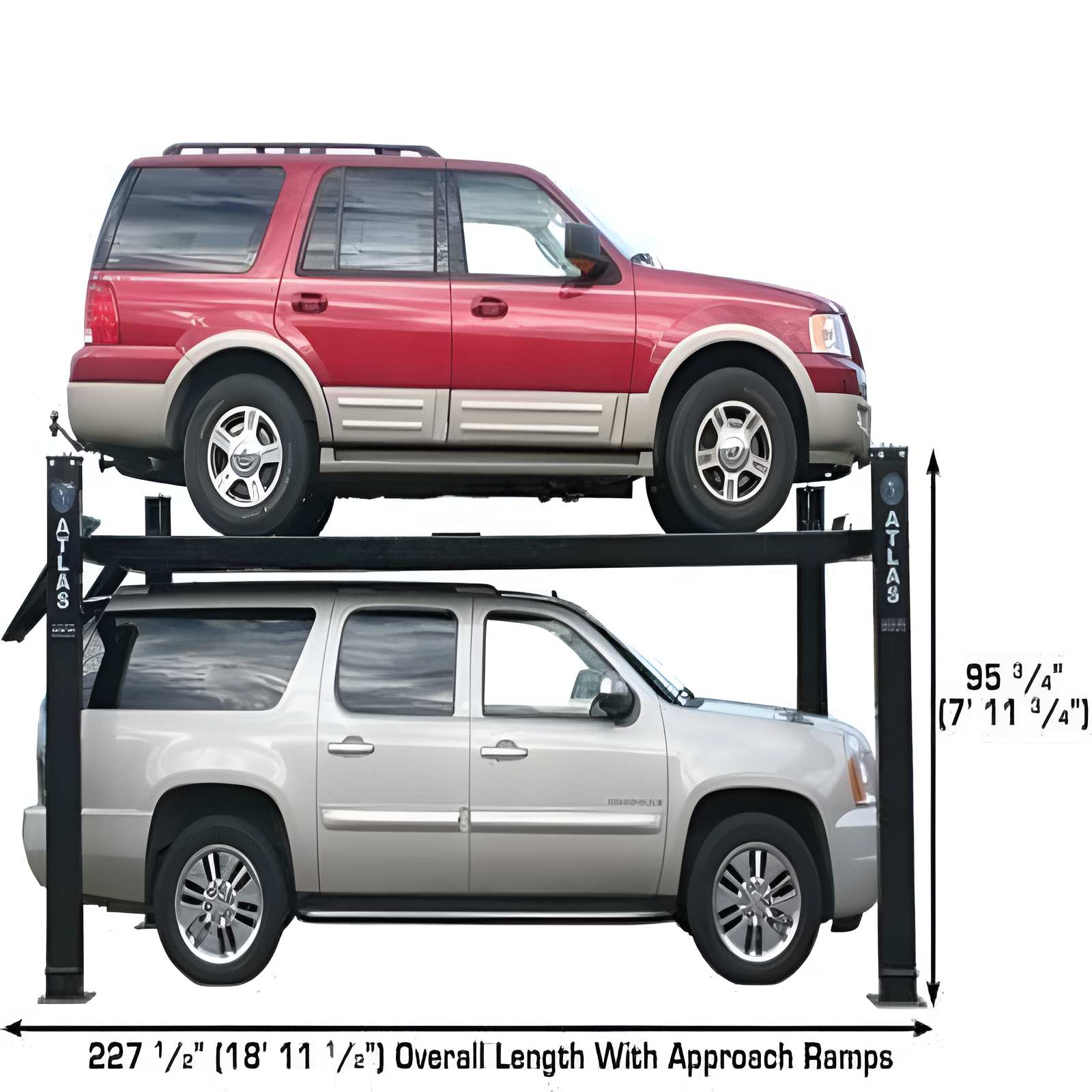

  • Height Of Columns 95 3/4" (7' 11 3/4")
  • Overall Width (Without Motor) 123 1/2" (10' 3 1/2")

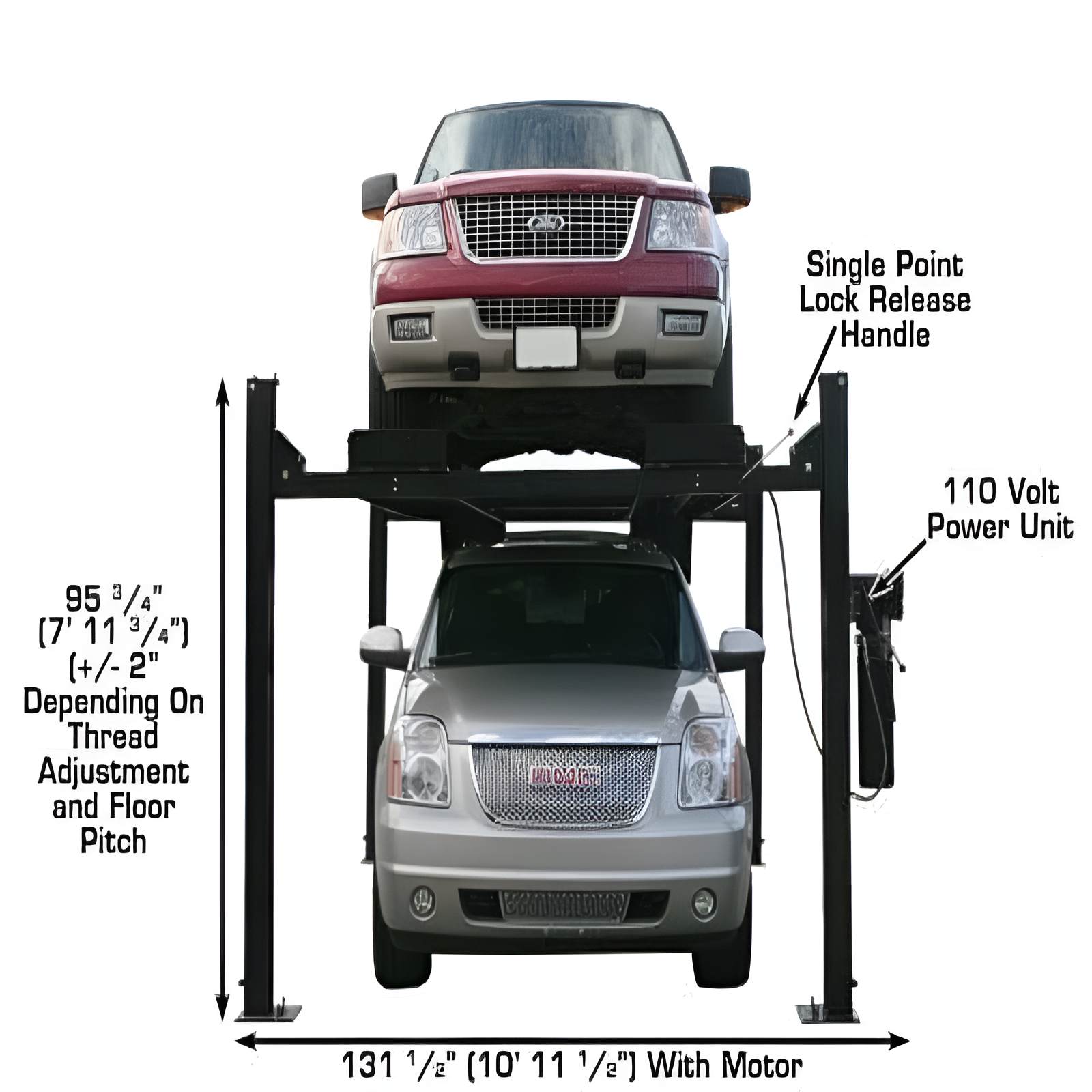

  • Overall Width (With Motor) 131 1/2" (10' 11 1/2")
  • Overall Length With Approach Ramp 227 1/2" (18' 11 1/2”)
  • Approach Ramp 31" (2' 7")
  • Runway Width 21 1/4" (w/ Rails) or 20" (Driving Surface)
  • Runway Length 199 1/2" (16' 7 1/2")
  • Runway Thickness 4 3/4"
  • Width Between Runways 39 3/4" (3' 3 3/4")
  • Width Between Runway Rails 35 1/2" (2' 11 1/2")
  • Outside Runway To Outside Runway 79" (6' 7")
  • Clearance Between Columns 110 1/2" (9' 2 1/2")

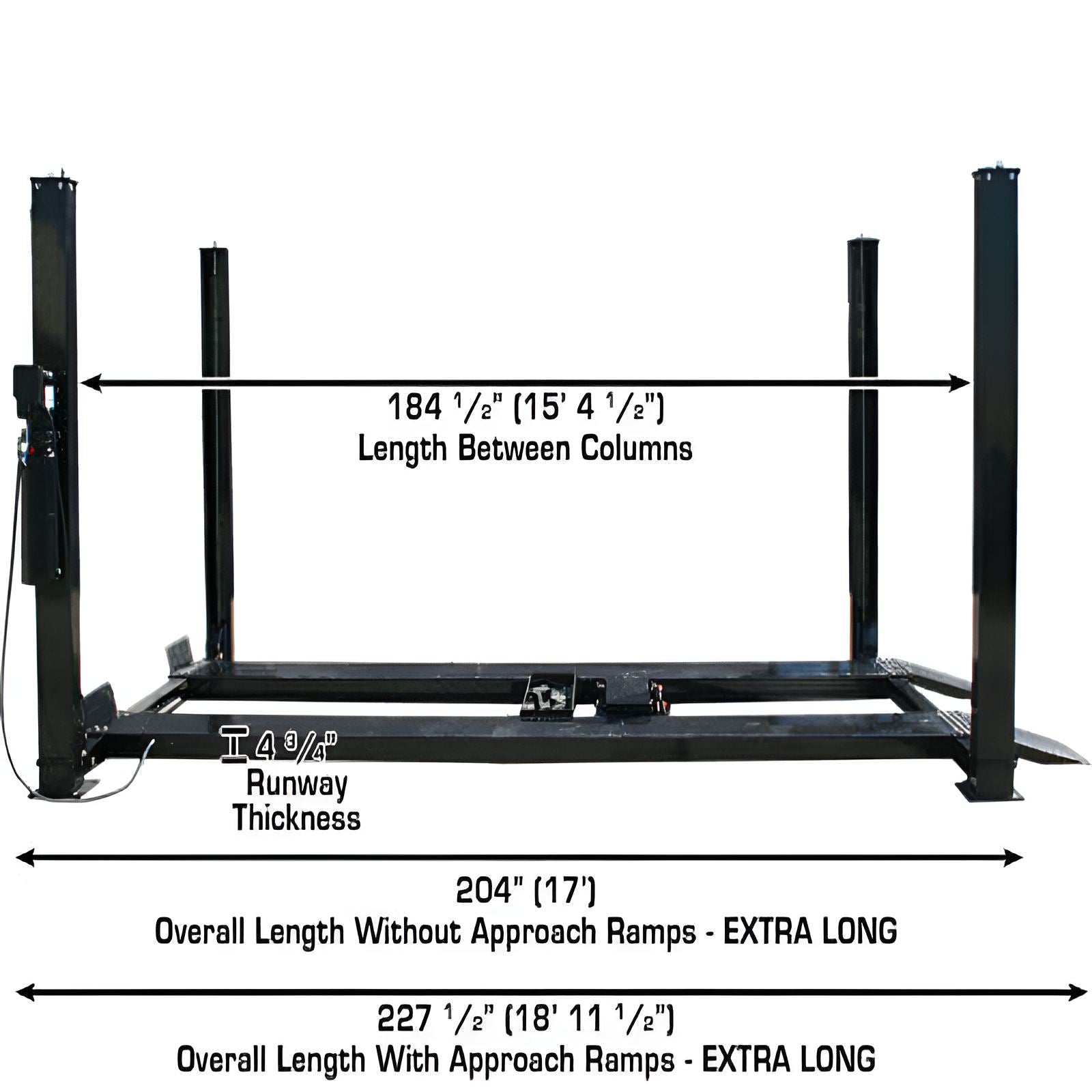

  • Length Between Columns 184 1/2" (15' 4 1/2")
  • Maximum Wheel Base 187" (15' 7")
  • Drive Thru (Outside Of Tire To Outside Of Tire) 97 1/4" (8' 1 1/4")
  • Motor/Electrical Requirement 110 Volt, 30 AMP BREAKER REQUIRED
  • Shipping Weight 2,300 lb.

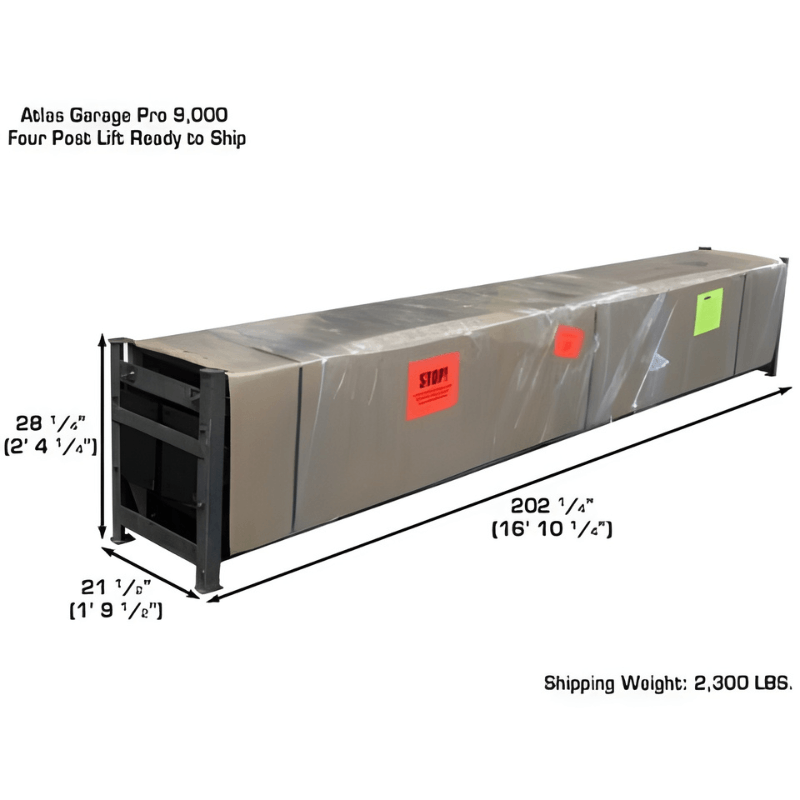

  • Pallet Size:  202-1/4"" Long x 28-1/2" Tall x 21-1/2" Wide

      9000 lb 4 Car Lift Special Features:

      • Capacity: 9,000 lb
      • Style: Extra Tall, Extra Wide, Extra Long
      • Heavy Duty
      • Design Free Standing & Portable
      • Diamond Plated Runways

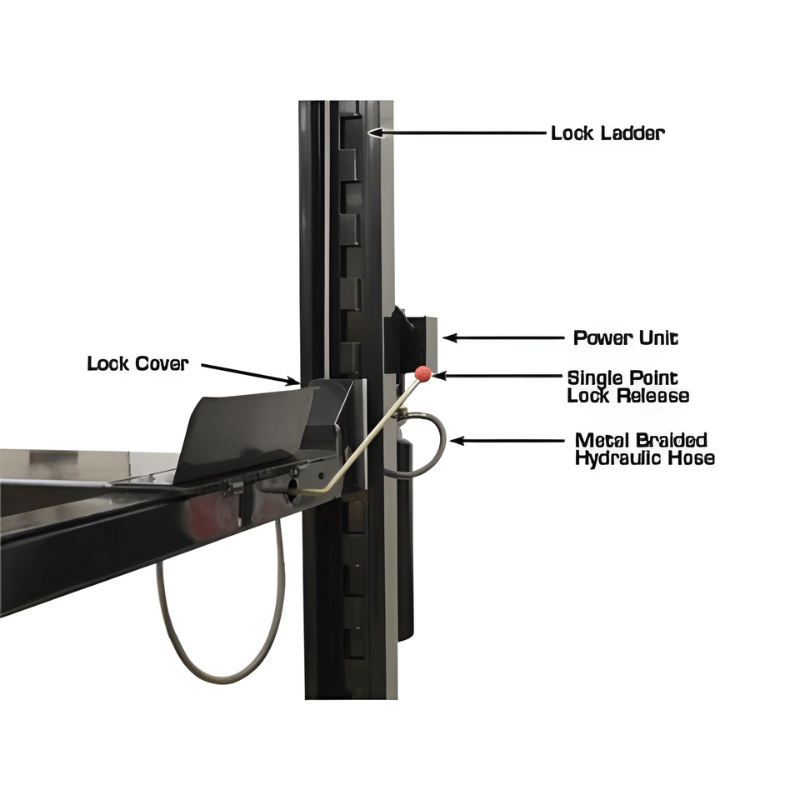

      • Lock Release: Single-Point

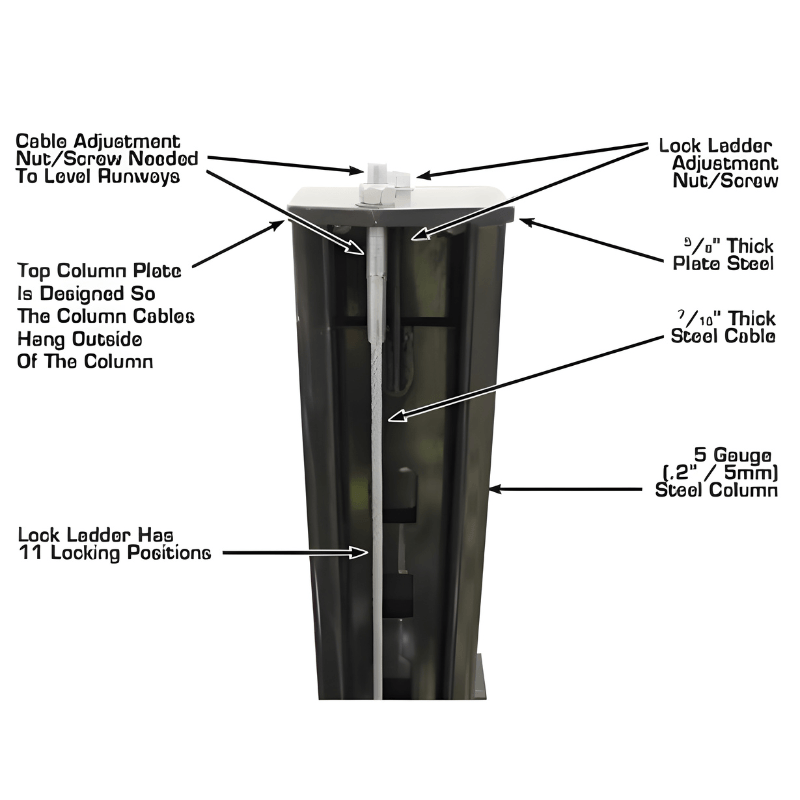

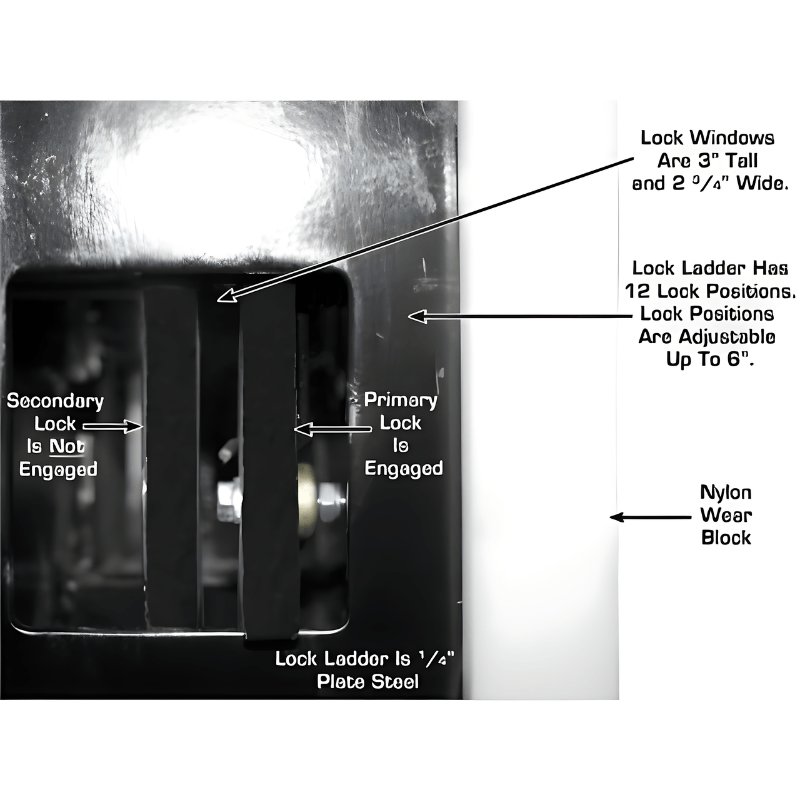

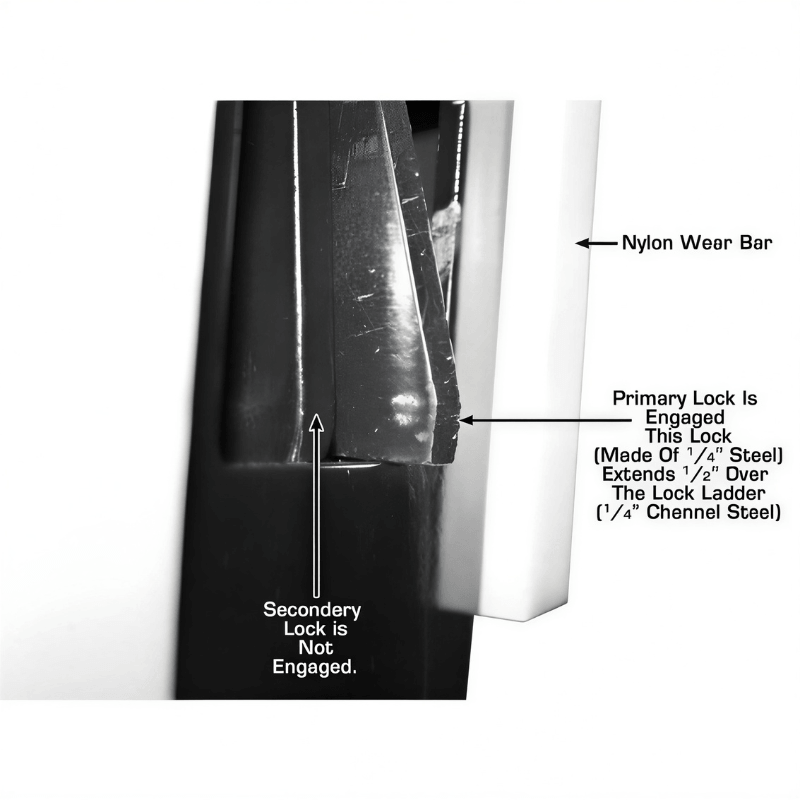

      • Lock Design Lock Ladder w/ Double Lock Safety System
      • Warranty: 2 year Structural; 1 year Hydraulic ‐ Parts Only
      • Unit Includes:

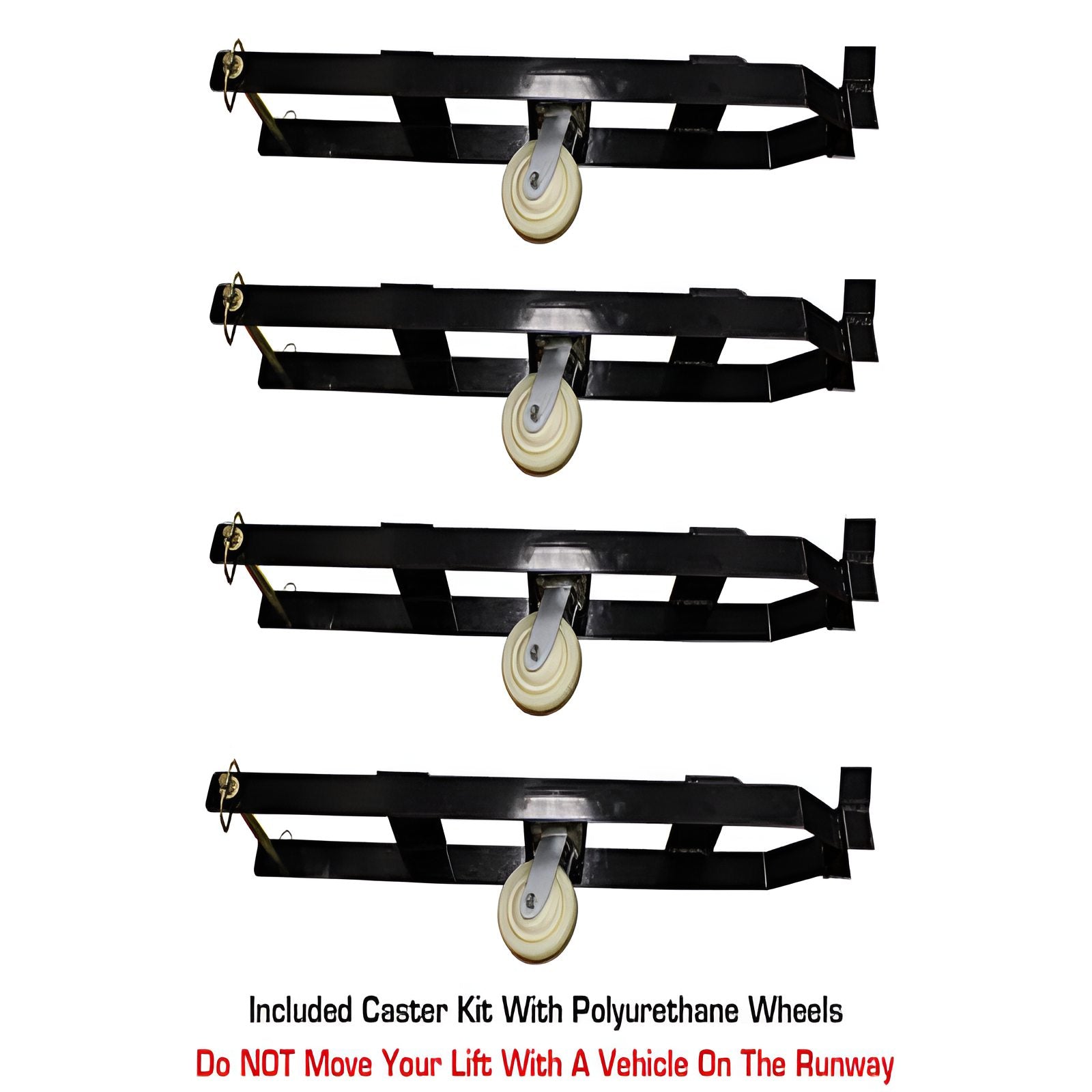

        •      Caster Kit with Polyurethane Wheels Included

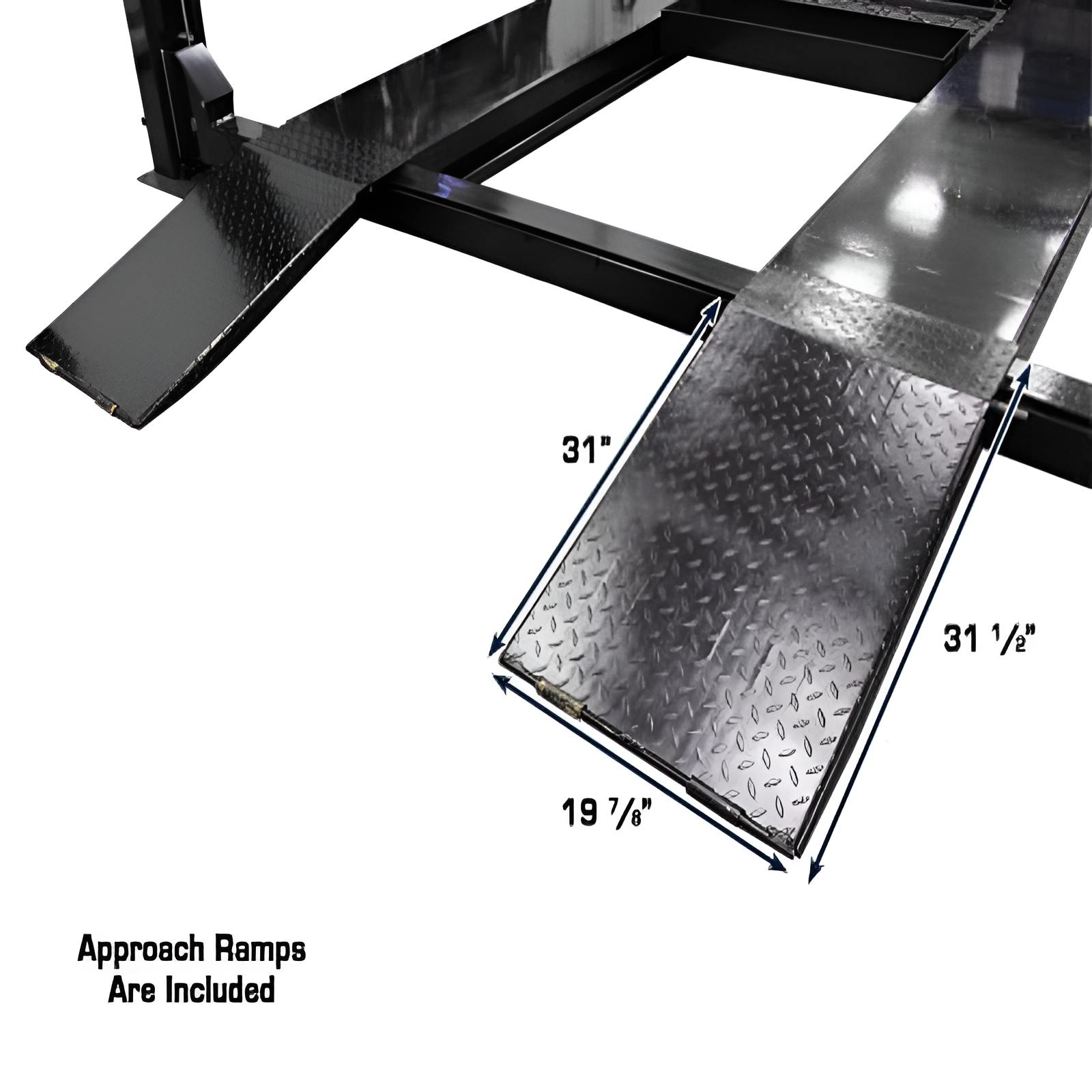

        •      Steel Approach Ramps Included
        •      Steel Jack Tray Included
        •     4 Plastic Drip Trays
        •     4 Wheel Stops

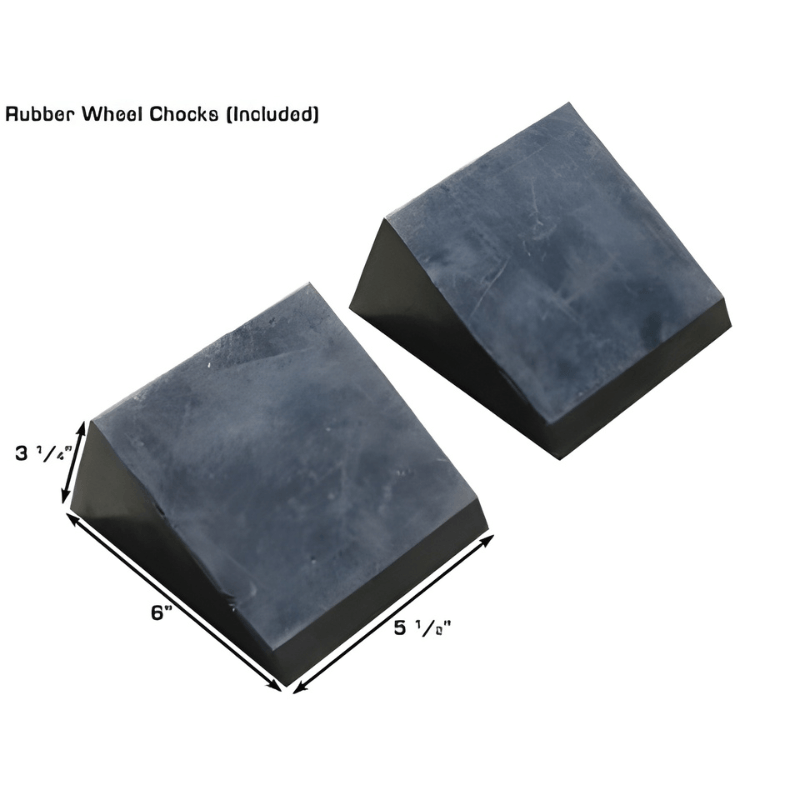

        •     2 Rubber Wheel
      • Buy as a Combo Atlas PRO9000 + PROjack35
      • Buy as a Combo Atlas PRO9000 + RJ6
      • Optional Item (Sold Separately)

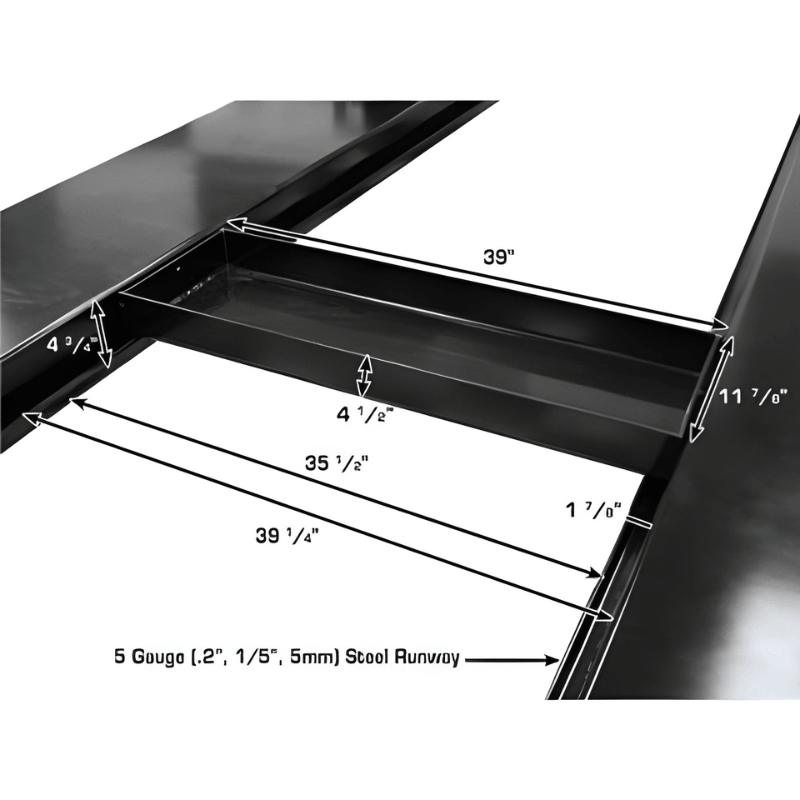

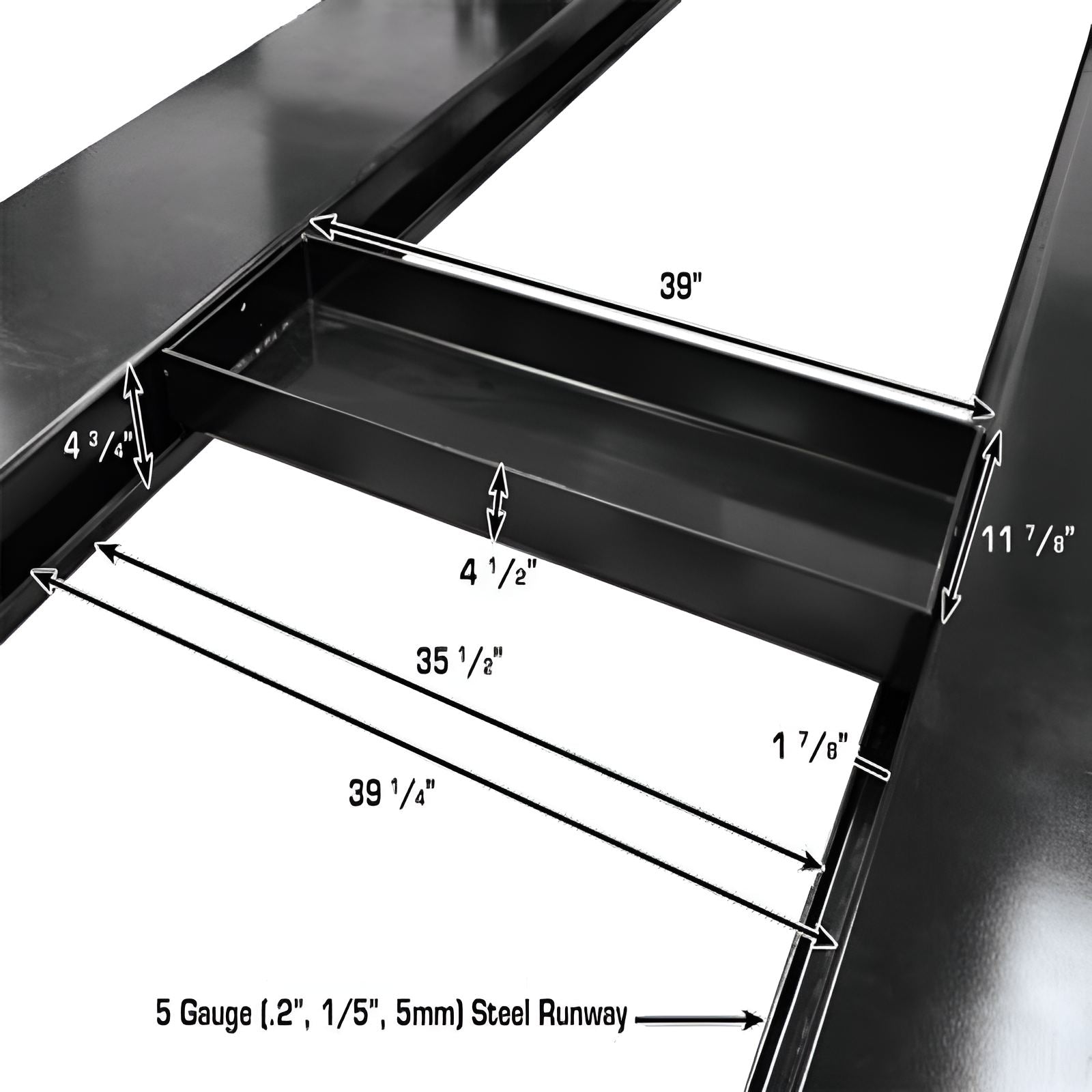

        • 39" Steel Jack/Drip Tray
        • 39" Plastic Drip Tray

      Atlas PRO9000 Manual:

      Parking LiftPro9000 Lift Product Manual   Atlas Garage Pro9000 Manual

      Garage Pro9000 Storage Lift Optional Item (Sold Separately)
