Platinum PVL14 + RJ7000 Rolling Jacks ALI Certified Combo by Atlas
Your current lift setup is the weak link in your automotive chain. It's not just about slow service anymore; it's about missed opportunities, safety concerns, and the nagging feeling that you're always one step behind the competition. Enter the Atlas Platinum PVL14 Combo - your all-in-one answer to modern automotive challenges.
With a hefty 14,000 lb capacity and a 76 1/2" lift height, it handles everything from compact cars to light commercial vehicles. The ALI certification ensures you're not just meeting safety standards; you're exceeding them. But here's where it gets interesting: The included RJ7000 Rolling Bridge Jacks, each with a 7,000 lb capacity, turn wheel service into a breeze. And with a lifting range from 36" to 45 1/2", they're as flexible as a yoga instructor. The ALLY Hydraulic AL2650 power unit, with its high-silver-content windings, runs cooler and more efficiently than your morning espresso machine. From its 205 1/2" long runways to its air-operated single point lock release, every feature of the PVL14 is designed to boost your productivity. With the Atlas Platinum PVL14 Combo, you're setting the pace.

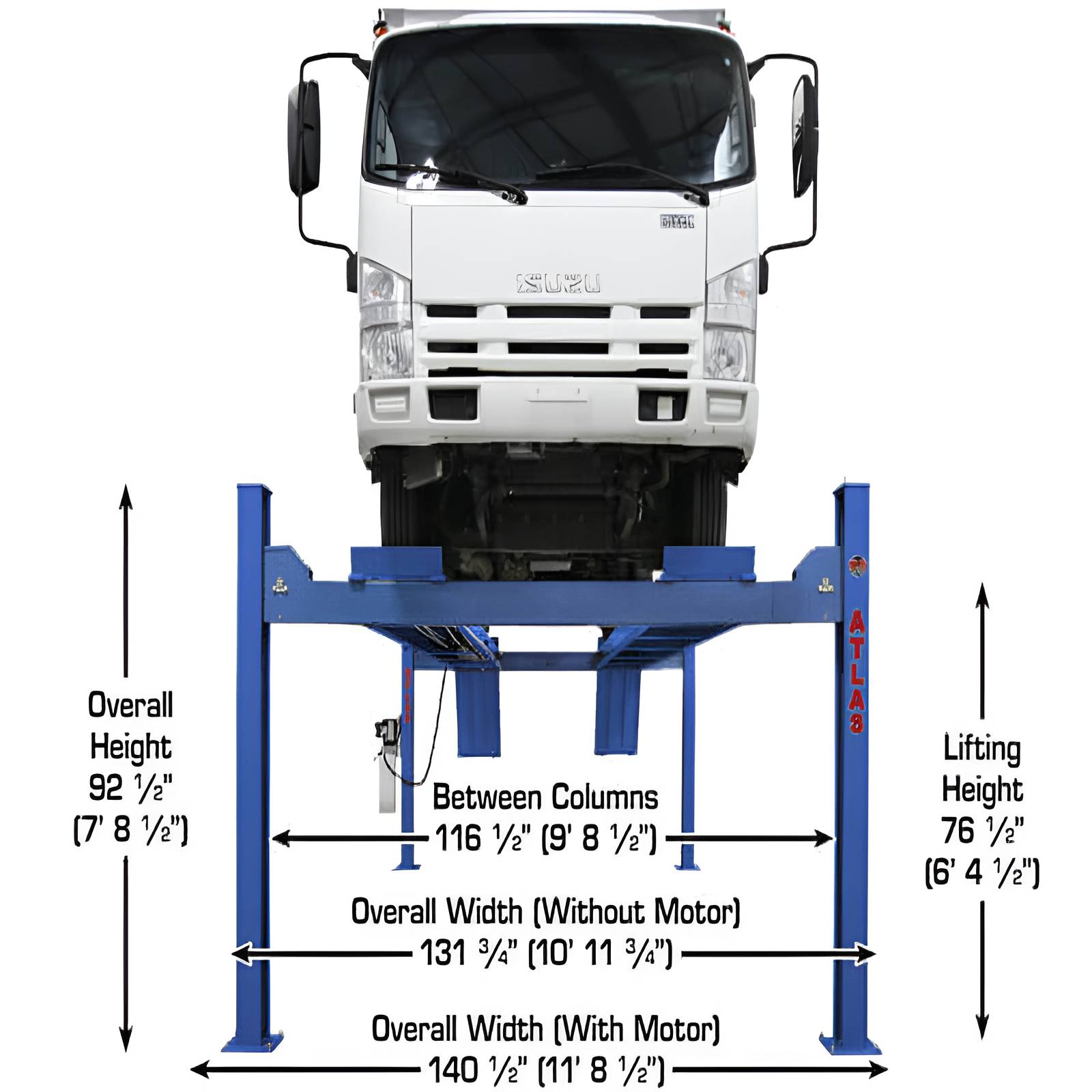

4 Post Parking Lift PVL14 Specifications:
- Capacity: 14,000 lb.

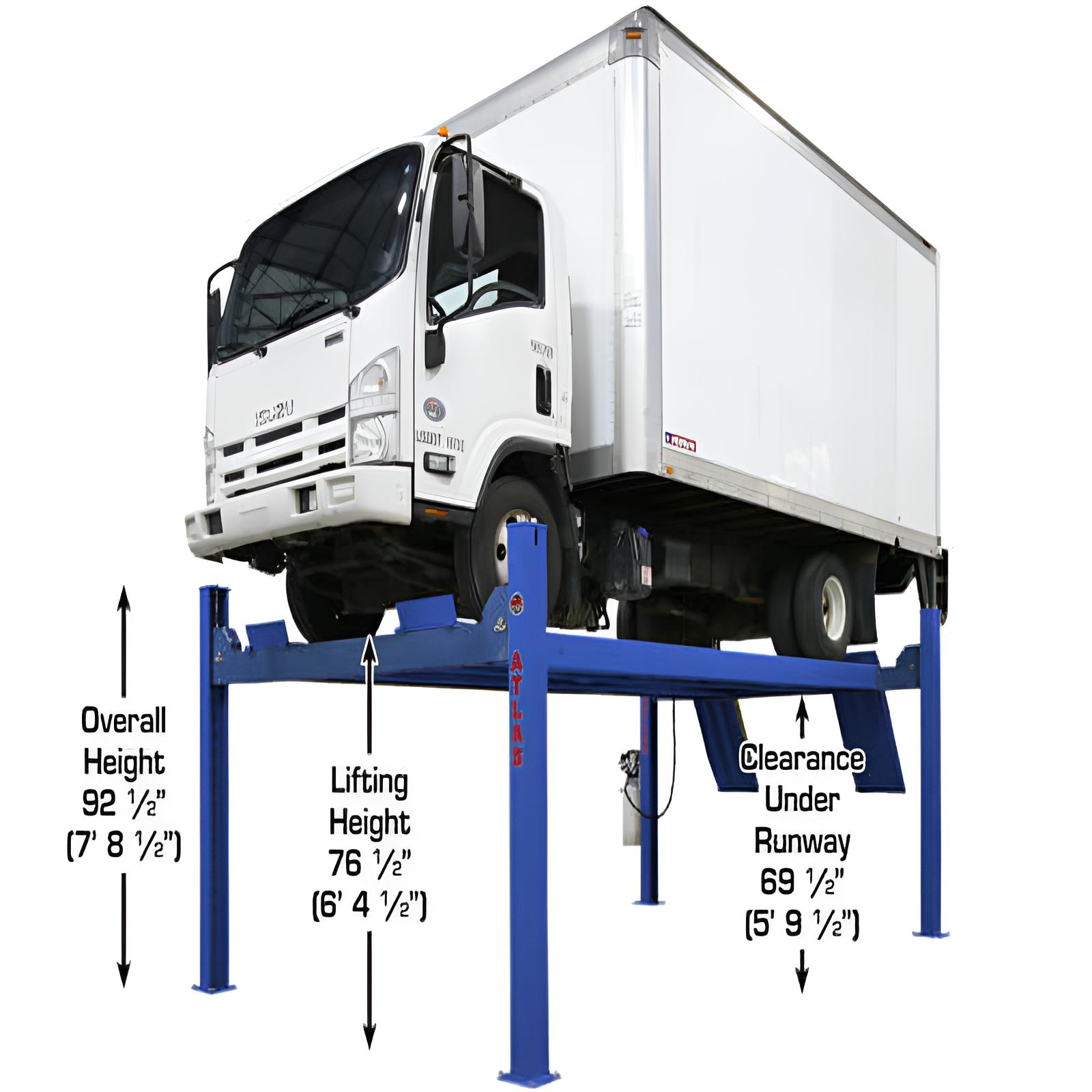

- Lifting Height: 76 1/2" (6' 4 1/2")
- Overall Width of Columns (Without Motor): 131 3/4" (10' 11 3/4")
- Overall Width of Columns (With Motor): 140 1/2" (11' 8 1/2")

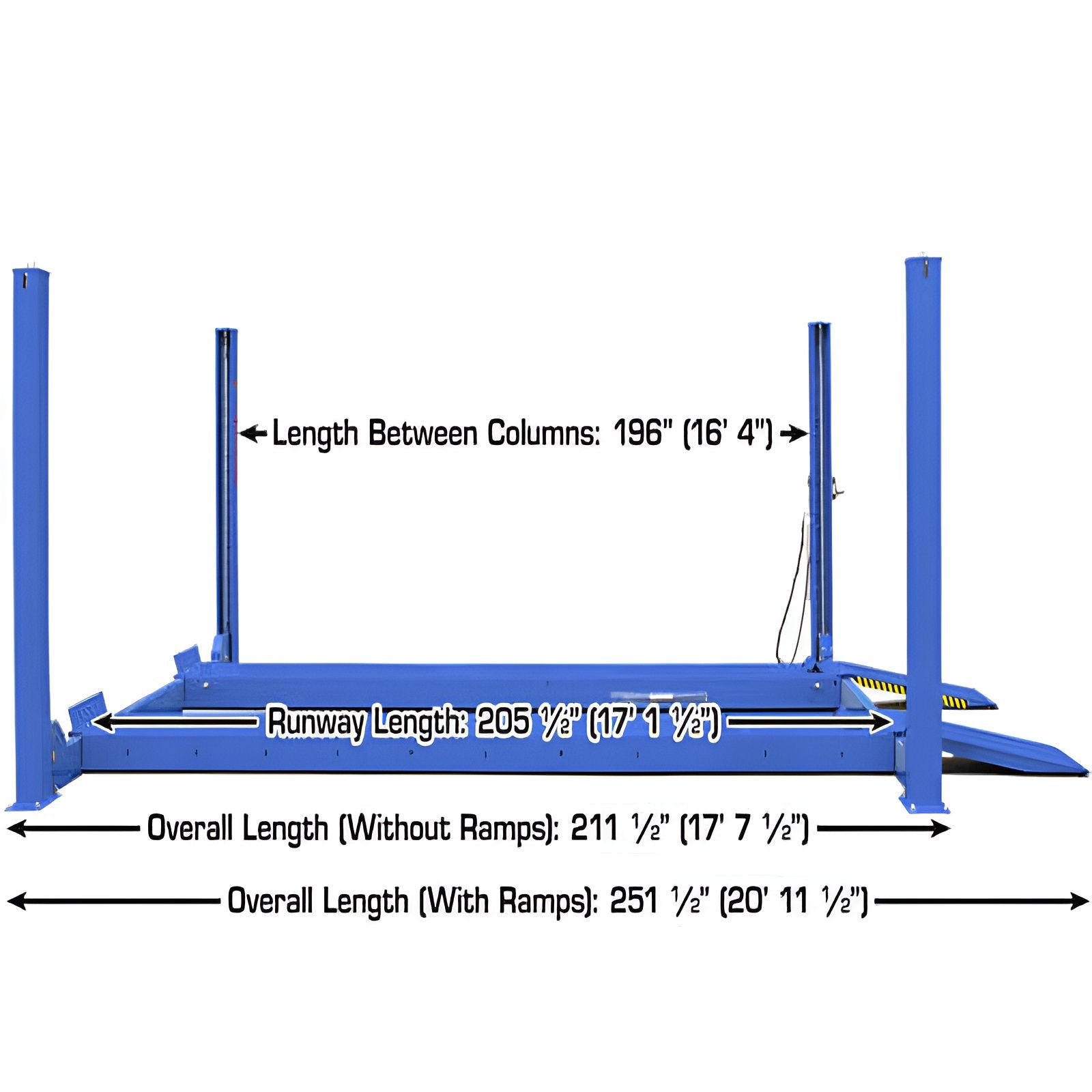

- Overall Length with Approach Ramp: 251 1/2" (20' 11 1/2")

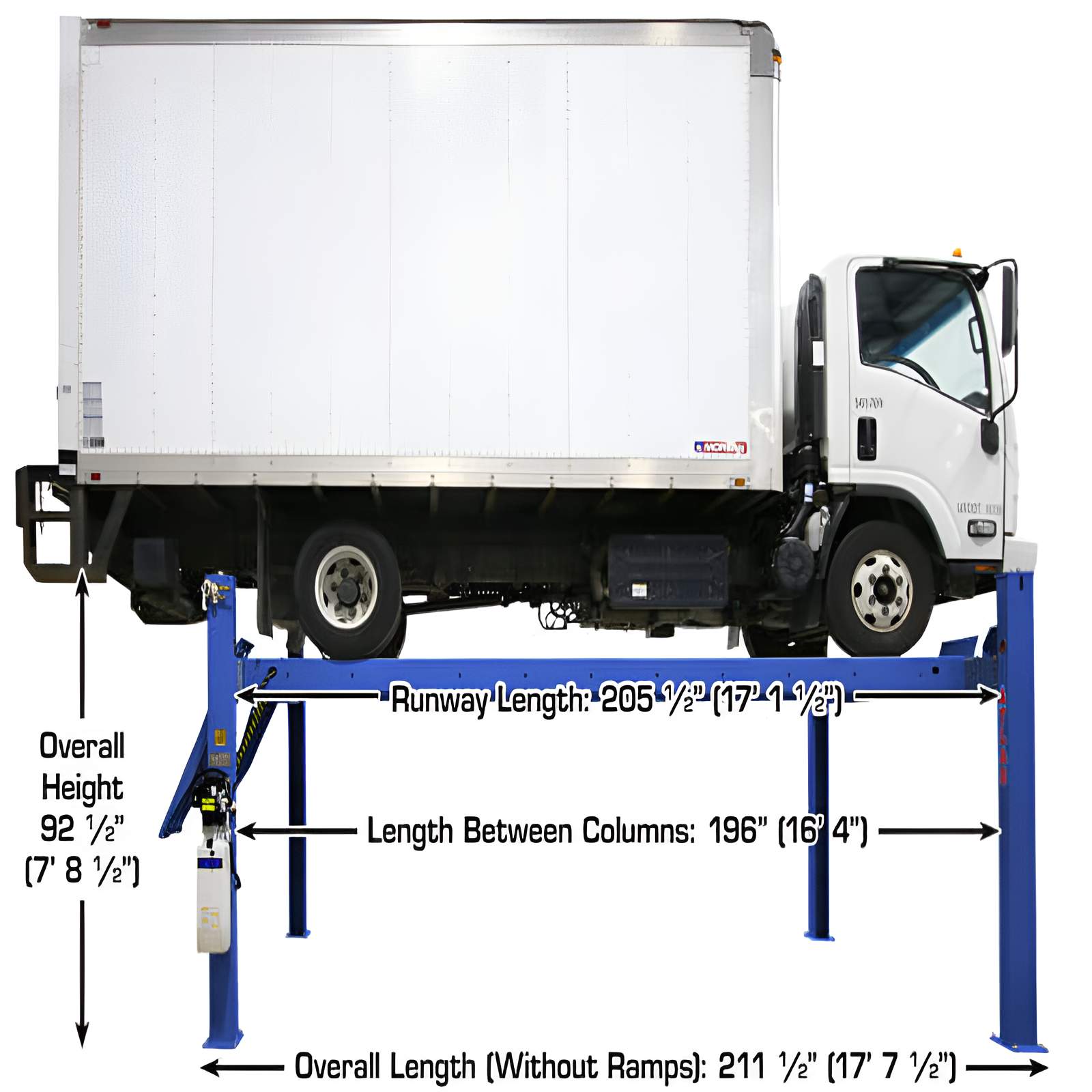

- Length Between Columns: 196" (16' 4")
- Runway Length: 205 1/2" (17' 1 1/2")

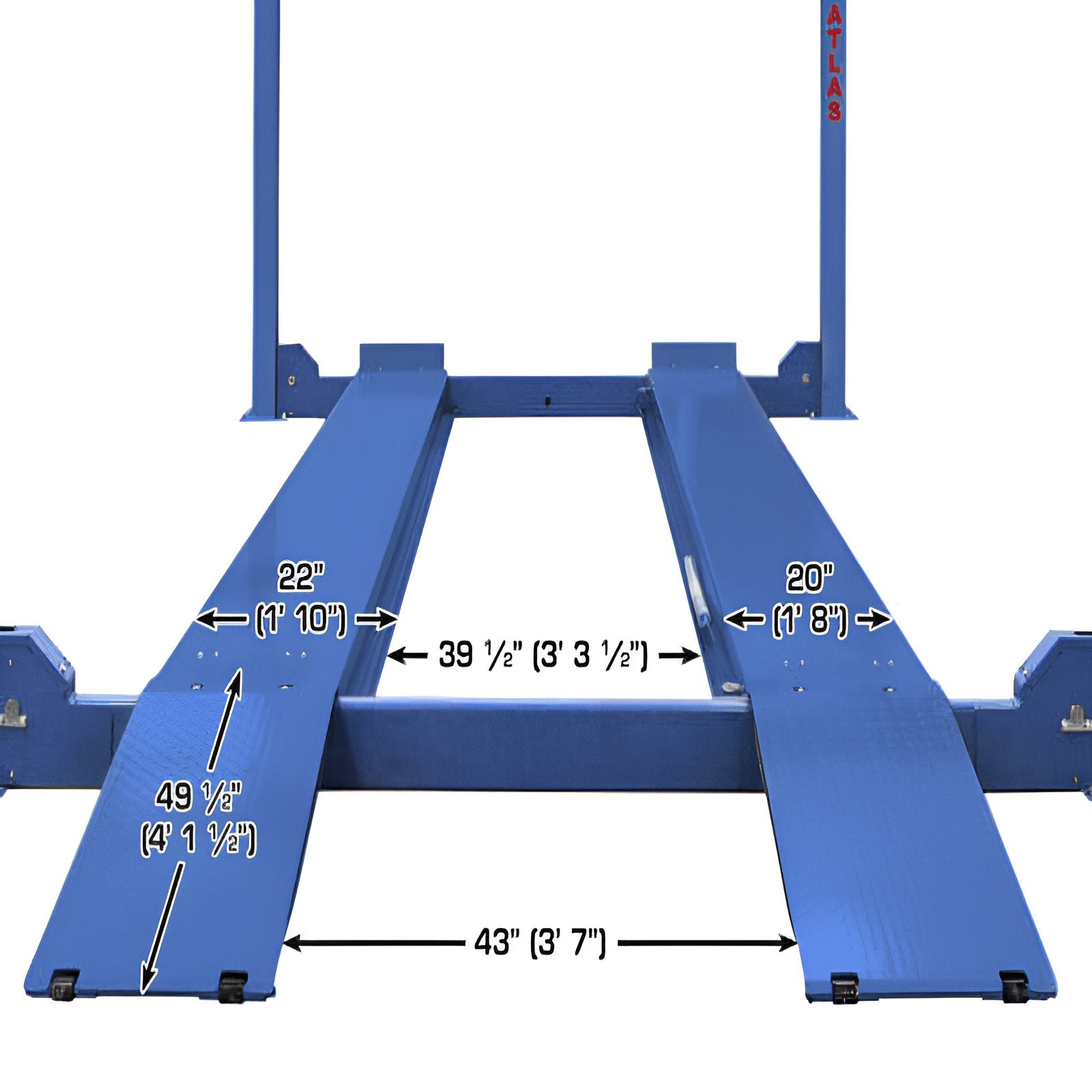

- Runway Width: 20"
- Thickness of Runway: 7"
- Width Between Runways: 42 3/4" (w/ Rail 39 1/4")

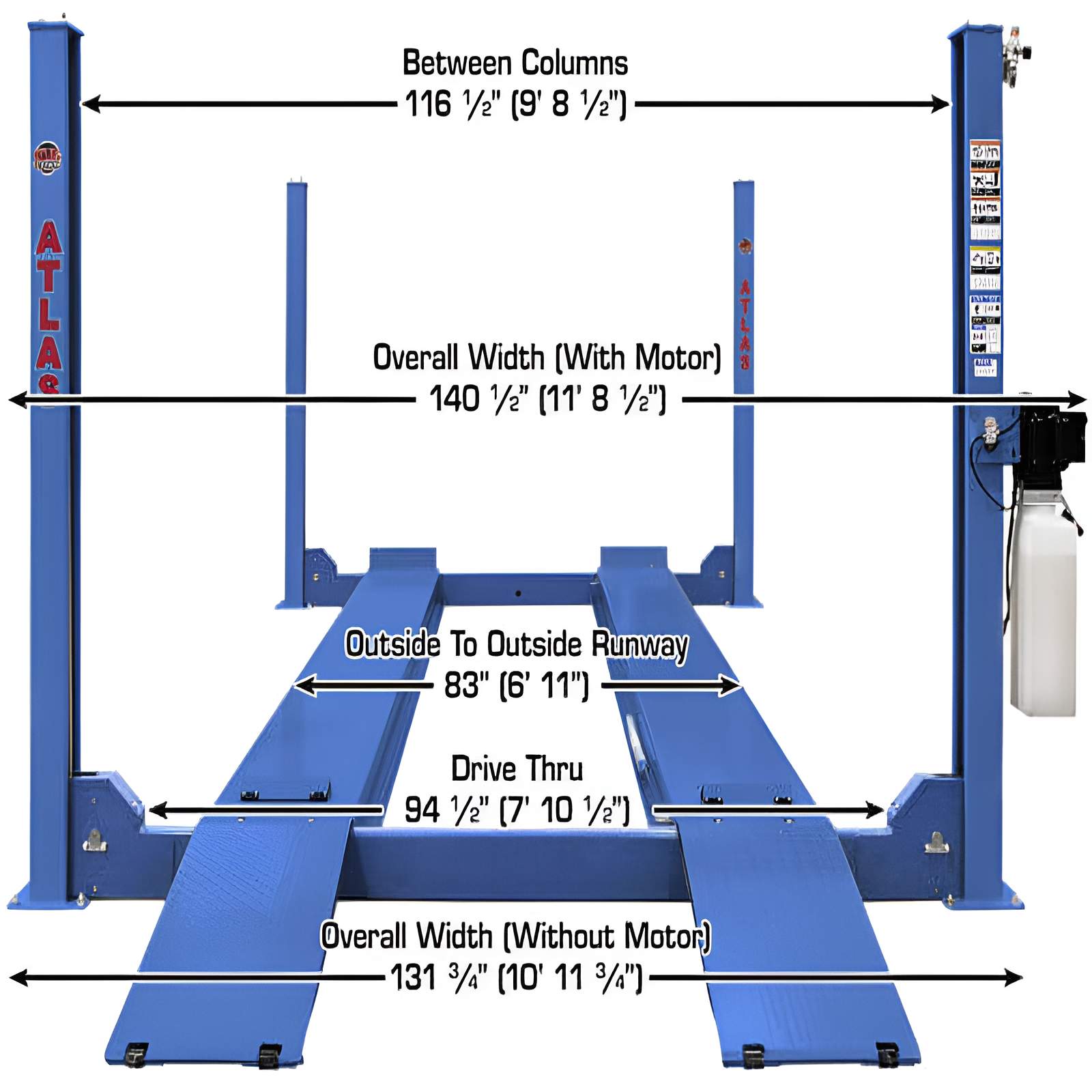

- Outside Runway to Outside Runway: 83 1/8" (6' 11 1/8")
- Clearance Under Runways: 69 1/2" (5' 9 1/2")
- Clearance Between Columns: 116 3/8" (9' 8 3/8")

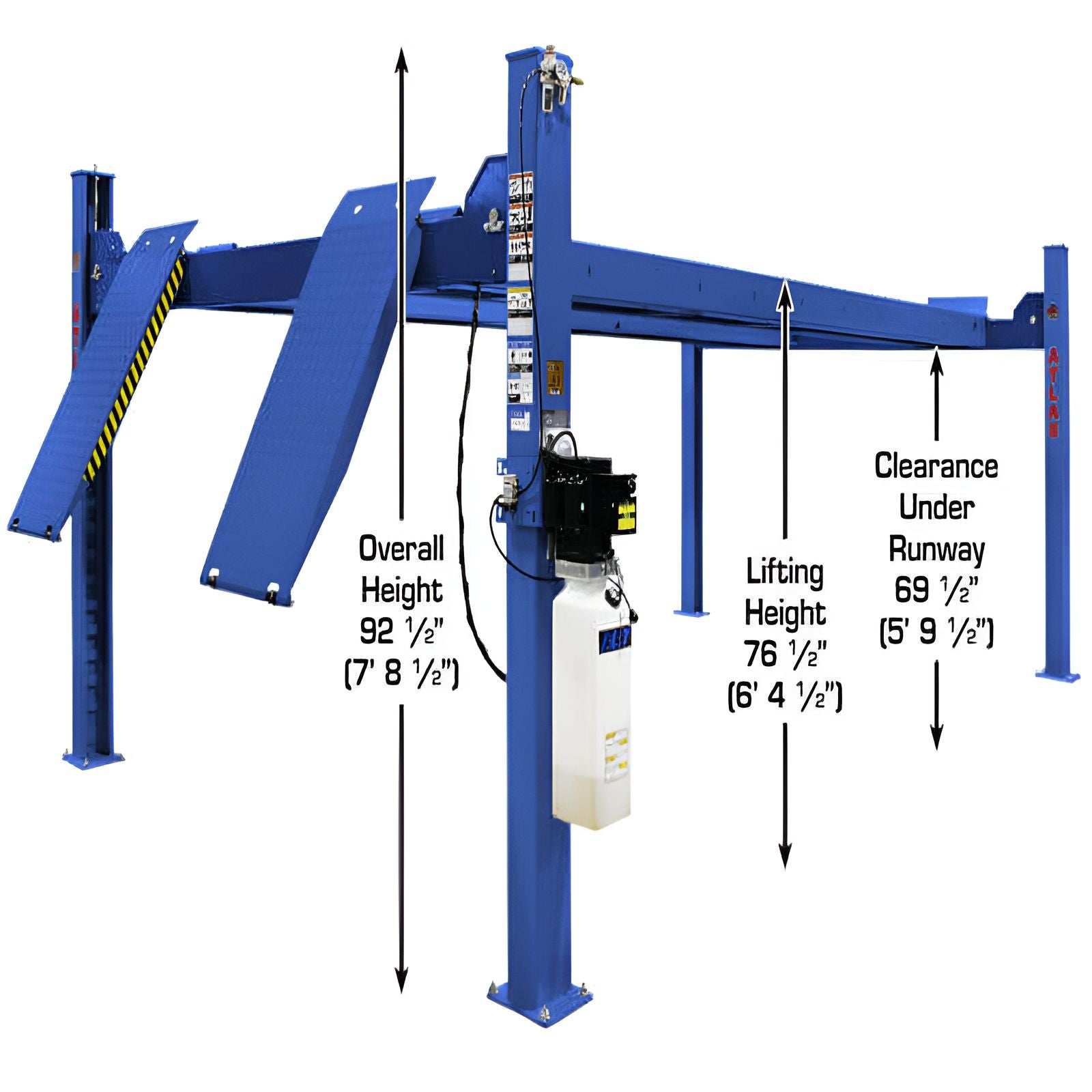

- Height of Columns: 92 1/2" (7' 8 1/2")
- Maximum Wheel Base: 195" (16' 3")
- Drive Thru: 94 1/2" (7' 10 1/2")
- Air Requirement: 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
- Motor/Electrical Requirement: 220 volt single (1) phase. A 30 amp breaker is recommended
- Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
- Shipping Weight: 2,800 lbs.
- Concrete Requirement: Minimum of 6" with a 3000 psi rating
PVL14 14,000 lb 4 Post Parking Lift Special Features:

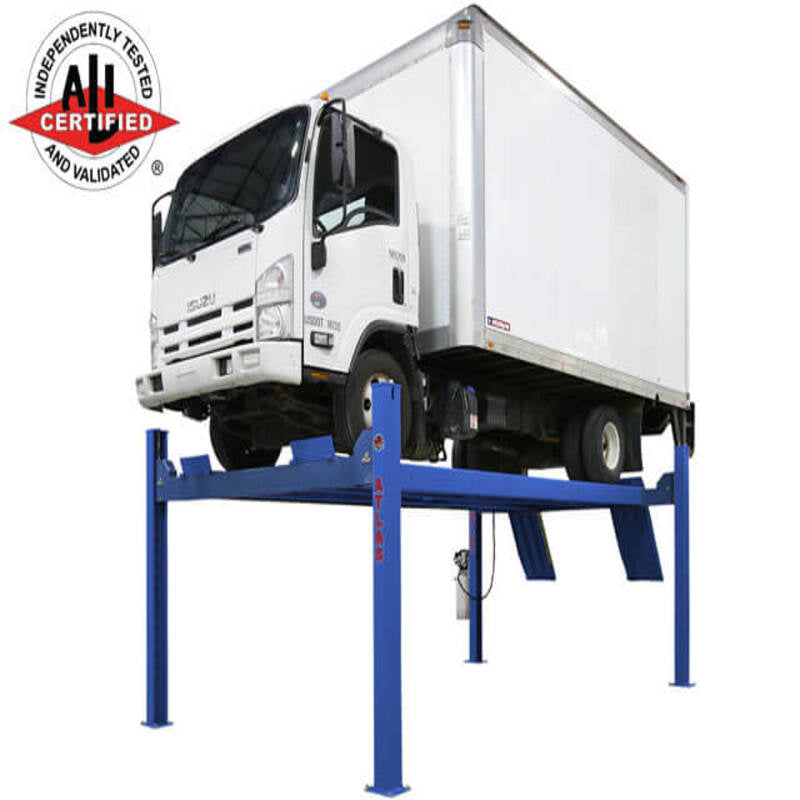

- ALI Certified Lift
- 14,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Extra Tall, Extra Wide & Extra Long
- Adjustable Lock Ladder Design
- Higher Quality Powder Coat Finish
- Air Operated Single Point Lock Release (External Air Supply Required)
- Lock Ladder Design
- Double Lock Safety System
- Powder Coat Finish
- Steel Approach Ramps Included
- Mounting Hardware Included

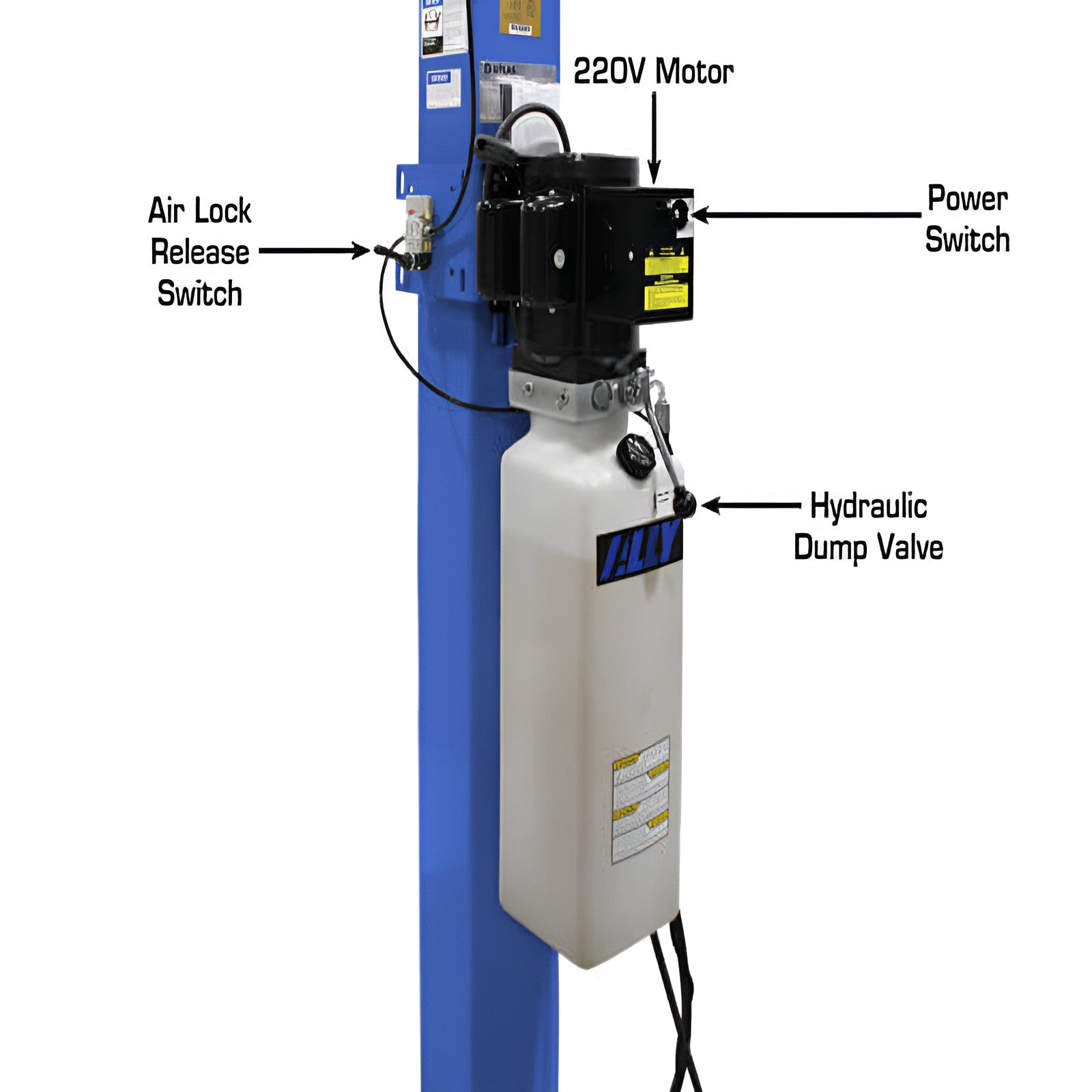

- Standard with Premium ALLY Powerunit
- 220volt/1phase Electric Operation (Requires a 30amp Breaker)
- Shipping Weight: 2,800 lbs.
- 5 yr Structural – 2 yr Hydraulic – 2 yr Powerunit Warranty

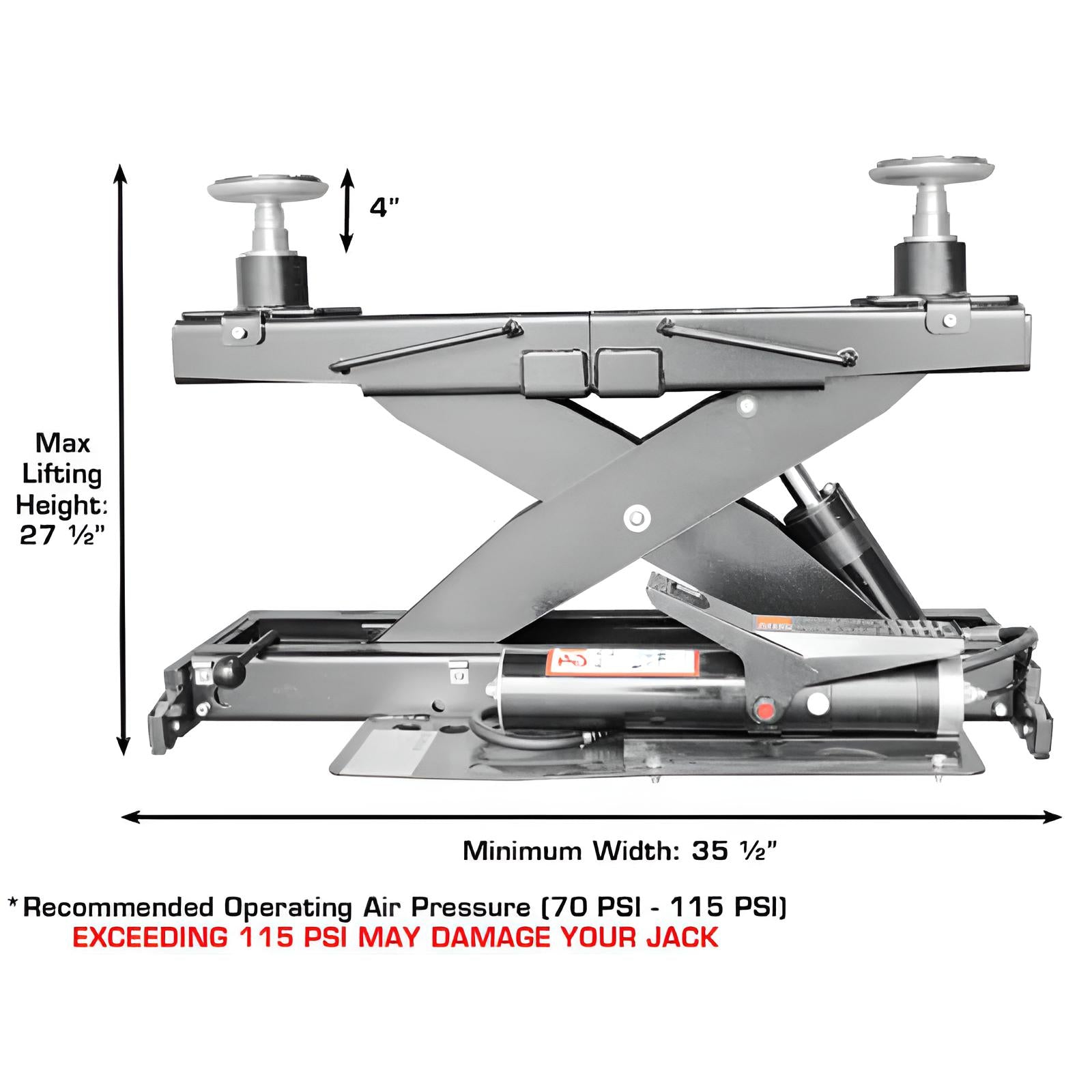

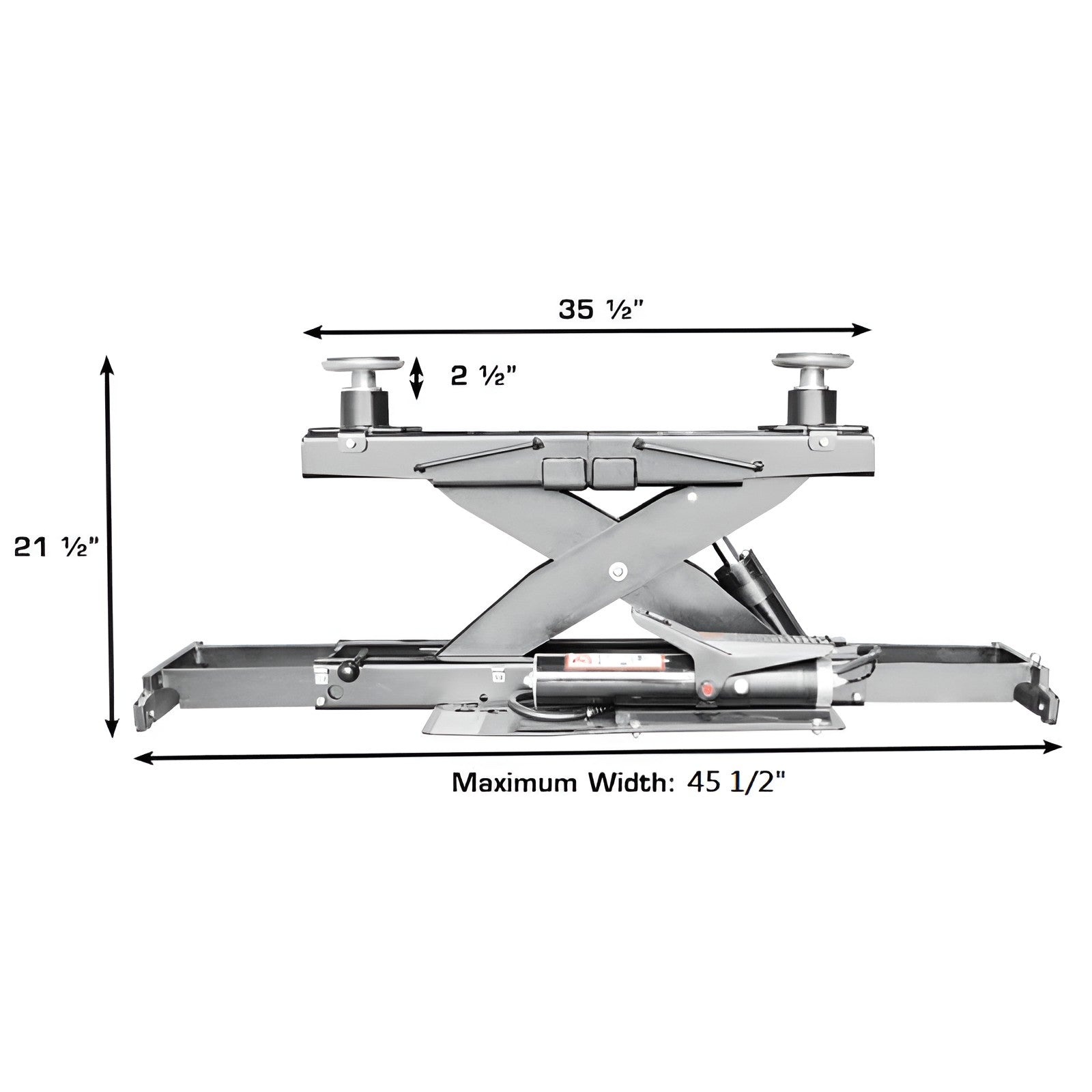

Platinum RJ7000 Rolling Jack Specifications
- Qty: 2
- Maximum Capacity: 7,000 lb.
- Maximum Width: 45 1/2" (3' 9 1/2")
- Minimum Width: 36" (3')
- Distance Between Runway Capability: 36"-45"
- Maximum Lifting Height (With Adapters): 27 1/2" (2' 3 1/2")
- Air Requirement: 70-115 PSI
- Shipping Weight: 400 lbs.
- Double Screw-Up Adapter Pad: 1 1/2" - 4"

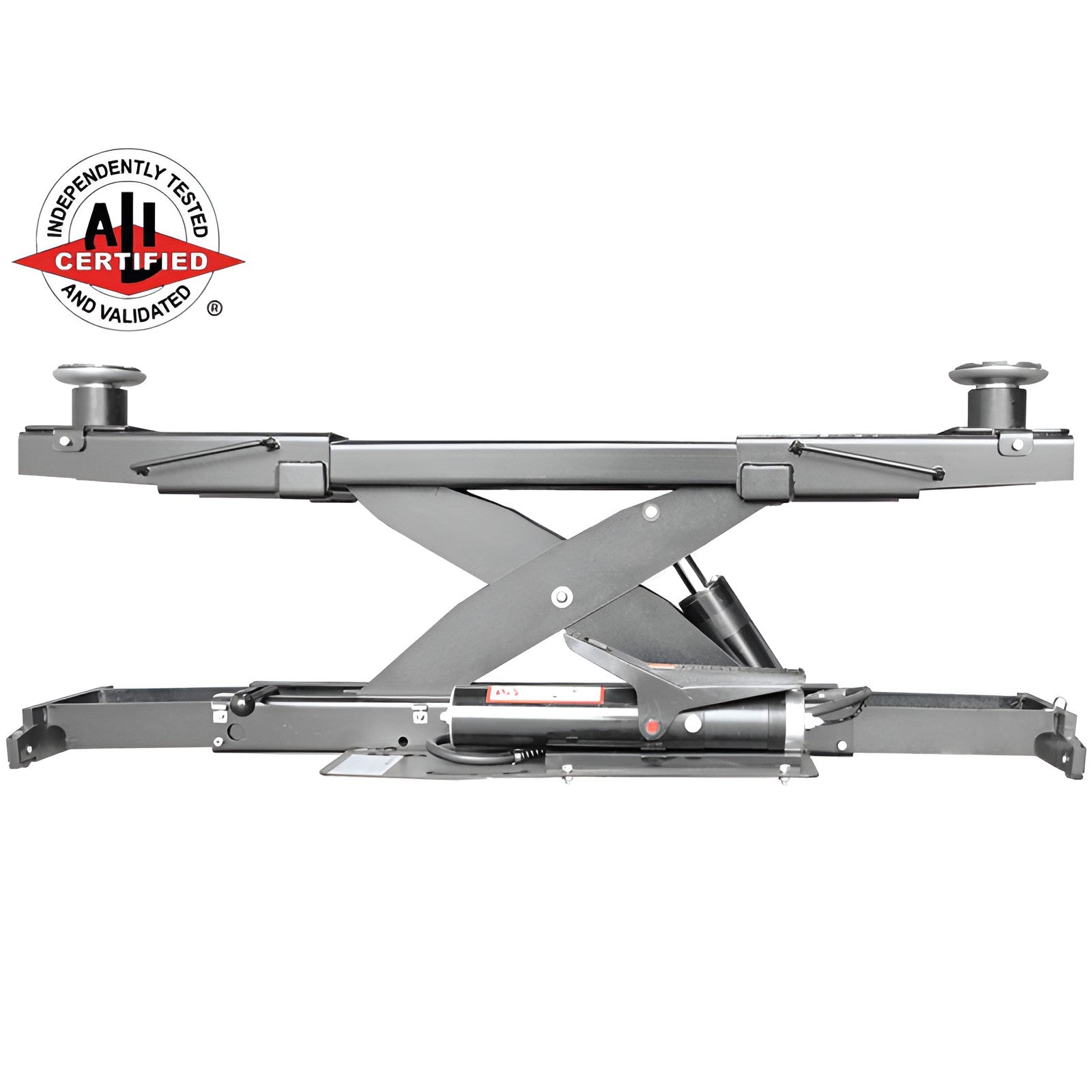

PLATINUM RJ7000 Special Features
- 7,000 lb. Capacity
- Air/Hydraulic Operated
- Two Safety Lock Positions
- Double Screw-Up Adapters Included
- Compact Size with Low Profile
- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish
- 1 Year Parts Only Warranty
Atlas PVL14 Documentation:
Atlas PVL14 4 Post Parking Lift Product Manual
Atlas RJ7000 Rolling Jack Product Manual
Atlas RJ7000 Rolling Jack Product Measuring Guide
Atlas Platinum PVL14 4 Post Parking Lift Optional Item (Sold Separately)
This Item has a FLAT RATE SHIPPING FEE: $899
*Due to Extra Large Size, product cannot be delivered to a freight terminal.
Warehouse Pickup locations (No shipping charge):
- Atlanta, GA
- Dallas, TX
- Indianapolis, IN
- Phoenix, AZ
- Somerset, NJ
