PVL14 Post 4 Post Parking Lift by Atlas
Say goodbye to the days of worrying about your vehicles getting dinged up by outdated systems and hello to the Atlas® Platinum PVL14 – the heavy-duty four post parking lift that's about to revolutionize your garage. With a jaw-dropping 14,000 lb. capacity, this lift is built to handle everything from sleek sports cars to rugged trucks and even some commercial vehicles. Powered by a high-strength cable system and an oversized hydraulic cylinder, the PVL14 raises and lowers your rides with ease, thanks to its efficient 220-volt single-phase power unit. But that's not all – this lift is ALI certified and comes with a reliable warranty for added peace of mind.

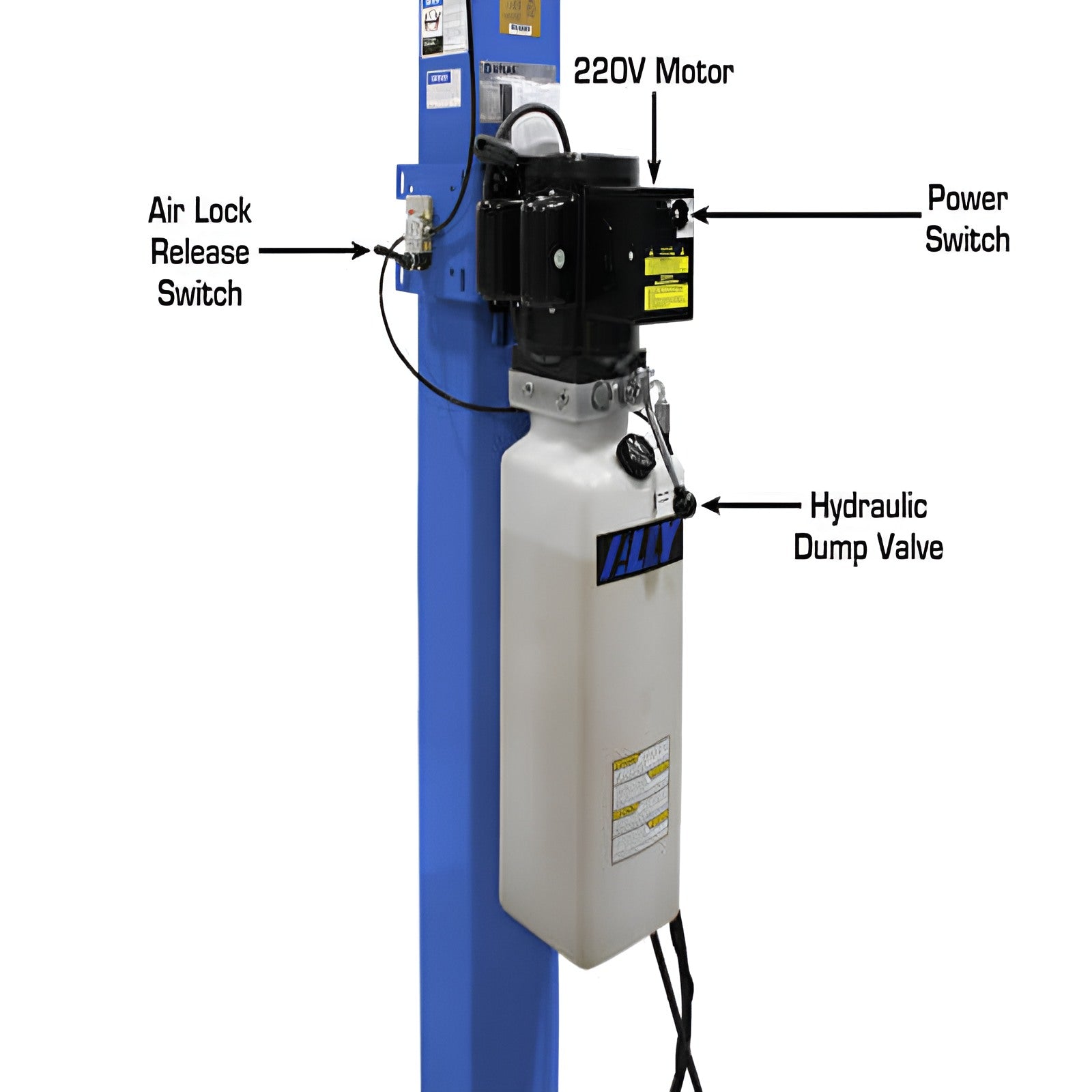

But what sets the PVL14 apart is its innovative design. Unlike many competitors' lifts, this beauty features tracks between the runways, allowing for the use of a rolling bridge jack (such as the Atlas® Platinum RJ7000, sold separately). This not only makes leveling a breeze but also reduces the risk of those pesky "door dings" that can ruin your day. And with the included ALI Hydraulic AL2650 power unit, which is certified for electrical compliance and features heavy-duty armatures and more motor windings for less heat generation and constant torque, you know you're getting a top-of-the-line product.
4 Post Parking Lift PVL14 Specifications:
- Capacity 14,000 lb.

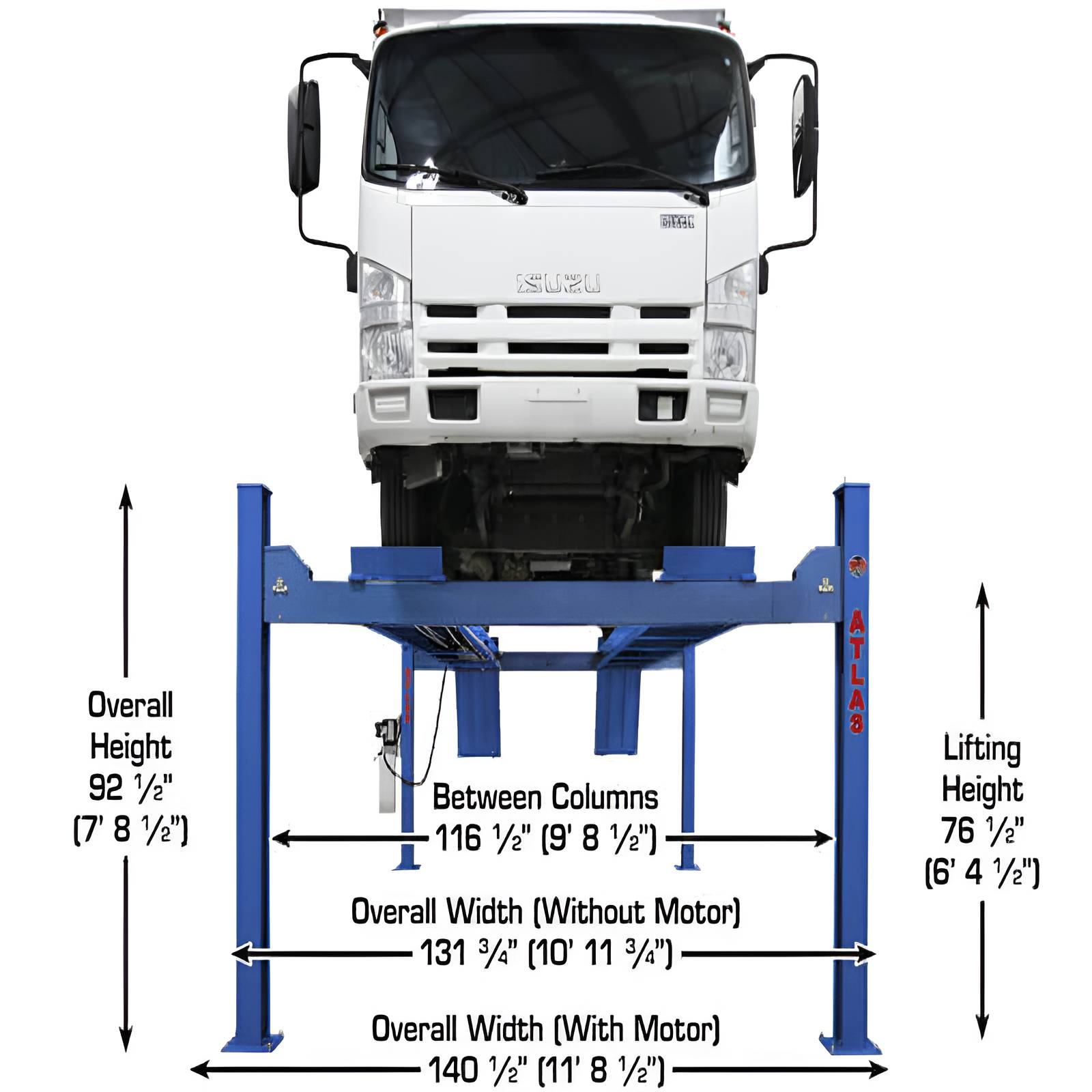

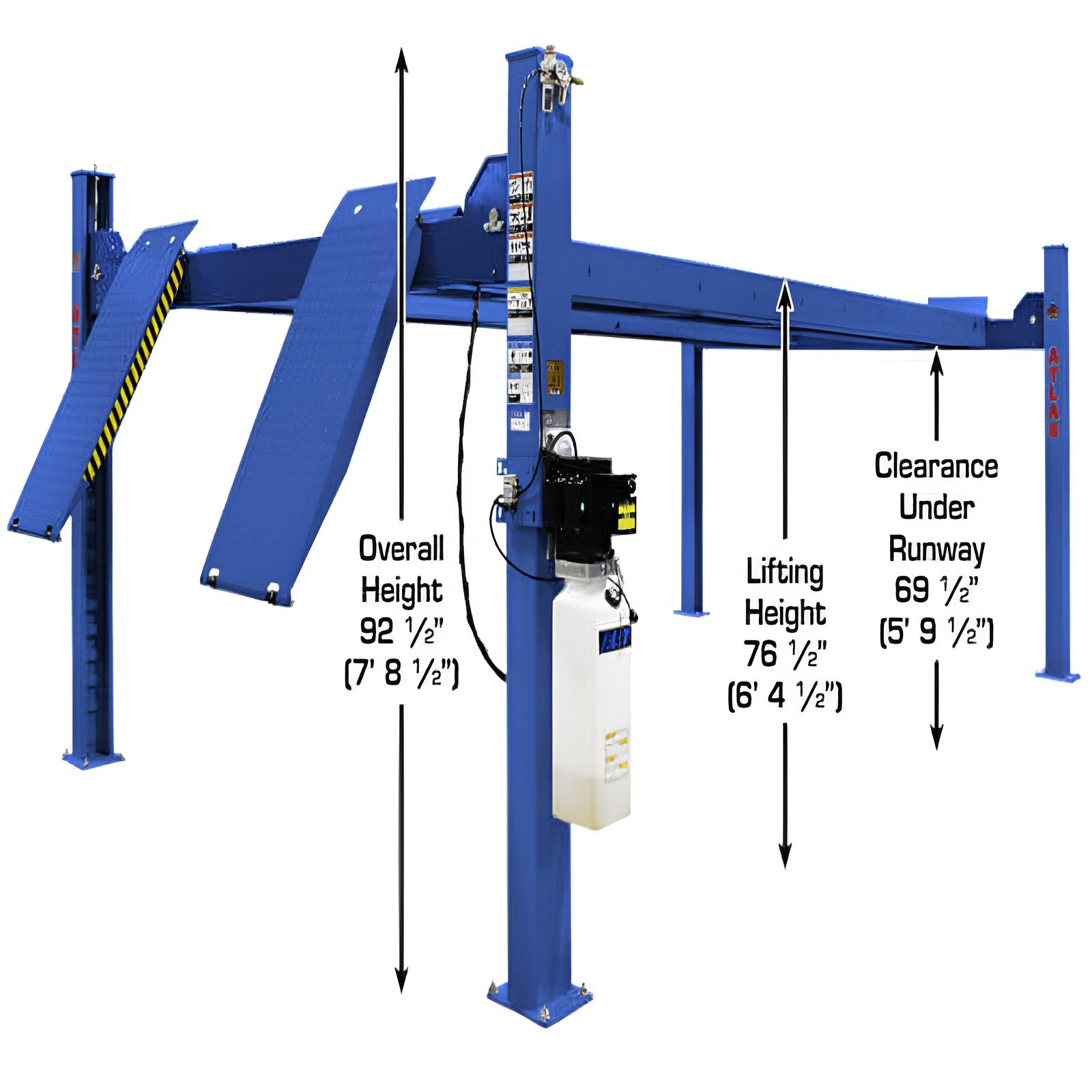

- Lifting Height 76 1/2" (6' 4 1/2")

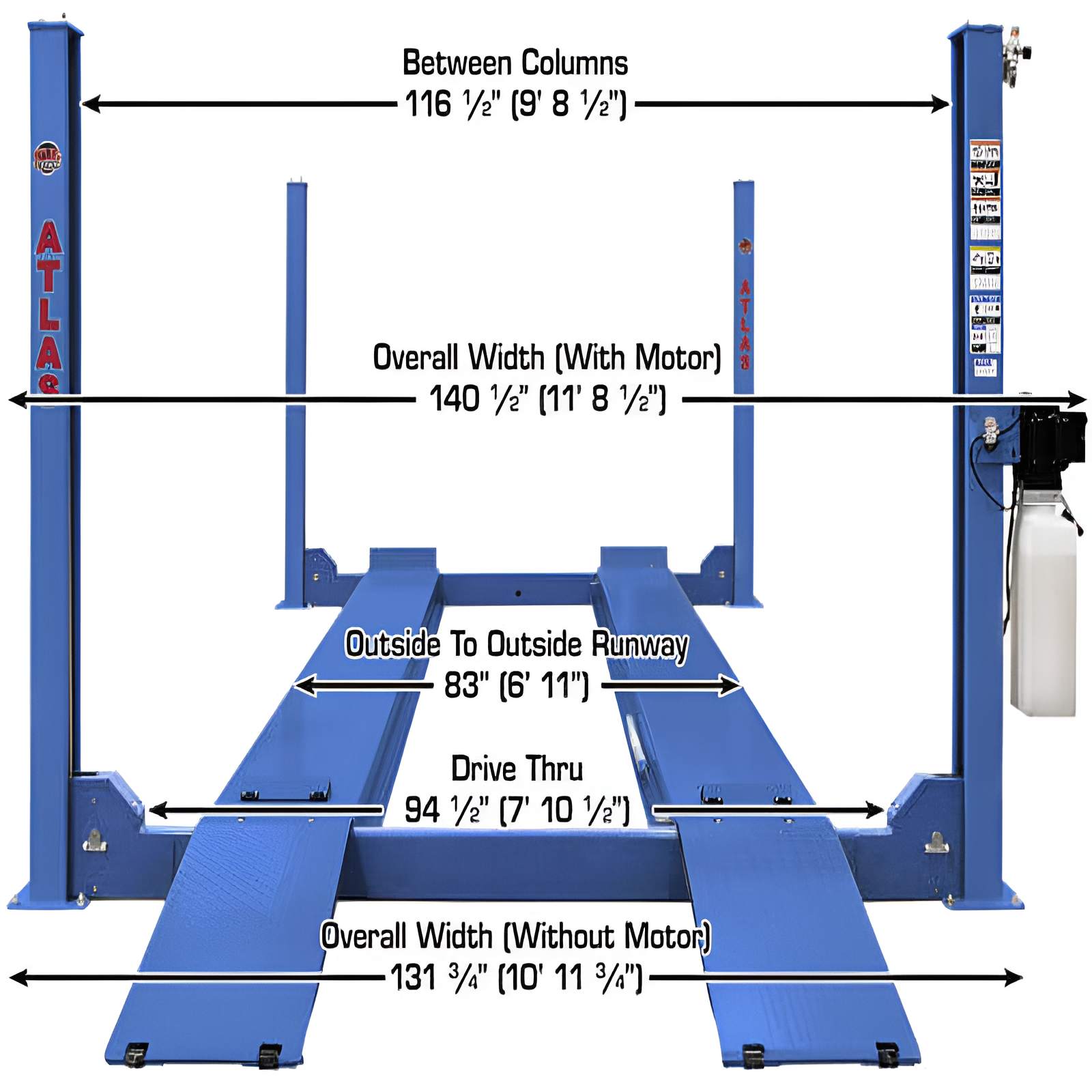

- Overall Width Of Columns (Without Motor) 131 3/4" (10' 11 3/4")
- Overall Width Of Columns (With Motor) 140 1/2" (11' 8 1/2")

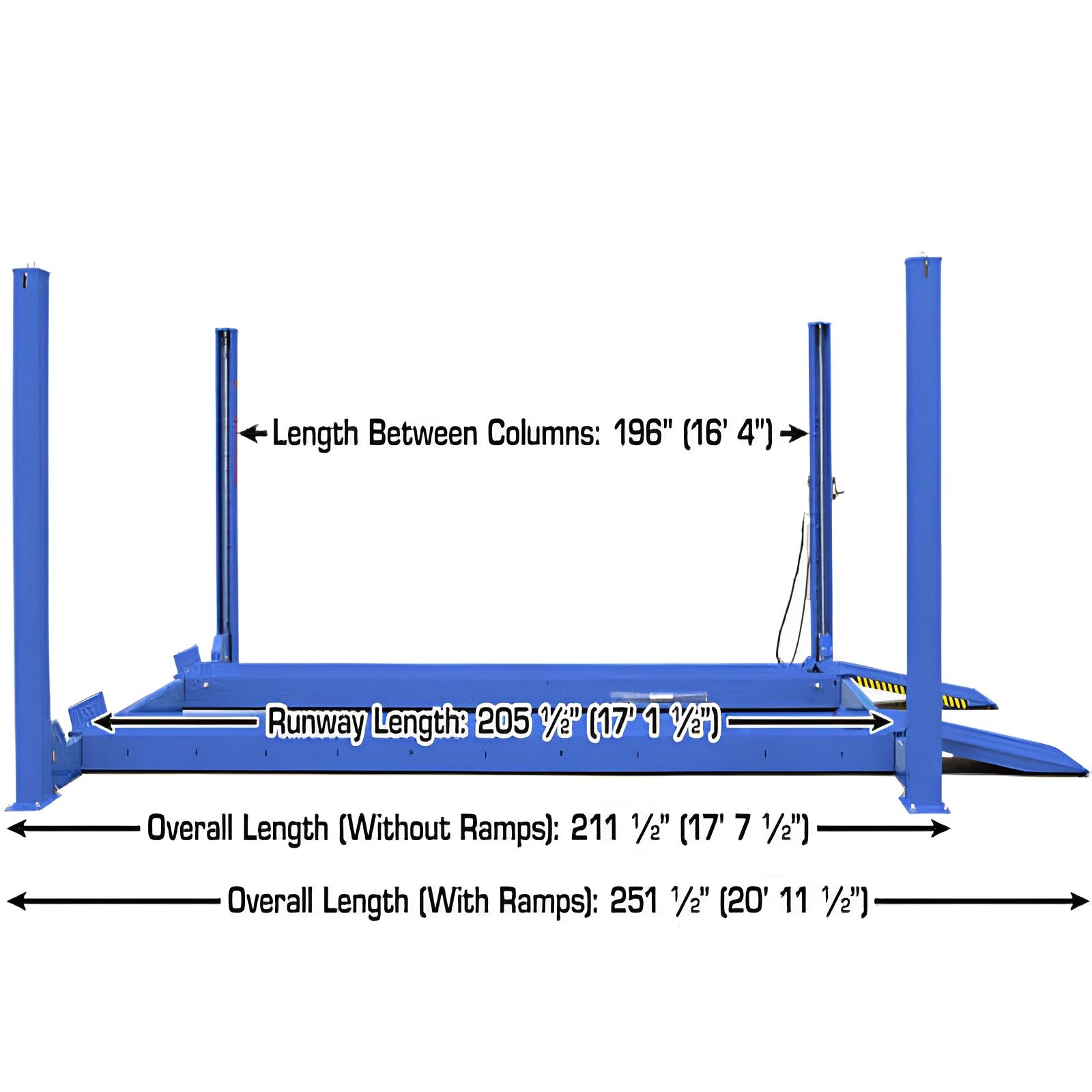

- Overall Length With Approach Ramp 251 1/2" (20' 11 1/2")
- Length Between Columns 196" (16' 4")

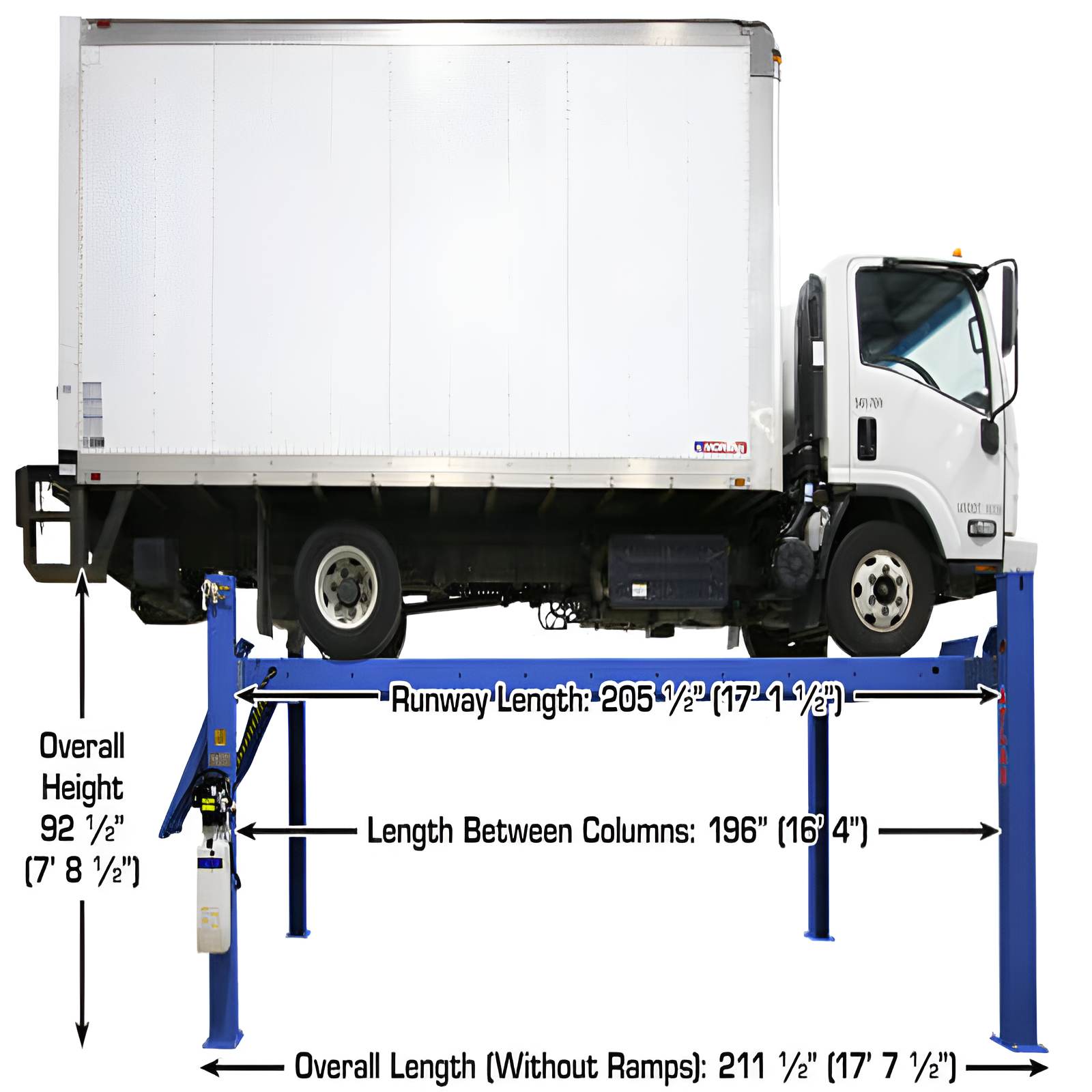

- Runway Length 205 1/2" (17' 1 1/2")

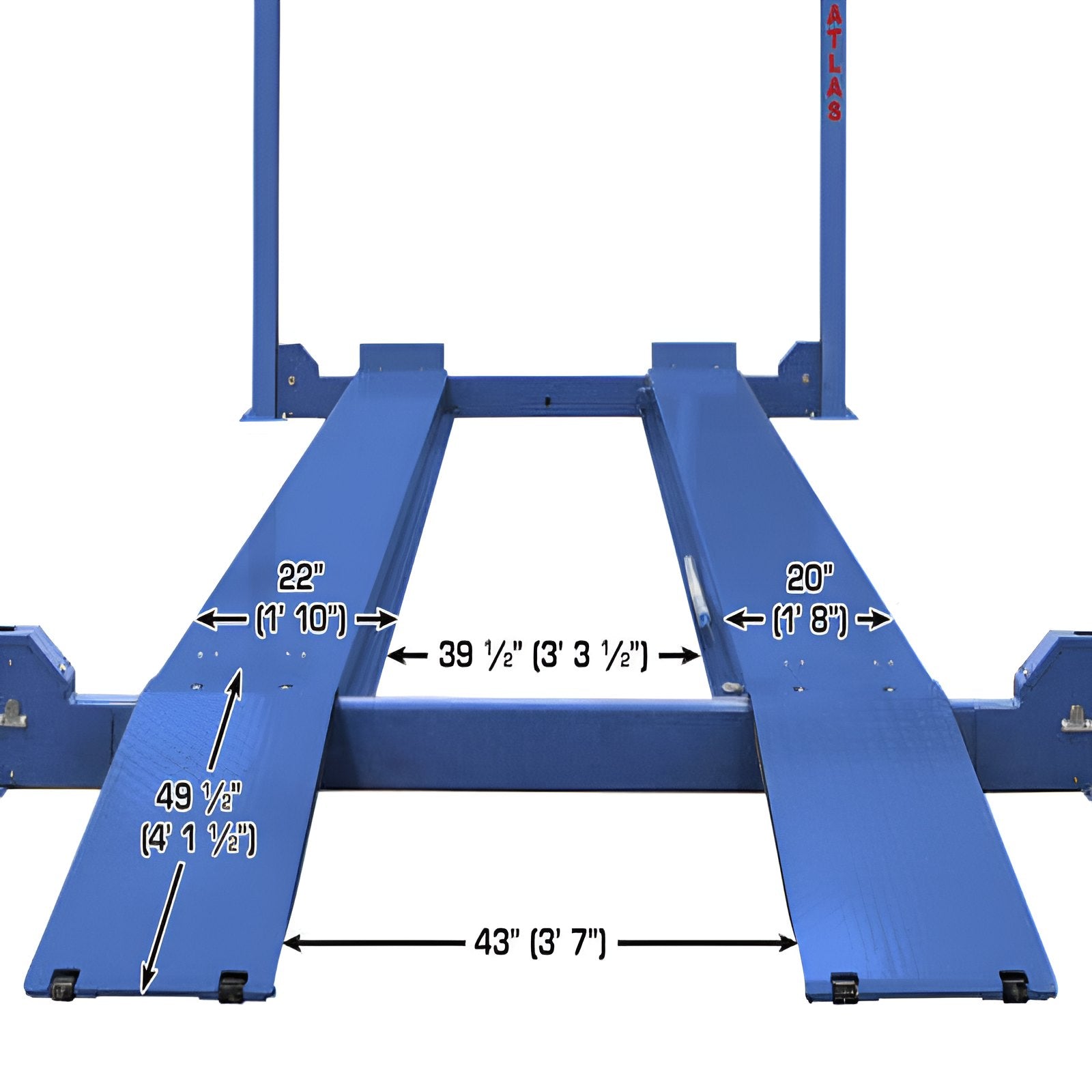

- Runway Width 20"
- Thickness Of Runway 7"
- Width Between Runways 42 3/4" (w/ Rail 39 1/4")
- Outside Runway To Outside Runway 83 1/8" (6' 11 1/8")

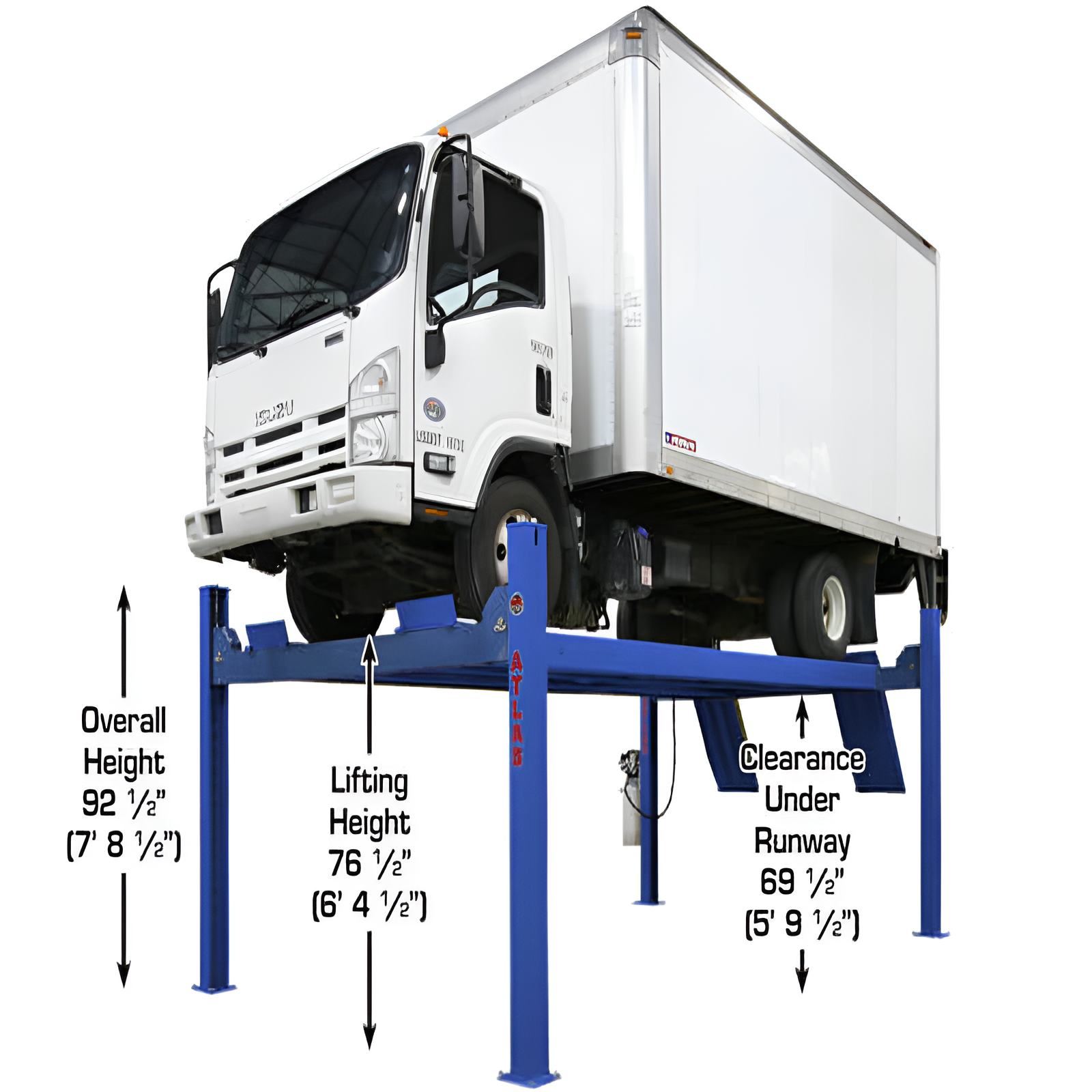

- Clearance Under Runways 69 1/2" (5' 9 1/2")
- Clearance Between Columns 116 3/8" (9' 8 3/8")
- Height Of Columns 92 1/2" (7' 8 1/2")
- Maximum Wheel Base 195" (16' 3")
- Drive Thru 94 1/2" (7' 10 1/2")
- Air Requirement 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
- Motor/Electrical Requirement 220 volt single (1) phase.(A 30 amp breaker is recommended)
- Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
- Shipping Weight 2,800 LBS.
- Pallet Size: 210" Long x 31" Tall x 29" Wide
- Requires a minimum of 6" of concrete with a 3000 psi. rating
PVL14 14,000 lb 4 Post Parking Lift Special Features:

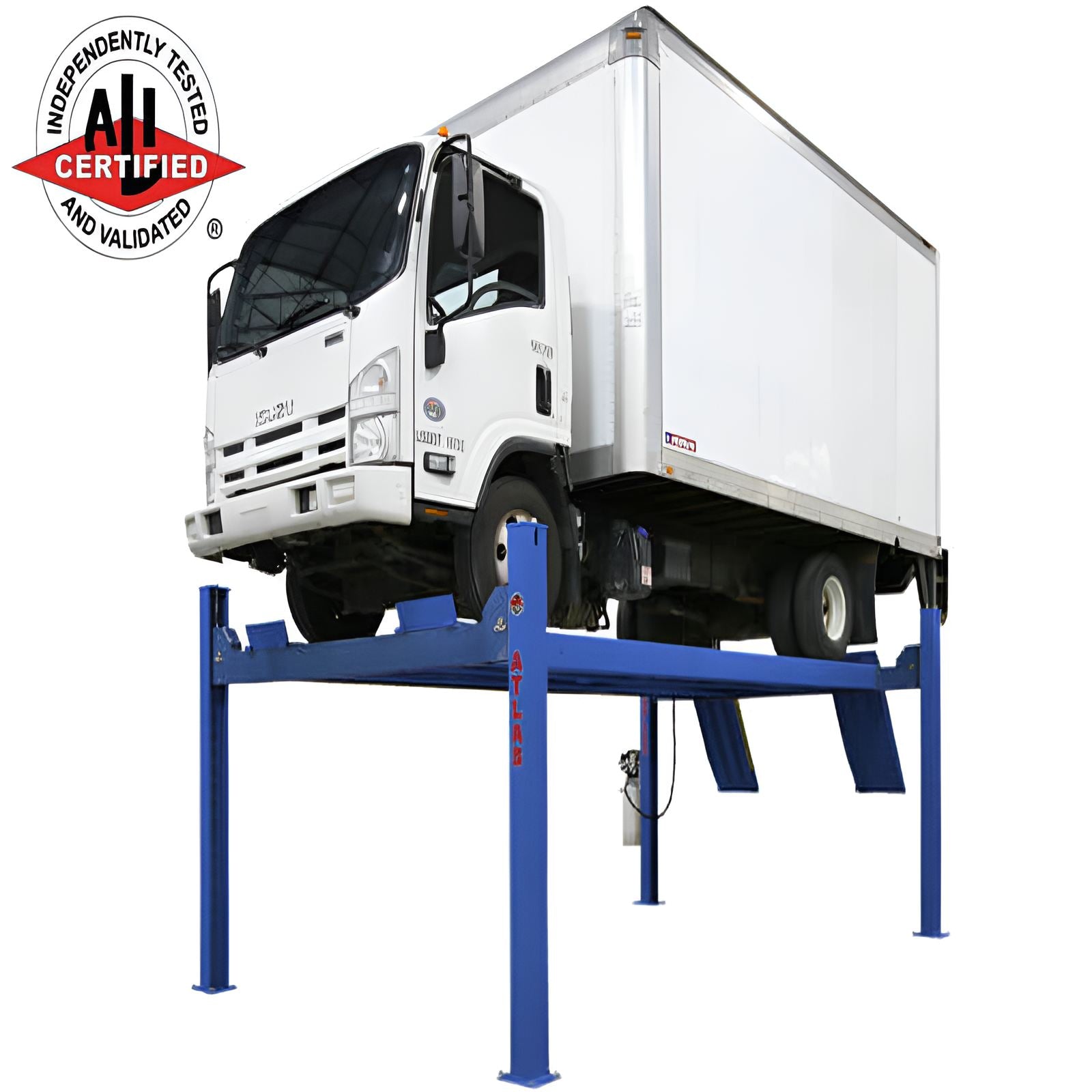

- ALI Certified
- Heavy Duty; Commercial Grade
- Extra Tall, Wide and Long
- Powder Coat Finish
- Lock Release: Single-Point; Air Operated. (Requires External Air Unit)
- Lock Design: Double Lock Safety System
- Warranty: 5 year Structural; 2 year Hydraulic; 2 year Power Unit
- Unit Includes:
- Mounting Hardware
- Buy as a Combo PVL14 + RJ7000
- Optional Item(Sold Separately)
- ALI Certified Complete Alignment Kit
Atlas PVL14 Documentation:
Atlas PVL14 4 Post Parking Lift Product Manual
Atlas Platinum PVL14 4 Post Parking Lift Optional Item (Sold Separately)
This Item has a FLAT RATE SHIPPING FEE: $799
*Due to Extra Large Size, product cannot be delivered to a freight terminal.
