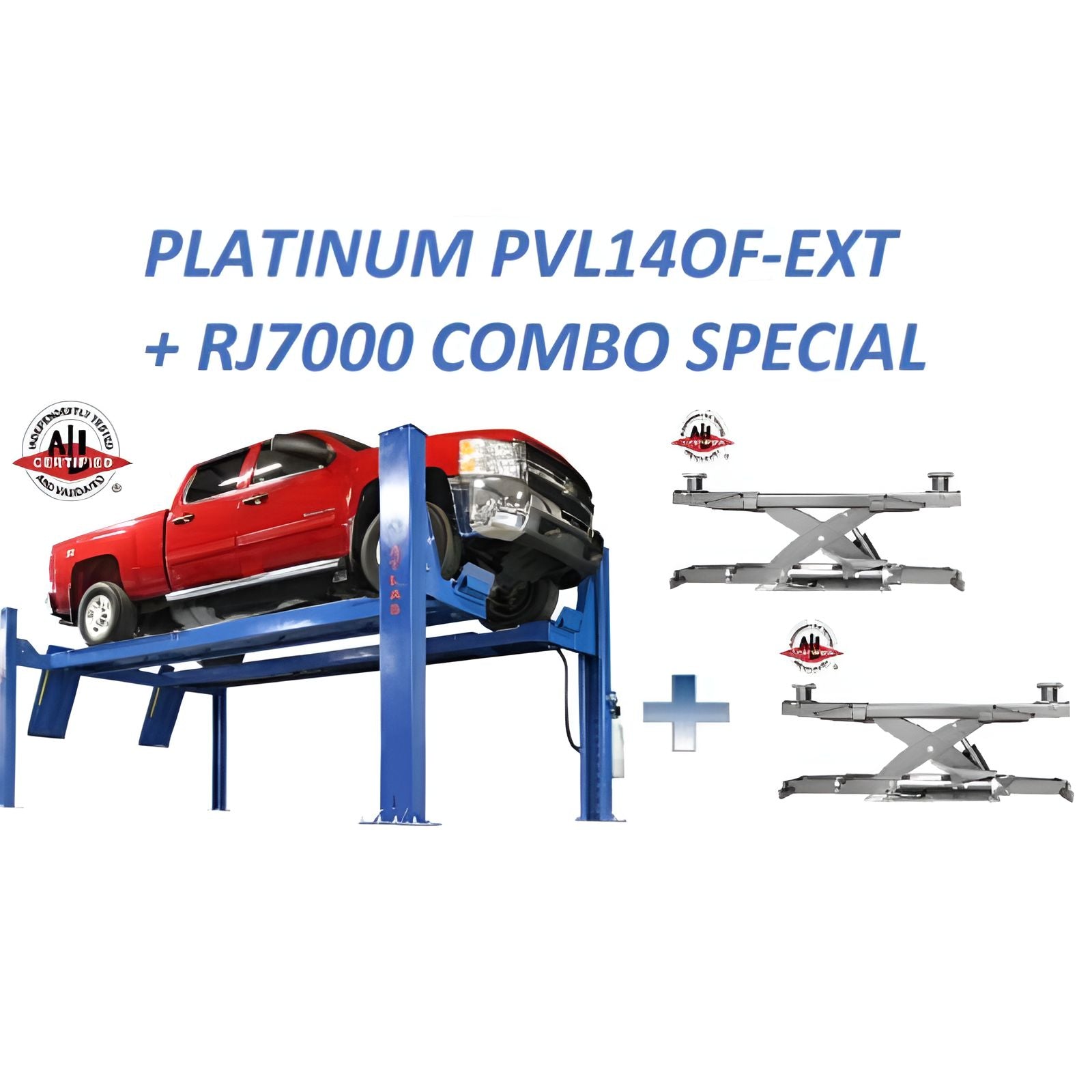

Platinum PVL14OF-EXT + (2) RJ7000 Rolling Jack ALI Certified Combo by Atlas
Is your current alignment lift slower than a Model T going uphill? Does it struggle more than a learner driver on their first day? The Atlas Platinum PVL14OF-EXT is here to rescue you from the pits of automotive despair! This alignment lift is the Superman of the garage world, swooping in to save your productivity with its 14,000-pound lifting capacity and open-front design that offers easier access than front-row seats at the Indy 500.
But the real magic happens when you add the two included ALI Certified Atlas Platinum RJ7000 rolling bridge jacks. These 7,000-pound capacity sidekicks turn your lift into the Batman and Robin of vehicle servicing. With a maximum lifting height of 27.5 inches (including adapters), these jacks give you range. The whole system runs on a 220-volt single-phase unit, delivering power smoother than a Rolls-Royce engine. And with features like built-in slip plates and heavy-duty turntables, this lift will have you aligning wheels faster than pit crews change tires at Le Mans.
Alignment Lift PVL14OF-EXT Specifications:
- Capacity 14,000 lb.
- Lifting Height 73 1/4" (6' 1 1/4")
- Overall Width Of Columns (Without Motor) 140 1/8" (11' 8 1/8")
- Overall Width Of Columns (With Motor) 148 3/4" (12' 4 3/4")
- Overall Length With Approach Ramp 272 1/8" (22' 8 1/8")
- Length Between Columns 207" (17' 3")
- Runway Length 223 1/2" (18' 7 1/2")
- Runway Width 20"
- Thickness Of Runway 7"
- Width Between Runways 42 3/4" (w/ Rail 39 1/4")
- Outside Runway To Outside Runway 83 1/8" (6' 11 1/8")
- Clearance Under Runways 66 1/4" (5' 6 1/4")
- Clearance Between Columns 116 3/8" (9' 8 3/8")
- Height Of Columns 92 1/2" (7' 8 1/2") Rear/109 1/4" (9' 1 1/4") Front
- Maximum Wheel Base 203" (16' 11")
- Drive Thru 94 1/2" (7' 10 1/2")
- Air Requirement 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
- Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
- Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
- Shipping Weight 4,462 LBS.
- Requires a minimum of 6" of concrete with a 3000 psi. rating
PVL14OF-EXT Alignment Lift Special Features:
- ALI Certified Lift
- 14,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Alignment Lift, Includes Built in Slip Plates & Turntables
- Open Front Design for Better Access
- Extra Long Runways
- Adjustable Lock Ladder Design
- Higher Quality Powder Coat Finish
- Air Operated Single Point Lock Release (External Air Supply Required)
- Lock Ladder Design
- Double Lock Safety System
- Powder Coat Finish
- Steel Approach Ramps Included
- Mounting Hardware Included
- Standard with Premium ALLY Powerunit
- 220volt/1phase Electric Operation (Requires a 30amp Breaker)
- Shipping Weight: 4,462 LB.
- 5 yr Structural – 2 yr Hydraulic – 2 yr Power unit Warranty

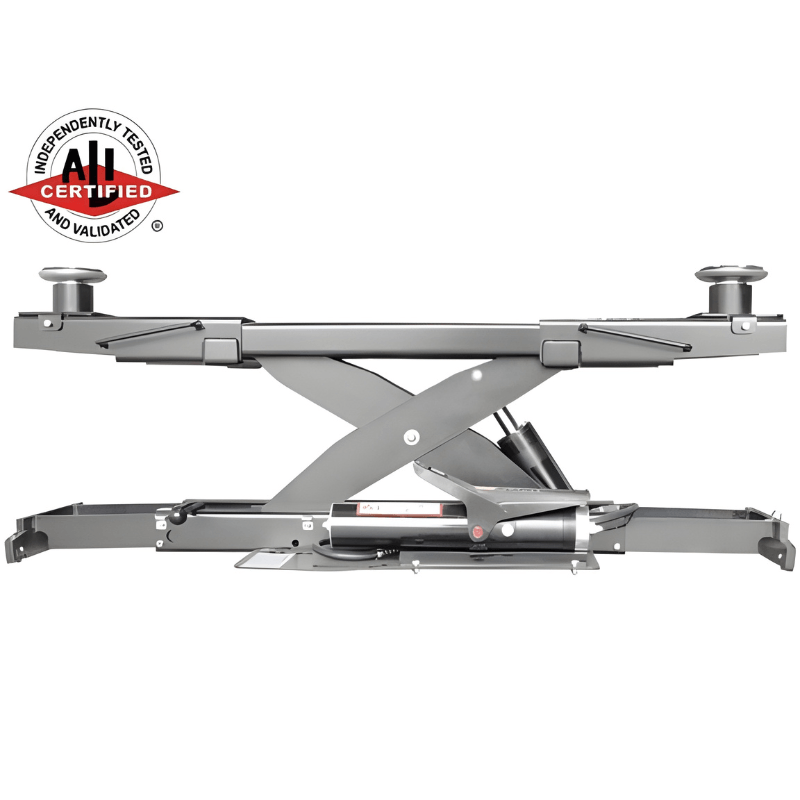

RJ7000 Rolling Jack Specifications
- Qty: 2
- Maximum Capacity 7,000 lb.

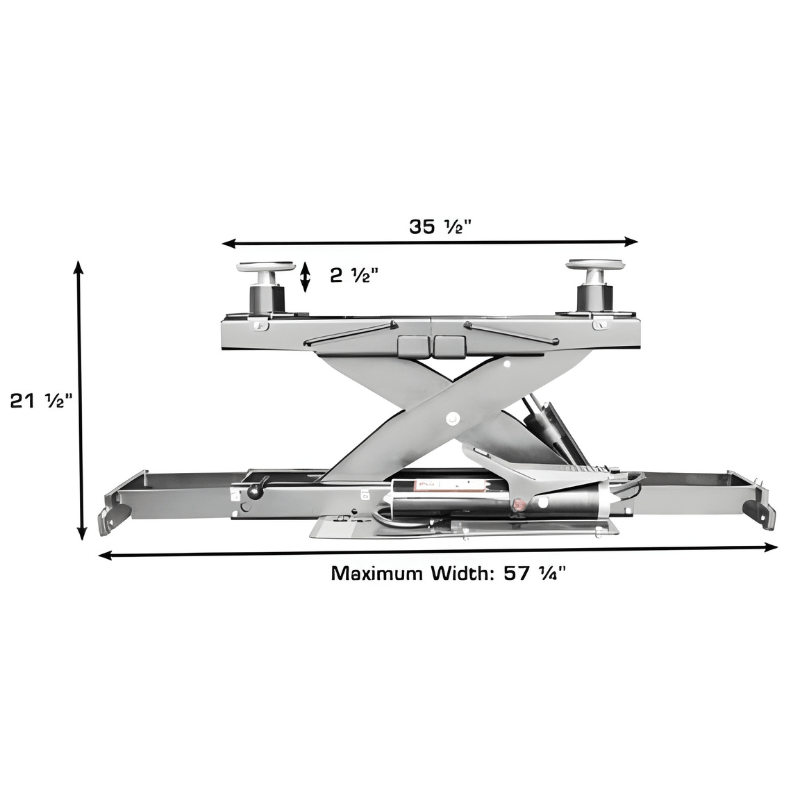

- Maximum Width 45 1/2" (3' 9 1/2")
- Minimum Width 36" (3')
- Distance Between Runway Capability 36"- 45"

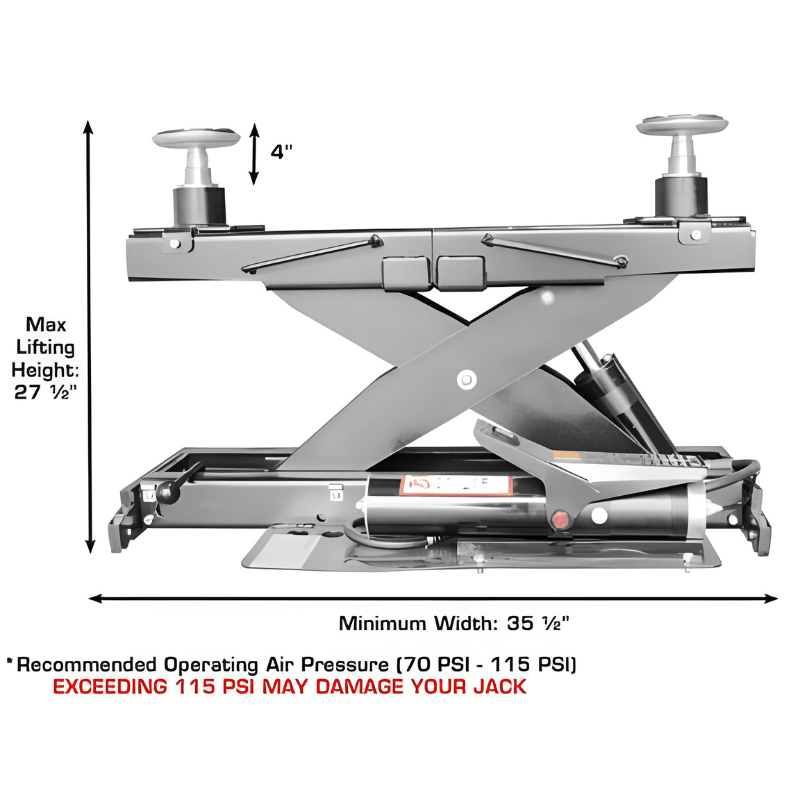

- Maximum Lifting Height (With Adapters) 27 1/2" (2' 3 1/2")

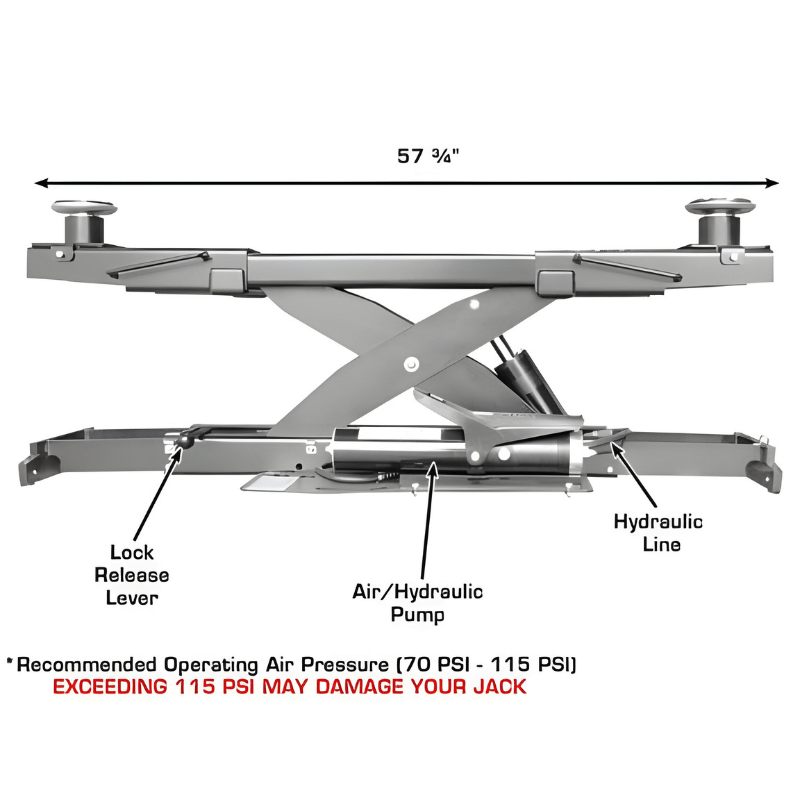

- Air Requirement 70-115 PSI

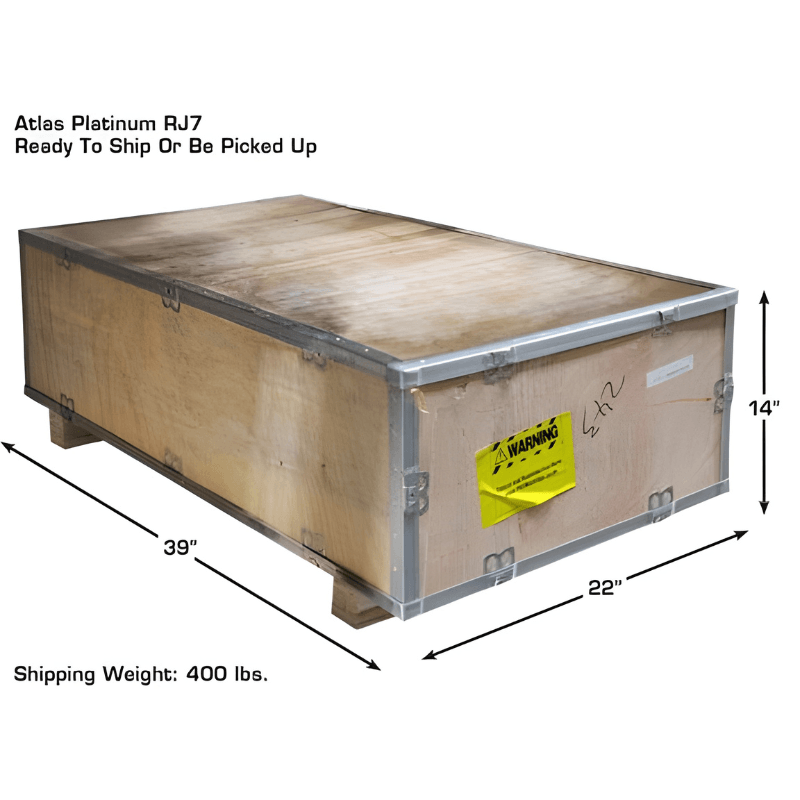

- Shipping Weight 400 lbs.
- Double Screw-Up Adapter Pad 1 1/2" - 4"
PLATINUM RJ7000 Jack Special Features
- 7,000 lb. Capacity

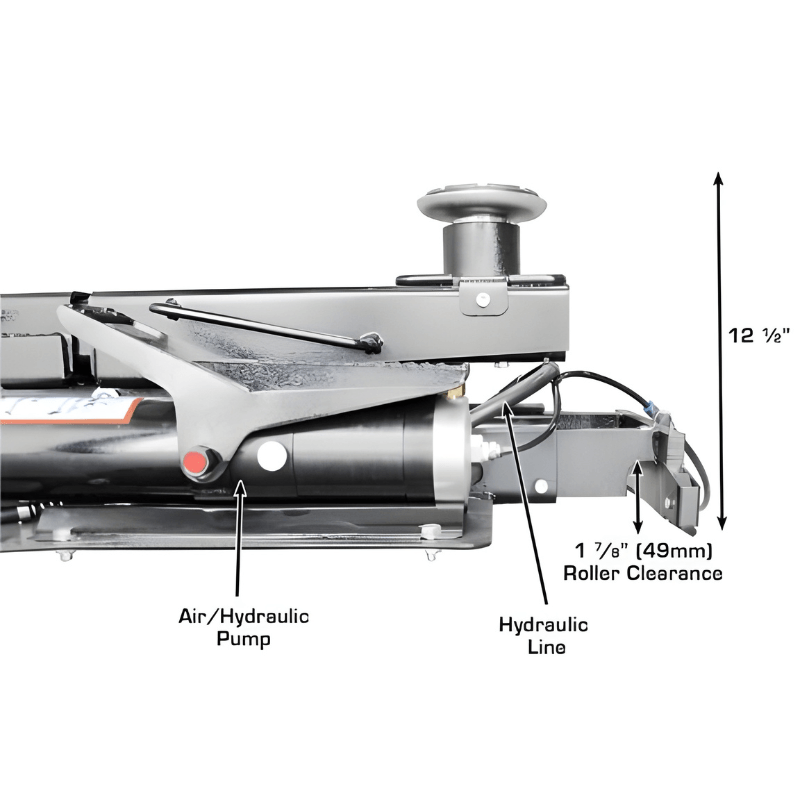

- Air/Hydraulic Operated

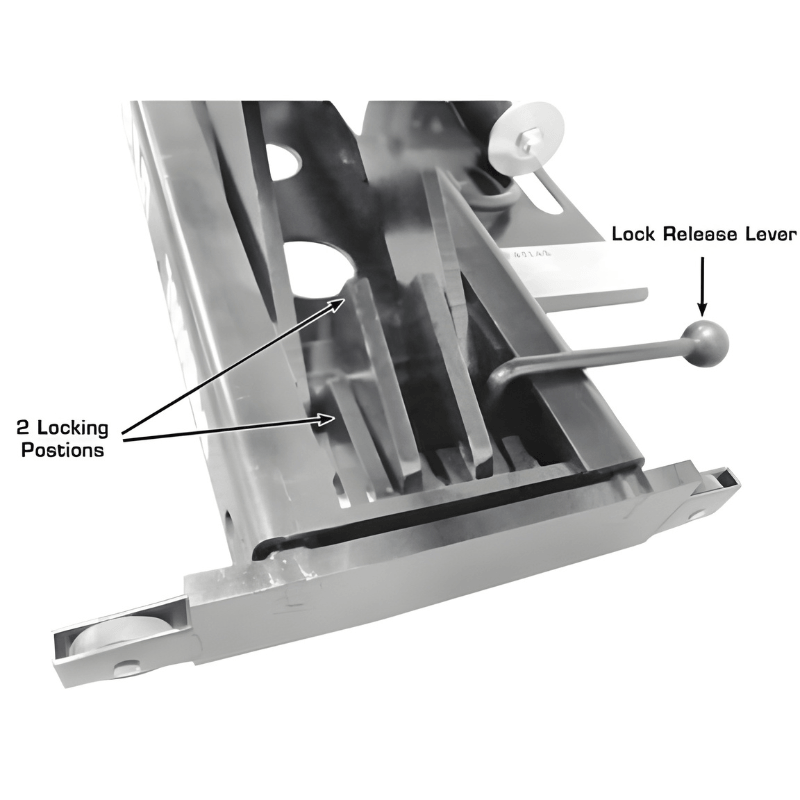

- Two Safety Lock Positions
- Double Screw-Up Adapters Included
- Compact Size with Low Profile

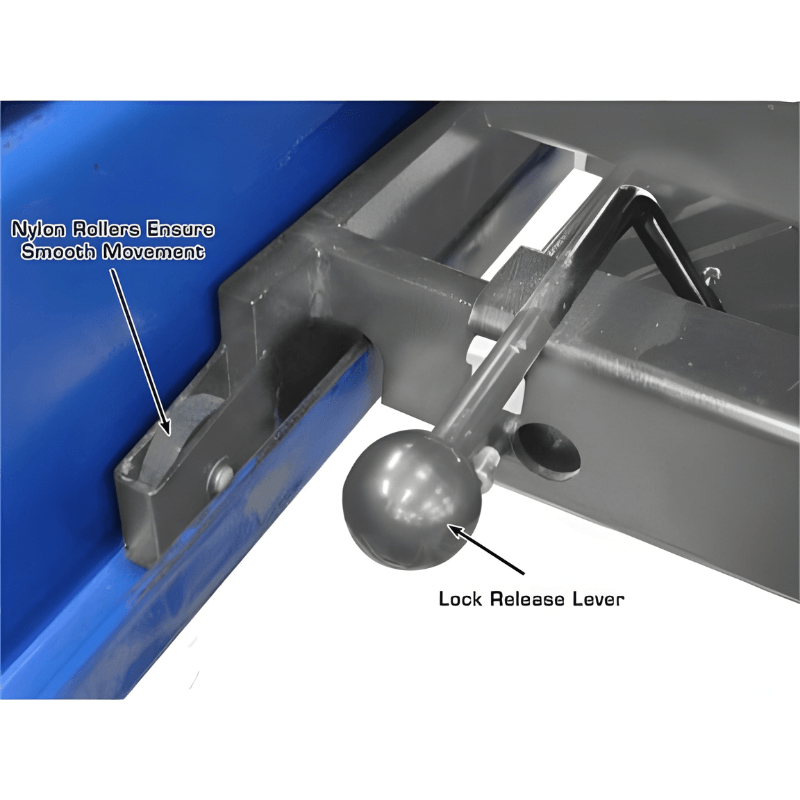

- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish
- 1 Year Parts Only Warranty
Atlas PVL14OF-EXT + RJ7000 Documentation:
Atlas PVL14OF-EXT Alignment Lift Product Manual
Atlas RJ7000 Rolling Jack Product Manual
Atlas RJ7000 Rolling Jack Product Measuring Guide
Atlas Platinum PVL14 4 Post Parking Lift Optional Item (Sold Separately)
This Item has a FLAT RATE SHIPPING FEE: $1499
*Warehouse pickup is not an option on Atlas alignment lifts.
*Due to Extra Large Size, product cannot be delivered to a freight terminal.
