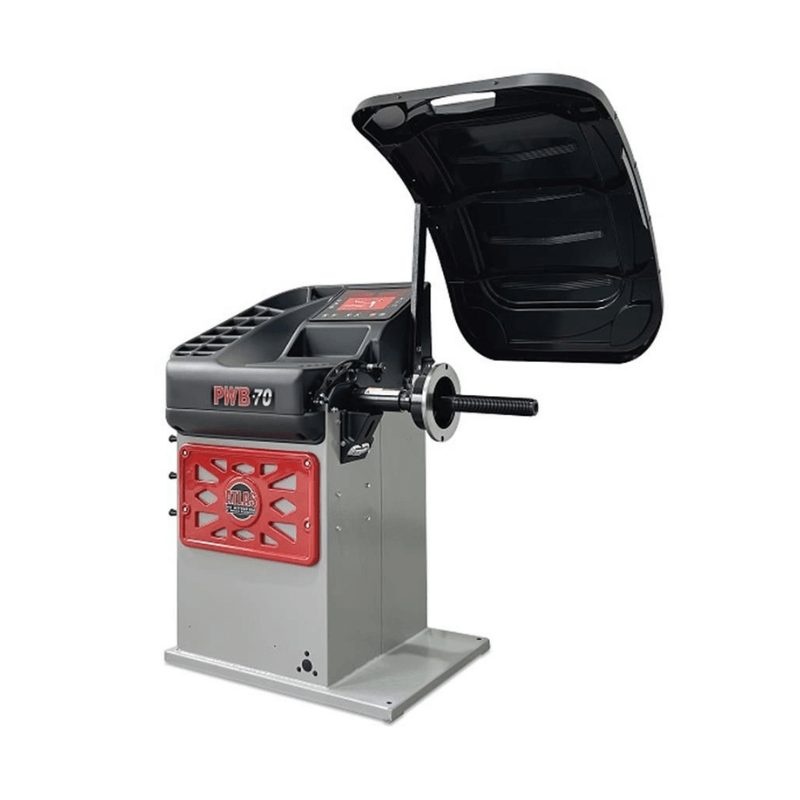

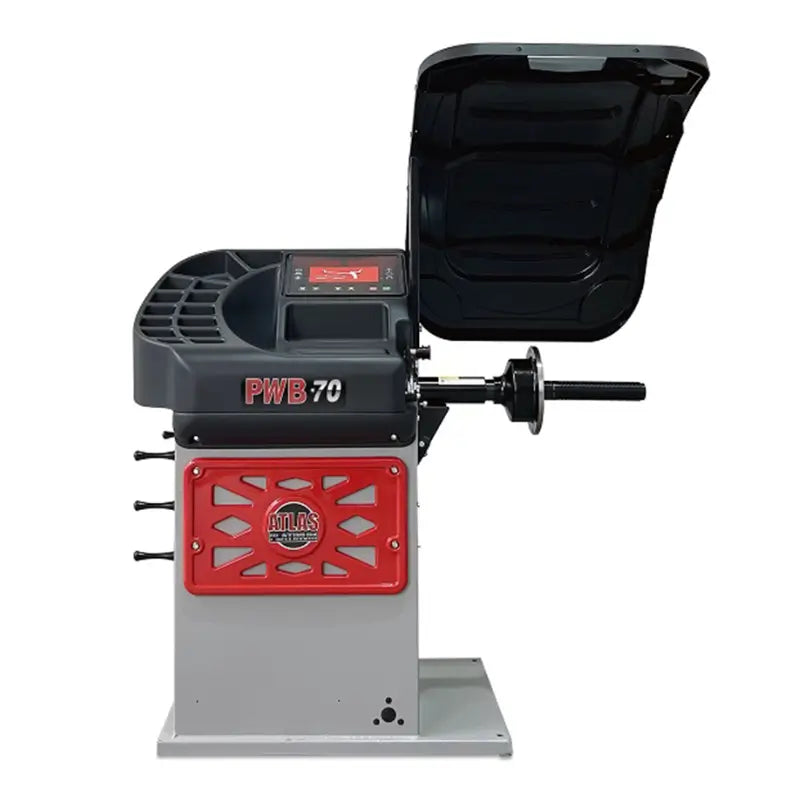

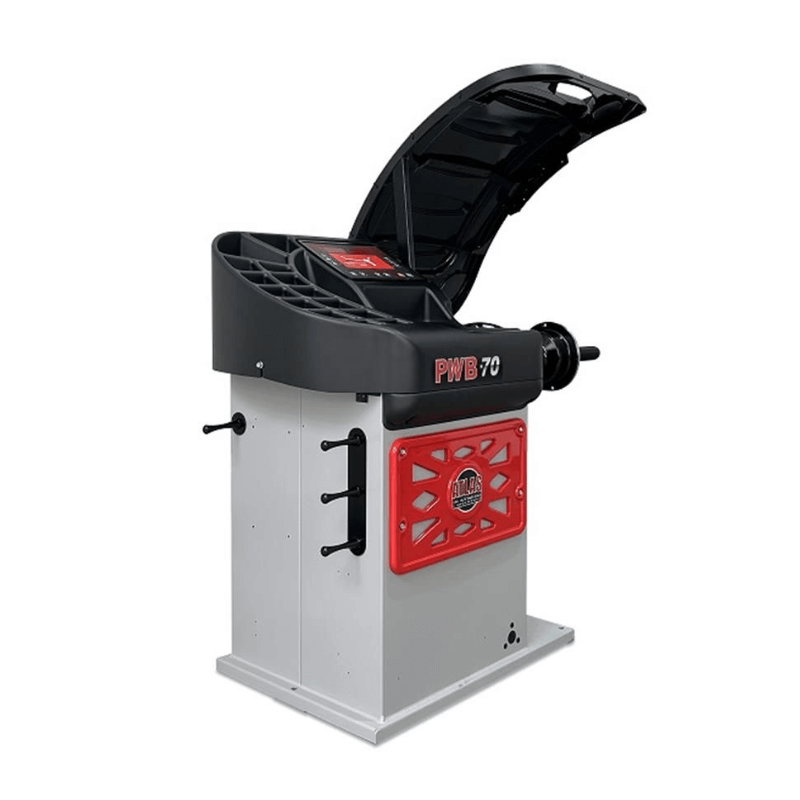

The Atlas Platinum PWB70 Motorized Spin Wheel Balancer is a high-performance, feature-rich solution designed for modern tire shops and auto service centers that demand speed, accuracy, and durability. An upgrade from the popular PWB50, the PWB70 introduces several key enhancements, including a laser line for precise weight placement, a bright LED work light to illuminate the wheel interior, a larger wheel weight tray, and an oversized hood to accommodate bigger assemblies. These improvements, combined with Italian engineering and premium components, ensure precise balancing for a wide range of passenger vehicle wheels.
Designed to handle wheels up to 30 inches in diameter and 165 lbs. in weight, this balancer offers 1g precision, 7-second cycle time, and an intuitive interface that simplifies training and operation. The PWB70 includes essential accessories such as centering cones, a quick-release nut, wheel weight pliers, and measuring calipers—and it’s all backed by a reliable 2-year parts-only warranty. With no anchor-down installation required, it’s the perfect upgrade for busy tire shops looking to boost efficiency without compromising on quality.
Rim Sizes (Car/Light Truck): 10" – 30"
Max Tire Diameter: 43"
Rim Width: 1.5" – 20"
Max Wheel Weight: 165 lbs
Shaft Size: 40mm
Balancing Speed: 130 RPM
Cycle Time: 7 seconds
Accuracy: 1 gram
Weight Position Resolution: 1.4°
Power Supply: 110V
Data Entry: Automatic 2D
Measurements: Standard or Metric
Shipping Weight: 280 lbs
Computer-controlled, motorized spin balancer
Premium Italian components and build quality
LED light and laser weight placement guide
Large wheel weight tray and oversized hood
Electric brake with smart approach system
Optimatch, FES, and Opposite Weight Function
Static, dynamic, ALU, and ALU-S balancing modes
No-wheel-needed (NWN) system
Self-diagnosing and self-calibrating operation
Automatic start/stop with hood movement
USB hub for firmware updates
Includes cones, quick-release nut, pliers, and calipers
No anchor-down installation required
2-year parts-only warranty
