PRO8000EXT-L 4 Post Lift + (2) RJ35 Sliding Jacks Combo by Atlas

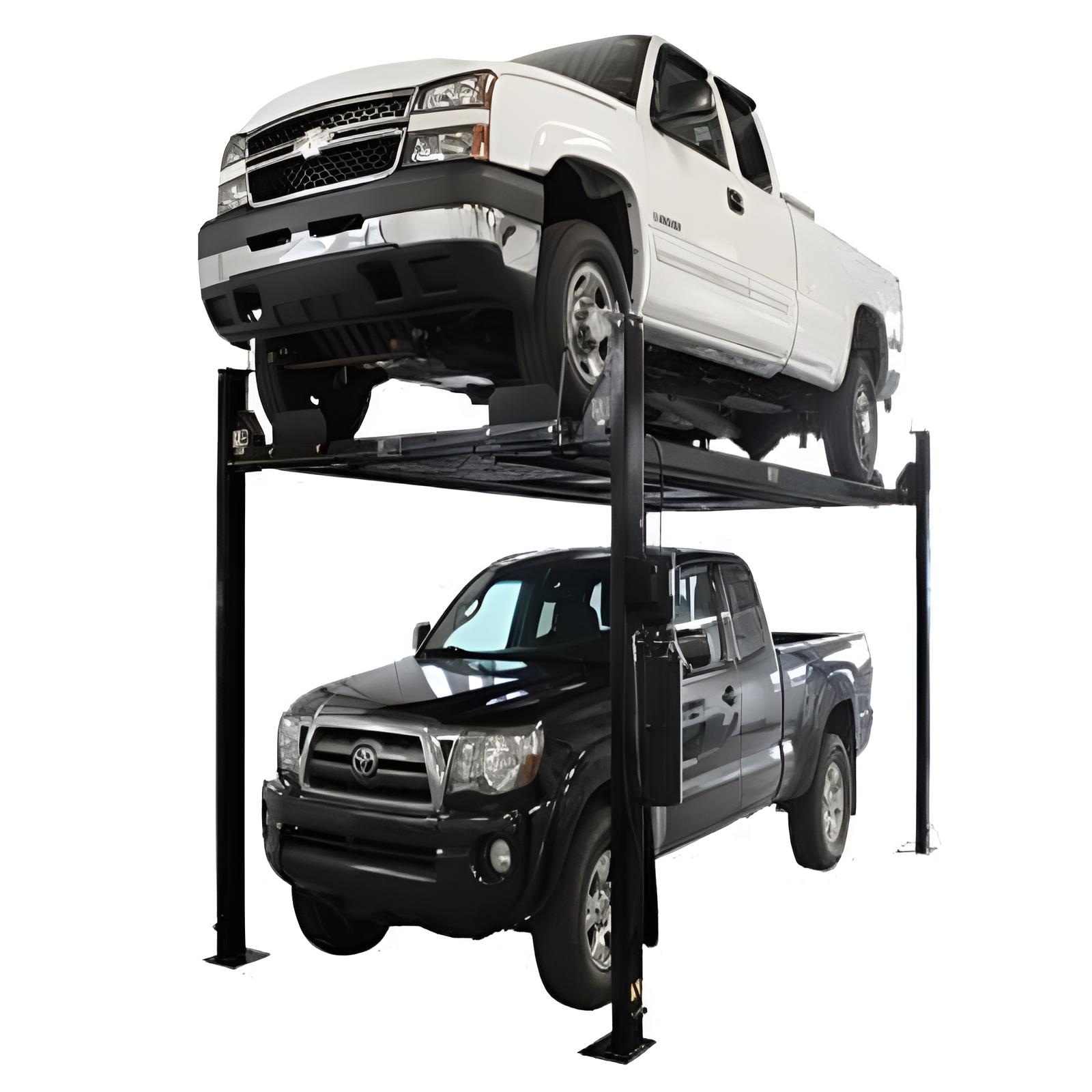

Rev up your garage with the Atlas Garage PRO8000EXT-L combo! This beast isn't just a lift, it's a vehicular skyscraper. Boasting an impressive 8,000 lb capacity, it'll hoist your rides to a towering 84 inches. That's 7 feet of clearance under the runways! With its extra-long 185-inch runways and 98-inch clearance between columns, it's ready to pamper even your longest pickup trucks.

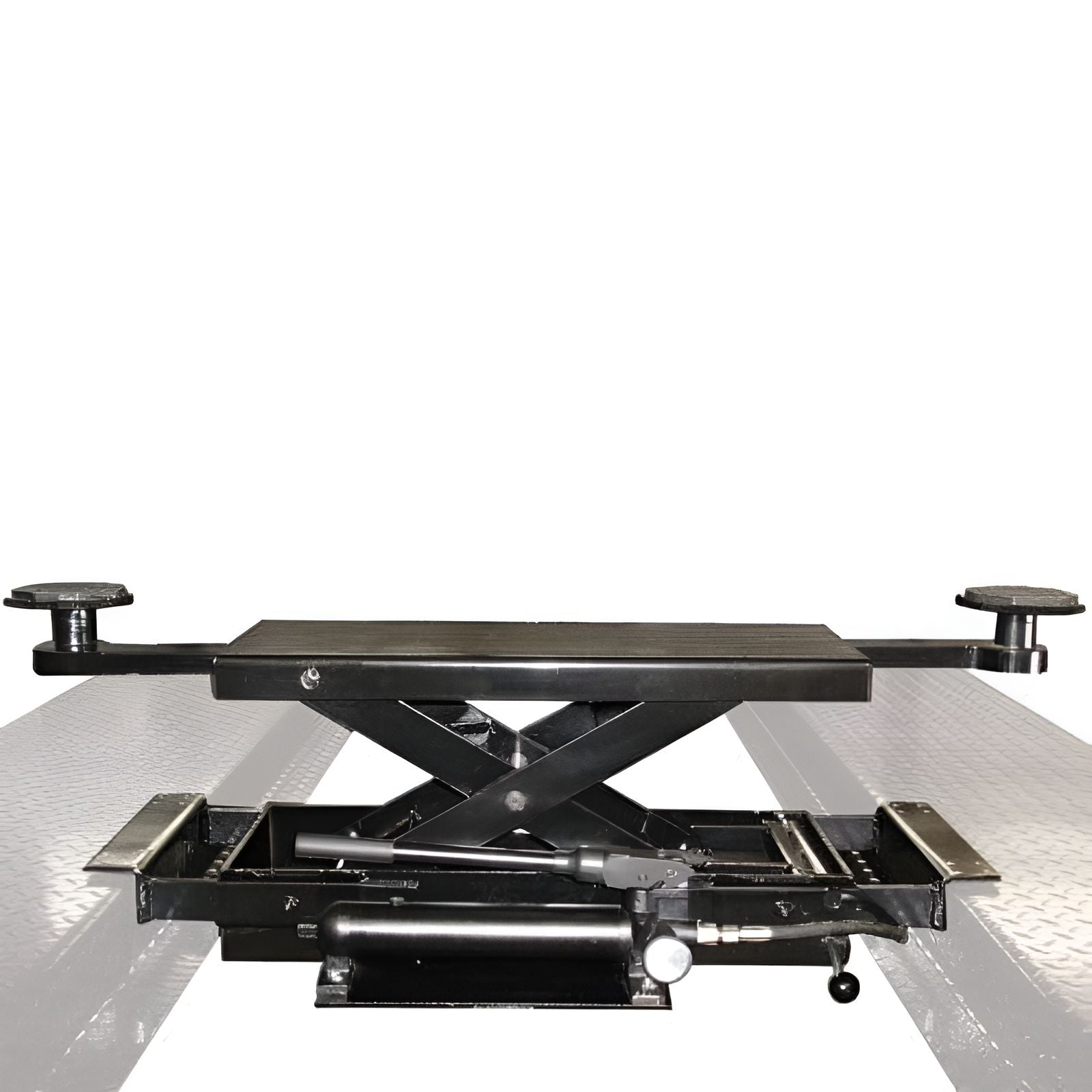

But we're not done yet. This combo throws in two Atlas RJ35 sliding bridge jacks, each capable of lifting 3,500 lbs. These bad boys can boost your wheels up to 17.25 inches high with adapters. The PRO8000EXT-L's 22-inch wide runways (with rails) give your vehicles the red-carpet treatment. And with features like diamond-plated runways, a single-point lock release, and a caster kit for easy maneuvering. It's perfect for storing or working on vehicles, all powered by a standard 110V outlet. The Atlas Garage PRO8000EXT-L combo: because your garage deserves an upgrade!
4 Post Parking Lift Pro8000EXT-L Specifications:
Capacity 8,000 lbs.

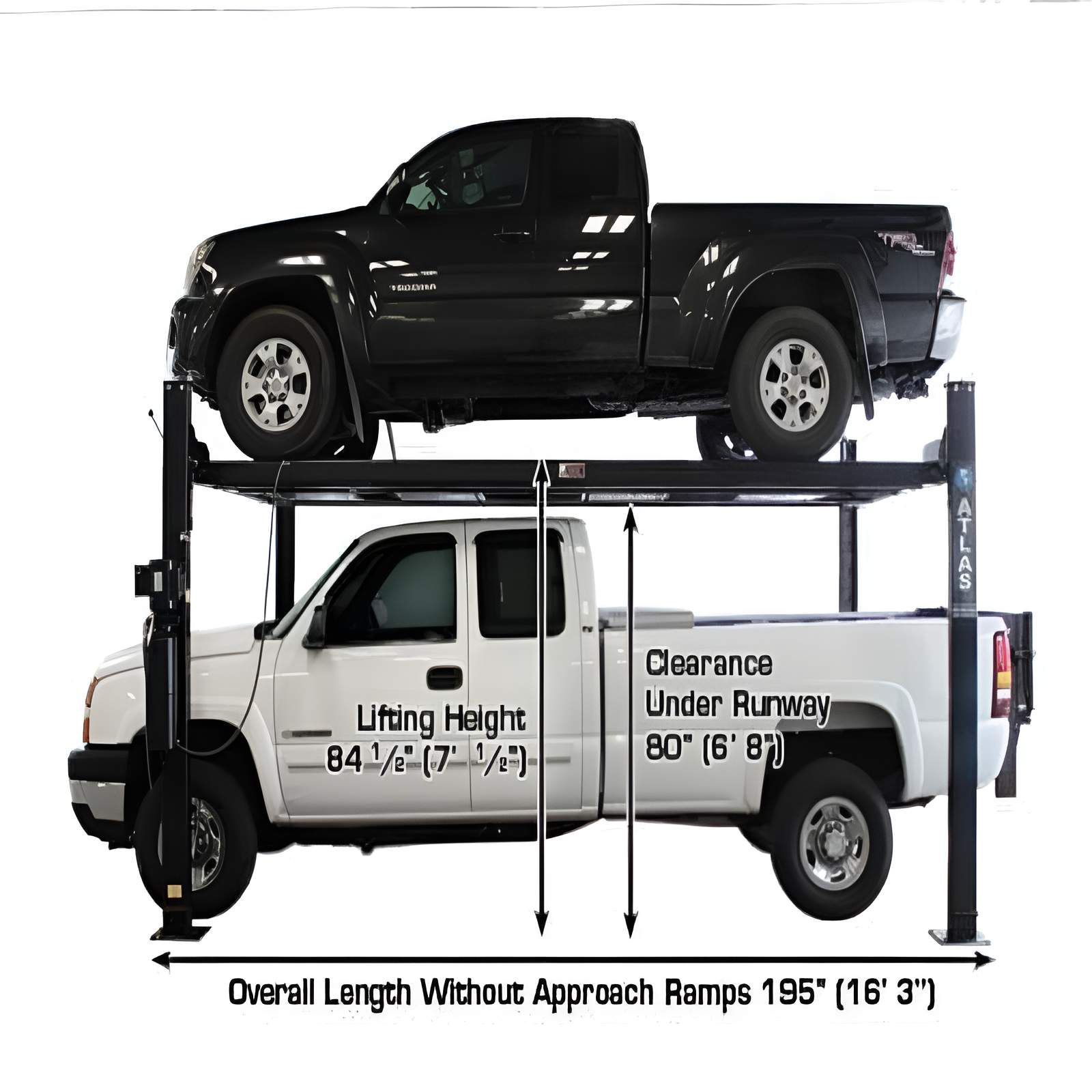

Lifting Height To Top Of Runway 84" (7')
Clearance Under Runways 78 1/2" (6' 6 1/2")
Height Of Columns 98 1/2" (8' 2 1/2")
Overall Width (Without Motor) 108" (9')

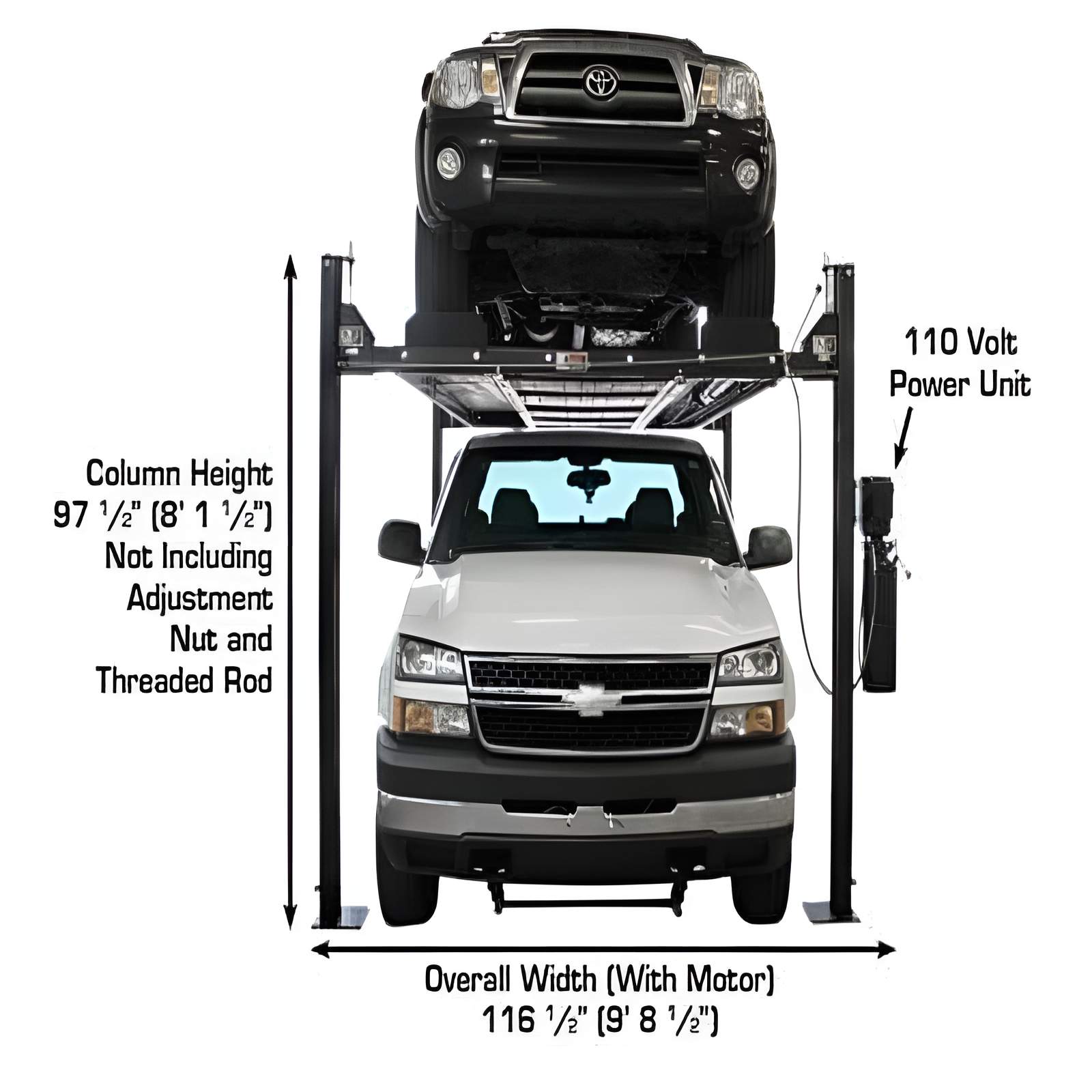

Overall Width (With Motor) 116 1/2" (9' 8 1/2")
Overall Length With Approach Ramp 222" (18' 6”)

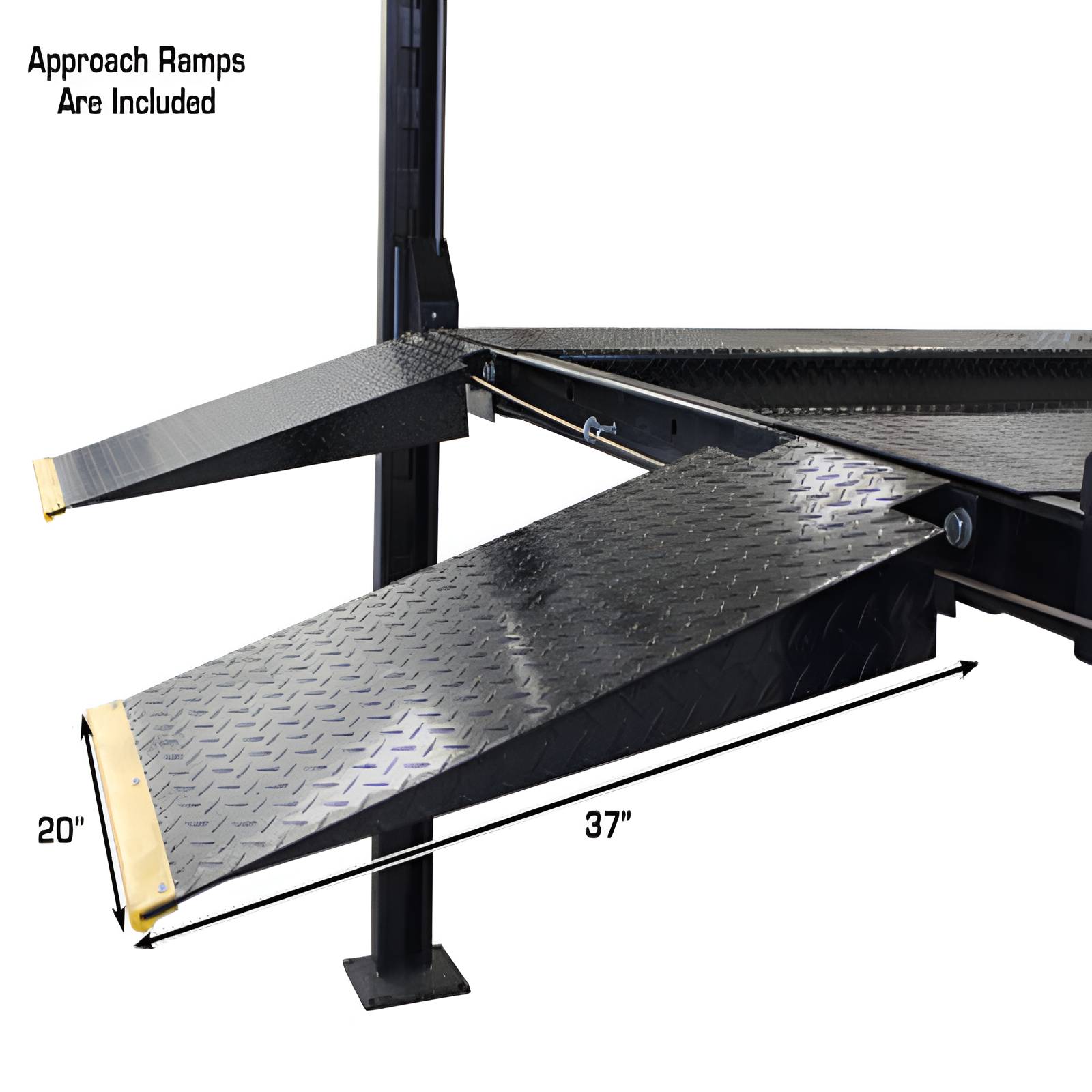

Approach Ramp 37" (3' 1")
Runway Width 22" (w/ Rails) or 18 3/4" (Driving Surface)
Runway Length 185" (15' 5”)
Runway Thickness 4 1/2"

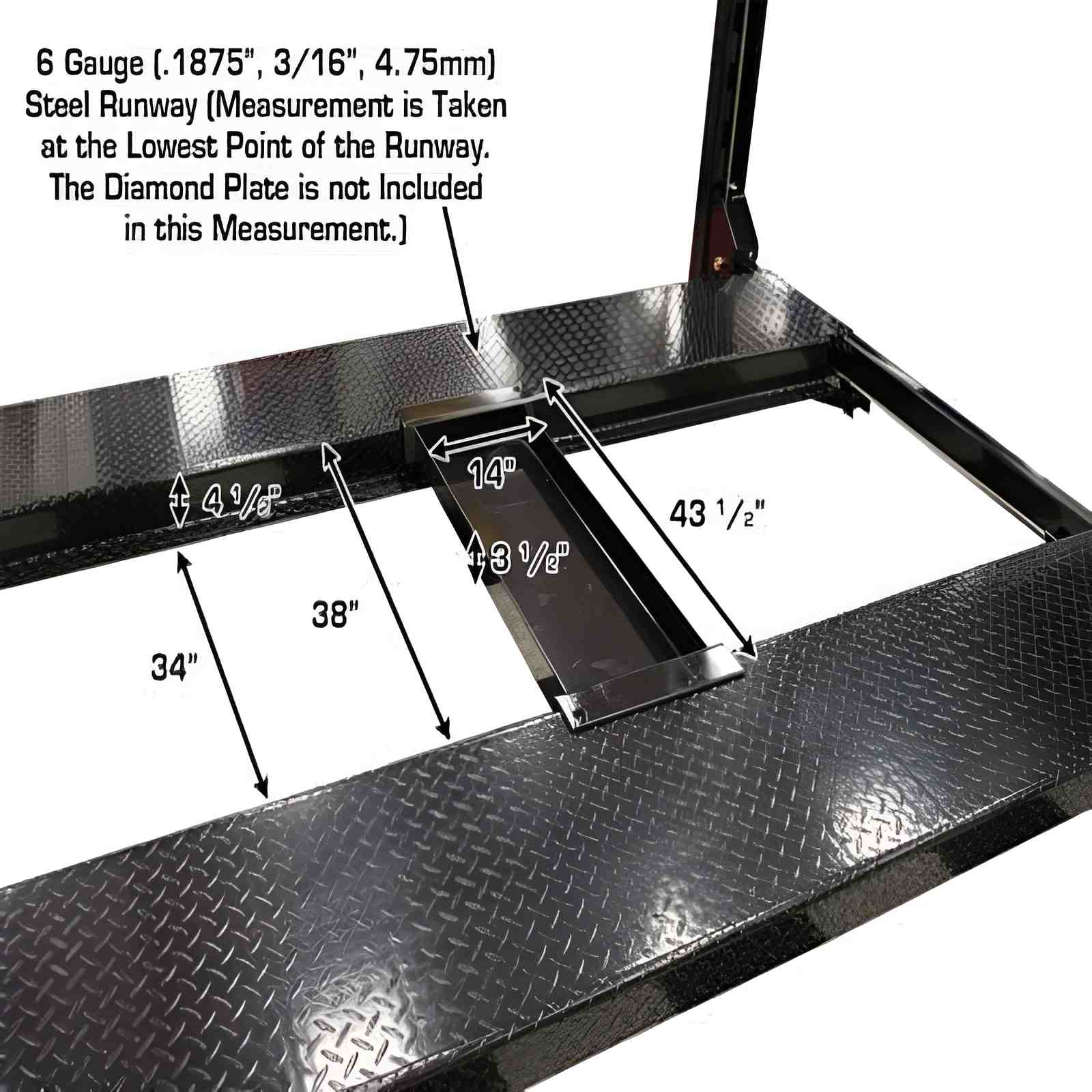

Width Between Runways 38" (3' 2")
Width Between Runway Rails 34" (2' 10")
Outside Runway To Outside Runway 77 3/4" (6' 5 3/4")

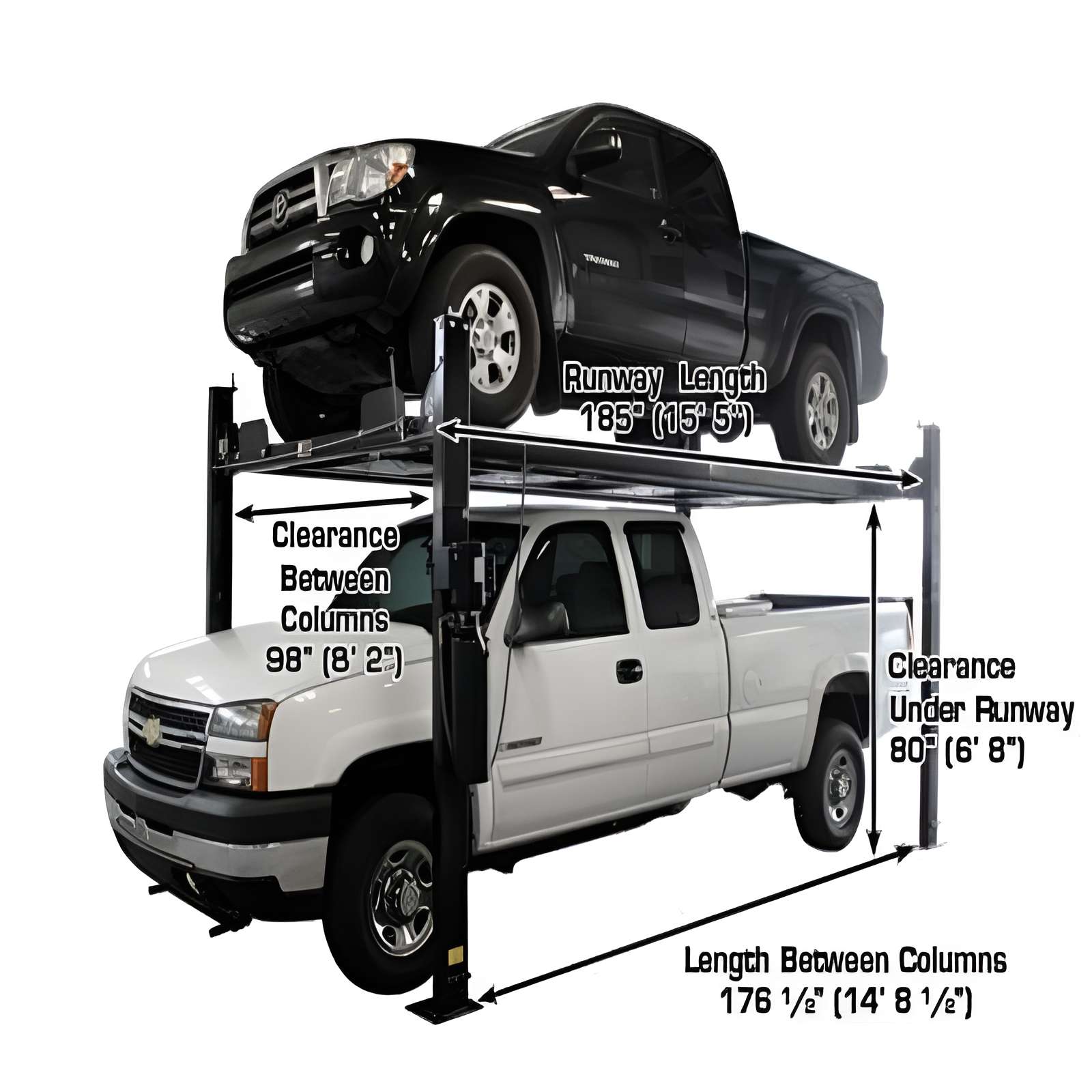

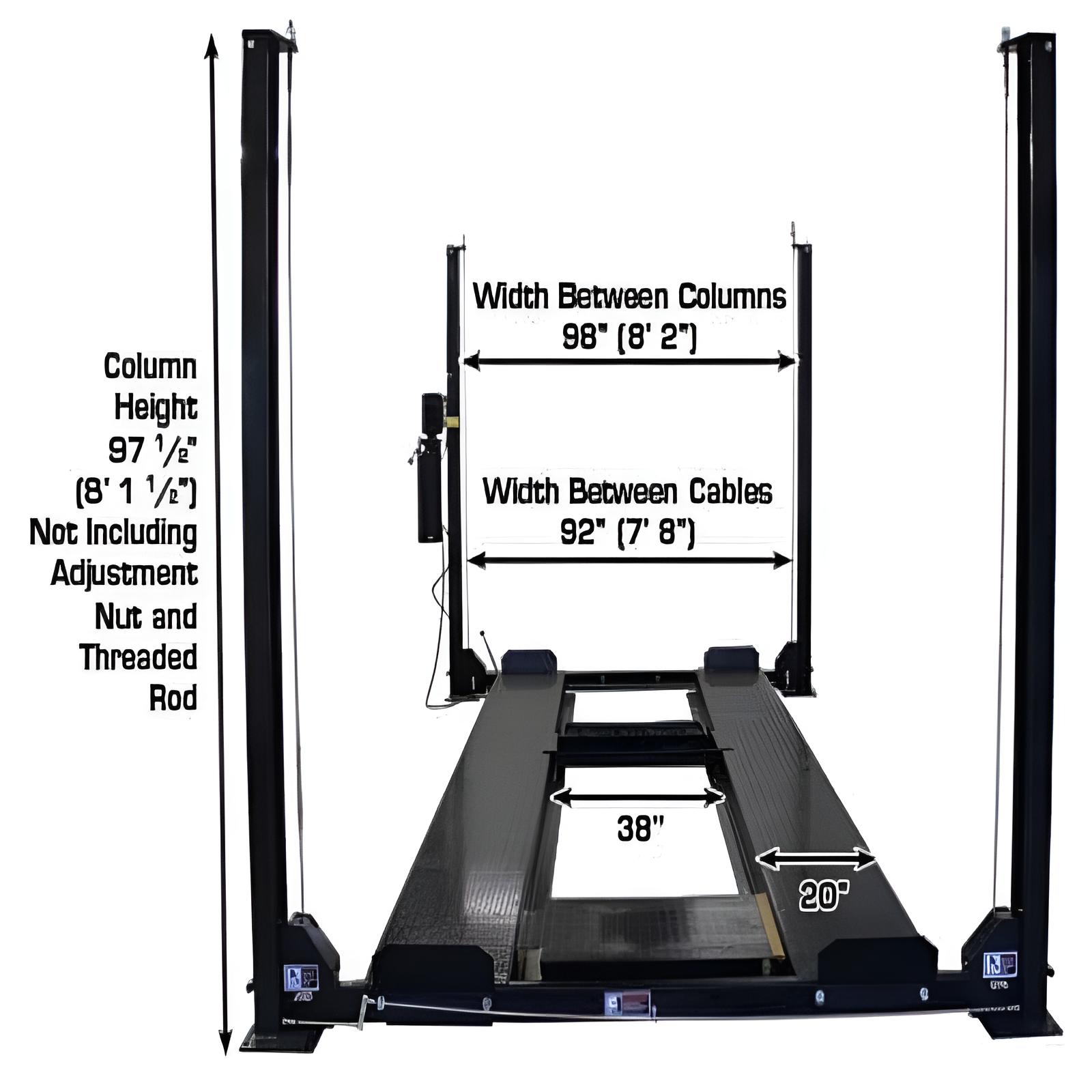

Clearance Between Columns 98" (8' 2")

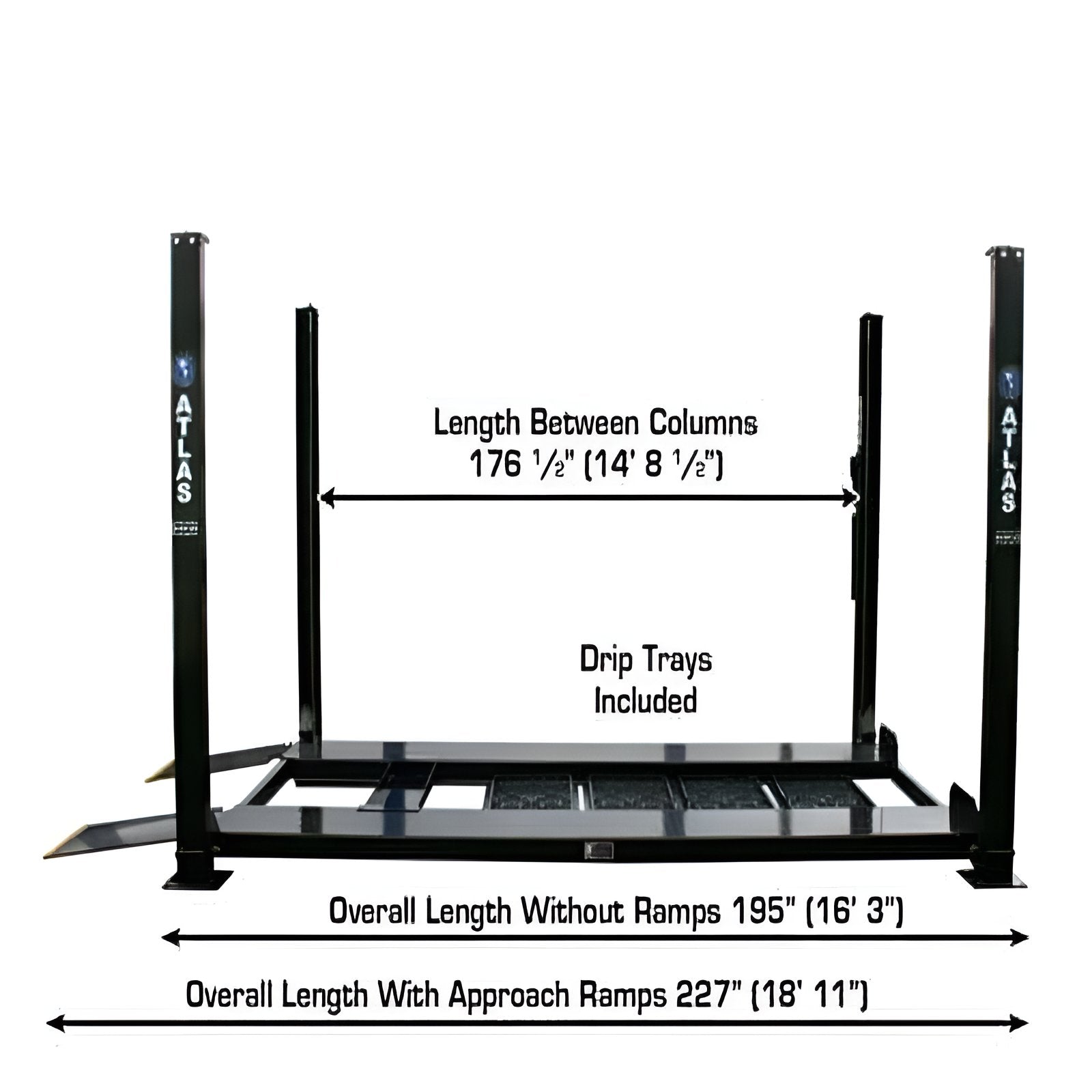

Length Between Columns 176 1/2" (14' 8 1/2")

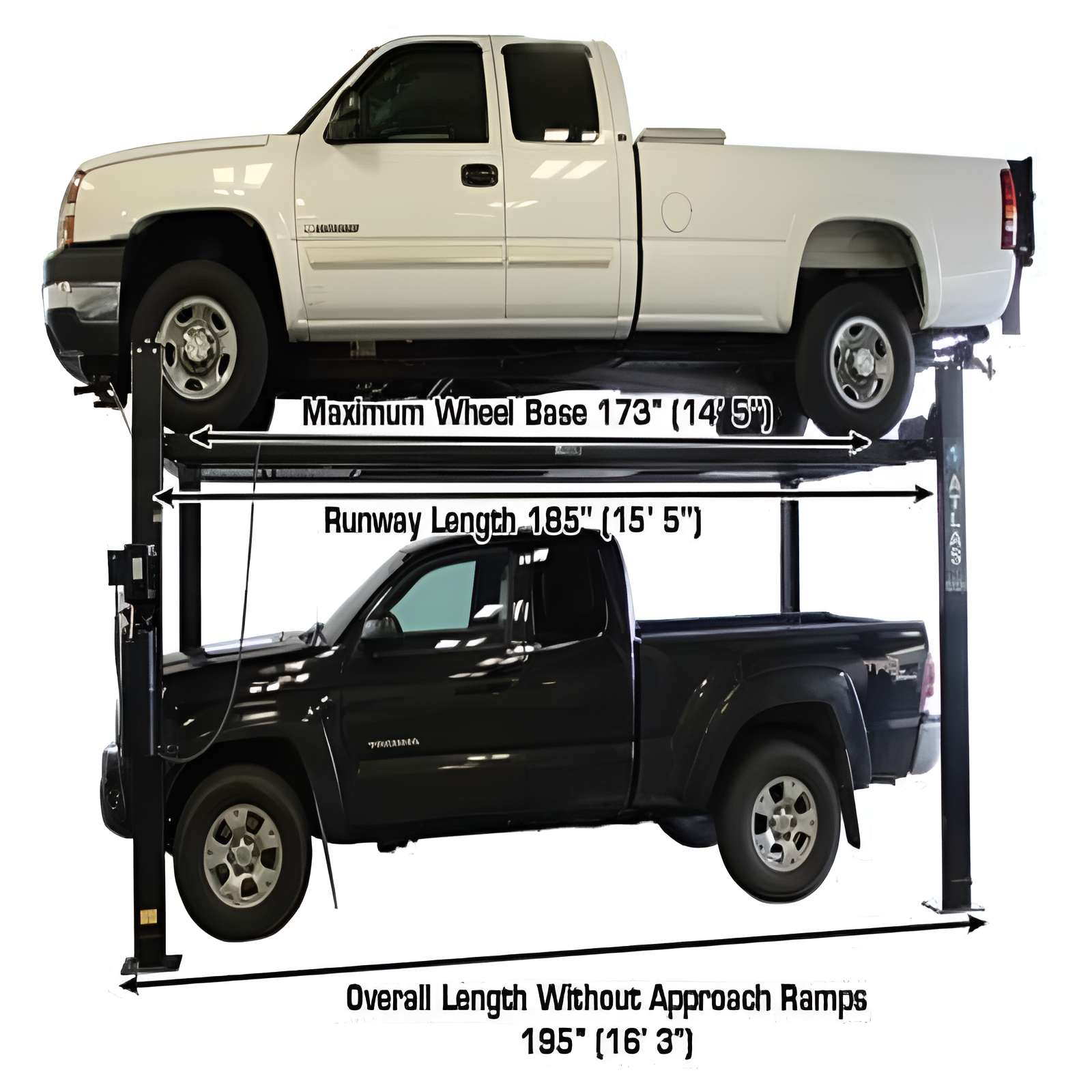

Maximum Wheel Base 173" (14' 5")

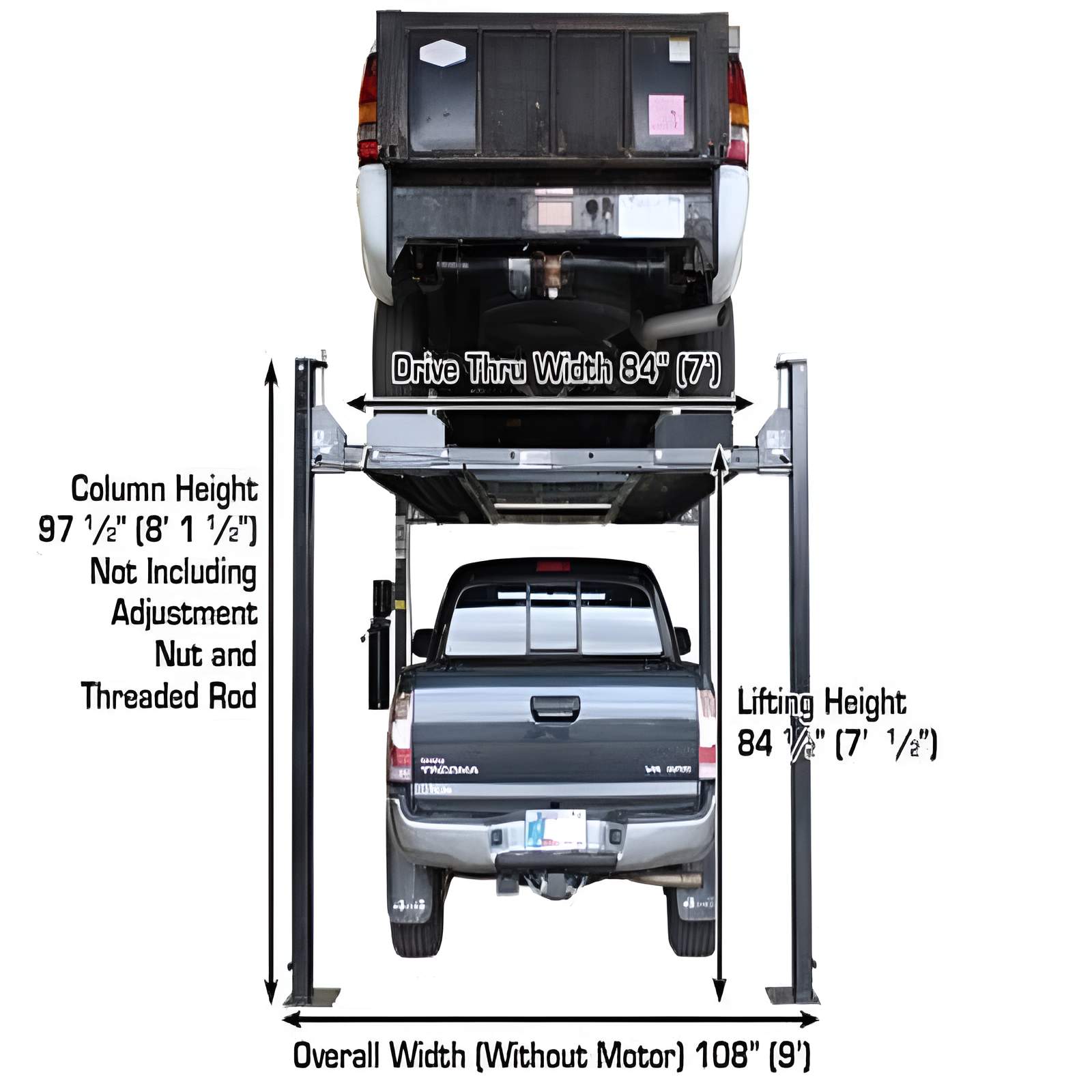

Drive Thru (Outside Of Tire To Outside Of Tire) 84" (7')
Shipping Weight 1,850 lb.
Pallet Size: 187-1/2" Long x 30" Tall x 22" Wide
PRO8000EXT-L 4 Post Lift Special Features
8,000 lb. Capacity
Free Standing/Portable Design
EXTRA TALL & EXTRA LONG
Diamond Plated Runways
Single-Point Lock Release

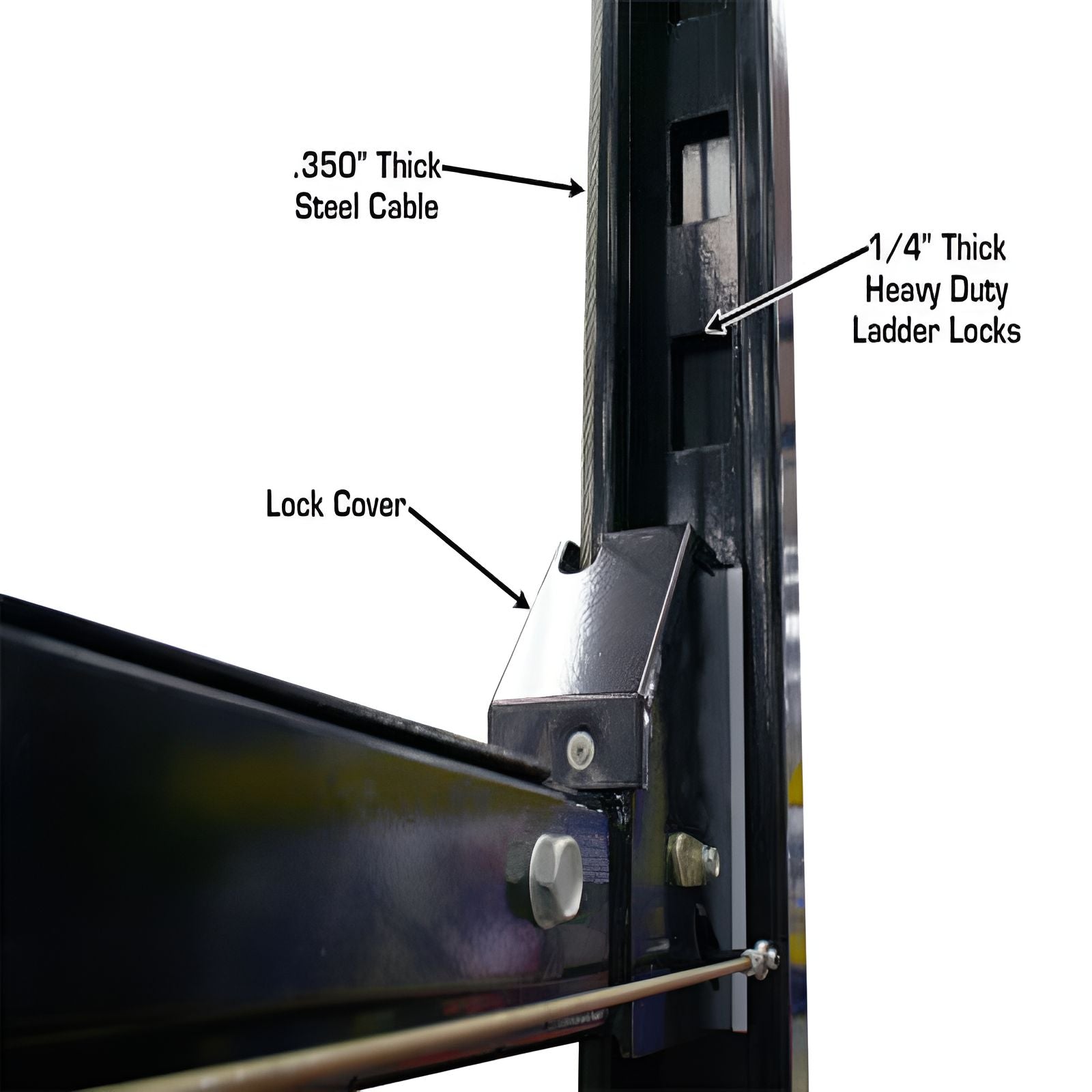

Lock Ladder Design
Double Lock Safety System

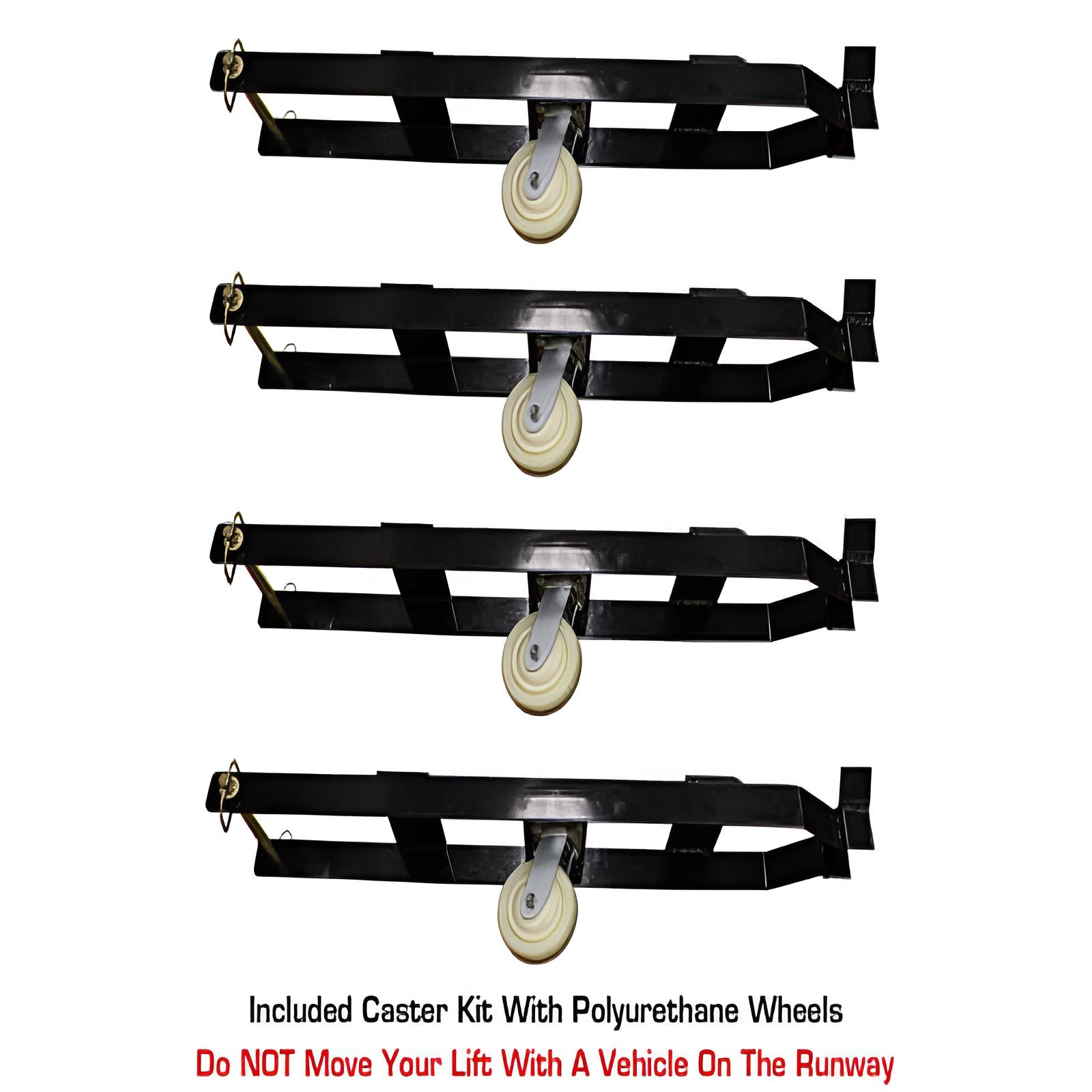

Caster Kit With Polyurethane Wheels Included
Steel Approach Ramps Included
Steel Jack Tray Included
4 Plastic Drip Trays Included
4 Wheel Stops Included
2 Rubber Wheel Chocks Included
Perfect For Storing Or Working On Vehicles

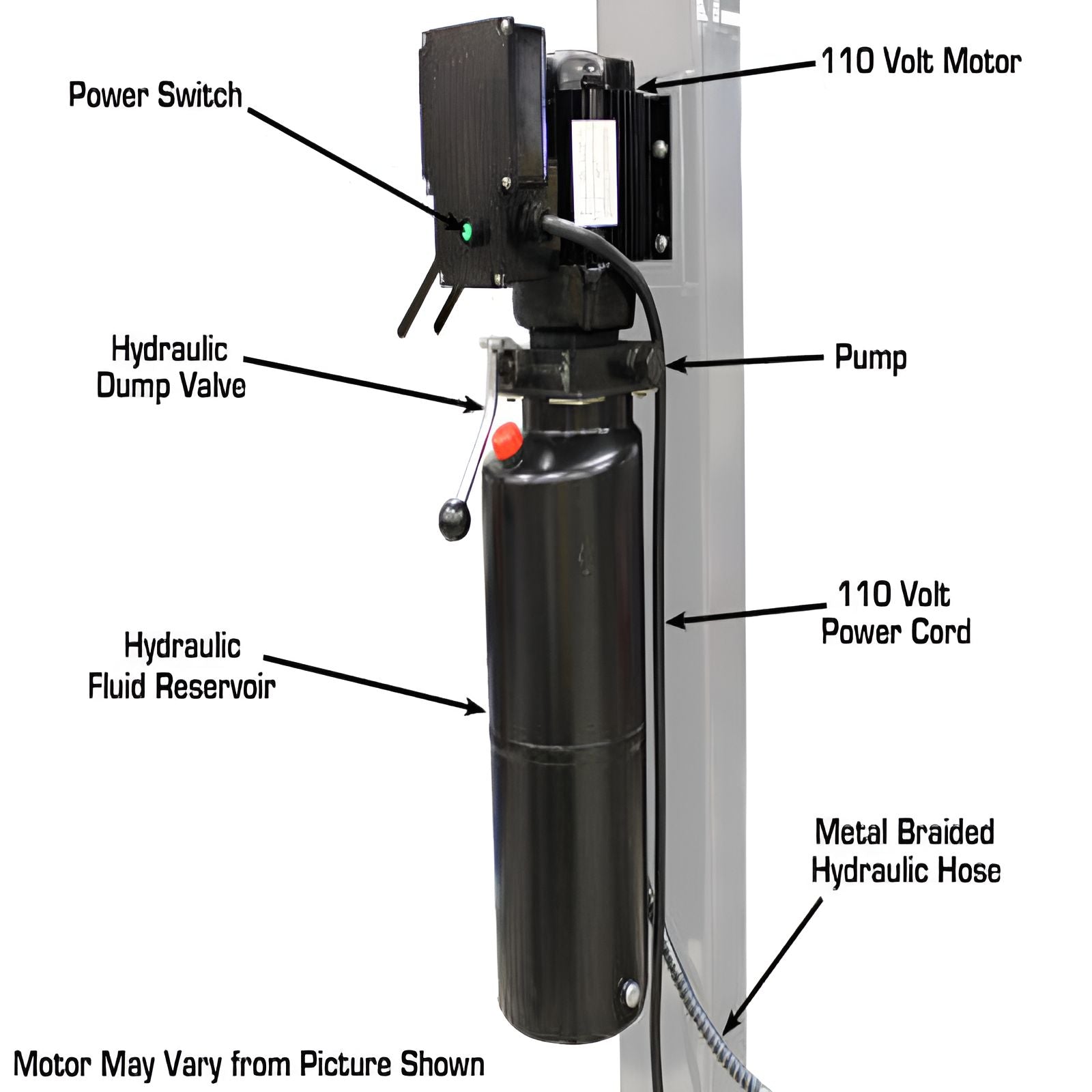

110volt Electric Operation (30 AMP BREAKER REQUIRED)
Shipping Weight 1,850 lbs.
2 yr Structural – 1 yr Hydraulic Warranty – Parts Only

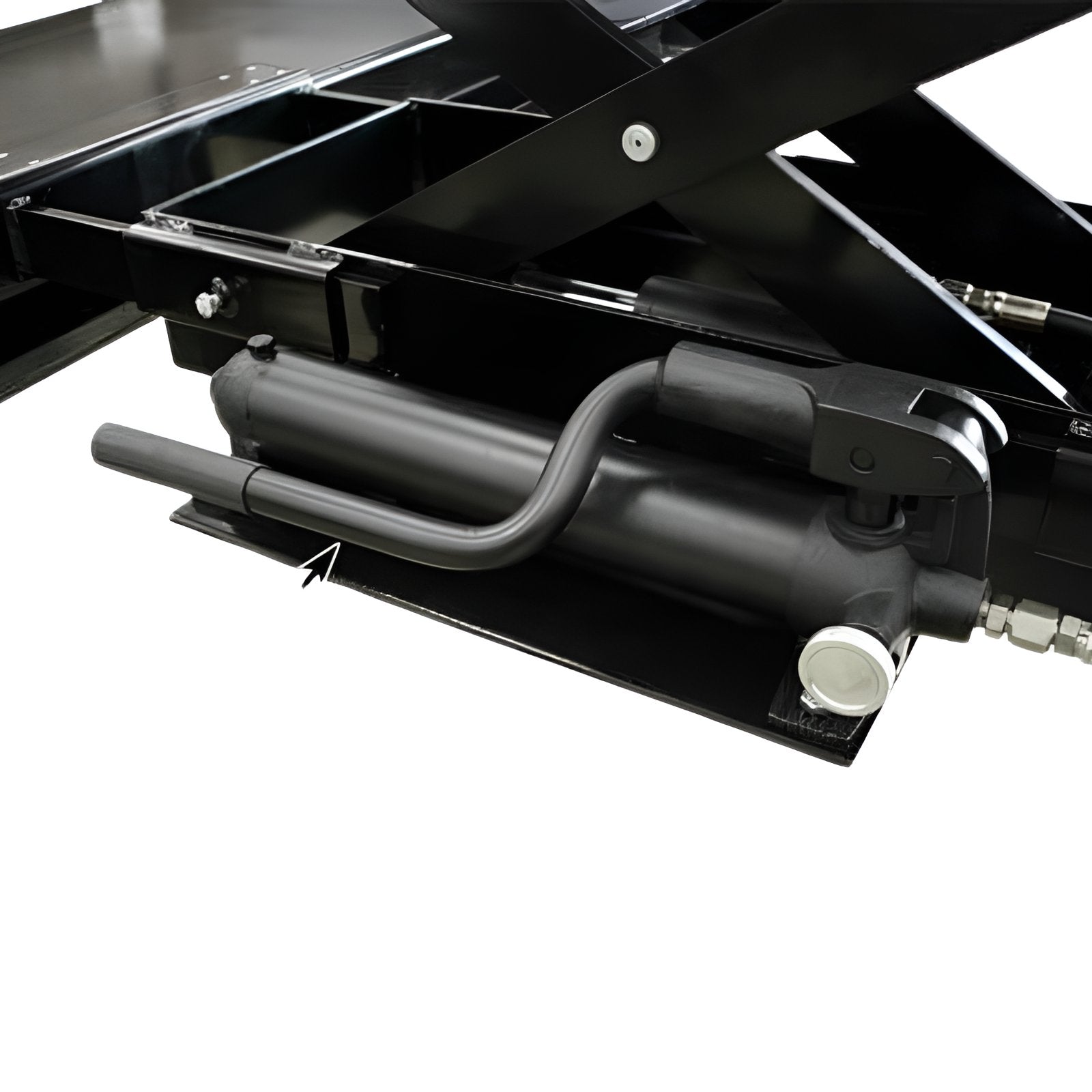

ProJack35 Specifications
Qty: 2
Capacity: 3500 lbs

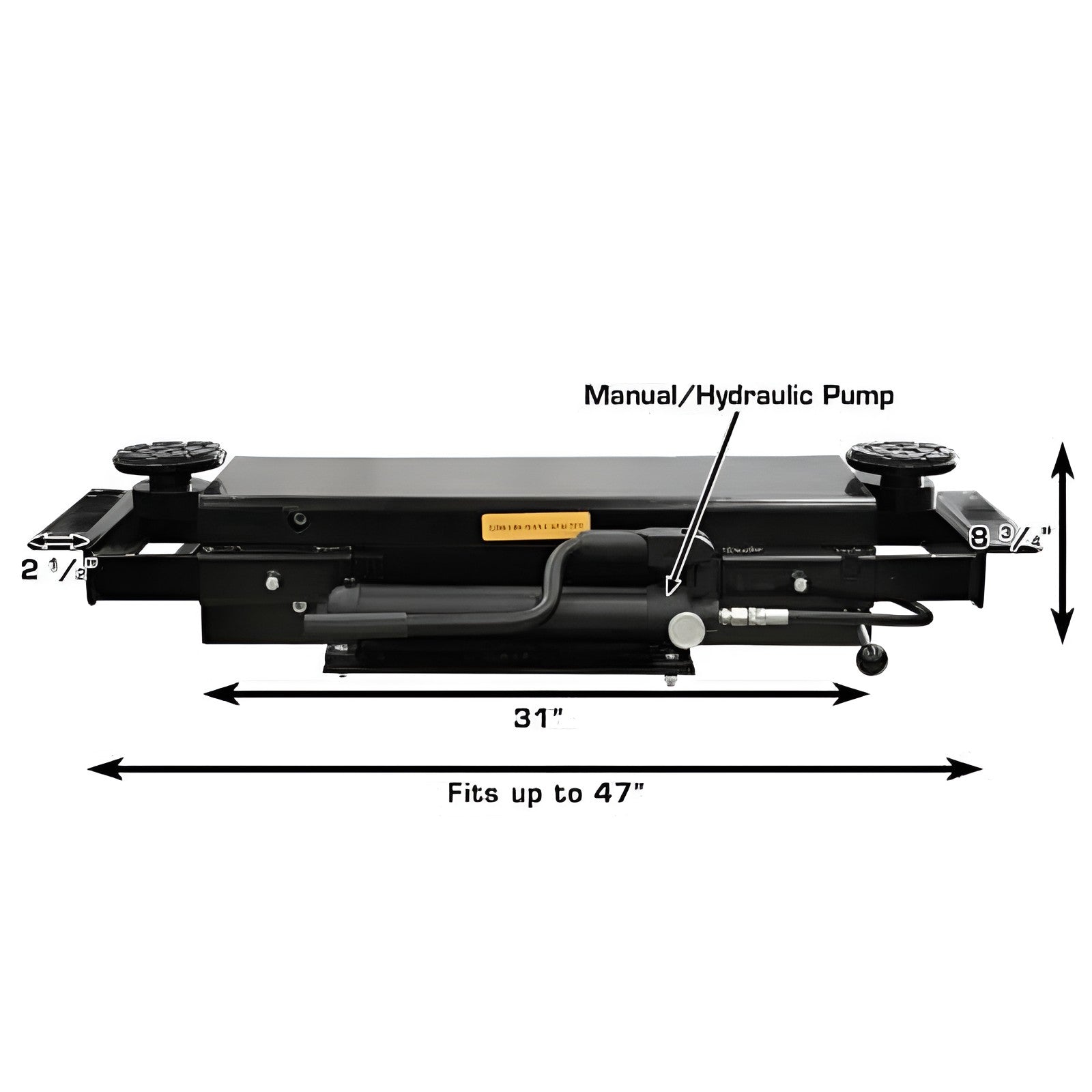

Lower Extension Width (Between Runway): 20 1/2" to 47"
Top Width (Arms Retracted & Extended): 39 12" to 64 3/4"

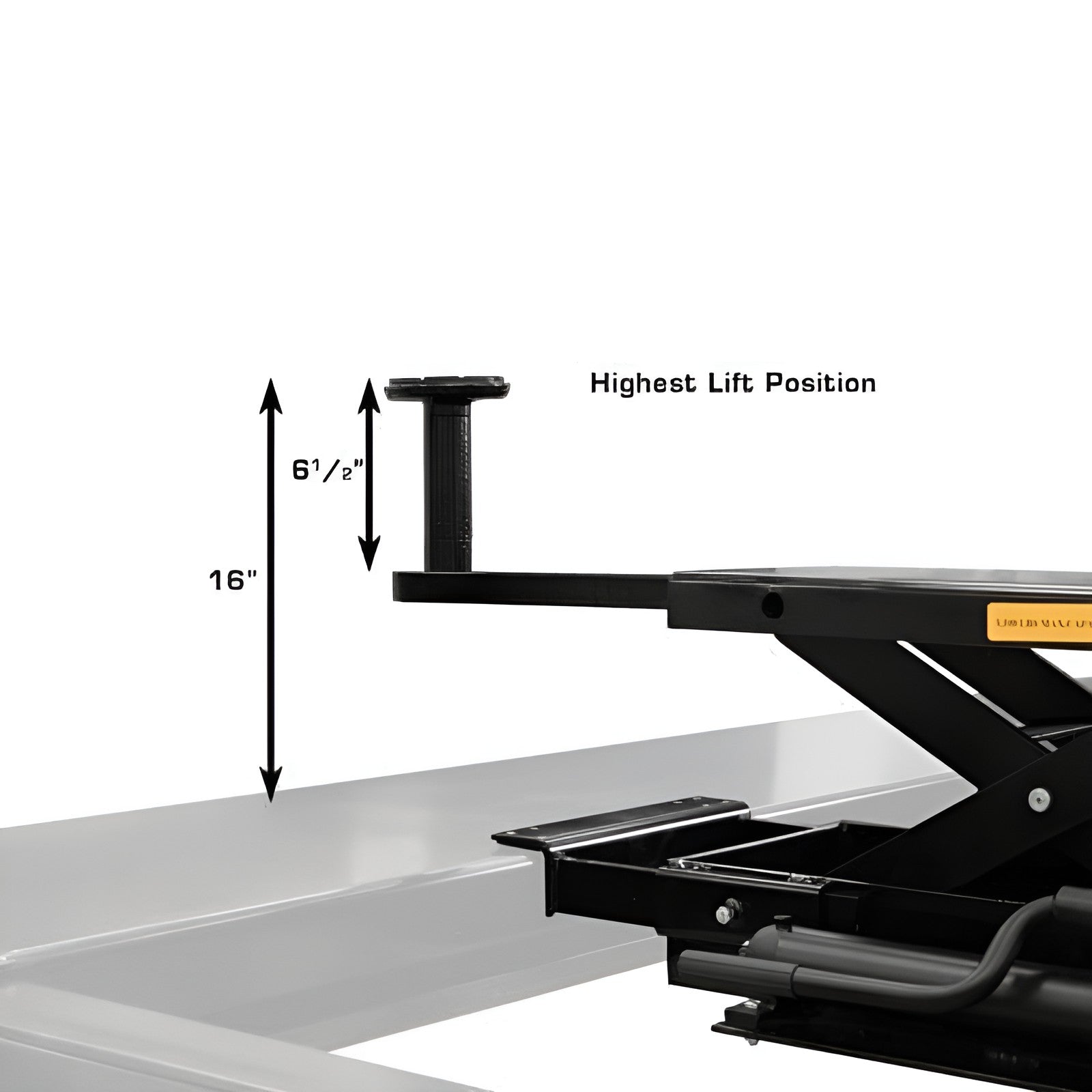

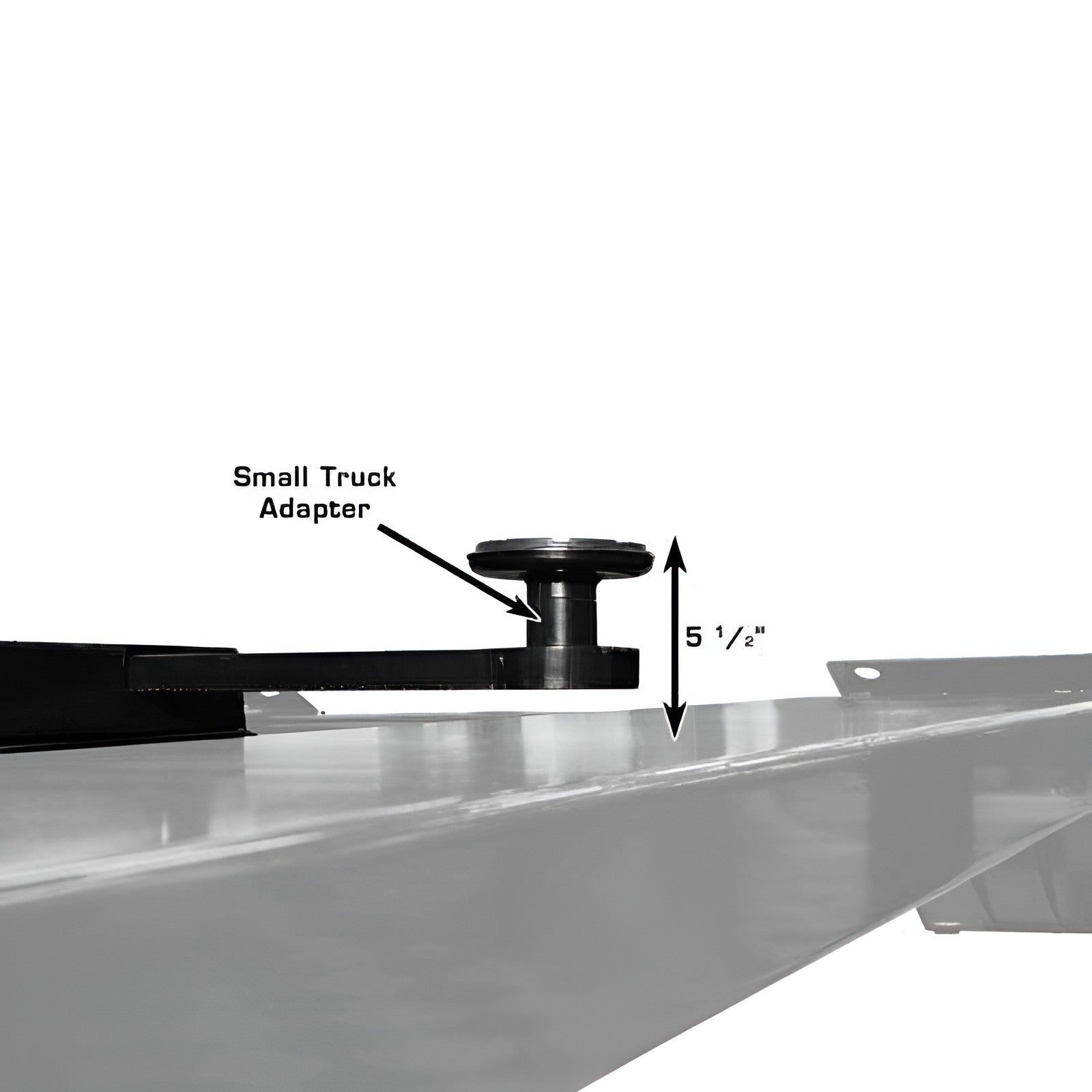

Min. Pad Height Above Runway (MAY VARY BY LIFT): 3 1/2"
