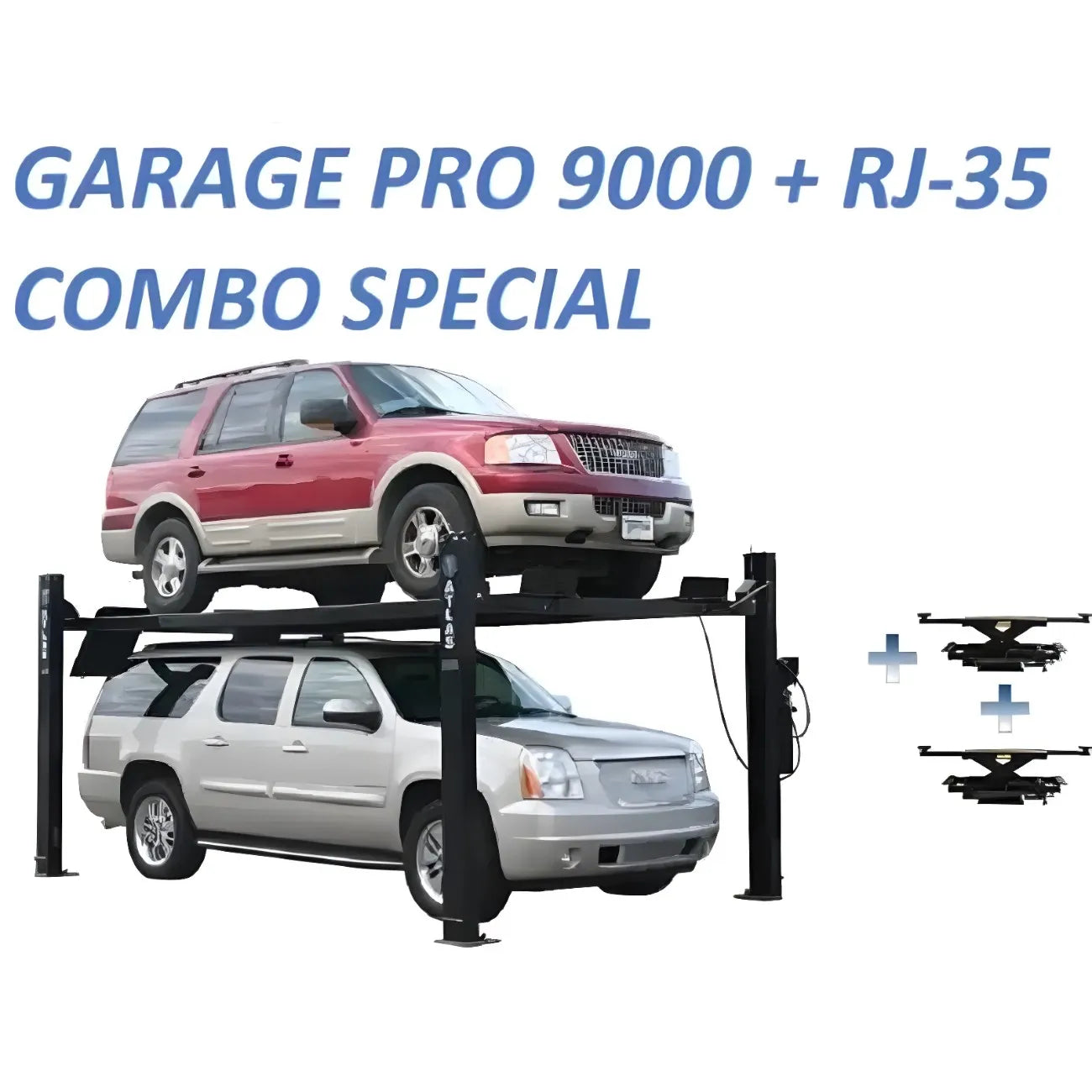

PRO9000 4 Post Lift + RJ35 Sliding Jacks Combo by Atlas
Let’s face it: if you're still messing around with a flimsy lift, it’s time for a serious upgrade. The Atlas PRO9000 4 Post Lift + RJ35 Sliding Jacks Combo is here to save the day and your sanity. Capable of lifting up to 9,000 lbs, this beast is built to handle everything from the longest wheelbase vehicles to the widest Diesel Duallys, no problem. With a lifting height of 85 inches and clearance under the runways of over 80 inches, you can park cars below it, above it, or basically any way you want.
And, as if that wasn’t enough, the combo includes two RJ35 Sliding Bridge Jacks with a 3,500-lb capacity each, making tire and brake service laughably easy. With adjustable arms and multiple safety lock positions, you’ll wonder how you ever got by without it.
4 Post Parking Lift Pro9000 + Sliding Jacks RJ35 Specifications:
PRO9000
- Capacity: 9,000 LB
- Lifting Height to Top of Runway: 85" (7' 1")
- Clearance Under Runways: 80 1/4" (6' 8 1/4")
- Height of Columns: 95 3/4" (7' 11 3/4")
- Overall Width (Without Motor): 123 1/2" (10' 3 1/2")
- Overall Width (With Motor): 131 1/2" (10' 11 1/2")
- Overall Length with Approach Ramp: 227 1/2" (18' 11 1/2")
- Approach Ramp: 31" (2' 7")
- Runway Width: 21 1/4" (with Rails) or 20" (Driving Surface)
- Runway Length: 199 1/2" (16' 7 1/2")
- Runway Thickness: 4 3/4"
- Width Between Runways: 39 3/4" (3' 3 3/4")
- Width Between Runway Rails: 35 1/2" (2' 11 1/2")
- Outside Runway to Outside Runway: 79" (6' 7")
- Clearance Between Columns: 110 1/2" (9' 2 1/2")
- Length Between Columns: 184 1/2" (15' 4 1/2")
- Maximum Wheel Base: 187" (15' 7")
- Drive Thru (Outside of Tire to Outside of Tire): 97 1/4" (8' 1 1/4")
- Motor/Electrical Requirement: 110 Volt, 30 AMP Breaker Required
- Shipping Weight: 2,300 LB
RJ35
- Maximum Capacity: 3,500 LB
- Maximum Width: 64 3/4" (5' 4 3/4")
- Minimum Width: 29 1/2" (2' 5 1/2")
- Minimum Height with Lift Pad Above Runway: 3 1/2" (may vary by lift)
- Lift Pad Height Above Arm: 1 3/8"
- Max Raised Height without Adapters: 11"
- Max Raised Height with Adapters: 17 1/4"
- Shipping Weight: 350 LB
- Adapter Heights: 2 each 1.5", 5"
- Arm Hole/Adapter Peg Size: 1.5"
PRO9000 4 Post Lift + RJ35 Sliding Jacks Special Features:
PRO9000
- 9,000 lb. Capacity
- Free Standing/Portable Design
- Heavy Duty
- Extra Tall/Extra Wide/Extra Long
- Single-Point Lock Release
- Lock Ladder Design
- Double Lock Safety System
- Caster Kit With Polyurethane Wheels Included
- Steel Approach Ramps Included
- Steel Jack Tray Included
- 4 Plastic Drip Trays Included
- 2 Rubber Wheel Chocks Included
- Perfect For Storing Or Working On Vehicles
- 110volt Electric Operation (30 AMP BREAKER REQUIRED)
- Shipping Weight 2,300 lbs.
- 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only
PROJACK35
- Sliding Bridge Jack
- Capacity: 3,500 lbs.
- Manual, hand pump operated
- Scissor mechanism allows for level lifting
- Low Profile, Compact Design
- Adjustable Width to fit many 4-post lifts
- Adjustable Lift Arms to reach many lifting points
- Multiple Safety Lock Positions
- 4 Piece Truck Adapter Set Included
- 1 Year Parts Only Warranty
Atlas Garage Pro 9000 Documentation:
Atlas Pro9000 4 Post Parking Lift Product Manual
Atlas PRO9000 4 Post Lift Optional Item (Sold Separately)
