Atlas PROJACK35 Sliding Bridge Jack

SKU PROJACK35
by Atlas
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$999.00
Address Type (Required Field)
Delivery Options (Required Field)
*We will find nearest location

Notify me when back in stock

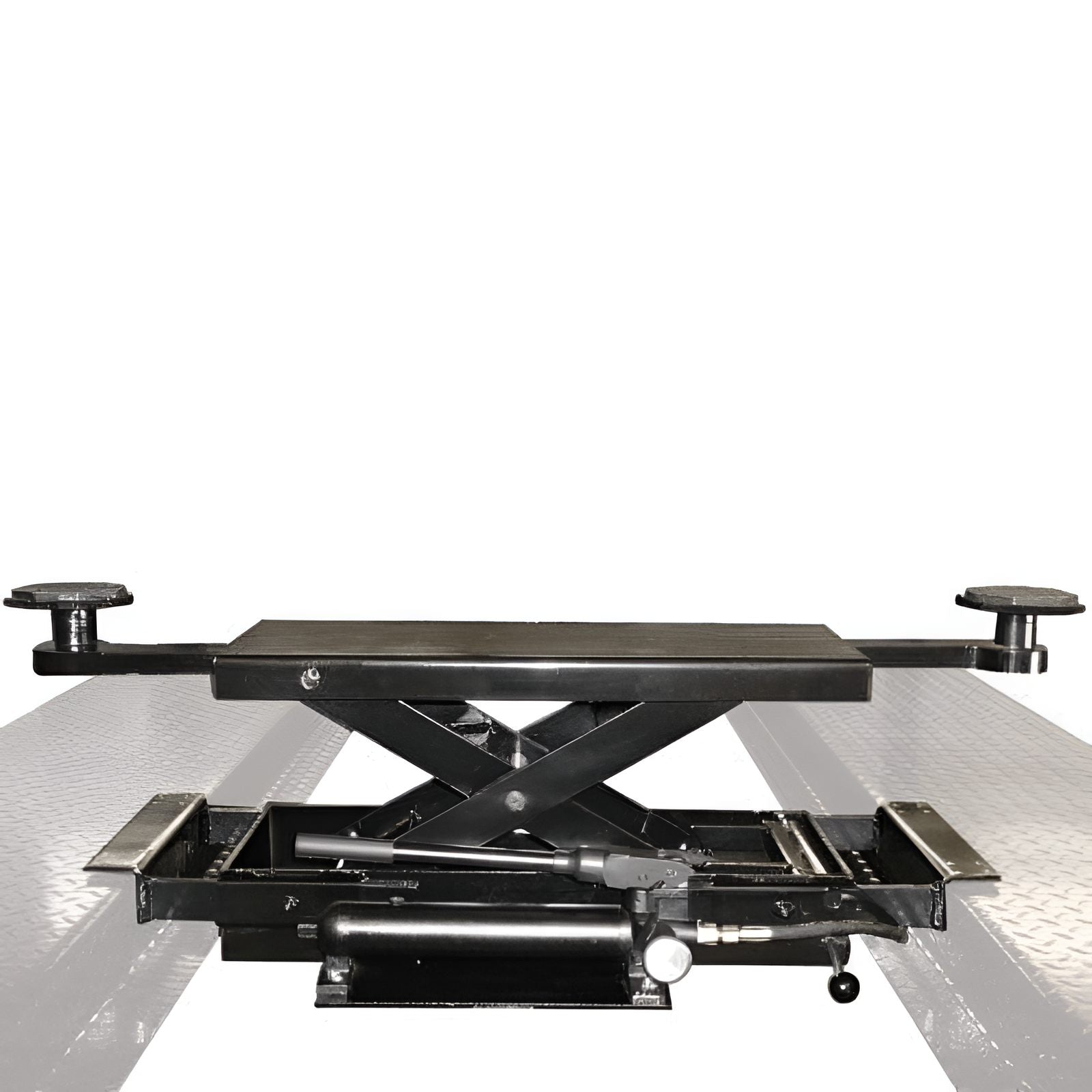

PROJACK35 Sliding Bridge Jack by Atlas

The Atlas APEX8 is an ALI Certified version of our popular 4-post hobbyist lift, the Atlas Garage PRO8000. It’s ideal for those who have more cars than garage space, as it allows users to effectively double their storage by stacking most passenger cars.

Designed for use by homeowners or restoration shops, the APEX8 is not intended for heavy commercial use where it would be raised and lowered multiple times a day. It is nearly 200 lbs. heavier than similar models on the market and comes with a free caster kit featuring polyurethane wheels. This caster kit can be quickly installed or removed, making the lift portable and easy to move between bays or outside.

With its added features and ALI Certification, the APEX8 offers exceptional value in our four-post hobbyist lineup. The package also includes two Atlas RJ35 sliding bridge jacks, which are perfect for lifting a vehicle’s wheels off the runways for tire and brake service. Please note that while the APEX8 lift is ALI Certified, the RJ35 sliding jacks are not.

Sliding Bridge Jack PROJACK35 Specifications:

  • Capacity: 3500 lbs

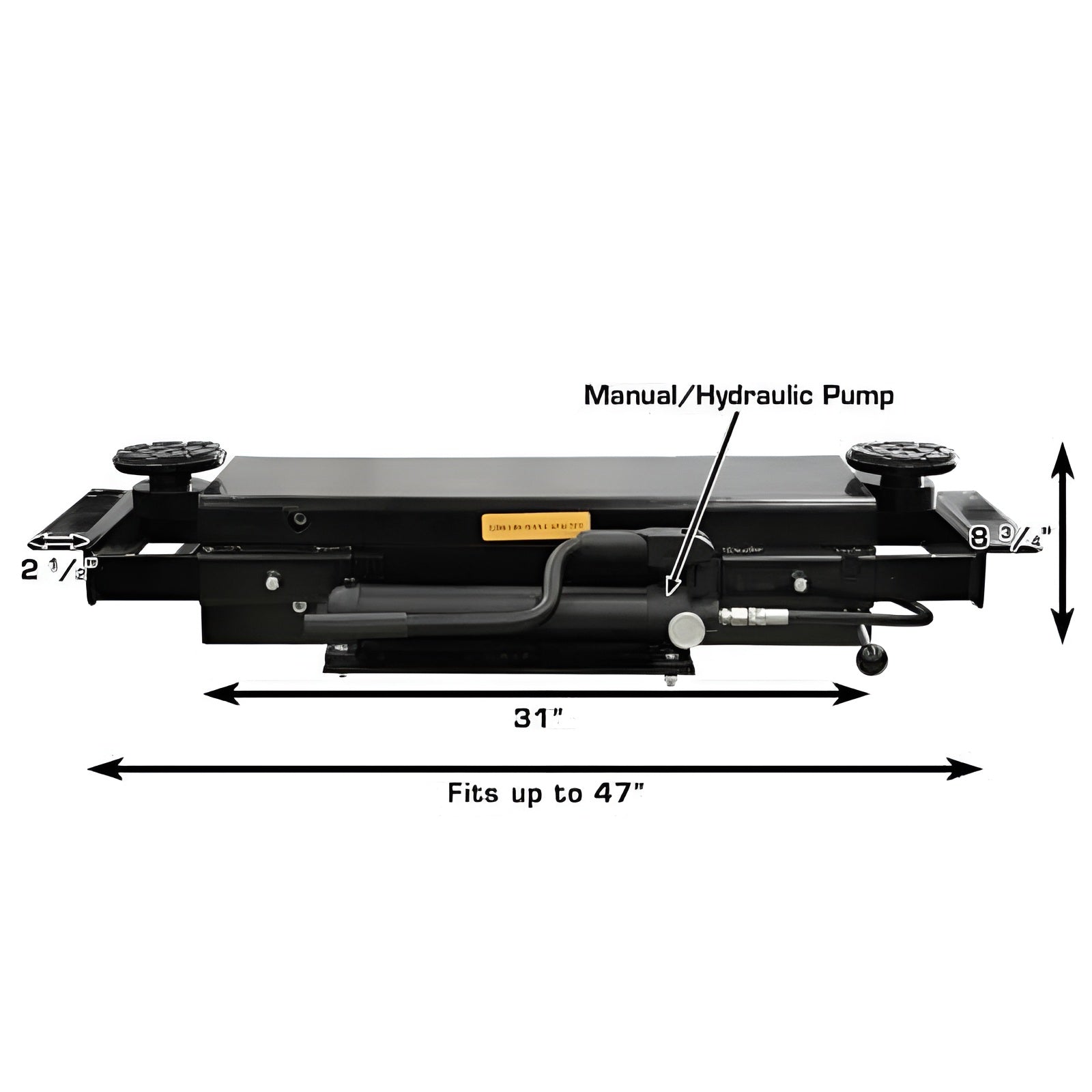

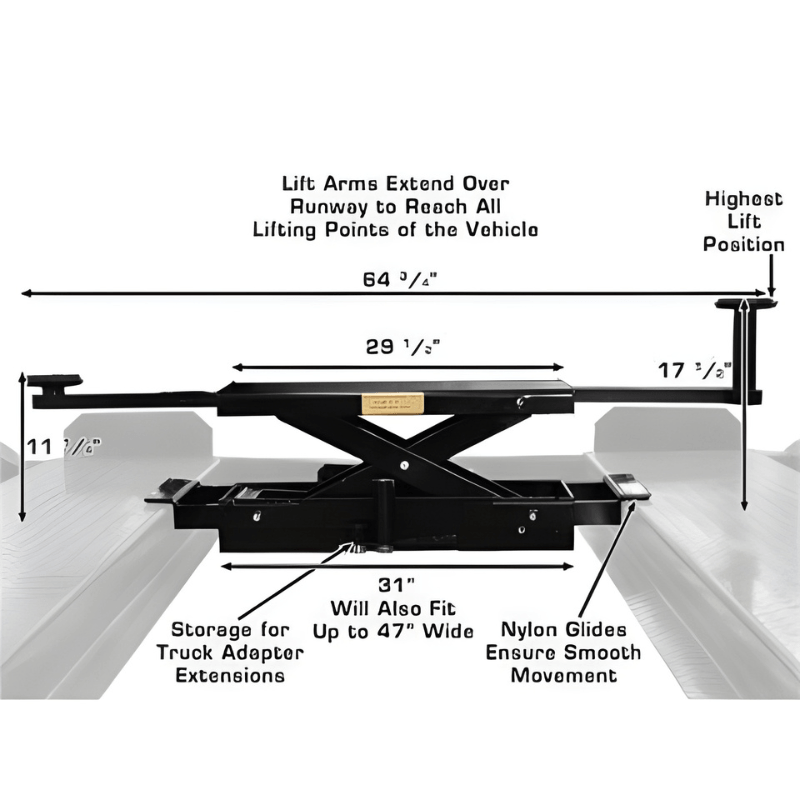

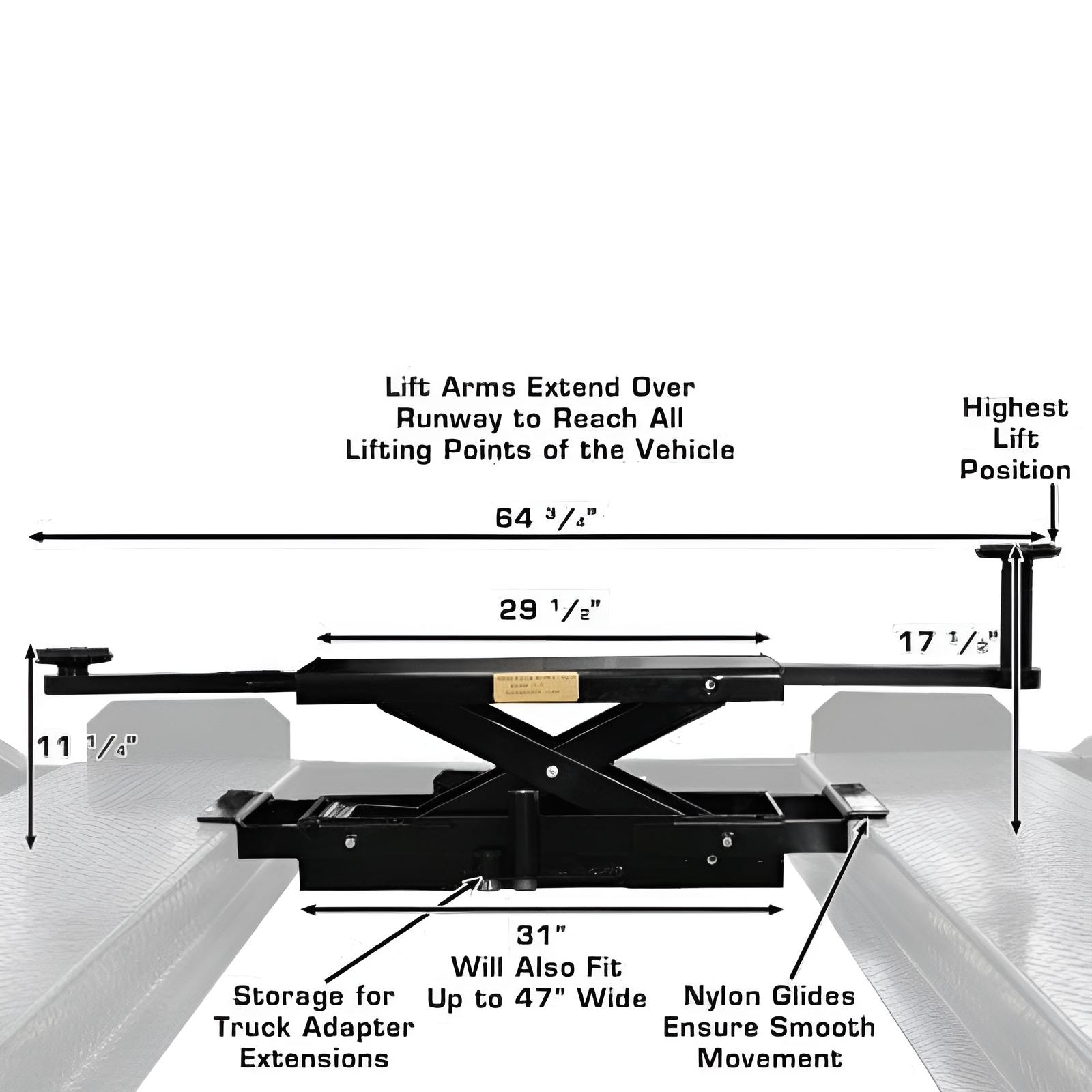

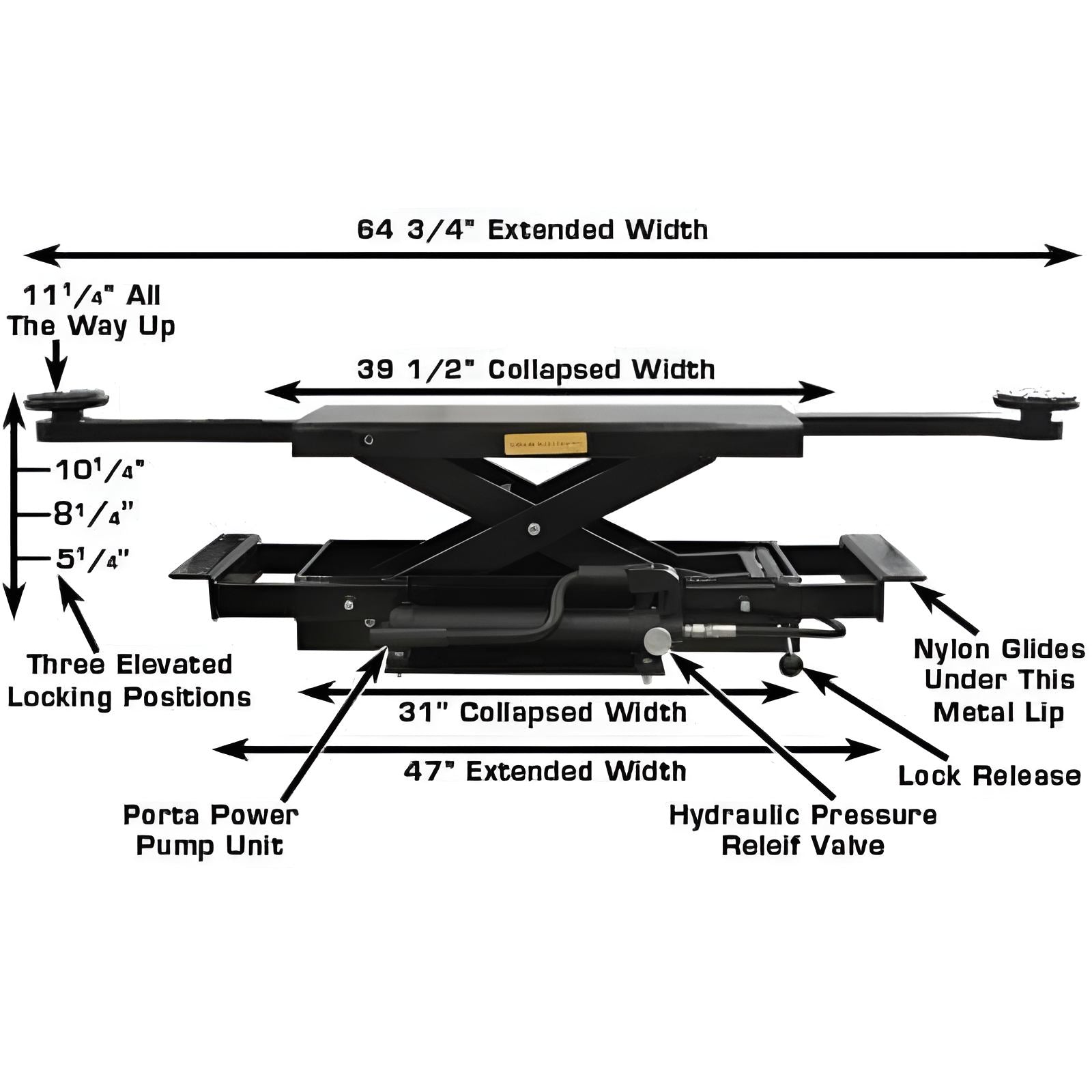

  • Lower Extension Width (Between Runway): 20 1/2" to 47"
  • Top Width (Arms Retracted & Extended): 39 12" to 64 3/4"
  • Min. Pad Height Above Runway (MAY VARY BY LIFT): 3 1/2"
  • Lift Pad Height Above Arm: 1 3/8"
  • Max Height Raised w/o Adapter: 11"

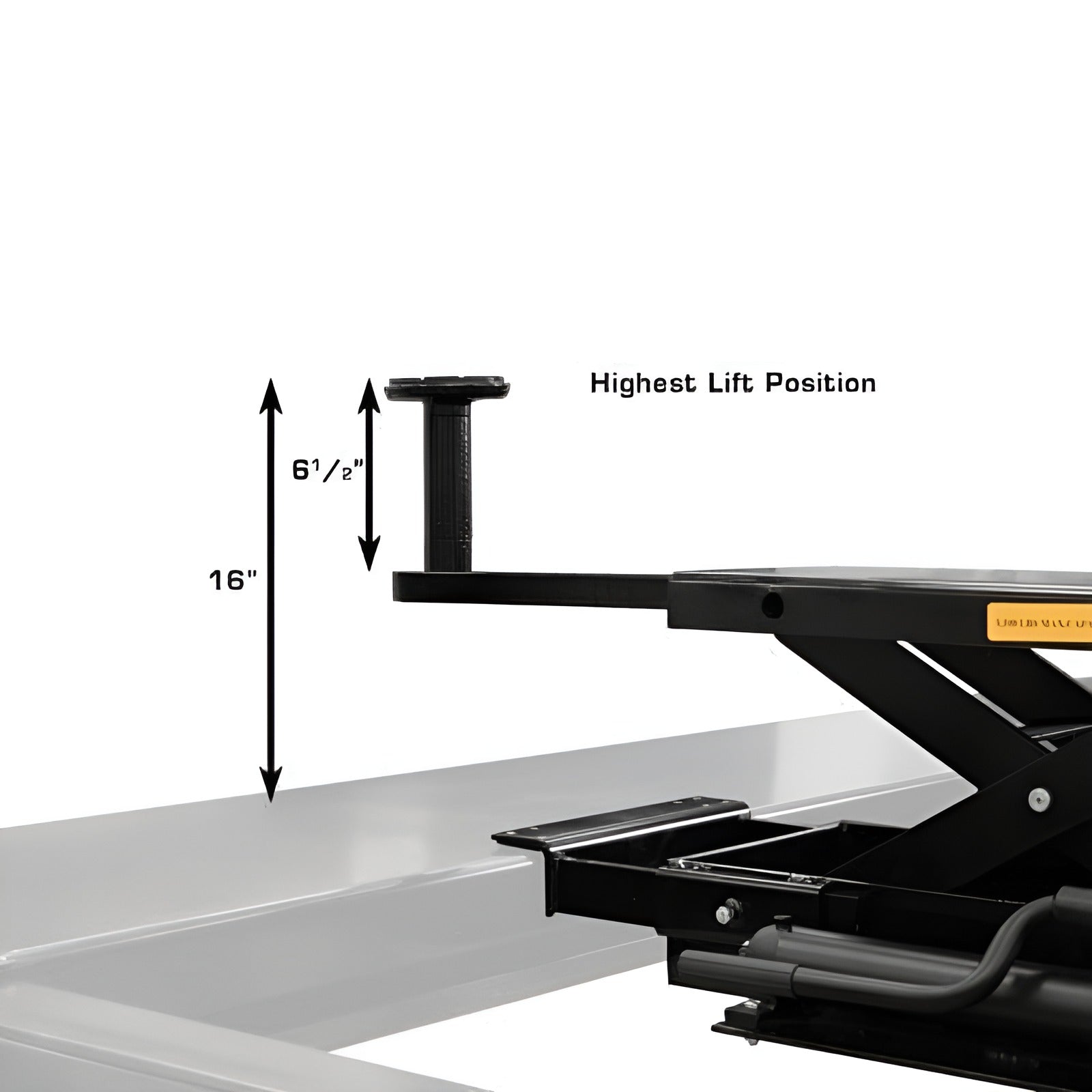

  • Max Height Raised w/ Adapters: 17 1/4"

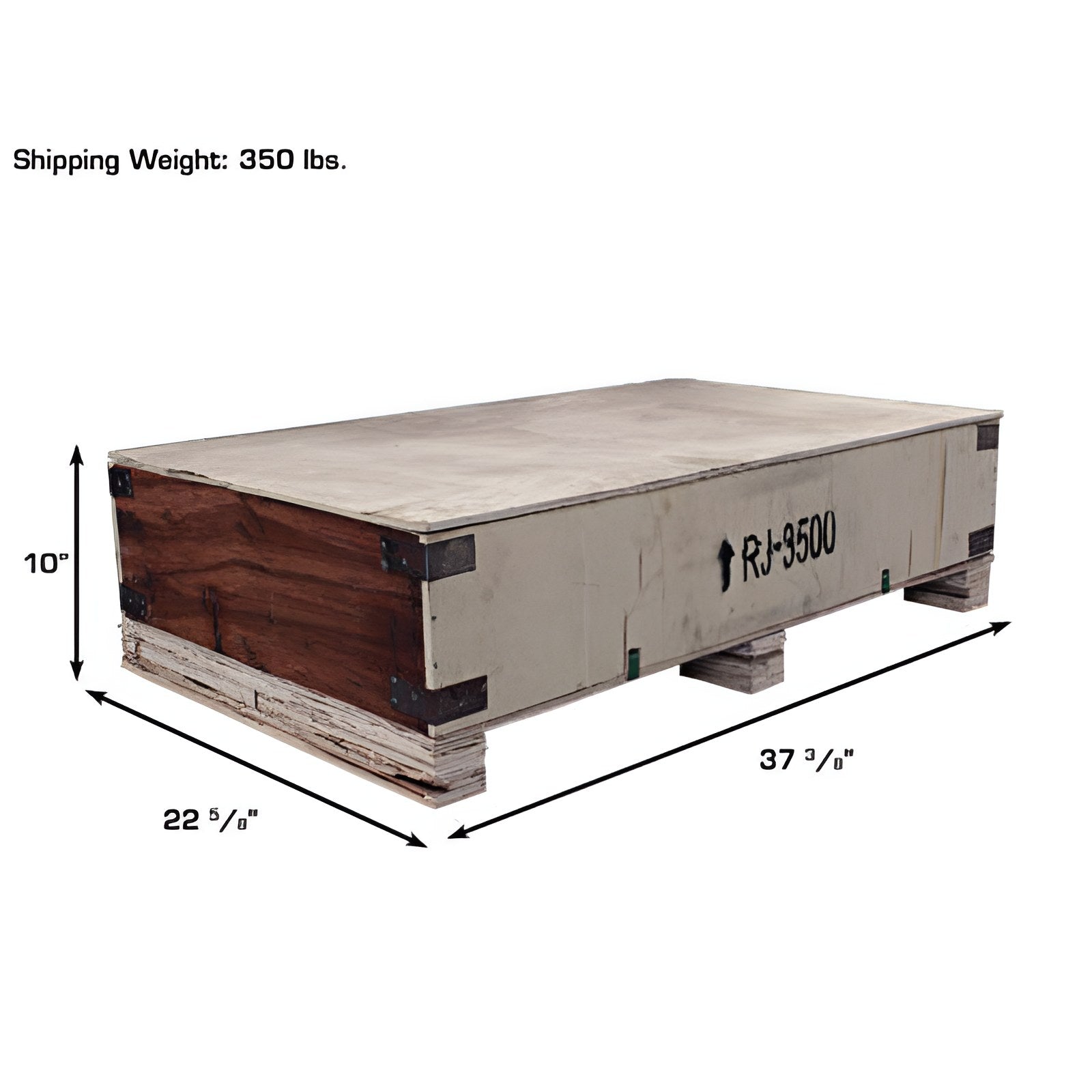

  • Shipping Weight: 350 lbs

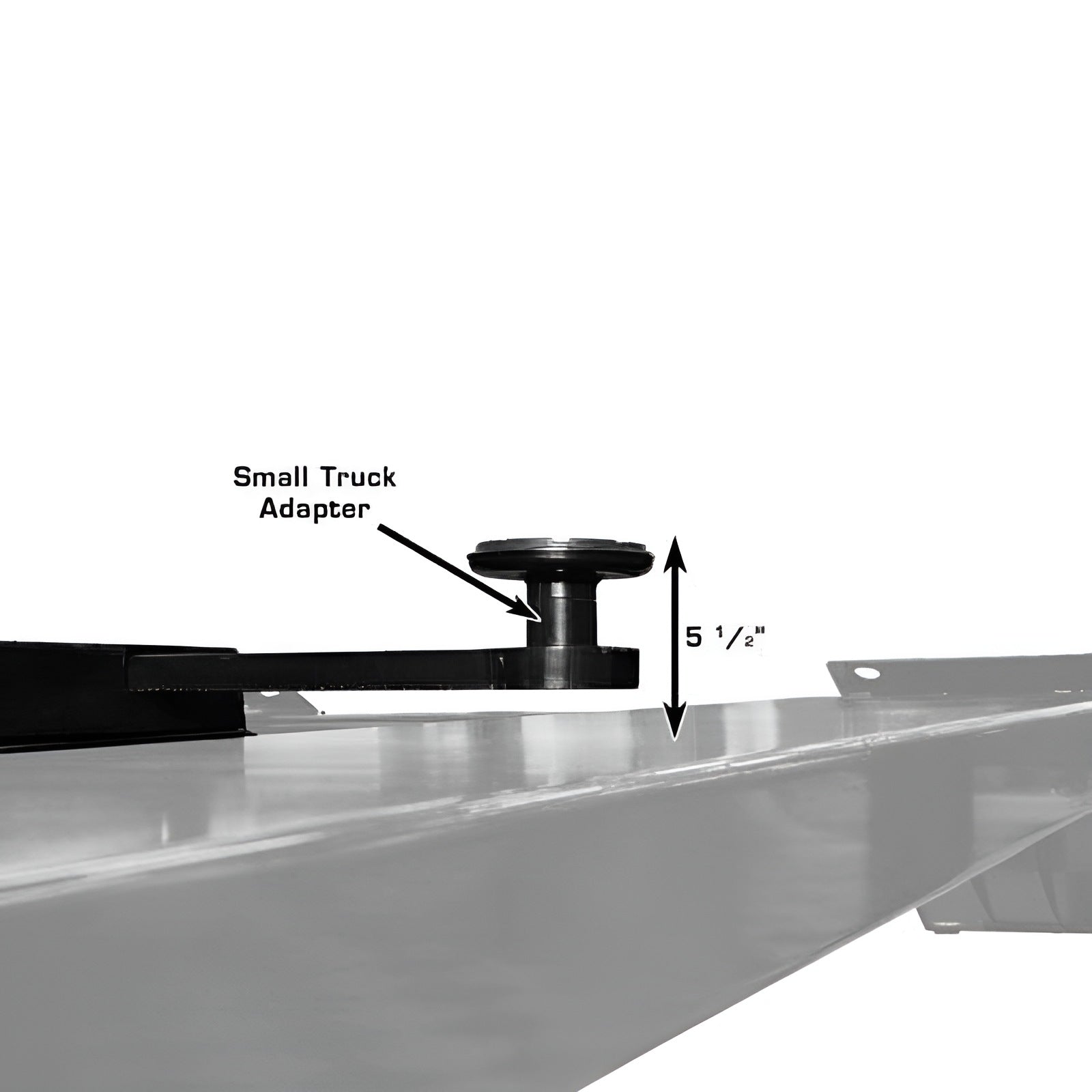

  • Adapter Heights: 2 Each 1 1/2", 5"
  • Arm Hole/Adapter Peg Size: 1 1/2"

      PROJACK35 Sliding Bridge Jack Special Features:

      PROJACK35 Sliding Bridge Jack Optional Items (sold separately):

      This Item has a FLAT RATE SHIPPING FEE: $199
