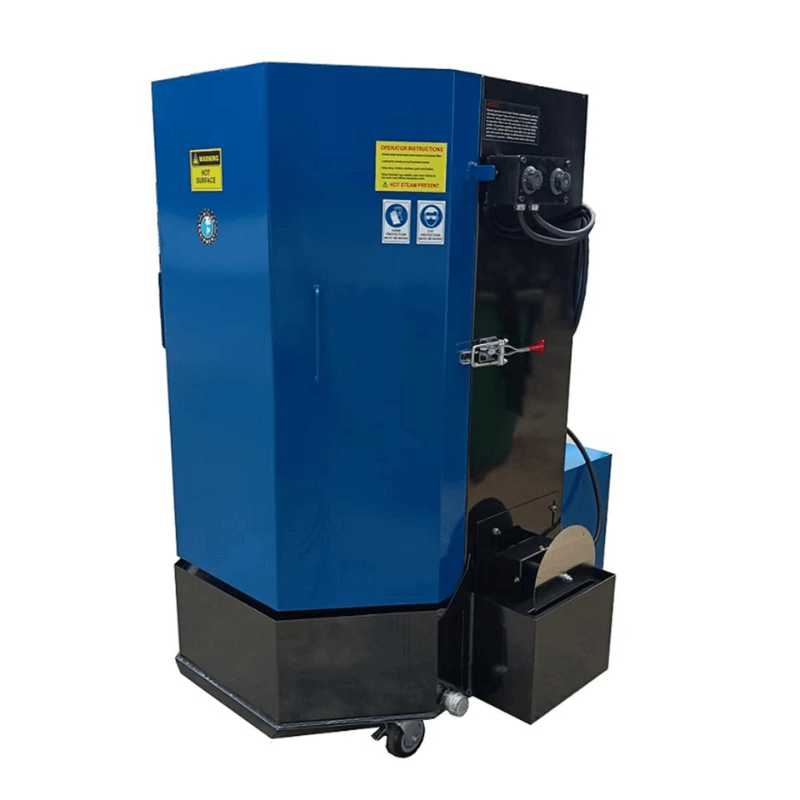

Atlas STW-750 Extra Large Spray Wash Cabinet

Atlas STW-750-FPD Extra Large Spray Wash Cabinet – 50-Gallon Tank, 1000 lb. Turntable, Heavy-Duty Construction

The Atlas® STW-750 Extra Large Spray Wash Cabinet is a high-capacity, heavy-duty solution for automotive and industrial parts cleaning. Designed with space, power, and efficiency in mind, this cabinet features a massive 50-gallon tank, extra-large interior workspace, and a 1,000 lb. load-rated turntable, making it the perfect fit for professional auto repair shops, machine rebuilders, and heavy-duty service centers.

With a 60-minute timer and automatic shut-off, mechanics can load up greasy engine components, activate the wash cycle, and move on to the next job while the 43 GPM water pump and 19 adjustable steel nozzles blast away dirt, grime, and oil residue. A built-in oil skimmer and included parts tree and basket increase efficiency and extend the life of your cleaning solution. Its powder-coated 12-gauge steel cabinet, stainless steel nozzles, and industrial-grade pump ensure lasting durability, while the octagonal full-opening door allows for easy access and loading especially when paired with an engine hoist.

Spray Wash Cabinet STW-750 Specifications:

• 50-gallon tank capacity

• Inside height: 54"

• Inside width: 32"

• Turntable diameter: 30"

• Turntable load capacity: 1,000 lbs

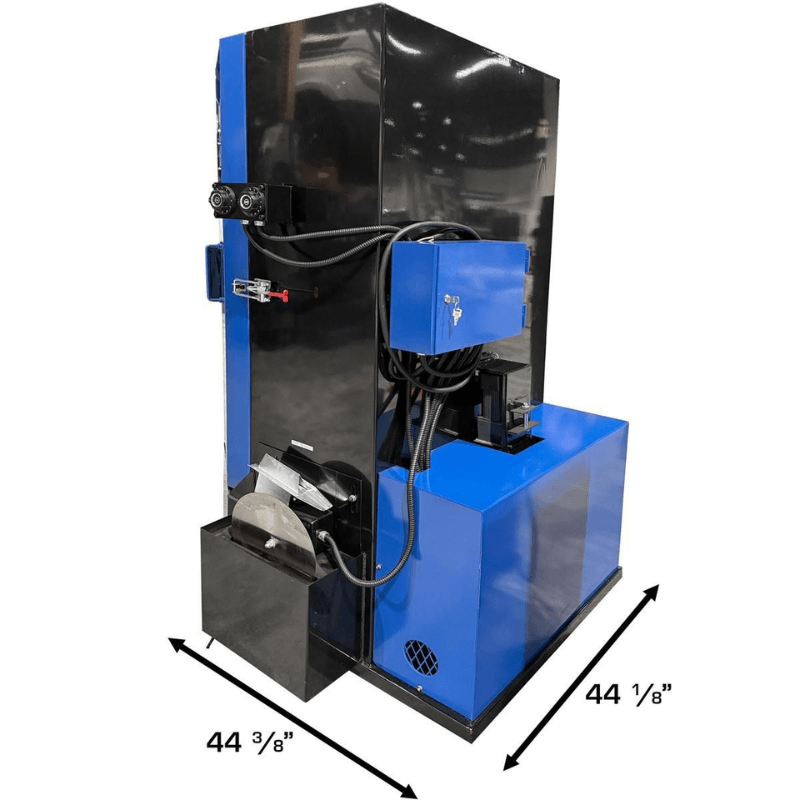

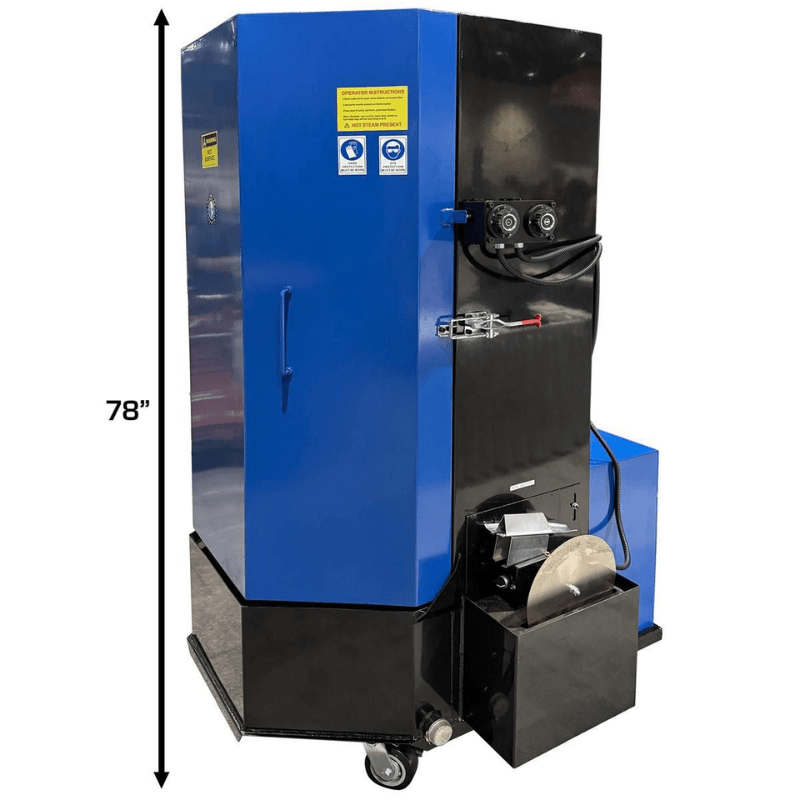

• Overall dimensions: 44 3/8" L x 44 1/8" W x 78" H

• Cycle time: Up to 60 minutes

• Pump output: 28 PSI @ 43 GPM

• Heater temperature range: 135°F – 175°F

• Power supply: 220V / Single-phase (30 Amp breaker required)

• Motor: 1.5 HP

• Shipping weight: 800 lbs

STW750  Extra Large Spray Wash Cabinet Special Features

• Heavy-duty 12-gauge steel cabinet construction

• Powder-coated exterior for long-lasting durability

• 1,000 lb. capacity turntable for large parts and components

• High-efficiency 43 GPM water pump

• 19 adjustable steel spray nozzles for thorough cleaning

• Octagonal full-opening door allows 55% turntable access

• Heater maintains consistent water temperature (135°F–175°F)

• Built-in 60-minute timer with automatic shut-off

• Environmentally friendly—uses hot water and biodegradable detergents

• Built-in oil skimmer extends the life of cleaning solution

• Includes parts tree rack and parts basket

• Gasket-free door design for easier maintenance

• Simple, user-friendly control panel

• Freight prepaid (F.O.B.)

• 1-year limited parts-only warranty

Atlas STW-750 Manual

Not Available
