Atlas TC289 Tire Changer With WB41 Wheel balancer Combo 2

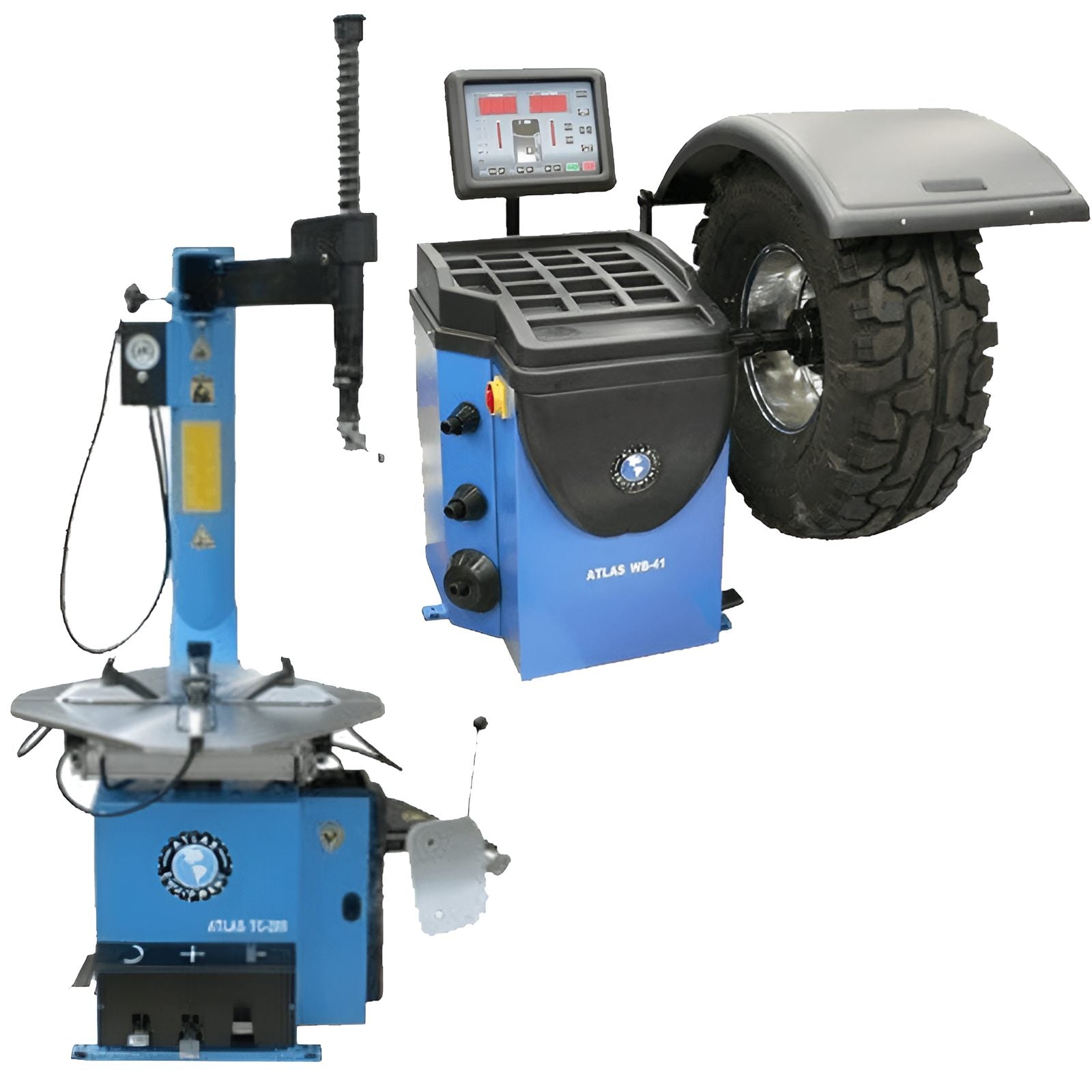

TC289 Tire Changer and WB41 Wheel balancer Combo by Atlas

Oversized tires giving you a headache? Wheel balancing slowing you down? The Atlas® TC289 Tire Changer and WB41 Wheel Balancer are the dynamic duo your shop needs. The TC289 flexes its muscles with a 5,500 lb. bead breaking force and handles tires up to a whopping 47" in diameter. Its 1 HP motor delivers 885 ft/lbs of turntable torque, making quick work of even the toughest tires.

Meanwhile, the WB41's computer-controlled system handles rims from 10" to 32", with both static and dynamic modes. The self-diagnosing feature ensures pinpoint accuracy every time. No more guesswork or time-consuming recalibrations. Plus, with the automatic brake and start/stop function, you'll breeze through jobs faster than ever. Don't let tire service bottlenecks hold you back.

Tire Changer TC289 Specifications:

• Rims: Steel, Aluminum, Alloy
• External Locking Rim Dimension (3 Positions):
  1. 11 7/8" - 26"
  2. 12 7/8" - 27"
  3. 13 3/4" - 28"
• Internal Locking Rim Dimension (3 Positions):
  1. 13 7/8" - 27 7/8"
  2. 14 5/8" - 28 7/8"
  3. 15 5/8" - 29 7/8"
• Maximum Tire Diameter: 47"
• Maximum Wheel Width (Bead Breaker): 18"
• Table Motor: 1 HP
• Turntable Rotating Torque: 885 ft/lbs
• Bead Breaker: 5,500 LB. Force
• Air Requirement: 90-110 PSI (MUST NOT EXCEED 140 PSI)
• Operating Voltage: 110volt
• Shipping Weight: 620 lbs.

Wheel Balancer WB41 Specifications:

• Max Tire Diameter: 39" (3' 6")
• Rim Sizes (Cars And Light Trucks): 10"-32"
• Rim Width: 1 1/2"-20"

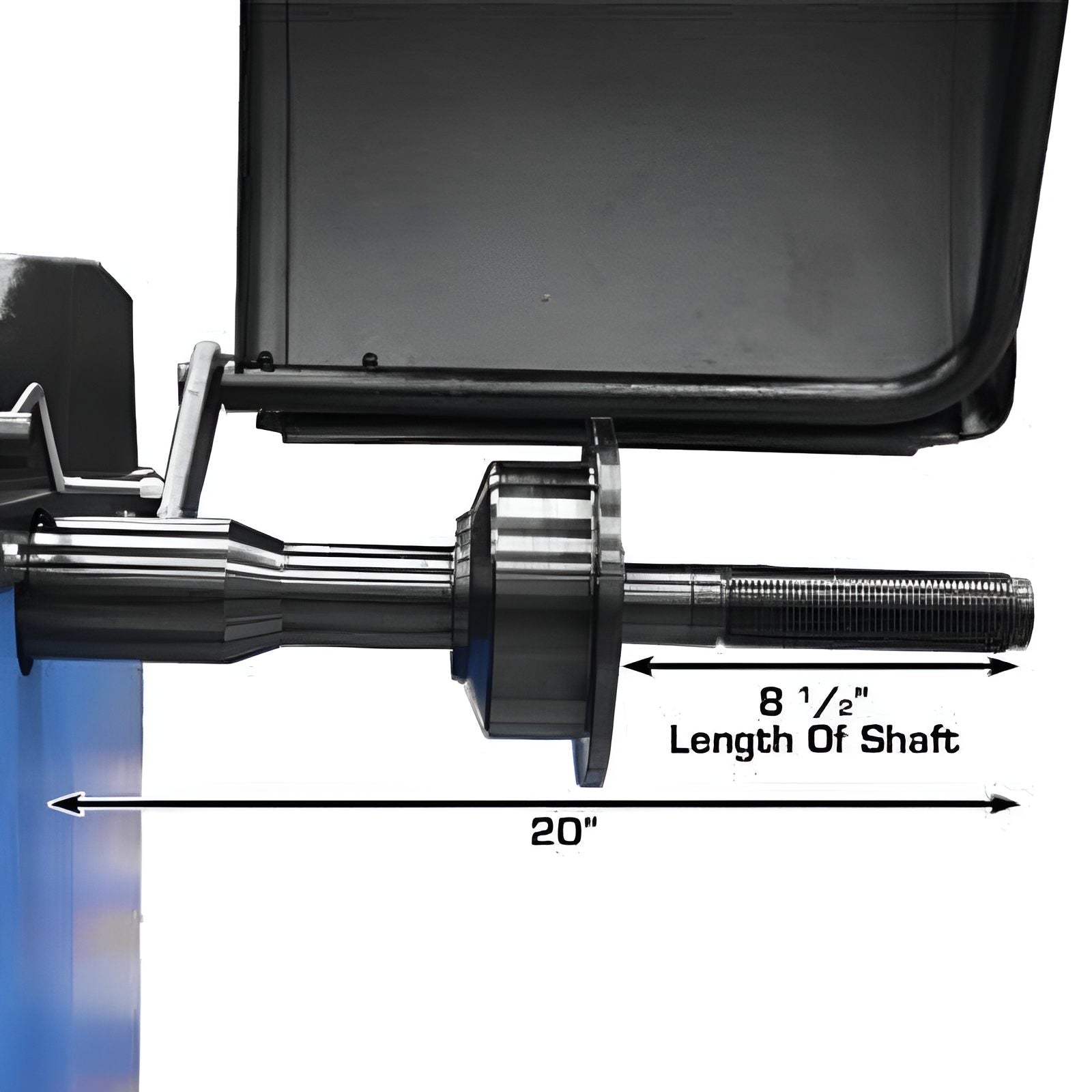

• Shaft Size: 40mm
• Max. Wheel Weight: 150 lbs.
• Balancing Speed: 150 rpm
• Data Entry: All Dimensions Manual
• Measurements: Standard Or Metric
• Accuracy: 1 gram
• Weight Position Resolution: 1.4 Degrees
• Self Calibration: Yes
• Motor: 1/4 HP
• Power Supply: 110volt
• Shipping Weight: 400 lbs.

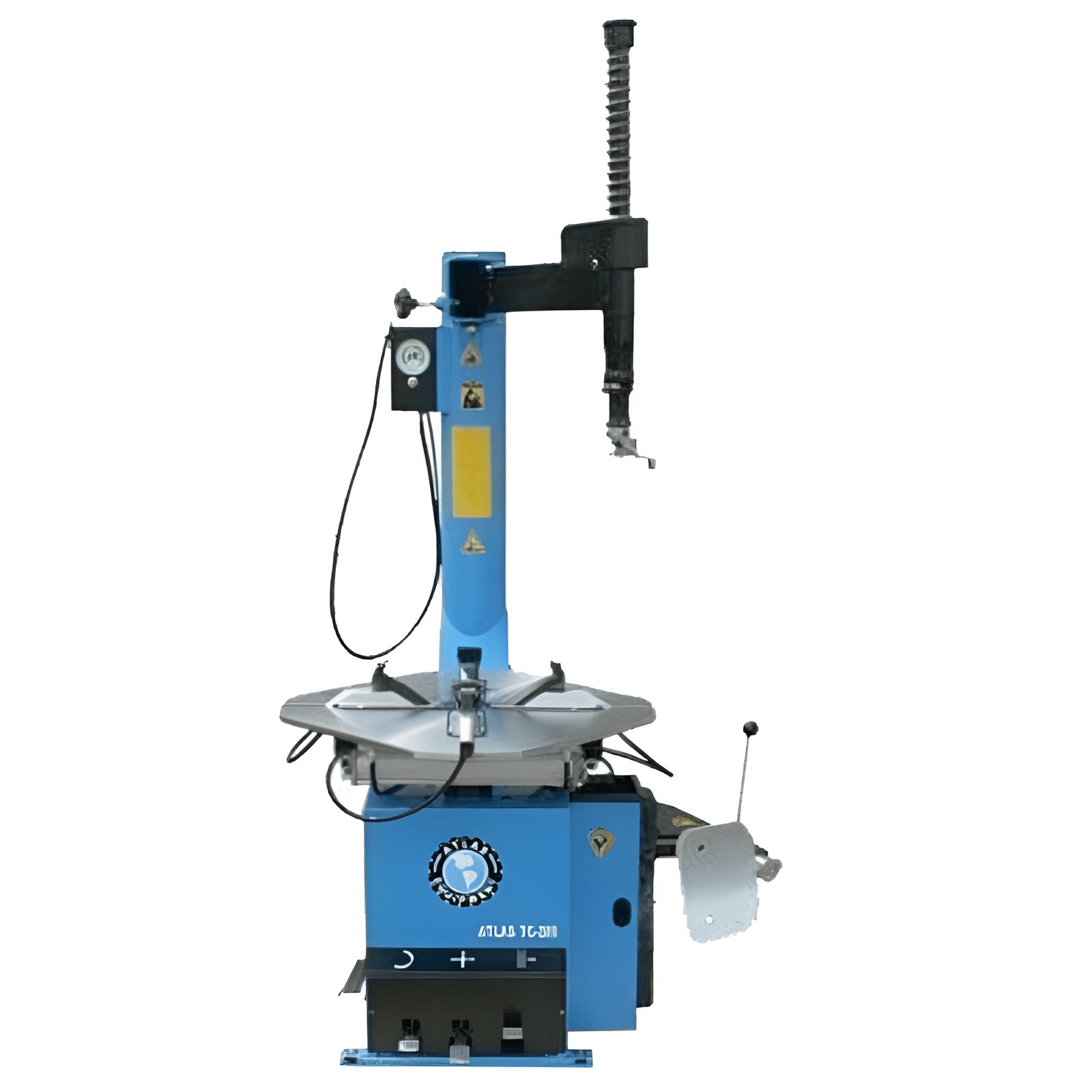

TC289 Tire Changer Special Features:

• Rim Clamp/Swing Arm Tire Changer
• Extra Large Turntable, More Clearance
• Built-in “Beadblaster”
• Adjustable Bead Breaker Plate
• Adjustable jaws, 3 mounting positions
• Oiler, Filter, Regulator included (external air supply required)
• Plastic Protectors included
• Tire Tool, Lube Bucket, and Lube Brush Included
• Inflation Box w/ Gauge Included

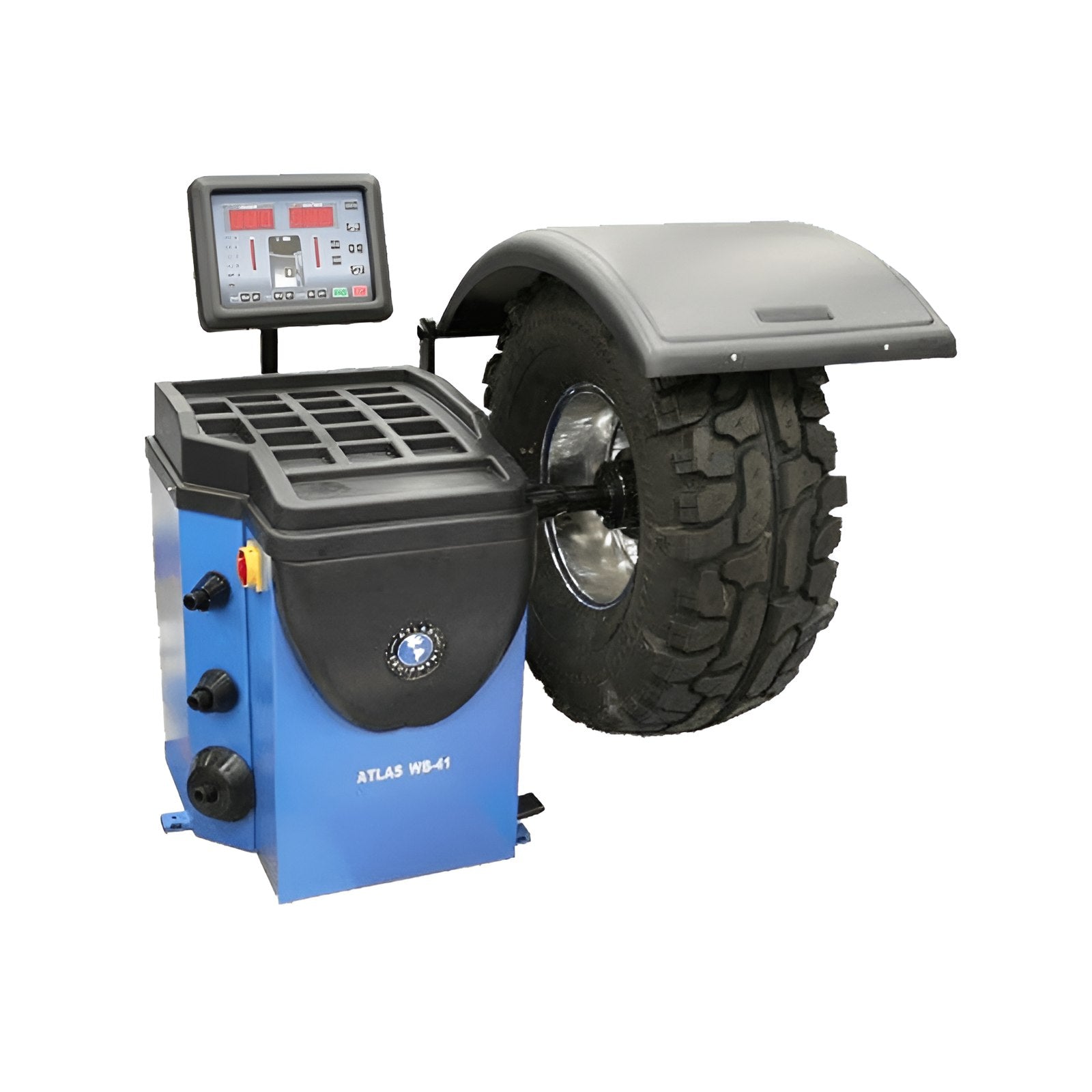

Wheel Balancer WB41 Special Features:

• Computer Controlled Motorized Spin Balancer

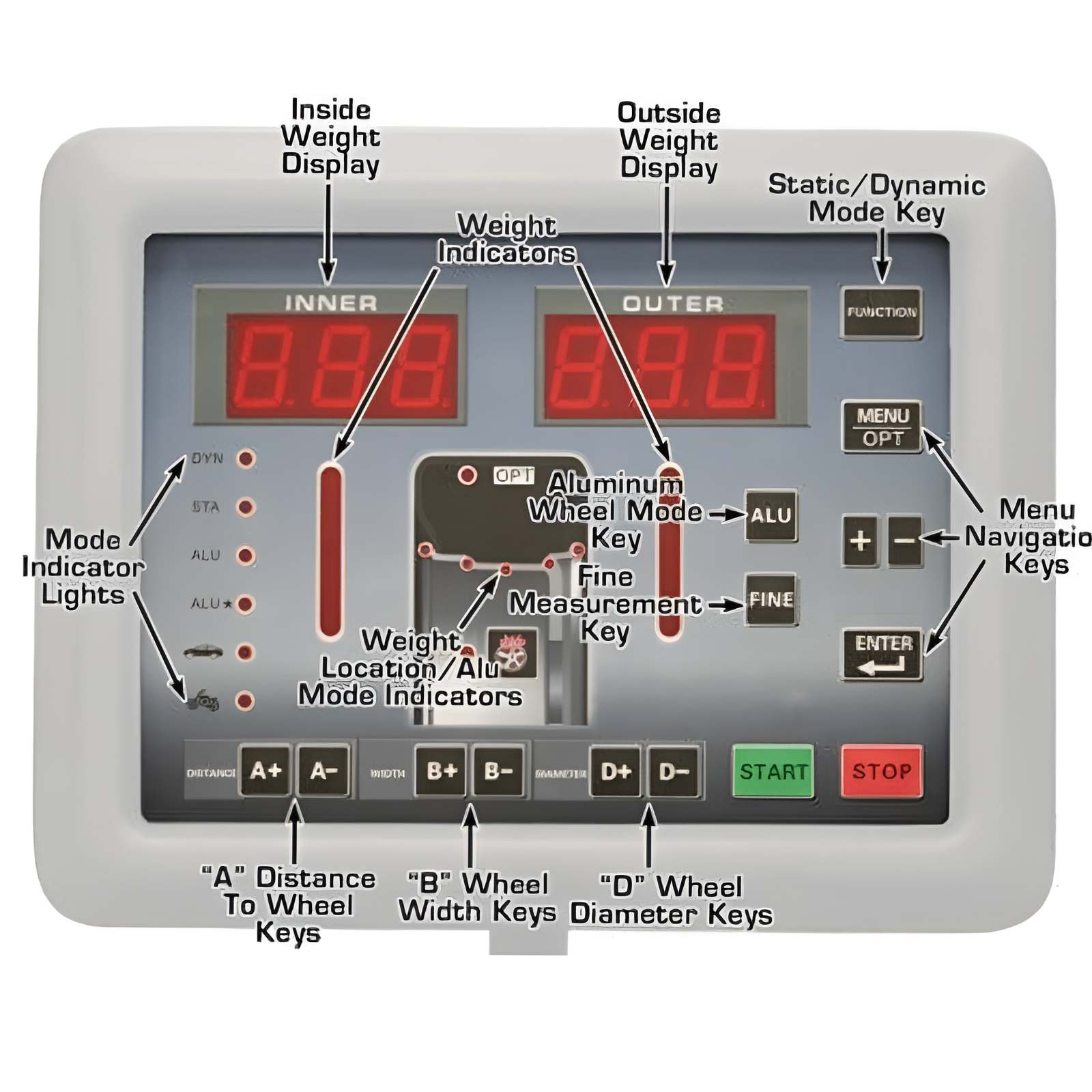

• Raised, Easy to Read Display
• Large Wheel Weight Tray
• Automatic and pedal operated brake.
• Automatic start/stop when hood is lowered/raised.
• Static and dynamic balancing modes.
• Rapid optimization (OPT)
• Self-Diagnosing and Self-calibrating
• Exceptional stability in reading the unbalance between planes.
• Display in grams or ounces, and in mm or inches.
• No anchor-down installation needed

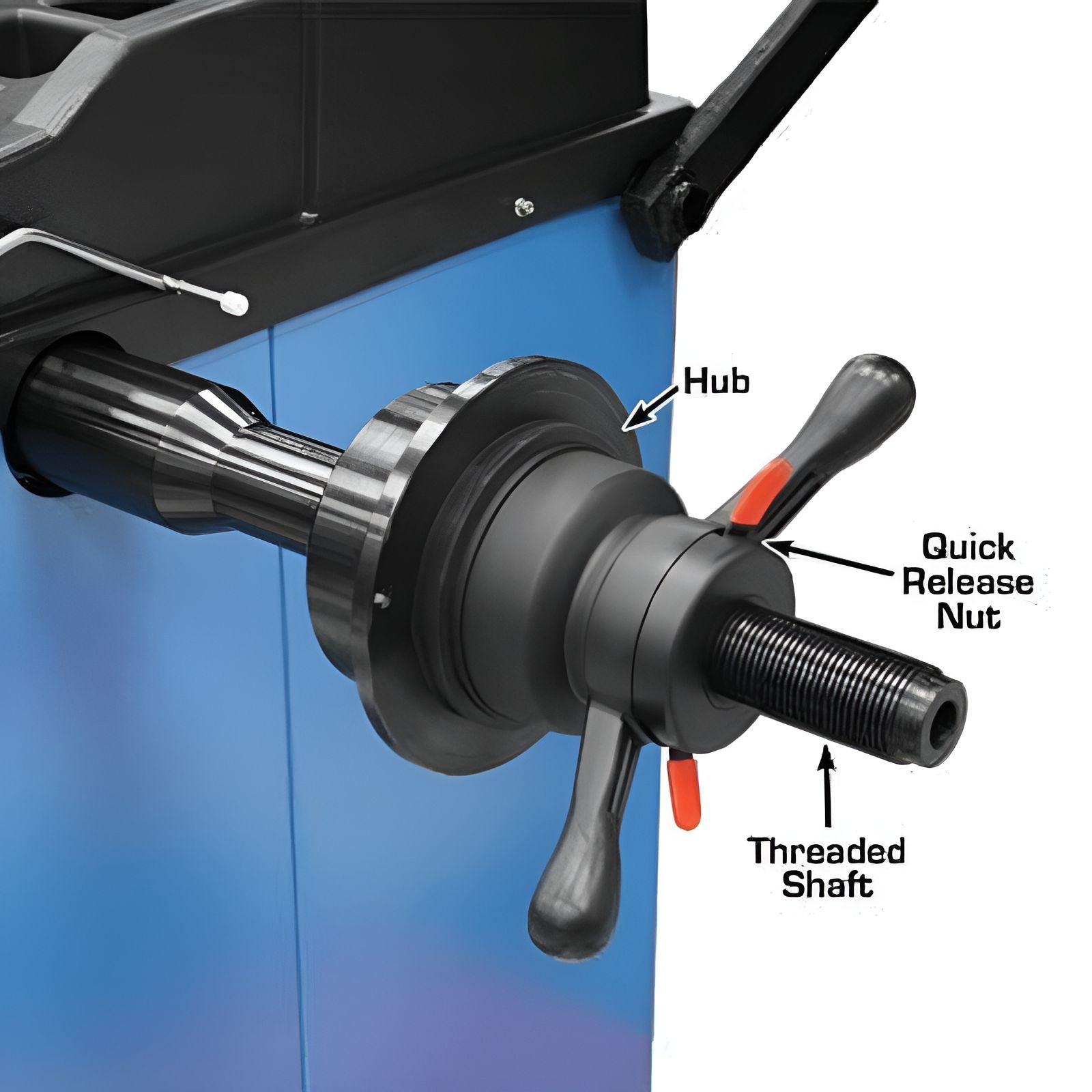

• Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
• Optional Item(Sold Separately)
  • 200/700 Series Left-Hand Assist Arm

  • Universal Adapter
  • Truck Adapter Set

Atlas TC289 Documentation:

 Atlas TC289 Tire Changer Product Manual

Atlas WB41 Documentation:

   Atlas WB41 Wheel Balancer Product Manual

TC289 Tire Changer and WB41 Wheel Changer - Sold Separately

• Tire Changer TC289
• Wheel Balancer WB41
