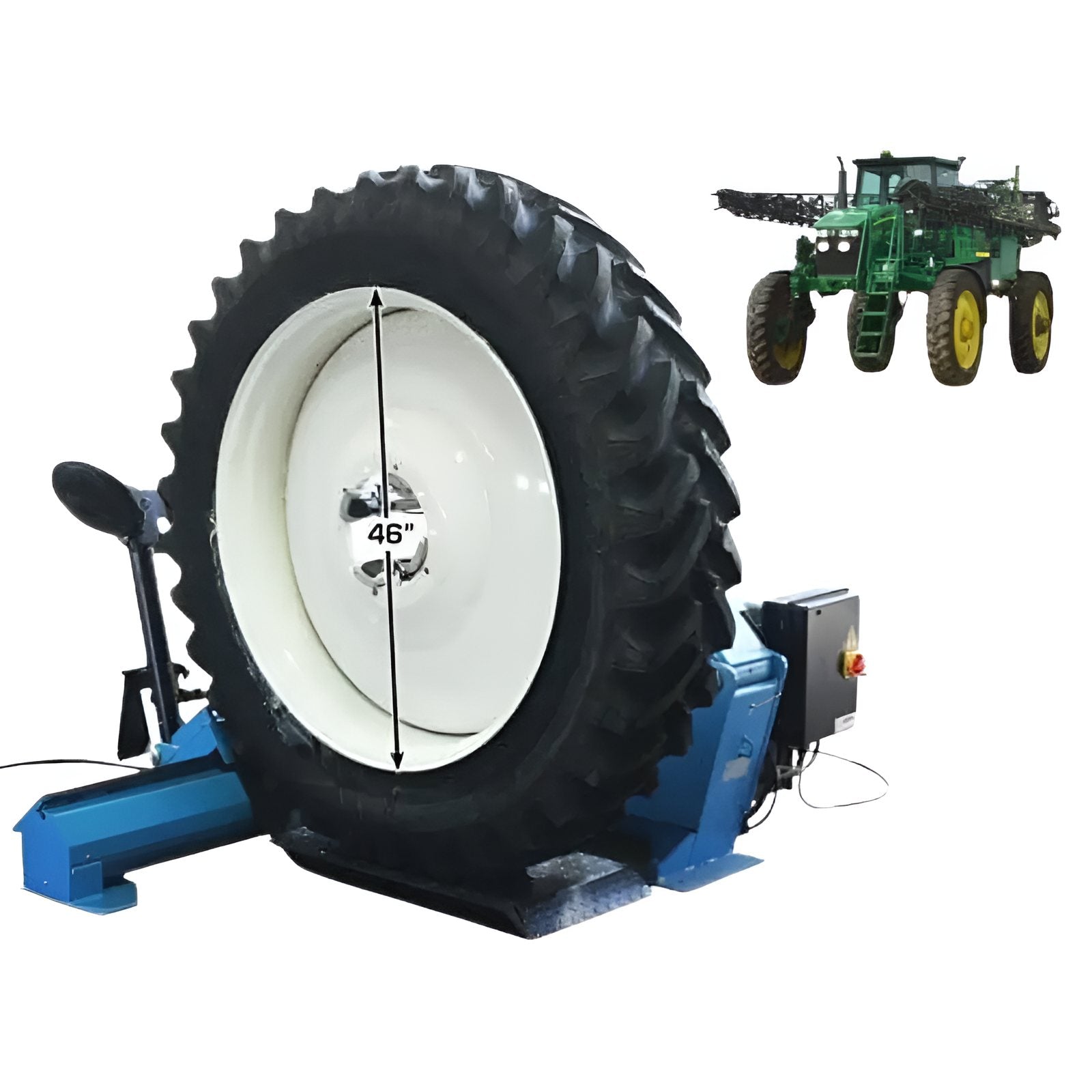

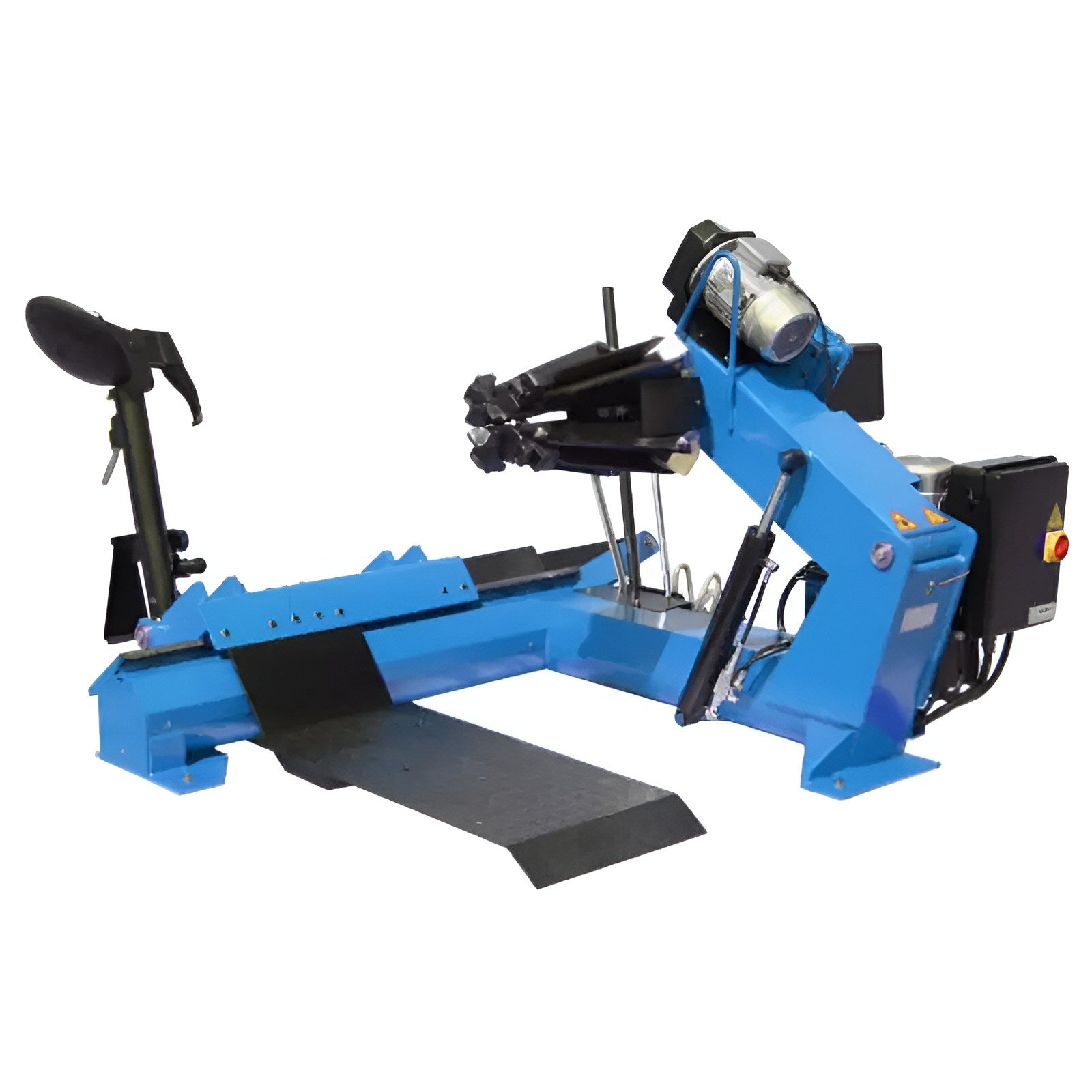

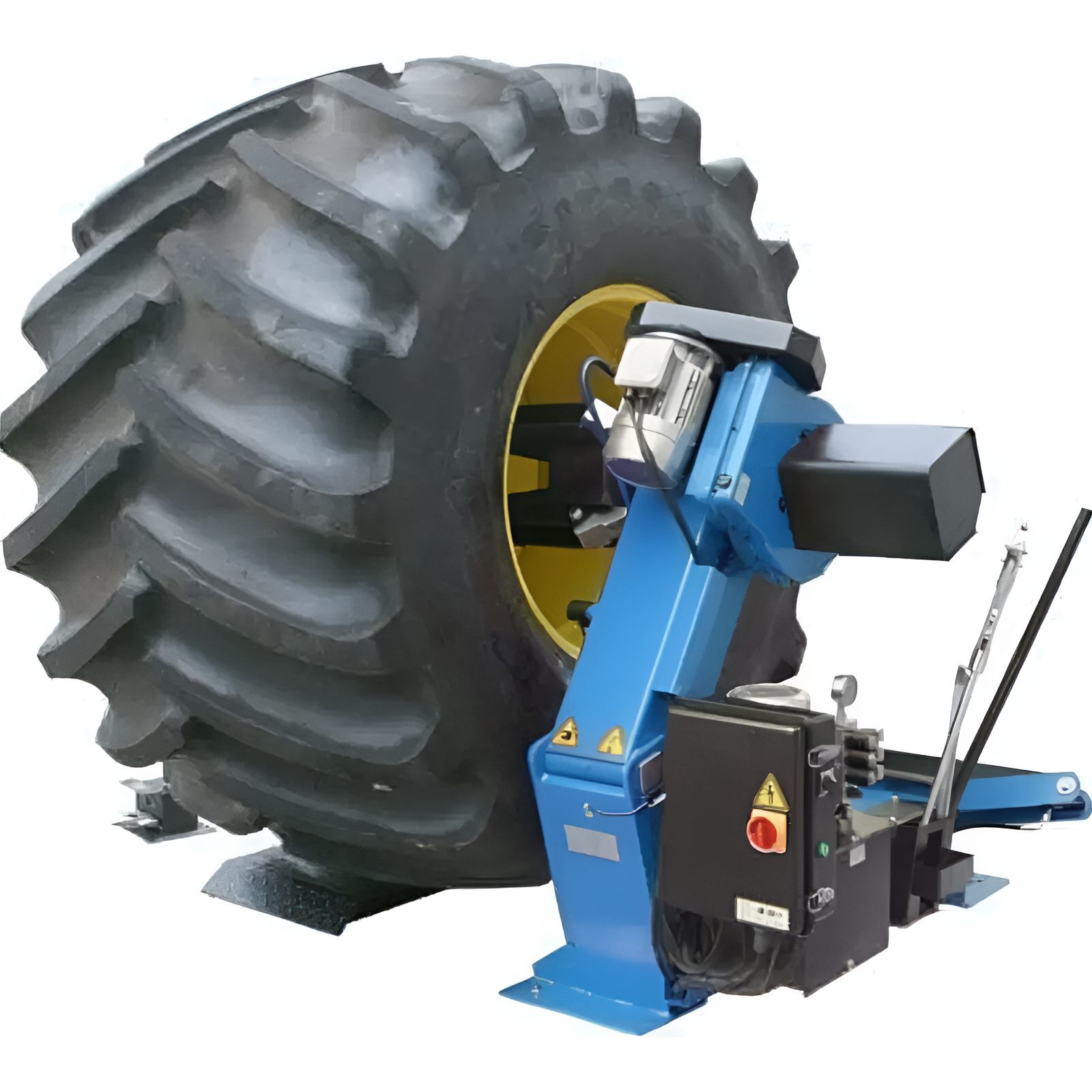

Atlas TTC303 Large Truck Tire Changer

TTC303 Large Truck Tire Changer by Atlas

The Super Duty Atlas® TTC303 truck tire changer is meticulously crafted to handle rim sizes ranging from 4-1/4 inches to 56 inches, accommodating tire diameters exceeding 90 inches. With a generous capacity, this tire changer effortlessly handles tires up to 42 inches wide. Renowned worldwide, the Atlas® Truck Tire Changer is the result of a collaborative effort between a prestigious Italian wheel service manufacturer and a leading wheel service equipment manufacturer in Asia.

Designed for high-volume truck tire shops, the Atlas® TTC303 embodies dependability and durability, meeting the demanding requirements of the industry. Capable of handling off-road tires, agricultural tires, super single tires, and skidder tires with ease, it's the go-to choice for large truck tire centers conducting extensive work on standard over-the-road wheel assemblies, as well as agricultural and off-road wheel assemblies.

Tire Changer TTC303 Specification:

• Rim Clamping Range    14" - 46"
• Max Clamping Size W/ Extensions    56""
• Max Wheel Weight    3,300 lbs.
• Max Tire Diameter    90 1/2" (7' 6 1/2")
• Max Tire Width    42" (3' 6")
• Clamping Power    13,173 lbs.
• Operating Pressure    0-1885 PSI
• Acoustic Pressure    <70dBA
• Bead Breaker Force    5930 lbs.
• Tool Arm Positioning    Manual
• Tool Head Positioning    Manual
• Construction    Single Piece Frame w/ Solid Floor Plate
• Hydraulic Motor Power    2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required
• Chuck Motor Power    2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required
• Shipping Weight    1,800 lbs.

TTC303 Tire Changer Special Features:

• Super Duty Truck Tire Changer
• 220VOLT 1 PHASE ELECTRIC
• Handles rims from 14″ to 56″ and tire diameters in excess of 90″
• Accommodates tires with a max width of up to 42″
• Bead Breaker
• Mount/Demount Head
• Electric/Hydraulic Self-Centering Four Jaw Chuck
• 5 different rim locking positions
• Wired Mobile Control Unit
• Heavy Duty Tire Tool Included
• Rim Clamps for Steel and Alloy Wheels Included
• Alloy Rim Adapter Set w/ Plastic Inserts Included
• 1 Year Parts Only Warranty

Atlas TTC303 Documentation:

  Atlas TTC303 Tire Changer Product Manual
