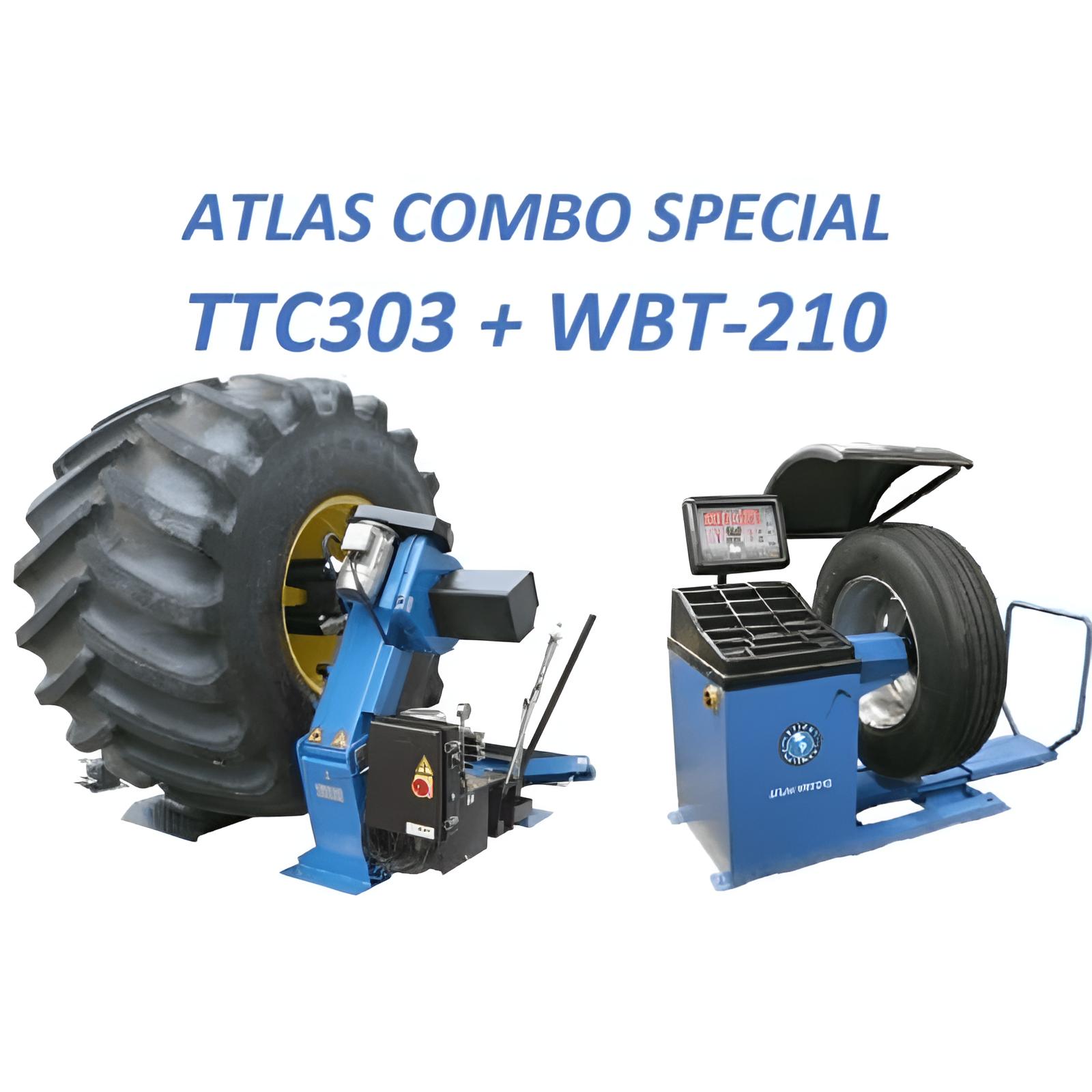

Atlas TTC303 Tire Changer + WBT-210 Wheel Balancer Combo

TTC303 Tire Changer + WBT-210 Wheel Balancer Combo by Atlas

Handling tires can be a real hassle, especially when your equipment isn’t up to the task. You need reliable machinery that can keep pace with the demands of your busy workshop. Enter the Atlas TC303 tire changer and the Atlas WBT-210 computerized wheel balancer—your new best friends in the workshop.

The TC303 is a super-duty tire changer designed for serious work, accommodating rim sizes from 14 inches to a jaw-dropping 56 inches and tire diameters exceeding 90 inches. With a maximum tire width of 42 inches and a clamping power of 13,173 lbs, it can handle even the toughest jobs with ease. Meanwhile, the WBT-210 is your go-to for balancing everything from passenger cars to hefty 300-pound semi-truck tires. It efficiently manages rim sizes from 10 inches to 32 inches and can balance wheels with a maximum weight of 440 lbs. The TC303 features a robust bead breaker with a force of 5,930 lbs and comes equipped with rim clamps for both steel and alloy wheels, plus an alloy rim adapter set with plastic inserts. Both machines come with a one-year parts-only warranty, ensuring you can invest in your workshop with confidence. Why settle for mediocre when you can elevate your tire service with the Atlas TC303 and WBT-210 combo?

Tire Changer TTC303 + Wheel Balancer WBT-210 Specification:

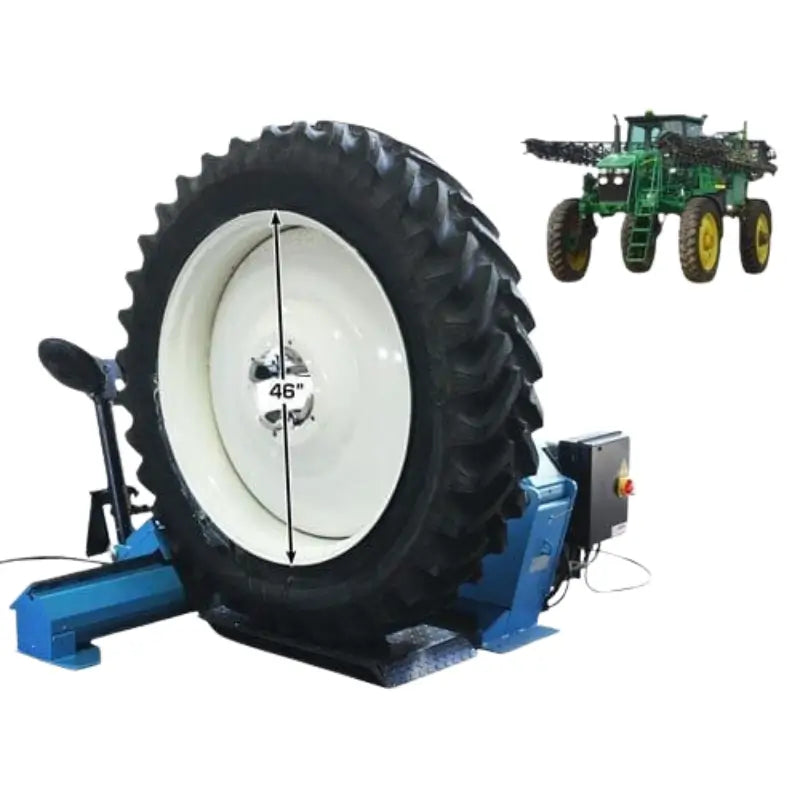

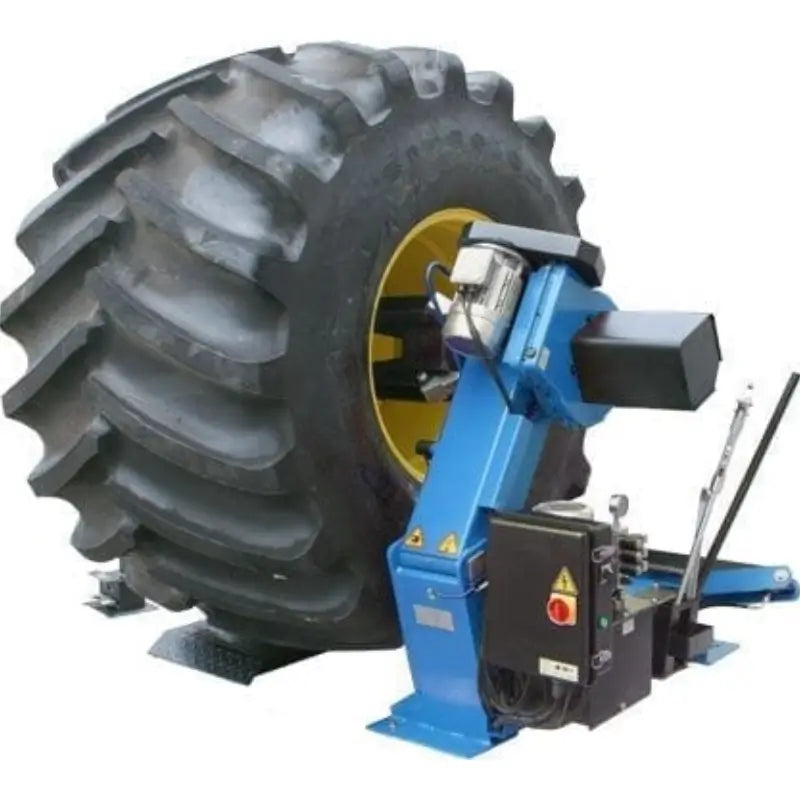

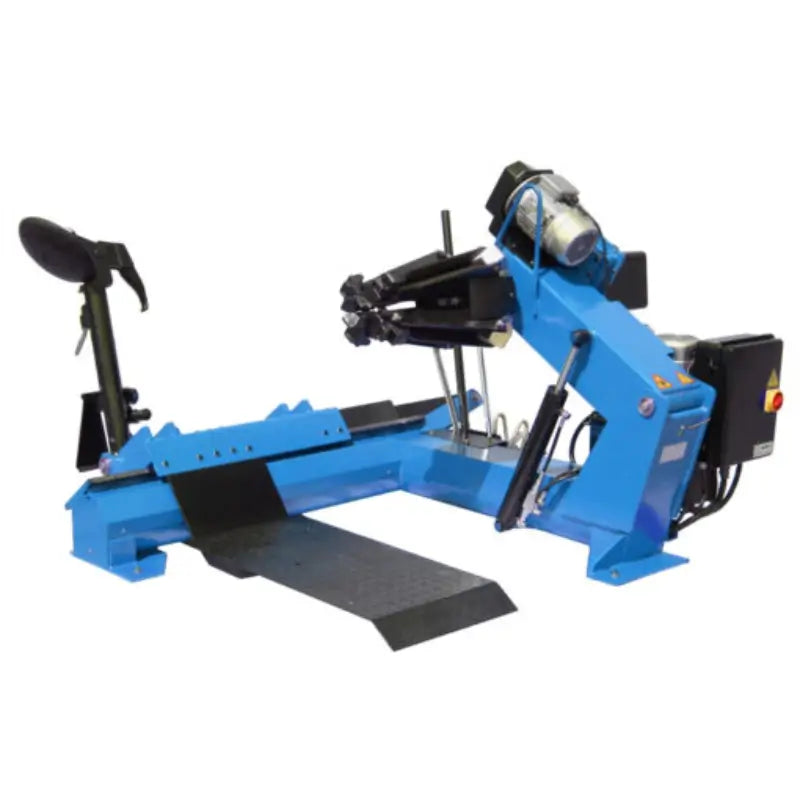

TTC303 Tire Changer

• Rim Clamping Range    14" - 46"
• Max Clamping Size W/ Extensions    56""
• Max Wheel Weight    3,300 lbs.
• Max Tire Diameter    90 1/2" (7' 6 1/2")
• Max Tire Width    42" (3' 6")
• Clamping Power    13,173 lbs.
• Operating Pressure    0-1885 PSI
• Acoustic Pressure    <70dBA
• Bead Breaker Force    5930 lbs.
• Tool Arm Positioning    Manual
• Tool Head Positioning    Manual
• Construction    Single Piece Frame w/ Solid Floor Plate
• Hydraulic Motor Power    2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required
• Chuck Motor Power    2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required
• Shipping Weight    1,800 lbs.

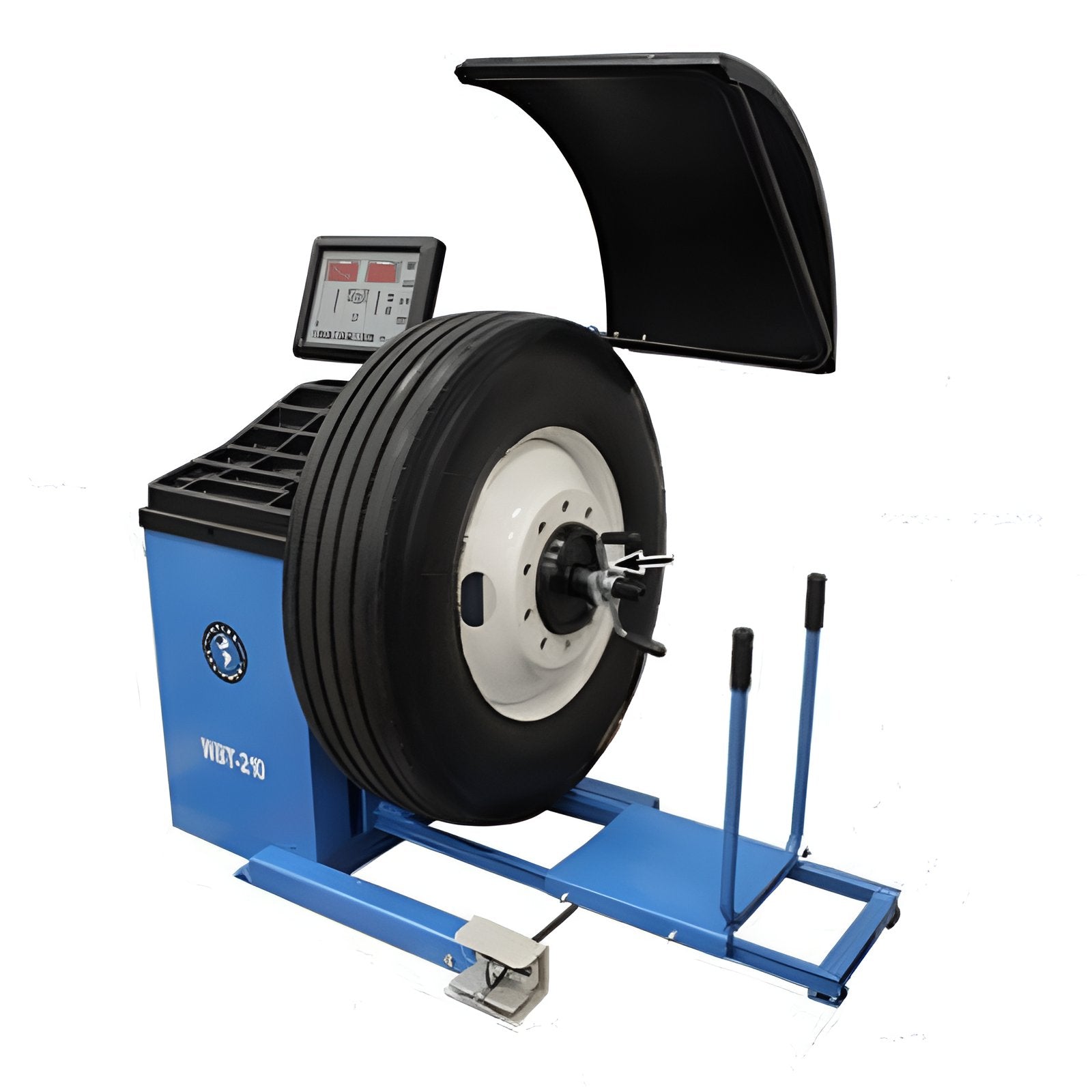

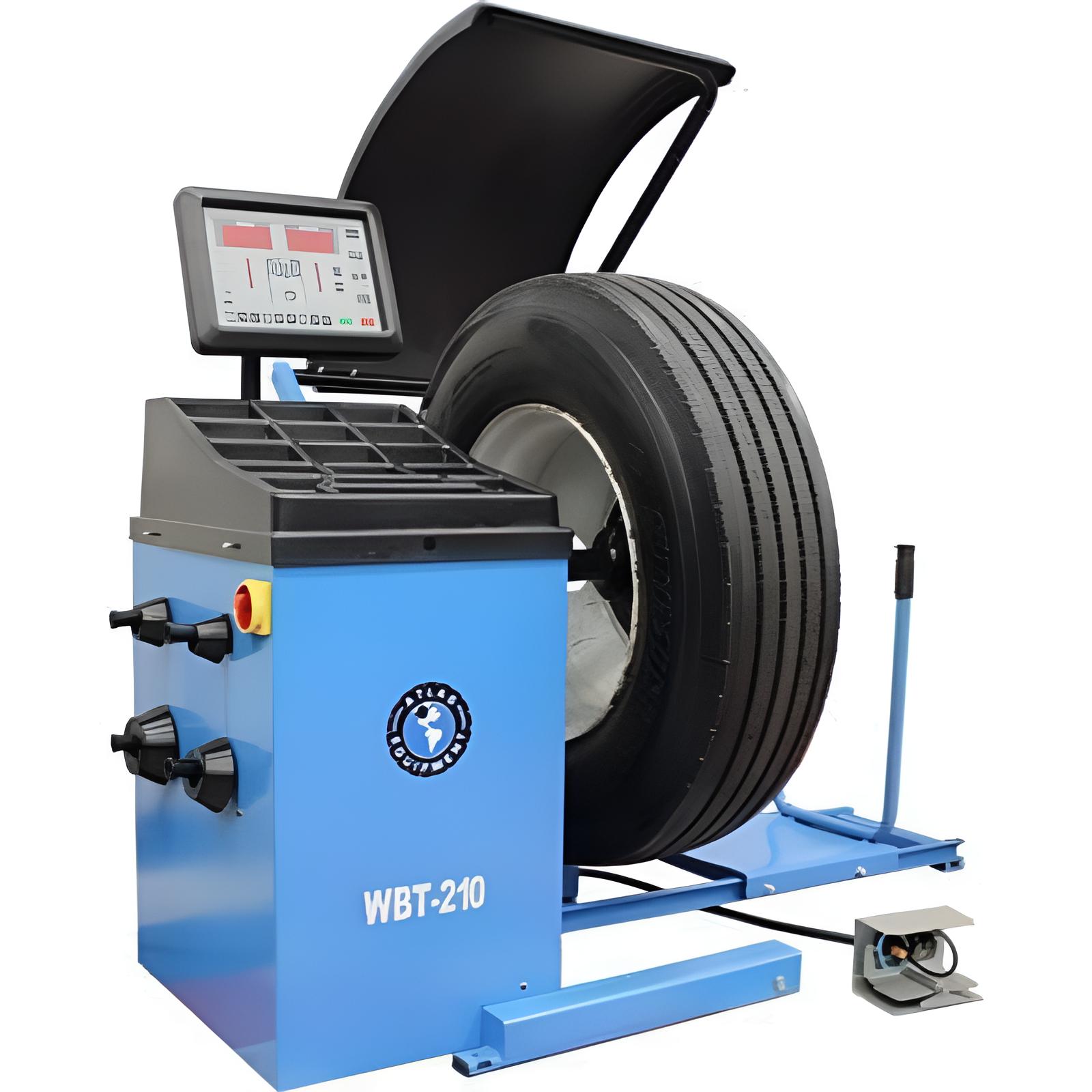

WBT-210 Wheel Balancer

• Max Tire Diameter: 47"
• Rim Sizes (Cars And Light Trucks): 10"-32"
• Rim Width: 1 1/2"-20"
• Shaft Size: 40mm
• Max. Wheel Weight: 440 lbs.
• Balancing Speed: 150 rpm Car-Light Truck Mode/90 rpm Truck Mode
• Data Entry: All Dimensions Manual Entry
• Measurements: Standard Or Metric
• Accuracy: 1 gram Car-Light Truck Mode/10 gram Truck Mode
• Weight Position Resolution: 1.4 Degrees
• Self Calibration: Yes
• Motor: 1/3 HP
• Air Requirement: 115-140 PSI (MUST NOT EXCEED 140 PSI)
• Power Supply: 220volt +/- 5% (209-231 volts) 1phase, 30 amp breaker required

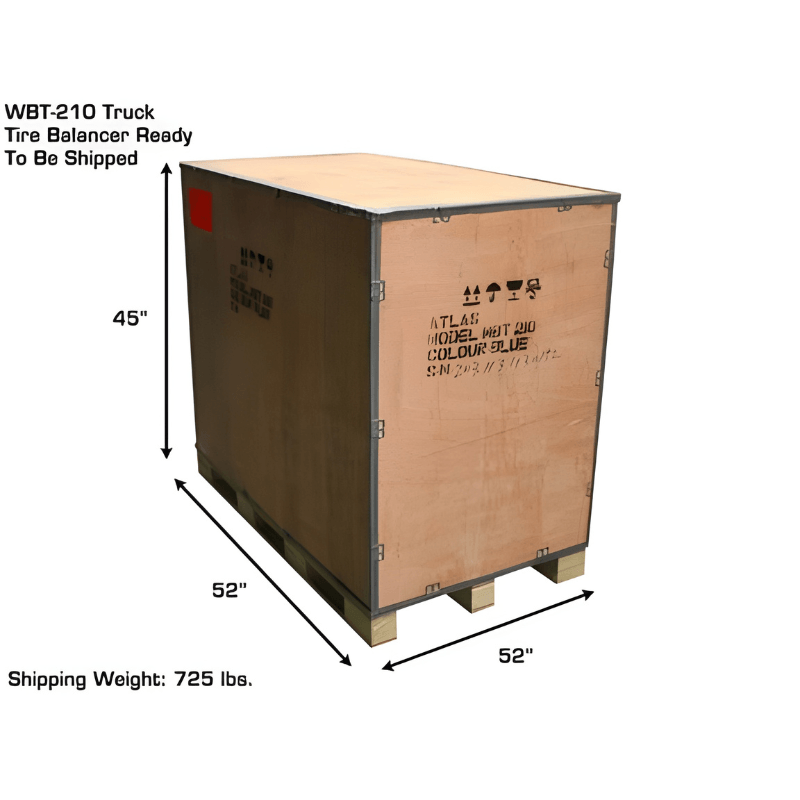

• Shipping Weight: 725 lbs.

TTC303 Tire Changer + WBT-210 Wheel Balancer Special Features:

TTC303

• Super Duty Truck Tire Changer
• 220VOLT 1 PHASE ELECTRIC
• Handles rims from 14″ to 56″ and tire diameters in excess of 90″
• Accommodates tires with a max width of up to 42″
• Bead Breaker
• Mount/Demount Head
• Electric/Hydraulic Self-Centering Four Jaw Chuck
• 5 different rim locking positions
• Wired Mobile Control Unit
• Heavy Duty Tire Tool Included
• Rim Clamps for Steel and Alloy Wheels Included
• Alloy Rim Adapter Set w/ Plastic Inserts Included
• 1 Year Parts Only Warranty

WBT-210

• Computer Controlled Heavy Duty Spin Balancer
• Cone sets for car and light truck tires
• Cone and spacer set for truck, bus, or implement tires
• Plastic Quick Release Nut included
• Heavy duty steel wing nut included
• Pneumatic wheel lift (external air supply required)
• Automatic start/stop when hood is lowered/raised.
• Static and dynamic balancing modes.
• Rapid optimization (OPT)
• Self-diagnosis
• Self-calibration
• Exceptional stability in reading the unbalance between planes
• Display in grams or ounces, and in mm or inches
• Wheel Weight Pliers Included
• Wheel Width Calipers Included
• Replacement Parts & Wear Items Always in Stock
• 1 Year Parts Only Warranty
  • Large Universal Adapter for WBT-210

Atlas TTC303 + WBT-210 Documentation:

  Atlas TTC303 Tire Changer Product Manual

  Atlas WBT-210 Wheel Balancer Product Manual

Atlas TTC303 Tire Changer Optional Item (Sold Separately)

This Item has a FLAT RATE SHIPPING FEE: $799

Warehouse Pickup locations (No shipping charge):

• Atlanta, GA
• Dallas, TX
• Fresno, CA
• Indianapolis, IN
• Phoenix, AZ
• Somerset, NJ


Atlas WBT-210 Video
