HD-9SW 9,000lb Double Wide Parking Lift - Extended Width by BendPak Side View

BendPak HD-9SW 9,000lb Double Wide Parking Lift - Extended Width

SKU 5175023
by BendPak
  • ✓ Free Shipping
  • ✓ No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • ✓ Ships in 3-5 Business Days
  • ✓ Better Business Bureau (BBB) Accredited
$10,595.00
Address Type (Required Field)
Delivery Options (Required Field)
*We will find nearest location

Notify me when back in stock

HD-9SW 9,000lb Double Wide Parking Lift by BendPak

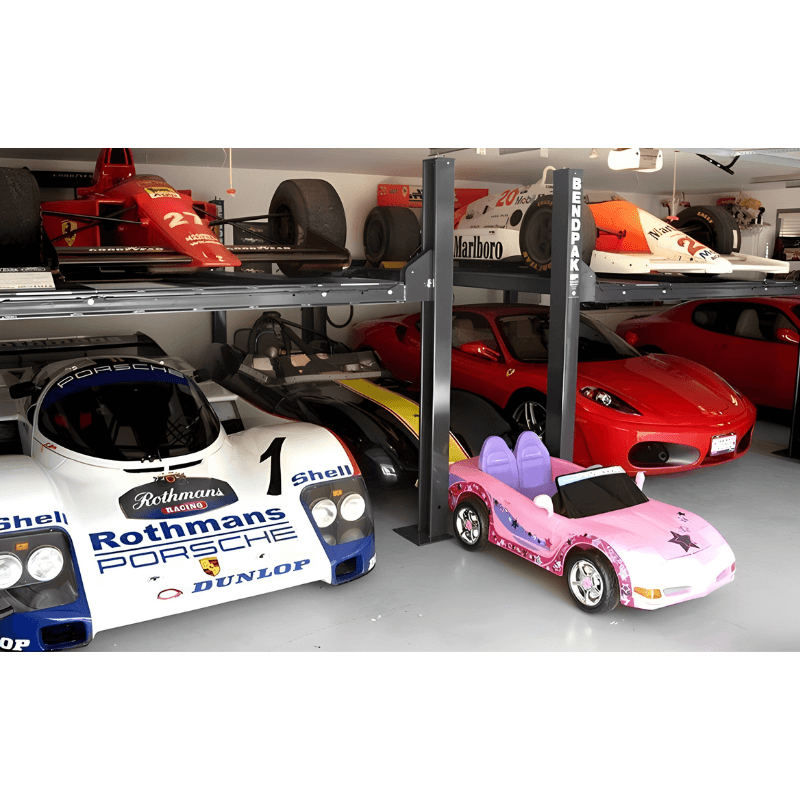

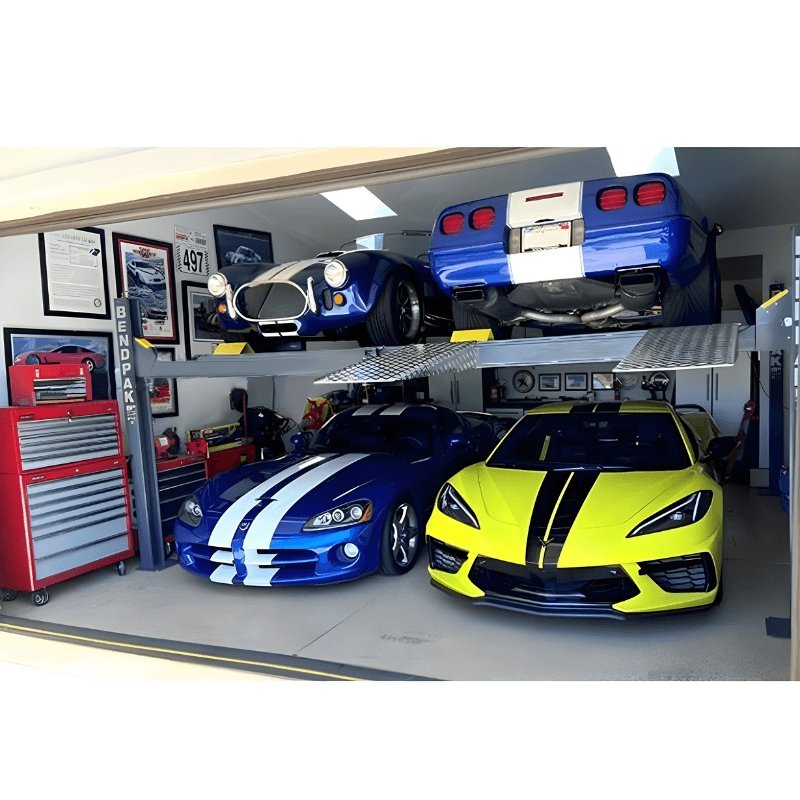

Feeling cramped with your current garage setup? The BendPak HD-9SW Double Wide Parking Lift redefines efficiency with its 192” post-to-post clearance, providing space for up to four vehicles. Whether you’re juggling compact cars, wide trucks, or SUVs, this lift’s dual-platform design offers unmatched versatility, doubling as a maintenance lift for two vehicles at once. Its innovative features and rugged construction make it an ideal addition to any garage or professional workshop, transforming your space into a high-capacity, multi-functional powerhouse.

Safety and convenience are at the core of the HD-9SW. Equipped with dual-hub cable sheaves, heavy-duty aircraft cables, and a seamless electric-hydraulic power system, it guarantees smooth operation every time. Automatic spring-activated locks, cable slack detection, and multi-position safety locks ensure peace of mind during use. Its low-profile runways and adjustable ramps accommodate everything from low-clearance vehicles to wider options. Elevate your parking and service experience with the HD-9SW and see how this double-wide lift can transform your workflow.

Double Wide Parking Lift HD-9SW Specification

  • Capacity:

    • Maximum Lifting Capacity: 9,000 lbs. (4,082 kg)
    • Max Capacity per Front/Rear Axle: 4,500 lbs. (2,041 kg)

  • Rise:

    • Minimum Runway Height: 7" (178 mm)
    • Maximum Rise: 70" (1,778 mm)
    • Maximum Lifting Height: 77" (1,956 mm)

  • Dimensions:

    • Overall Width: 202" (5,131 mm)
    • Overall Length: 218.5" (5,550 mm)
    • Height of Columns: 90" (2,284 mm)
    • Width Between Columns: 192" (4,877 mm)

  • Runways:

    • Runway Width: 19" (483 mm)
    • Length of Runways: 164" (4,166 mm)
    • Width Between Runways: 34.25" (870 mm) or 41" (1,041 mm)

  • Power Unit:

    • Motor: 220 VAC / 60 Hz / 1 Ph
    • Time to Full Rise: 55 seconds

  • Shipping:

    • Weight: 2,796 lbs. (1,268 kg)
    • Dimensions: 200” x 22” x 52” (5,080 mm x 5,080 mm x 1,333 mm)
  • Warranty:
    • 5 Year - Lift Structure
    • 2 year - Hydraulic Unit & Power Unit
    • 1 Year - Electrical and Operating Components
    • *Reasonable labor costs covered for first 12 months

HD-9SW 9,000lb Double Wide Parking Lift Special Features

  • Standard rise
  • Shorter runway for smaller spaces
  • Runways accommodate wide or narrow vehicles
  • Runways include rail kit for optional accessories
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column
  • Oversized self-lubricating cable rollers
  • Oversized sheave diameter reduces cable fatigue
  • High-speed lifting
  • Features heavy-duty 3/8" aircraft cable
  • Rugged 1.25" roller axles
  • Multi-position safety locks in each column
  • Adjustable lock ladders
  • Runways feature a durable matte finish
  • Push-button pneumatic safety release
  • Independent backup slack-cable safety latches
  • Inside runways adjust for different tread widths
  • Customizable power unit location
  • Removable approach ramps for additional drive-under clearance
  • Optional Item(Sold Separately)
    • Optional drive-thru ramps
    • Optional drip trays available
    • Optional solid deck available to increase storage capacity
    • Optional 4,500-lb. air / hydraulic rolling jacks available
    • Comes standard with 1 Kit(pair) of Aluminum Ramps

BendPak HD-9SW Documentation

BendPak HD-9SW Installation and Operations Manual   BendPak HD-9SW Installation and Operations Manual
BendPak HD-9SW Product Brochure  BendPak HD-9SW Product Brochure

Warehouse Pickup Locations: $600 Pickup Discount Available - Contact us for more information!

  • Santa Paula, CA 93060
  • Theodore, AL 36582
BendPak HD-9SW 9,000lb Double Wide Parking Lift - Extended Width Diagram

A - Min. Runway Height: 7" (178 mm)
B - Max. Rise: 70" (1,778 mm)
C - Max. Lifting Height: 77" (1,956 mm)
D - Overall Width: 202" (5,131 mm)
E - Outside Length: 174" (4,420 mm)
F - Overall Length: 218.5" (5,550 mm)
G - Height of Columns: 90" (2,284 mm)
H - Width Between Columns: 192" (4,877 mm)
I - Drive-Thru Clearance: 178" (4,521 mm)
J - Runway Width: 19" (483 mm)
K - Length of Runways: 164" (4,166 mm)
L - Width Between Runways: 37" (940 mm) - 42" (1,067 mm)
M - Runway Centerline: 56" (1,422 mm) - 61" (1,549 mm)
N - Outside Edge of Runways: 75" (1,905 mm) - 80" (2,032 mm)
