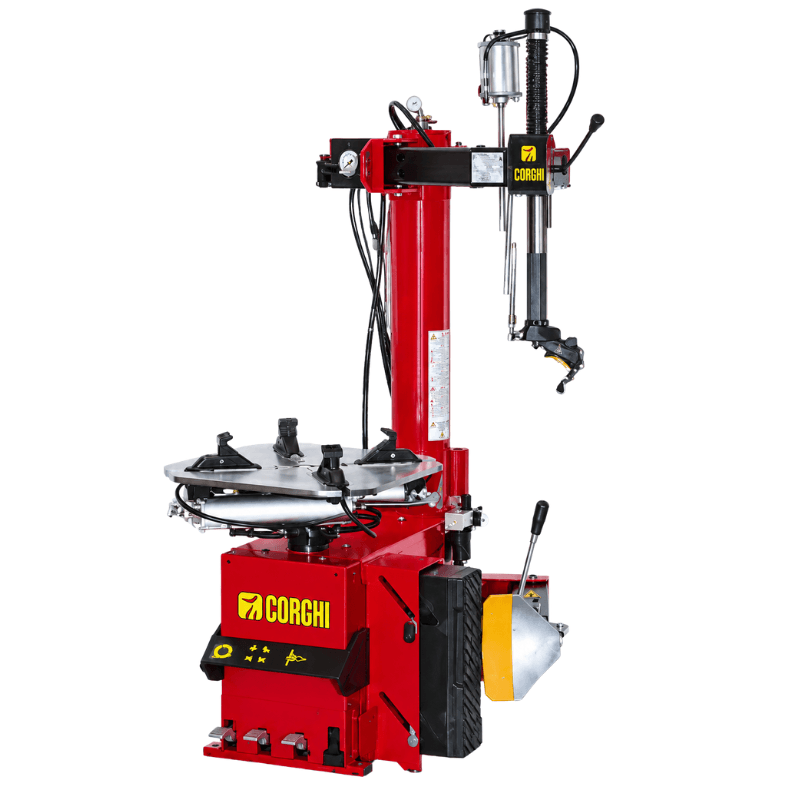

Corghi A9824LL Light Truck Tire Changer Machine

A9824LL Light Truck Tire Changer Machine

The Corghi A9824LL is a 24-inch automatic tire changer designed for passenger cars and light trucks, but difficult low-profile and run-flat tires can make conventional tire changing slow and demanding. Its patented “Leva la leva” leverless technology removes the need for manual lever effort during bead demounting, helping make the process faster and easier while reducing stress on the tire and wheel.

Built for demanding tire service, the A9824LL handles rim sizes from 10" to 24" externally and up to 26" internally, with an optional adapter extending capacity to 8"–28". The optional BPT pneumatic power assist unit provides additional support for difficult tires by pressing the bead and wheel, maintaining the bead in the drop center, and helping prevent wheel damage.

With a 3,500-lb bead breaker force, 737 ft-lb torque, and compatibility with run-flat tires certified by major manufacturers, the Corghi A9824LL is a strong choice for professional automotive and light-truck tire shops needing efficient, reliable tire changing performance.

Tire Changer A9824LL Specifications

• External Rim Size: 10"–24"
• External Rim Size with Optional Adapter: 8"–28"
• Internal Rim Size: 13"–26"
• Rim Width: 3.5"–14"
• Maximum Tire Diameter: 47"
• Voltage: 110V, 1 Ph or Air
• Air Pressure: 150 psi
• Bead Breaker Force: 3,500 lbs.
• Torque: 737 ft-lbs.
• Shipping Weight: 760 lbs. with optional BPT power assist unit
• Technology: “Leva la leva” leverless mount/demount head
• Optional Accessory: BPT pneumatic power assist unit

A9824LL Tire Changer Special Features

• 24" automatic tire changer with patented “Leva la leva” leverless technology
• Designed for passenger cars and light trucks
• Simplifies bead demounting with minimal operator effort
• Compatible with low-profile and run-flat tires
• Optional BPT pneumatic power assist unit
• Power assist maintains the bead in the drop center
• Helps reduce bead stress and prevent wheel damage
• Supports one-person operation on difficult tires
• Up to 3,500 lbs. bead breaker force
• 737 ft-lb torque
• ISO 14001 quality certified
• Run-flat certified by major tire manufacturers

Corghi A9824LL Manual

  Corghi A9824LL Brochure
