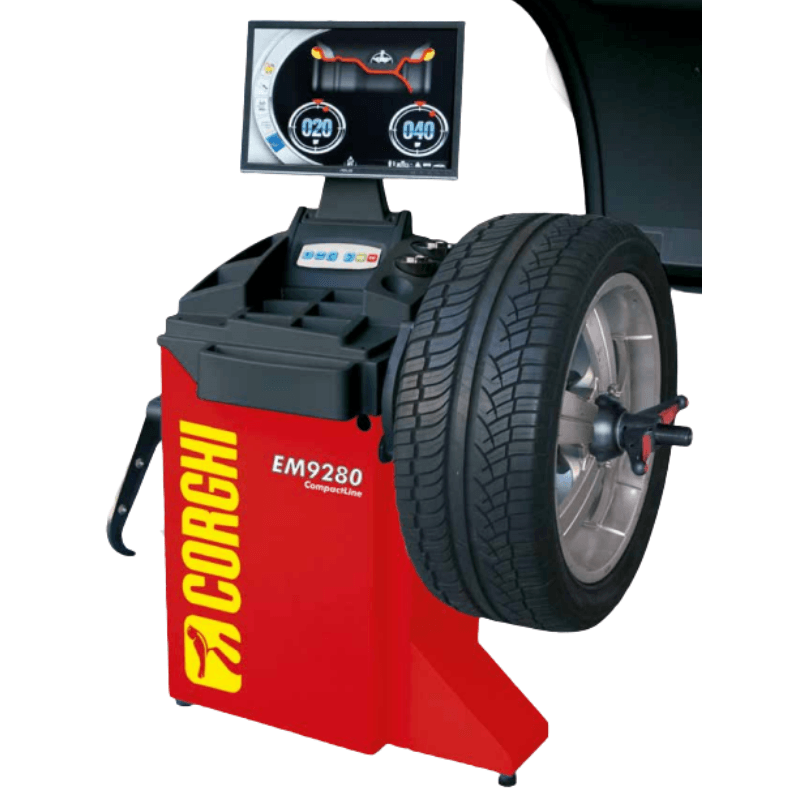

Corghi EM9280 CompactLine Manual Clamping Wheel Balancer

EM9280 Clamping Wheel Balancer

Inconsistent wheel balancing leads to vibration complaints, uneven tire wear, and repeat workshop visits. The Corghi EM9280 CompactLine Manual Clamping Wheel Balancer solves this with advanced touchscreen measurement technology and intelligent balancing software, giving workshops precise results even in compact working spaces.

Designed for passenger cars, vans, and light commercial vehicles, it combines Smart Arm automation, LED illumination, and laser positioning with a manual quick ring nut clamping system. This gives operators full control over wheel mounting while still benefiting from automated measurement, diagnostics, and optimization tools like AWD, AWC, and OPT Flash.

Wheel Balancer EM9280 CompactLine Specifications

• Maximum rim diameter: 28” (10”–28” measurable range)

• Rim diameter setting range: 1” – 35”

• Rim width range: 1.5” – 20”

• Shaft diameter: 40 mm (1.57”)

• Balancing speed: 90–130 rpm

• Average measurement time: ~7 seconds

• Resolution: 1 g

• Maximum imbalance value: 999 g

• Maximum wheel width (with guard): 600 mm (23.6”)

• Maximum wheel diameter (with guard): 1117 mm (44”)

• Maximum wheel weight: 85 kg

• Power supply: 115/230V, 1Ph, 50/60 Hz

• Power consumption: 122 W

• Machine weight: 82 kg

EM9280 CompactLine Wheel Balancer Special Features

• Manual quick ring nut clamping system for direct operator control

• Smart Arm automatic diameter and distance measurement

• FSP Fast Selection Program for automatic mode activation

• Contactless width measurement (AWD optional)

• Virtual width calculation (AWC) without sensors

• LED illuminated work area for better visibility

• Laser-guided weight placement (optional)

• RPA automatic wheel positioning and braking system

• OPT Flash vibration and imbalance optimization

• Hidden Weight program for clean alloy wheel finish

• Weight Management system to reduce counterweight usage

• Multiple balancing modes (dynamic, static, ALU)

• USB software update support

• Compact wheel guard design for space efficiency

• Multi-operator workflow capability

Corghi EM9280 Manual

  Corghi EM9280 CompactLine Brochure
