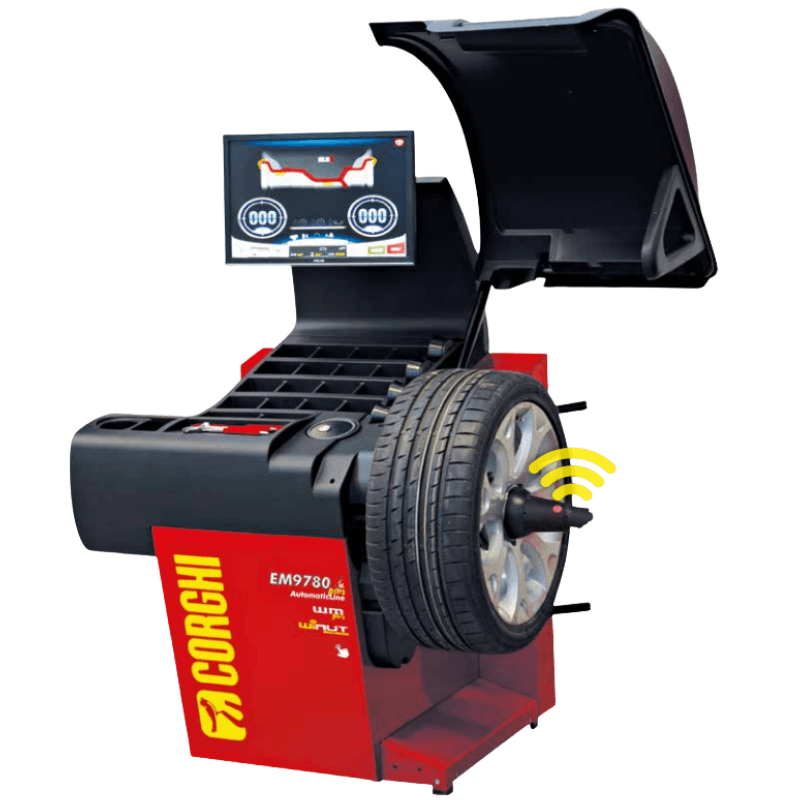

Corghi EM9780 Wheel Balancer

EM9780 Wheel Balancer

Modern workshops often struggle with slow manual wheel measurements, inconsistent balancing results, and operator fatigue that reduces daily productivity. Traditional balancers require multiple steps for setup and measurement, increasing the chance of errors and slowing down high-volume tire service operations.

The Corghi EM9780 Fully Automatic Touchscreen Wheel Balancer eliminates these limitations with a fully automated, contactless balancing system designed for maximum speed and precision. Featuring a 32” touchscreen interface, Smart Arm measurement technology, and automatic program selection, it significantly reduces manual input while improving accuracy and workflow efficiency.

Built for professional tire service environments, the EM9780 integrates advanced technologies such as Laser weight positioning, LED illumination, RPA automatic wheel positioning, and optional SONAR RUN-OUT diagnostics. These intelligent systems allow technicians to detect imbalance issues, optimize weight placement, and complete balancing jobs faster and with greater consistency.

Wheel Balancer EM9780 Plus Specifications

• Model: EM9780 Fully Automatic Wheel Balancer

• Product Type: Touchscreen Wheel Balancer

• Maximum Rim Diameter (Measurement): 32”

• Rim Diameter Setting Range: 2” – 35”

• Rim Width Range: 1.6” – 23.6”

• Shaft Diameter: 1.57” (40 mm)

• Balancing Speed: 75–98 rpm

• Resolution: 1–5 g

• Average Measurement Time: ~7 seconds (14 kg wheel)

• Maximum Imbalance: 999 g

• Maximum Wheel Diameter (with guard): 44” (1118 mm)

• Maximum Wheel Width (with guard): 560 mm

• Maximum Wheel Weight: 85 kg (187 lbs)

• Power Supply: 115–230V / 1 Phase / 50–60 Hz

• Power Consumption: 550 W

• Machine Weight: 183 kg (403 lbs)

• Radio Frequency (Winut System): 2.4 GHz

EM9780 Plus Wheel Balancer Special Features

• Fully automatic touchscreen balancing system

• 32” high-resolution touchscreen interface

• Contactless wheel dimension measurement

• Smart Arm automatic measuring system

• Automatic program selection (Fast Selection Program – FSP)

• LED work area illumination for better visibility

• Laser-assisted adhesive weight positioning

• RPA automatic wheel positioning and braking system

• BEST FIT tire and rim optimization program

• OPT Flash imbalance reduction software

• Hidden Weight program for alloy wheels

• Weight Management Plus to reduce counterweight usage

• Optional SONAR RUN-OUT diagnostic system

• Multi-operator memory profiles

• USB software update capability

• LAN connectivity for workshop integration

• Compact space-saving wheel guard design

• Ergonomic front access panel for faster operation

• High-speed, low-noise balancing cycle

Corghi EM 9780C Plus Manual

   Corghi EM 9780 Plus Brochure
