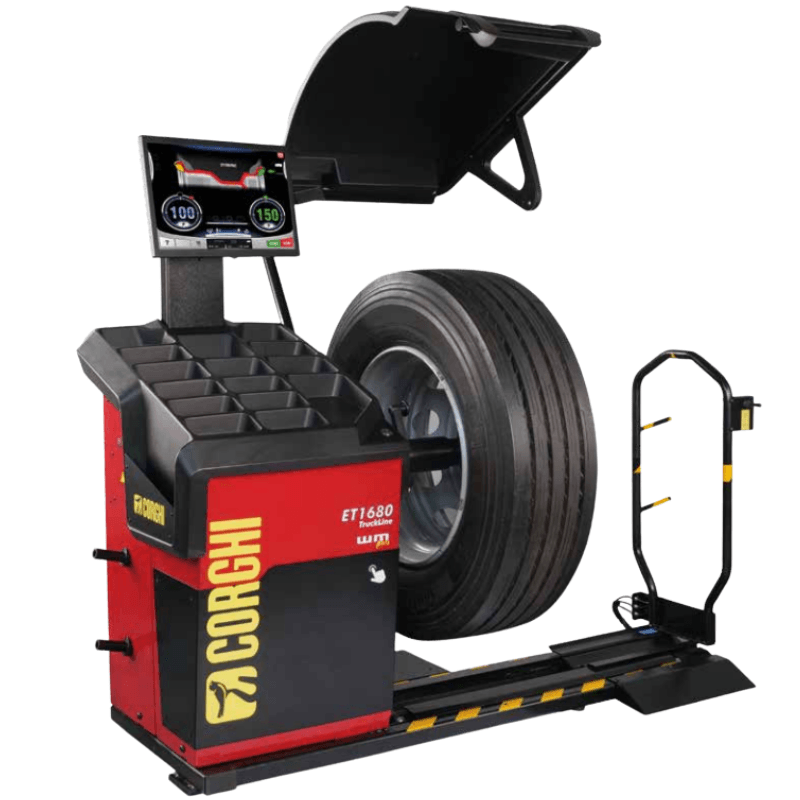

Corghi ET1680 TruckLine Advance Touch-Screen Wheel Balancer

ET1680 TruckLine Advance Touchscreen Wheel Balancer for Truck

The Corghi ET1680 TruckLine Advance is a premium touchscreen wheel balancer engineered for truck, commercial, off-road, agricultural, and passenger vehicle applications. Featuring a large 22-inch touchscreen interface, integrated wheel lifting system, Smart Arm Plus measurement technology, and advanced diagnostic capabilities, the ET1680 delivers exceptional balancing precision while reducing operator effort and improving workshop productivity.

Designed for high-volume service environments, the ET1680 combines automatic measurement functions, Direct Positioning (DPA), electromagnetic braking, and optional AWD sonar technology to streamline balancing operations. Its advanced software suite includes hidden weight programs, imbalance optimization, multi-operator functionality, and diagnostic tools capable of identifying wheel and tire irregularities that traditional balancing systems may miss.

Wheel Balancer ET1680 Specifications

• Power Supply: 200-230V / 1 Phase / 50-60Hz

• Alternative Power Supply: 100-115V / 1 Phase / 50-60Hz

• Power Consumption: 400 W

• Balancing Speed: 100 RPM (Car) / 80 RPM (Truck)

• Shaft Diameter: 1.57"

• Air Supply Pressure: 120-165 PSI

• Average Measurement Time: 8-16 Seconds

• Balancing Accuracy: 1 g (Car) / 10 g (Truck)

• Rim Width Range: 1.5" - 20"

• Rim Diameter Range: 10" - 30"

• Maximum Wheel Weight: 660 lbs

• Maximum Wheel Diameter: 52"

• Machine Weight: 573 lbs

ET1680 Wheel Balancer Special Features

• 22" touchscreen display with intuitive graphical interface

• Designed for truck, commercial, off-road, agricultural, and passenger vehicle wheels

• Smart Arm Plus automatic measuring system with Fast Selection Program (FSP)

• LaserBlade pointer for precise inner rim plane identification

• Integrated pneumatic wheel lifting system

• DPA (Direct Positioning) automatic wheel positioning

• Electromagnetic brake for easier weight application

• LED work area illumination

• Optional AWD sonar for automatic wheel width measurement

• Advanced wheel diagnostic capabilities

• Hidden weight balancing programs

• Imbalance optimization (Opt Flash)

• Multi-operator functionality

• USB software update capability

• Space-saving wheel guard design

• Ergonomic front-angled cabinet design

• Wide rotating weight tray with multifunction control button

Warranty

• 3 Year Parts Warranty

• 1 Year Labor Warranty

Corghi ET1680 Manual

  Corghi ET1680 TruckLine Brochure
