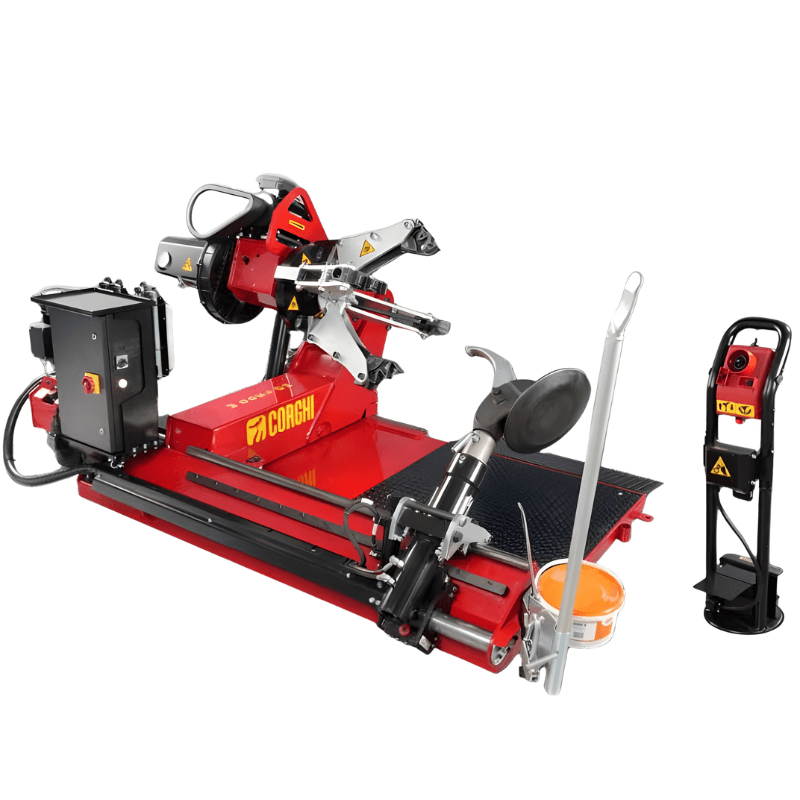

HD 1300 Multifunction Tire Changer by Corghi
Wrestling with monster truck tires, massive agricultural wheels, or earth-moving machinery? Meet the Corghi HD 1300 Multifunction Tire Changer—a powerhouse designed for the toughest tire challenges. With a clamping range of 14” to 56” (extensions included), it’s built for big jobs, handling wheel widths up to 51.2 inches and diameters as large as 86.6 inches. Whether you’re lifting a 3,748-lb wheel or breaking a bead with 6,393 lbs of force, this tire changer delivers unmatched reliability and precision. Its START & STOP system ensures energy efficiency, powering down during idle moments but instantly restarting for uninterrupted workflow.
Despite its heavy-duty capabilities, the HD 1300 fits snugly into any workspace thanks to its compact design. Choose between semi-automatic and fully automatic models, each equipped with independent clamp and tool arm movement for quick adjustments. Add the optional wireless 2.4 GHz radio kit, and you’ll feel like you’re piloting a machine from the future. With the Corghi HD 1300, even monster truck tires don’t stand a chance.
Tire Changer HD 1300 Specifications
- Wheel width: Up to 51.2 inches
- Wheel diameter: Up to 86.6 inches
- Clamp capacity: 14 inches to 56 inches (with extensions)
- Wheel central hole minimum Ø: 4.3 inches
- Hydraulic power unit motor: 3-phase, 2 HP
- Two-speed gear motor: 3-phase, 1.7 HP to 2.4 HP
- Max. torque delivery: 3,098 lb-ft
- Bead breaker force: 6,393 lbs
- Max. liftable wheel weight: 3,748 lbs
- Wheel lifter capacity: 4,850 lbs
- Voltage: 400/230 V, 3-phase, 50/60 Hz
- Machine weight: 2,205 lbs
- Warranty:
- 3 Year Parts
- 1 Year Labor
HD 1300 Tire Changer Special Features
- Purchase of product includes Installation and On-Site Training
- Wide Clamping Range: Handles wheel sizes from 14 to 56 inches, suitable for trucks and specialty machinery.

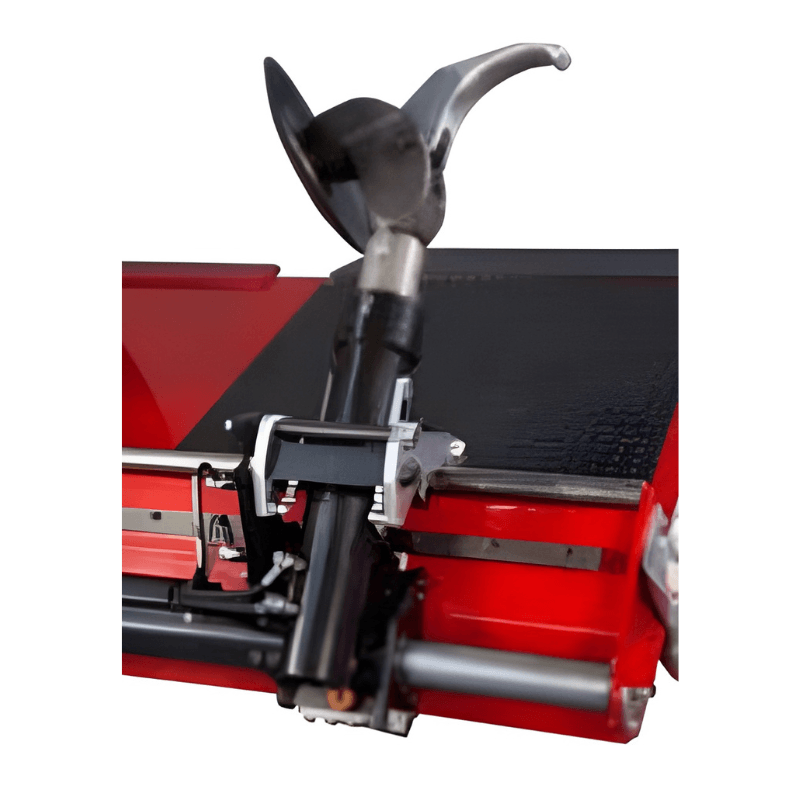

- Independent Operation: The clamp and tool arm move separately for faster, more precise adjustments.
- Energy-Saving System: START & STOP technology reduces power use by turning off when idle and restarting instantly.
- Tool Holder Options: Available in semi-automatic or fully automatic models for streamlined operation.
- Compact Design: Powerful yet space-efficient, ideal for workshops with limited room.
- Wireless Control (Optional): Add a radio kit for convenient, cable-free operation.
- Strong Bead Breaker: Delivers 6,393 lbs of force to handle tough tires without damage.
- Customizable Accessories: Includes options like rim clamps and protective kits for added versatility.
- Heavy-Duty Capacity: Supports up to 3,748 lbs of wheel weight and 4,850 lbs for lifting.
Corghi HD 1300 Documentations
Corghi HD 1300 Product Manual
