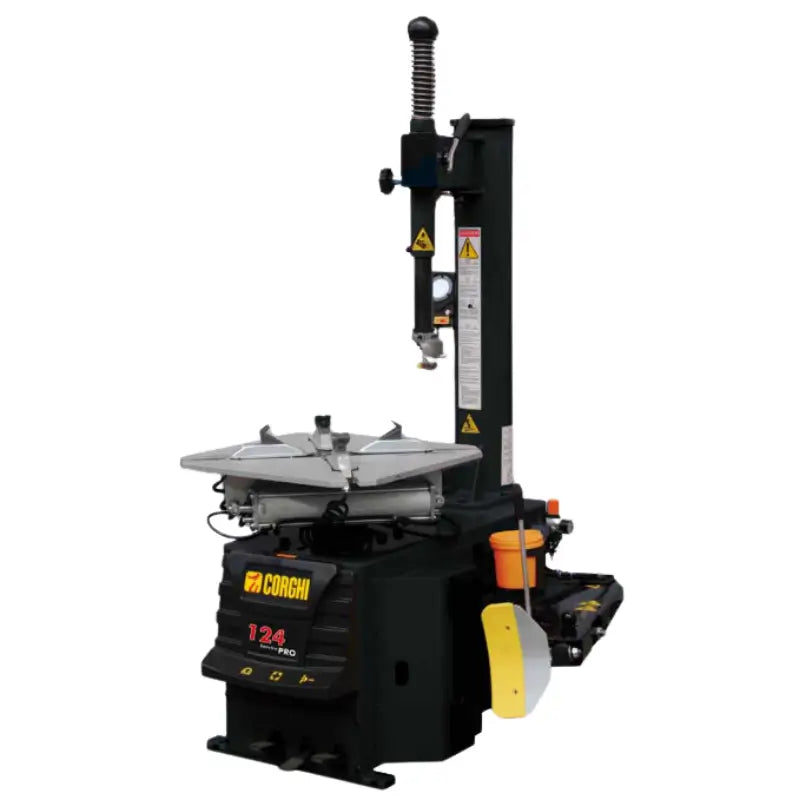

Corghi Service PRO124 Swing Arm Tire Changer (Elect.)

Service PRO124 Swing Arm Tire Changer (Elect.) by Corghi

Elevate your tire shop's performance with the precision and elegance of Italian craftsmanship. The Corghi Service PRO124 Swing Arm Tire Changer (Electric) is the ultimate blend of efficiency and reliability, tailored for professional tire service shops. Its semi-automatic operation and ability to handle rims up to 24” in diameter make it a versatile solution for cars, light trucks, and more. Engineered with a robust 1.47 hp motor and a powerful 3,372 lbf bead breaker, this tire changer delivers smooth and consistent operation with every use.

Designed with the hallmark innovation of Italian engineering, the PRO124 minimizes noise to under 70 dB, ensuring a serene workspace. Its features include precise external and internal rim clamping, a bead breaker with a generous 13.4” opening, and compatibility with optional accessories like a motorcycle adapter. With its sturdy build and user-friendly design, the PRO124 doesn’t just meet expectations—it redefines them, bringing the art of Italian machinery to your workshop.

Tire Changer Service PRO124 Specifications

• External Rim Clamping Capacity: 11” to 24”
• Internal Rim Clamping Capacity: 13” to 26”
• Max Wheel Diameter: 47” (1250 mm)
• Tire Width: 3” to 13”
• Bead Breaker Opening: 13.4” (340 mm)
• Bead Breaking Power: 3372 lbf (15000 N)
• Working Air Pressure: 116 to 145 psi (8-10 bar)
• Motor Power: 1.47 hp (1.1 kW)
• Chuck Rotation Speed: 6.5 rpm
• Noise Level: < 70 dB
• Machine Weight: 527 lbs (239 kg)
• Gross Weight: 593 lbs (269 kg)
• Max Dimensions (LxPxH): 45” x 36” x 41” (1150 x 920 x 1050 mm)

• Warranty:
  • 3 Year Parts
  • 1 Year Labor

Service PRO124 Tire Changer Special Features

• Semi-automatic swing-arm operation for ease of use
• Bead-breaking power of 3372 lbf for efficient tire removal
• Capable of handling rims up to 24” in diameter
• Clamps both external (11” to 24”) and internal (13” to 26”) rims securely
• Plastic bead pressing clamp and motorcycle adaptor available as optional accessories
• 1.47 hp motor for consistent and smooth operation
• Bead breaker opening of 13.4” for maximum tire compatibility
• Noise level during operation is less than 70 dB, ensuring a quieter workspace
• Strong, reliable construction for long-lasting performance


Corghi Service PRO124 Documentations

  Corghi Service PRO124 Product Brochure
