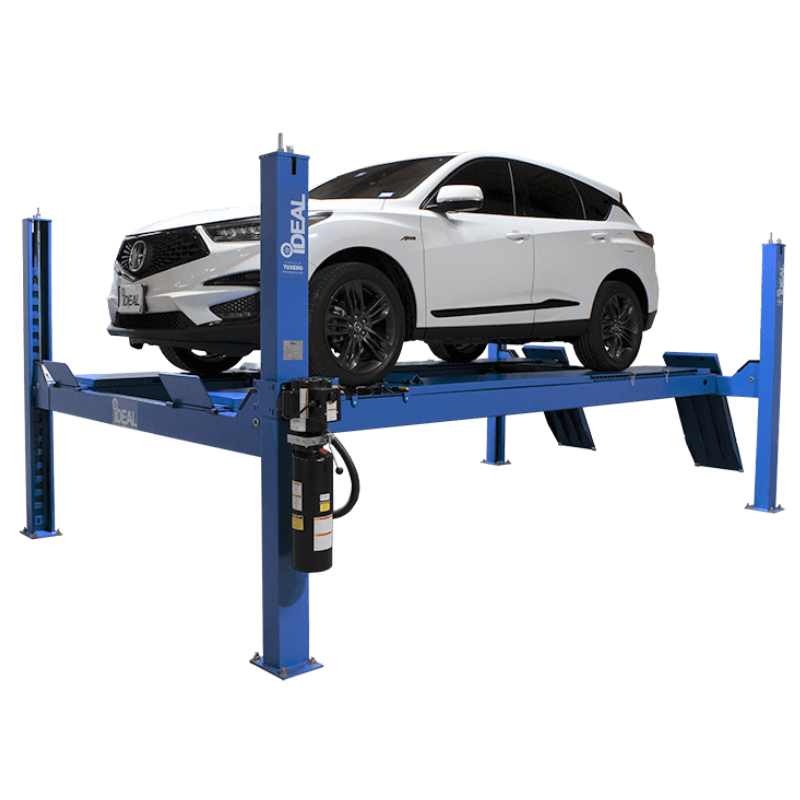

iDEAL, 14,000 lb FP14KAC-X, 4 Post Alignment Lift

SKU FP14KAC-X
by iDeal
  • Winter Sale Extended - Ends January 31
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
Save $300.00
Original Price $8,399.00
Current Price $8,099.00
Free Warehouse Pickup Locations*
*Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)

Notify me when back in stock

FP14KAC-X Alignment Lift by iDeal

With a massive 14,000 lb capacity, this lift scoffs at your heaviest vehicles. Need precision? The 'bolt-on' runway alignment kit has you covered, letting you align vehicles with great accuracy. And, with an extended rise height of 79-1/2 inches, this lift is perfect for trucks that look like they’ve been built by a team of brainiac engineers.  It’s time to lift smarter, not harder.

Alignment Lift FP14KAC-X Specifications:

  • Lift Model: FP14KAC-X
  • Capacity: 14,000 lbs.
  • Overall Length w/ Ramp: 252-1/2"
  • Overall Width (Without Power Unit): 131-7/8"
  • Overall Width (With Power Unit): 142"
  • Overall Height: 92-1/2"
  • Max Rise Height: 79-1/2"
  • Min Height: 9-7/8"
  • Width Between Posts: 116-1/4"
  • Length Between Posts: 196"
  • Width Between Runways: 42" or 46"
  • Width of Runways: 20"
  • Max Wheelbase: 182-1/2"
  • Max Align Wheelbase (2 Wheel): 166-3/4"
  • Min/Max Align Wheelbase (4 Wheel): 103"/157"
  • Ramp Length: 44"
  • Max Clearance Under Runway: 69-5/8"
  • Drive-Thru Clearance: 100"
  • Base Plate: 10-1/2" x 9"
  • Power Requirement: 220V-20 Amp-1PH
  • Ship Weight: 3,892 lbs
  • 208"L x 27"W x 49.5"H

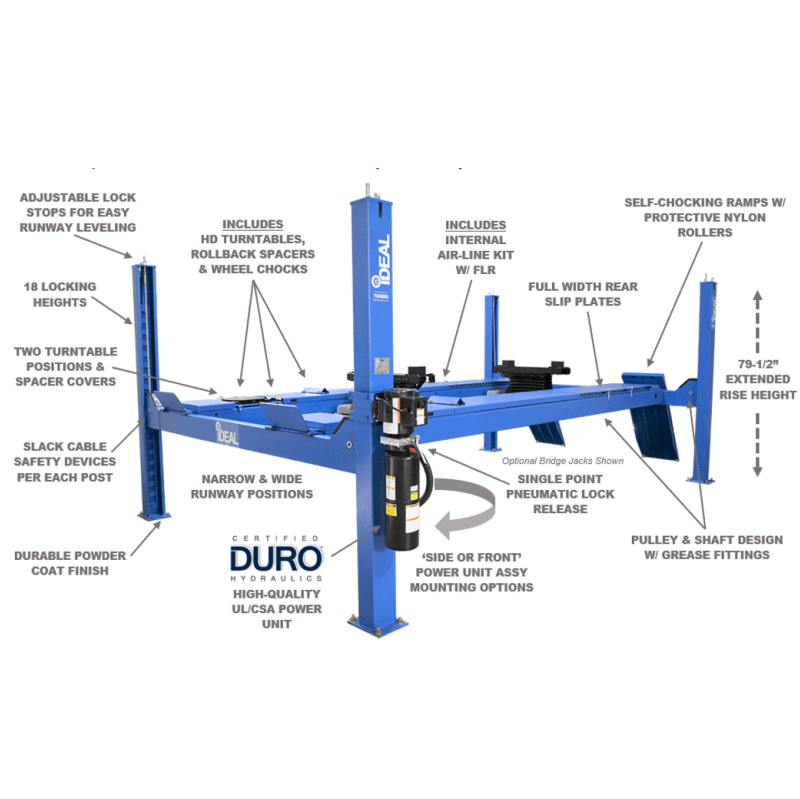

FP14KAC-X 14,000 lb Alignment Lift Special Features:

  • 14.000 Lbs Capacity
  • High Performance Commercial Alignment Lift
  • Durable, High Quality Cable Lift System
  • Extended Rise Height
  • Bolt-on’ Runway Alignment Kit
  • 166.7″ Max Alignment Wheelbase (2 Wheel)
  • 157″ Max Alignment Wheelbase (4 Wheel)
  • 182.5″ Max Service Wheelbase
  • 18 Locking Height Positions
  • Full Width Rear Wheel Slip Plates
  • Two Turntable Positions W/ Spacer Covers
  • Narrow & Wide Runway Mounting Positions
  • Single Point Pneumatic Lock Release
  • Fully Adjustable Lock Stops For Easy Leveling
  • Slack Cable Safety Devices
  • Self-chocking Approach Ramps W/ Nylon Rollers
  • Wheel Chocks (1pr)
  • Durable Powder Coat Finish
  • Power: 220v-20amp-1Ph
  • Warranty: 5 Years Structure, 1 Year Parts - Under Normal Use
  • iDeal Warranty:
    • One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment
  • Buy as a Combo CK-FP14KA with CX-IWA-60-2000T-K and RAJ-7K-H

iDeal FP14KAC-X Documentation:

Alignment Lift FP14KAC-X Lift Installation Instruction   iDeal FP14KAC-X Alignment Lift Installation Instruction

iDeal FP14KAC-X, 4 Post Alignment Lift Optional Item Sold Separately


20% DISCOUNT on Scratch & Dent Units:

  • Contact Us today if your item is available
  • Pictures of units can be shared upon request
  • Discount does NOT apply to on-sale items.
  • All refurbished items ship from Texas warehouse or can be picked up at no additional cost

This Item has a FLAT RATE SHIPPING FEE: $1299*

*Based on Nationwide Averages - Contact Us to see if we can ship for less.

Warehouse Pickup locations:

  • Temecula, CA 92590
  • Orlando, FL 32824
  • Kennesaw, GA 30144
  • Elwood, IN 46036
  • Maple Grove, MN 55311
  • Reidsville, NC 27320
  • Bohemia, NY 11715
  • Reading, PA 19605
  • Alvarado, TX 76009
  • West Valley City, UT 84119
iDEAL, 14,000 lb FP14KAC-X Specification chart
