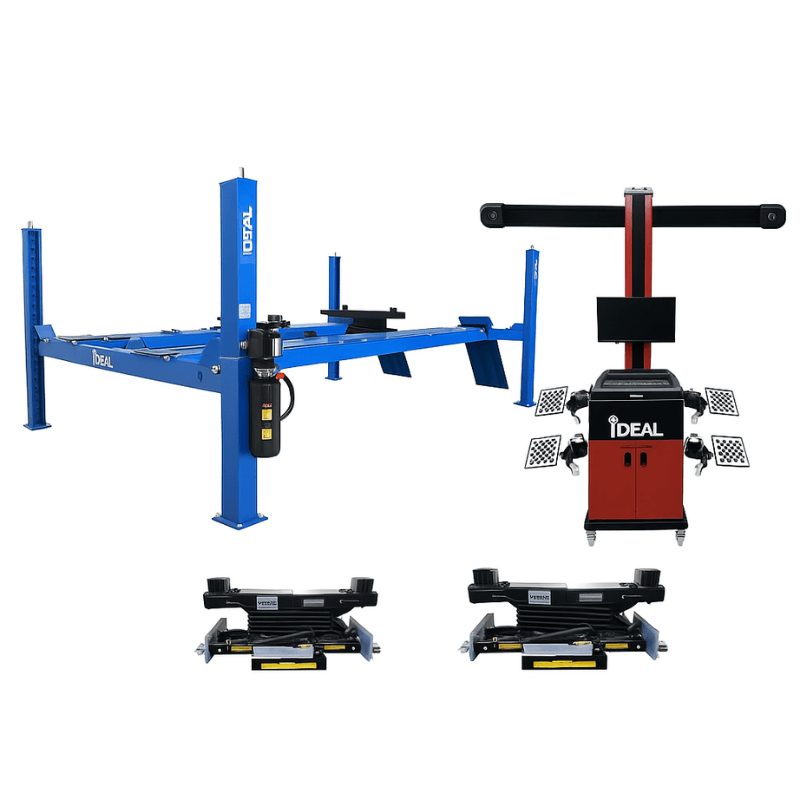

CK-FP14KACX-IWA-60-2000T-K 14,000 lb Alignment Lift Bundle by iDeal
Looking for a powerful, all-in-one alignment setup? Look no further! The iDEAL FP14KAC-X 14K-4 Post Alignment Lift is here to take your shop’s game to the next level. With a 14,000 lb capacity and a maximum wheelbase of 182.5 inches, this beast is perfect for everything from compact cars to hefty trucks. And with 18 locking height positions, a cable lift system, and 20-inch-wide runways, it delivers stability and flexibility every step. The best part? The “bolt-on” runway alignment kit makes setup a breeze.
Teamed up with the iDEAL 3D iPRO Wheel Aligner, you get alignment accuracy down to 0.01 degrees, thanks to high-resolution cameras that work like magic. The aligner’s portable design makes it easy to switch between bays, and its loaded database of vehicle specs means you’re ready for any job. Add the Tuxedo RAJ-7K-H 7K Rolling Air Jack into the mix, and you’ve got a dream team for lifting and adjusting with ease. This high-mount jack slides effortlessly along the rails, giving you smooth, on-rail adjustments with up to 7,000 lbs of lifting power. Drooling already? We understand.

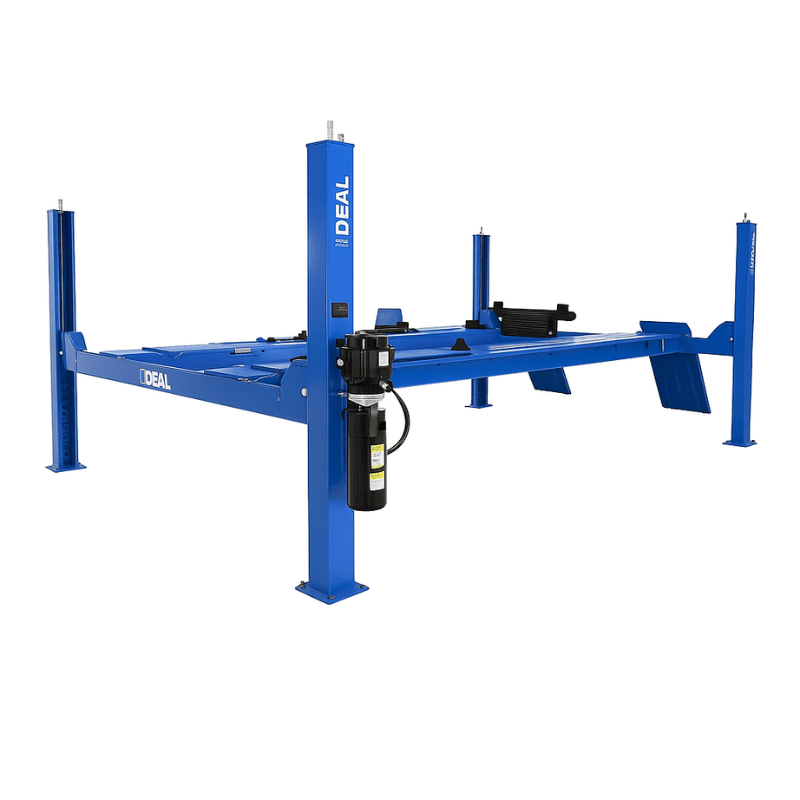

4 Post Alignment Lift FP14KAC-X Specification
- Lift model: FP14KAC-X
- Capacity: 14,000 lbs
- Overall length with ramp: 252-1/2"
- Overall width (without power unit): 131-7/8"
- Overall width (with power unit): 142"
- Overall height: 92-1/2"
- Max rise height: 79-1/2"
- Min height: 9-7/8"
- Width between posts: 116-1/4"
- Length between posts: 196"
- Width between runways: 43" or 46"
- Width of runways: 20"
- Max wheelbase: 182-1/2"
- Max alignment wheelbase (2-wheel): 166-3/4"
- Min / Max alignment wheelbase (4-wheel): 103" / 157"
- Ramp length: 44"
- Max clearance under runway: 69-5/8"
- Drive-thru clearance: 100"
- Base plate: 10-1/2" x 9"
- Power requirement: 220V - 20 Amp 1 PH
- Ship weight: 3,810 lbs
- Minimum bay size: 16' x 25'

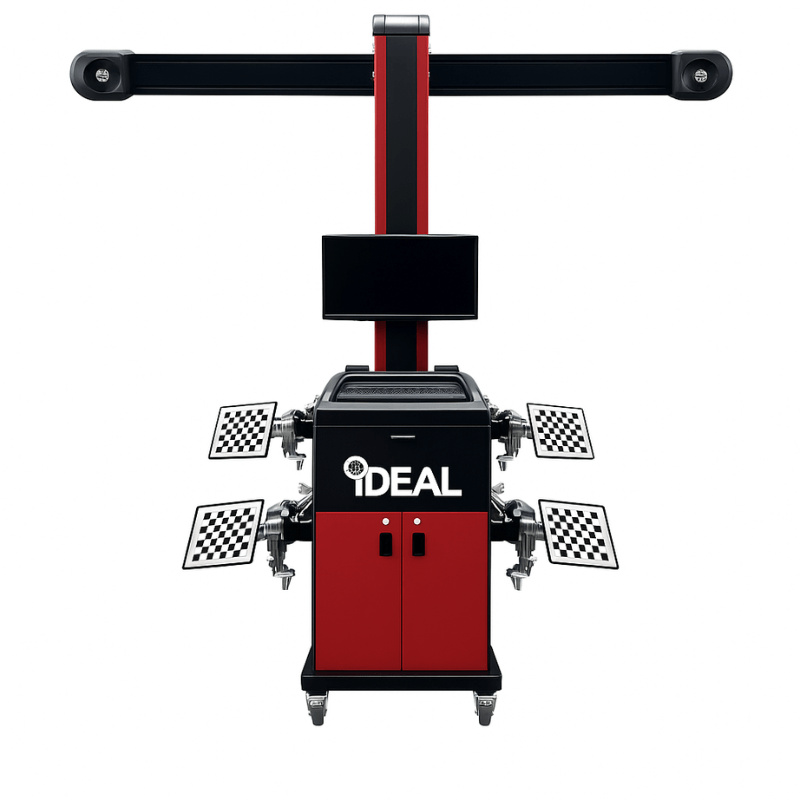

Wheel Aligner System IWA-60-2000T-K Specification
- Aligner Model: IWA-60-2000T-K
- Aligner Type: 3D 'Wide Scope' Imaging
- Operating System: Windows 10
- Software: Techno Vector 7
- Accuracy: 0.01 Degrees
- Certification: CE
- Target Size (4): Standard
- Cameras: 2 (High Resolution / Wide Scope)
- Lift Compatibility: 4 Post or Scissor Alignment Lift required
- Standard Wheel Clamps (4): 12" - 24"
- Toe Adjustment: Yes
- Raised Mode: Yes
- Live Caster: Yes
- Runout Compensation: Yes
- Wheel Alignment Mode: Yes
- Database Update: Yes
- Customer Manager: Yes
- Product ships from Montana & Includes training
- Lift Range Height: 35" to 67"
- Max Wheelbase: Up to 13' (157.5")
- Power Requirement: 120V - 15 Amp / 1 PH / 60 Hz
- Ship Weight: 500 lbs (2 pcs)

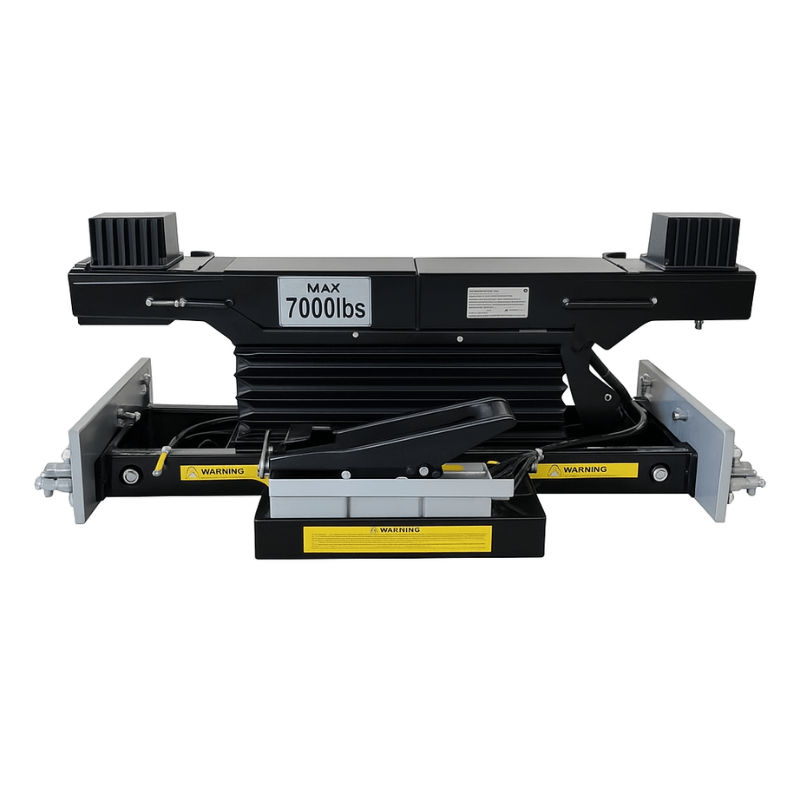

Rolling Air Jack (High Mount) RAJ-7K-H 7K Specifications:
- Capacity: 7,000 lbs
- Mount Type: High Mount, designed for low-position jack rails
- Roller Body Operation: Dual spring-loaded with roller bearing wheels for smooth on-rail rolling
- Support Arms: Telescoping and locking for stability and precise positioning
- Operation: Air/hydraulic for efficient and smooth lifting
- Locking Height Positions: Two positions for flexible lifting options
- Adapters: Includes rubber height adapters (set of 2)
FP14KAC-X 14K-4 Post Alignment Lift Special Features
- 14000 LBS Capacity
- High performance commercial alignment lift
- Durable, high quality cable lift system
- Extended rise height
- 'BOLT-ON' Runway alignment kit
- 166.7" Max alignment wheelbase (2 wheel)
- 157" Max alignment wheelbase (4 wheel)
- 182.5" Max service wheelbase
- 18 locking height positions
- Full width rear wheel slip plates
- Two turntable positions w/spacer covers
- 20" Wide runways
- Narrow & wide runway mounting positions
- Single point pneumatic lock release
- Fully adjustable lock stops for easy leveling
- Slack cable safety devices
- Self-chocking approach ramps w/ nylon rollers
- Wheel chocks (1PR)
- Durable powder coat finish
IWA-60-2000T-K Wheel Aligner System Special Features
- Wide scope, high-resolution 3D industrial-grade cameras
- Mobile design for multi-bay capability
- 0.01-degree alignment accuracy
- Durable powder-coated metal cabinet
- Wireless internet support
- Multiple 2D & 3D views with live readings screen
- Pre-installed 25+ years of specification database
- Integrated adjustment diagrams & help system
- Multi-functional LED guide on camera boom
- Compatible with multiple alignment lift styles
- Remote control capability via Android devices
- Includes storage cabinet, printer drawer, and brackets for storing wheel adapters and targets
- Equipped with 12"-24" wheel clamps and durable magnesium alloy targets with protective oil-resistant layer
- Accessories include steering wheel holder, brake depressor, and wheel chocks
- VIN code scanner capable (not included)
- Optional yearly specification and software updates
RAJ-7K-H 7K Rolling Air Jack Special Features
- High mount design for low jack rails
- Adjustable height roller body assemblies
- Dual spring-loaded roller body operation for stability
- Smooth on-rail rolling with roller bearing wheels
- Telescoping and locking support arms
- Air/hydraulic operation for reliable lifting
- Protective skirts for added durability
- Two locking height positions
- Rubber height adapters for customization and safety
iDeal CK-FP14KACX-IWA-60-2000T-K Documentation
FP14KAC-X 4 Post Lift Operations Manual
FP14KAC-X 4 Post Lift Product Brochure
iDeal IWA-60-2000T-K Wheel Aligner Product Manual
iDeal CK-FP14KA with CX-IWA-60-2000T-K and RAJ-7K-H Combo Optional Item Sold Separately
This Item has a Freight RATE SHIPPING FEE: $1999*
*Based on Nationwide Averages - Contact Us to see if we can ship for less.
