Katool KT-4H850, 4 Post Parking Lift 8,500lb

SKU KT-4H850-110v
by Katool
  • Katool Sale - Ends February 14, 2025
  • No Sales Tax - Except CA, FL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
Save $250.00
Original Price $2,499.00
Current Price $2,249.00
Free Warehouse Pickup Locations
Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)
*We will find nearest location
Voltage
Rolling Jack Option

Notify me when back in stock

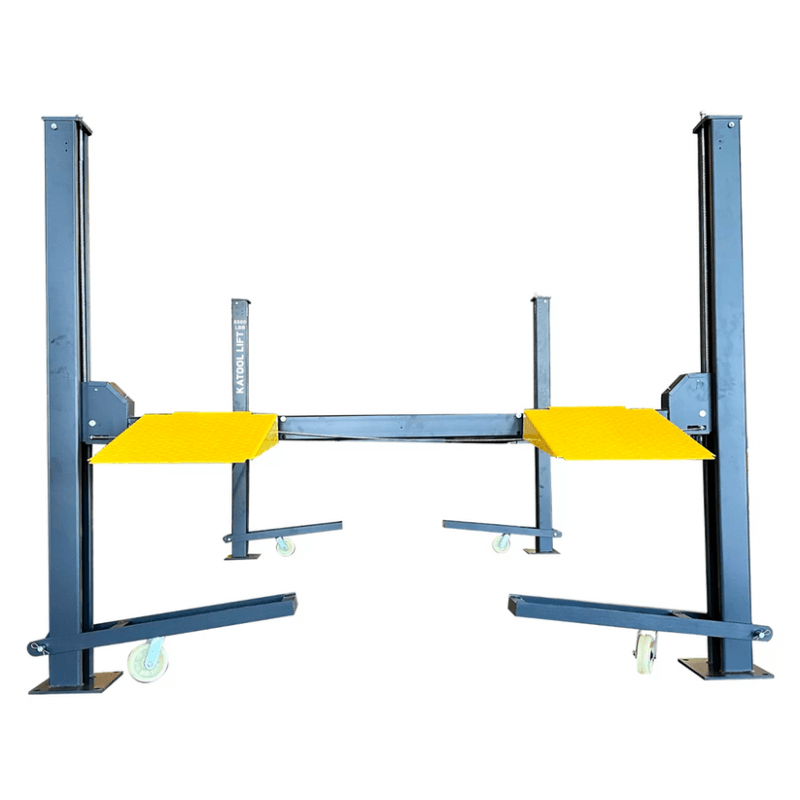

4H850 Parking Lift by Katool

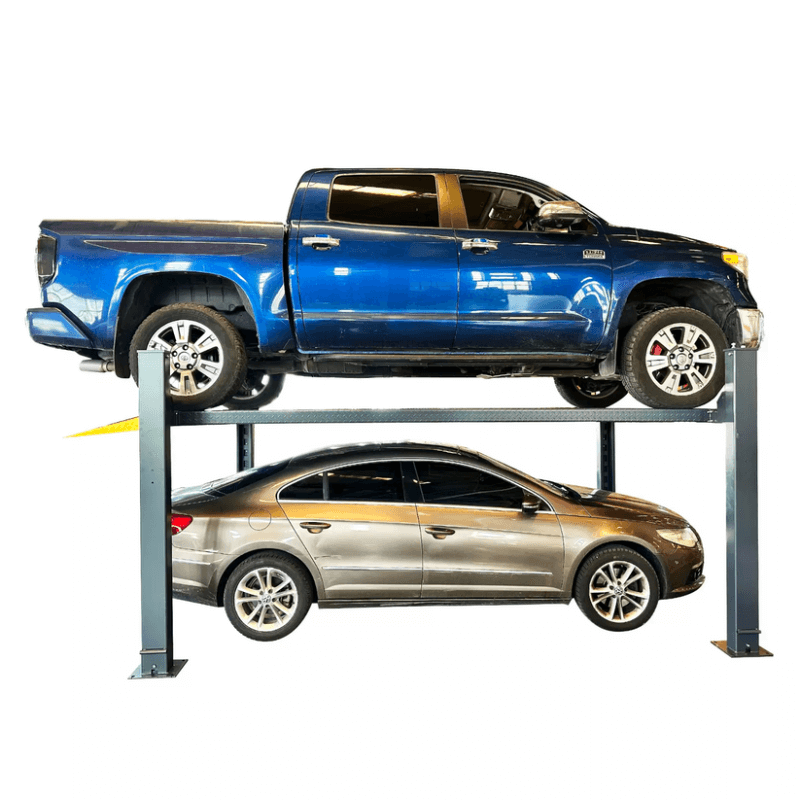

Limited garage space and a lack of a suitable lift make car storage and maintenance a constant challenge. The Katool KT-4H850 Parking Lift is your answer to a more organized and efficient garage. Featuring a remarkable 8,500-lb lifting capacity, this lift tackles most cars and even light trucks with ease. The KT-4H850 offers adjustable working heights up to 70.87 inches and a compact design that fits perfectly in virtually any garage.

This lift lets you maximize your limited space as it elevates cars for easy maintenance or storage. The KT-4H850 accommodates various car sizes and offers ample working room with its generous inside column space and low minimum runway height. Convenience? Say no more. It’s built-in with a choice of power options, a caster kit for easy movement, drip trays, and a jack tray. Safety is paramount with CE-approval, multiple locking devices, and a high-quality hydraulic system. Upgrade to the Katool KT-4H850 today and make your garage or workshop reach its potential!

Parking Lift 4H850 Specifications:

  • Lifting Capacity: 8,500 lb

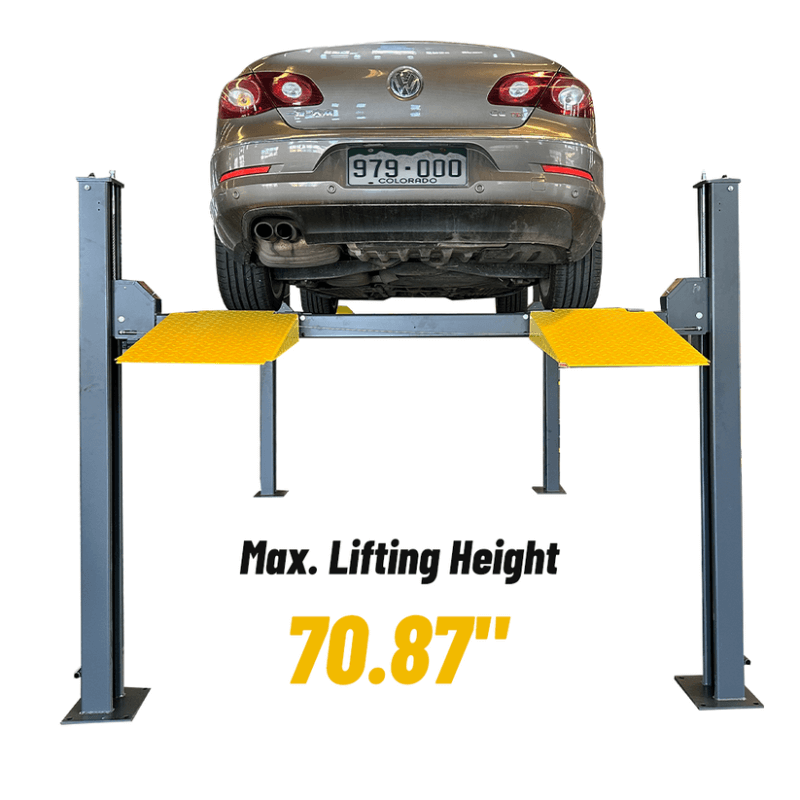

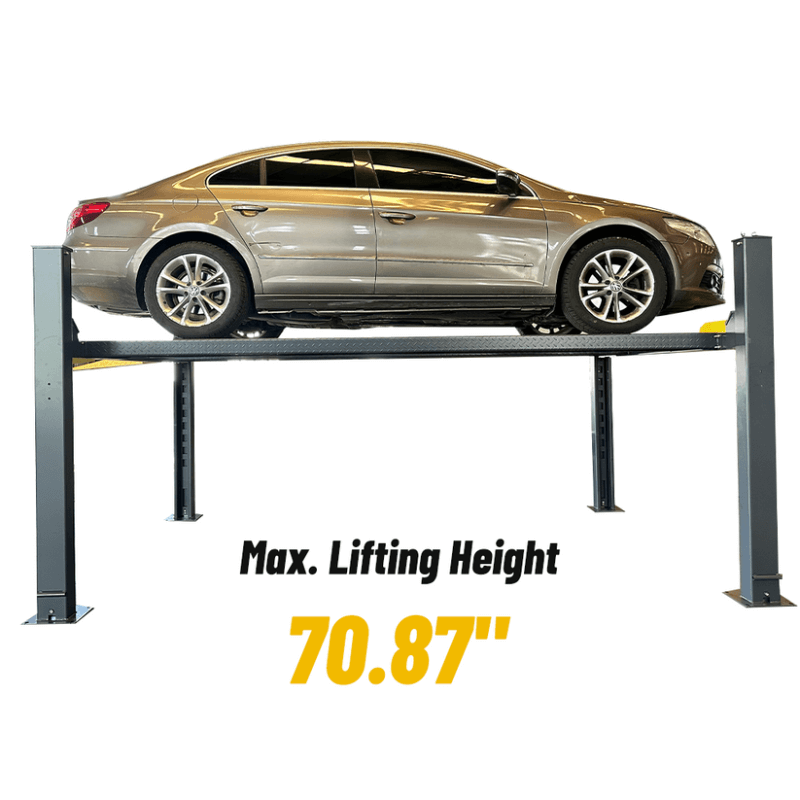

  • Max Lifting Height: 71"
  • Height of Posts: 84"
  • Overall Width:  108"
  • Length (w/ ramps): 200"
  • Length (w/o ramps): 172"
  • Inside Columns: 95"
  • Inside Runways: 37
  • Min. Runway Height: 4.76"
  • Lock Position: Every 4.7" (12 positions)

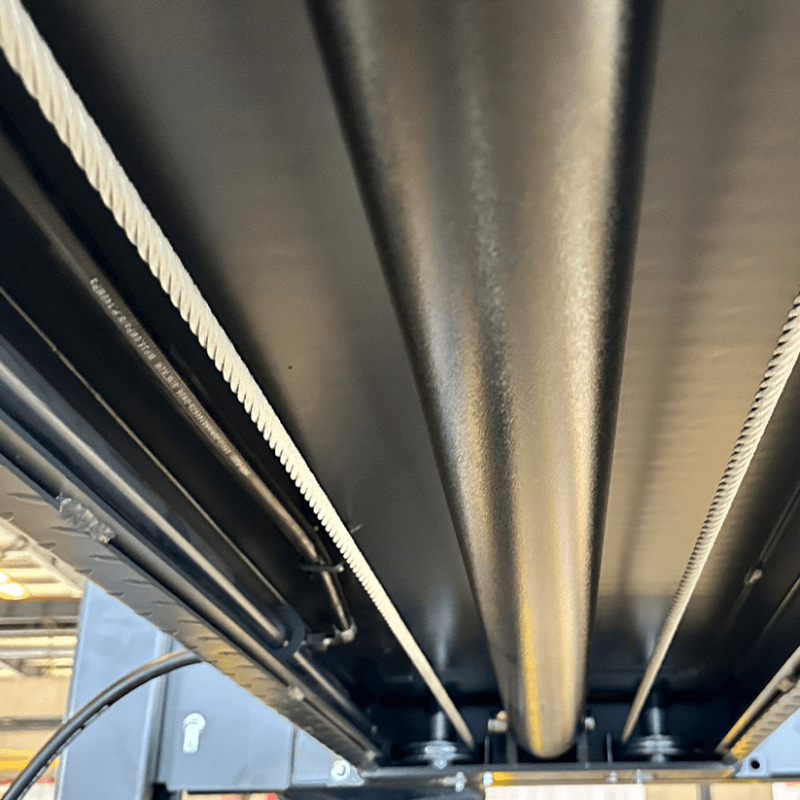

  • Cable Thickness: 3/8"
  • Power: 110V/60HZ/1PH* or 220V/60HZ/1PH
  • Shipping Dimensions: 167" L x 23" W x 30" H
  • Weight: 1,820lbs
  • Oil: AW-46 or AW-32 (colder climates)

KT-4H850 From Katool Special Features:

  • 8500lbs lifting capacity.
  • CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
  • Single Point Manual Safety Lock Release

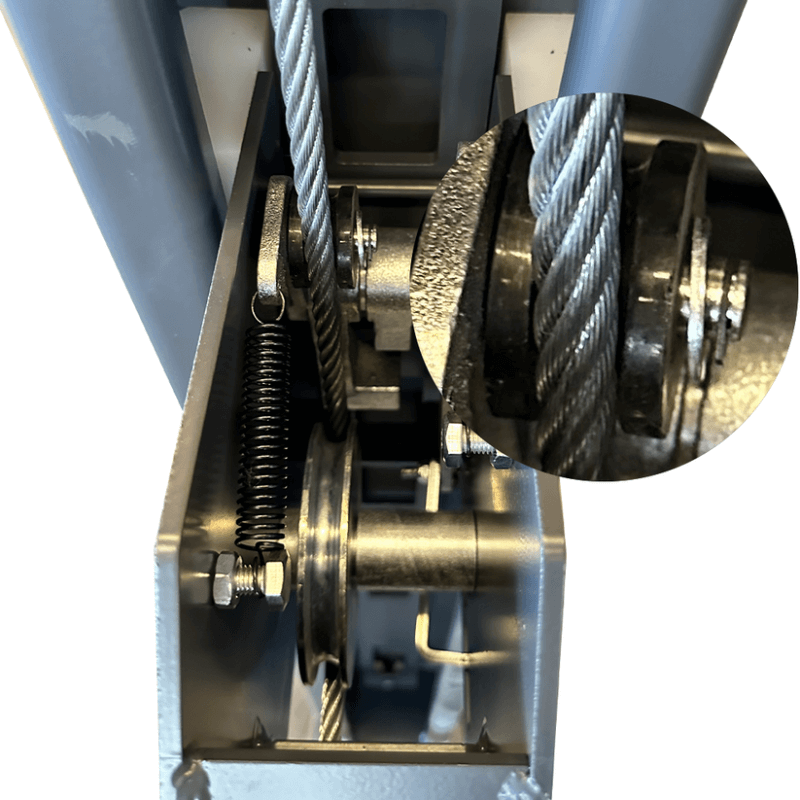

  • Four mechanical locking devices, a secondary lock system acts as a slack-cable device to engage in the unlikely event of cable failure.
  • Power side column can be installed at both sides, front or rear.
  • Non-skid diamond platforms and adjustable safety lock ladders.

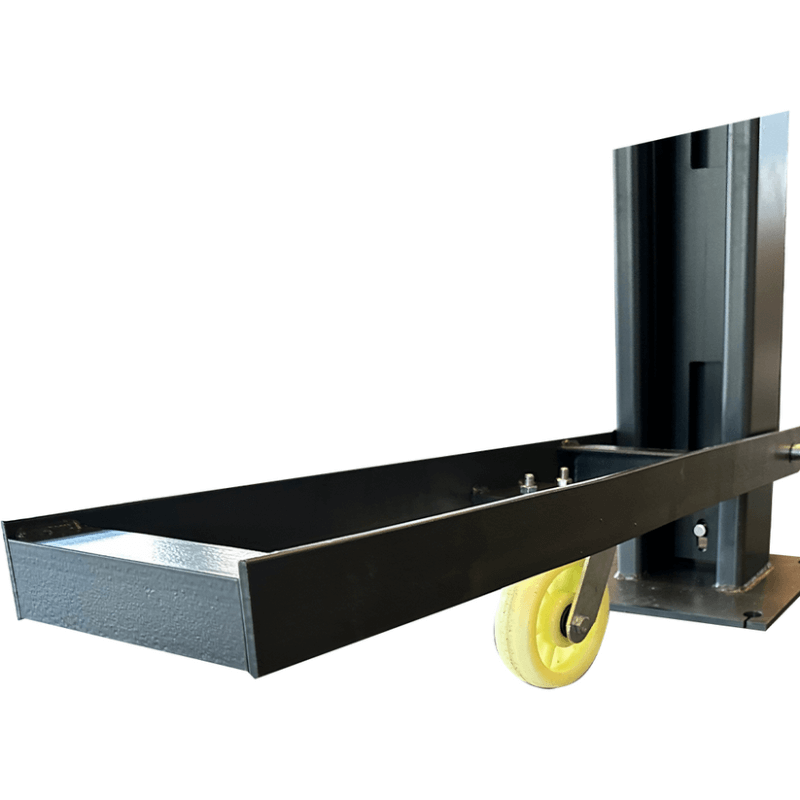

  • Comes with a caster kit for moving the lift around.
  • Comes with two drip trays and a jack tray.

*Must be wired to a circuit with 10-gage wire and a 30-amp breaker

Reasons to Buy the KT-4H850 from Katool

Includes the following items

(1) Caster Kit for moving the lift around

(2) Drip Trays

(1) Jack Tray

Variable Motor Mount Location

Motor column can be installed front or rear, at both sides.

CE Approved and Certified

This product has been assessed by the manufacturer and deemed to meet EU safety, health and environmental protection requirements

Locking System

Four mechanical locking devices, each with primary and secondary safety locks, provide a manual safety lock release mechanism.

Katool Warranty

One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.

Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.

    Katool 4H850 Documentation

    Katool 8500 4-Post Product Manual     Katool 4H850 Parking Lift Product Manual

     4H850 Parking Lift Optional Items (sold separately)

    *Prior to purchasing and installing, customers must confirm the concrete thickness and strength to ensure safety. The concrete must be at least 3.93" thick and have a 3000 PSI rating in order to properly install this lift and avoid potential injury or death.

    This Item has a FLAT RATE SHIPPING FEE: $699

    Warehouse Pickup locations (free shipping)

    • City of Industry, CA 91789
    • Brookshire, TX 77423
    • Houston, TX 77064
    • Pooler, GA 31322
    • Jersey City, NJ 07305
    • Bolingbrook, IL 60440

    Pallet Dimensions:

    • Lift: 167" L x 23"W x 30"H 1,820lbs
    4H850 Parking Lift by Katool - Top Diagram View
    4H850 Parking Lift by Katool - Size Diagram View
