Katool KT-T850 Tilt-Arm Wheel Clamp Tire Changer Machine

SKU KT-T850
by Katool
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$2,500.00
Free Warehouse Pickup Locations
Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)
*We will find nearest location

Notify me when back in stock

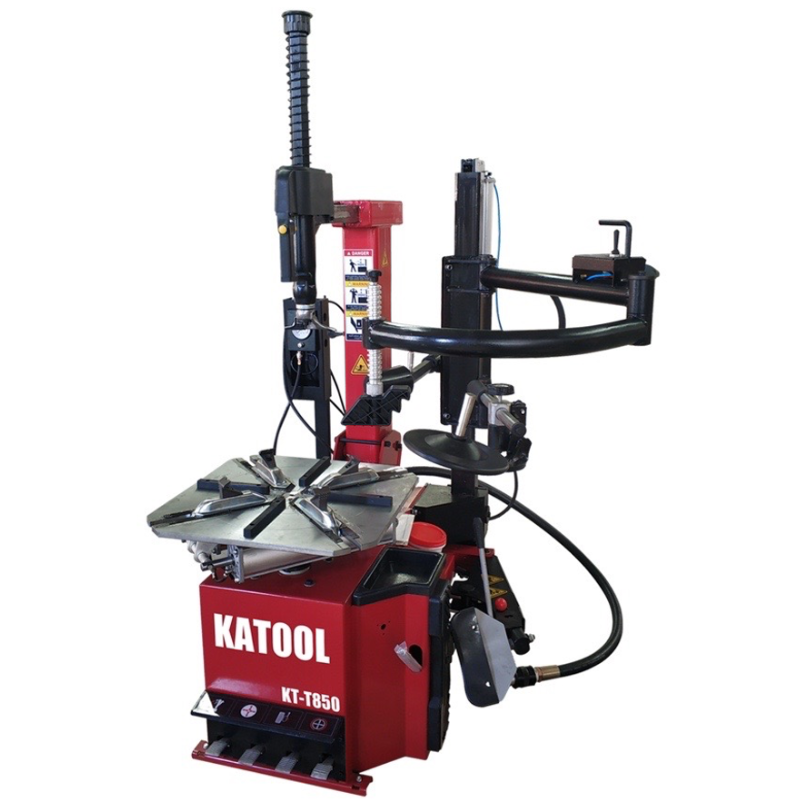

T850 Tire Changer by Katool

Built for a wide range of tires, the Katool KT-T850 Tilt-Arm Tire Changer handles diameters up to 47 inches and widths of 15 inches. Its expansive clamping system tackles both outside (14"-26") and inside (16"-28") rims, ensuring compatibility with various vehicles. The powerful 2.0HP motor and swift rotation speed of 6.8 rpm guarantee efficient tire changes, while the 0.8-1.0Mpa air pressure range optimizes performance. Weighing a substantial 750lbs, this machine provides unwavering stability – perfect for busy shops demanding reliability and speed.

Packed with user-friendly features, the KT-T850 prioritizes both efficiency and safety. The durable alloy steel jaw and stainless steel mounting head protect rims from damage, while the robust motor ensures long-lasting performance. A user-friendly pedal control system simplifies operation, and the reliable lubricator minimizes maintenance hassles. It boasts exceptional power and efficiency. For comprehensive tire service, the machine comes equipped with assist arms, a bead blast seater, and a durable bead breaker cylinder.

Tire Changer T850 Specifications:

  • Max Wheel Diameter: 47"
  • Max Wheel Width: 15"
  • Outside Clamp: 14"-26"
  • Inside Clamp: 16"-28"
  • Power Supply: 110V 1PH
  • Motor Power: 2.0HP/1.5KW
  • Rotation Speed: 6.8r/min
  • Air Pressure: 0.8-1.0Mpa(116-145psi)
  • Net weight: 340KG / 750lbs

KT-T850 from Katool Special Features:

  • Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the inside of the jaw to have more tenacity and the outside harder, and use the jaw cover for protecting the rim
  • The mounting head is made by stainless steel with solution treatment and interface polishing, the shape conforms to the engineering mechanics and accompanied by plastic cover for protecting the rim
  • The high-quality spade cover effectively prevents the rim from being damaged
  • Pull type pedal control system, easy for tire changing and maintenance
  • Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer service life
  • The high-quality lubricator provides reliable oil-drop and effectively filters compressed air so that the service life of the pneumatic system is extended
  • For North America region it supports 110V/1ph/2.0HP motor for strongest power and better efficiency
  • Equipped with assist arms
  • Bead blast seater
  • 200mm aluminum bead breaker cylinder
  • Katool Warranty:
    One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
  • Purchase as a combo with KT-B700 Combo.
  • Buy as a Combo KT-4H150 + KT-T850 and KT-B750
  • Buy as a Combo KT-4H110 + KT-T850 and KT-B750
  • Buy as a Combo KT-4H850 + KT-T850 and KT-B750
  • Buy as a Combo KT-AS110D + KT-T850 and KT-B750
  • Buy as a Combo KT-M110 + KT-T850 and KT-B750
  • Buy as a combo KT-M120 + KT-T850 and KT-B750

T850 Tire Changer Optional Items (sold separately):
