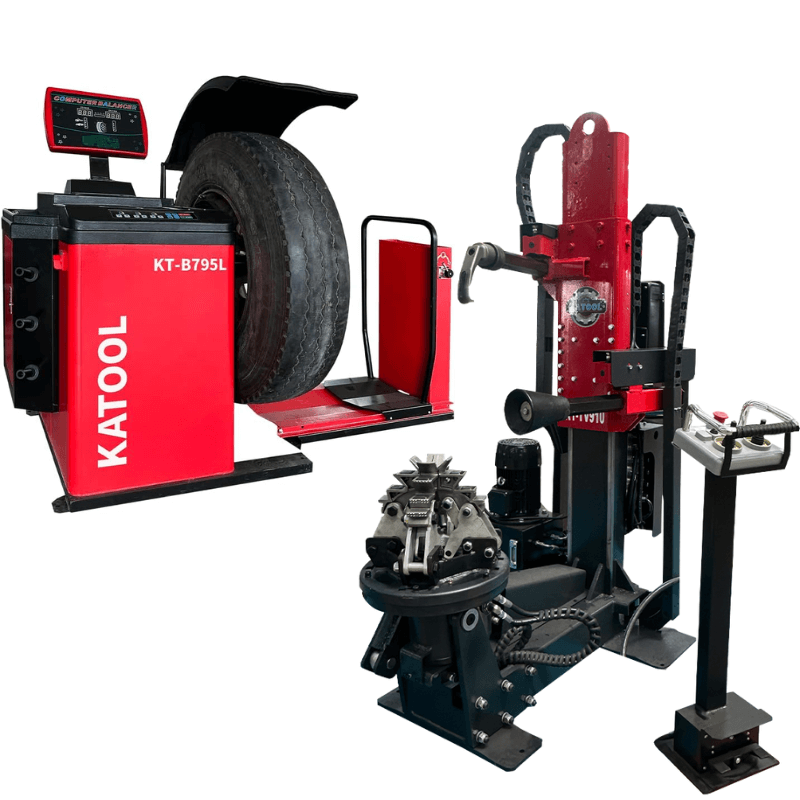

Katool KT-TV910 and KT-B795L Tire Changer and Wheel Balancer Combo

KT-TV910 Tire Changing Machine and KT-B795 Wheel Balancer Combo by Katool

The Katool KT-TV910 Tire Changer and KT-B795 Wheel Balancer Combo is a professional-grade solution engineered specifically for heavy-duty truck, bus, and industrial tire service. Designed to handle large and demanding wheels with accuracy and efficiency, this combo delivers dependable performance for commercial tire shops, fleet service centers, and industrial workshops.

The KT-TV910 Hydraulic Tire Changer is built to accommodate a wide rim range from 14" to 42", supporting wheels weighing up to 3,306 lbs. With a powerful 4.0 HP electro-hydraulic motor, the machine provides smooth, controlled operation for mounting and demounting even the toughest tires. Multifunctional controls, ergonomic pedal placement, and low-voltage electrical components ensure operator safety, precision, and ease of use during extended work cycles.

Paired with the tire changer is the KT-B795 Wheel Balancer, designed for accurate balancing of heavy truck wheels. Featuring laser-assisted weight positioning, fast 8-second measurement time, and low operating noise, the balancer improves workflow efficiency while maintaining high accuracy. Together, these machines form a complete, high-capacity tire service solution backed by Katool’s 1-year warranty.

KT-TV910 Tire Changer Specifications

• Outer Rim Capacity: 14" – 42"

• Maximum Wheel Diameter: 55"

• Maximum Wheel Width: 31"

• Maximum Working Pressure: ≤ 18,855 PSI

• Power Supply: 220V, Single Phase, 60 Hz

• Hydraulic Motor Output: 4.0 HP

• Maximum Hydraulic Oil Flow: 83.2 GPM

• Maximum Tire Weight Capacity: 3,306 lbs

• Net Weight: 1,256 lbs

• Shipping Weight: 1,388 lbs

• Shipping Dimensions: 51" L × 43" W × 72" H

• Noise Level: < 70 dB(A)

KT-B795L Wheel Balancer Specifications

• Steel Cycle Width: 1.5" – 20"

• Diameter of Steel Cycle: 13" – 24"

• Maximum Wheel Diameter: 51.18"

• Maximum Wheel Weight: 150 kg

• Operating Temperature Range: 0°C to -45°C

• Power Supply: 220V

• Operating Noise: < 65 dB

• Measurement Time: 8 seconds

• Occupied Floor Space: Approx. 98" – 118"

• Net Weight: 529 lbs

KT-TV910 + KT-B795 Combo Key Features

KT-TV910 Tire Changer

• Electro-hydraulic design for truck, bus, tractor, and earth-moving vehicle tires

• Wide external clamping range from 14" to 42"

• Multifunctional controls allow safe operation from multiple positions

• Bead breaker disk and beak system designed for strong bead engagement

• Ergonomically positioned foot pedals and helper controls

• Low-voltage electrical system for enhanced operator safety

• Well-lit display for clear visibility in bright work environments

• Includes cone sets for passenger, light truck, truck, and bus wheels

• Heavy-duty steel wing nut for secure wheel mounting

• 220V single-phase motor

• Protective safety hood

KT-B795 Wheel Balancer

• Designed specifically for heavy-duty truck wheel balancing

• Laser positioning system for precise weight placement

• Fast balancing cycle with 8-second measurement time

• Quiet operation with powerful motor performance

• Suitable for high-volume tire shops and service departments

• Updated model replacing the B790 (as of August 2024)

Katool Warranty

• One-Year (12-Month) Warranty

• Covers all parts and manufacturing defects

• Provided at no cost on all Katool equipment
