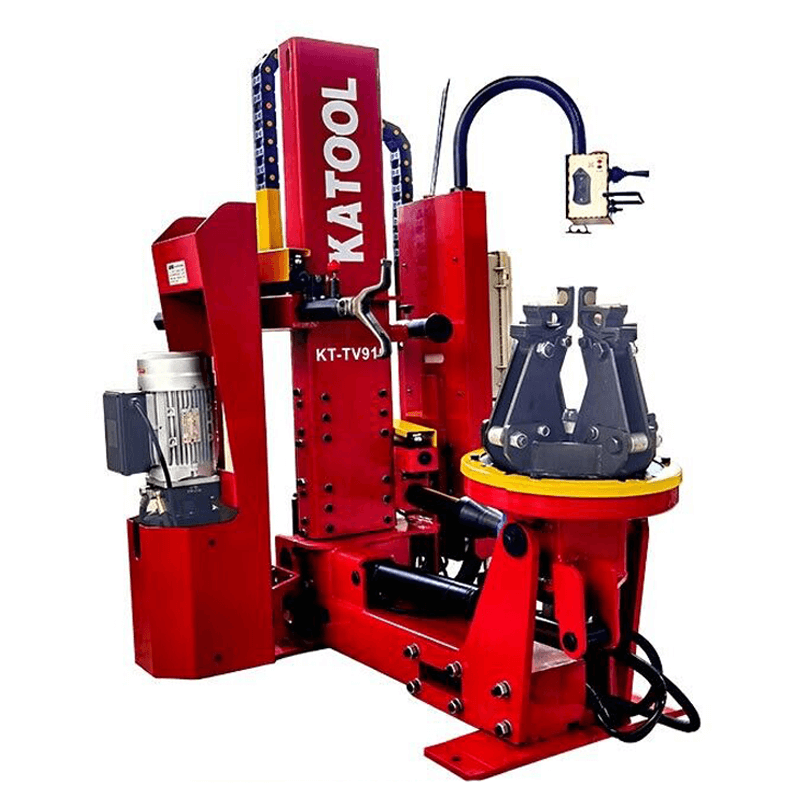

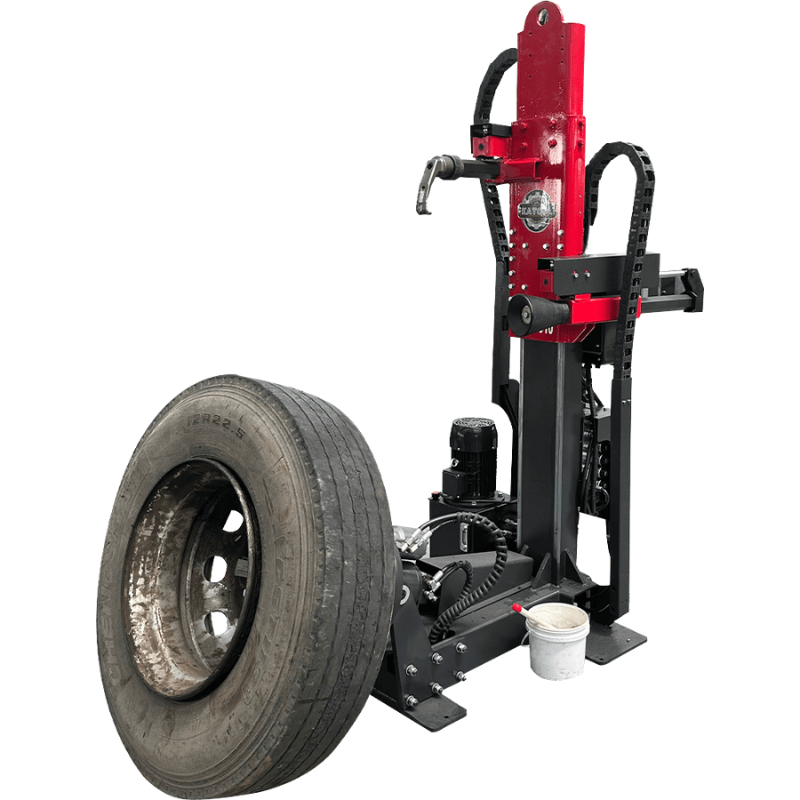

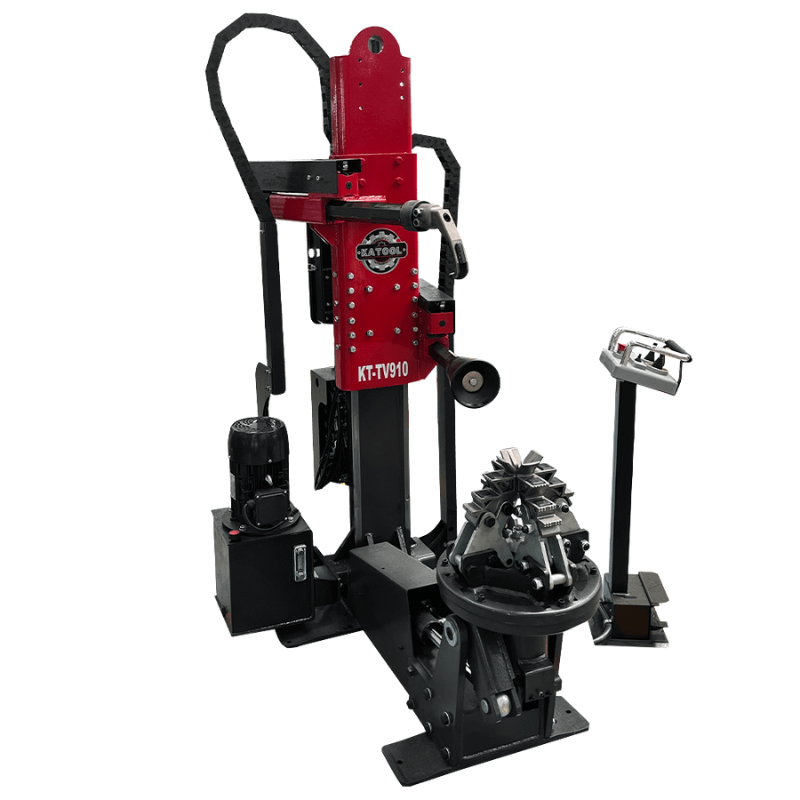

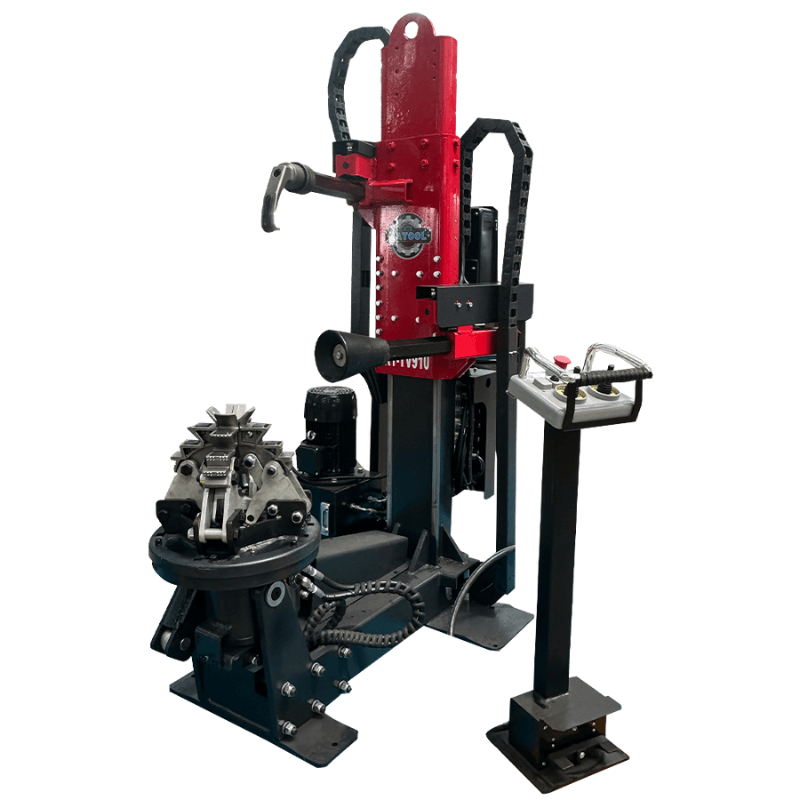

Katool KT-TV910 Hydraulic Truck Tire Changer

Katool TV910 Hydraulic Truck Tire Changer – Heavy-Duty Electro-Hydraulic Tire Changing Machine

The Katool TV910 Hydraulic Truck Tire Changer is a heavy-duty, electro-hydraulic solution designed for professional tire service operations handling truck, bus, tractor, and industrial vehicle tires. Built to manage demanding workloads, the TV910 delivers consistent power, controlled operation, and reliable performance for large-diameter and high-weight wheels.

With an outer rim clamping capacity from 14" to 42" and support for wheels up to 55" in diameter, this machine offers exceptional versatility across a wide range of commercial tire applications. Its 4.0 HP hydraulic motor, combined with high working pressure and oil flow, ensures smooth bead breaking and efficient mounting and demounting, even on reinforced or heavy tires.

Designed with operator safety and efficiency in mind, the TV910 features multifunctional controls, ergonomically positioned pedals, and a low-voltage electrical system. Despite its industrial strength, the machine operates at a low noise level, making it well-suited for busy workshops and service centers that require both power and comfort.

Tire Changer TV910 Specification:

• Outer Rim Capacity: 14" – 42"

• Maximum Wheel Diameter: 55"

• Maximum Wheel Width: 31"

• Maximum Working Pressure: ≤ 18,855 PSI

• Power Supply: 220V, Single Phase, 60 Hz

• Hydraulic Motor Output: 4.0 HP

• Maximum Hydraulic Oil Flow: 83.2 GPM

• Maximum Tire Weight Capacity: 3,306 lbs

• Net Weight: 1,256 lbs

• Shipping Weight: 1,388 lbs

• Shipping Dimensions: 51" L × 43" W × 72" H

• Noise Level: < 70 dB(A)

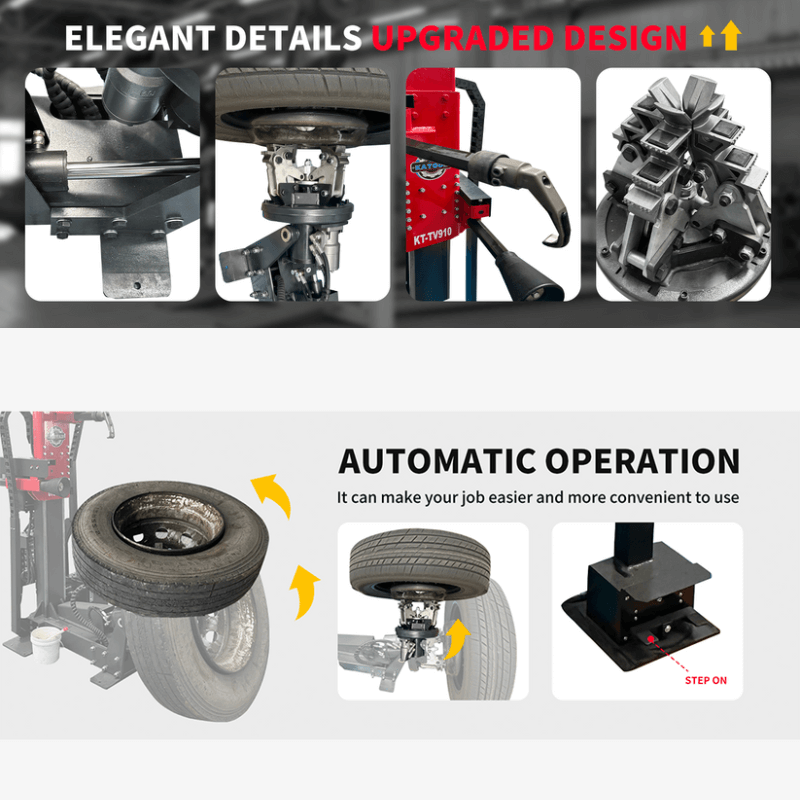

KT-TV910 From Katool Special Features:

• Electro-hydraulic design for truck, bus, tractor, and earth-moving vehicle tires

• Wide external clamping range from 14" to 42"

• Multifunctional controls allow safe operation from multiple positions

• Bead breaker disk and beak system designed for strong bead engagement

• Ergonomically positioned foot pedals and helper controls

• Low-voltage electrical system for enhanced operator safety

• Well-lit display for clear visibility in bright work environments

• Includes cone sets for passenger, light truck, truck, and bus wheels

• Heavy-duty steel wing nut for secure wheel mounting

• 220V single-phase motor

• Protective safety hood

• Katool Warranty:
  • One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.

• Purchase as a Combo KT-TV910 + KT-B795

TV910 Tire Changer Optional Items (sold separately):

• KT-B795 Heavy Duty Truck Wheel Balancer
