Titan ROT4500-G2 4,500lb Automotive Rotisserie - Gen 2

SKU TTN*ROT-4500-G2
by Titan
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$1,500.00
Free Warehouse Pickup Locations
Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)
*We will find nearest location

Notify me when back in stock

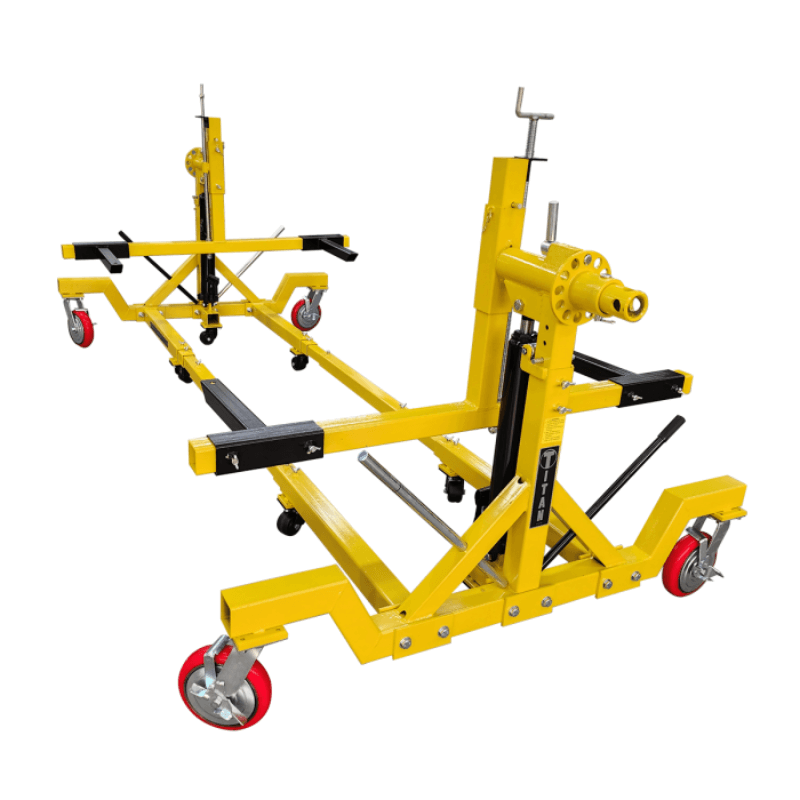

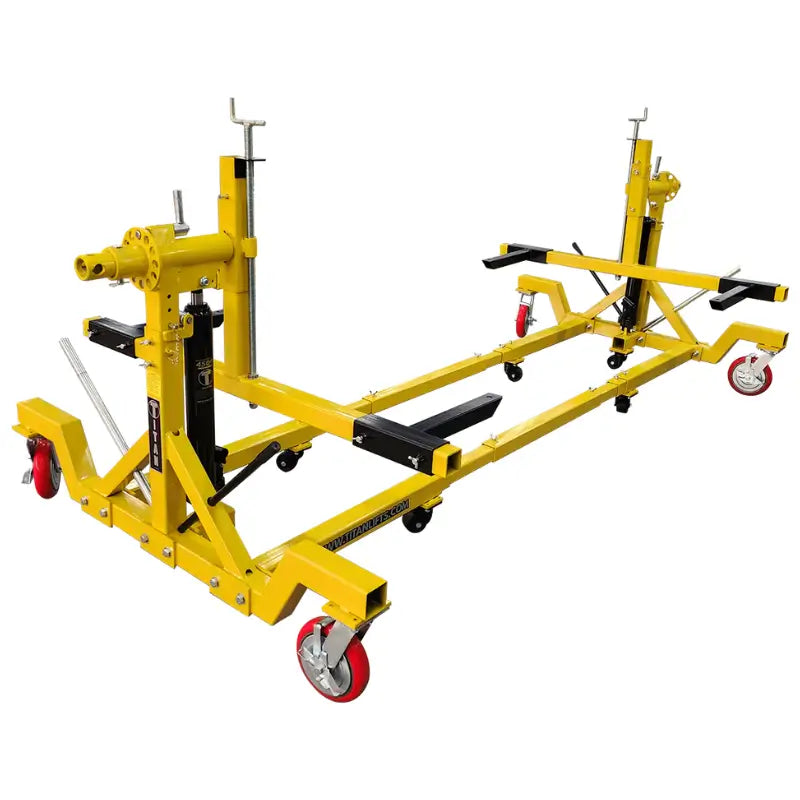

ROT4500-G2 4,500lb Automotive Rotisserie - Gen 2 by Titan

Restoring vehicles can be challenging when your rotisserie doesn’t provide the stability or versatility you need. Poor load support and clumsy handling make it difficult to access critical areas of the chassis, slowing down your workflow and compromising results. Without the right tool, even simple tasks become cumbersome, risking uneven lifting, damage to the frame, or even injuries. Not to mention, inferior rotisseries often wear out quickly, leaving you stuck with a costly replacement or repair sooner than expected.

The Titan ROT-4500-G2 Automotive Rotisserie Gen 2 solves these problems with its reinforced dual connecting rods, ensuring unmatched stability and smooth operation for up to 4,500 lbs. Equipped with dual hydraulic cylinders, four 8" locking casters, and a durable powder-coated finish, it’s built to withstand heavy use while keeping your workspace safe and efficient. Add the optional leg kit for enhanced support during full 360-degree rotations, and you’ve got a robust, long-lasting solution for every restoration challenge.

Automotive Rotisserie ROT4500-G2 Specifications

  • Weight Capacity: 4,500 lb
  • Max Height: 49″
  • Min Height: 21″
  • Max Length: 260″
  • Min Length: 121″
  • Width: 58.5″
  • Width with Leg Kit: 81″
  • Max Length Between Support Arms: 238″
  • Min Length Between Support Arms: 99″
  • Max Project Width (dependent on balance point): 80″ – 88″
  • Hydraulic Cylinder Travel: 17″
  • Acme Screw Travel: 8.5″
  • Height (Ground to Rotating Axis): 37″ – 54″
  • Shipping Dimensions: 64″ x 41″ x 20″
  • Shipping Weight: 615 lb

ROT4500-G2 4,500lb Automotive Rotisserie Special Features

  • Reinforced dual connecting rods for improved load stability and support.
  • Dual hydraulic cylinders for effortless lifting and precise adjustments.
  • Adjustable cradles to accommodate various chassis configurations.
  • Four 8" locking casters for smooth mobility without floor damage.
  • Optional leg kit for enhanced stability during 360-degree chassis rotation.
  • Durable powder-coated finish for corrosion and wear resistance.
  • Ideal for both professional and personal restoration projects.
  • Compact storage and easy assembly for convenience.
  • Available Accessories - Sold Separately
    • Leaf Spring Adapter Set
    • Mounting Plate Set
    • Unibody Adapter Set
    • Valance Adapter Set
    • Stabilizer Leg Kit

Titan ROT4500-G2 Document

No Documents

This Item has a FLAT RATE SHIPPING FEE: $599*

*Based on Nationwide Averages - Contact us to see if we can ship for less.

Warehouse Pickup locations (No shipping charge):

  • Greenwood, IN 46143
