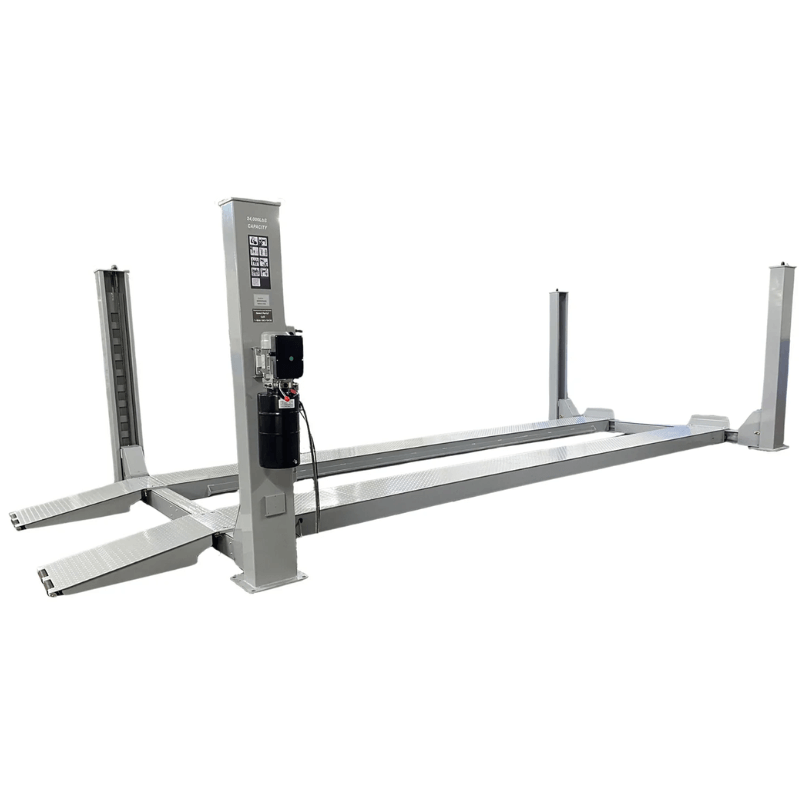

NTR-32 32,000 lb Four Post Auto Lift by Triumph Side View

Triumph NTR-32 32,000lb 4 Post Car Lift

SKU NTR-32
by Triumph
  • ✓ No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • ✓ Ships in 3-5 Business Days
  • ✓ Free Warehouse Pickup Options
  • ✓ Better Business Bureau (BBB) Accredited
Save $997.00
$19,021.00
$18,024.00

Delivery Options

Notify me when back in stock

NTR-32 32,000 lb 4 Post Car Lift by Triumph

When you’re lifting giants, you need a true titan. Meet the NTR-32, Triumph’s ultimate heavy-duty four-post lift, designed to hoist an incredible 32,000 lbs. Whether it’s a bus, a commercial truck, or a colossal fleet vehicle, this lift is ready for the job. With a maximum lifting height of 70.8 inches and 9 lock positions, it offers flexibility and safety for handling vehicles of all shapes and sizes. The wide, adjustable runways (spanning 48.75 to 52.7 inches) ensure a secure grip on even the broadest of vehicles, giving technicians plenty of room to work with confidence.

Built like a fortress, the NTR-32 features a rugged steel frame and precision-engineered components, ensuring superior stability under heavy loads. The 220V single-phase power system delivers smooth, reliable performance, while the expansive 295.2-inch runway length accommodates oversized vehicles effortlessly. If you’re looking for a lift that laughs in the face of heavyweight challenges, the NTR-32 is your go-to solution for serious automotive shops and industrial operations.

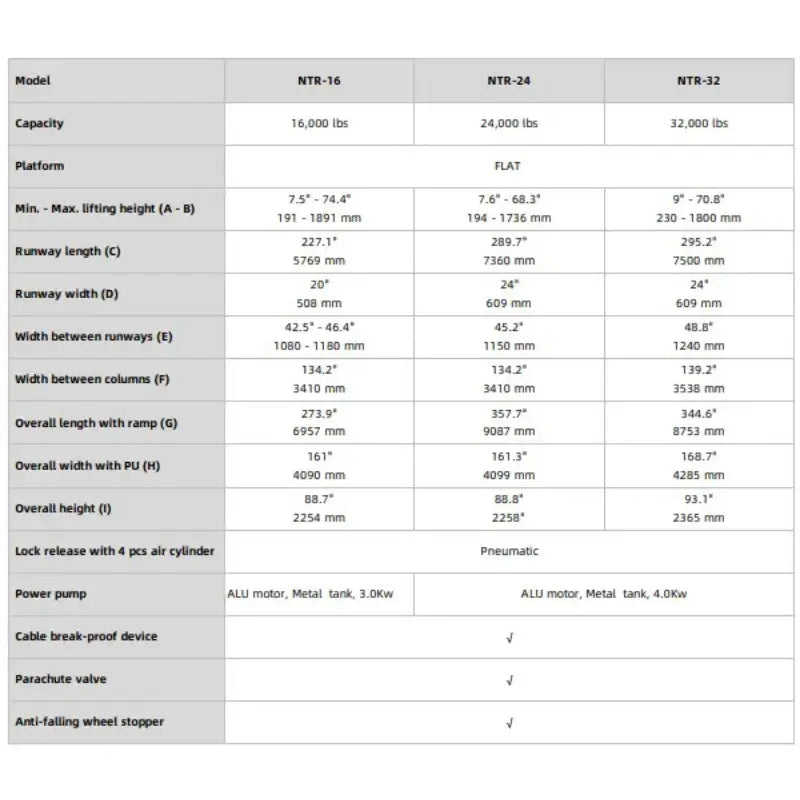

4 Post Lift NTR-32 Specifications

  • Lifting Capacity: 32,000 lbs
  • Overall Height: 93.1"
  • Overall Length Without Ramps: 305.5"
  • Overall Length With Ramps: 344.6"
  • Overall Width: 168.7"
  • Minimum Runway Height: 9"
  • Maximum Lifting Height: 70.8"
  • Runway Length: 295.2"
  • Runway Width: 24"
  • Width Between Runways: 48.75" - 52.7"
  • Width Between Columns: 139.2"
  • Number of Lock Positions: 9
  • Electrical Requirement: 220V Single Phase
  • Shipping Weight: 9,037 lbs
  • Shipping Dimensions: 301x30x43 inches

NTR-32 32,000 lb 4 Post Car Lift Special Features:

  • Industry-leading 32,000 lbs lifting capacity for heavy-duty vehicles
  • 9 lock positions for secure and adjustable lifting heights
  • Wide 24" runways to support a variety of large and oversized vehicles
  • Adjustable spacing between runways for flexibility in vehicle accommodation
  • Durable, high-strength steel construction for long-lasting performance
  • Designed for servicing buses, commercial trucks, and large fleet vehicles
  • Reliable 220V single-phase electrical system for efficient and consistent operation
  • Spacious and robust design ensures ample room for technicians to work safely and effectively
  • Precision-engineered for smooth lifting, superior stability, and operator confidence
  • Certification: CE Certified and built in factories with ISO9001 Quality Certification
  • Buy as a Combo Triumph NTR-32 + RJ-15000 Combo

Triumph NTR-32 Documentation

No documents

Triumph NTR-32 Optional Item (Sold Separately)

This Item has a FLAT RATE SHIPPING FEE: $899

Warehouse Pickup locations (No shipping charge):

  • Columbus, OH
  • Fort Worth, TX
  • North Las Vegas, NV

*An additional $200 freight fee is required for locations in Northern CA, OR, WA, SD, ND, MT, WY. After initial purchase, a separate link will be sent to complete your transaction.

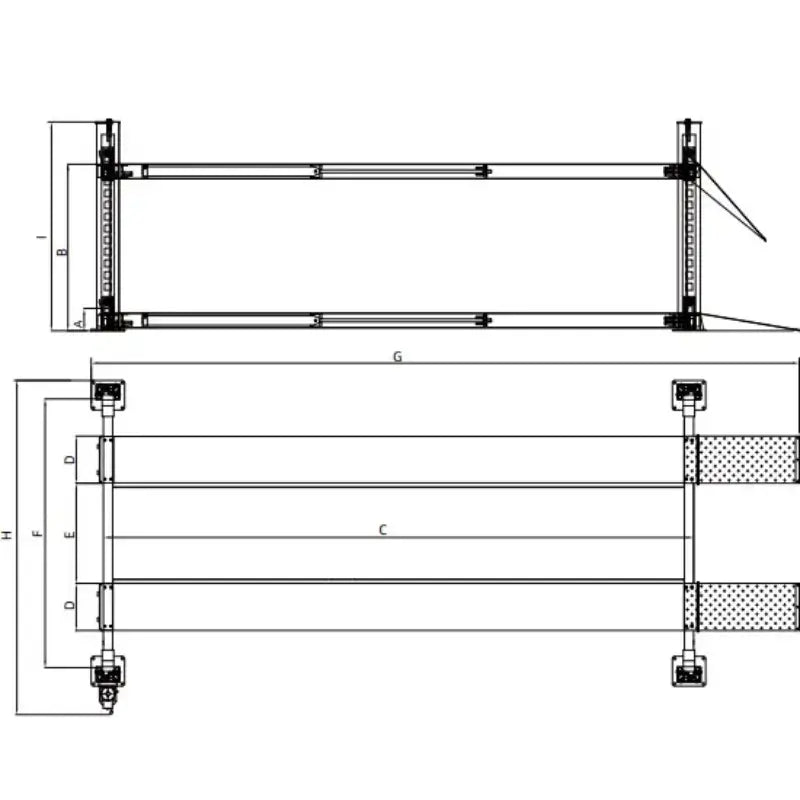

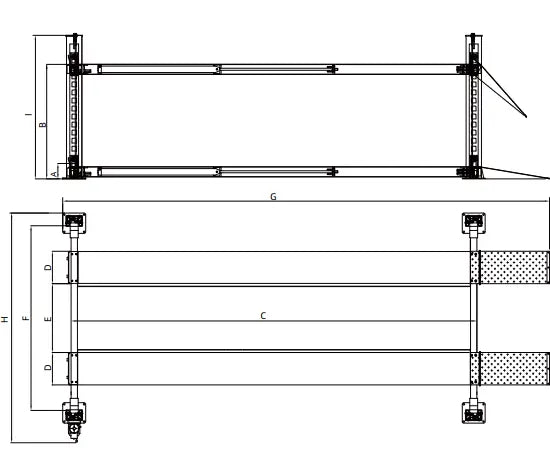

Triumph NTR-32 32,000 lb Four Post Auto Lift Diagram



Triumph NTR-32 32,000 lb Four Post Auto Lift Diagram-1
