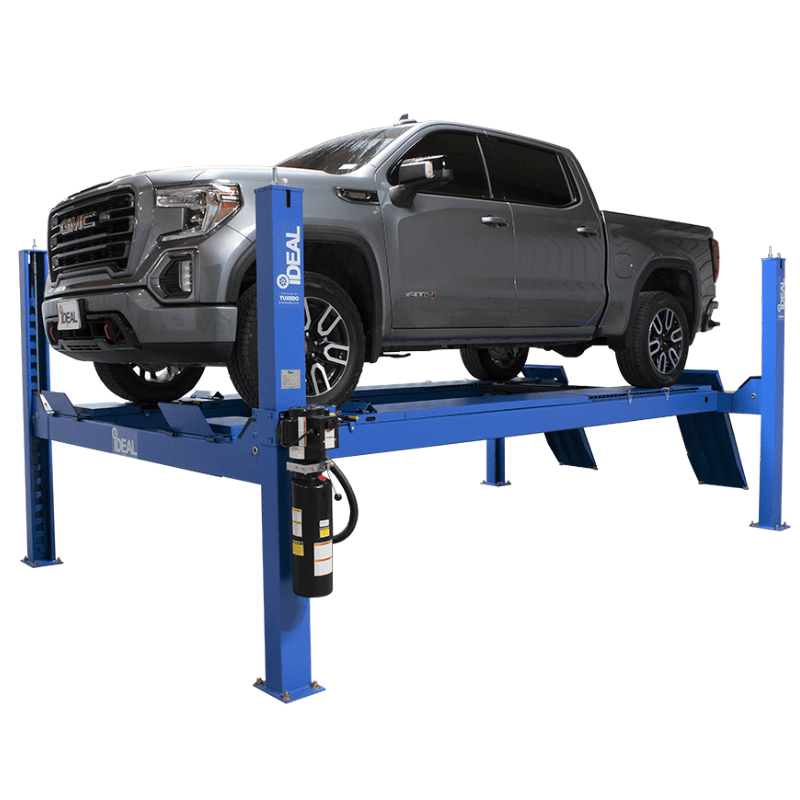

FP14KA 4 Post Alignment Lift by Tuxedo
Introducing the FP14KA, a heavy-duty lift designed for efficiency and versatility in your garage or workshop. With a robust 14,000 lbs capacity, it effortlessly lifts various vehicles. Its 67" lifting height ensures easy access to undercarriage components, while its 108" width between posts offers stability. The adjustable width between runways accommodates different vehicle sizes, ranging from 0" to 41". With a column height of 85" and a maximum wheelbase of 167" for two-wheel vehicles and 152" for four-wheel vehicles, it suits a wide range of vehicles. The 30" ramp allows smooth entry and exit, and the lift's 60" clearance under the track provides ample space for maintenance. Operating on a 220V, 20 Amp, 1PH power supply, it ensures reliable performance. Despite its strength, its ship weight of 3,240 lbs makes installation and relocation easy. Whether for professional use or home projects, the FP14KA is your reliable lifting solution.
FP14KA, a heavy-duty lift designed to simplify your garage or workshop tasks. With a sturdy 14,000 lbs capacity and alignment capabilities, it's perfect for vehicle maintenance. Its chain-driven mechanism ensures smooth operation, while the Single Point Pneumatic Lock Release allows for easy unlocking. Finished with a durable powder coat, it withstands daily use. Turntables and jacks are available separately for added versatility. Whether it's routine maintenance or alignments, the FP14KA offers strength, precision, and flexibility for your needs.
Alignment Lift FP14KA Specifications:
- 14,000 lbs Capacity
- Alignment Capable
- 167” max 2-wheel Alignment
- Lift Style: Chain Driven
- Single Point Pneumatic Lock Release
- Powder Coat Finish
- 3 Turntable Positions
- Rear slip-plates mounted on roller bearings
- Warranty: 5 Years Structure, 1 Year Parts
Capacity |
14,000 lbs. |
Overall Length w/Ramp |
237″ |
Overall Width (Outside Base Plates) |
123″ |
Lifting Height |
67″ |
Width Between Posts |
108″ |
Width Between Runways |
0″ to 41″ |
Width of Runways |
20-1/4″ |
Column Height |
85″ |
Max. Wheel Base (2 wheel) |
167″ |
Max. Wheel Base (4 wheel) |
152″ |
Ramp Length |
30″ |
Max. Clearance under Track |
60″ |
Cable Diameter |
N/A |
Base Plate Dimensions |
10.5″ x 10.5″ |
Ship Weight |
3,240 lbs |
Power |
220V – 20 Amp – 1PH |
Tuxedo FP14KA Documentation:
Tuxedo FP14KA Alignment Lift Product Manual
FP14KA 4 Post Alignment Lift Optional Items (sold separately):
-
RAJ-8K-H Rolling Jack
- Turn Tables - Set of 2: No. TURNTABLE-25-152
