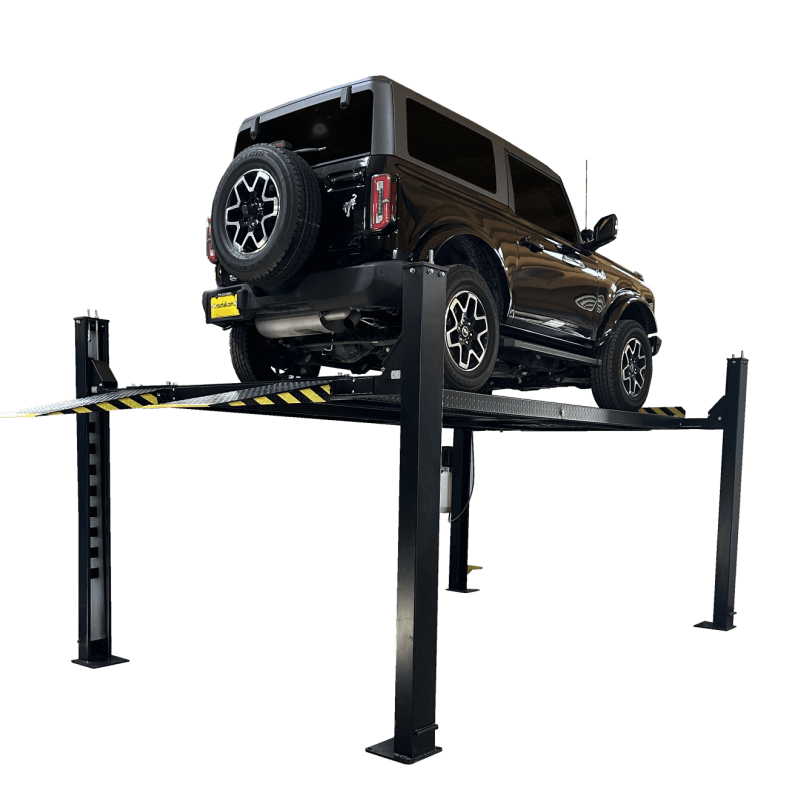

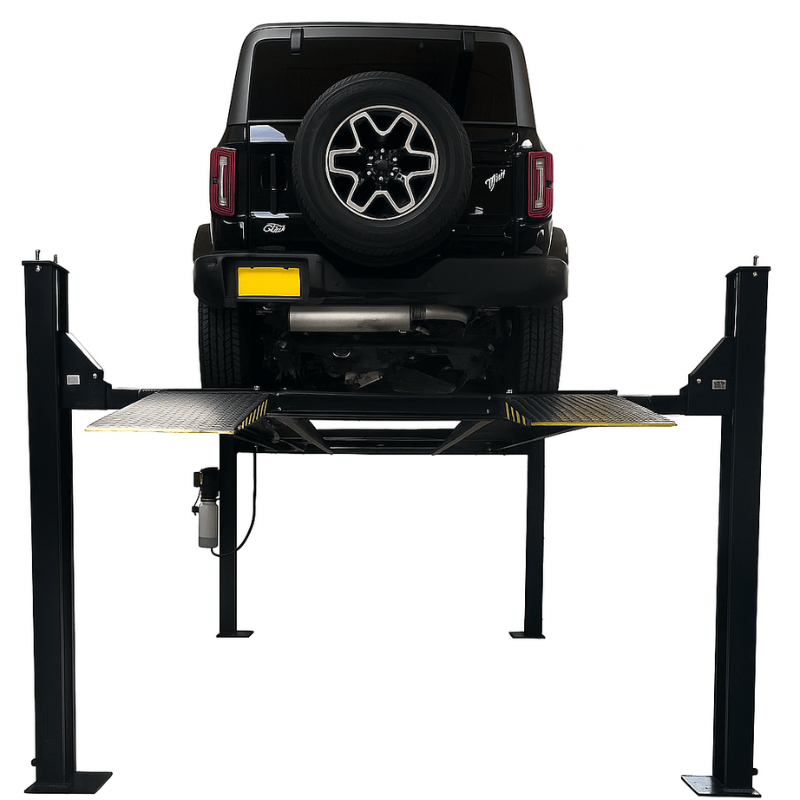

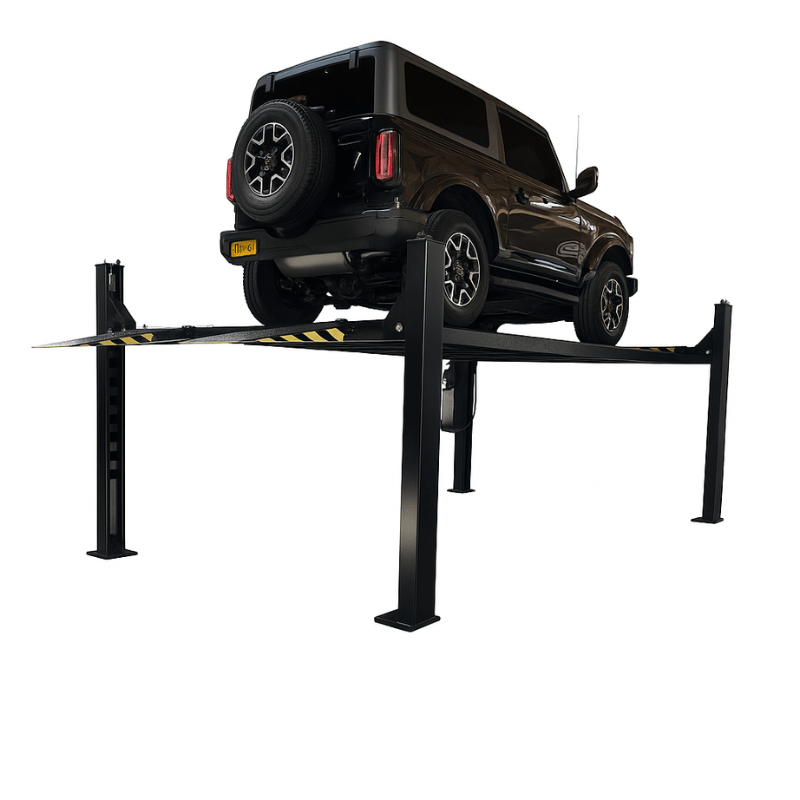

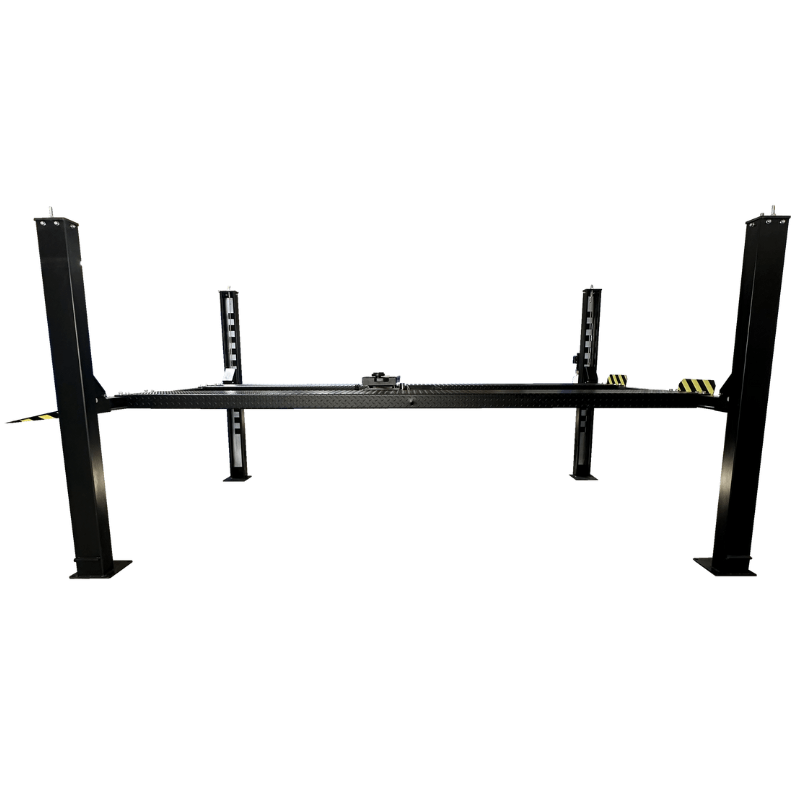

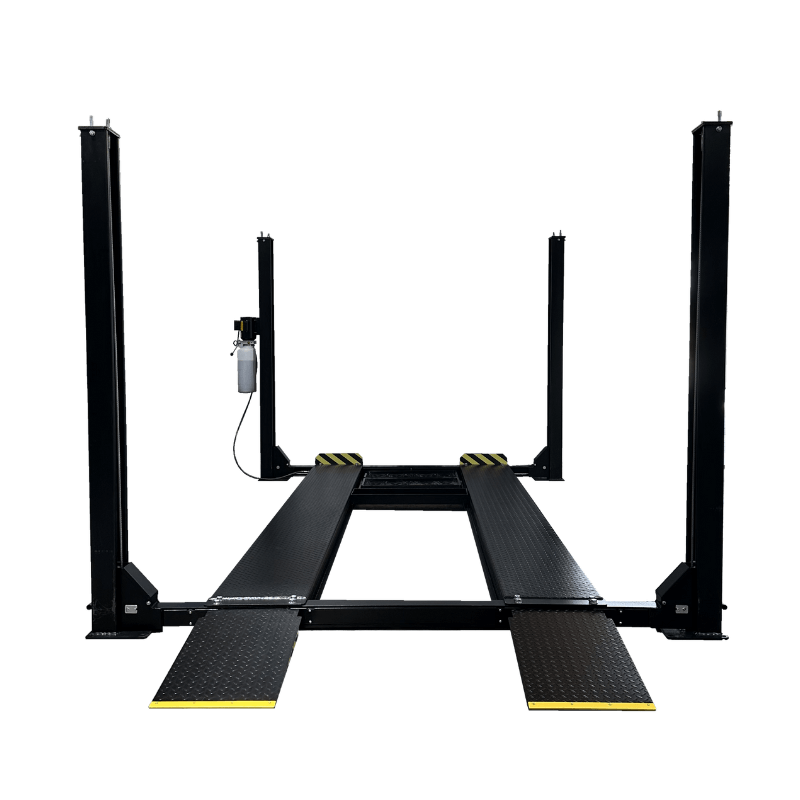

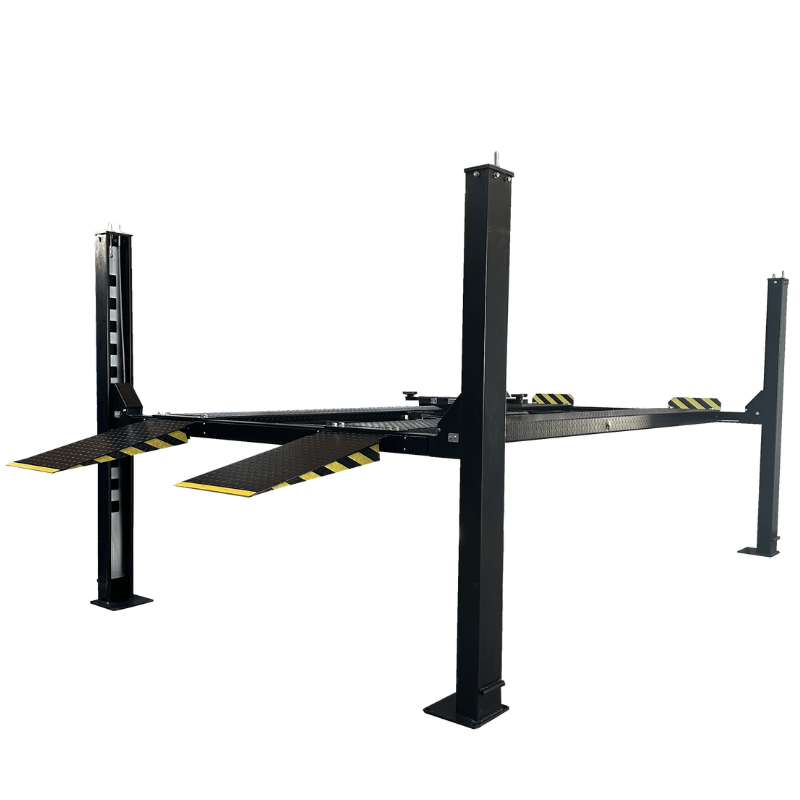

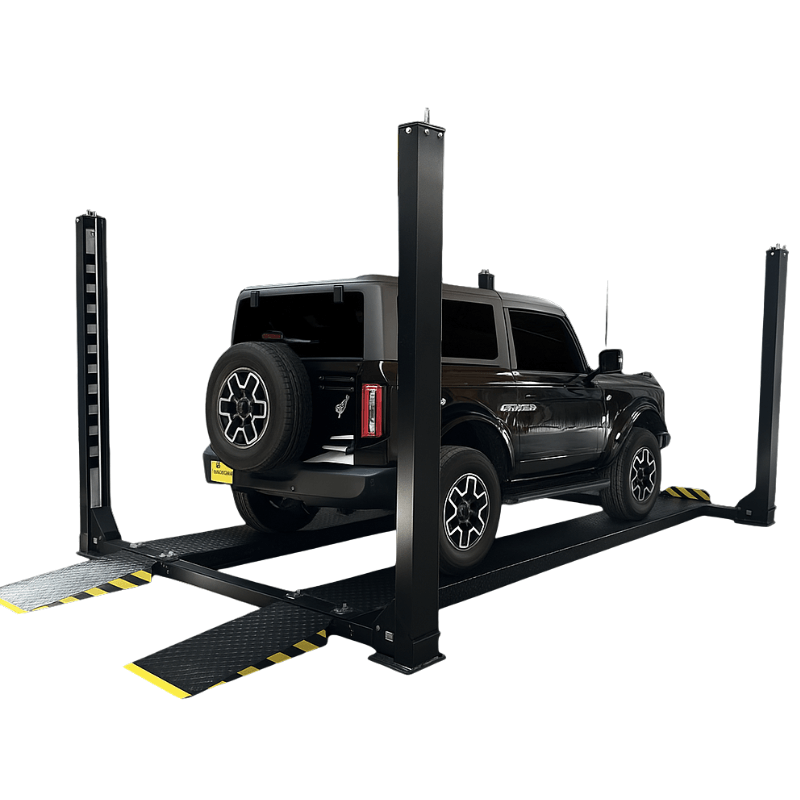

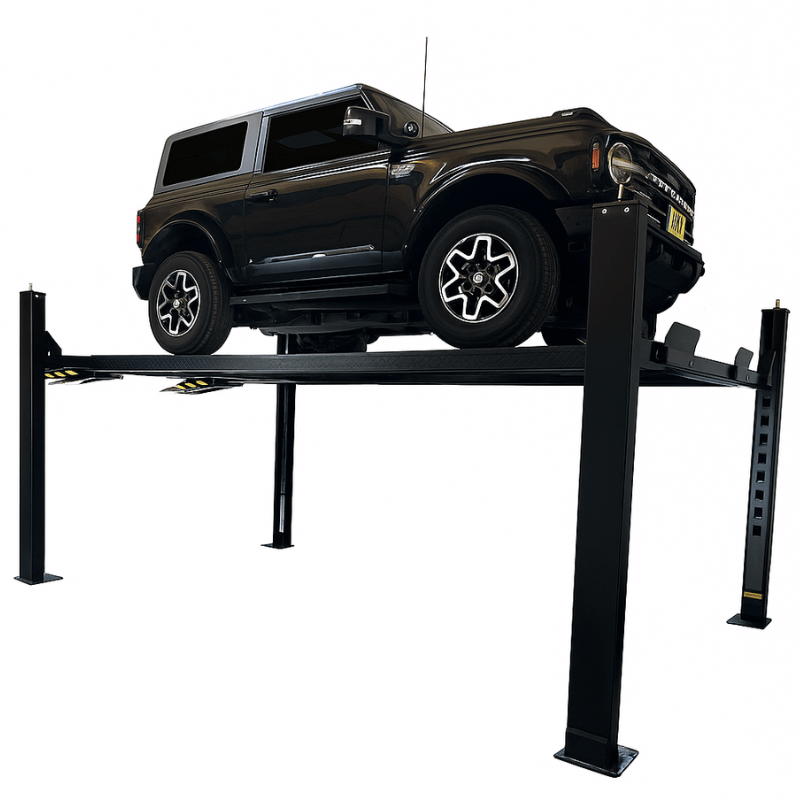

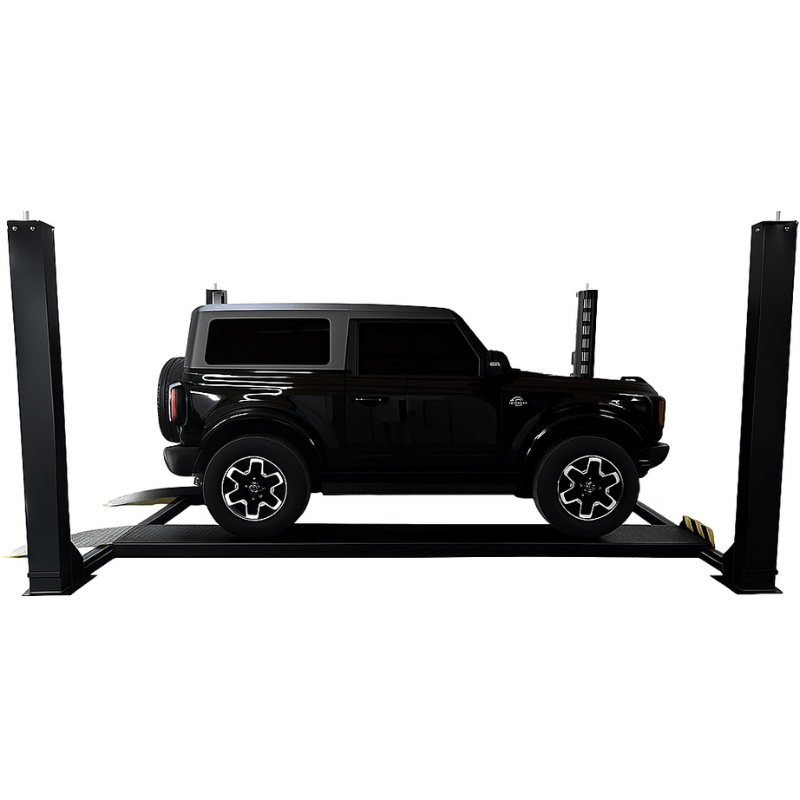

Tuxedo FP9K-DX-XLT, 9,000 lb 4 Post Parking Lift Extended Length / Height

SKU FP9K-DX-XLT
by Tuxedo
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$4,750.00
Free Warehouse Pickup Locations
Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)
*We will find nearest location

Notify me when back in stock

FP9K-DX-XLT Deluxe 4 Post Parking Lift Extended Length / Height by Tuxedo

Does your garage feel like it's shrinking? Oversized vehicles and limited space can be a frustrating combination. The Tuxedo FP9K-DX-XLT lift is the answer! This heavy-duty superhero boasts a 9,000 lb capacity, effortlessly handling even the bulkiest trucks and SUVs. Worried about ceiling height? Relax! The FP9K-DX-XLT features an impressive extended length and lifting height, creating ample room for your prized possessions.

This lift comes equipped with a user-friendly single-point manual lock release and adjustable locking positions for complete control. Plus, a slack cable safety feature and sturdy steel ramps provide peace of mind while you work. But wait, there's more! The FP9K-DX-XLT includes a plethora of accessories: drip trays keep your workspace clean, a jack tray offers convenient storage, and the poly caster kit allows for smooth maneuvering. The FP9K-DX-XLT lift is the ultimate storage solution for your growing garage needs.

4 Post Parking Lift FP9K-DX-XLT Specifications:

  • Lifting Capacity: 9,000 lbs.
  • Lifting Height: 85"
  • Overall Length with Ramps: 239"
  • Overall Length without Ramps: 197"
  • Overall Width: 123"
  • Overall Width with Power Unit: 134.5"
  • Approach Ramp Length: 37"
  • Runway Tread Width: 20"
  • Runway Length: 188.5"
  • Runway Height: 4.80"
  • Column Height: 97"
  • Clearance between Columns: 111.5"
  • Clearance between Runways: 39.5"
  • Outside Runway to Outside Runway: 79"
  • Clearance under Runways: 81"
  • Drive Thru Width: 99"
  • Locking Positions: 11
  • Lifting Speed: 90S
  • Power: 115V-20 Amp / 1PH
  • Ship Weight: 2,354 lbs.
  • Pallet Dimensions: 201" 29" 23"

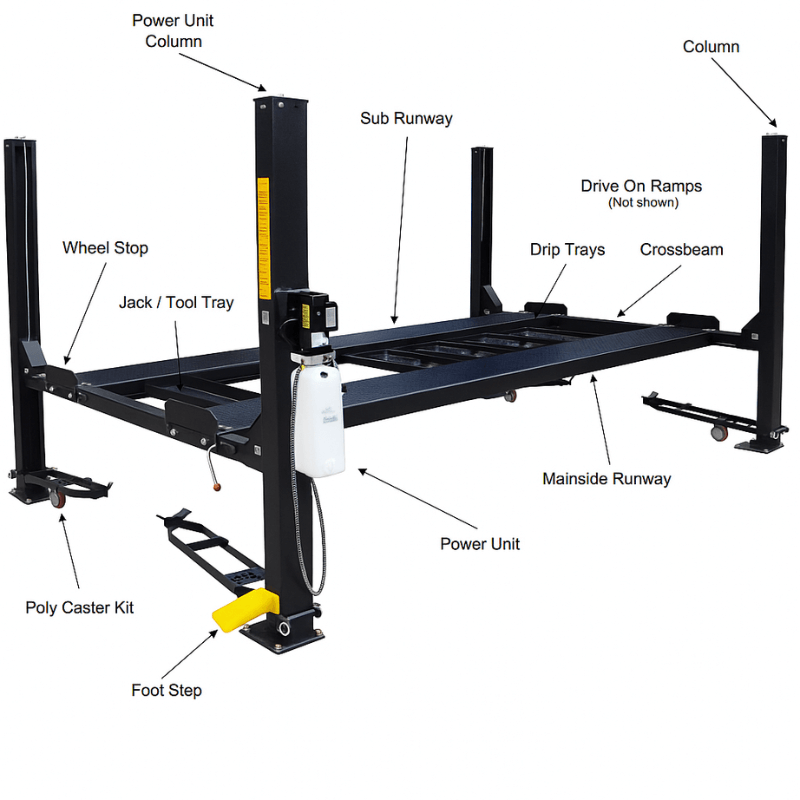

FP9K-DX-XLT, 9,000 lb Deluxe 4 Post Storage Lift Special Features:

  • Capacity: 9,000 lbs
  • Length (w/ ramps): 239"
  • Runway Length: 188-1/2"
  • Width Between Posts: 111-1/2"
  • Clearance Under Track: 81"
  • Cable driven
  • Manual Lock Release - Single Point
  • Locking Positions come adjustable
  • Slack Cable Safety

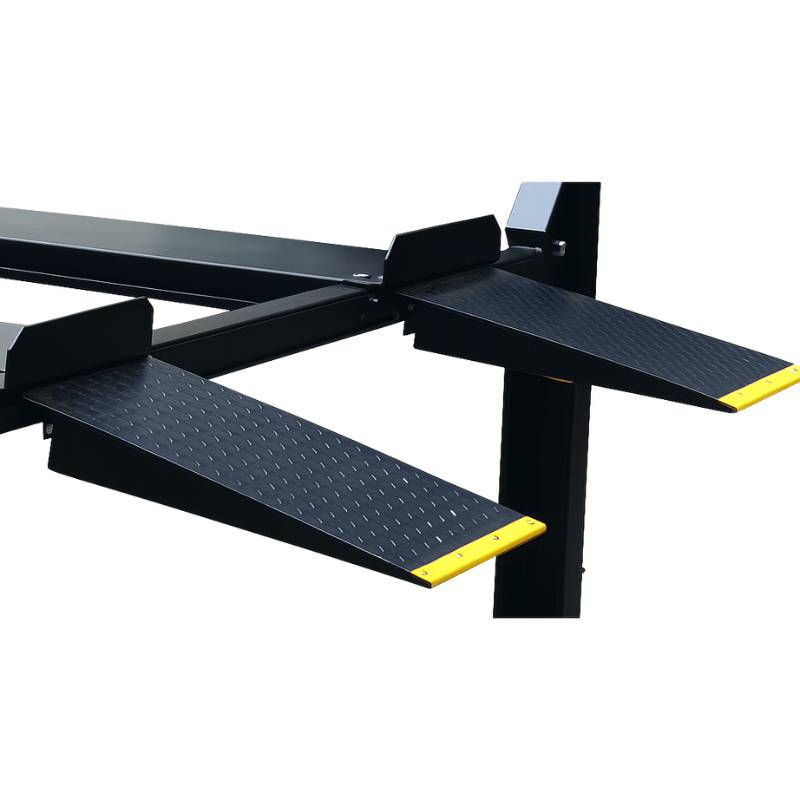

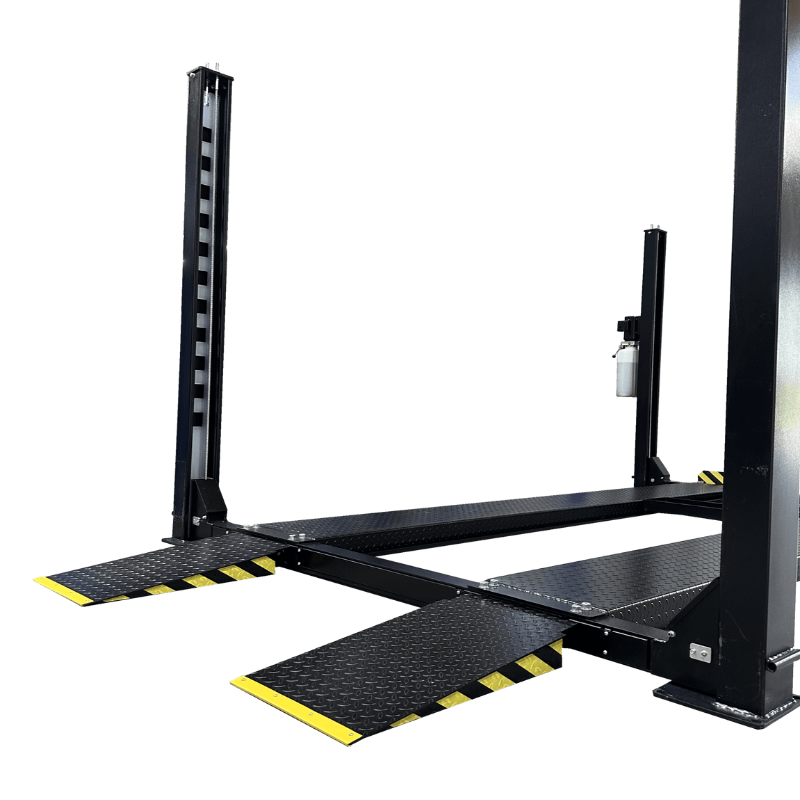

  • Steel Ramps
  • Great for Garage and Commerial use
  • Warranty: 5 Years Structure, 1 Year Parts - Under Normal Use

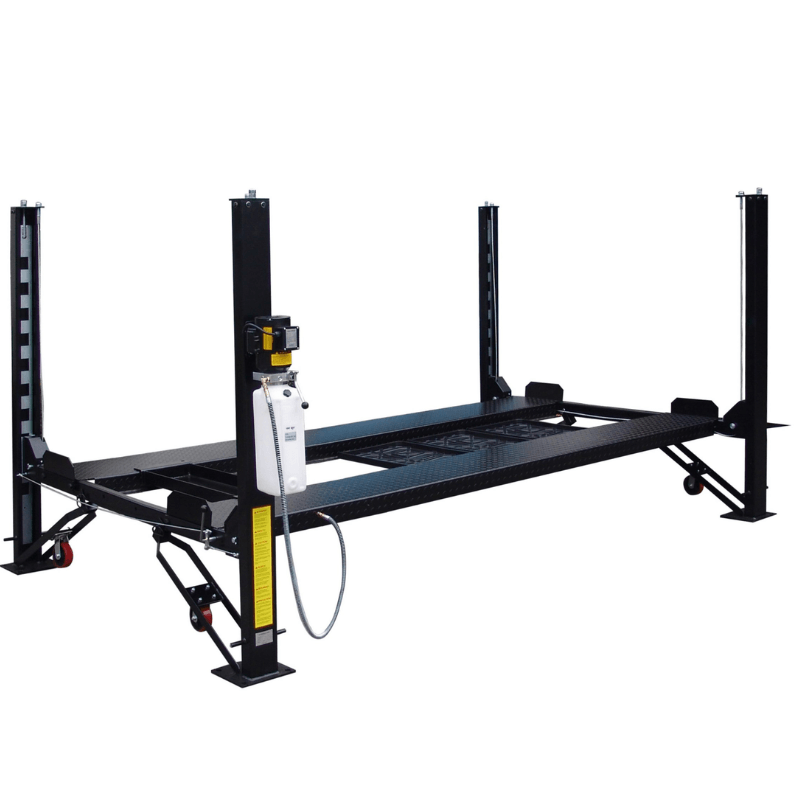

  • Includes Drip Trays, Jack Tray & Poly Caster Kit

Tuxedo FP9K-DX-XLT Documentation:

Storage Lift FP9K-DX-XLT Product Manual   Tuxedo FP9K-DX-XLT Storage Lift Product Manual

FP9K-DX-XLT Deluxe Storage Lift Extended Length / Height Optional Items (sold separately):

20% DISCOUNT on Scratch & Dent Units:

  • Contact Us today if your item is available
  • Pictures of units can be shared upon request
  • For on-sale items, discount comes off of regular price
  • All refurbished items ship from Texas warehouse or can be picked up at no additional cost

This Item has a FLAT RATE SHIPPING FEE: $599

Warehouse Pickup locations (No shipping charge):

  • Temecula, CA 92590
  • Orlando, FL 32824
  • Kennesaw, GA 30144
  • Elwood, IN 46036
  • Maple Grove, MN 55311
  • Reidsville, NC 27320
  • Bohemia, NY 11715
  • Reading, PA 19605
  • Alvarado, TX 76009
  • West Valley City, UT 84119
      FP9K-DX-XLT Storage Lift by Tuxedo Diagram Storage Lift FP9K-DX-XLT Diagram
