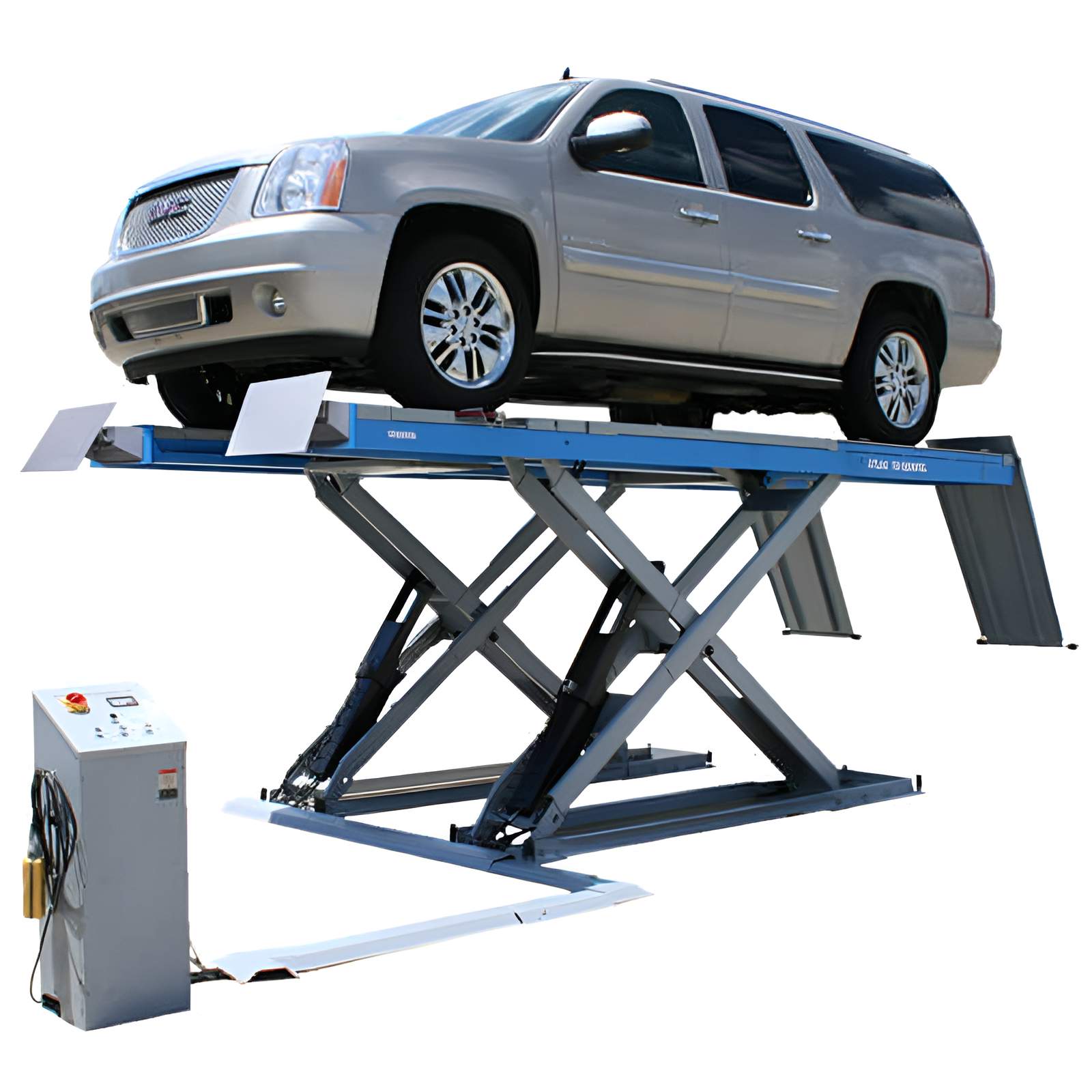

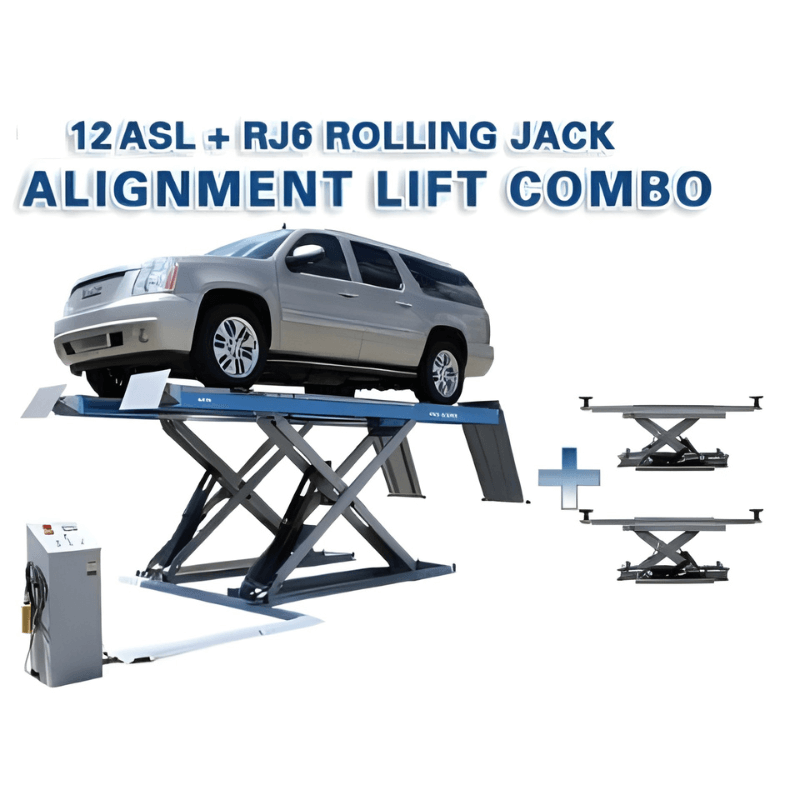

12ASL Alignment Scissor Lift and RJ-6 Rolling Jack Combo by Atlas

Picture this: A lift so powerful it can hoist 12,000 pounds. But that's just the beginning of your problems solved. You're constantly battling with space constraints, aren't you? The 12ASL's 84 1/4-inch lift height gives you a bird's eye view of every vehicle, while its compact 86 3/8-inch width means you're not sacrificing valuable floor space. And let's not forget the nightmare of dealing with low-riding sports cars and lifted trucks in the same day. With 4-wheel alignment wheelbases ranging from 90 to 168 inches and extra-long 53-inch approach ramps, you'll be welcoming everything from slammed tuners to monster trucks with open arms.

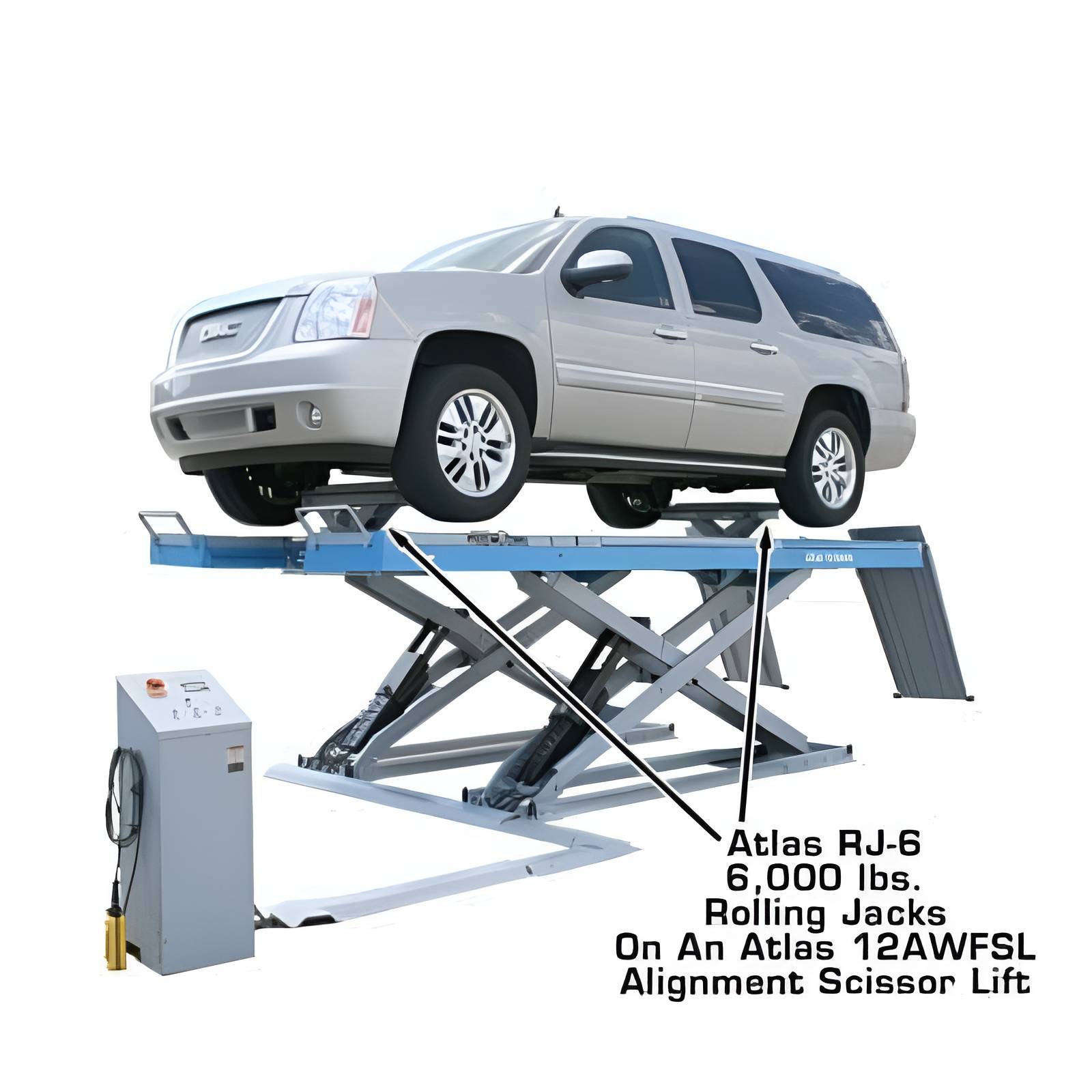

And just when you thought it couldn't get any better, enter the dynamic duo of RJ-6 Rolling Jacks. These 6,000 lb capacity wonders will have wheels dancing in the air faster than you can say "perfect camber." With a max lifting height of 17 5/8", they turn wheel service into a breeze. The Atlas 12ASL Alignment Scissor Lift and the RJ-6 Rolling Jack combo is here to rescue you from the pit of outdated technology and catapult your business into the stratosphere of efficiency.

Alignment Scissor Lift 12ASL Specifications:

  • Lifting Capacity: 12,000 lbs
  • Lifting Height: 84 1/4" (7' 1/4")
  • Overall Width: 86 3/8" (7' 2 3/8")
  • Overall Length with Approach Ramps: 250" (20' 10")
  • Overall Length without Approach Ramps: 197" (16' 5")
  • Approach Ramp Length: 53" (4' 5")
  • 4-Wheel Alignment Wheelbase: Max. 168 in., Min. 90 in.
  • 2-Wheel Alignment Wheelbase: Max. 172 in., Min. 86 in.
  • Runway Width: 23 3/4" (1' 11 3/4")
  • Lowered Height: 11 1/2"
  • Locking Positions: 19
  • Width Between Runways: 39"
  • Motor/Electrical Requirement: 220 volt +/- 5% (209-231 volts) single phase, requires a 30 amp breaker

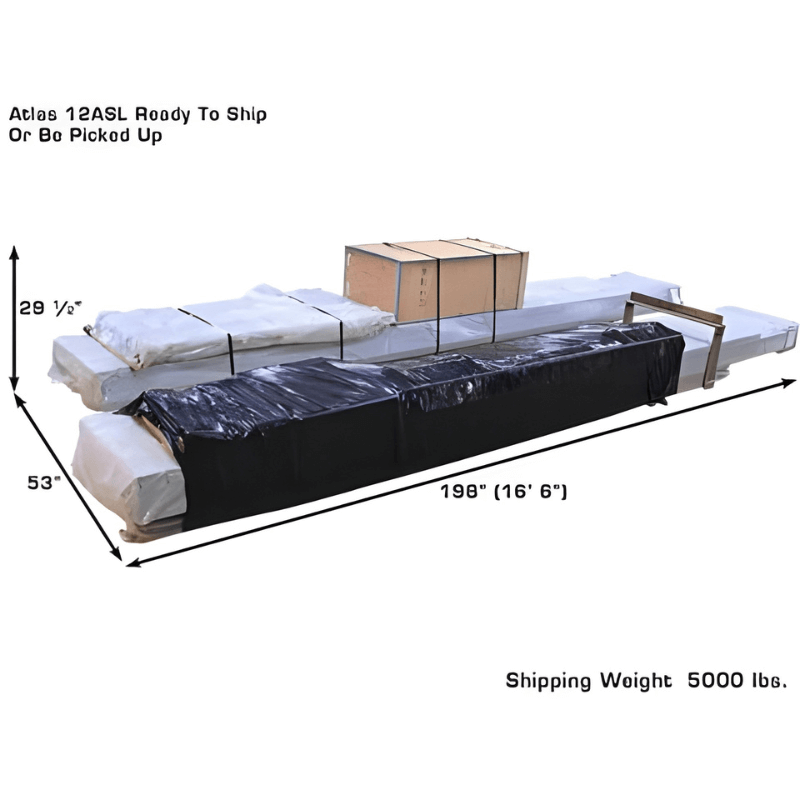

  • Shipping Weight: 5,000 lbs

12ASL 12,000 lb Scissor Alignment Lift Special Features:

  • 12,000 LB. Capacity
  • Commercial Grade
  • Scissor Alignment Lift
  • Built in Slip Plates and Alignment Turntables Included

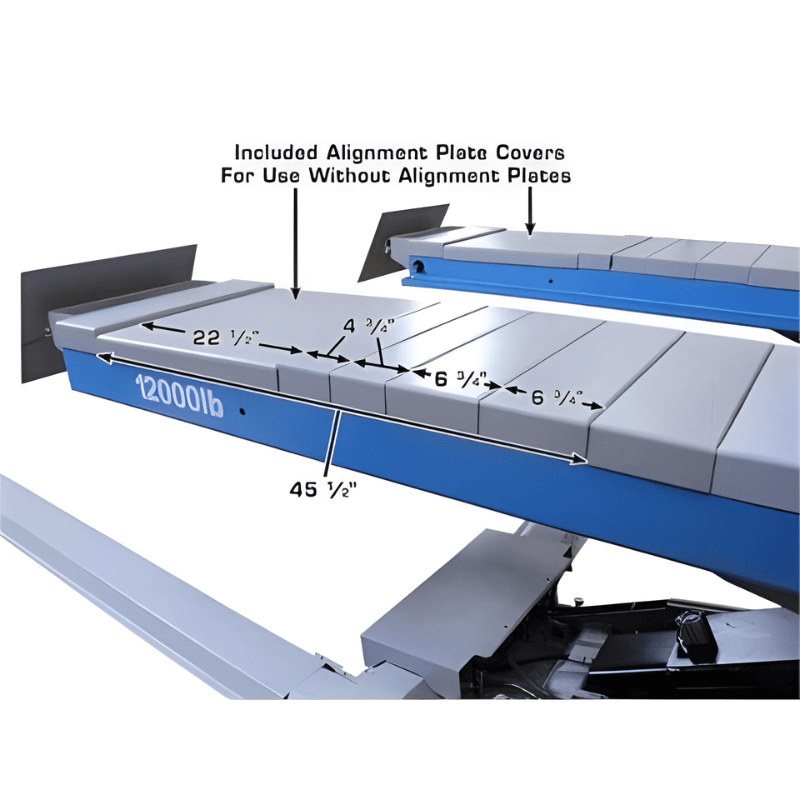

  • Turntable Covers Included
  • Open Center Design for Easy Access

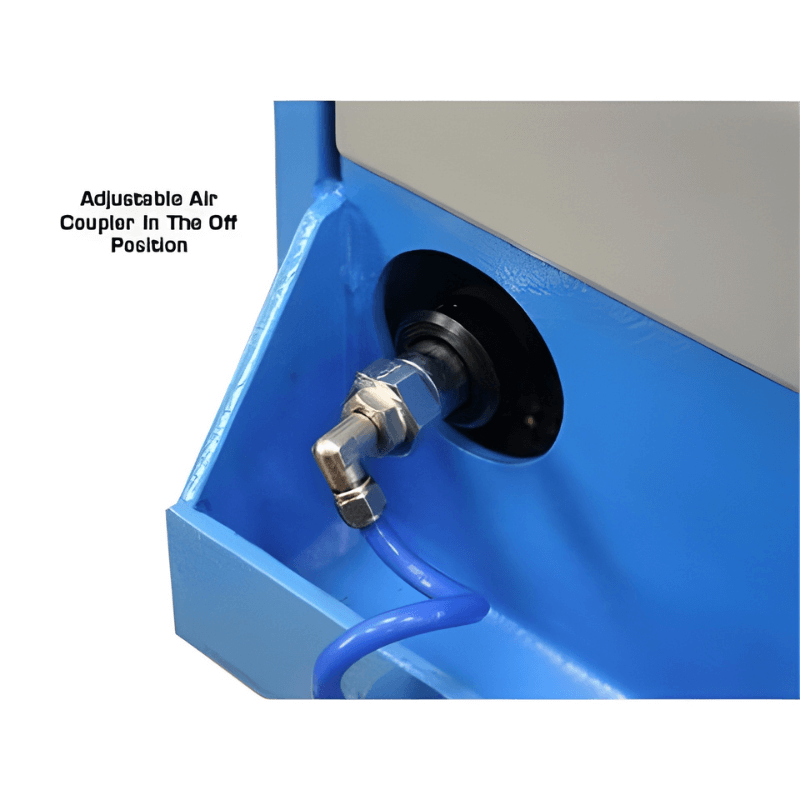

  • Air-Operated Single Point Lock Release (External Air Supply Required)

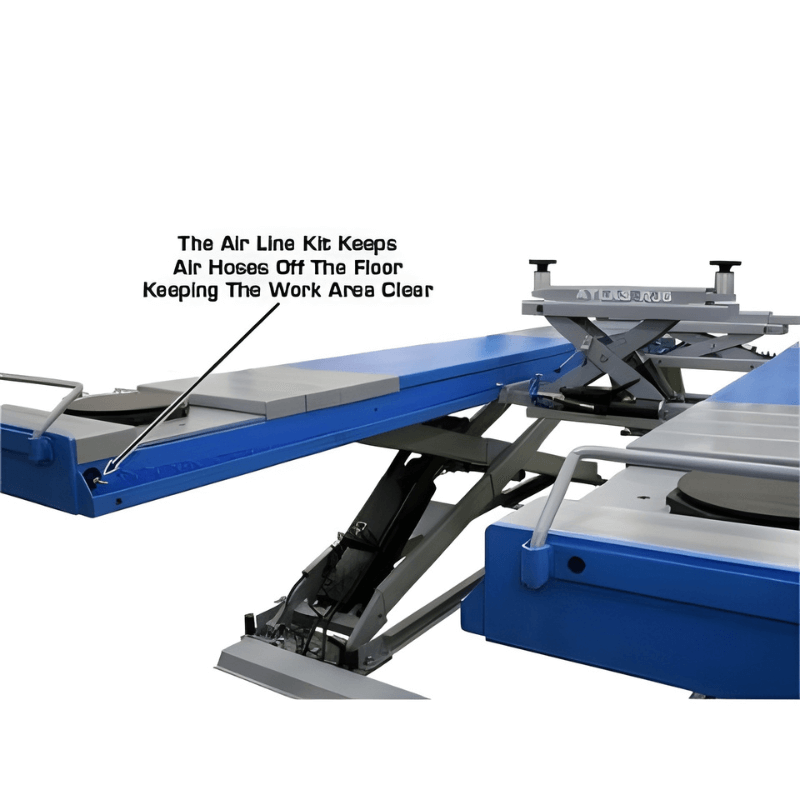

  • Airline Kit Included

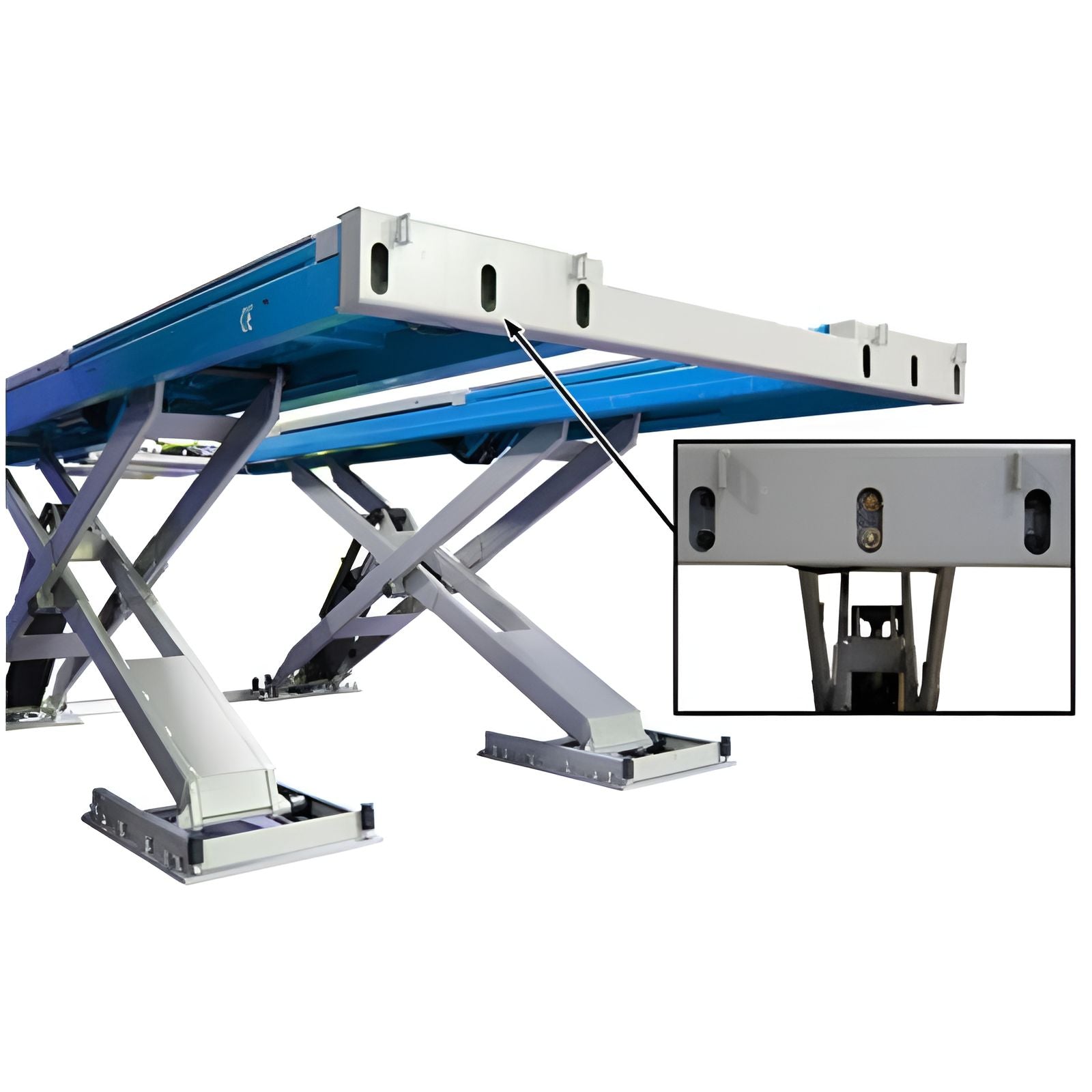

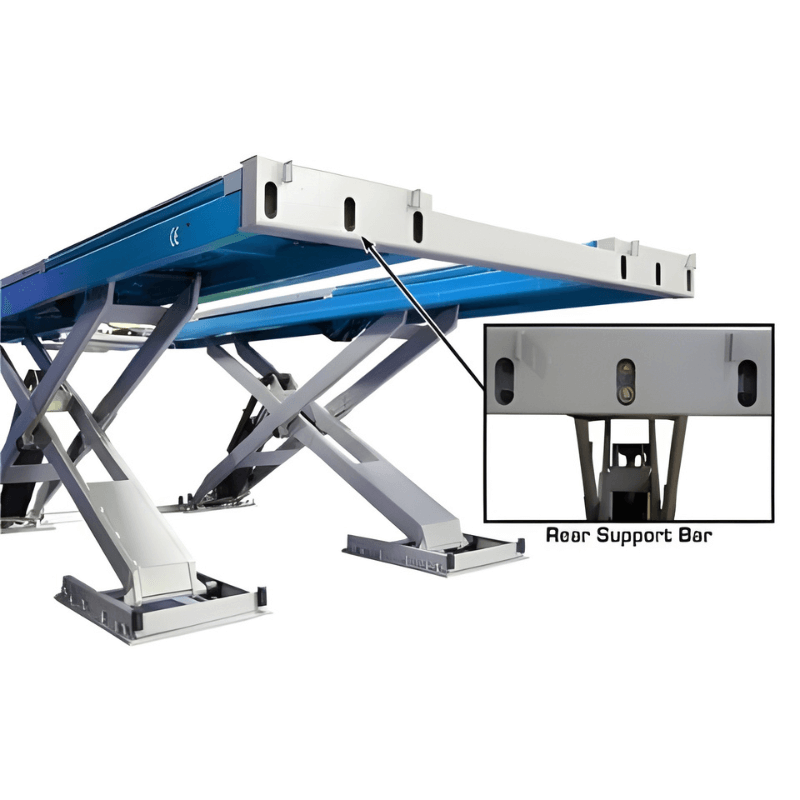

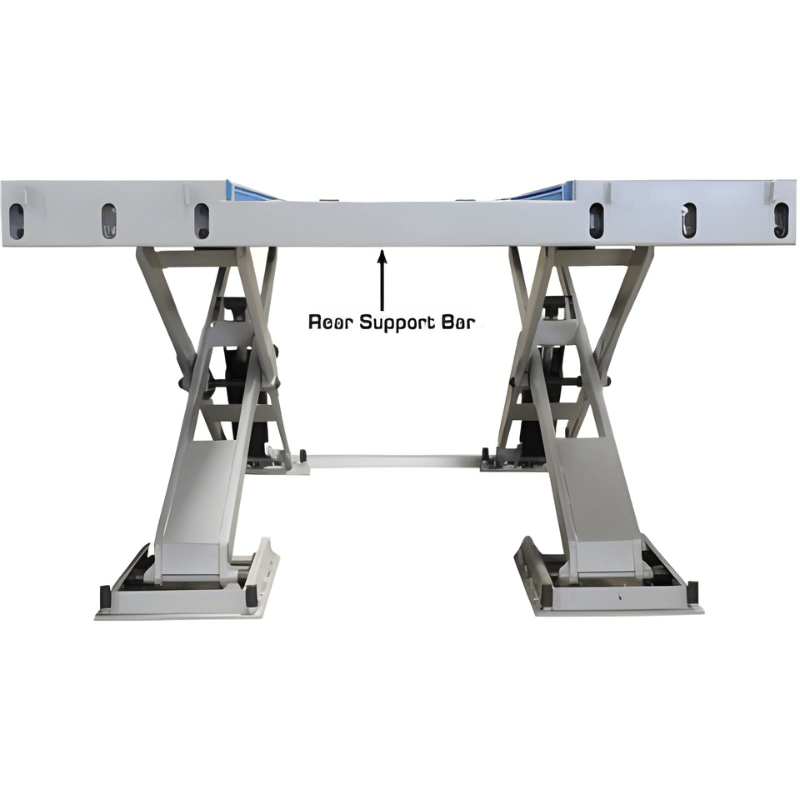

  • Rear Cross Beam for Extra Stability Included
  • Extra Long 72″ Ramps Standard
  • Precise Platform Leveling Accuracy
  • Separate Self-Contained Control Panel
  • Emergency Manual Pump for Lowering
  • 19 Locking Positions
  • CE Certified
  • Can be Surface Mounted or Flush Mounted

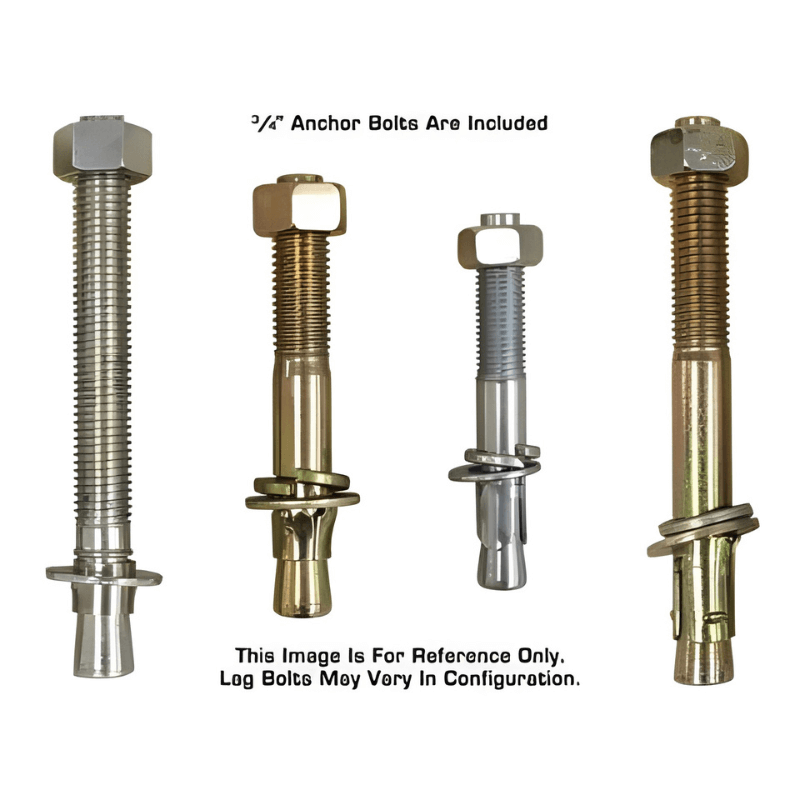

  • Mounting Hardware Included
  • 220volt/1phase Electric Operation (Requires a 30amp Breaker)
  • Shipping Weight: 5,000 lb.
  • 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only

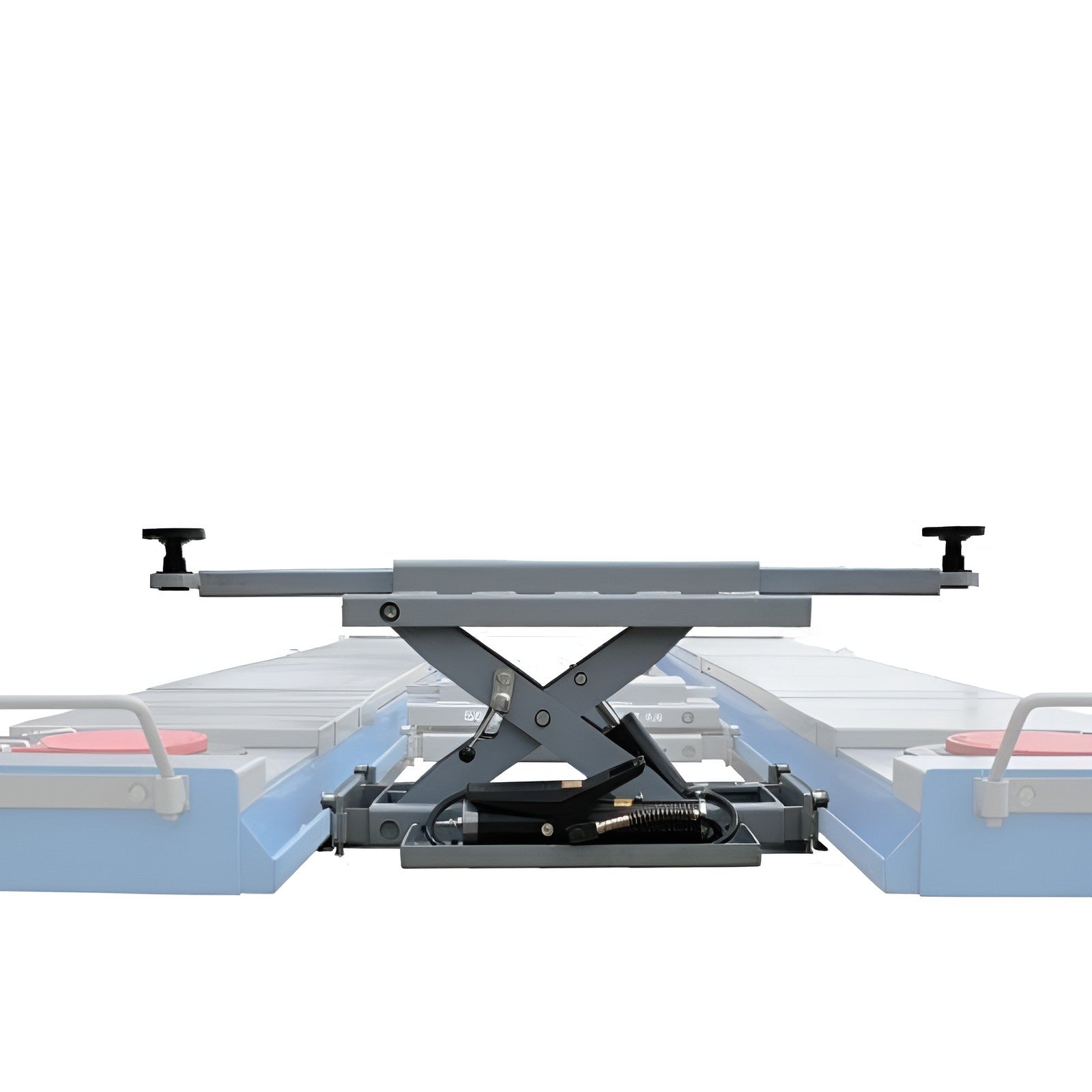

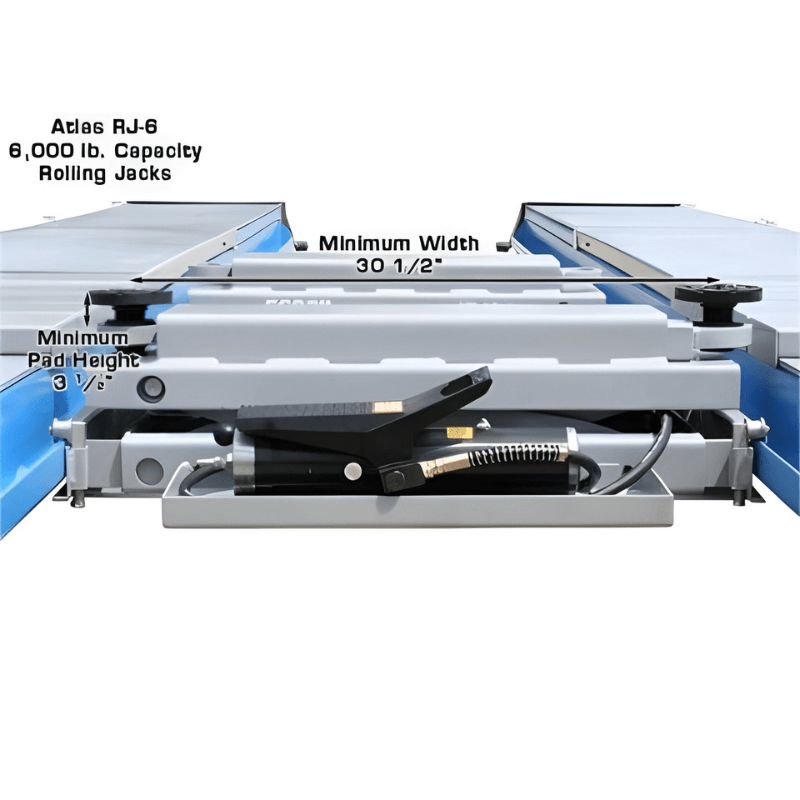

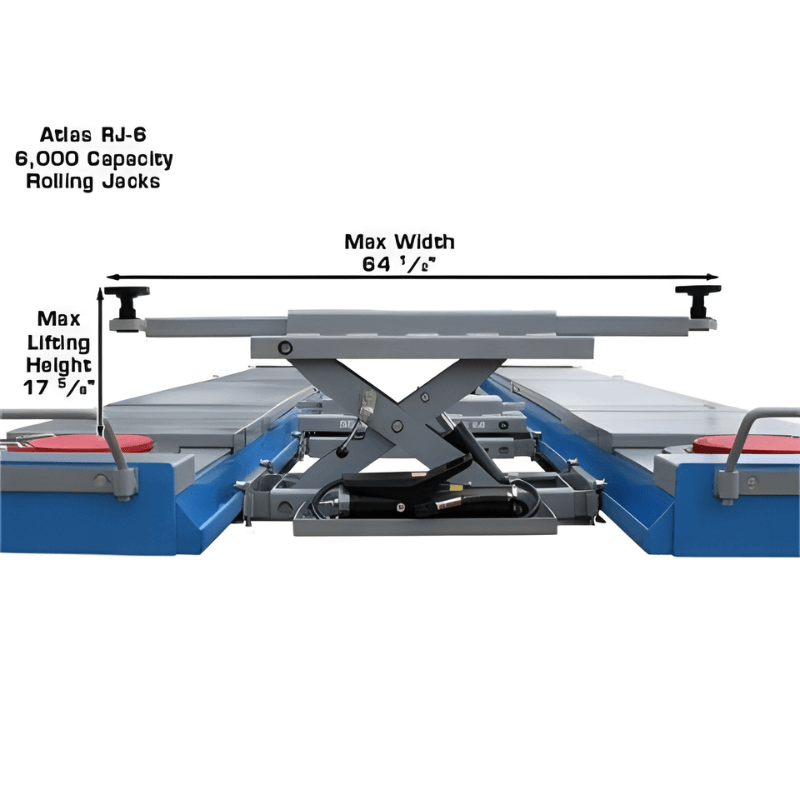

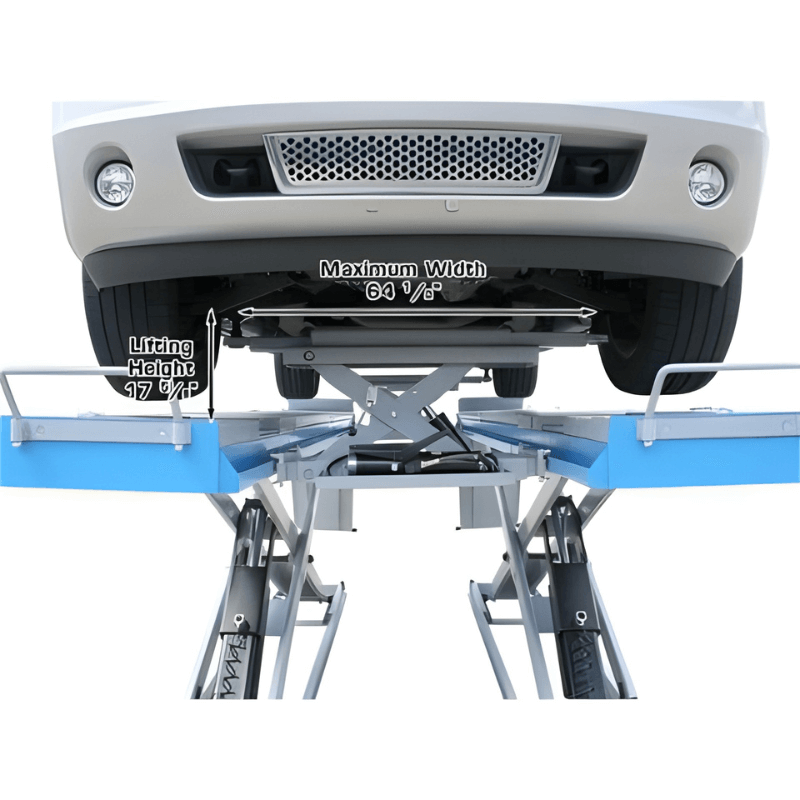

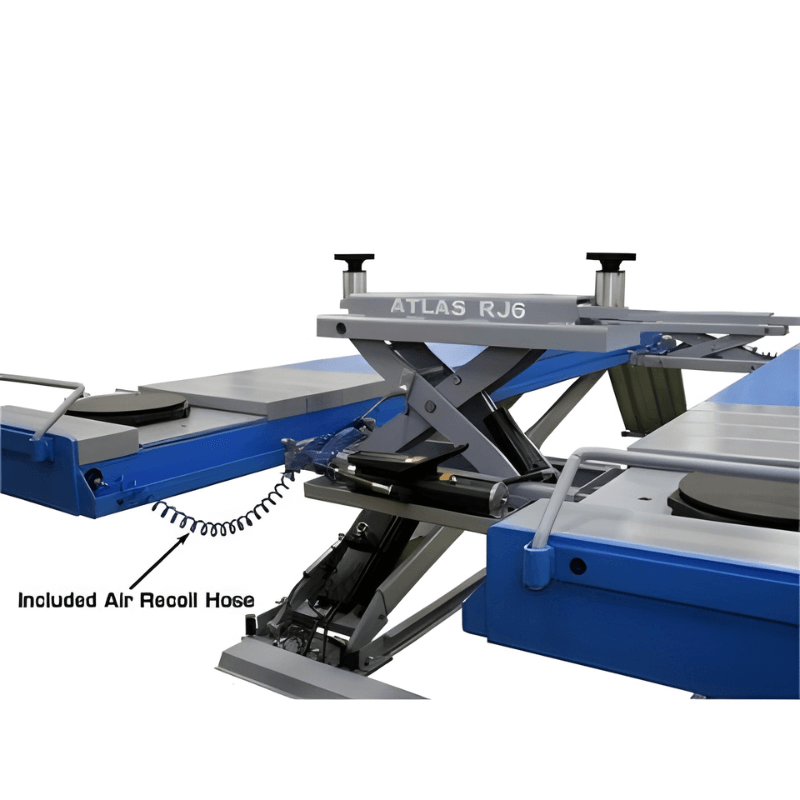

RJ-6 Rolling Jack Specifications

  • Qty: 2
  • Maximum Width: 64 1/2"
  • Minimum Width: 30 1/2"

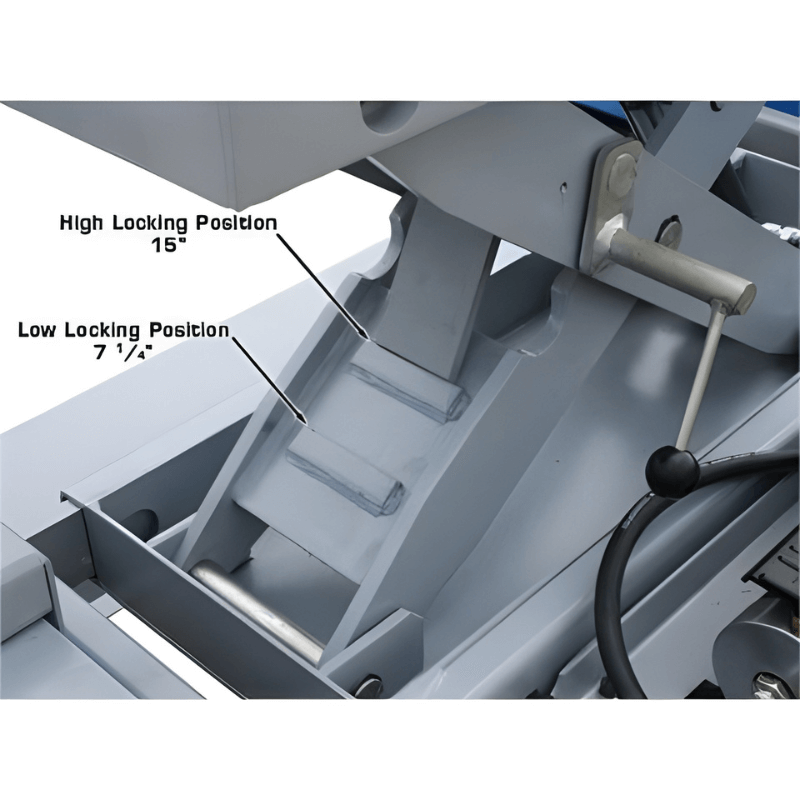

  • First Locking Position: 7 1/4"
  • Second Locking Position: 15"
  • Minimum Pad Height: 3 1/2"
  • Maximum Lifting Height: 17 5/8"
  • Maximum Capacity: 6,000 lbs
  • Recommended Operating Air Pressure: 70-105 PSI
  • Shipping Weight: 350 lbs

Atlas 12ASL Documentation:

Scissor Alignment Lift 12ASL Lift Product Manual   Atlas 12ASL Scissor Alignment Lift Product Manual
