Atlas 12ASL 12,000 lb Scissor Alignment Lift

12ASL Scissor Alignment Lift by Atlas

Crafted in Collaboration: Our Atlas® 12ASL 12,000 lb. Scissor Alignment Lift brings together the precision of Italian engineering with the efficiency of Asian labor, delivering top-tier quality at unmatched value. With a lifting height exceeding seven feet, it offers versatility for floor or flush mounting, ensuring stability even under the heaviest vehicles.

Featuring a separate control panel for operator convenience, the lift operates smoothly with its 220-volt electric/hydraulic power unit. Safety is paramount with an automatic air actuated lock system and a built-in lowering limit switch for added peace of mind.

With its focus on quality, user-friendliness, and affordability, the Atlas® 12ASL is the ultimate choice for ship owners seeking reliable alignment solutions. From compact cars to hefty dually trucks, this system maximizes space without compromising performance.

Scissor Alignment Lift 12ASL Specifications:

• Lifting Capacity: 12,000 LB
• Lifting Height: 84 1/4" (7' 1/4") (Surface Mounted)
• Lowered Height: 11 1/2"
• Overall Width: 86 3/8" (7' 2 3/8")
• Overall Length with Approach Ramps: 250" (20' 10")
• Overall Length without Approach Ramps: 197" (16' 5")
• Approach Ramp Length: 72" (6')
• 4-Wheel Alignment Wheelbase: Max. 168 in. Min. 90 in.
• 2-Wheel Alignment Wheelbase: Max. 172 in. Min. 86 in.
• Runway Width including Rail: 23 3/4" (1' 11 3/4")
• Width Between Runways: 39 1/4"
• Width Between Runway Rails: 34 3/8"
• Air Requirement: 90-120 PSI
• Motor/Electrical Requirement: 220 volt +/- 5% (209-231volts) single (1) phase. A 30 amp breaker is required.
• Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
• Shipping Weight: 5,000 lbs.
• Requires a minimum of 6" of concrete with a 3000 psi. rating

12ASL 12,000 lb Scissor Alignment Lift Special Features:

• 12,000 LB. Capacity
• Commercial Grade
• Scissor Alignment Lift
• Built in Slip Plates and Alignment Turntables Included
• Turntable Covers Included
• Open Center Design for Easy Access
• Air-Operated Single Point Lock Release (External Air Supply Required)
• Airline Kit Included

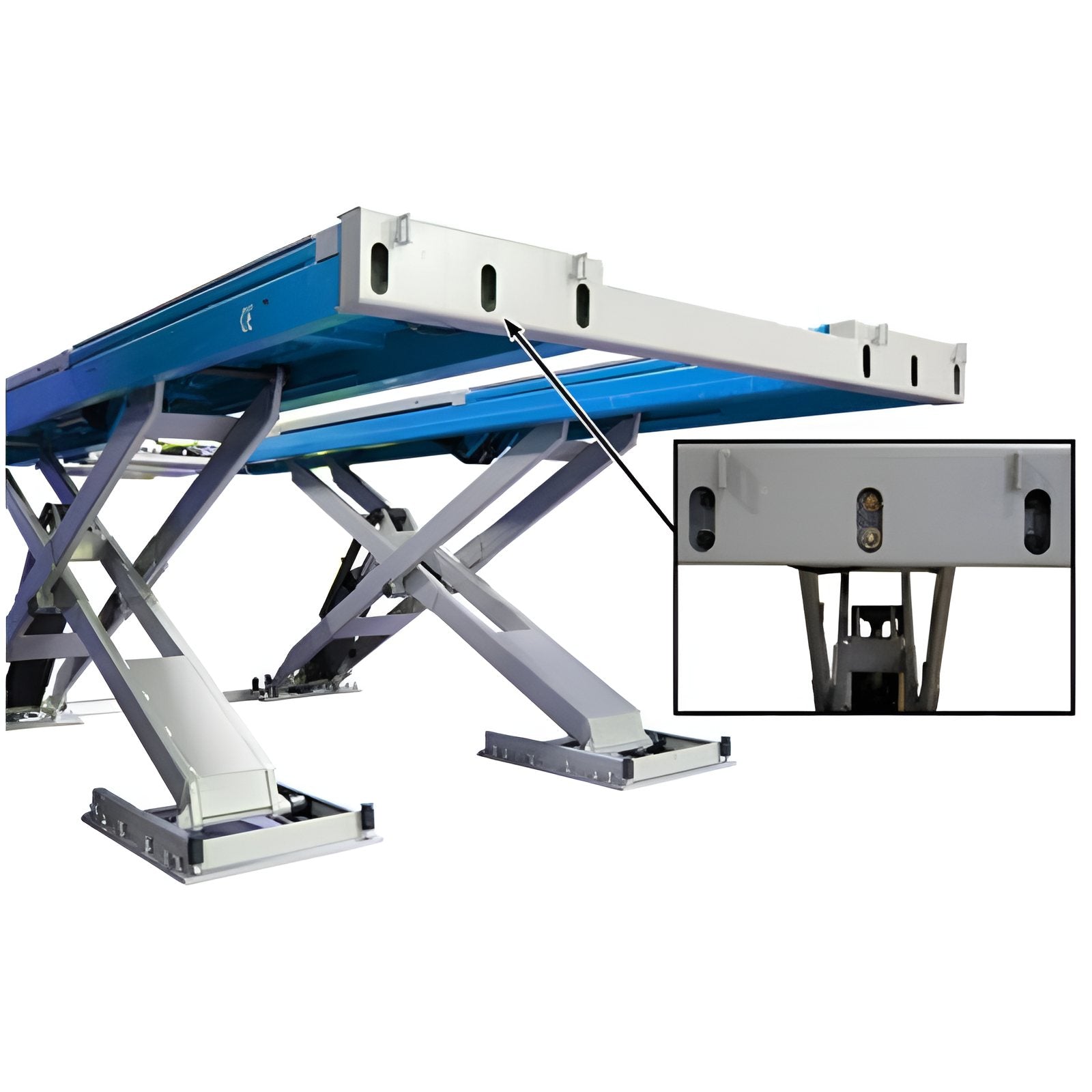

• Rear Cross Beam for Extra Stability Included
• Extra Long 72″ Ramps Standard
• Precise Platform Leveling Accuracy

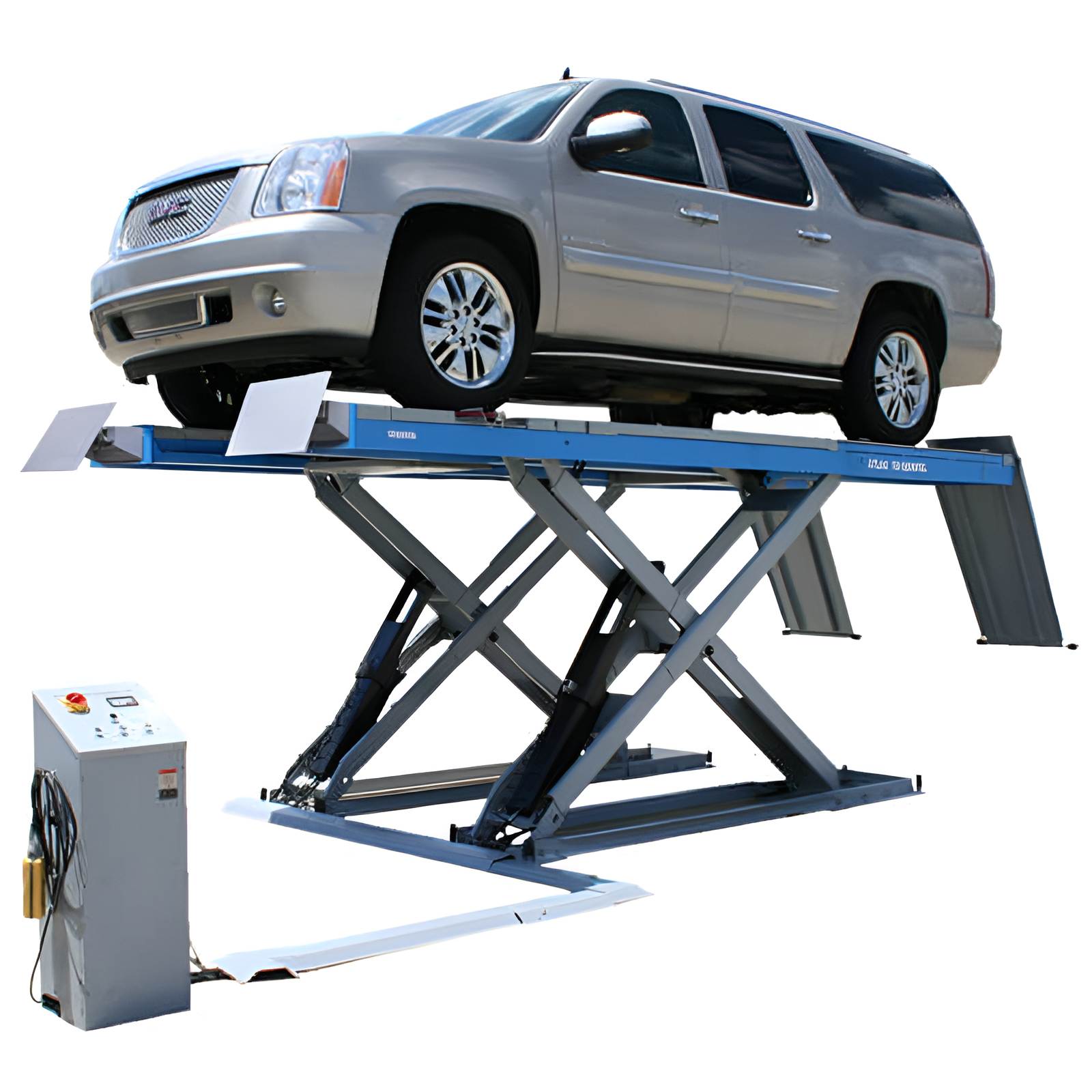

• Separate Self-Contained Control Panel
• Emergency Manual Pump for Lowering

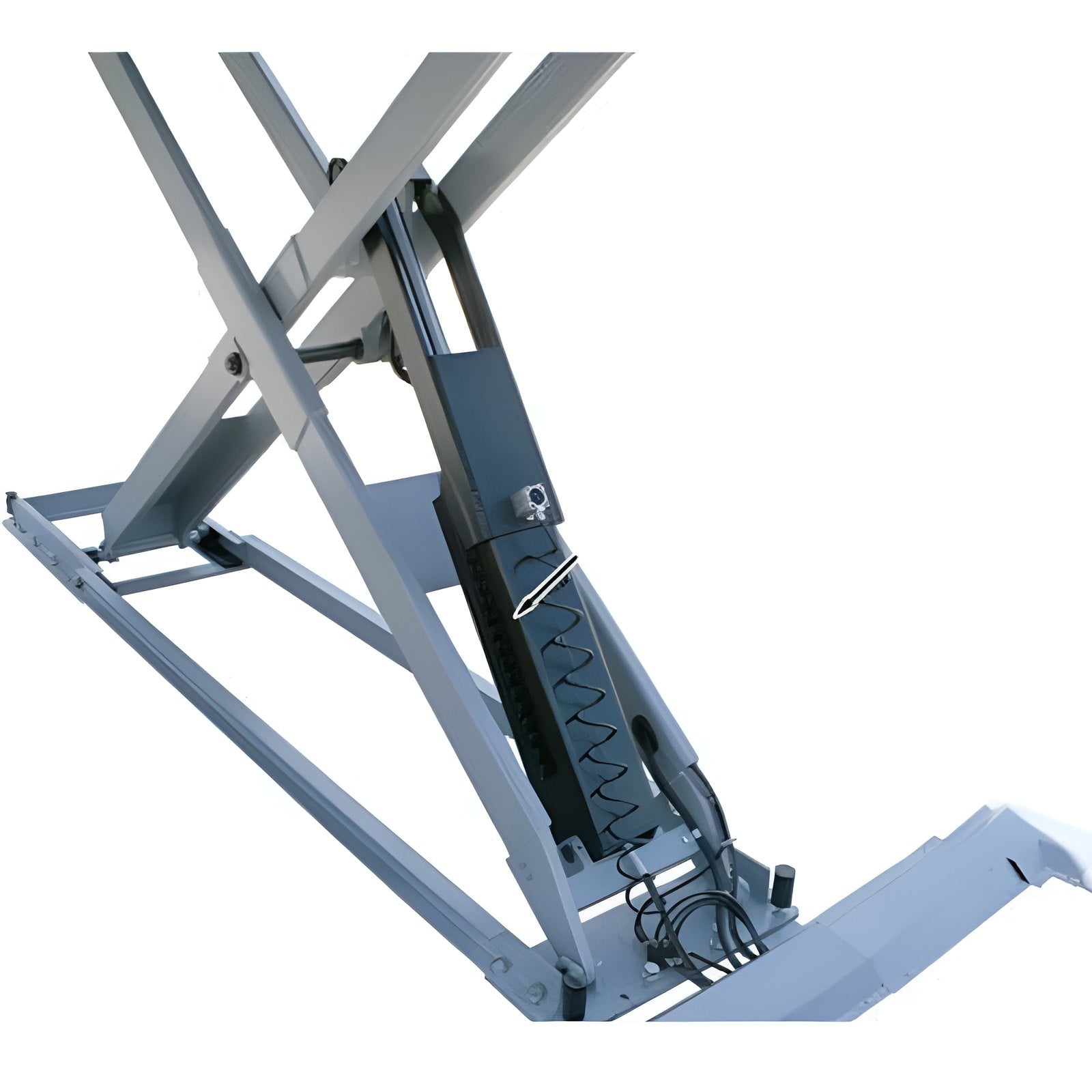

• 19 Locking Positions
• CE Certified
• Can be Surface Mounted or Flush Mounted
• Mounting Hardware Included
• 220volt/1phase Electric Operation (Requires a 30amp Breaker)
• Shipping Weight: 5,000 lb.
• 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only

Atlas 12ASL Documentation:

   Atlas 12ASL Scissor Alignment Lift Product Manual
