Atlas RJ-6 6,000 lb Rolling Bridge Jack

RJ-6 Rolling Bridge Jack by Atlas

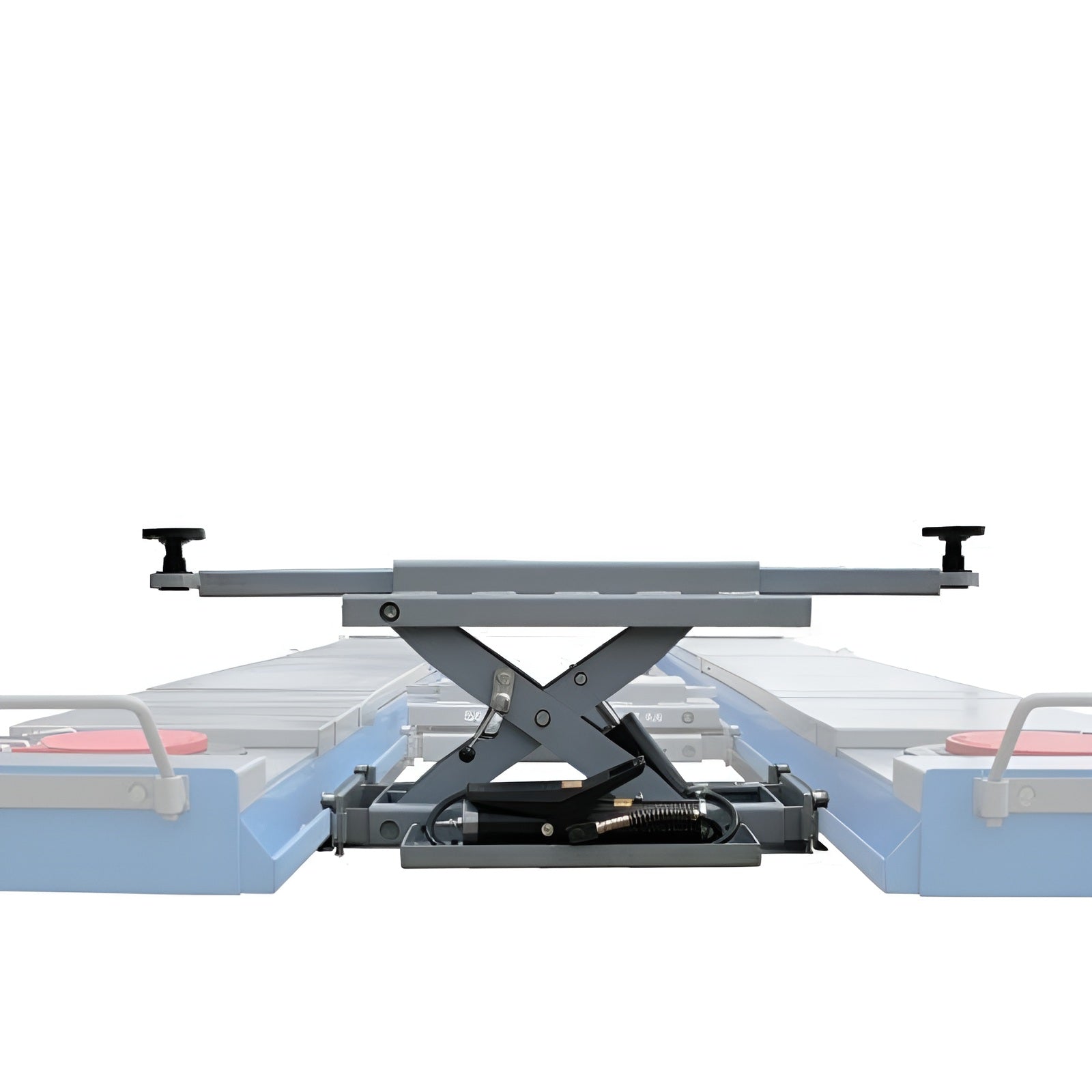

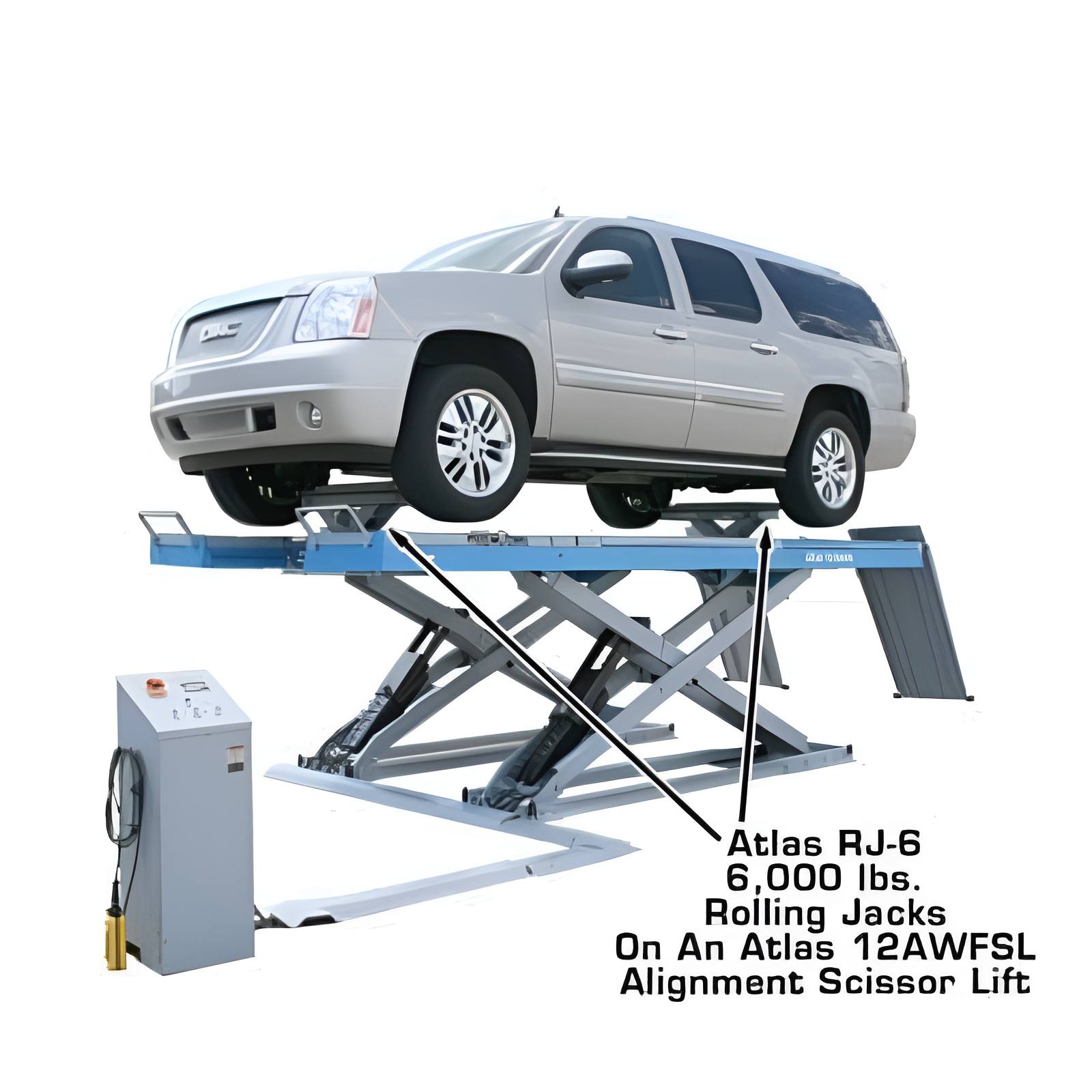

The Atlas® RJ-6 features telescoping arms that extend over the runways of a four-post lift, with double screw lift pads at their ends for positioning under lifting points on the lift's runways. Equipped with expandable rail supports, this rolling jack adjusts to fit between the runways of various four-post above-ground lifts, boasting a unique roller system for smooth gliding beneath the vehicle's entire length.

The Atlas® RJ-6 are peg-style truck adapters, increasing lift pad height to accommodate most pickup and larger trucks. The rolling hydraulic jack also offers multiple solid locking positions for suspending vehicles above the runways safely. Engaging these locks eliminates hydraulic pressure from the lifting cylinder, akin to using jack stands after lifting a vehicle with a service jack.

It's important to note that the Atlas® RJ-6 is designed to operate on air pressure delivered within the range of 70-115 PSI. Exceeding 115 PSI may result in damage to the jack.

Rolling Bridge Jack RJ-6 Specifications:

• Maximum Capacity    6,000 lb.

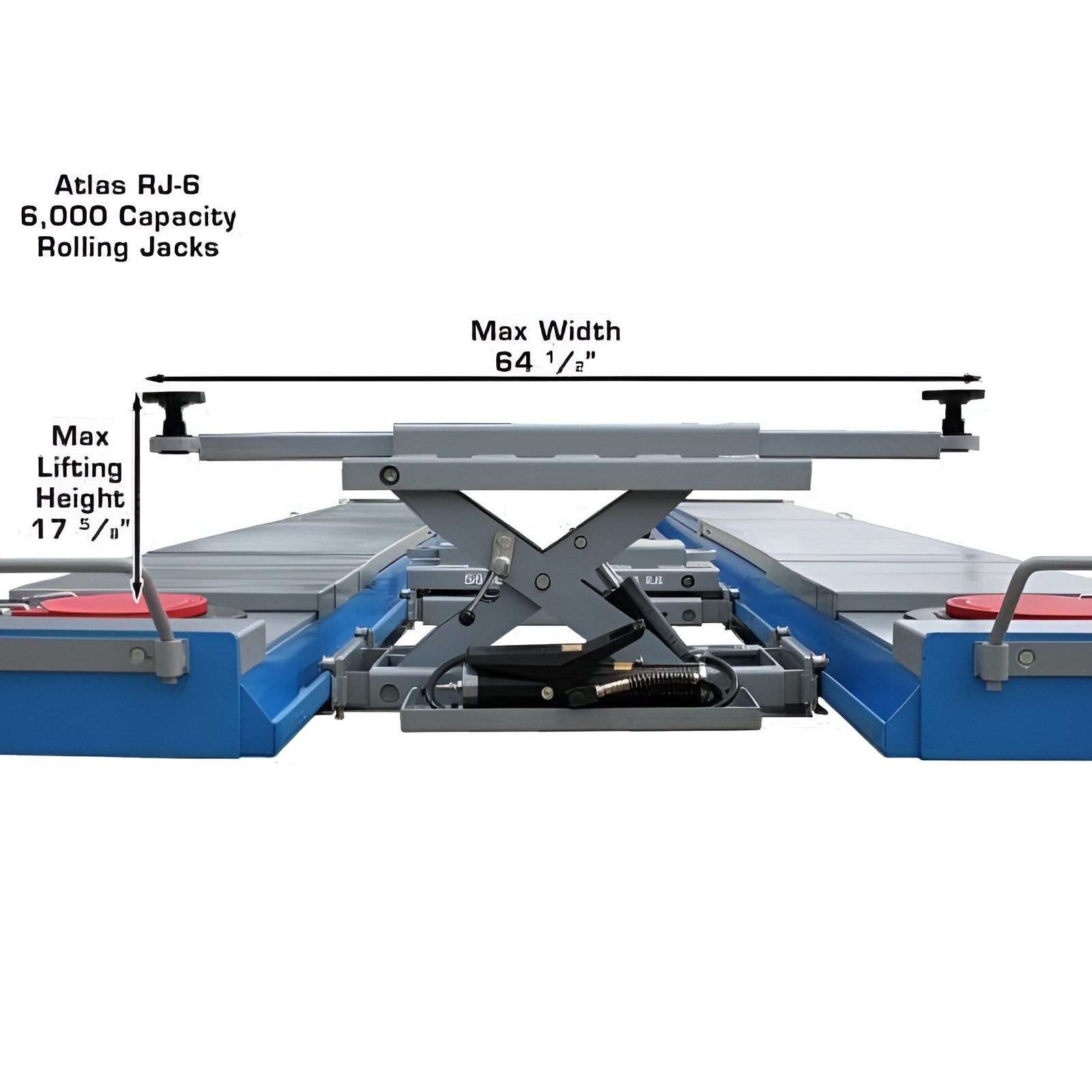

• Maximum Width    64 1/2 (5' 4 1/2")

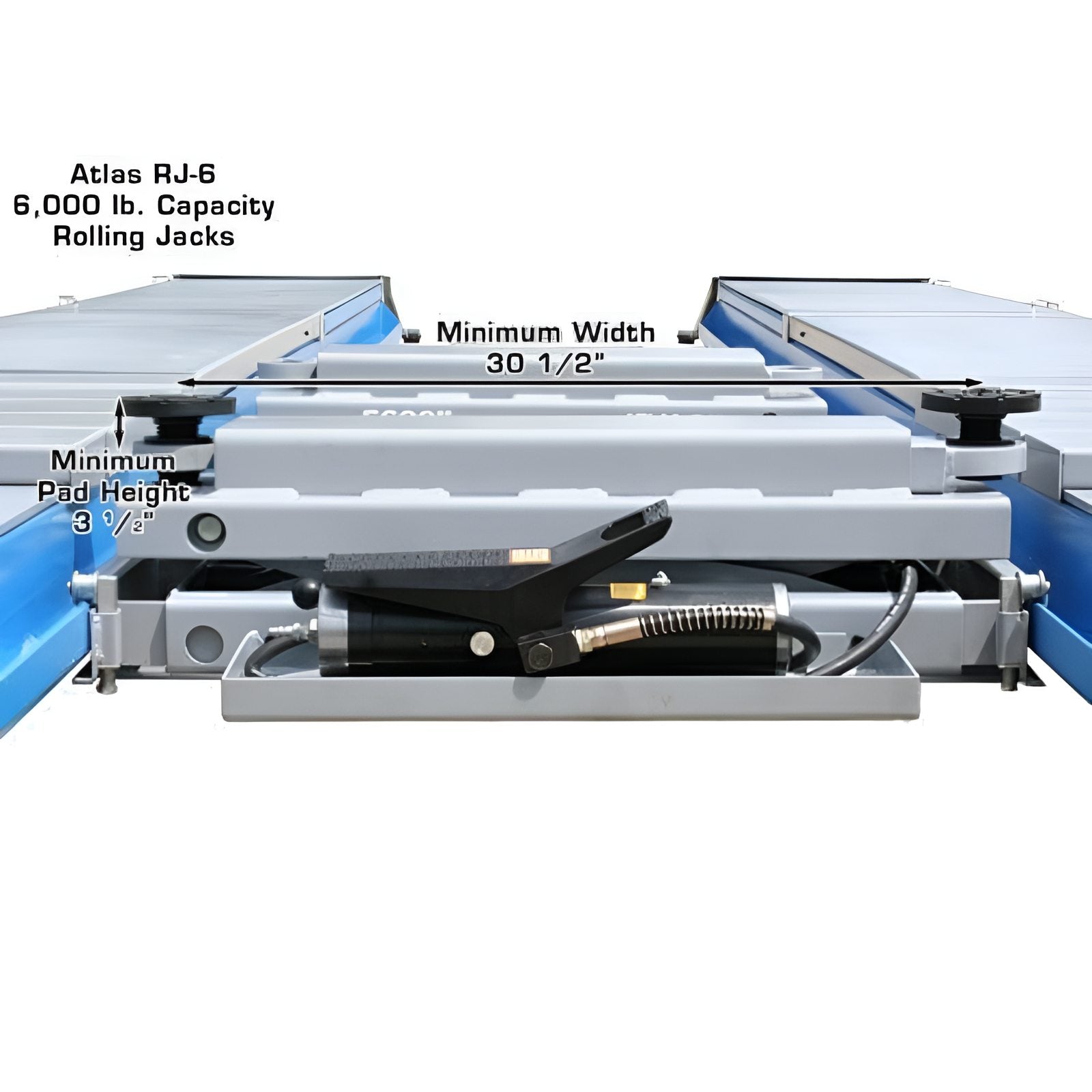

• Minimum Width    30 1/2" (2' 6 1/2")
• Distance Between Runway Capability    31 1/2"- 49 1/2"

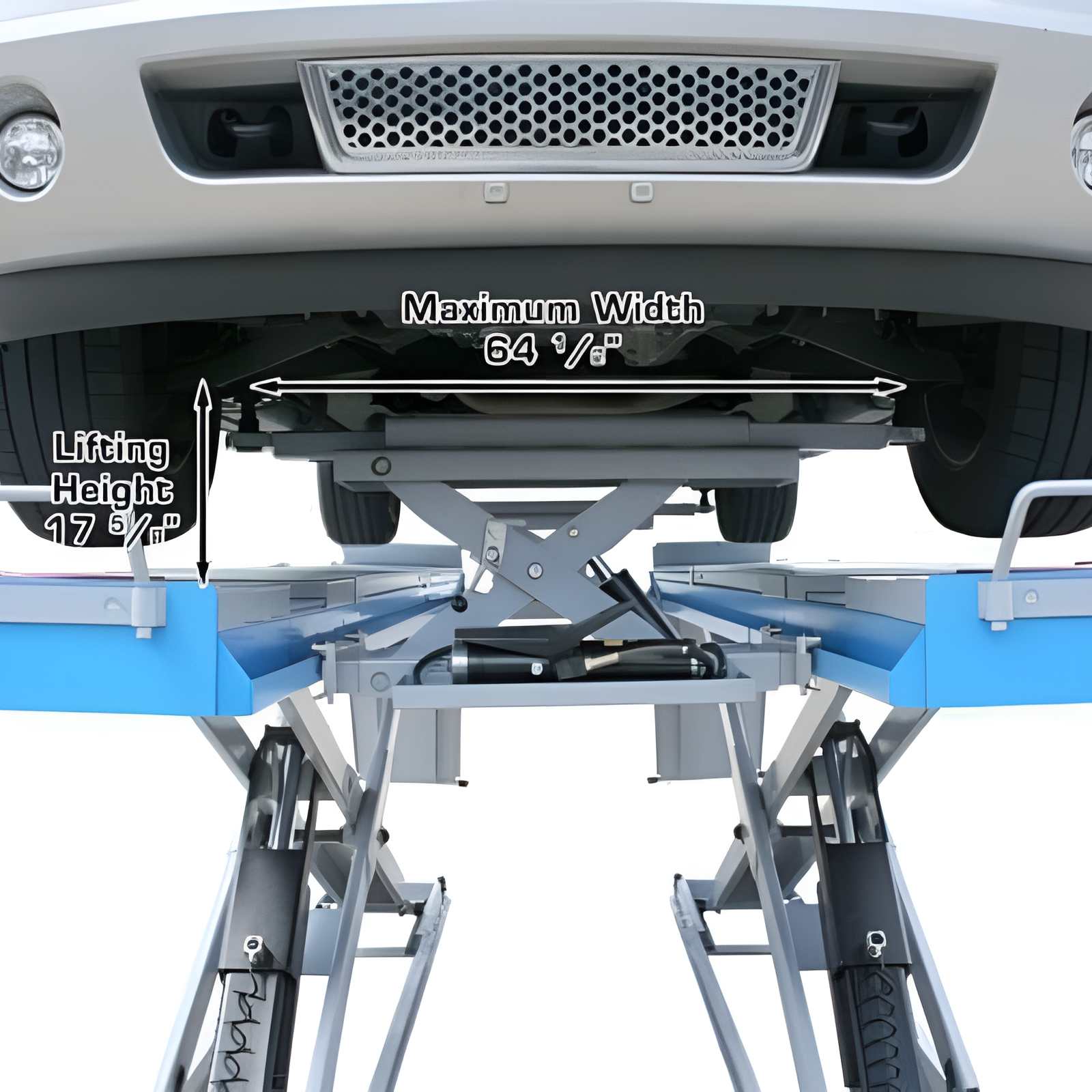

• Maximum Lifting Height (With Adapters)    17 5/8" (1' 5 5/8")
• Air Requirement    70-115 PSI

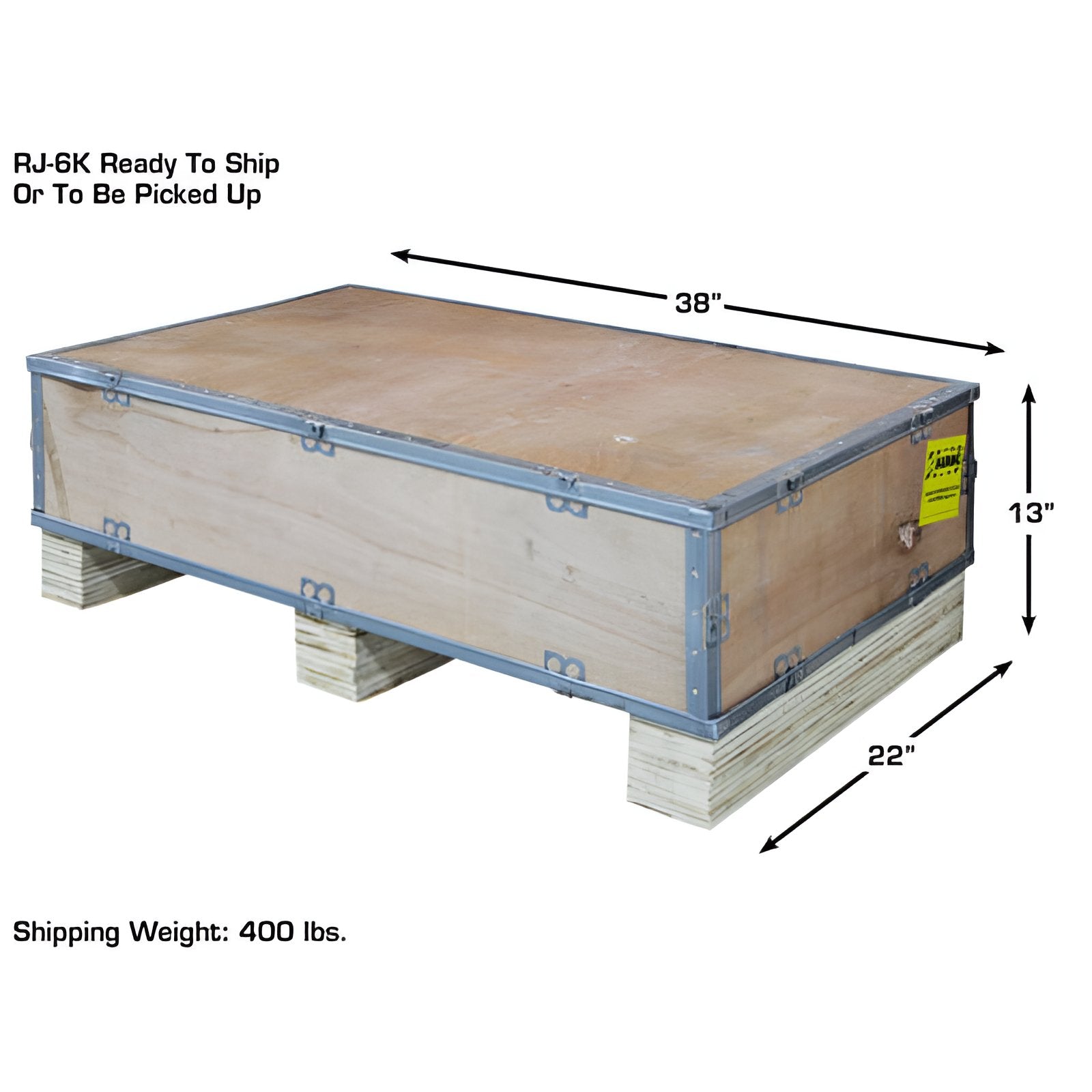

• Shipping Weight    350 lbs.
• Adapter Heights    2 Each 3", 7"
• Arm Hole/Adapter Peg Size    2"

RJ-6 6,000 lbs Rolling Bridge Jack Special Features:

• 6,000 lb. Capacity
• Air/Hydraulic Operated (external air supply required)

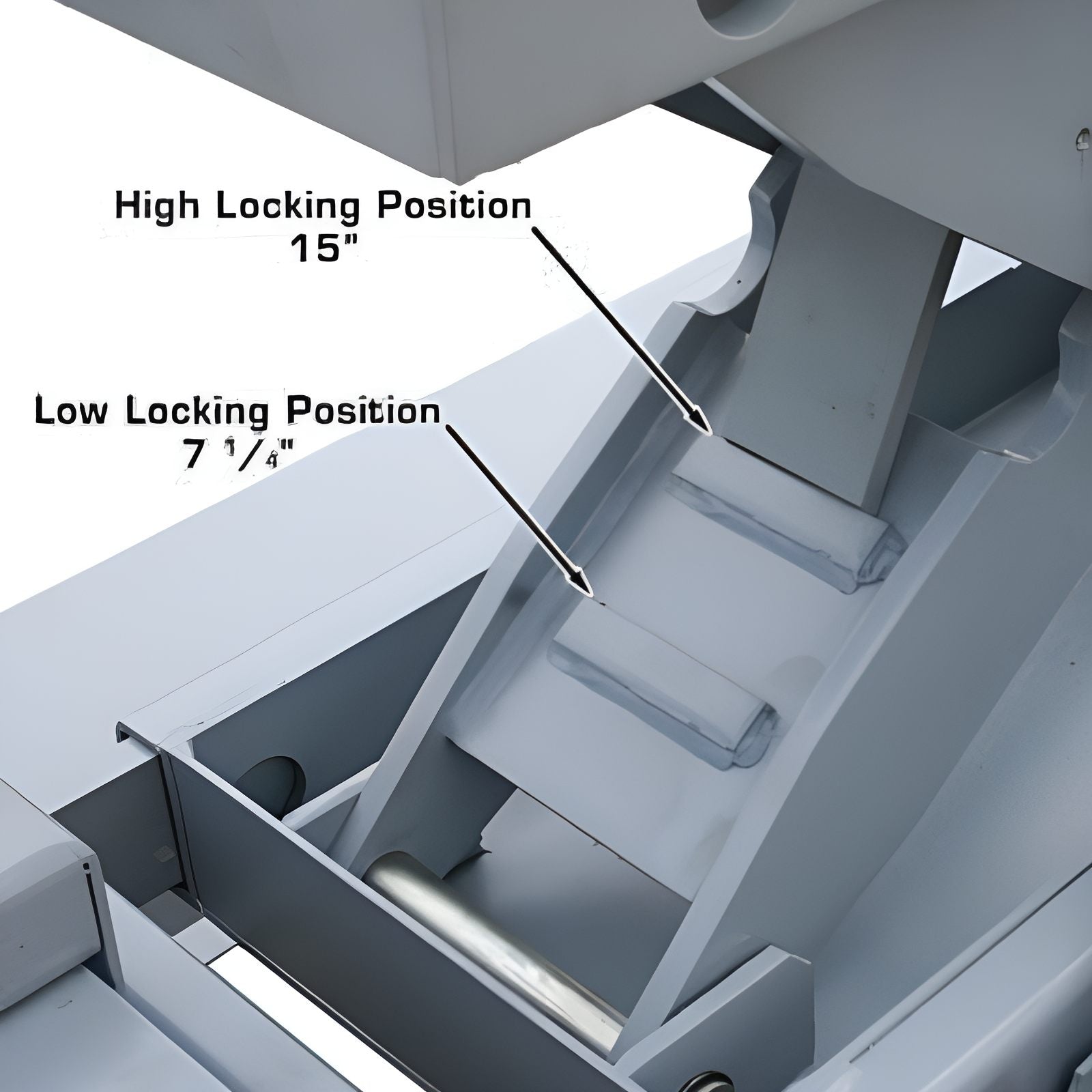

• Multiple Safety Lock Positions
• Compact Size with Low Profile
• Smooth Rolling Action
• Scissor mechanism allows for level lifting
• Powder Coated Finish
• Double Screw-Up Adapters Included

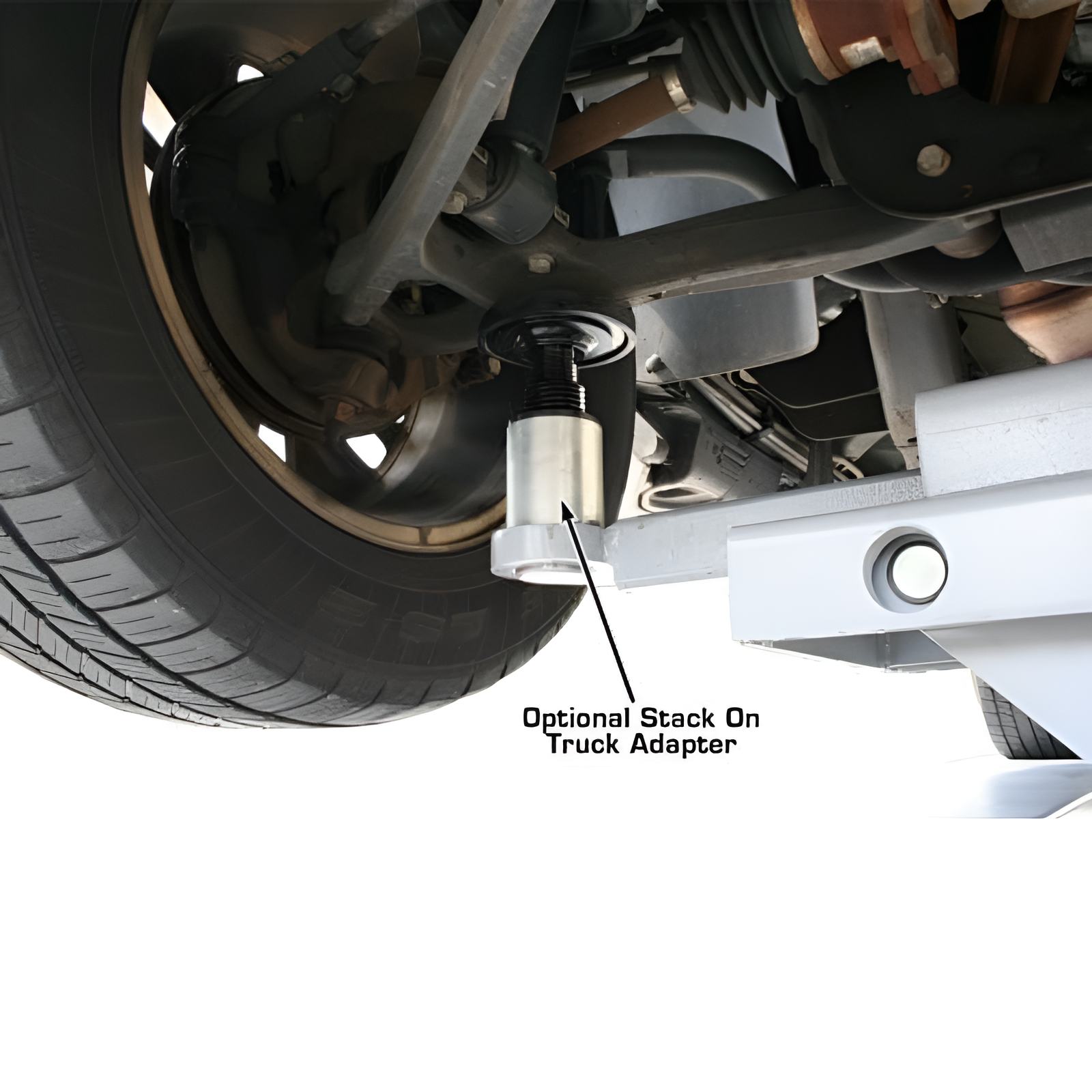

• 4 Piece Truck Adapter Set Included
• 1 Year Parts Only Warranty

Atlas RJ-6 6,000 lb Documentation:

   Atlas RJ-6 Rolling Bridge Jack Product Manual

   Atlas RJ-6 Rolling Bridge Jack Product Guide
