Atlas 414, 14,000 lb 4 Post Lift - Commercial Grade

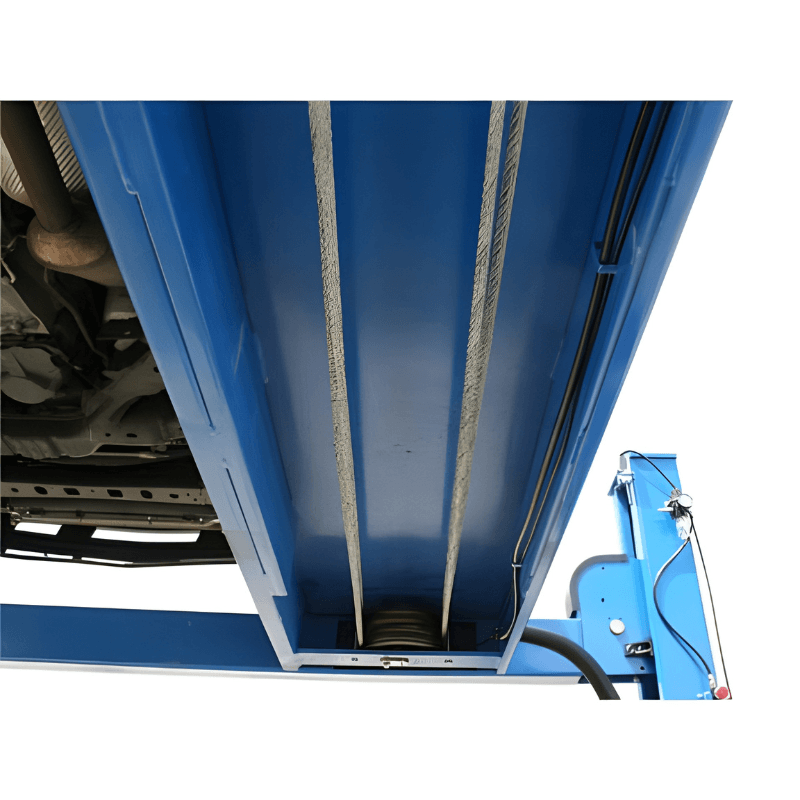

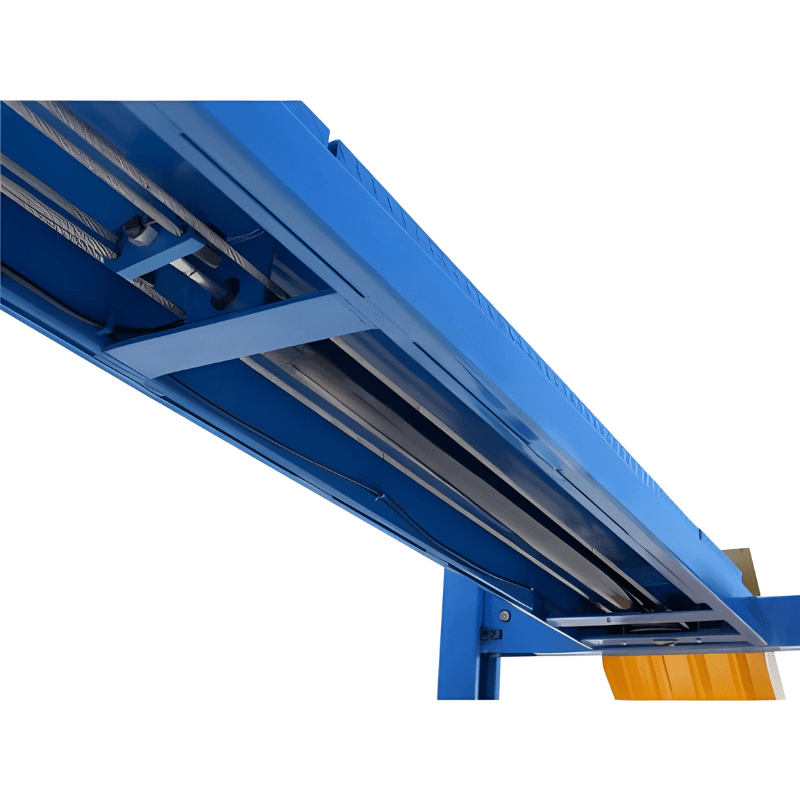

 The Atlas® 414 is a heavy duty four post lift with a 14,000 pound capacity, built to commercial grade standards for long-lasting use. Our exclusive features make our Atlas® lifts stand out from competitors. Despite its many advanced features, the Atlas® 414 is priced thousands of dollars lower than other lifts on the market. We rigorously test our lifts to ensure they can perform flawlessly at their full capacity. This lift has been manufactured to the same high standards for many years. Powered by a high strength cable system and an oversized hydraulic cylinder, the Atlas® 414 uses a 220 volt (single phase) power unit to effortlessly raise and lower the lift. Unlike many competitors who use outdated chain lifting systems, our lift boasts a streamlined design with tracks between the runways, making it compatible with additional rolling bridge jacks (such as the Atlas® RJ8000BK). Please note that rolling jacks are sold separately.

Post Lift 414 Specifications:

• Capacity 14,000 lb.
• Lifting Height 80" (6' 8")

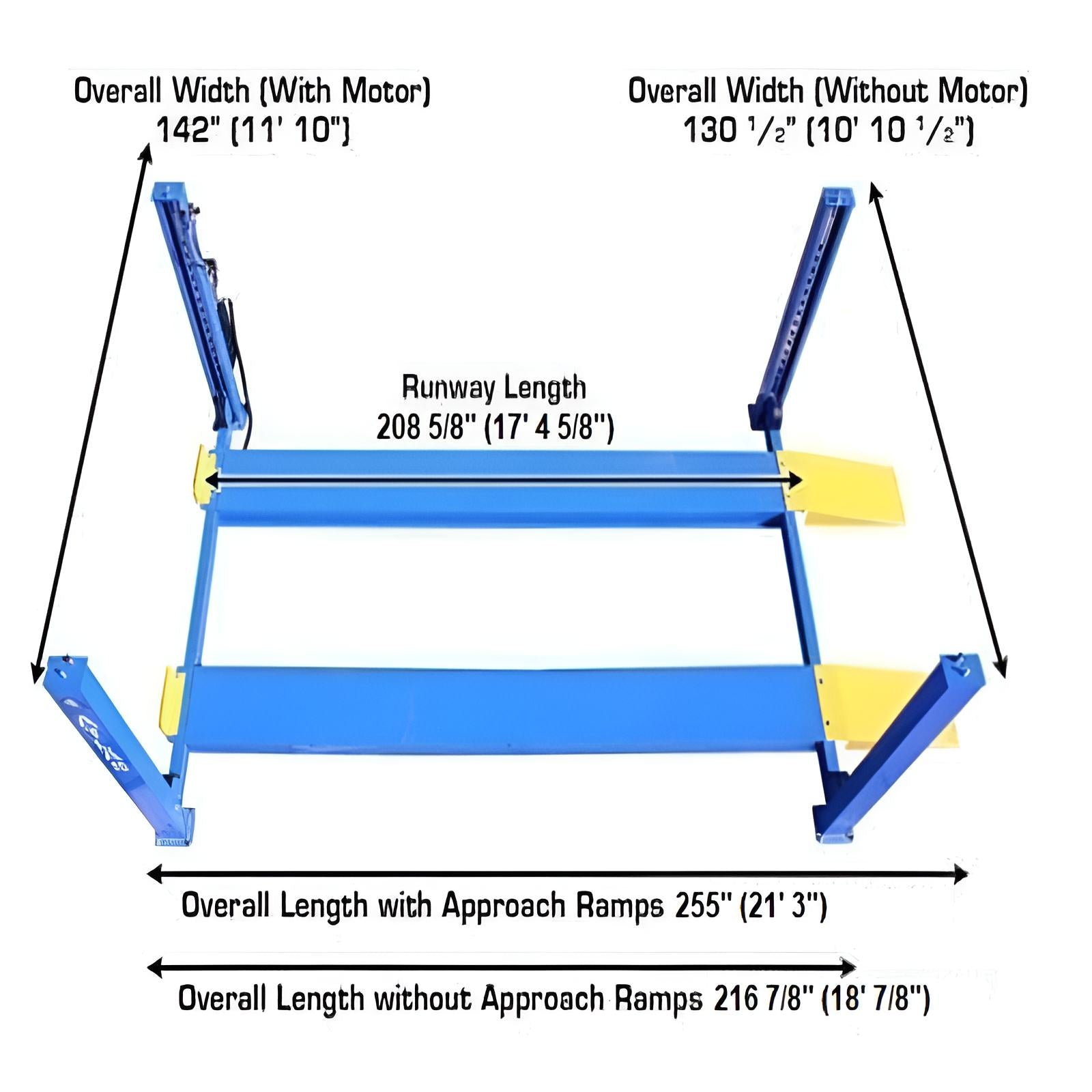

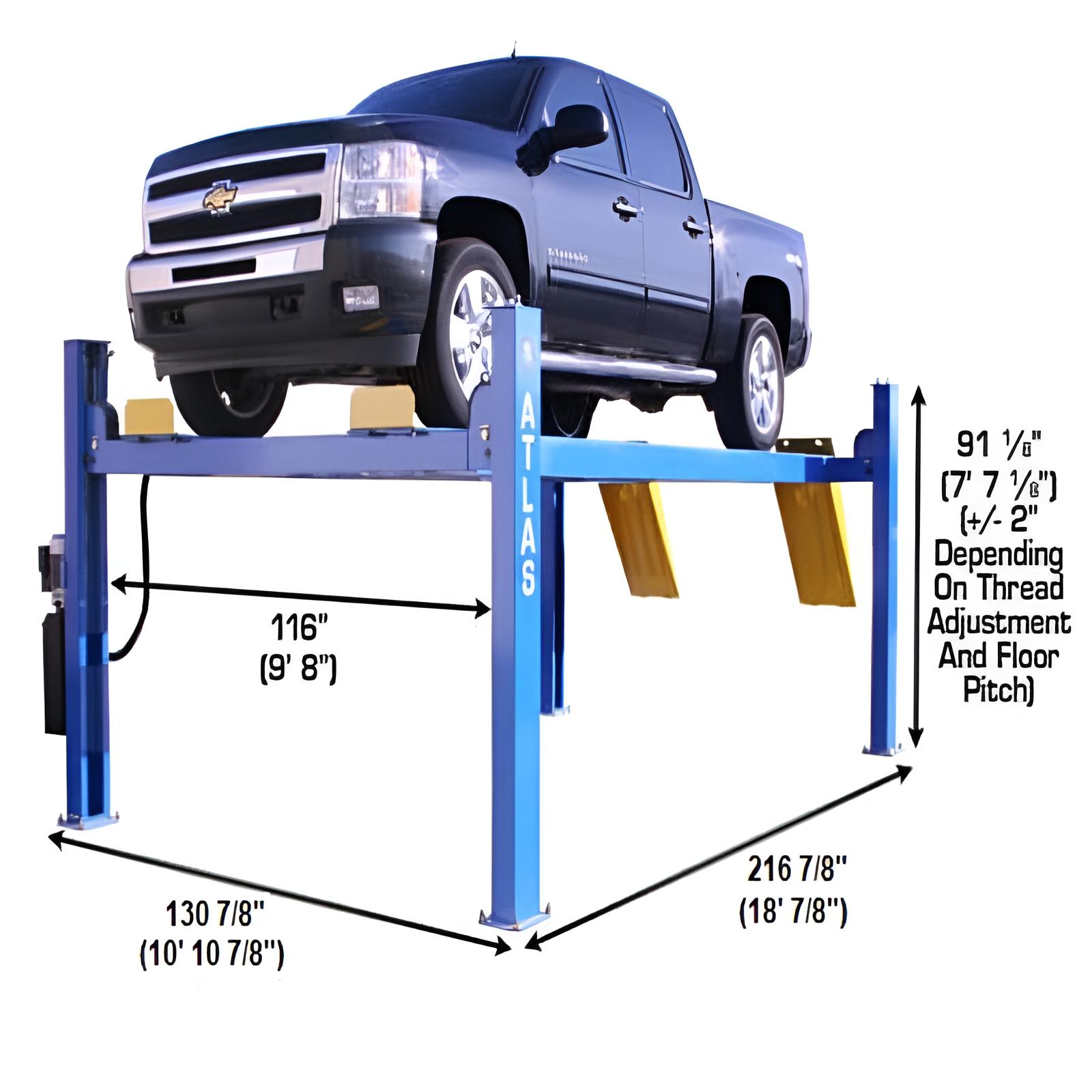

• Overall Width Of Columns (Without Motor) 130 7/8" (10' 10 7/8")
• Overall Width Of Columns (With Motor) 138 7/8" (11' 6 7/8")
• Overall Length With Approach Ramp 255" (21' 3")
• Length Between Columns 197 1/4" (16' 5 1/4")
• Runway Length 208 5/8" (17' 4 5/8")
• Runway Width 20"
• Thickness Of Runway 8 3/4"

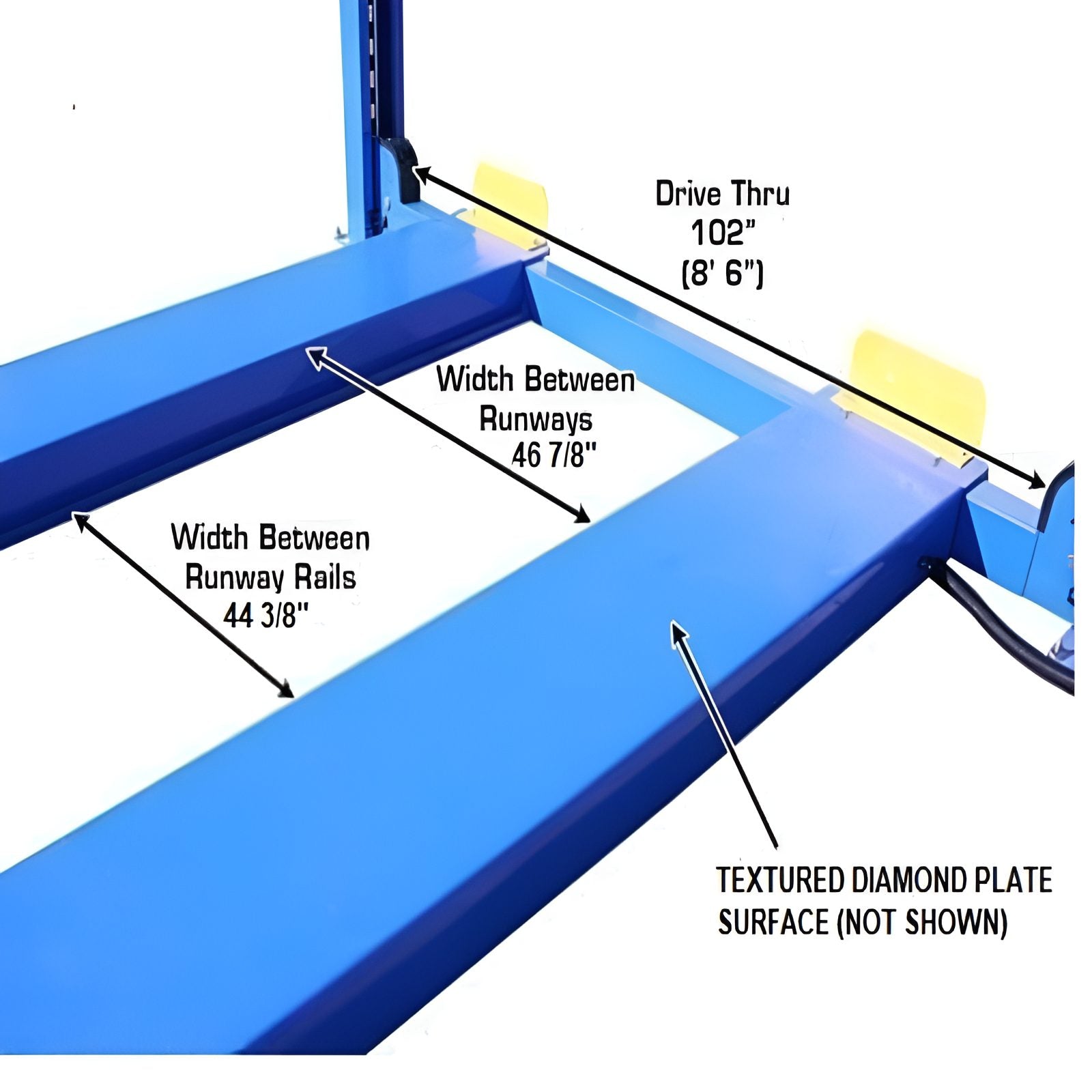

• Width Between Runways 46 7/8" (w/ Rail 44 3/8")
• Outside Runway To Outside Runway 86 7/8" (7' 2 7/8")

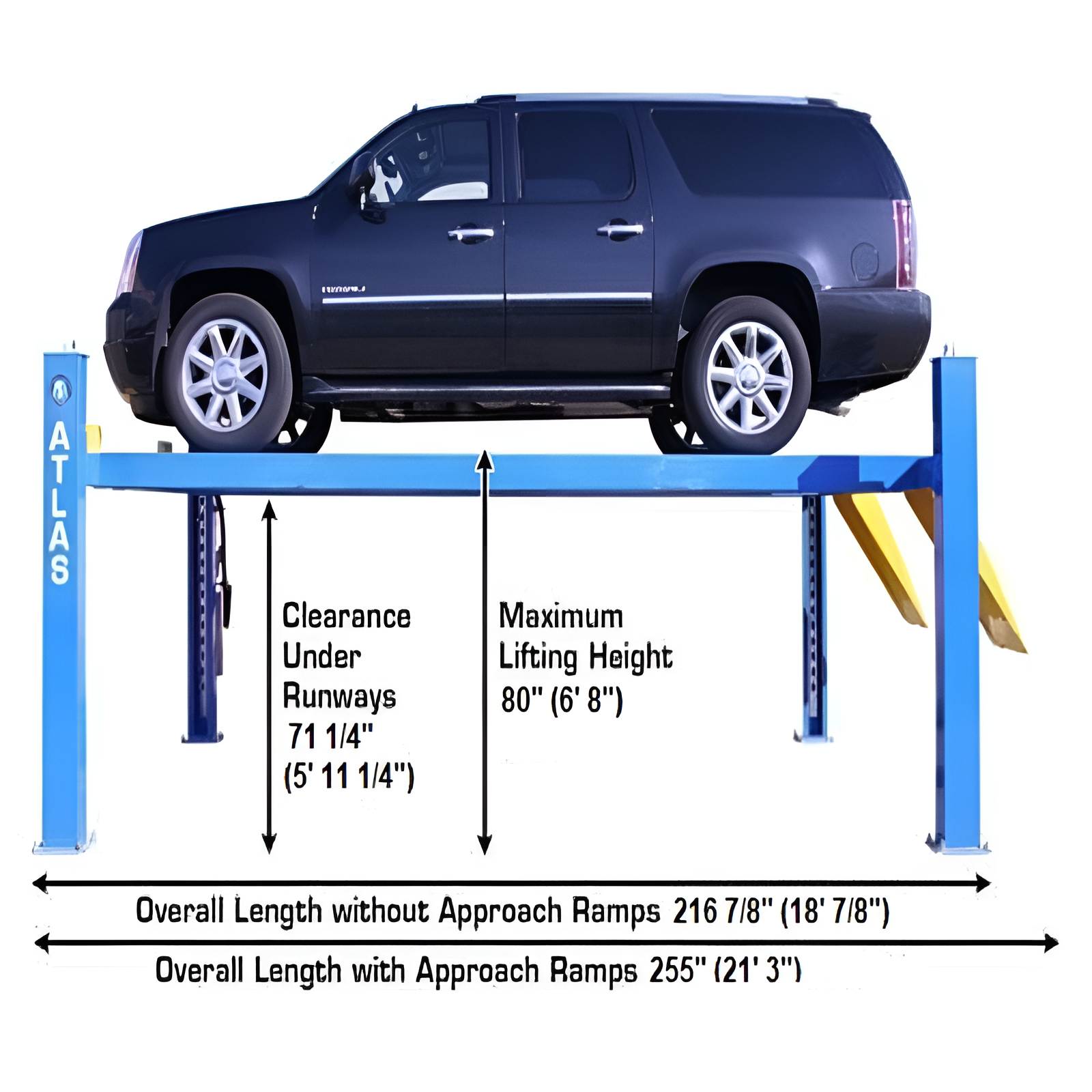

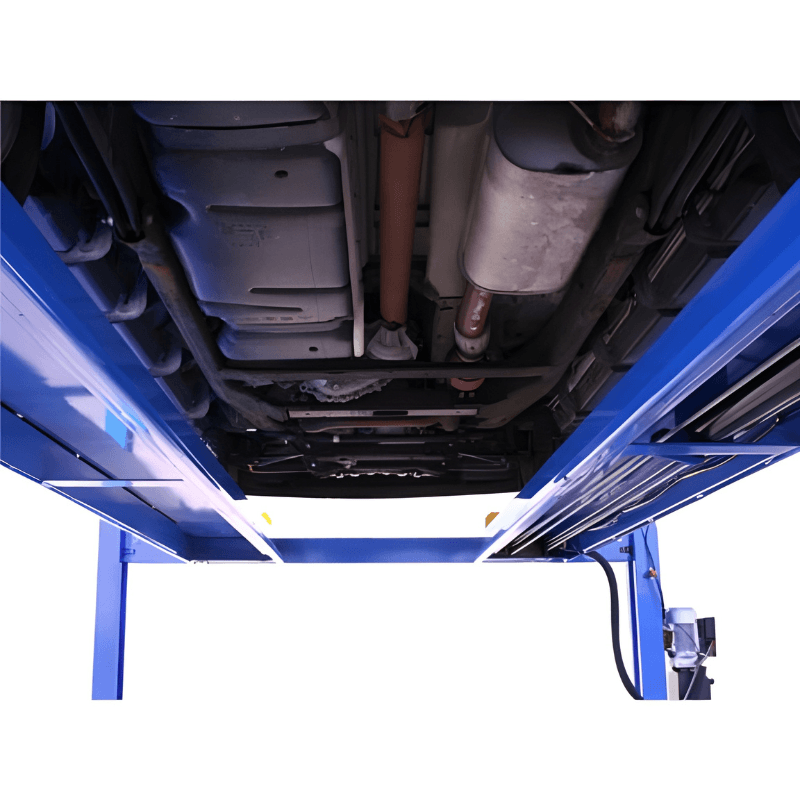

• Clearance Under Runways 71 1/4" (5' 11 1/4")

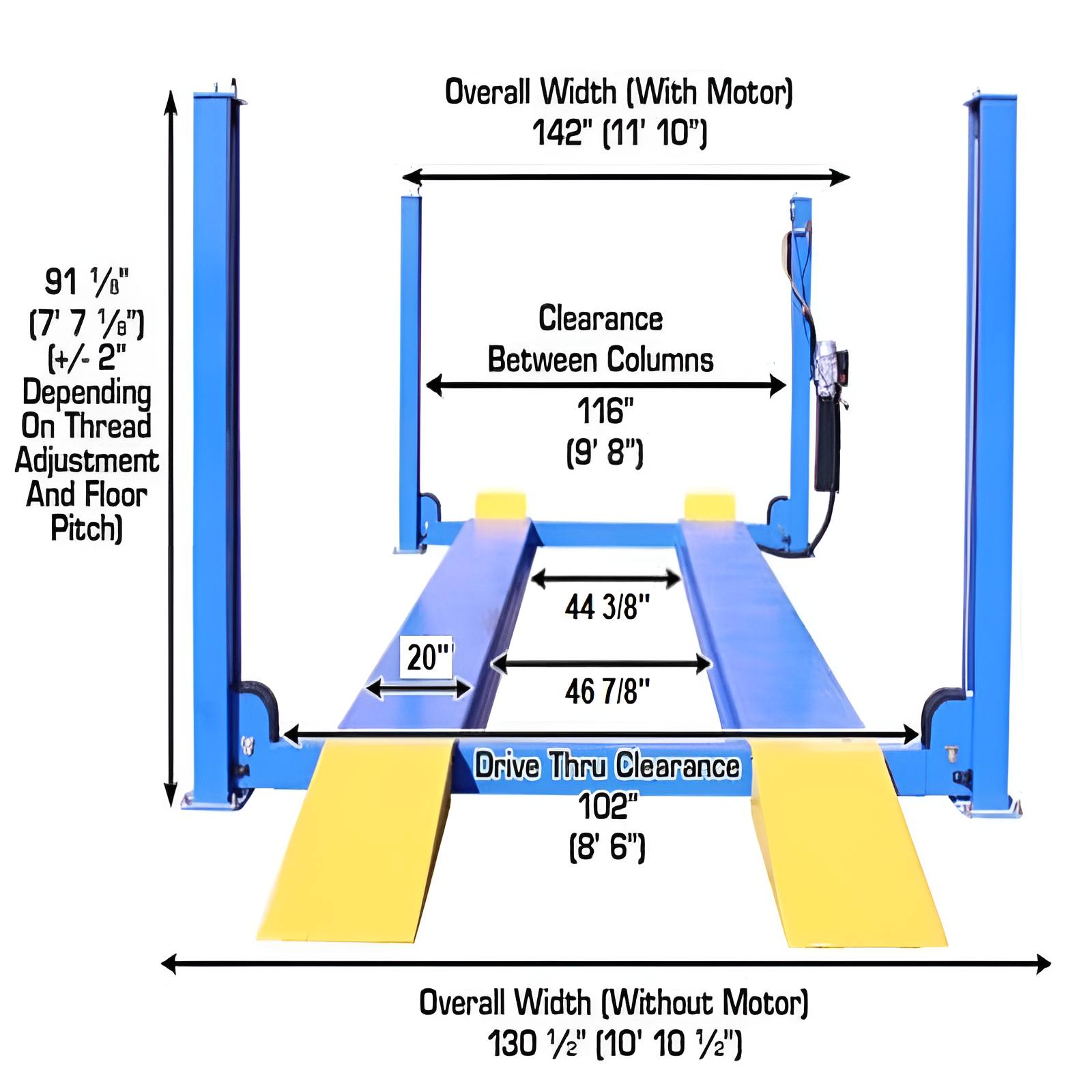

• Clearance Between Columns 116" (9' 8")

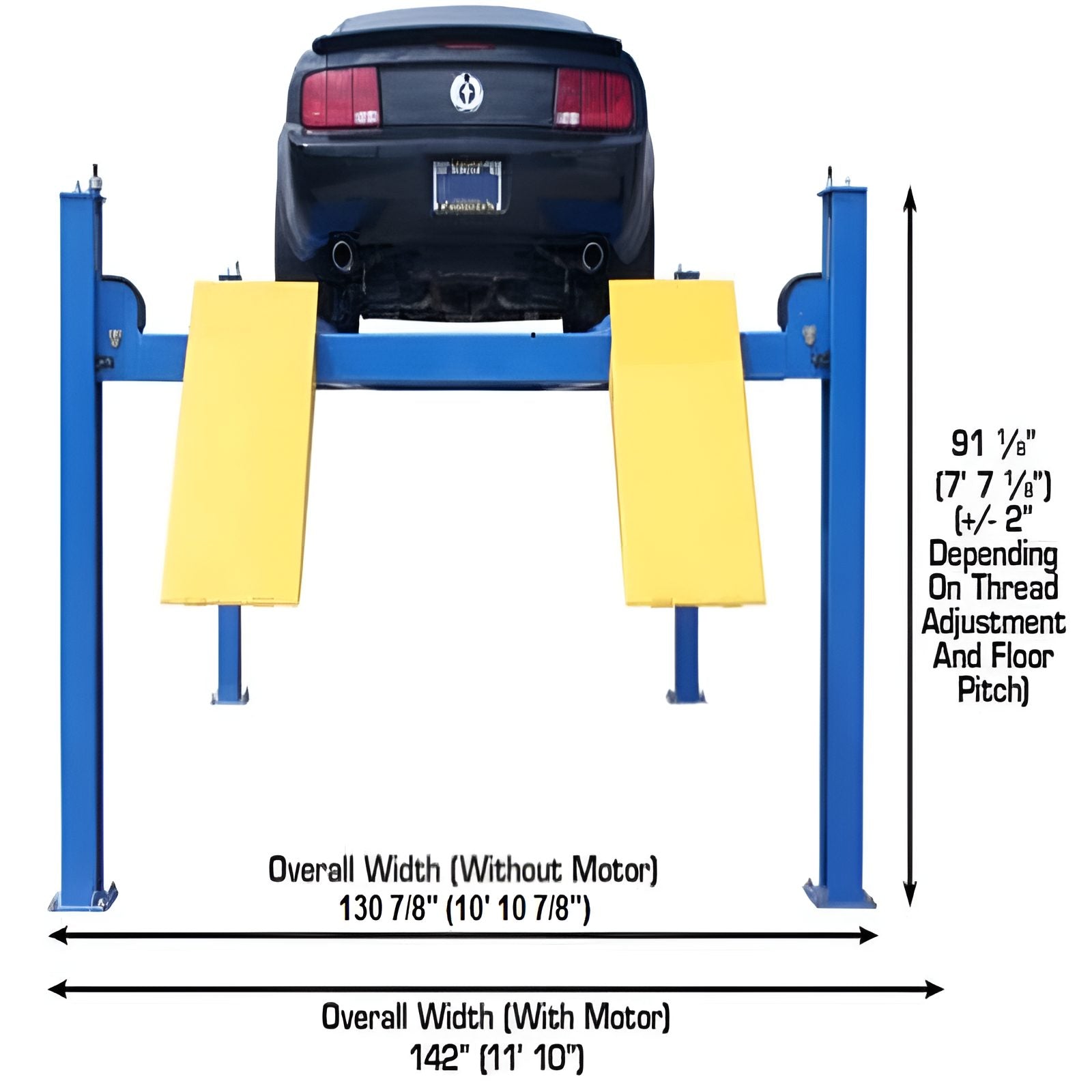

• Height Of Columns 91 1/8" (7' 7 1/8")
• Maximum Wheel Base 197" (16' 5")
• Drive Thru 102 1/8" (8' 6 1/8")
• Air Requirement 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)

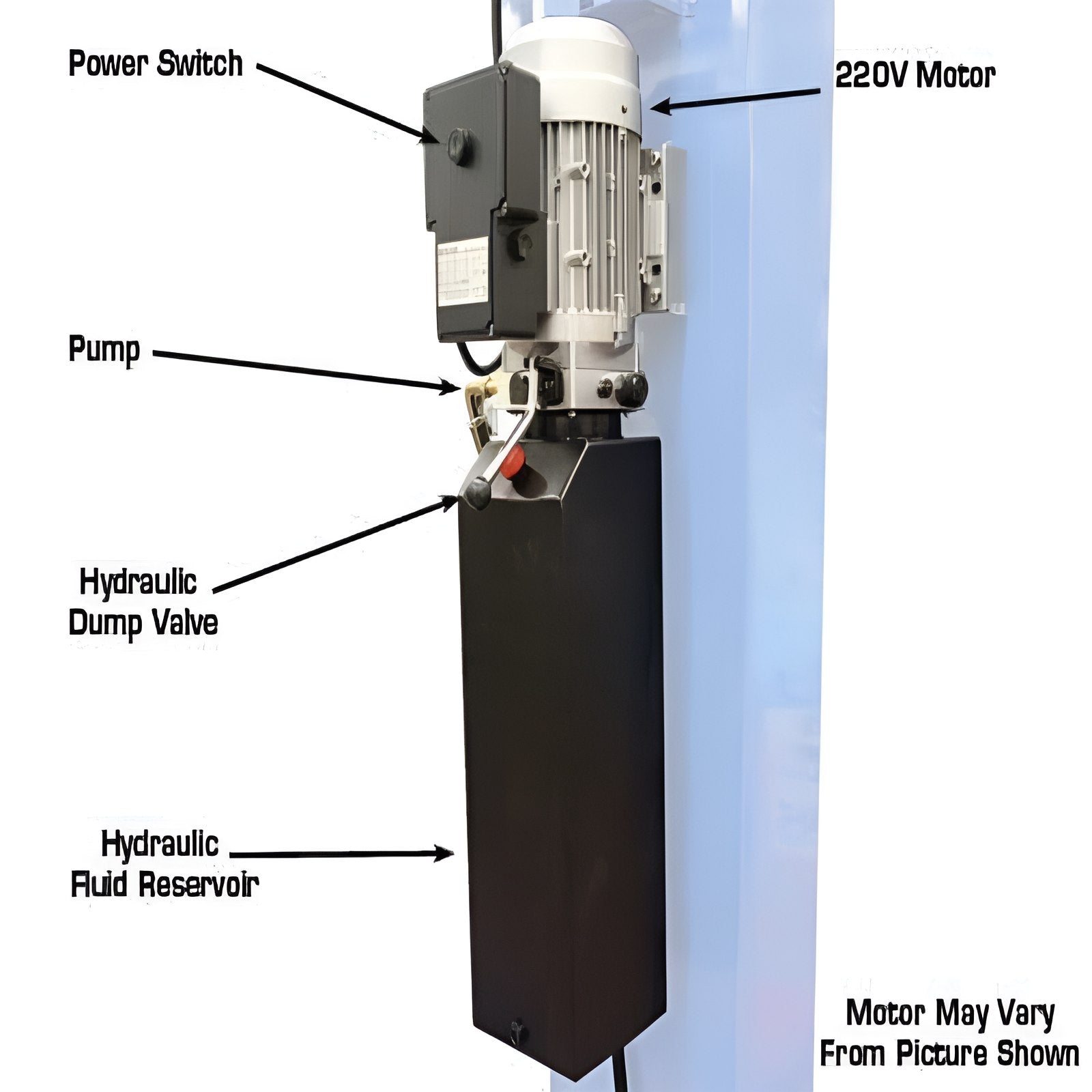

• Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 3,100 LBS.

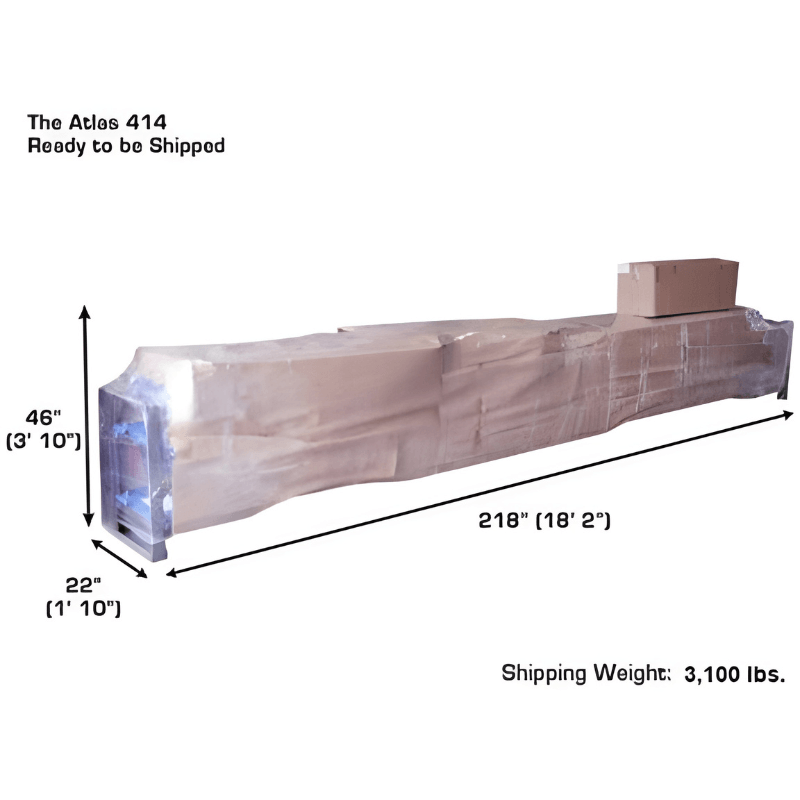

• Pallet Size:  218" Long x 46" Tall x 22" Wide
• Requires a minimum of 6" of concrete with a 3000 psi. rating

414 14,000 lb Post Lift Special Features:

• Heavy Duty, Commercial Grade
• Extra Tall, Extra Wide and Extra Long
• Design Free Standing & Portable
• Diamond Plated Runways
• Powder Coat Unit

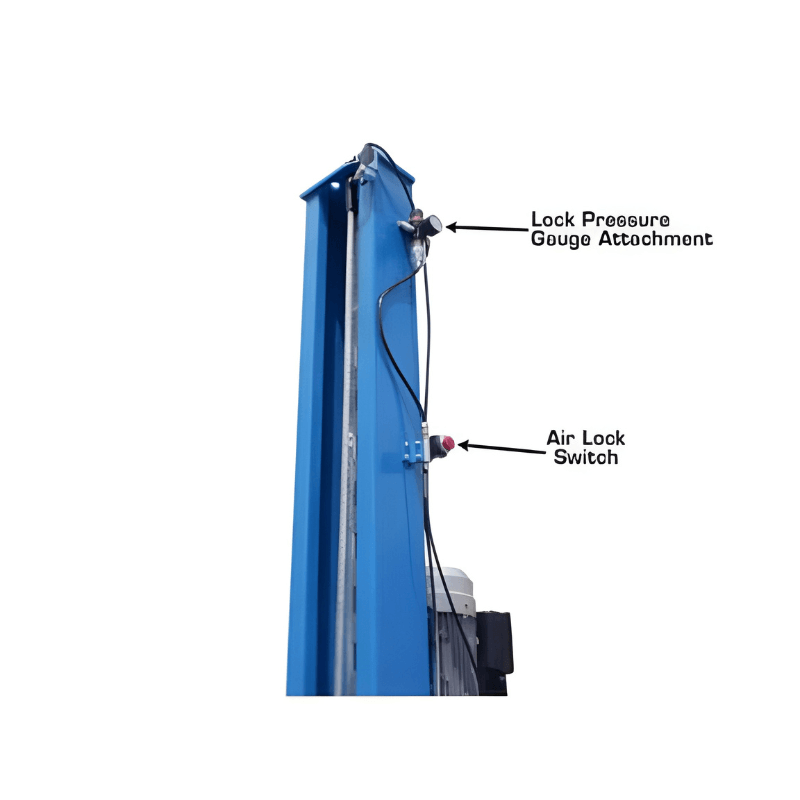

• Lock Release: Air Operated Single-Point (Air Supply Required - NOT included)

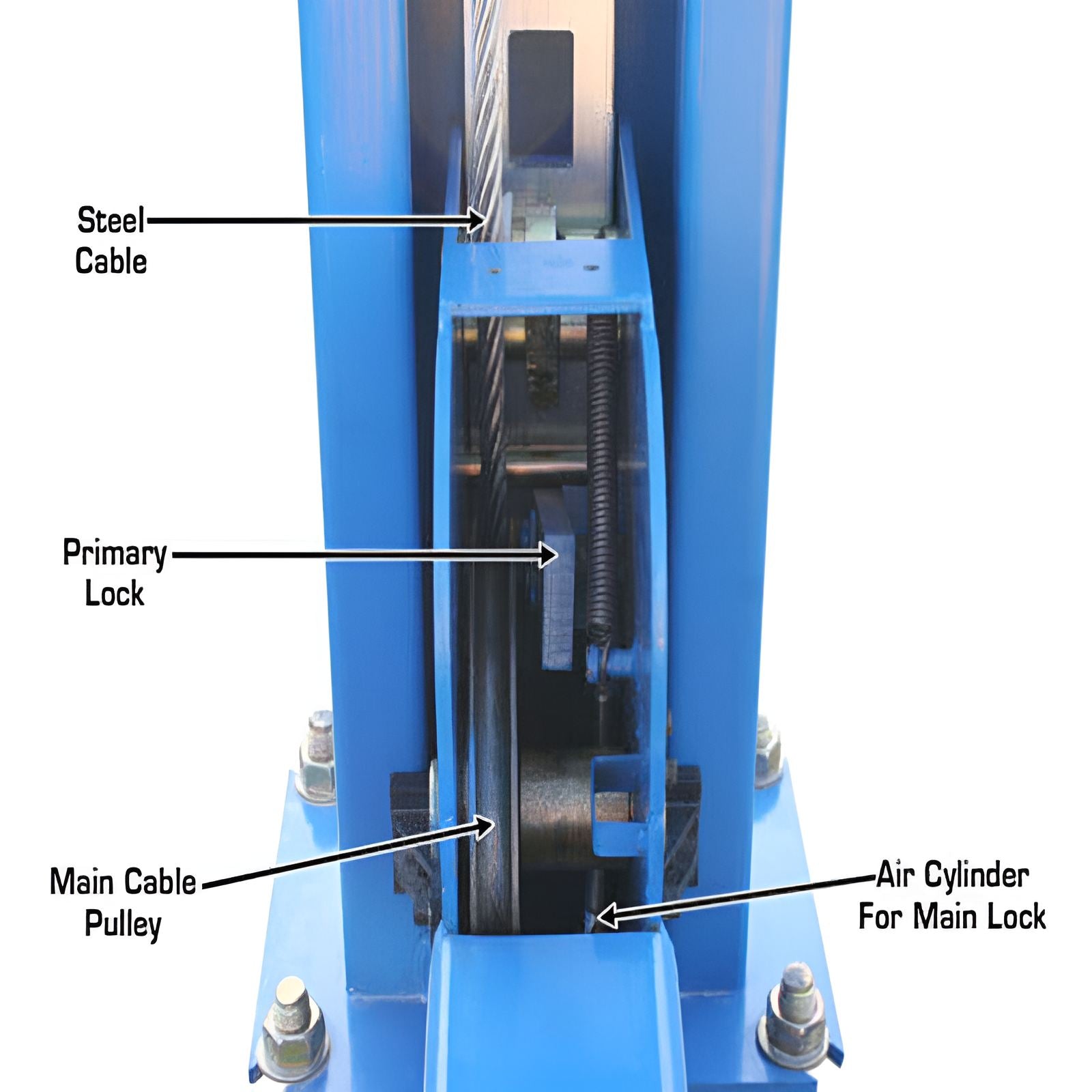

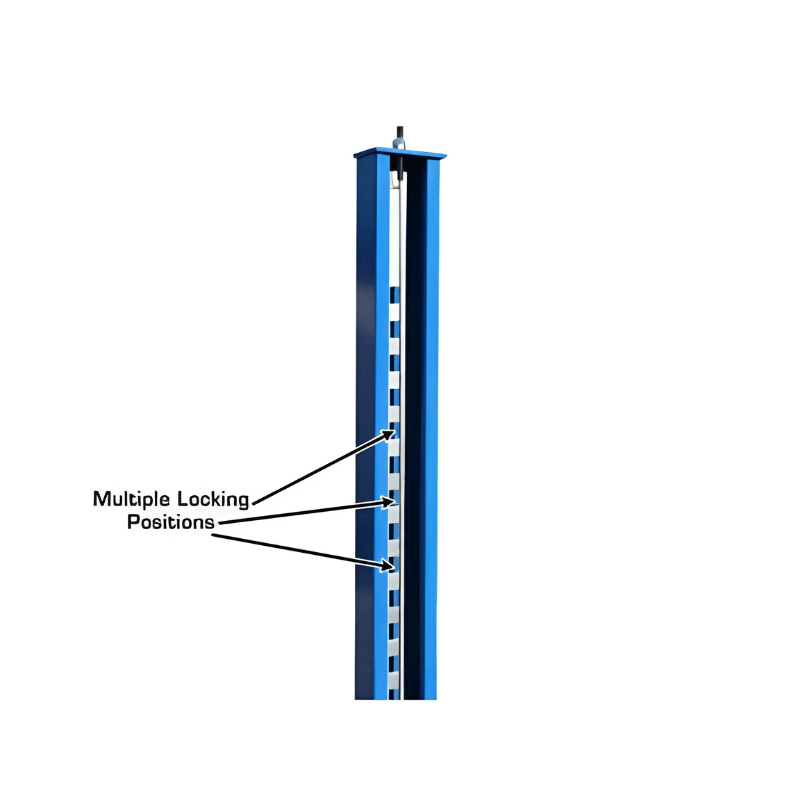

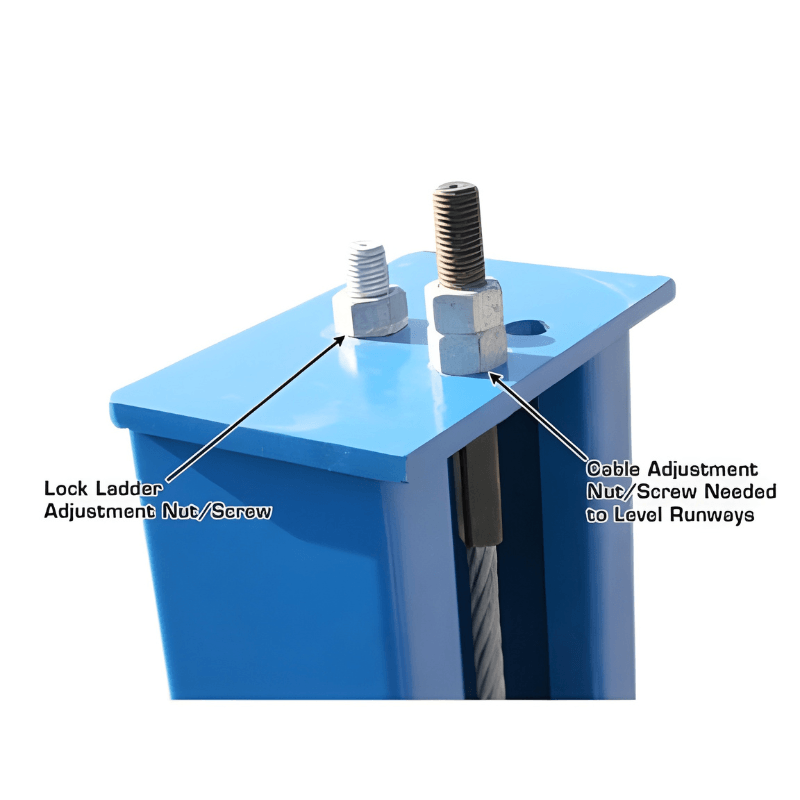

• Lock Design Lock Ladder w/ Double Lock Safety System
• Warranty: 5 year Structural; 2 year Hydraulic ‐ Parts Only
• 220volt/1 Phase Electric Operation (Requires 30amp Breaker)
• Unit Includes:

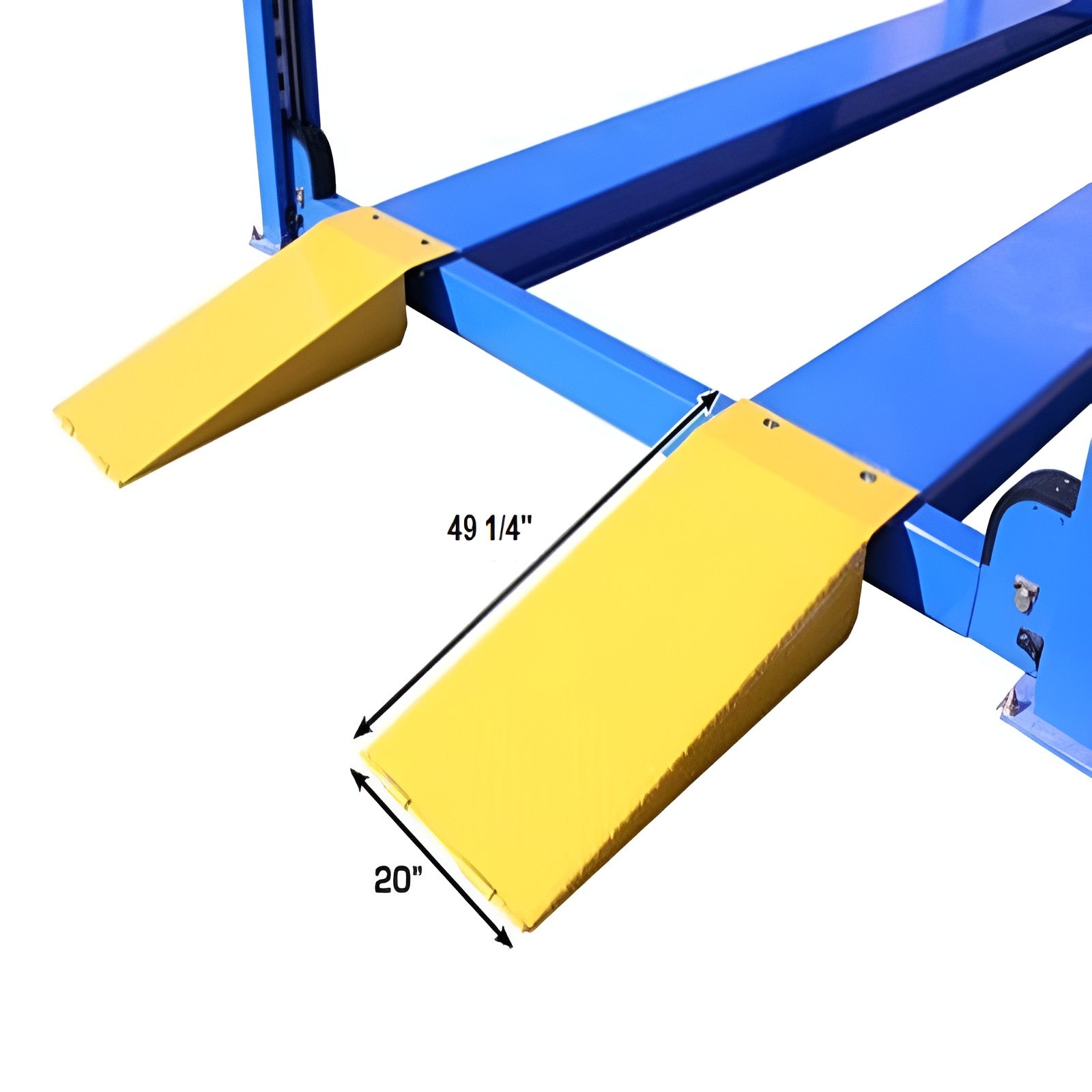

•     Steel Approach Ramps Included

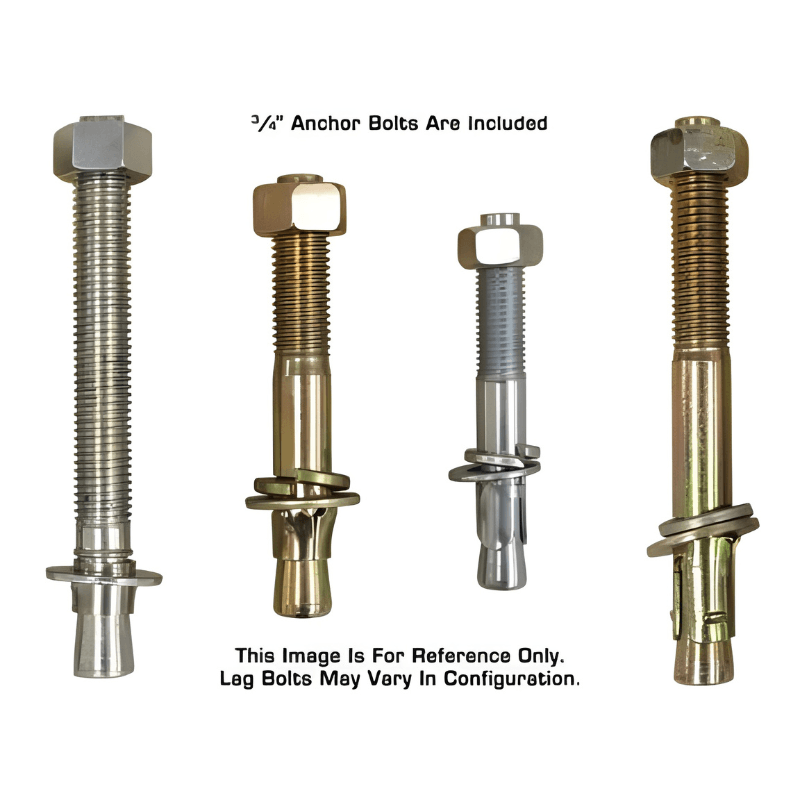

•     Mounting Hardware

 414 Four Post Lift Optional Items (sold separately):

•  RJ8000BK Rolling Jack
• Additional Drive Off Ramps
• Runway Extensions

Atlas 414 Documentation:

   Atlas 414 Post Lift Product Manual

This Item has a FLAT RATE SHIPPING FEE: $799

*Due to Extra Large Size, product cannot be delivered to a freight terminal.

Warehouse Pickup locations (No shipping charge):

• Atlanta, GA
• Dallas, TX
• Indianapolis, IN
• Phoenix, AZ
• Somerset, NJ
