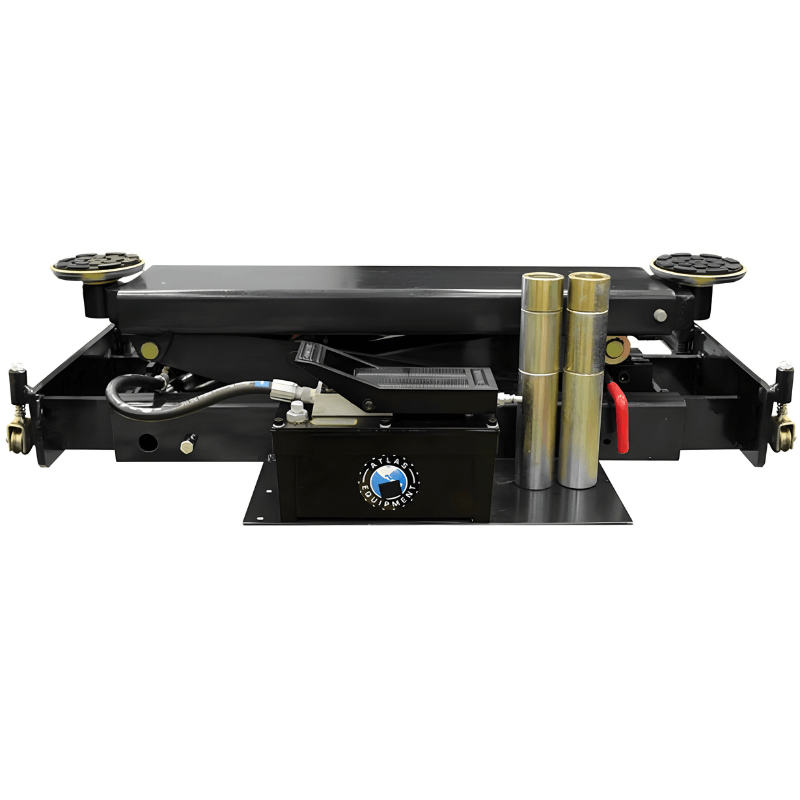

RJ8000 Rolling Bridge Jack by Atlas

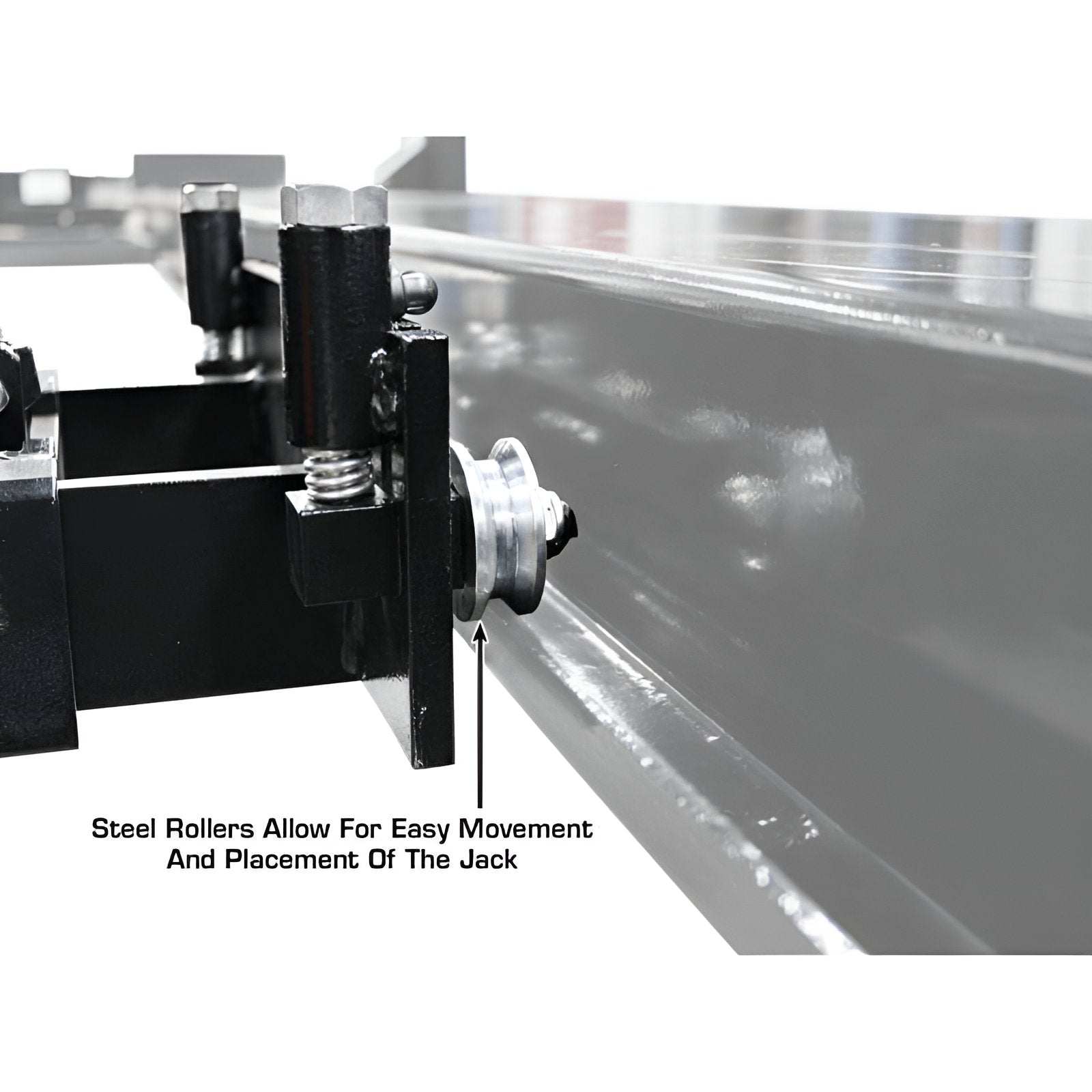

The Atlas® RJ8000 air/hydraulic rolling jack is equipped with telescoping arms that extend over the runways of a four-post lift, allowing the lift pads at the ends of these arms to be positioned under the lifting points located over the lift's runways. Additionally, this rolling jack features expandable rail supports that adjust to fit between the runways of various four-post above-ground lifts. These supports boast a unique roller system, enabling the rolling hydraulic jack to effortlessly glide under the entire length of the vehicle.

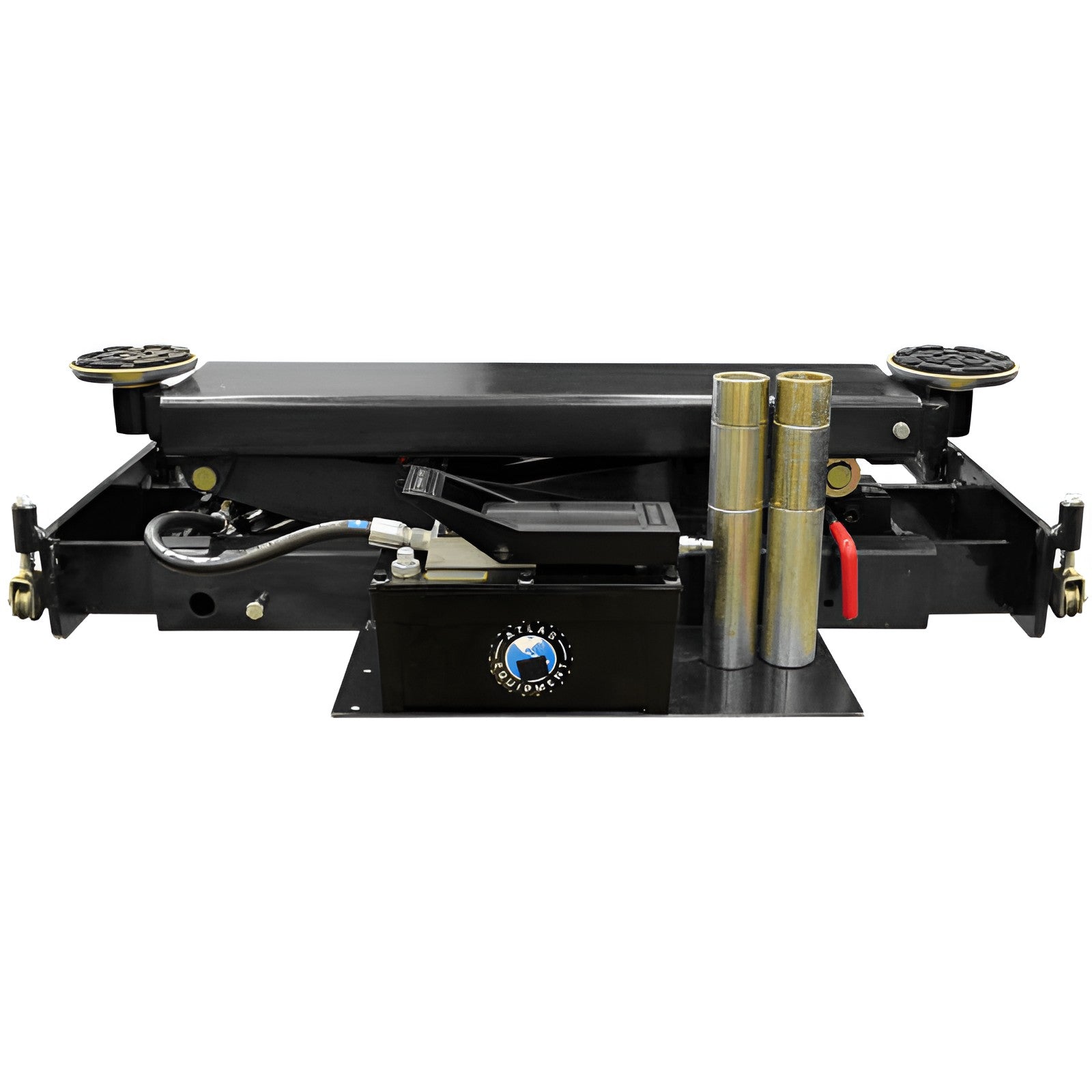

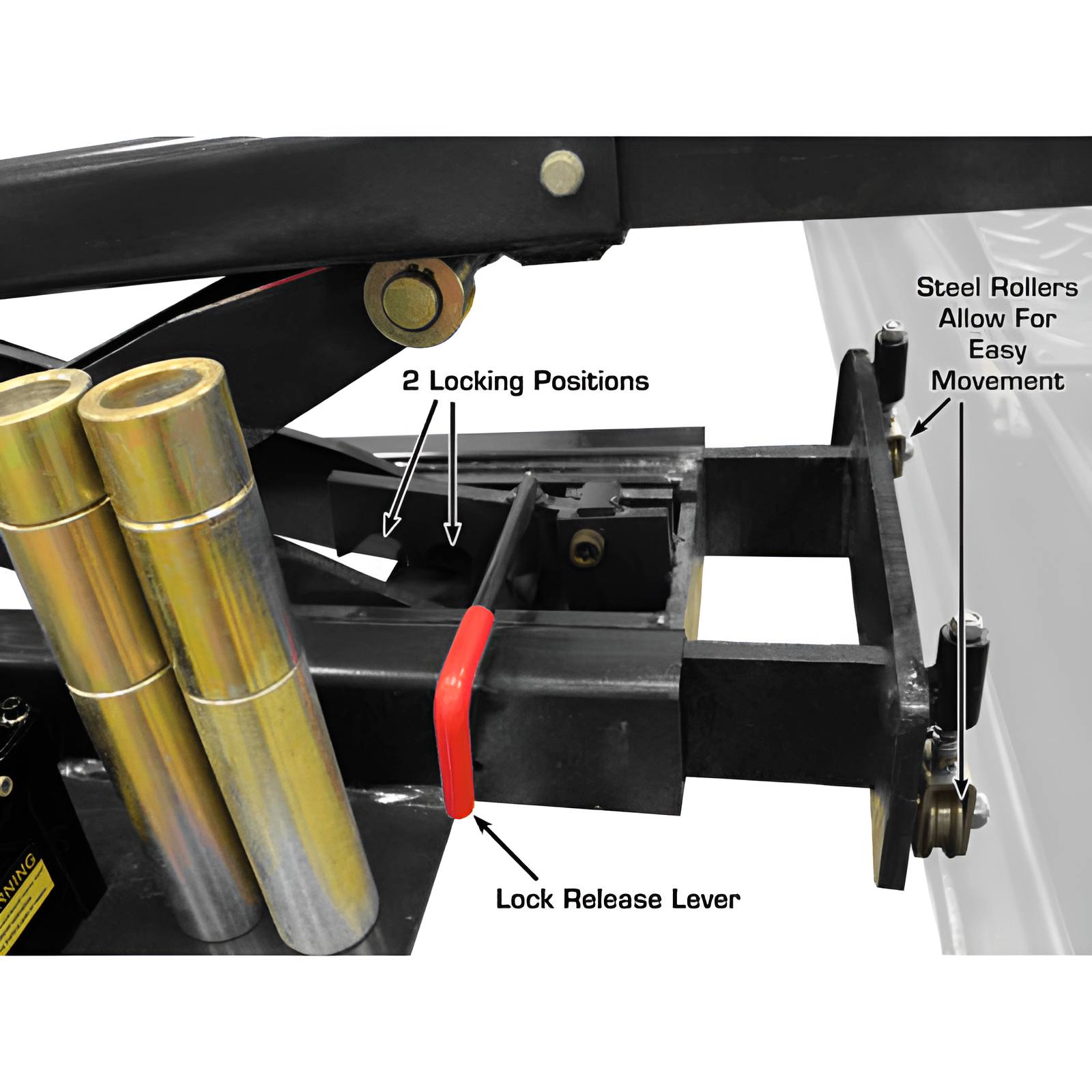

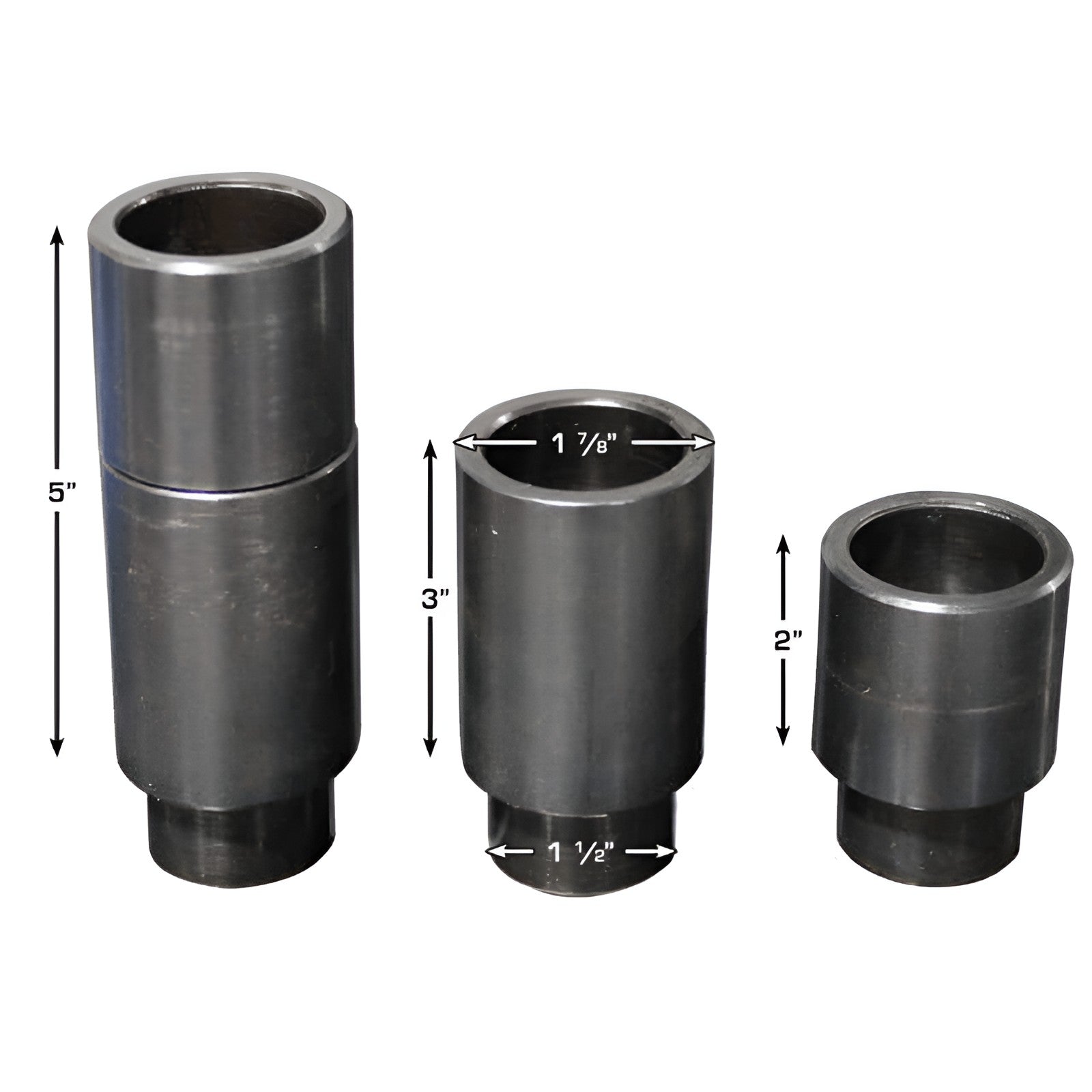

Included with the Atlas® RJ8000 rolling bridge jack are peg-style truck adapters as standard, which increase the lifting height of the lift pads. These adapters enable the RJ8000 to raise most pickup trucks and larger vehicles that sit higher than the average passenger car. Moreover, the RJ8000 rolling hydraulic jack features two solid locking positions used when suspending the vehicle above the runways. Engaging these locking positions eliminates hydraulic pressure from the lifting cylinder, functioning similarly to a pair of jack stands after lifting a vehicle off the ground with a service jack.

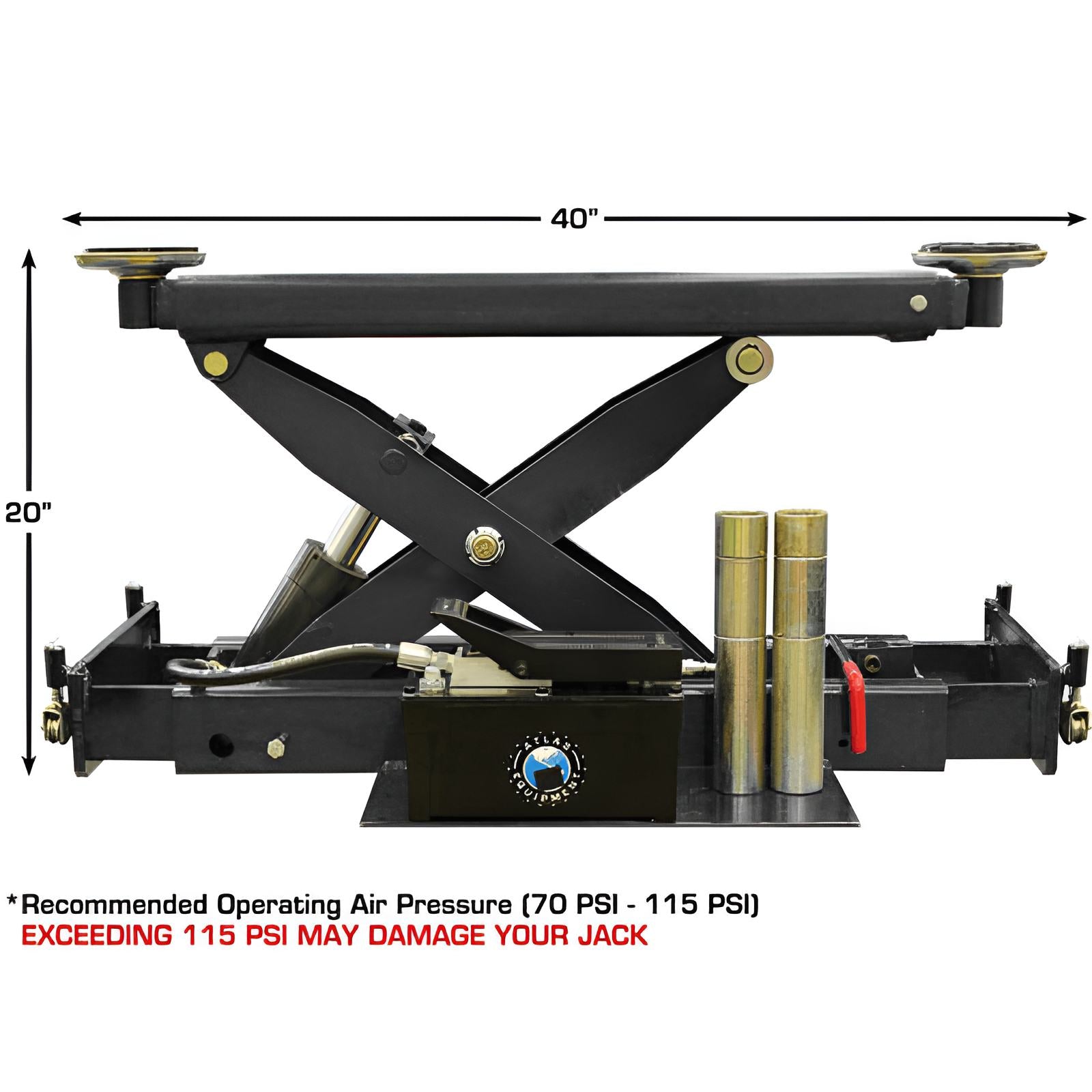

It's essential to note that the Atlas® RJ8000 is engineered to operate on "delivered" air pressure ranging from 70 to 115 PSI. Exceeding 115 PSI may result in damage to your jack.
Rolling Bridge Jack RJ8000 Specifications:
- Maximum Capacity 8,000 lb.

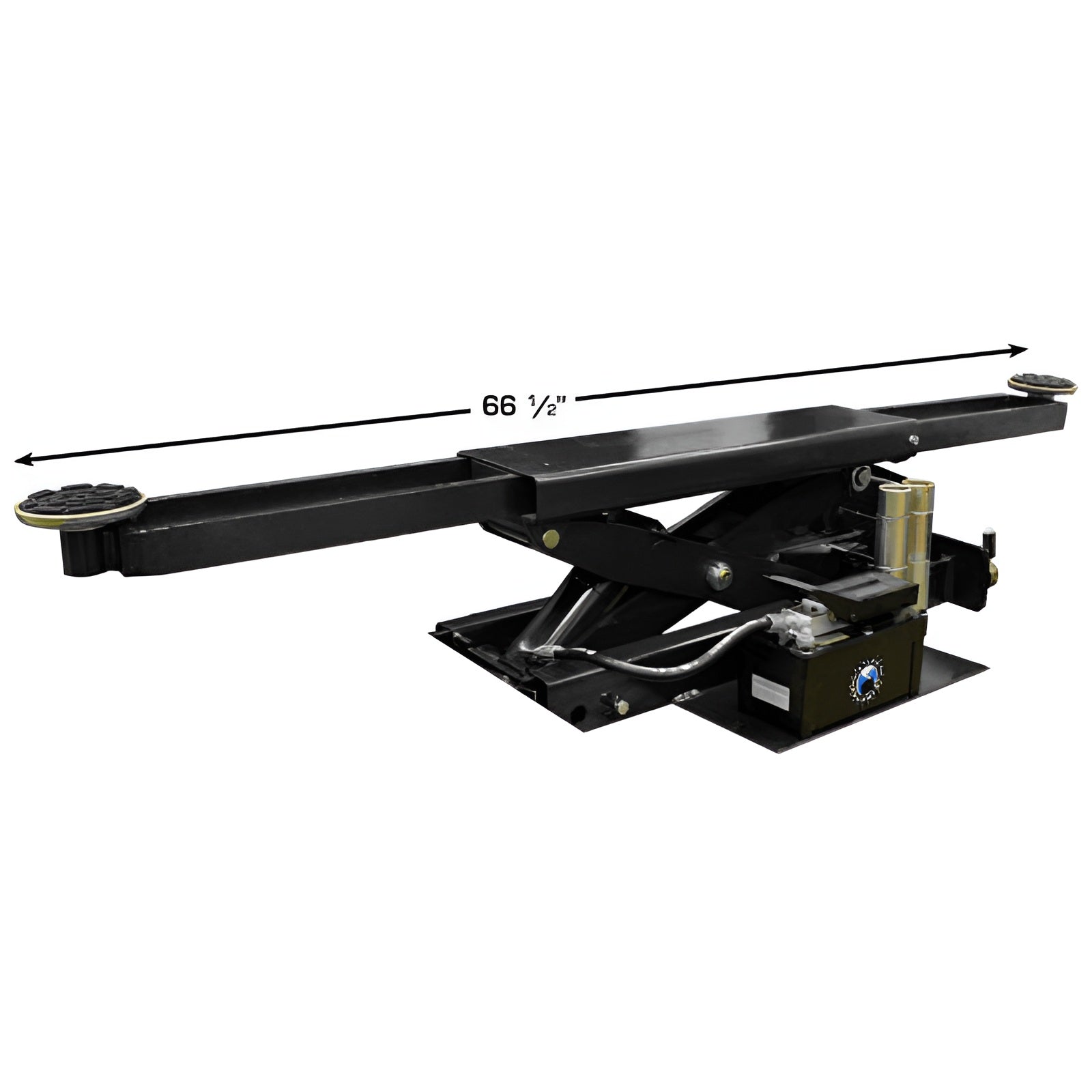

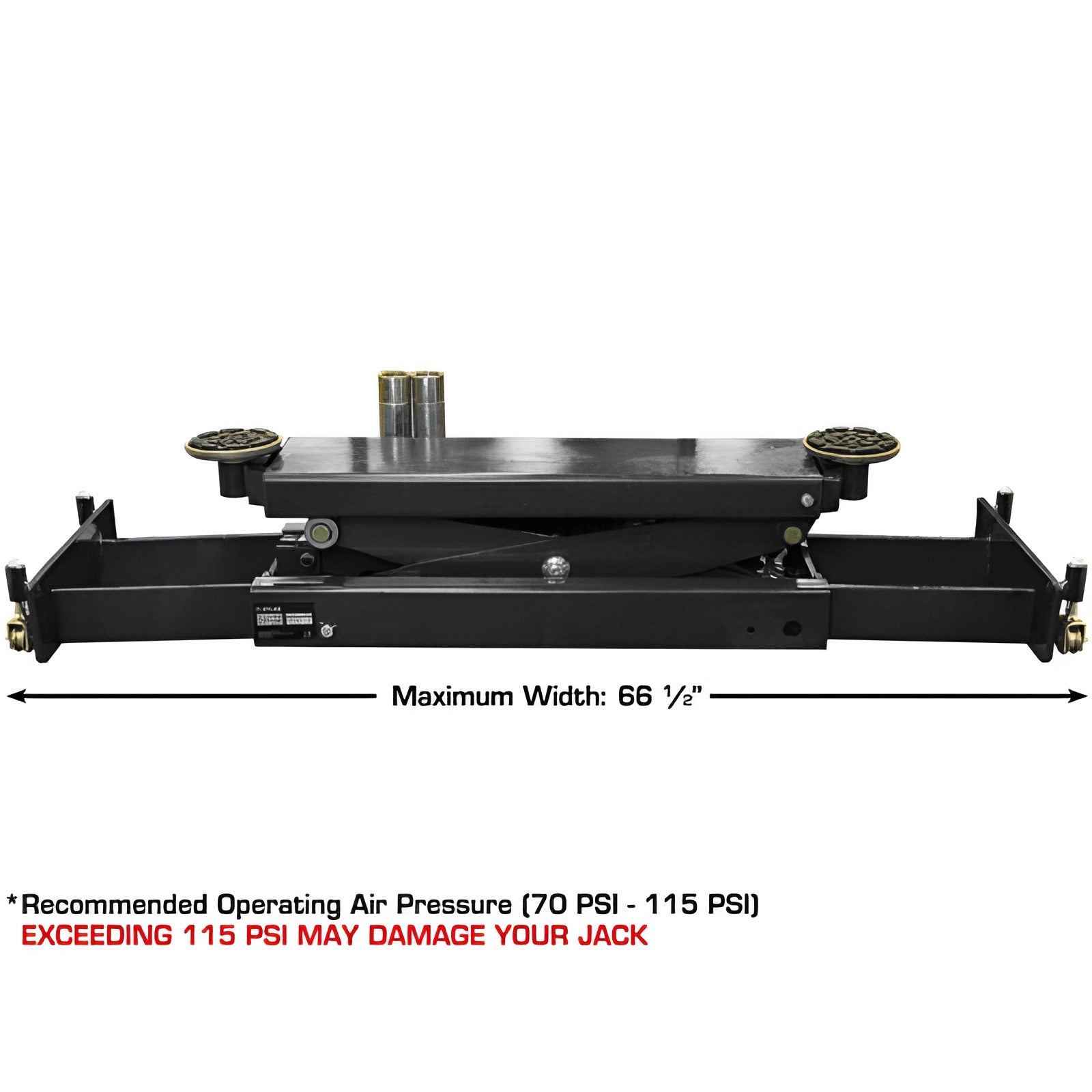

- Maximum Width 68" (5' 8")

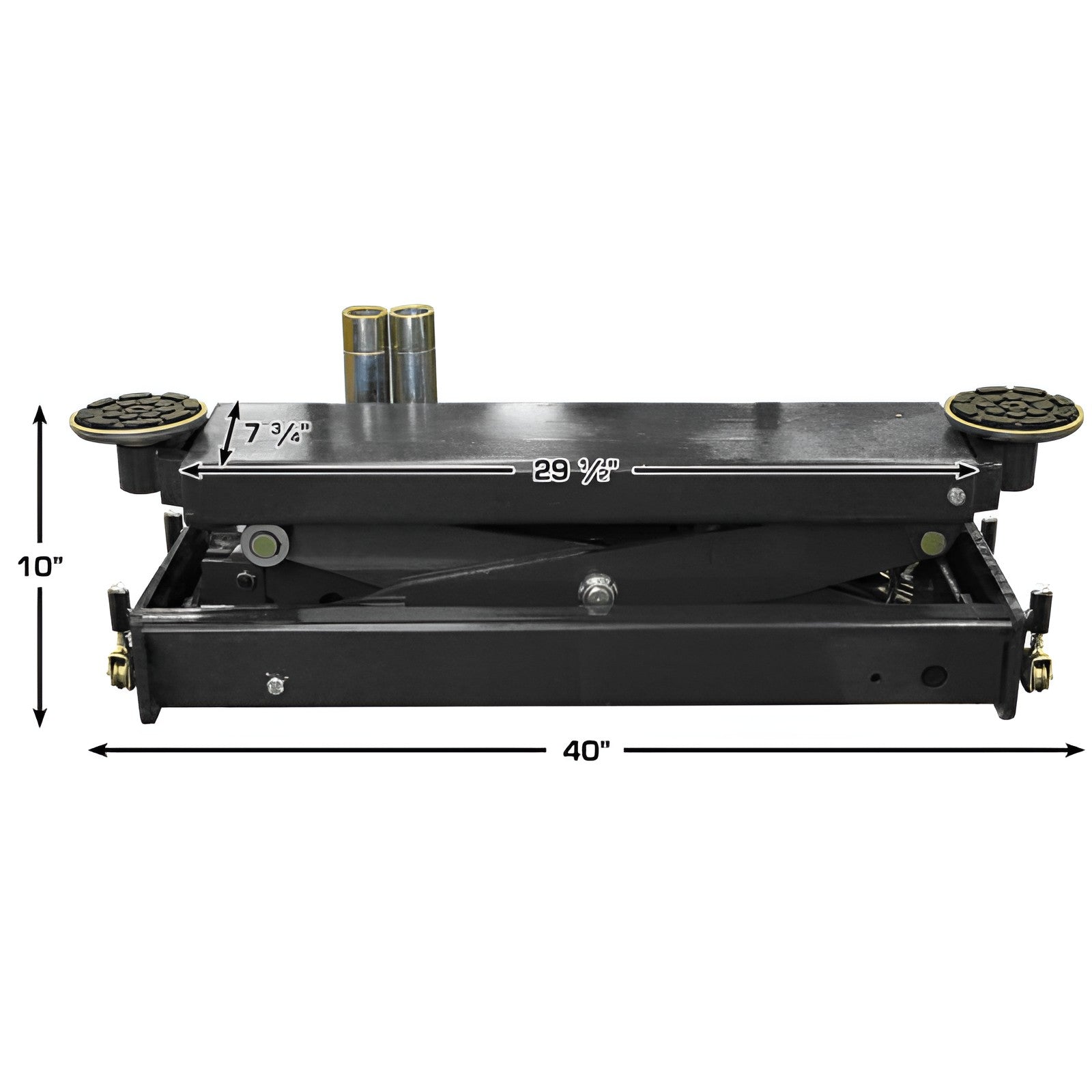

- Minimum Width 40" (3' 4")
- Distance Between Runway Capability 33"-53"
- Maximum Lifting Height (With Adapters) 27"
- Air Requirement 70-115 PSI

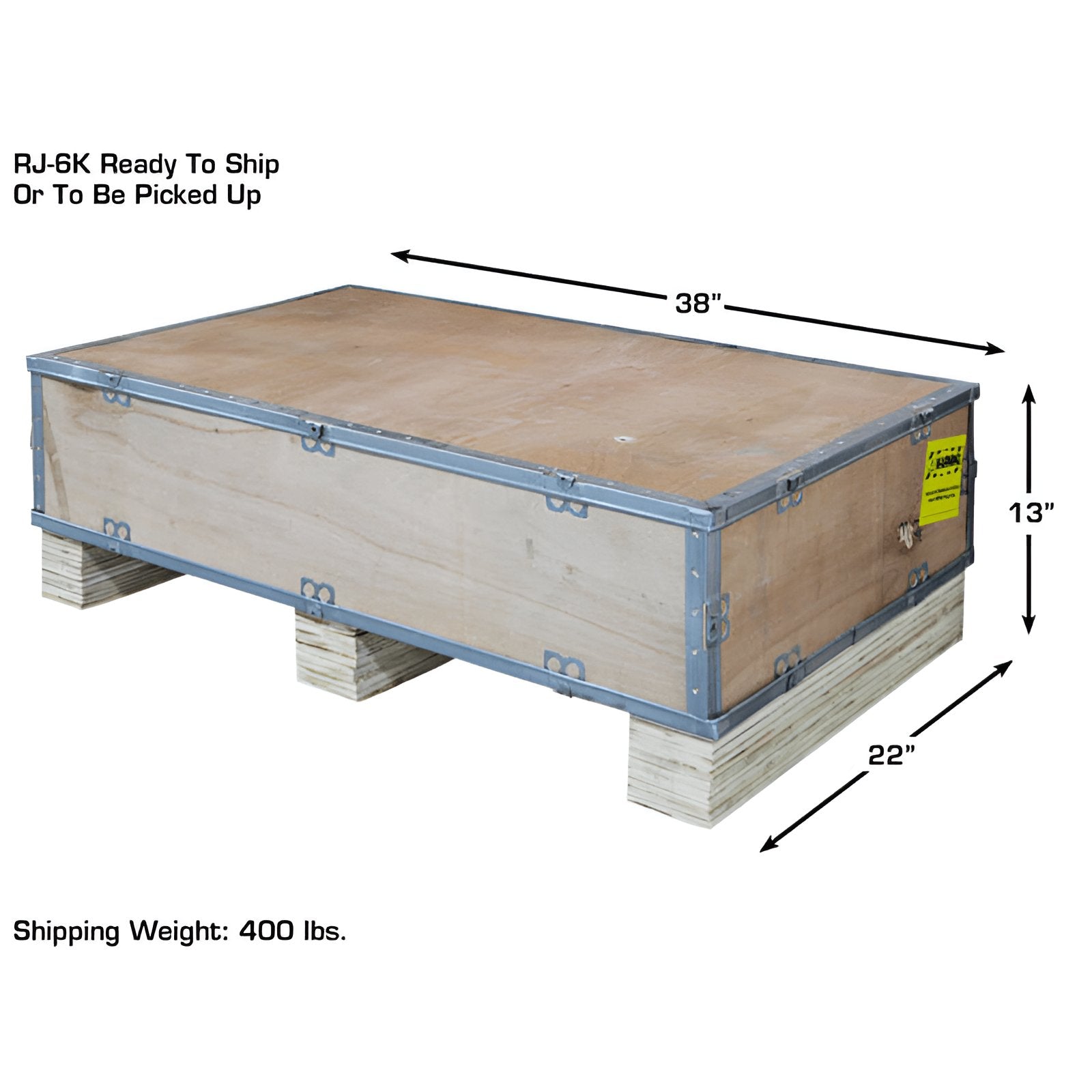

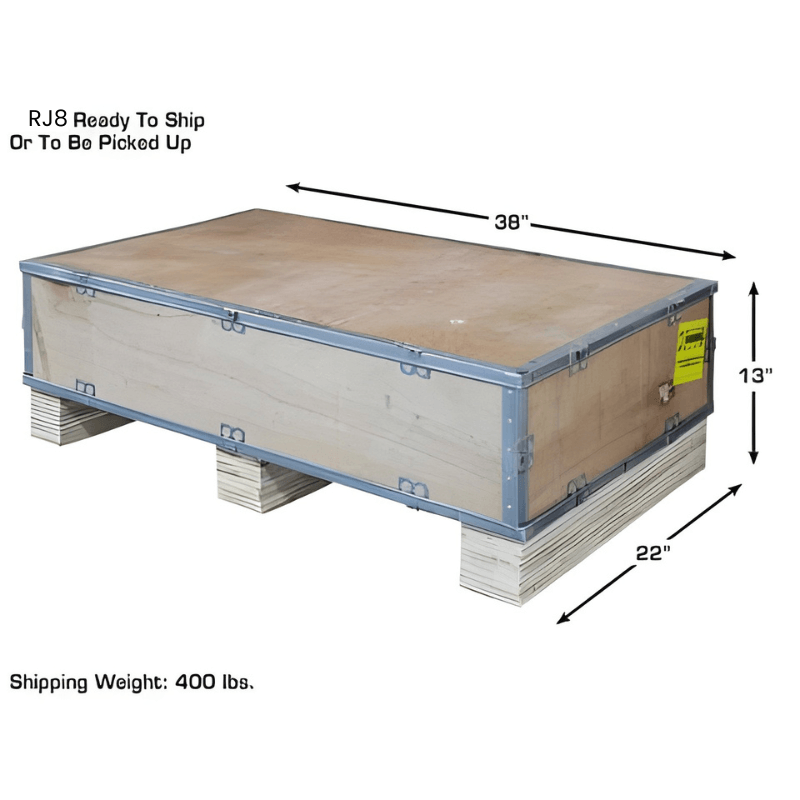

- Shipping Weight 390 lbs.
- Adapter Heights 2 Each 2", 3"
- Arm Hole/Adapter Peg Size 1.5"
RJ8000 8,000 lbs Rolling Bridge Jack Special Features:
- 8,000 lb. Capacity
- Air/Hydraulic Operated (external air supply required)
- Multiple Safety Lock Positions
- Compact Size with Low Profile
- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish

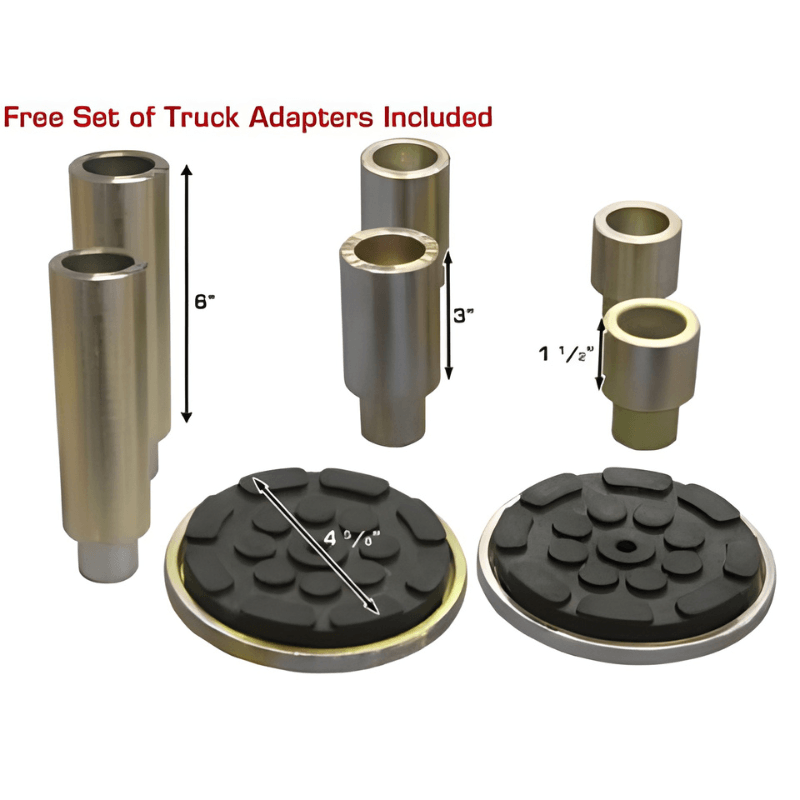

- 4 Piece Truck Adapter Set Included
- 1 Year Parts Only Warranty
Atlas RJ8000 Documentation:
Atlas RJ8000 Rolling Bridge Jack Product Manual
