Atlas 414 14,000 LB 4-Post Lift + (2) RJ8 Jacks Combo

SKU ATEATTD-414-COMBO
by Atlas
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$9,099.00
Free Warehouse Pickup Locations
Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)

Notify me when back in stock

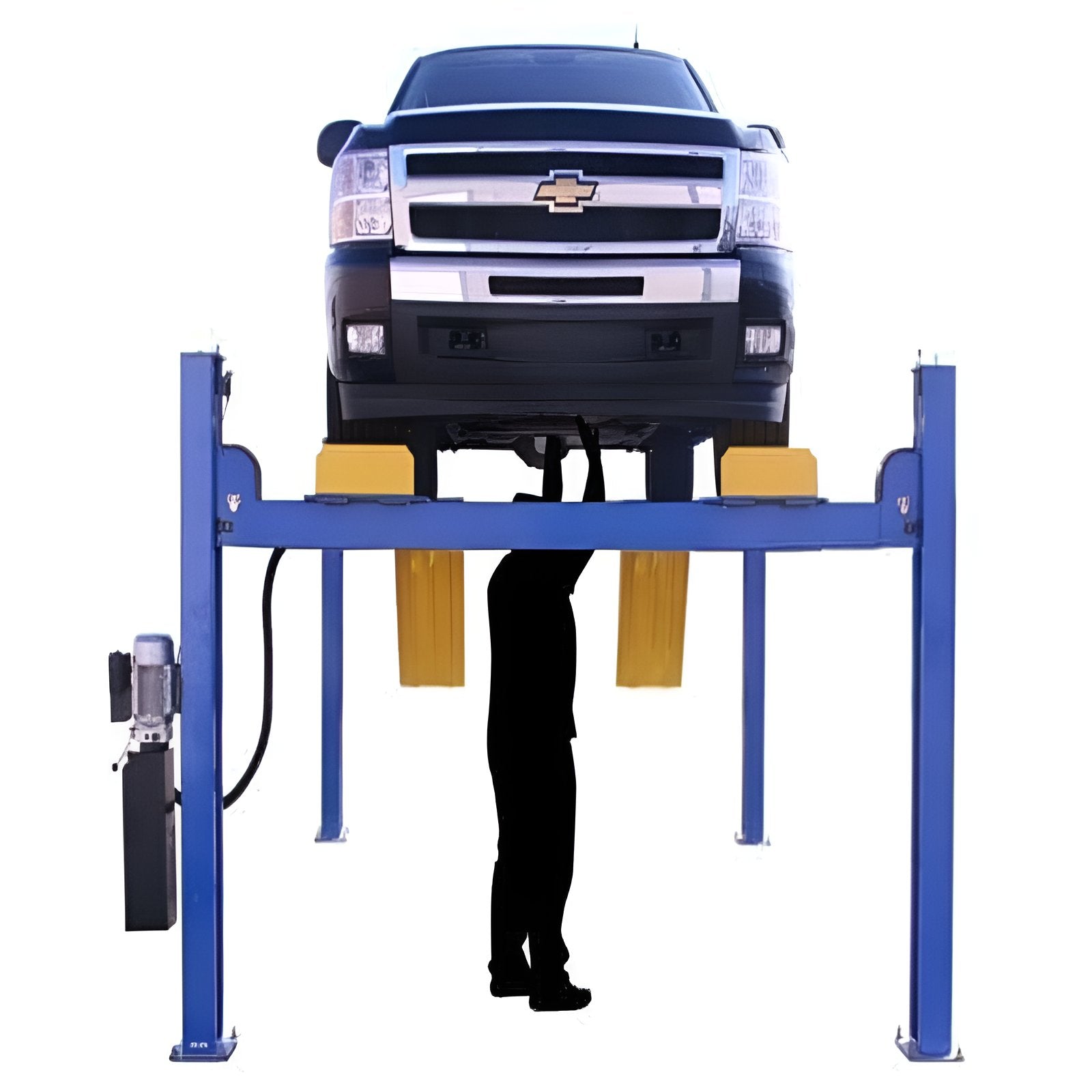

414 14,000 LB 4-Post Lift + RJ8 Jacks Combo by Atlas

Are your current lifts wheezing under the weight of heavy-duty vehicles? Is your garage more cramped than a sardine can, with no room for rolling jacks? The Atlas® 414 is here to rescue you from lift limbo and catapult your workspace into the stratosphere of efficiency. This 14,000-pound capacity powerhouse isn't just another pretty face in the garage – it's a commercial-grade titan designed to outlast your toughest jobs.

But here's where things get really juicy – while other lifts are busy twiddling their thumbs, the 414 is flexing its muscles with exclusive features like a high-strength cable system smoother, an oversized hydraulic cylinder that puts other lifts to shame, and tracks between the runways that are begging for some rolling bridge jack action. And the best part? This mechanical marvel comes with a price tag that'll make your accountant do a happy dance. Don't let subpar lifts drag you down – unleash the Atlas® 414 and watch your productivity skyrocket faster than a muscle car on nitro!

4 Post Lift 414 Specifications:

  • Capacity: 14,000 lb.

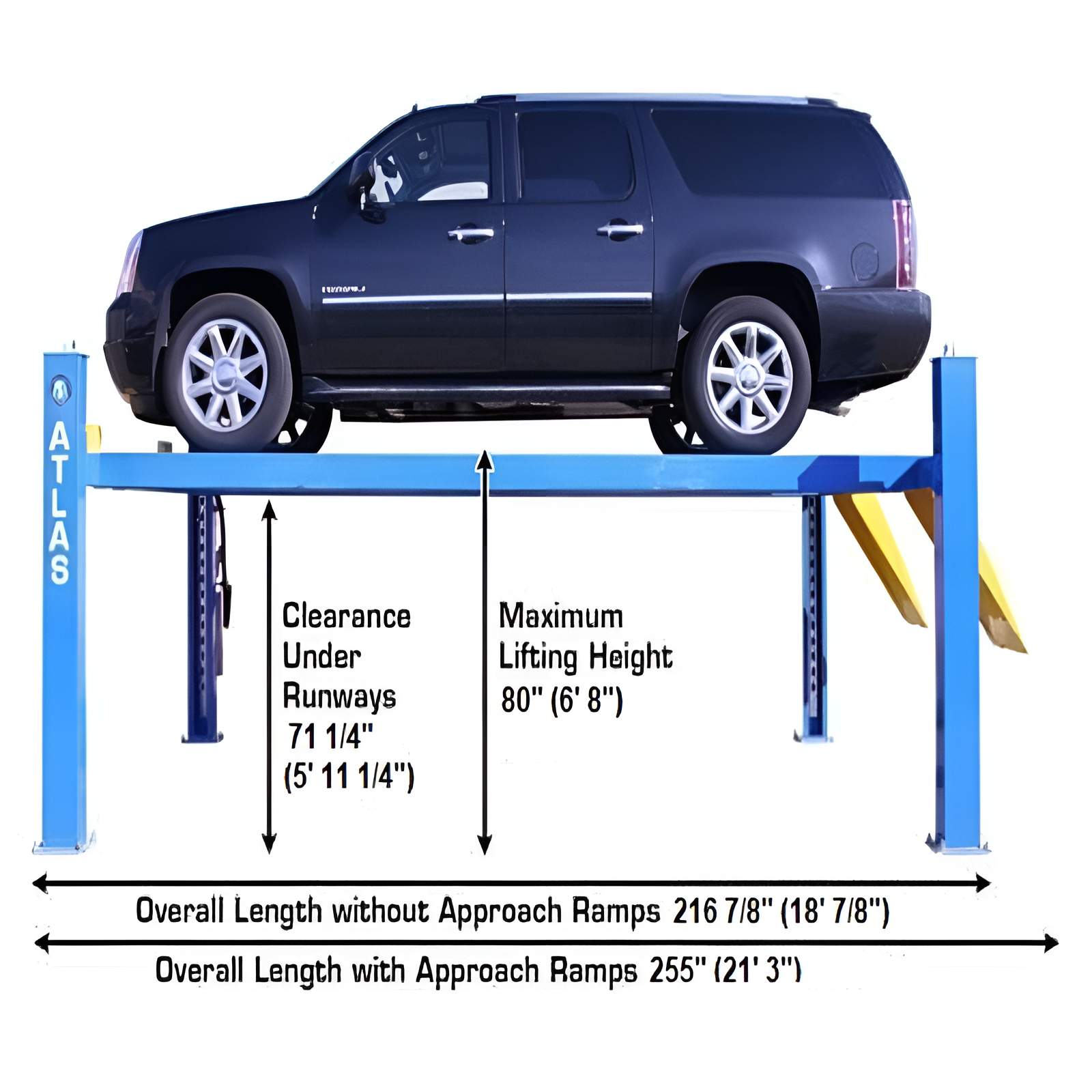

  • Lifting Height: 80" (6' 8")

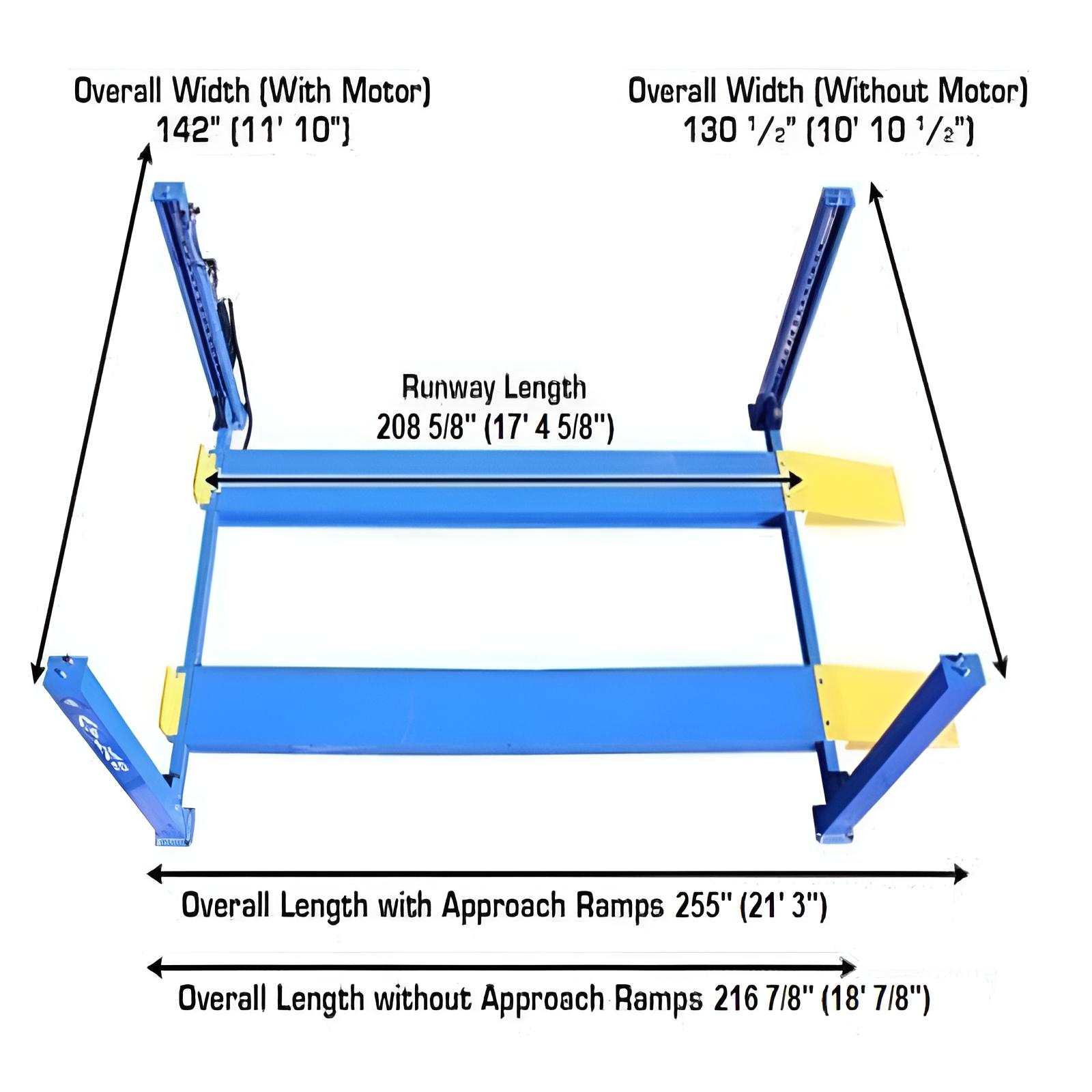

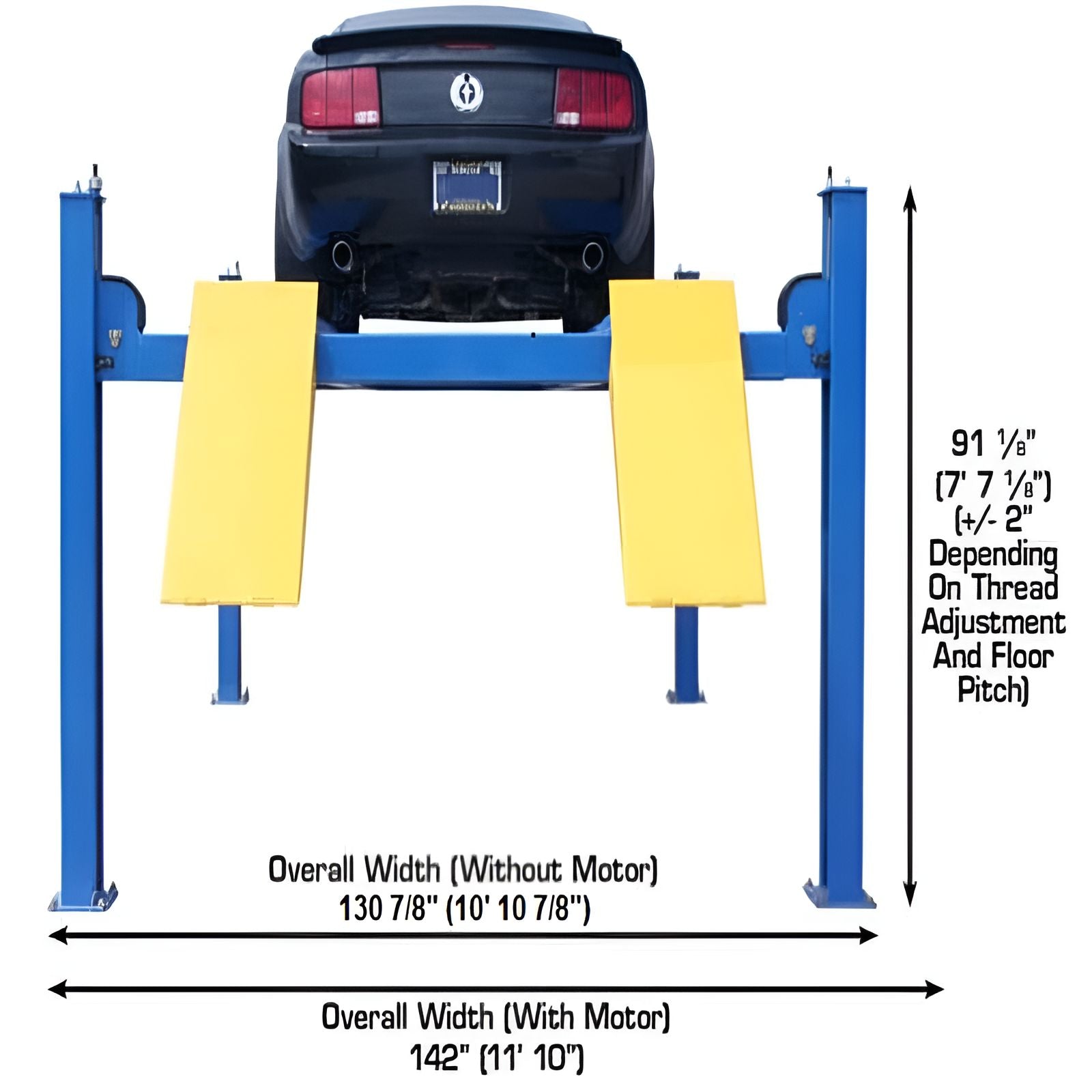

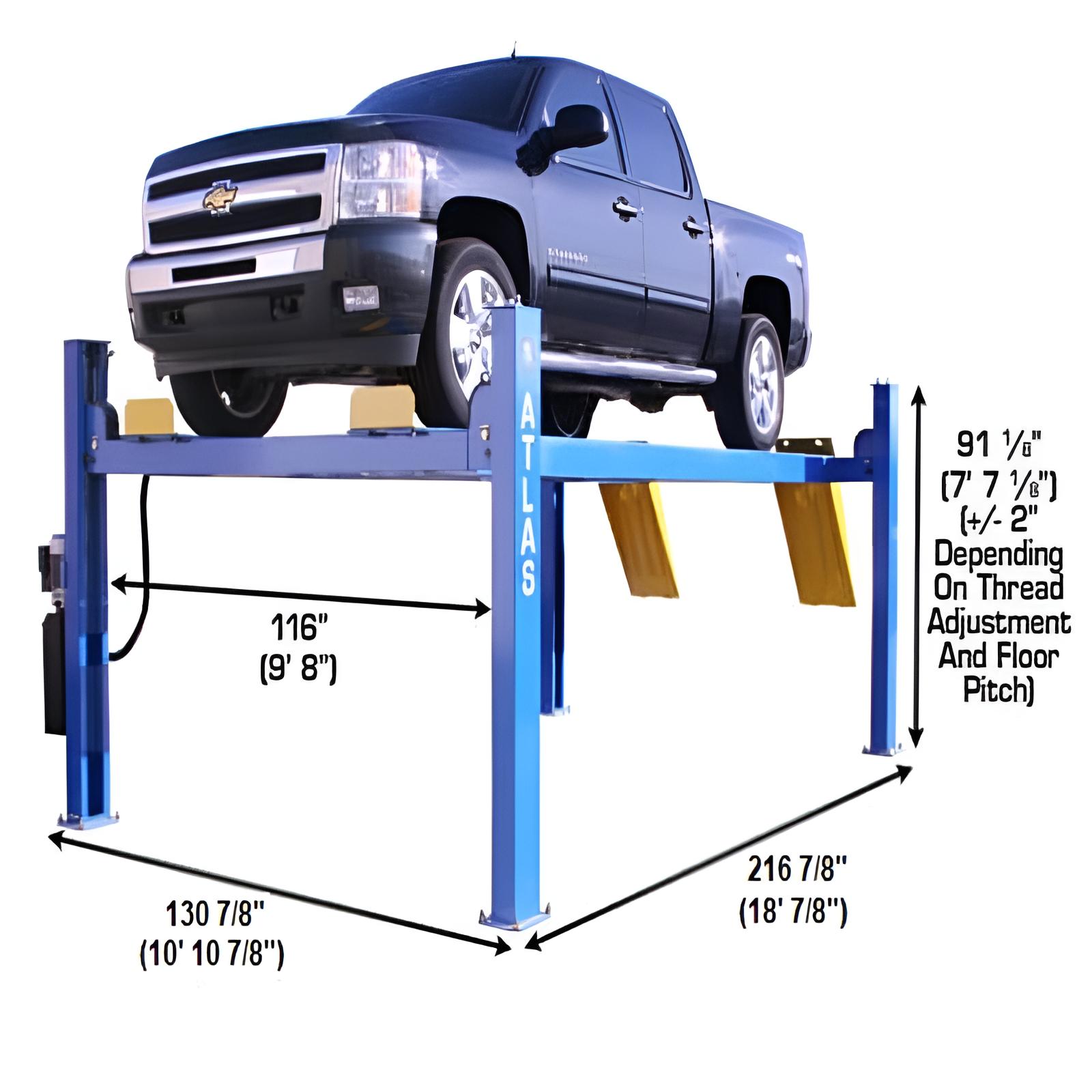

  • Overall Width of Columns (Without Motor): 130 7/8" (10' 10 7/8")
  • Overall Width of Columns (With Motor): 138 7/8" (11' 6 7/8")
  • Overall Length with Approach Ramp: 255" (21' 3")
  • Length Between Columns: 197 1/4" (16' 5 1/4")
  • Runway Length: 208 5/8" (17' 4 5/8")
  • Runway Width: 20"
  • Thickness of Runway: 8 3/4"

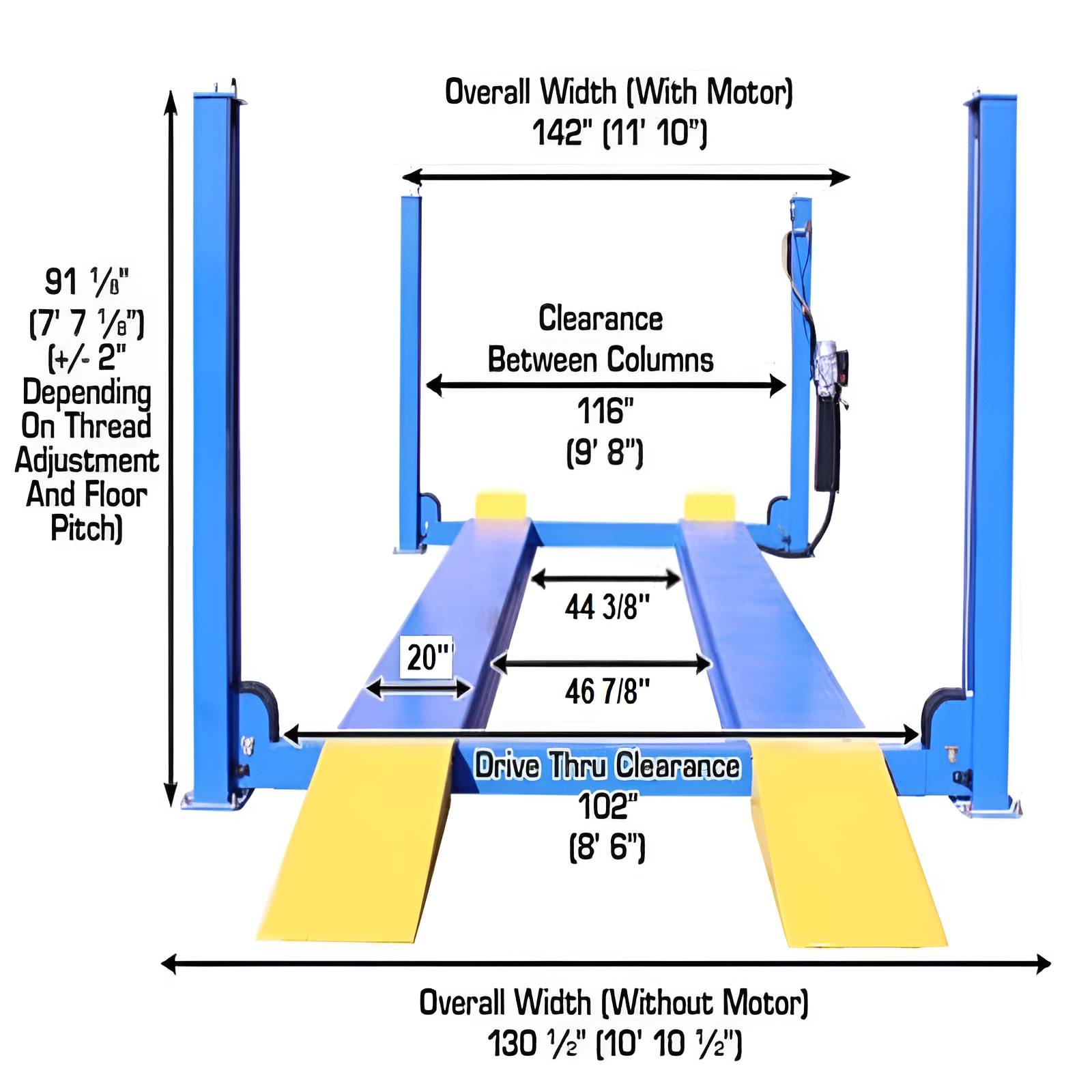

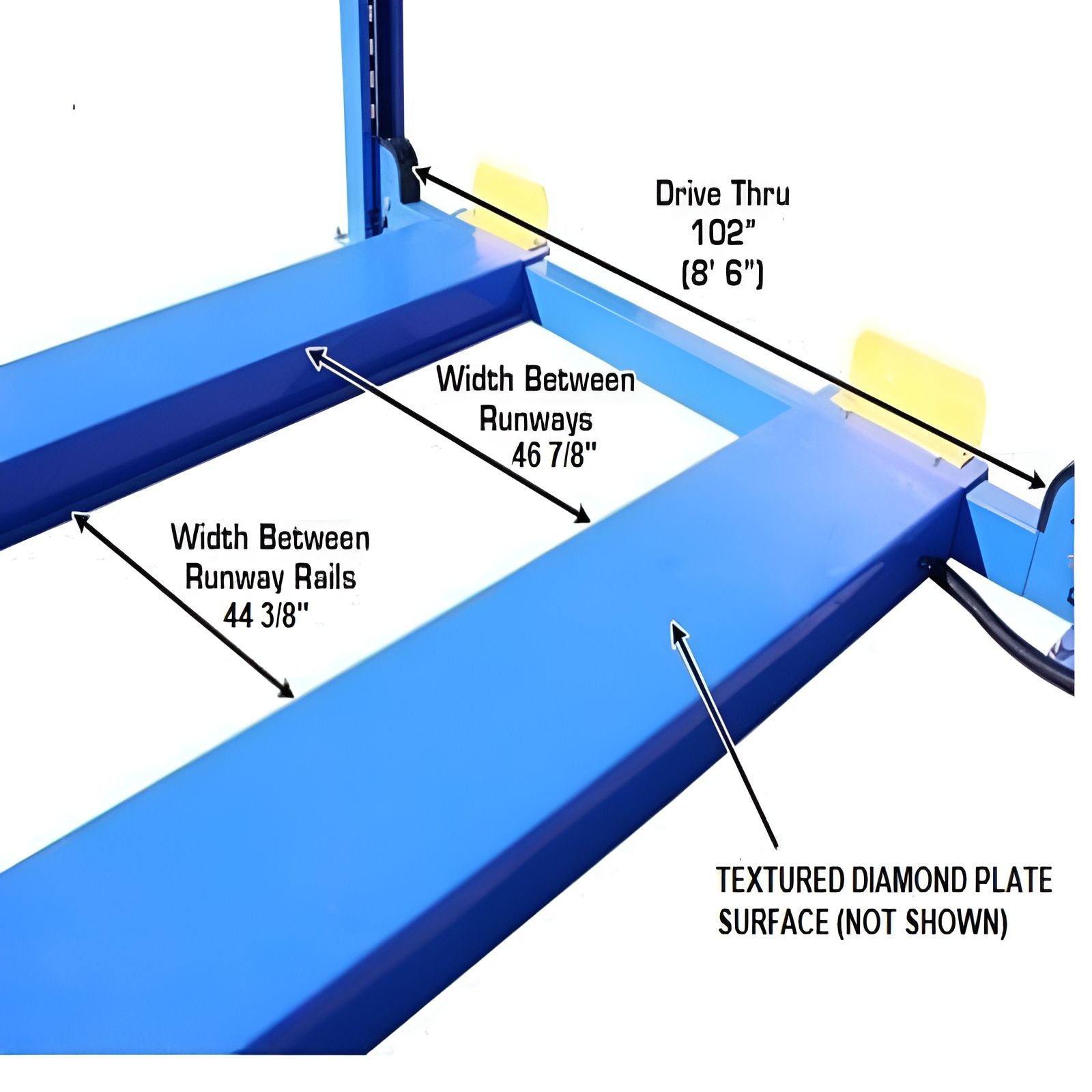

  • Width Between Runways: 46 7/8" (w/ Rail 44 3/8")
  • Outside Runway to Outside Runway: 86 7/8" (7' 2 7/8")
  • Clearance Under Runways: 71 1/4" (5' 11 1/4")
  • Clearance Between Columns: 116" (9' 8")
  • Height of Columns: 91 1/8" (7' 7 1/8")
  • Maximum Wheel Base: 197" (16' 5")
  • Drive Thru: 102 1/8" (8' 6 1/8")
  • Air Requirement: 85-115 PSI (External Air Supply Required)

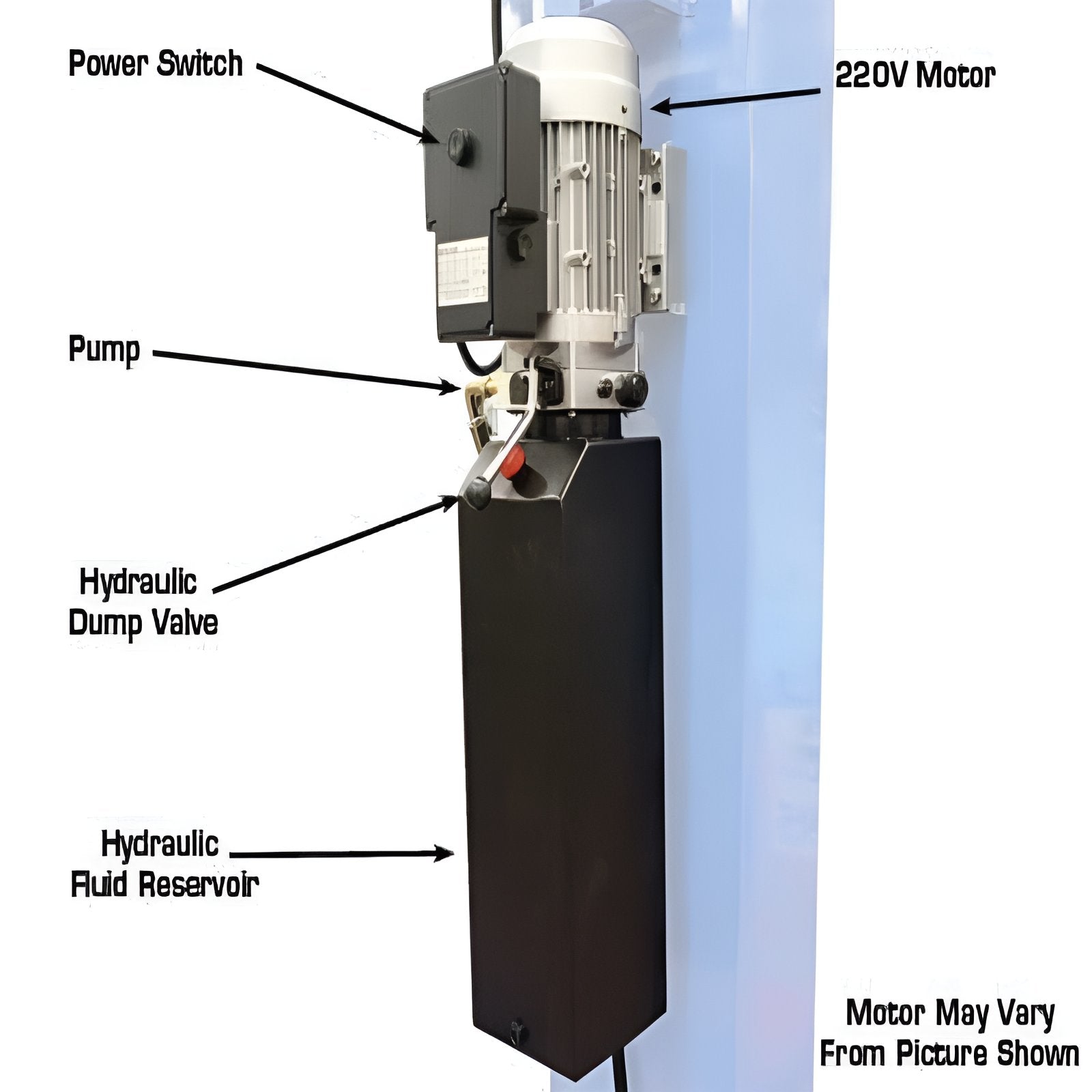

  • Motor/Electrical Requirement: 220 volt single (1) phase. A 30 amp breaker is recommended
  • Oil Requirement: 3-5 Gallons AW32/AW46 (Not Included)
  • Shipping Weight: 3,100 lbs.
  • Concrete Requirement: Minimum of 6" with a 3000 psi rating

414 14,000 lb 4 Post Lift Special Features:

  • 14,000 lb. Capacity
  • Heavy Duty, Commercial Grade
  • Extra Tall, Extra Wide & Extra Long
  • Diamond Plated Runways
  • Air Operated Single Point Lock Release (External Air Supply Required)
  • Lock Ladder Design

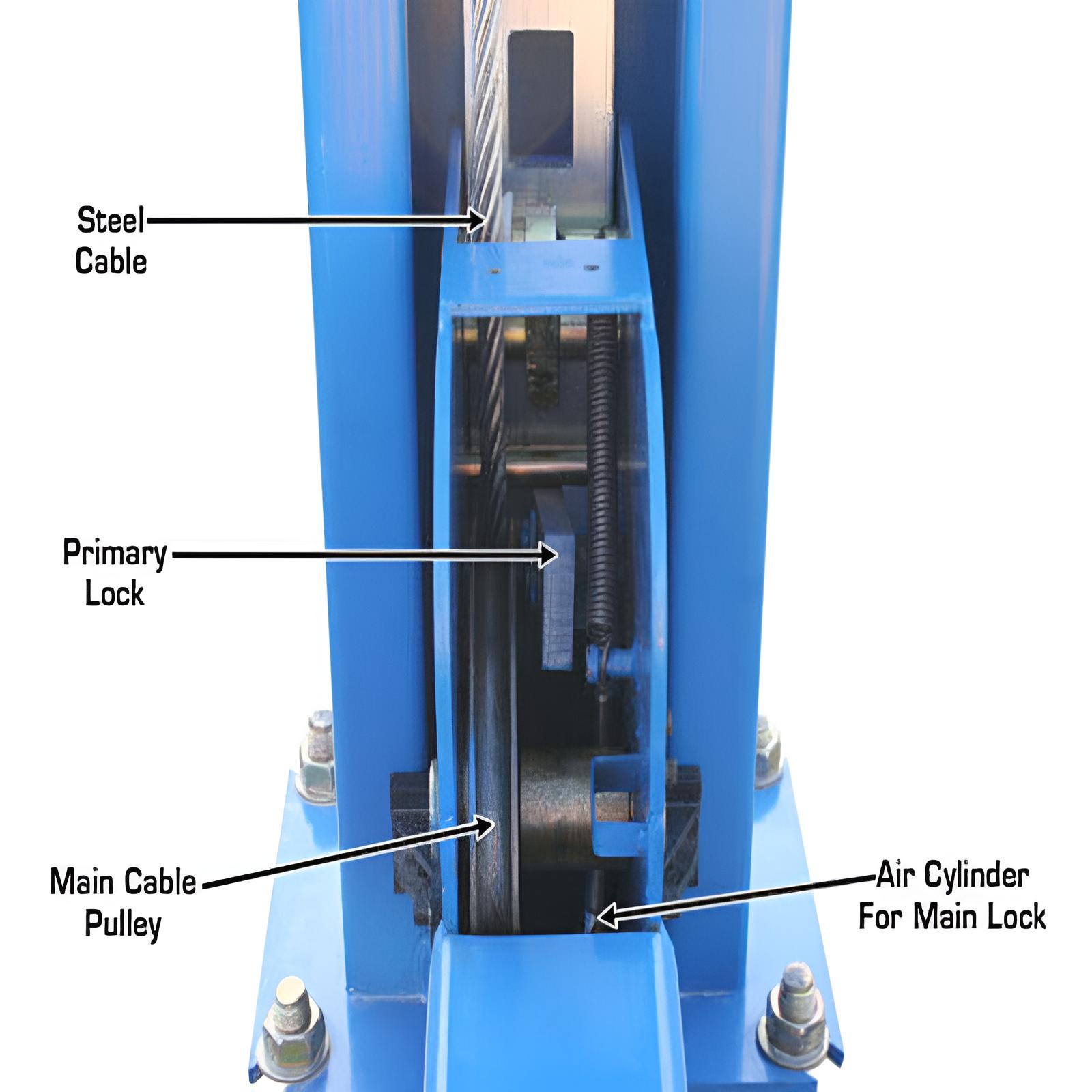

  • Double Lock Safety System
  • Powder Coat Finish

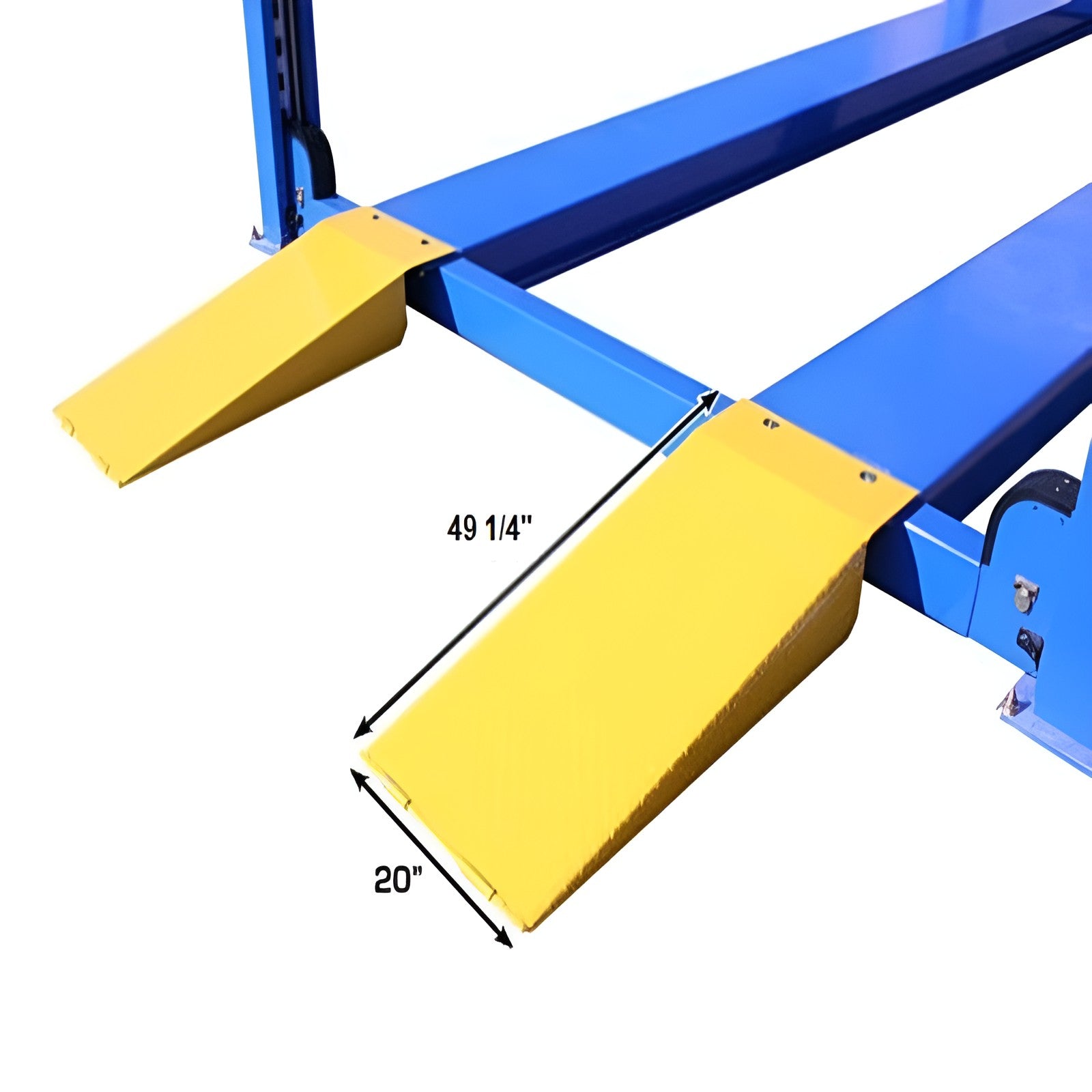

  • Steel Approach Ramps Included
  • Additional Drive off Ramps Available (Sold Separately)
  • Runway Extensions Available (Sold Separately)
  • Mounting Hardware Included
  • 220volt/1phase Electric Operation (Requires a 30amp Breaker)
  • Shipping Weight: 3,100 lbs.
  • 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

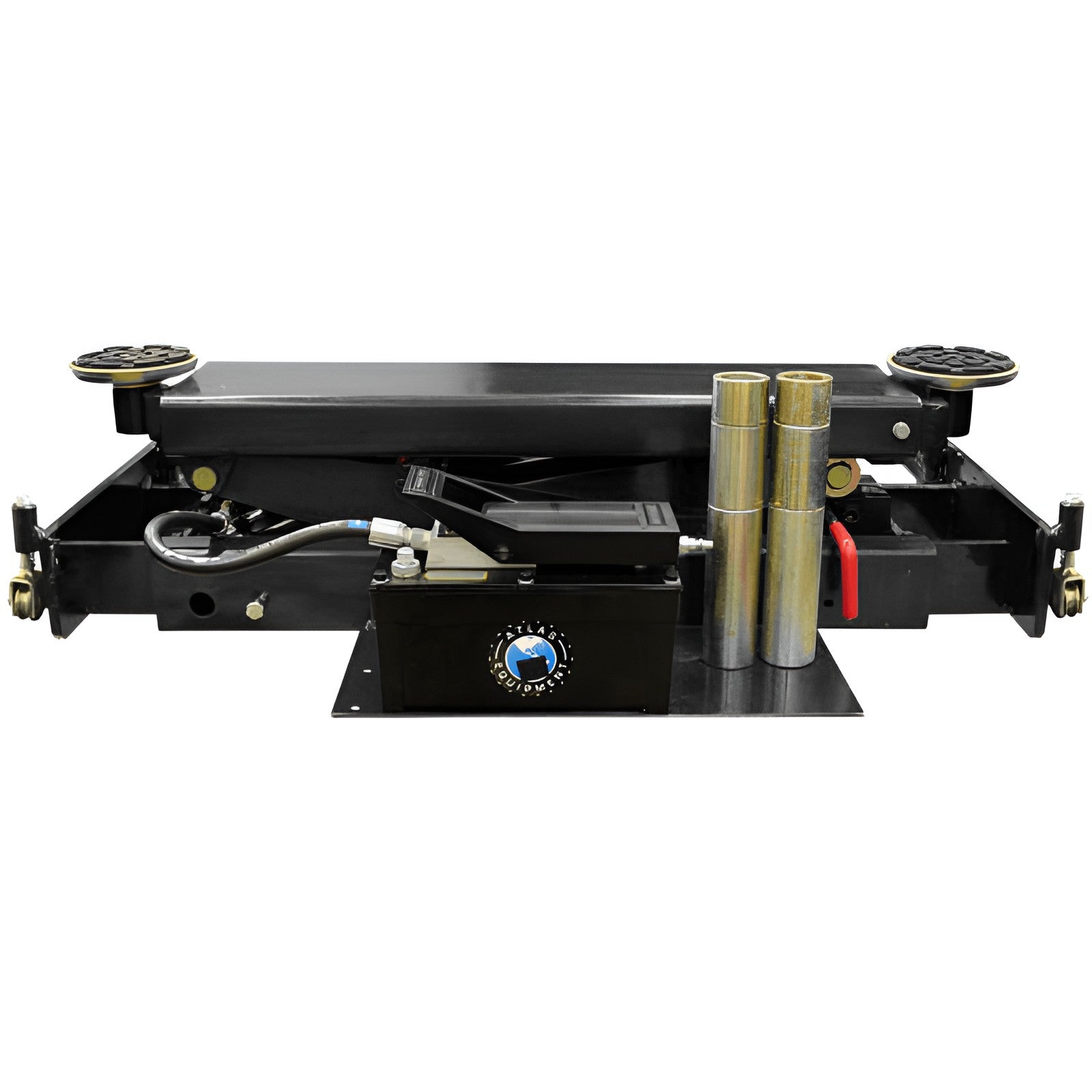

RJ8000 Specifications

  • Qty: 2
  • Maximum Capacity: 8,000 lb.
  • Maximum Width: 66 1/2" (5' 6 1/2")
  • Minimum Width: 40" (3' 4")
  • Distance Between Runway Capability: 34 1/2"-55"
  • Maximum Lifting Height (With Adapters): 30"
  • Air Requirement: 70-115 PSI
  • Shipping Weight: 390 lbs.
  • Adapter Heights: 2 Each 2", 3"
  • Arm Hole/Adapter Peg Size: 1.5"

RJ8000 Special Features

  • 8,000 lb. Capacity
  • Air/Hydraulic Operated (external air supply required)
  • Multiple Safety Lock Positions
  • Compact Size with Low Profile
  • Smooth Rolling Action
  • Scissor mechanism allows for level lifting
  • Powder Coated Finish
  • 4 Piece Truck Adapter Set Included
  • 1 Year Parts Only Warranty


Atlas 414 Documentation:

Post Lift 414 Lift Product Manual   Atlas 414 Post Lift Product Manual Rolling Bridge Jack RJ8000 Product Manual   Atlas RJ8000 Rolling Bridge Jack Product Manual

414 14,000 LB 4-Post Lift Optional Item(Sold Separately)


This Item has a FLAT RATE SHIPPING FEE: $899

*Due to Extra Large Size, product cannot be delivered to a freight terminal.

Warehouse Pickup locations (No shipping charge):

  • Atlanta, GA
  • Dallas, TX
  • Indianapolis, IN
  • Phoenix, AZ
  • Somerset, NJ

Atlas 414 Video
