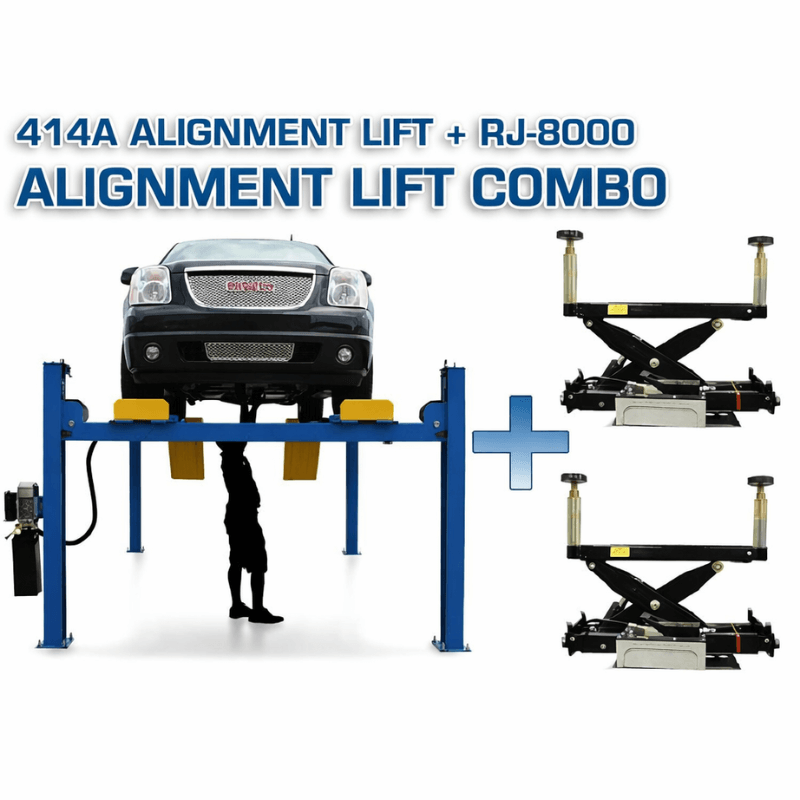

414A 4 Post Alignment Lift + RJ8 Rolling Jacks Combo by Atlas

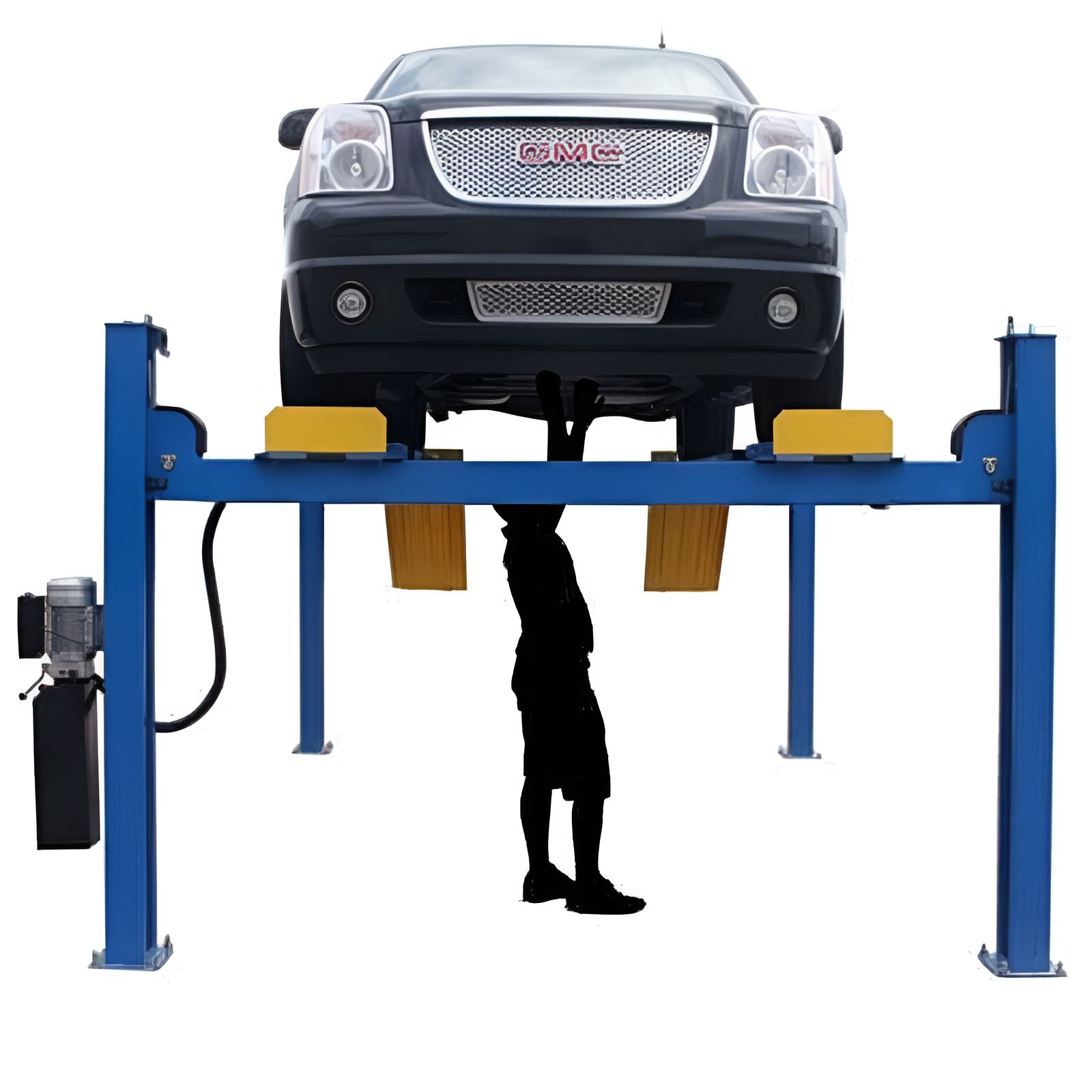

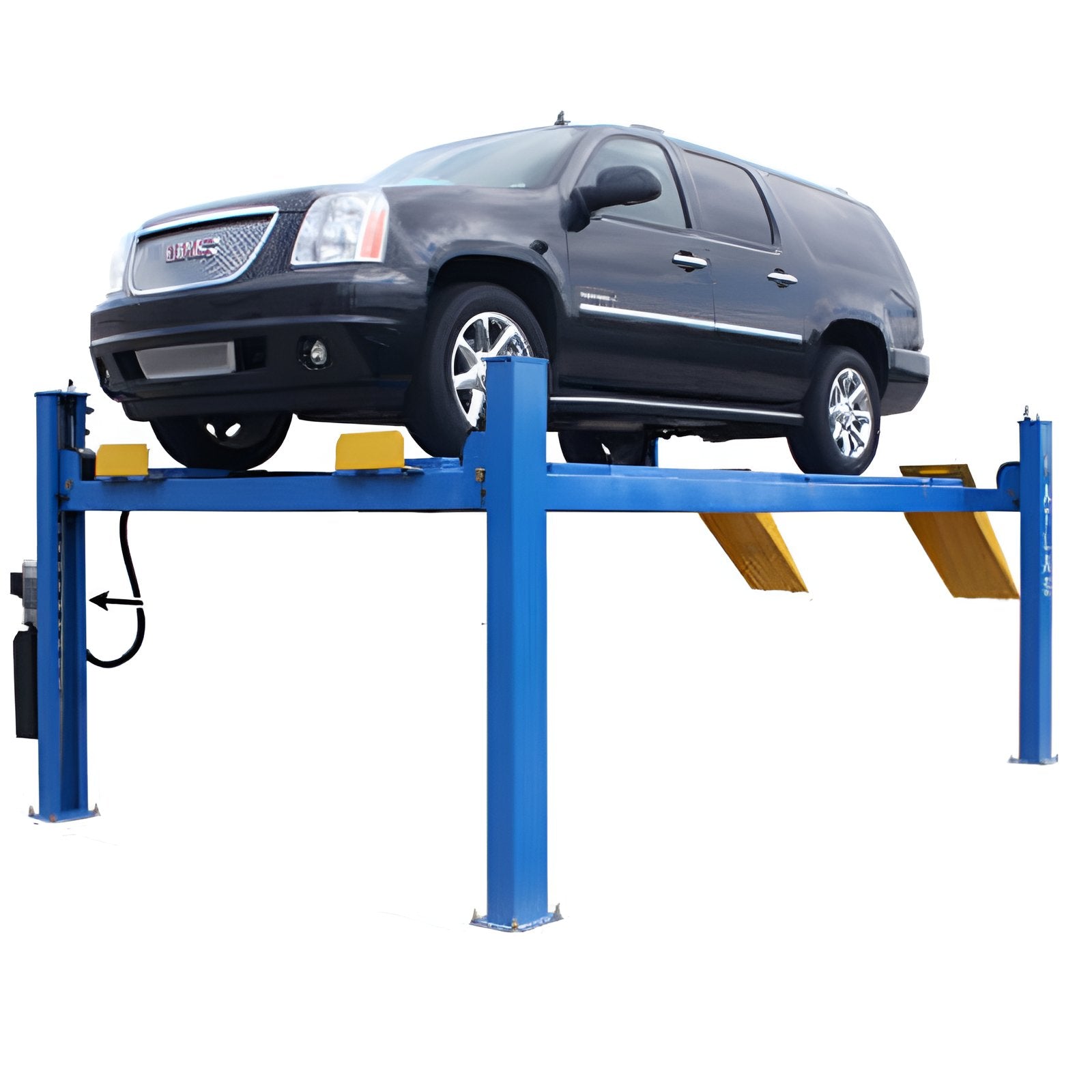

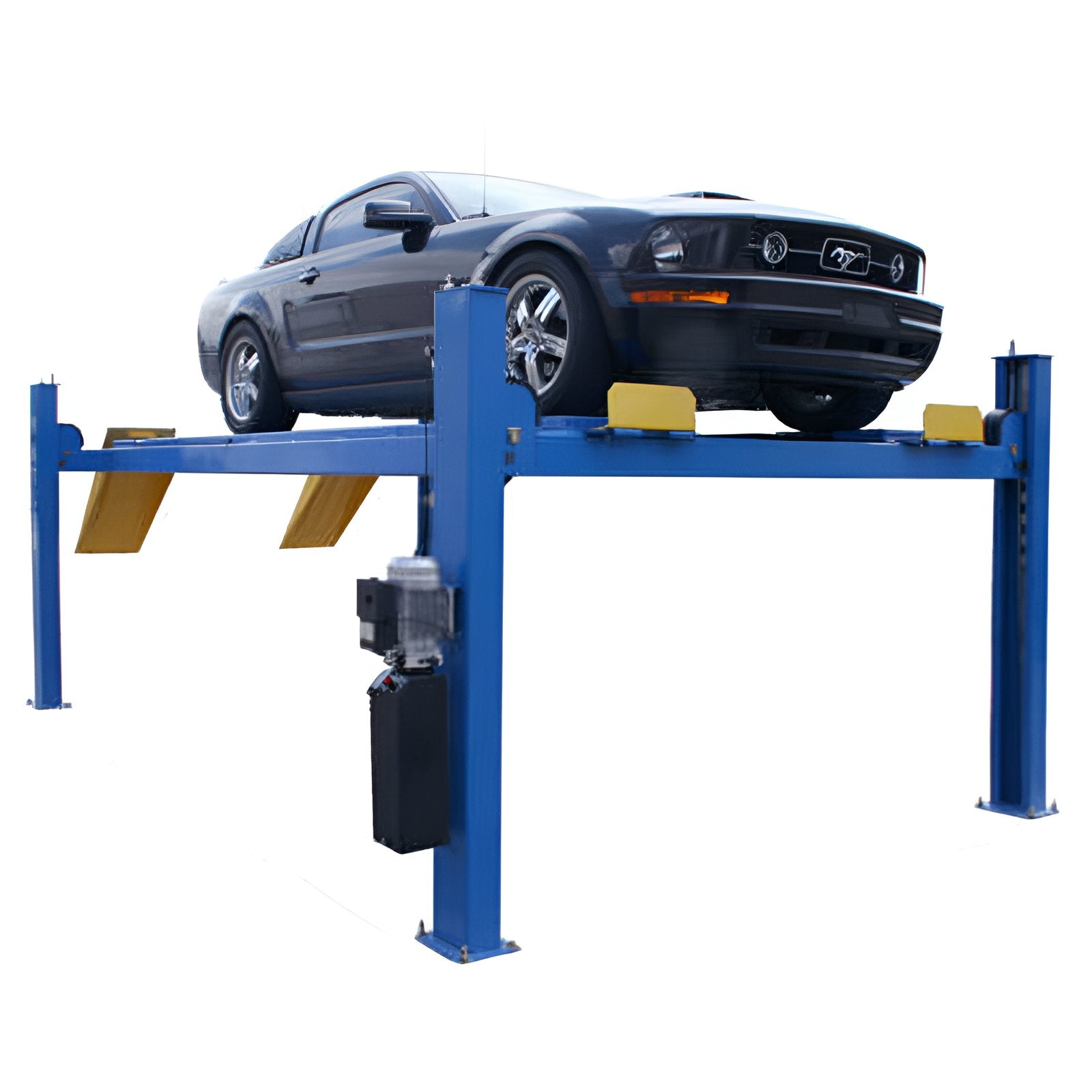

Ready to turn your garage into the ultimate automotive playground? Meet the Atlas 414A 4-Post Alignment Lift, the heavyweight champion of the lift world! This beast can lift a whopping 14,000 lbs to a sky-high 80 inches, giving you enough room underneath to host a mini dance party (though we don't recommend it). With runways stretching 208 5/8 inches, it's long enough to handle vehicles with wheelbases up to 197 inches - that's like parking a small yacht in your shop!
But wait, there's more! This isn't just a lift; it's a complete alignment system on steroids. Built-in slip plates and turntables make alignment a breeze, and when you're done playing "straight and true," just pop in the cover plates and voila - it's a regular lift again! And let's not forget the dynamic duo of Atlas RJ8 rolling bridge jacks. These 8,000 lb capacity sidekicks can lift your vehicle's wheels higher than a kangaroo on a trampoline - up to 30 inches with adapters! With all this lifting power at your fingertips, you'll be tempted to open a space program in your garage. Who needs NASA when you've got the Atlas 414A and RJ8 duo?
4-Post Alignment Lift 414A +Rolling Jacks RJ8 Specifications:
414A
- Capacity: 14,000 lb.
- Lifting Height: 80" (6' 8")
- Overall Width of Columns (Without Motor): 130 7/8" (10' 10 7/8")
- Overall Width of Columns (With Motor): 138 7/8" (11' 6 7/8")
- Overall Length with Approach Ramp: 255" (21' 3")

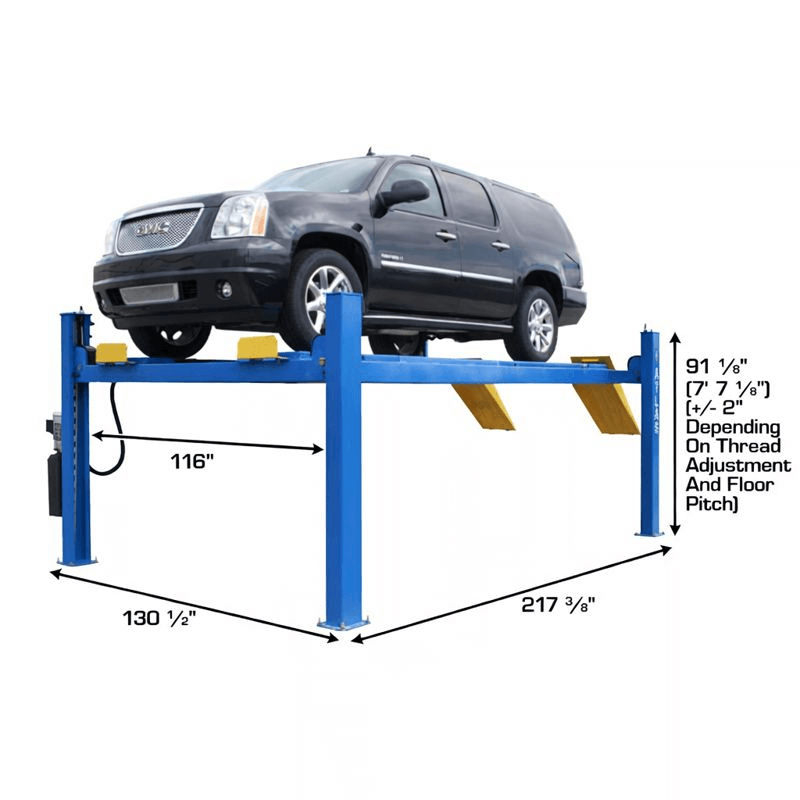

- Length Between Columns: 197 1/4" (16' 5 1/4")
- Runway Length: 208 5/8" (17' 4 5/8")
- Runway Width: 20"
- Thickness of Runway: 8 3/4"
- Width Between Runways: 46 7/8" (w/ Rail 44 3/8")
- Outside Runway to Outside Runway: 86 7/8" (7' 2 7/8")

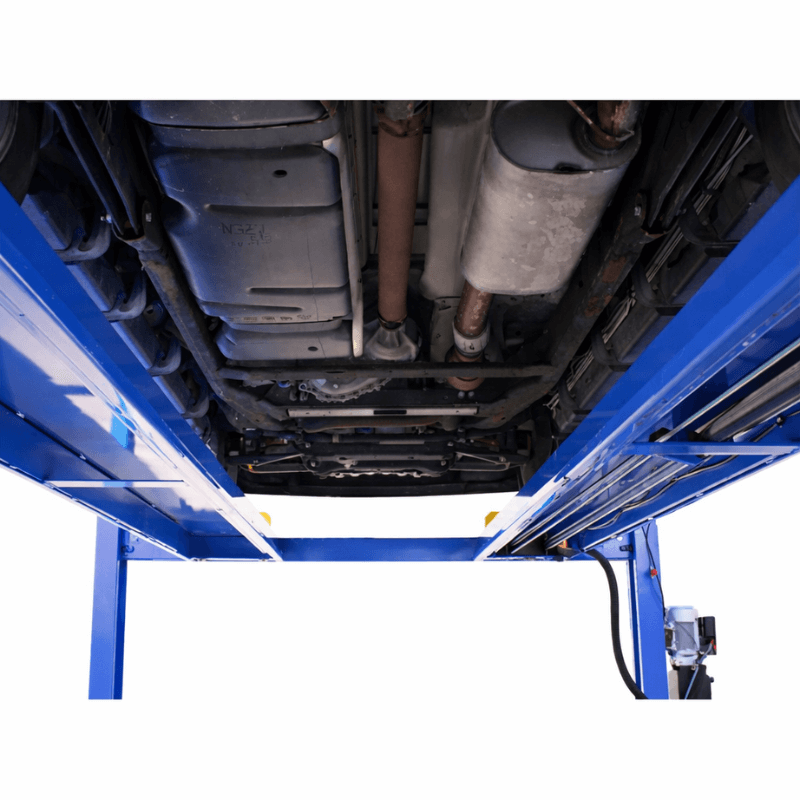

- Clearance Under Runways: 71 1/4" (5' 11 1/4")
- Clearance Between Columns: 116" (9' 8")
- Height of Columns: 91 1/8" (7' 7 1/8")

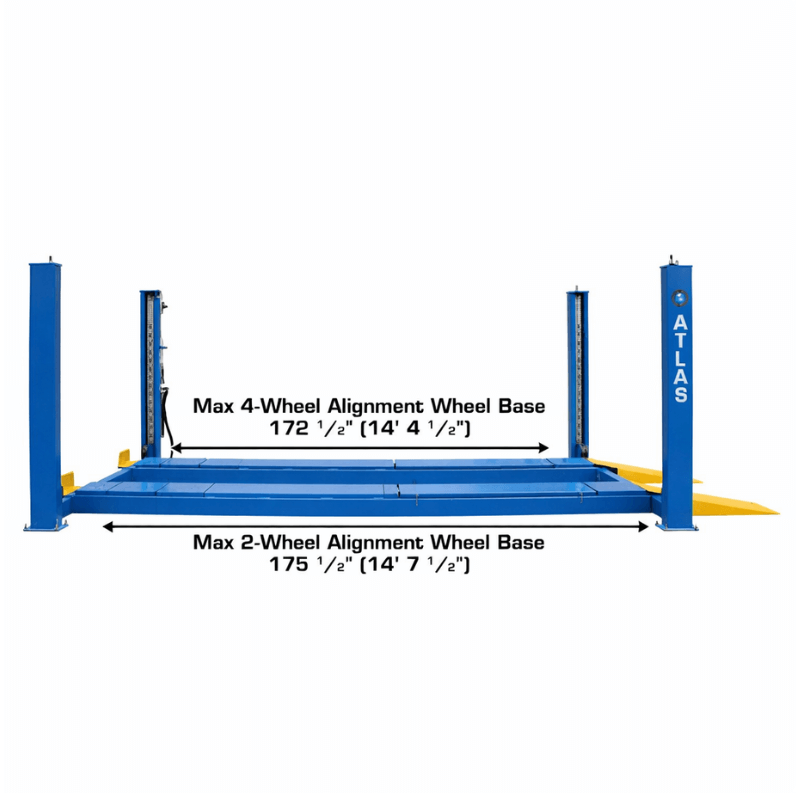

- Maximum Wheel Base: 197" (16' 5")
- Drive Thru: 102 1/8" (8' 6 1/8")
- Air Requirement: 85-115 PSI (External Air Supply Required)

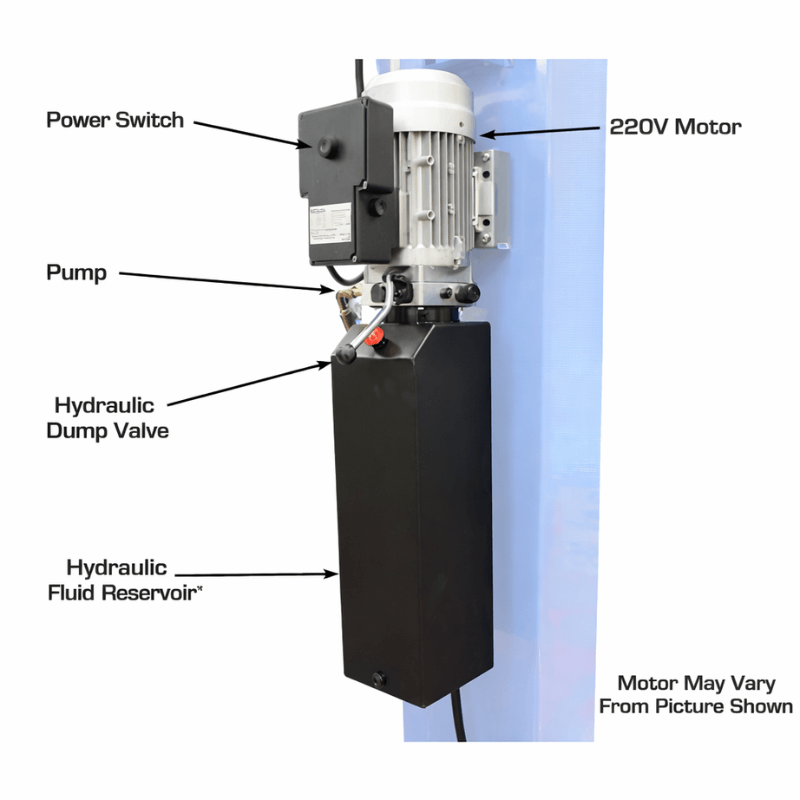

- Motor/Electrical Requirement: 220 volt single (1) phase; a 30 amp breaker is recommended
- Oil Requirement: 3-5 Gallons AW32/AW46 (Not Included)

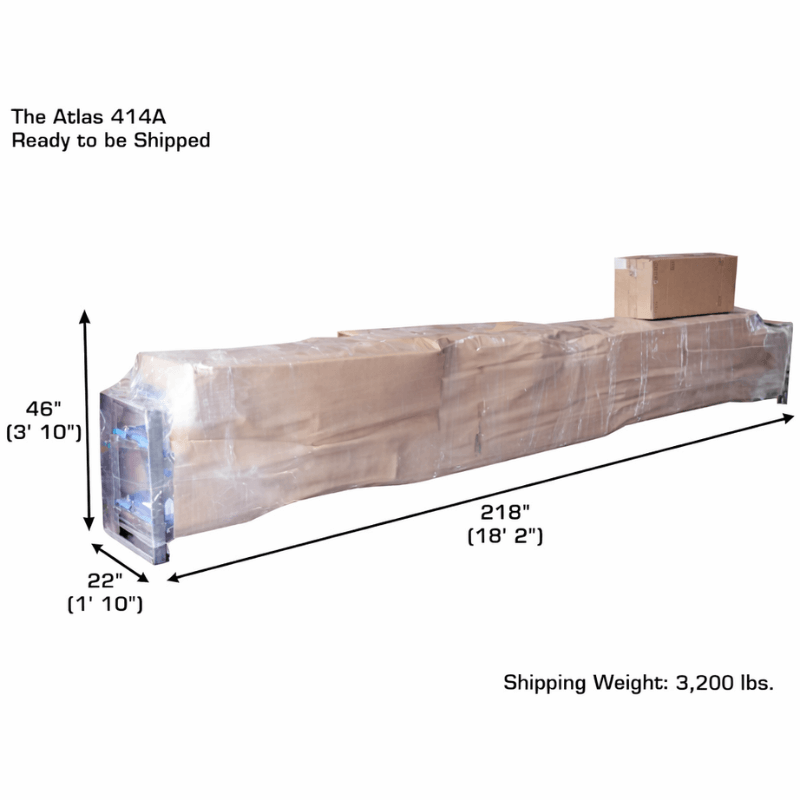

- Shipping Weight: 3,200 lbs.
- Concrete Requirement: Minimum of 6" with a 3000 psi rating
RJ8000
- Maximum Capacity: 8,000 lb.
- Maximum Width: 66 1/2" (5' 6 1/2")
- Minimum Width: 40" (3' 4")
- Distance Between Runway Capability: 34 1/2" - 55"
- Maximum Lifting Height (With Adapters): 30"
- Air Requirement: 70-115 PSI
- Shipping Weight: 390 lbs.
- Adapter Heights: 2 Each 2", 3"
- Arm Hole/Adapter Peg Size: 1.5"
414A Alignment Lift + RJ8 Rolling Jacks Special Features:
414A
- 14,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Extra Tall, Extra Wide & Extra Long

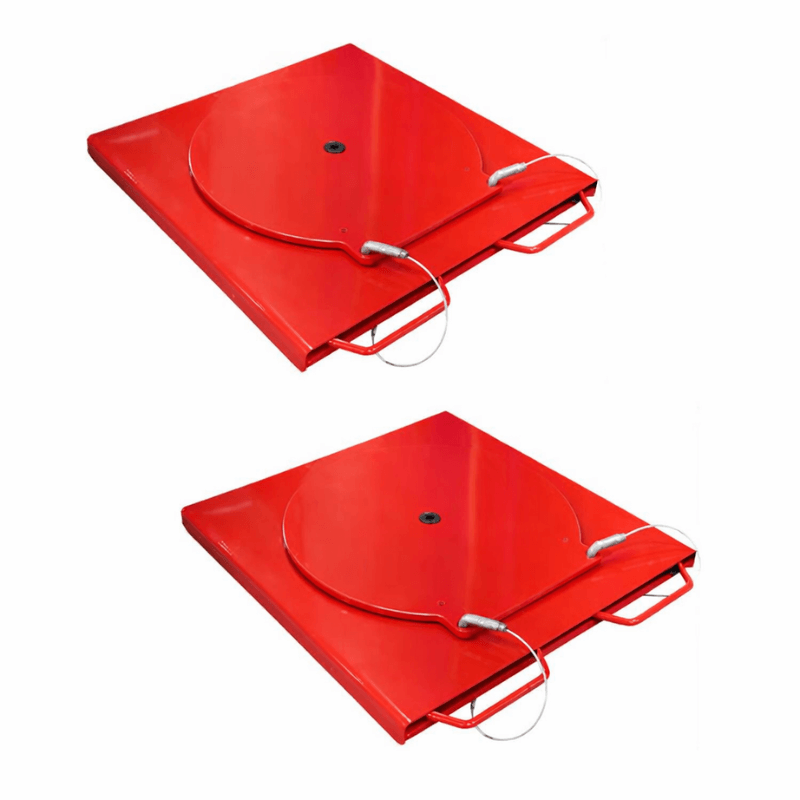

- Built-In Slip Plates & Alignment Turntables Included
- Multiple Positions for Turntable Placement

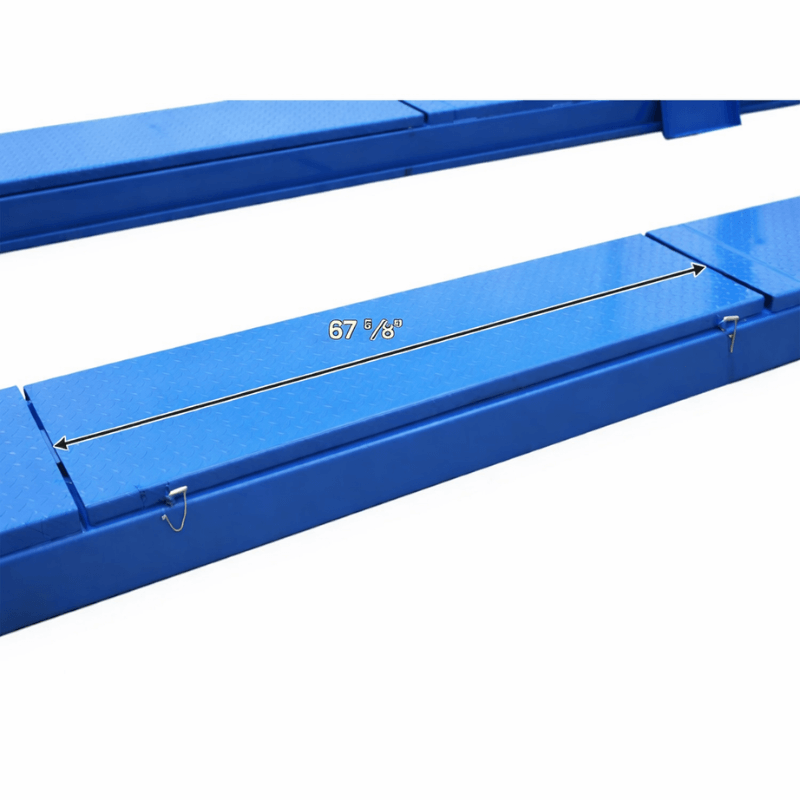

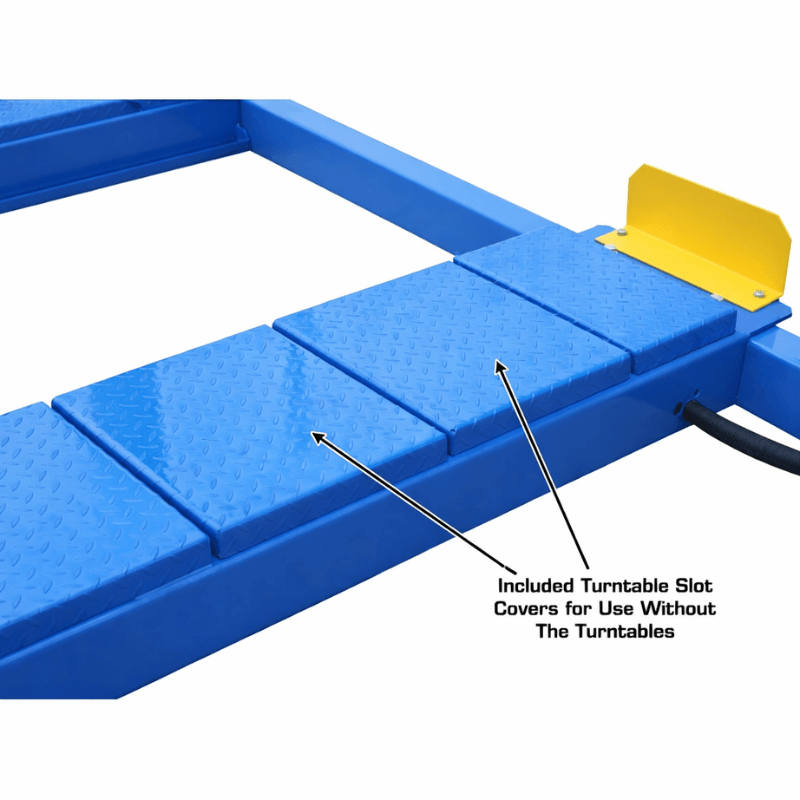

- Runway Covers Included (when Turntables are Removed)

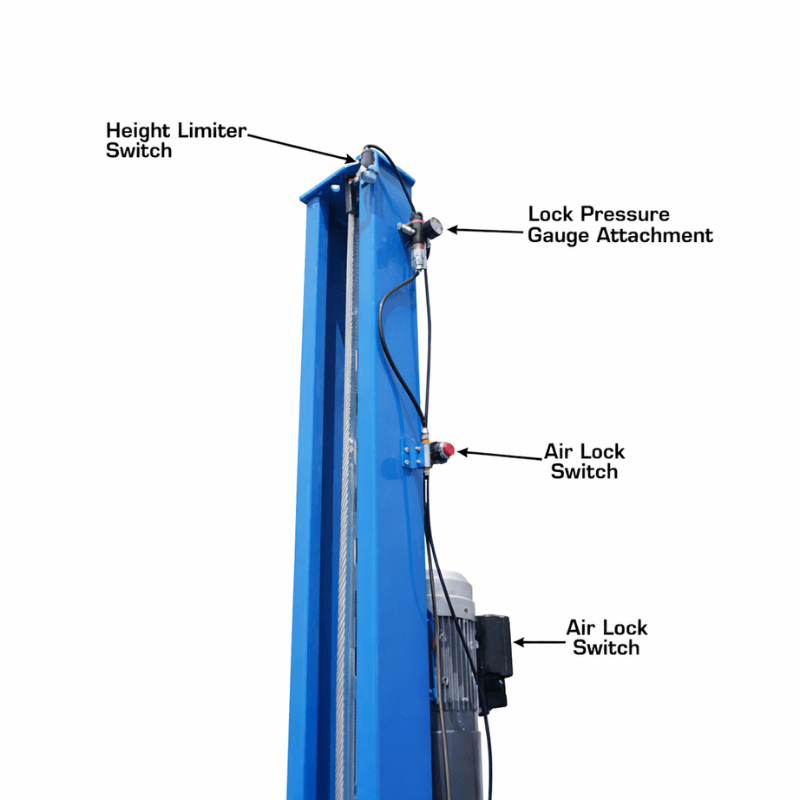

- Air Operated Single Point Lock Release (External Air Supply Required)

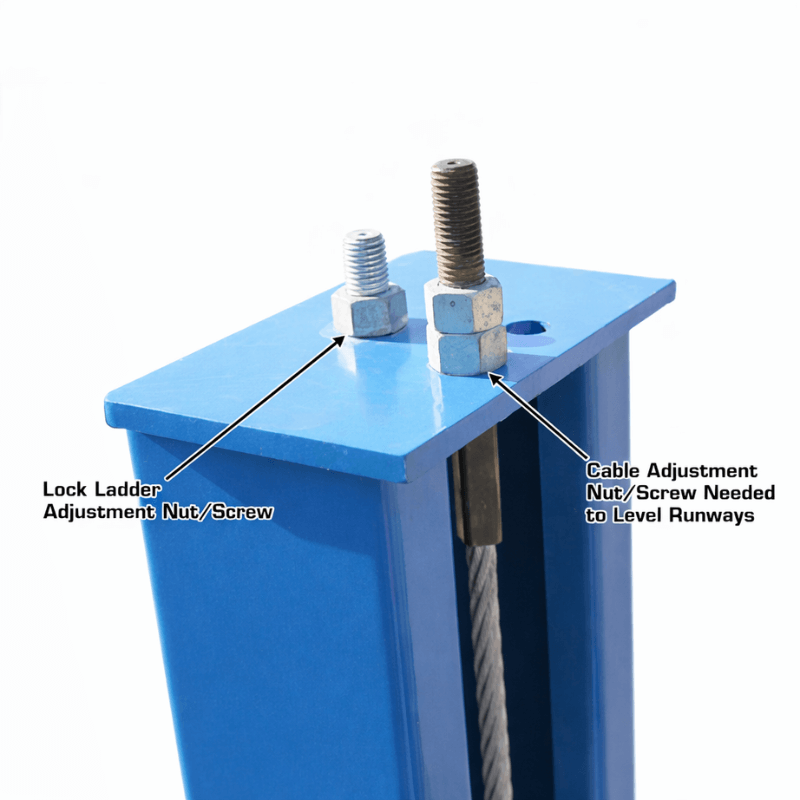

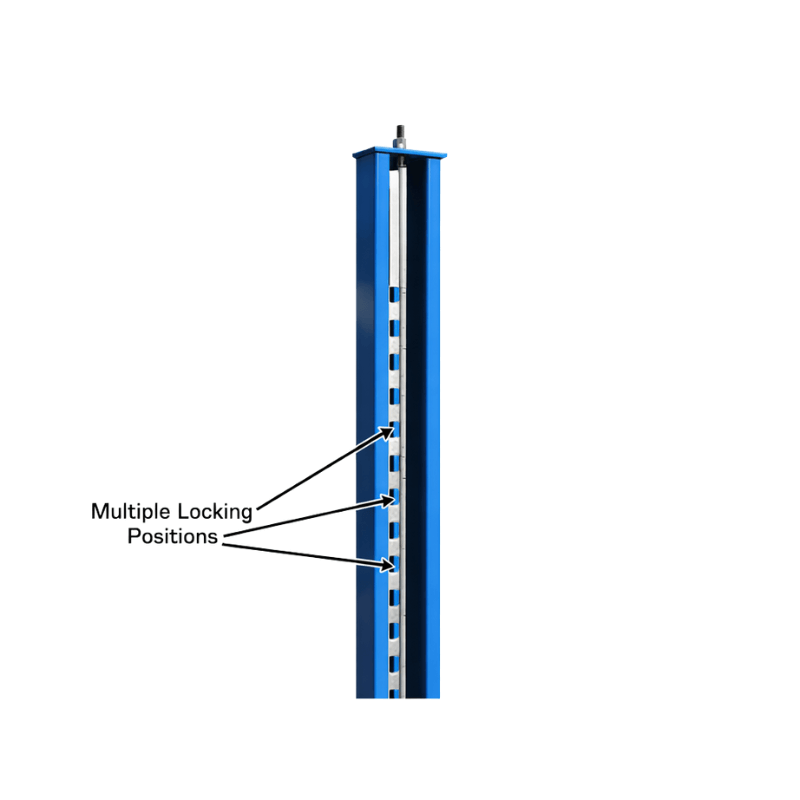

- Lock Ladder Design

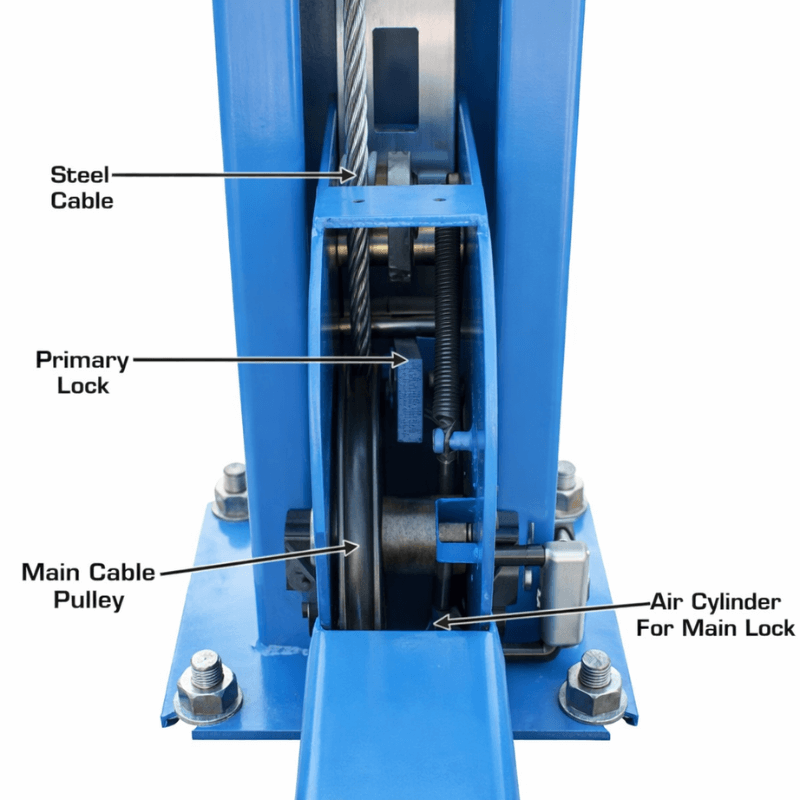

- Double Lock Safety System
- Powder Coat Finish

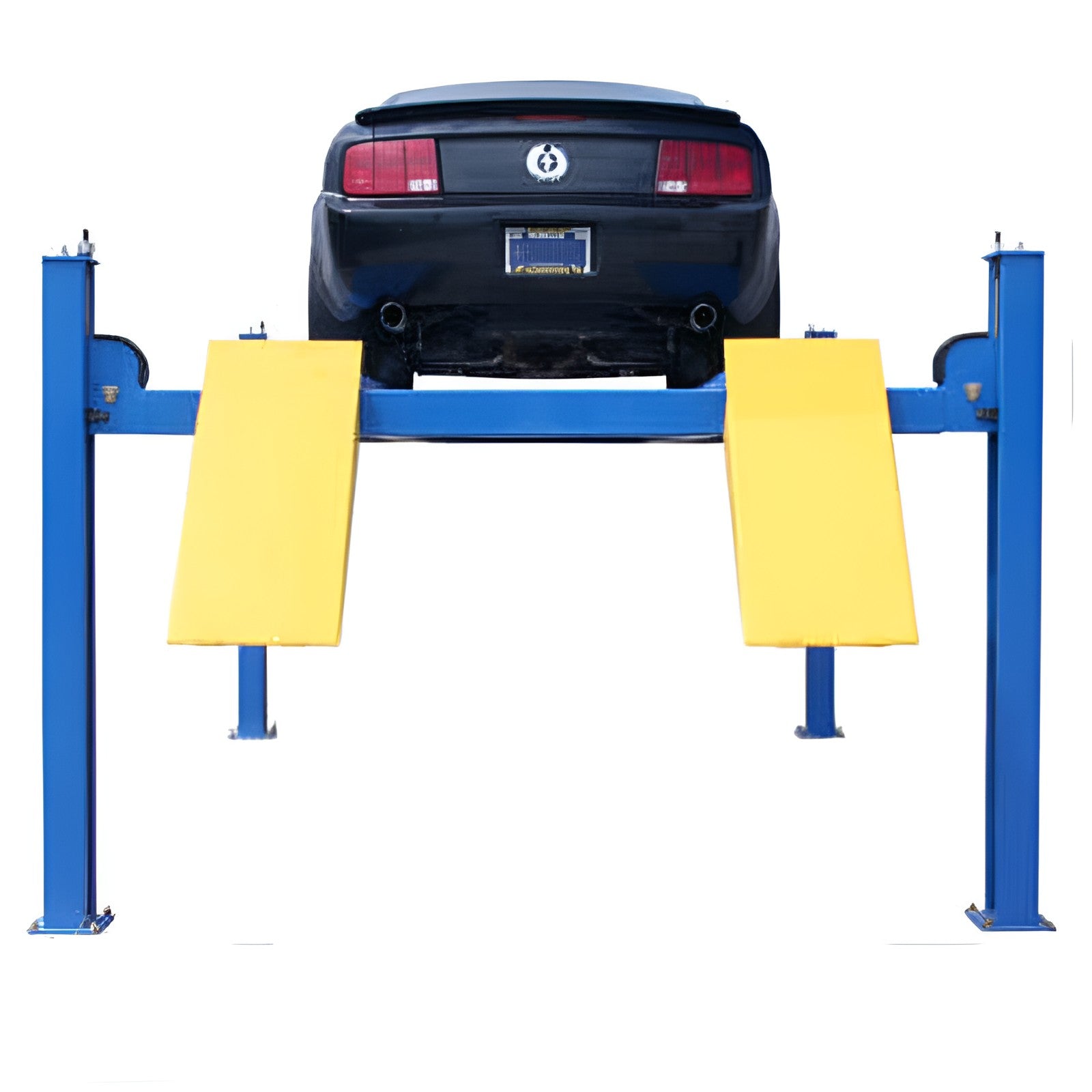

- Steel Approach Ramps Included
- Additional Drive off Ramps Available (Sold Separately)
- Runway Extensions Available (Sold Separately)

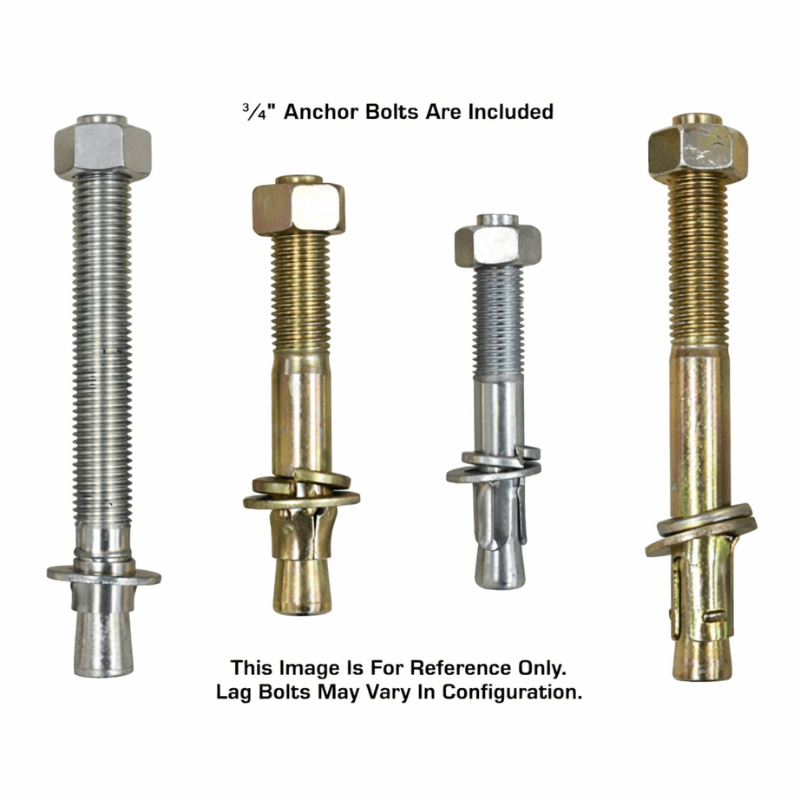

- Mounting Hardware Included
- 220volt/1phase Electric Operation (Requires a 30amp Breaker)
- Shipping Weight: 3,200 lbs.
- 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

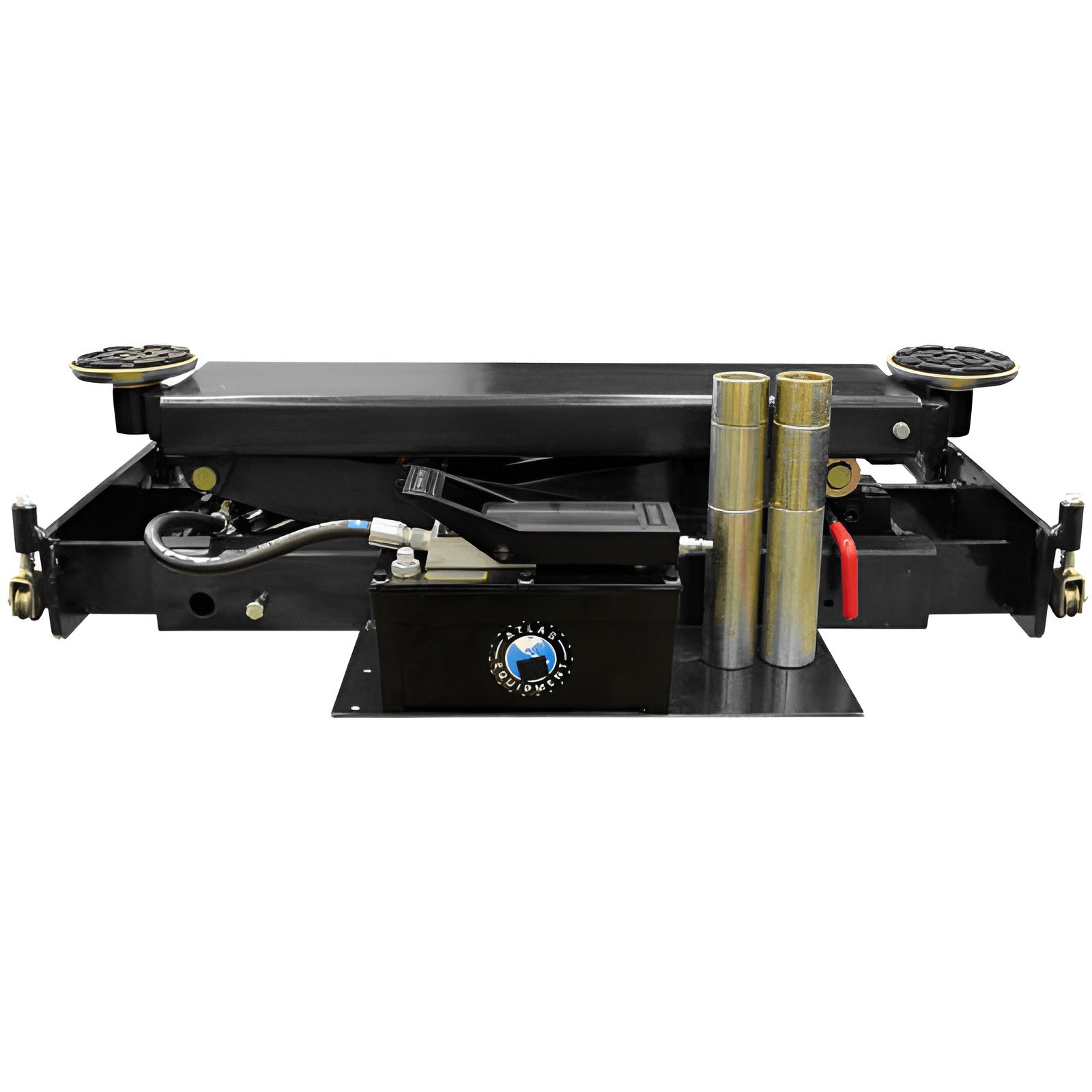

RJ8
- 8,000 lb. Capacity
- Air/Hydraulic Operated (external air supply required)
- Multiple Safety Lock Positions
- Compact Size with Low Profile
- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish
- 4 Piece Truck Adapter Set Included
- 1 Year Parts Only Warranty
Atlas 414A + RJ8 Documentation:
Atlas PK-414A 4-Post Alignment Lift Product Manual
Atlas RJ8000 Rolling Bridge Jack Product Manual
Atlas 414A Alignment Lift Optional Item (Sold Separately)
This Item has a FLAT RATE SHIPPING FEE: $799
*Warehouse pickup is not an option on Atlas alignment lifts.
*Due to Extra Large Size, product cannot be delivered to a freight terminal.
