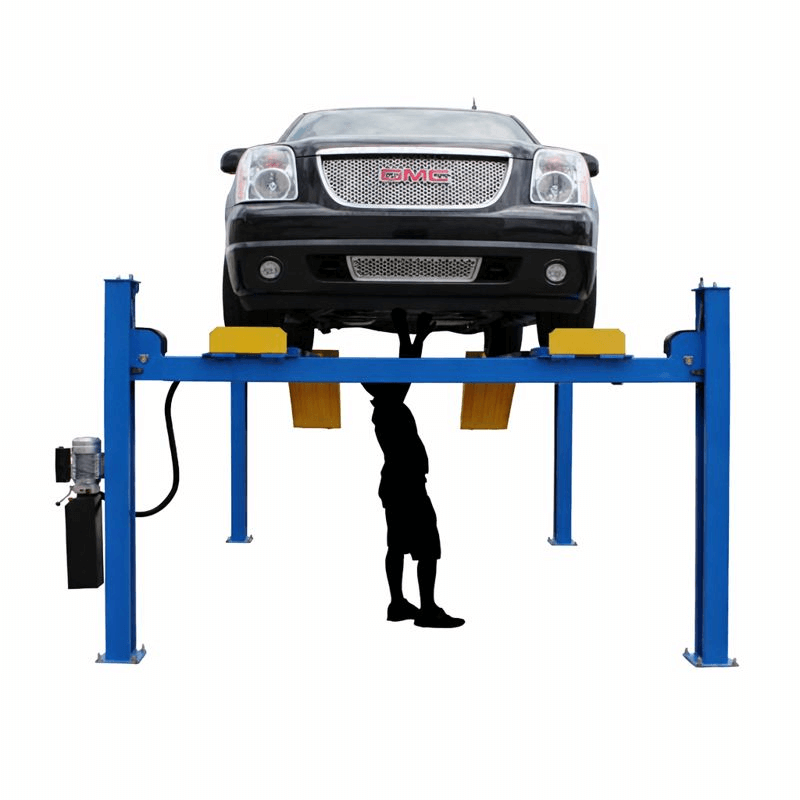

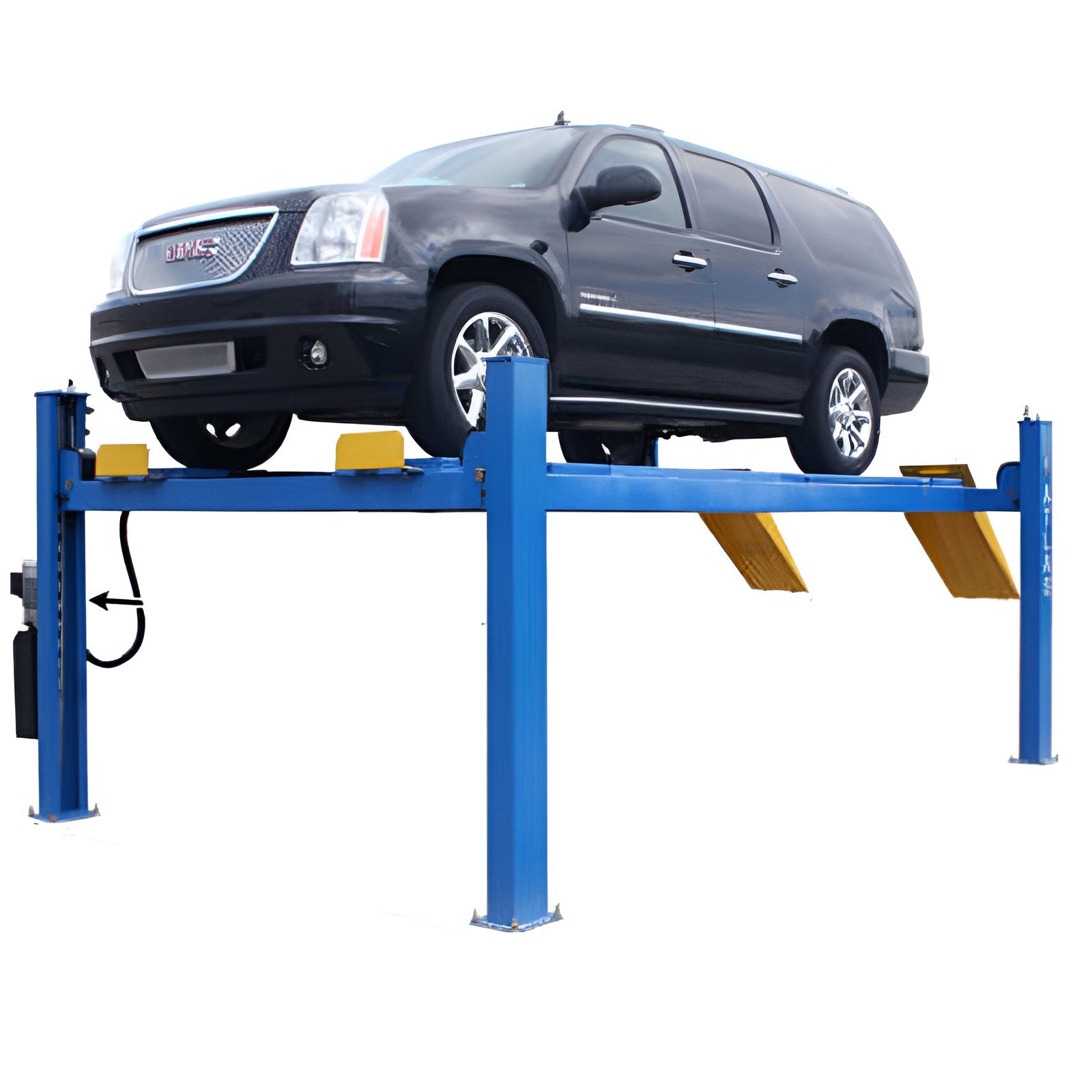

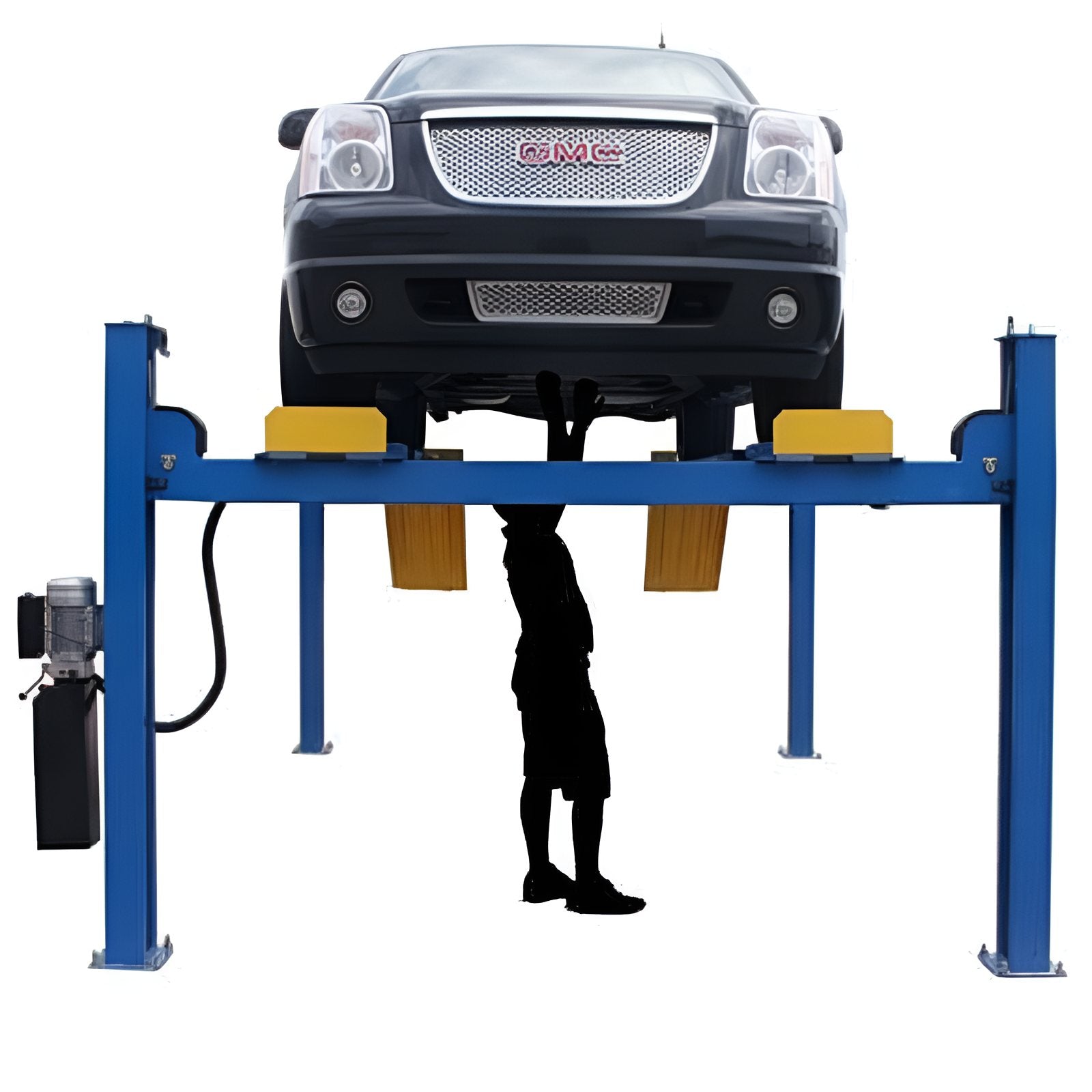

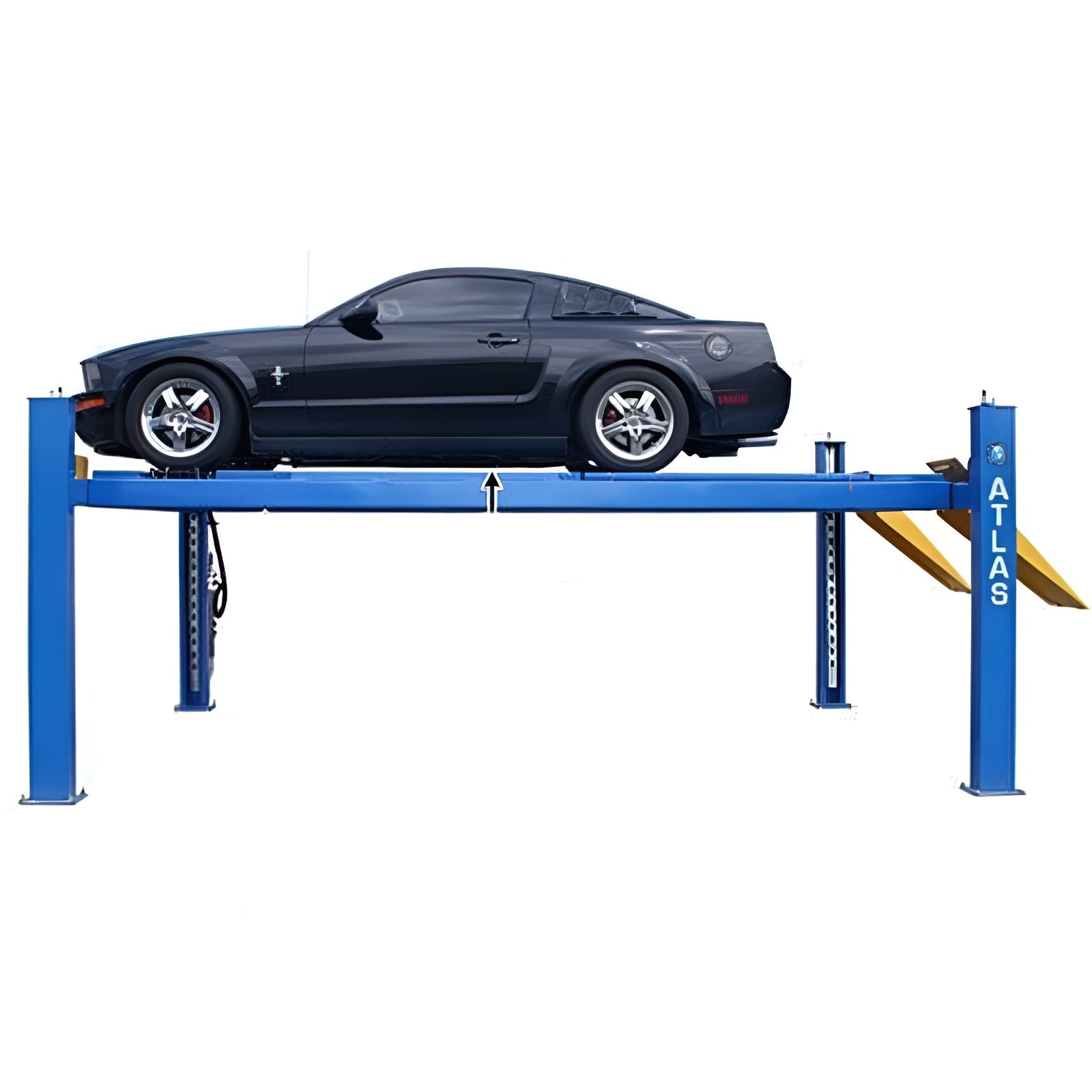

Atlas 414A 14,000 lb 4-Post Alignment Lift

414A Alignment Lift by Atlas

Experience unmatched quality and durability with the Atlas® 414A 14,000-pound four-post alignment lift. Engineered to commercial-grade standards, this lift ensures years of reliable service. Boasting exclusive features not commonly found on competitor's models, the Atlas® 414A delivers exceptional value.

With structural and cosmetic enhancements typically reserved for higher-priced lifts, the Atlas® 414A offers premium performance at an affordable price point. Rigorously tested to ensure flawless operation at its full capacity, this lift system guarantees peace of mind.

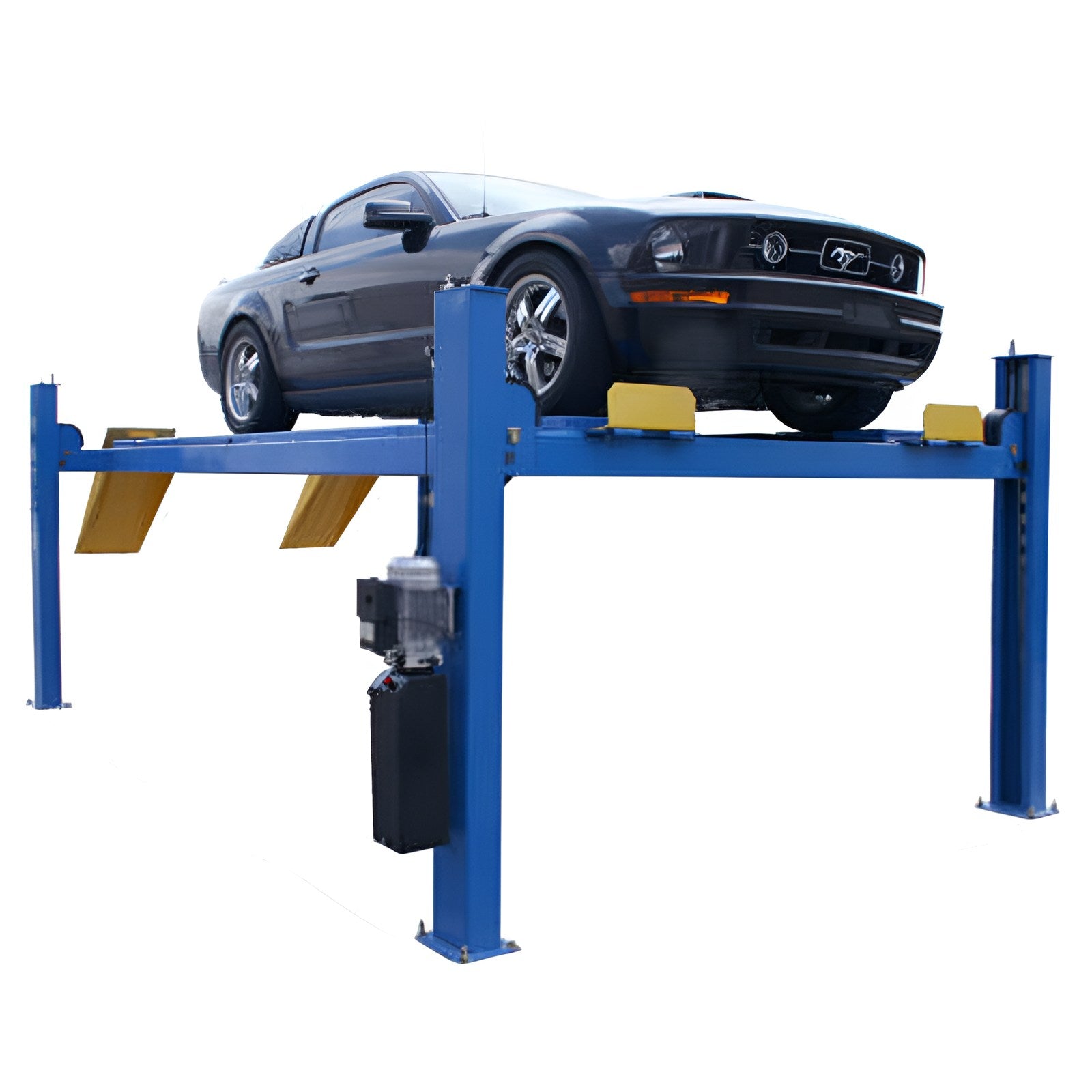

Powered by a high-strength cable system and an oversized hydraulic cylinder beneath the runway, the Atlas® 414A operates smoothly and efficiently on a 220-volt (single-phase) power unit. In contrast to outdated chain lifting systems, which are prone to leveling issues and unsightly door dings, our lift prioritizes user convenience and safety.

Alignment Lift 414A Specifications:

• Capacity: 14,000 lb.
• Lifting Height: 75" (6' 1 1/2")
• Overall Width Of Columns (Without Motor): 130 7/8" (10' 10 7/8")
• Overall Width Of Columns (With Motor): 138 7/8" (11' 6 7/8")
• Overall Length With Approach Ramp: 257 1/2" (21' 5 1/2")
• Length Between Columns: 196 3/4" (16' 4 3/4")
• Runway Length: 207" (17' 3")
• Runway Width: 20"
• Thickness Of Runway: 7"
• Width Between Runways: 47" (w/ Rail 43 1/2")
• Outside Runway To Outside Runway: 87" (7' 3")
• Clearance Under Runways: 67 7/8" (5' 7 7/8")
• Clearance Between Columns: 116" (9' 8")
• Height Of Columns: 86" (7' 2")
• Maximum Wheel Base: 197" (16' 5")
• Drive Thru: 102 1/8" (8' 6 1/8")
• Air Requirement: 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
• Motor/Electrical Requirement: 220 volt single (1) phase. A 30 amp breaker is recommended
• Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight: 3,200 LBS.
• Requires a minimum of 6" of concrete with a 3000 psi. rating

414A 14,000 lb Alignment Lift Special Features:

• 14,000 lb. Capacity
• Heavy Duty, Commercial Grade
• Extra Tall, Extra Wide & Extra Long
• Built-In Slip Plates & Alignment Turntables Included
• Multiple Positions for Turntable Placement
• Runway Covers Included (when Turntables are Removed)
• Air Operated Single Point Lock Release (External Air Supply Required)
• Lock Ladder Design
• Double Lock Safety System
• Powder Coat Finish

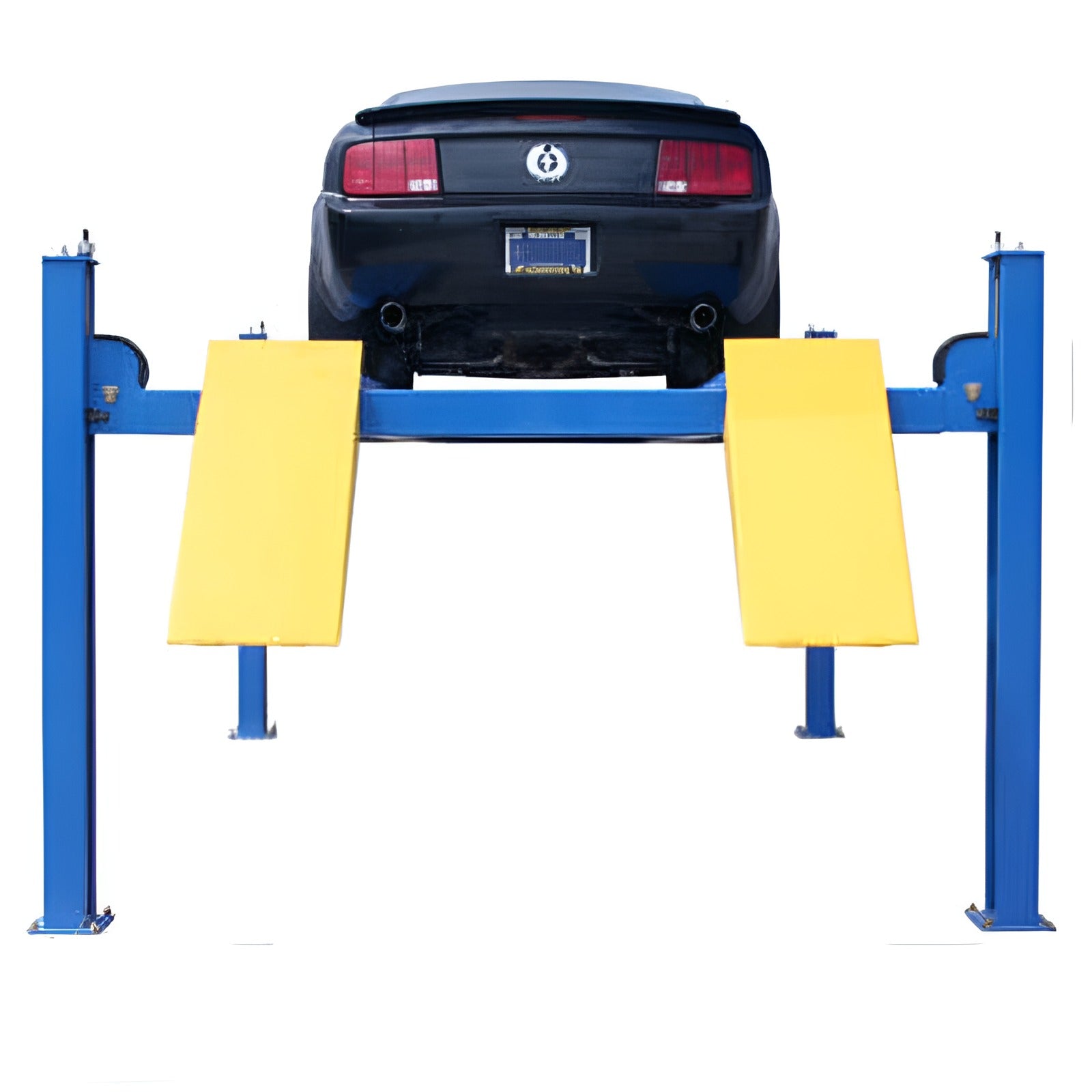

• Steel Approach Ramps Included
• Additional Drive off Ramps Available (Sold Separately)
• Runway Extensions Available (Sold Separately)
• Mounting Hardware Included
• 220volt/1phase Electric Operation (Requires a 30amp Breaker)
• Shipping Weight: 3,200 lbs.
• 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

Atlas 414A Documentation:

   Atlas PK-414A Alignment Lift Product Manual

This Item has a FLAT RATE SHIPPING FEE: $799

*Warehouse pickup is not an option on Atlas alignment lifts.

*Due to Extra Large Size, product cannot be delivered to a freight terminal.
