Atlas PX16A-CF-KIT 16,000 lb Scissor Alignment Lift

SKU ATEATPK-PX16A-CF
by Atlas
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$15,199.00
Address Type (Required Field)
Delivery Options (Required Field)

Notify me when back in stock

PX16A-CF-KT Scissor Alignment Lift by Atlas

Have you calculated how much profit you're losing each month by turning away alignment jobs? Every oversized vehicle or long wheelbase truck that you can't service is money driving out of your lot. And it's not just about the immediate loss - those customers likely won't return for other services either. Your reputation as a one-stop service center is at stake. Meanwhile, your technicians are wasting valuable time with makeshift solutions on vehicles that barely fit your current lift.

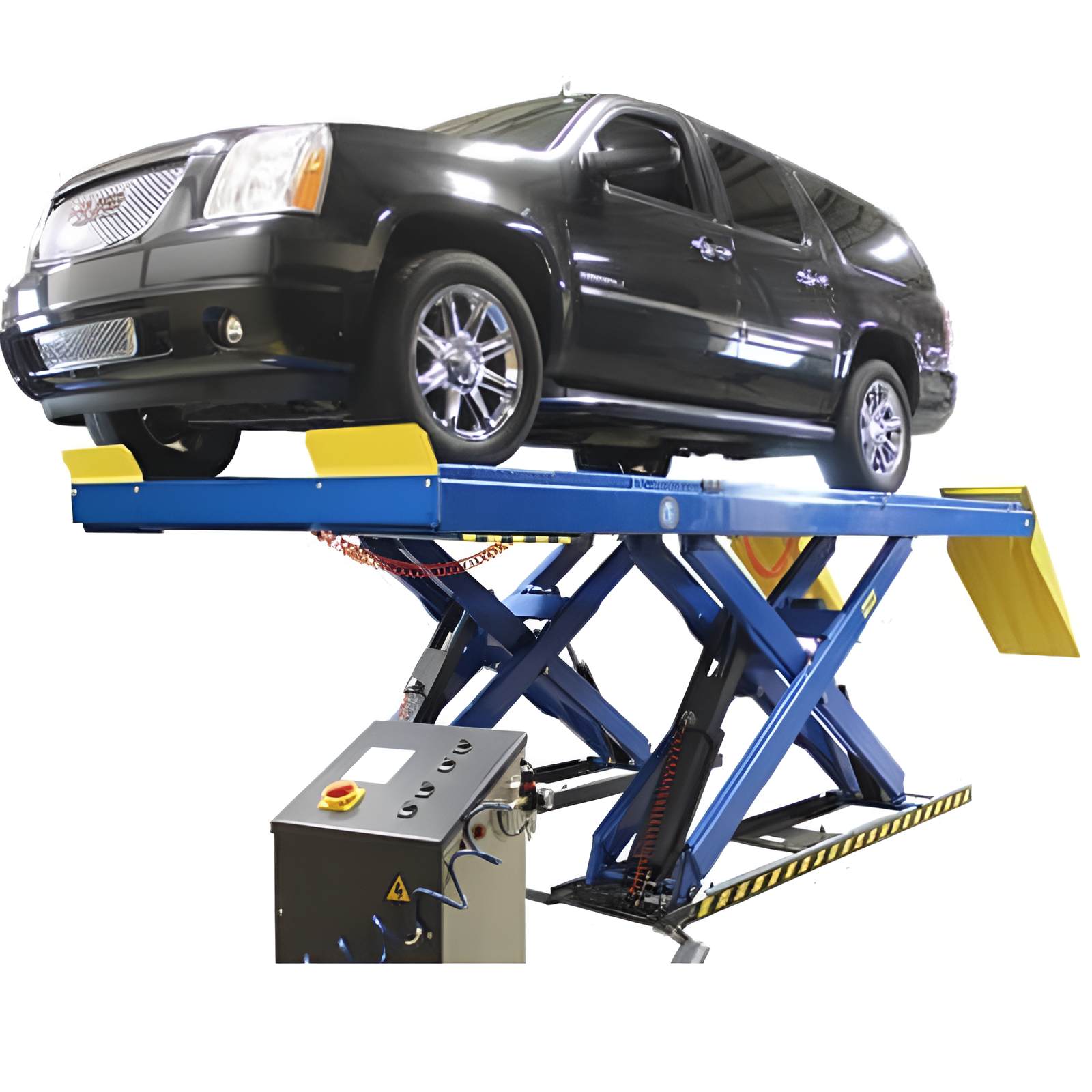

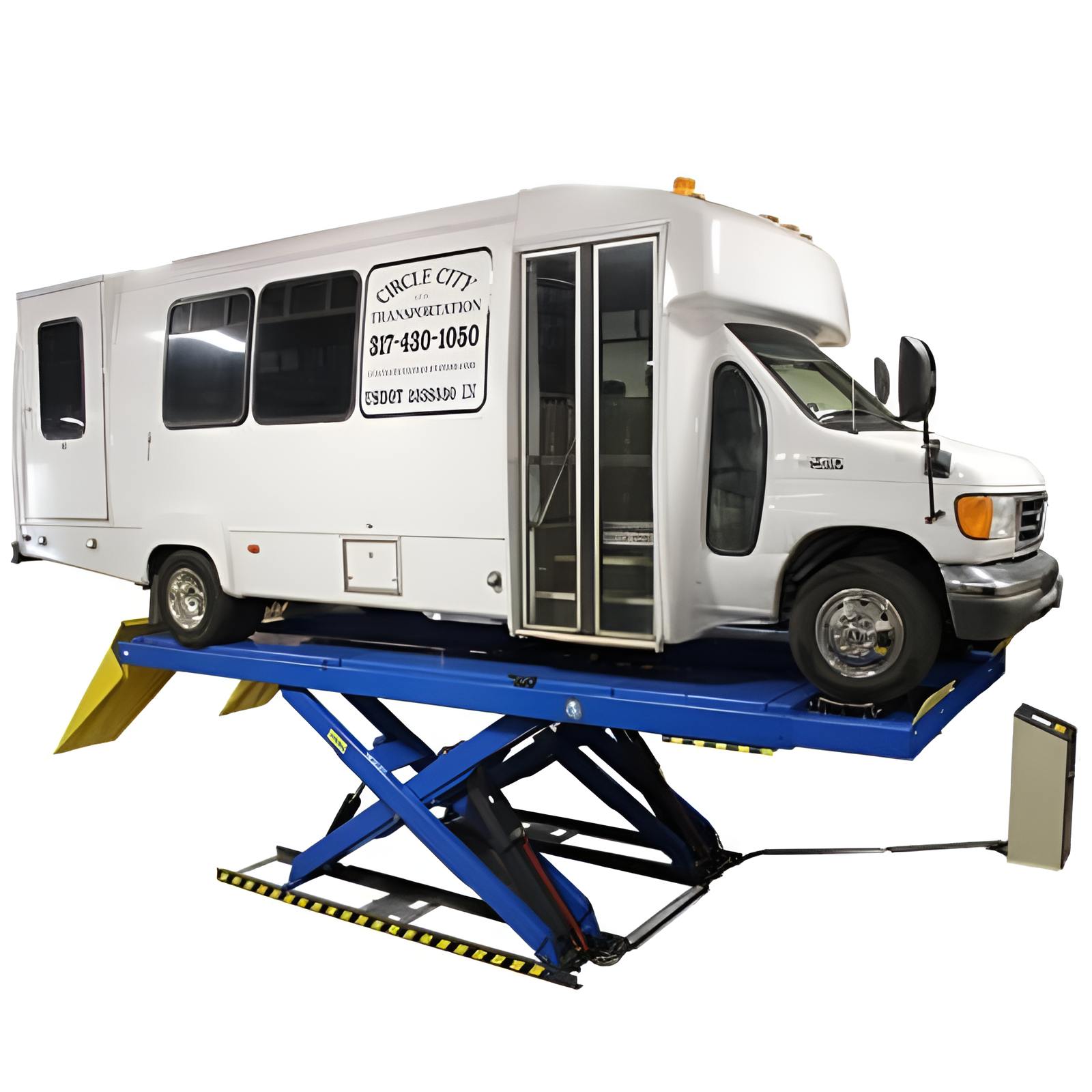

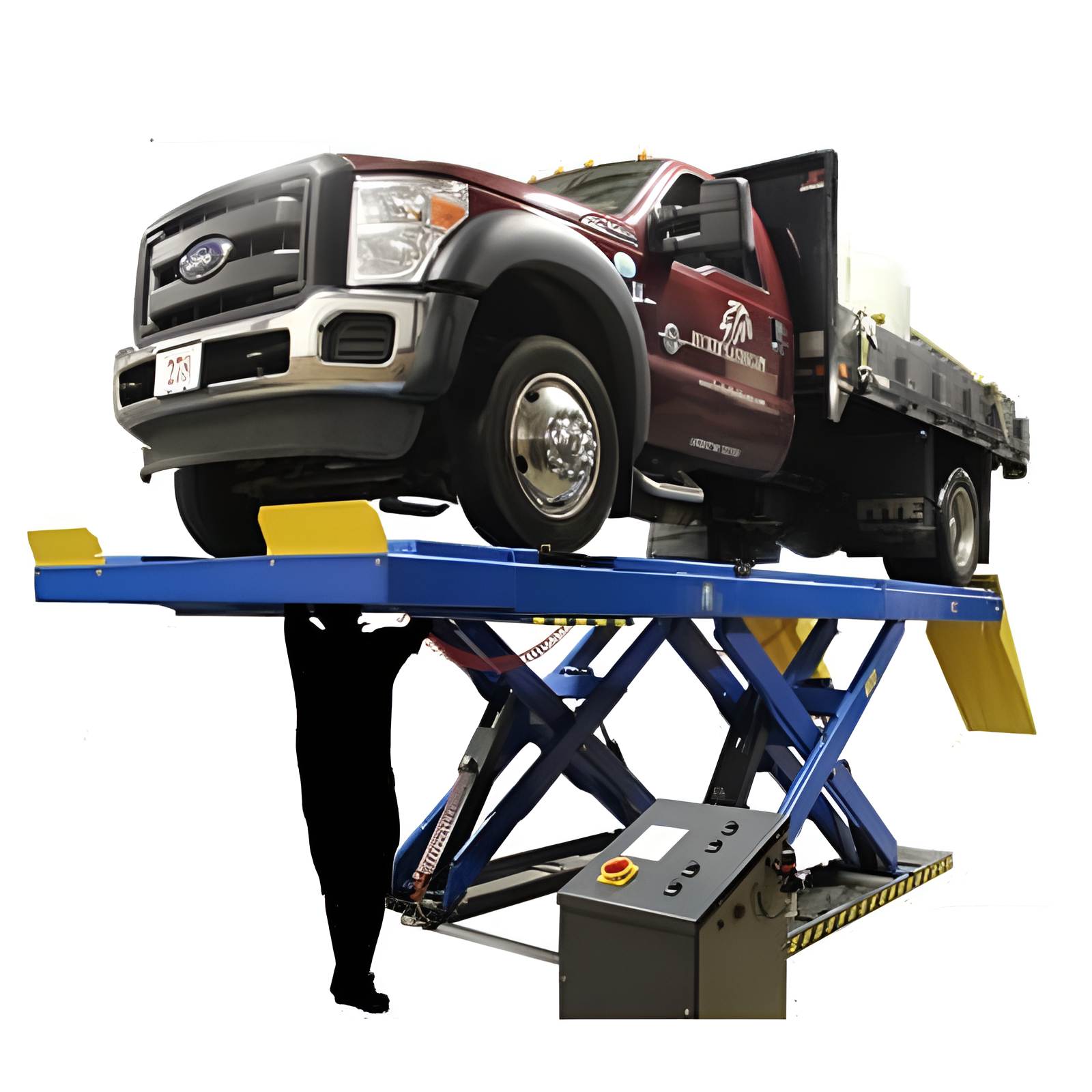

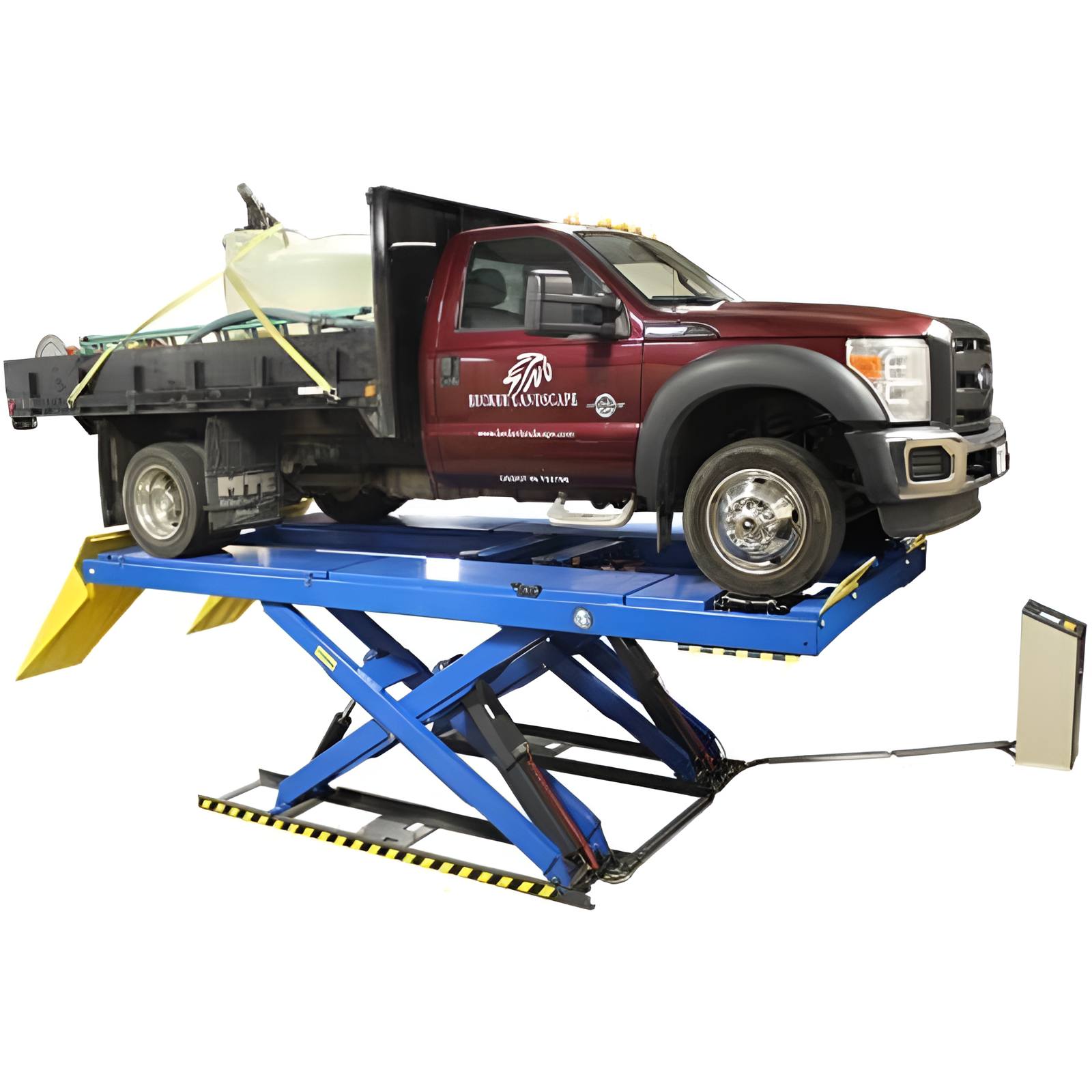

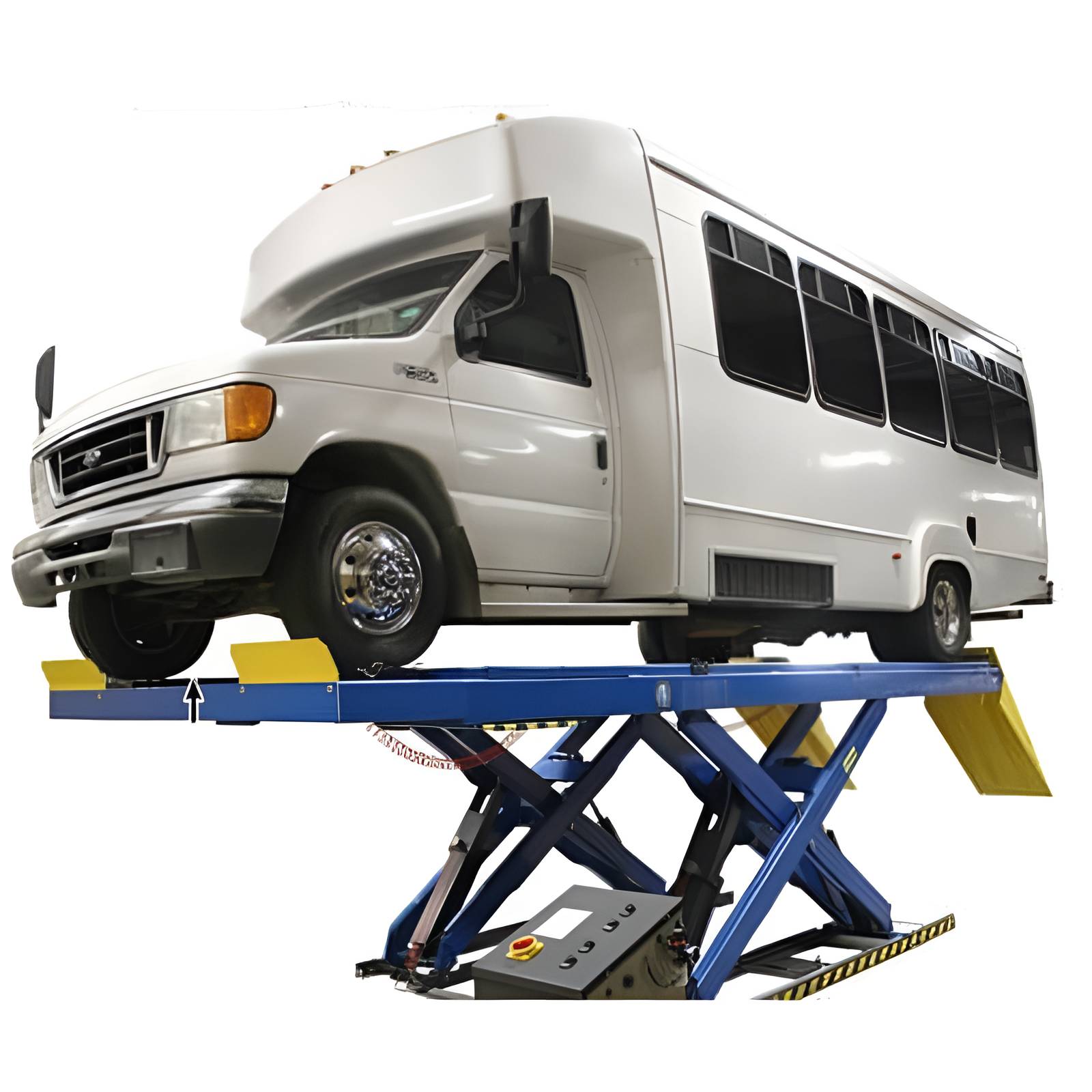

The Atlas® PX16A 16,000 lb. capacity scissor alignment lift is the answer to these challenges. Its narrow width design accommodates a vast range of vehicles, from small cars to heavy-duty trucks and vans. With the ability to perform 4-wheel alignments on wheelbases from 96 to 184 inches, you'll never have to turn away an alignment job again. Built-in slip plates, turntables, and runway jack rails ensure precision and efficiency for every alignment. The semi-enclosed air line kit routing system keeps your shop floor clean and safe. With a lifting height of 71.5 inches and a lowered height of just 13.25 inches, it handles even the lowest-profile vehicles with ease. Backed by a 2-year structural warranty, it's a reliable investment in your shop's future.

Scissor Alignment Lift PX16A Specification:

  • Lifting Capacity: 16,000 LB
  • Lifting Height: 71 1/2" (5' 11 1/2")
  • Lowered Height: 13 1/4"
  • Overall Width: 94" (7' 10")
  • Overall Length with Approach Ramps: 271" (22' 7")
  • Overall Length without Approach Ramps: 206 1/2" (17' 2 1/2")
  • Approach Ramp Length: 66" (5' 6")
  • 4-Wheel Alignment Wheelbase: Max. 184 in.
  • 4-Wheel Alignment Wheelbase: Min. 96 in.
  • Runway Width including Rail: 23 3/4" (1' 11 3/4")
  • Width Between Runways: 44 7/8"
  • Width Between Runway Rails: 41 3/8"
  • Air Requirement: 90-120 PSI
  • Motor/Electrical Requirement: 220 volt +/- 5% (209-231volts) single (1) phase. A 30 amp breaker is required.
  • Oil Requirement: 3.5 Gallons AW32/AW46

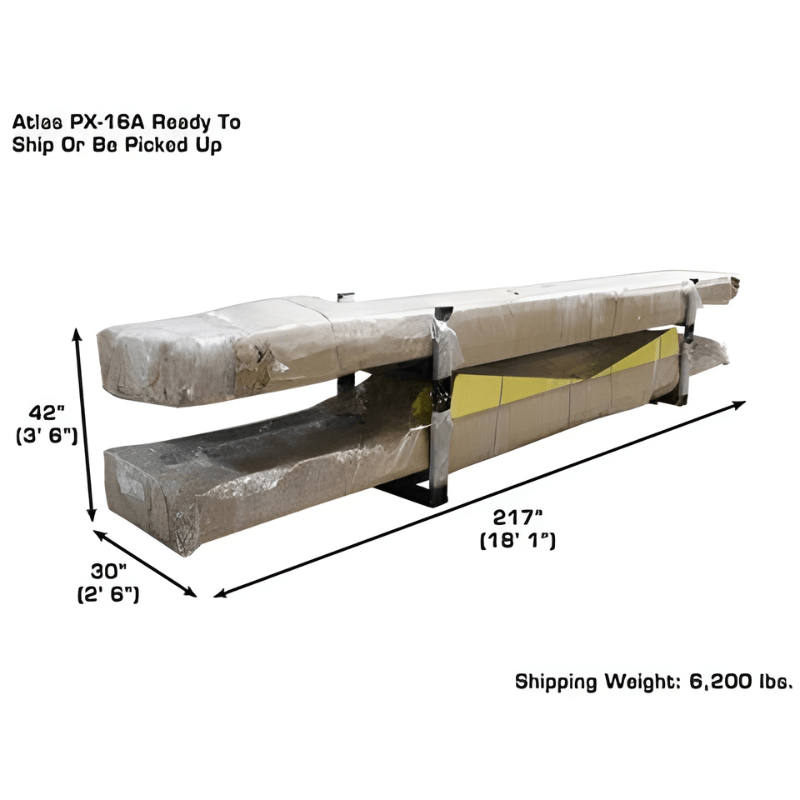

  • Shipping Weight: 6,200 lbs.
  • Requires a minimum of 6" of concrete with a 3000 psi. rating

    PX16A 16,000 lb Scissor Alignment Lift Special Features:

    • 16,000 lb. Capacity
    • Heavy Duty Commercial Grade Construction
    • Scissor Alignment Lift
    • Front Cross-Beam for Added Stability
    • Super-Balanced with Very Precise Platform Leveling Accuracy for Wheel Alignment
    • Built-in Slip Plates and Alignment Turntables Included
    • Recessed Positions for Turntables
    • Separate Self-Contained Control Unit
    • Air Operated Mechanical Safety Locks (External Air Supply Required)
    • Emergency manual pump for lowering
    • Overload Valve Included
    • Lowering Speed Valve Included
    • Mounting Hardware Included
    • Extra Long Slip Plates Allow For 4-Wheel Aligning Of Wheelbases From 96″ to 184″
    • Shipping Weight: 6,200 lbs.
    • 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only
    • Buy as a Combo Atlas PX16A + RJ8

    Atlas PX16A Documentation:

    Scissor Alignment Lift PX16A Lift Product Manual   Atlas PX16A Scissor Alignment Lift Product Manual

    Atlas PX16A Scissor Alignment Lift Optional Item (Sold Separately)


    This Item has a FLAT RATE SHIPPING FEE: $1999

    *Due to Extra Large Size, product cannot be delivered to a freight terminal.

    Warehouse Pickup locations (No shipping charge):

    • Atlanta, GA
    • Indianapolis, IN

    We are not your average online store!

    • No Sales Tax - Except CA, FL, IN, MI, & OH

    • Products Ship in 3-5 Business Days

    • Free Warehouse Pickup Options

    Forklifts and Lift Gates

    All of our Single Post, 2 Post, and 4 Post Lifts* require a forklift (or similar) to unload.  Tire Changers and Balancers and other small items allow for a lift gate service (At no additional charge) Lift gate service will lower your order to street level.  How do I know if a forklift is required? See the drop down options that show when you're attempting to place an order.

    What if I don't have a forklift at my location and my order requires it?

    This is a common question and here's some alternatives:

    • We can deliver to a local freight terminal near you.  Typically this is within 30-60 minutes away depending on location.  We will find a location - Contact Us
    • Do you have a buddy that owns a forklift and we can ship it there?  Does your place of work have a forklift?  Select this location as the delivery address.
    • Warehouse pickup - This is always an option but depends how far you're willing to drive.
    • Rent a forklift - This is the least favorable option but may be necessary.  We always schedule the delivery so this should minimize the days required to rent.

    Can I hand unload my order if I don't have a forklift?

    No, sorry, the truck drivers don't allow for this.  2 things: Liabilities and the time it takes to unload - truck drivers can't wait, even if you have an army of help.

    How do I know if my order requires a forklift or if a lift gate service is available?

    See the drop down options that show when you're attempting to place an order.

    Residential Deliveries

    Yes, we deliver to residential addresses!

    Will the freight company contact me to schedule the delivery?

    Yes, the freight company will call you ahead of time to schedule the delivery to ensure you are available to receive/unload your order.

    Warehouse Pickup (No Freight Charge)

    Warehouse pickup is available for almost all of our brands.  Warehouse locations are listed on each product page.  At checkout, select "Pickup" and choose the warehouse you'd like to pickup from.  Upon ordering, we will send an email with the pickup form/number.

    Freight Terminals

    If you don't have a forklift at your location, we can find you a freight terminal in your area and they will load your trailer onsite.  (Typically 30-60 minute drive away, depending on location) Special note: Some orders are so large they ship on a flatbed by themselves, in these cases a freight terminal delivery is not an option.  The product page will state whether this is the case.

    Flat Rate Shipping and Freight Quotes

    Most of our products have a flat rate shipping fee. However, if you see a note that says "Contact us to see if we can ship for less" then this means we're able to quote for a better price.  Contact Us now!

    *The X1 Triumph 4 post can deliver with lift gate
