PX16A Scissor Alignment Lift and RJ8 Rolling Jack Combo by Atlas
Running a busy service shop can be challenging when your lift isn’t versatile enough to handle a wide range of vehicles or when cluttered air hoses slow down your workflow. Without the right equipment, performing 4-wheel alignments on both cars and long-wheelbase trucks can quickly become a hassle, limiting your ability to serve customers efficiently.

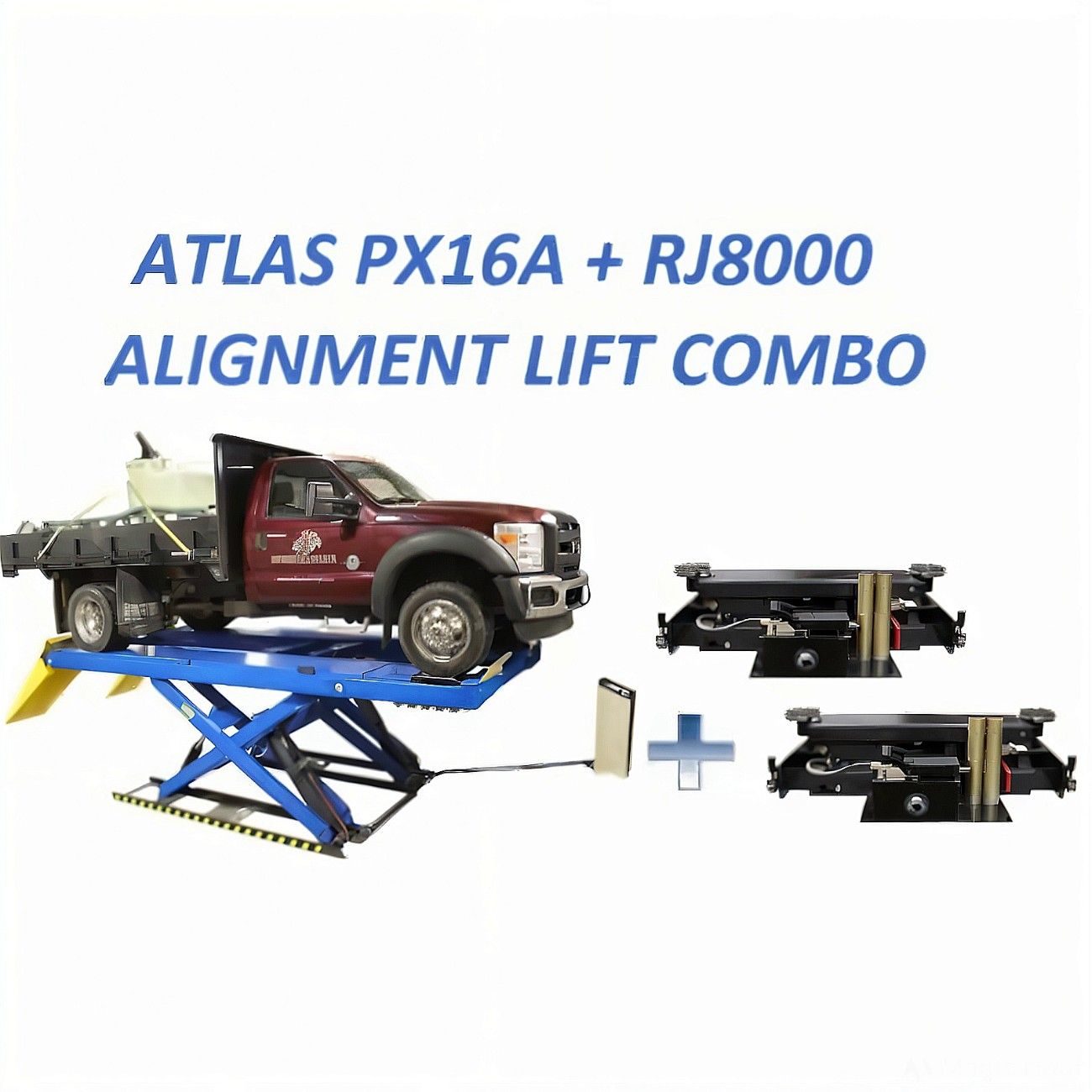

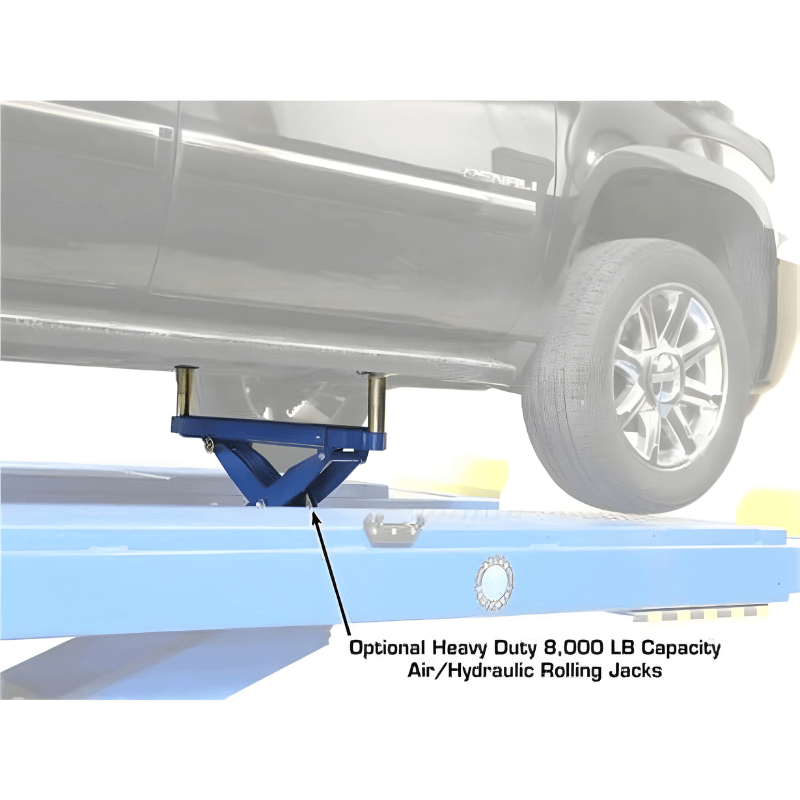

Enter the Atlas PX16A Scissor Alignment Lift and RJ8 Rolling Jack Combo, designed to make your life easier. The PX16A offers a hefty 16,000 lb capacity, supporting vehicles of all sizes, from Mini Coopers to heavy-duty trucks. With built-in slip plates, turntables, and a precise leveling system, alignments are faster and more accurate. The included RJ8 Rolling Jacks, with an 8,000 lb capacity each, make tire and brake service a breeze, ensuring your shop stays organized and efficient. This high-quality combo delivers both the power and flexibility you need to handle any job with ease.
Scissor Alignment Lift and Rolling Jack PX16A+RJ8 Specification:

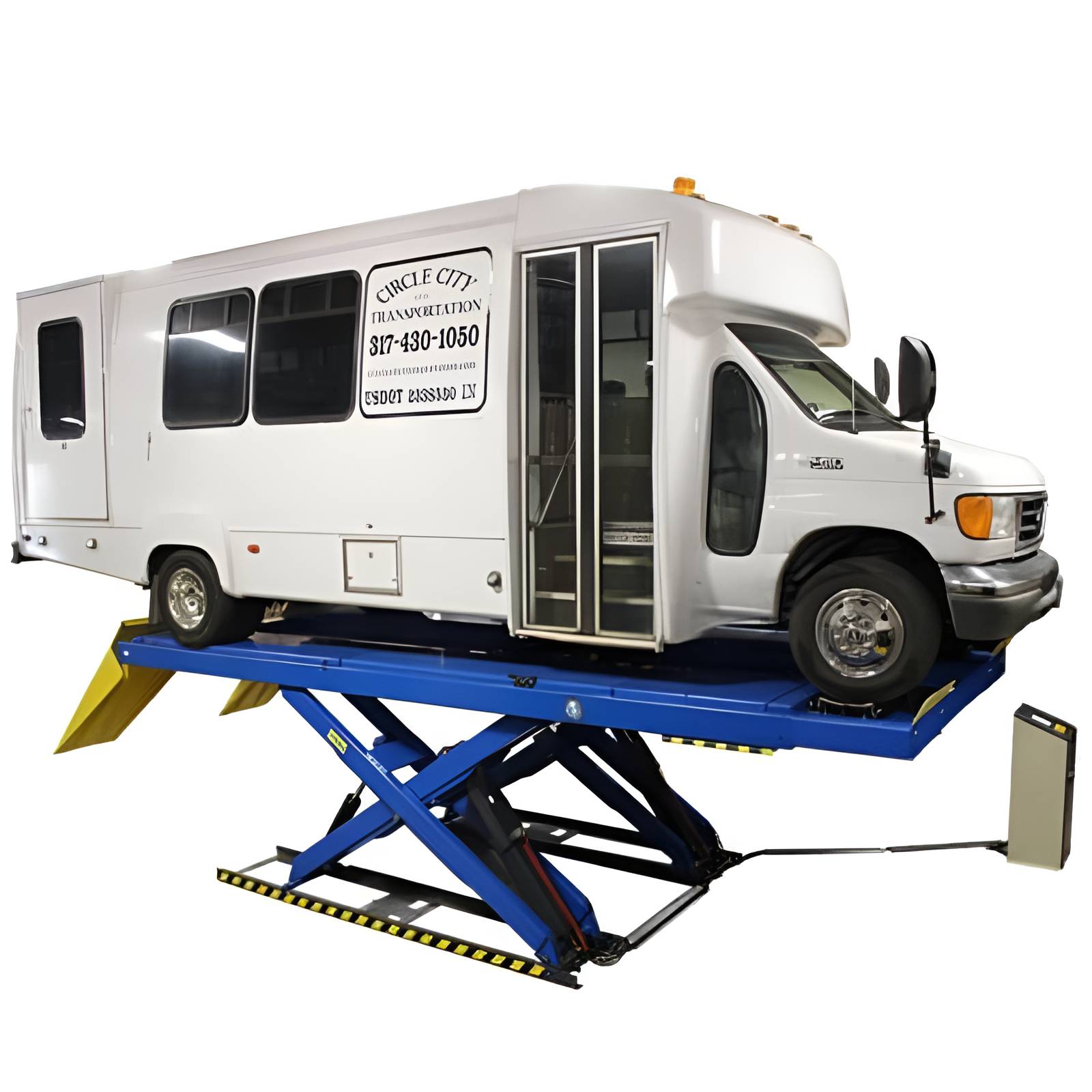

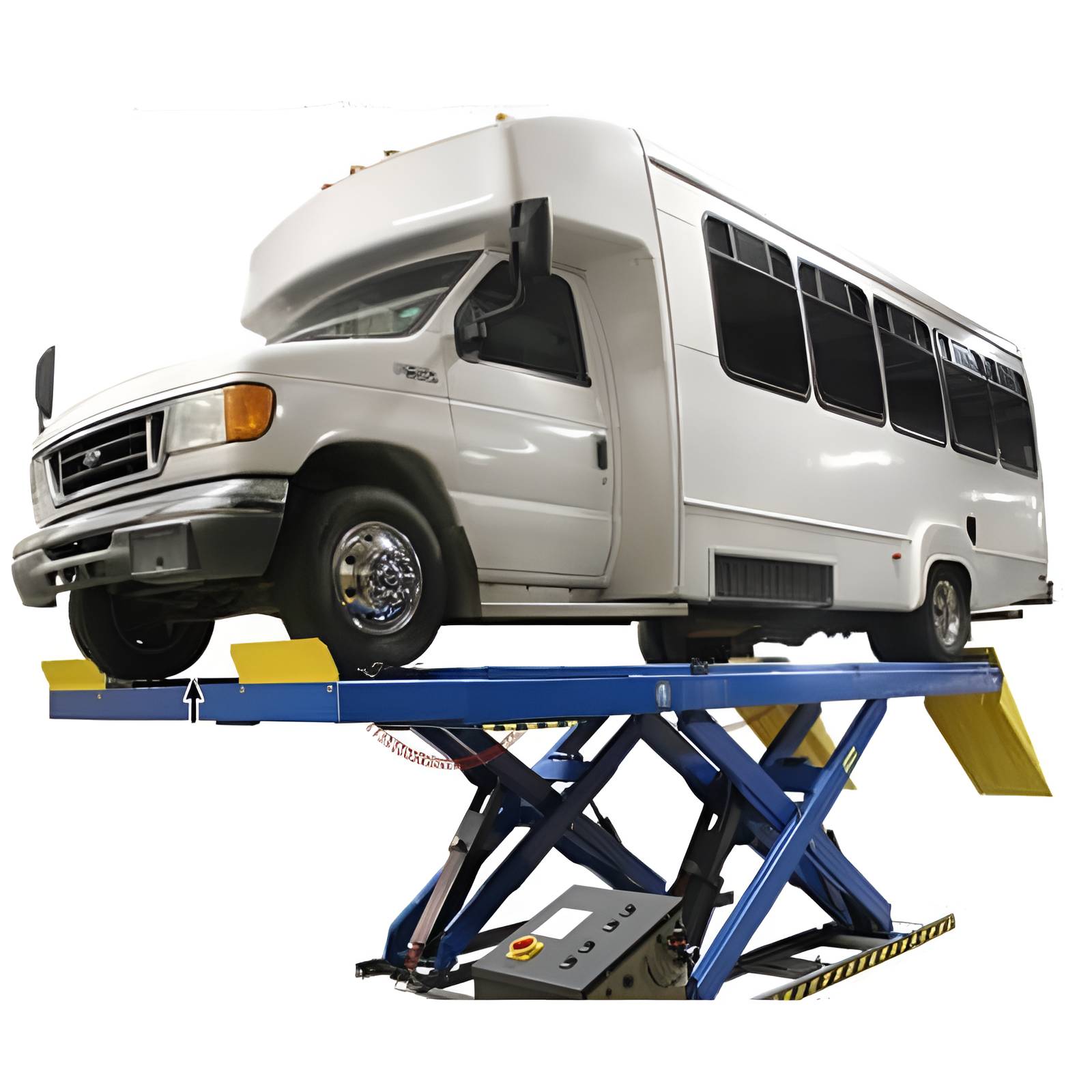

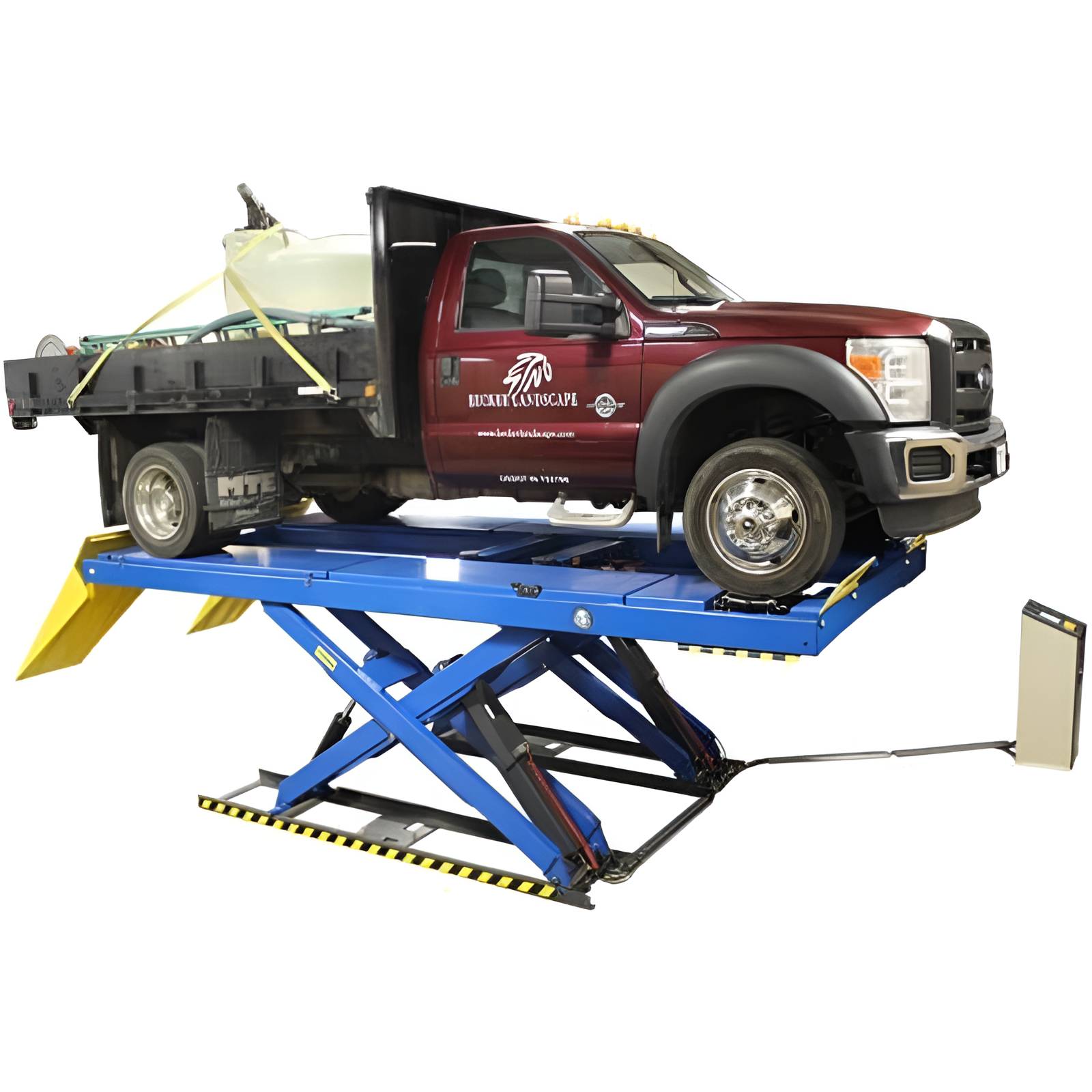

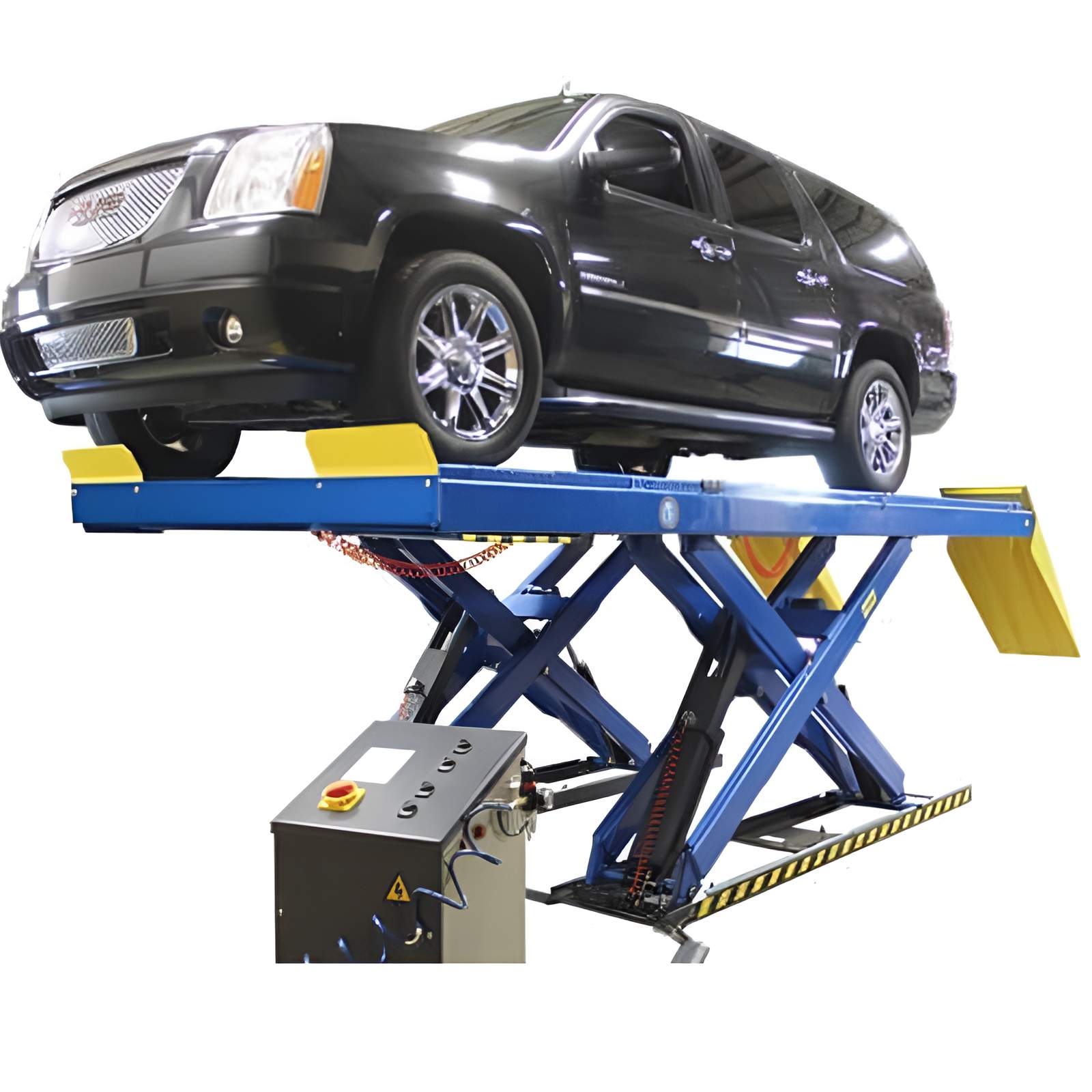

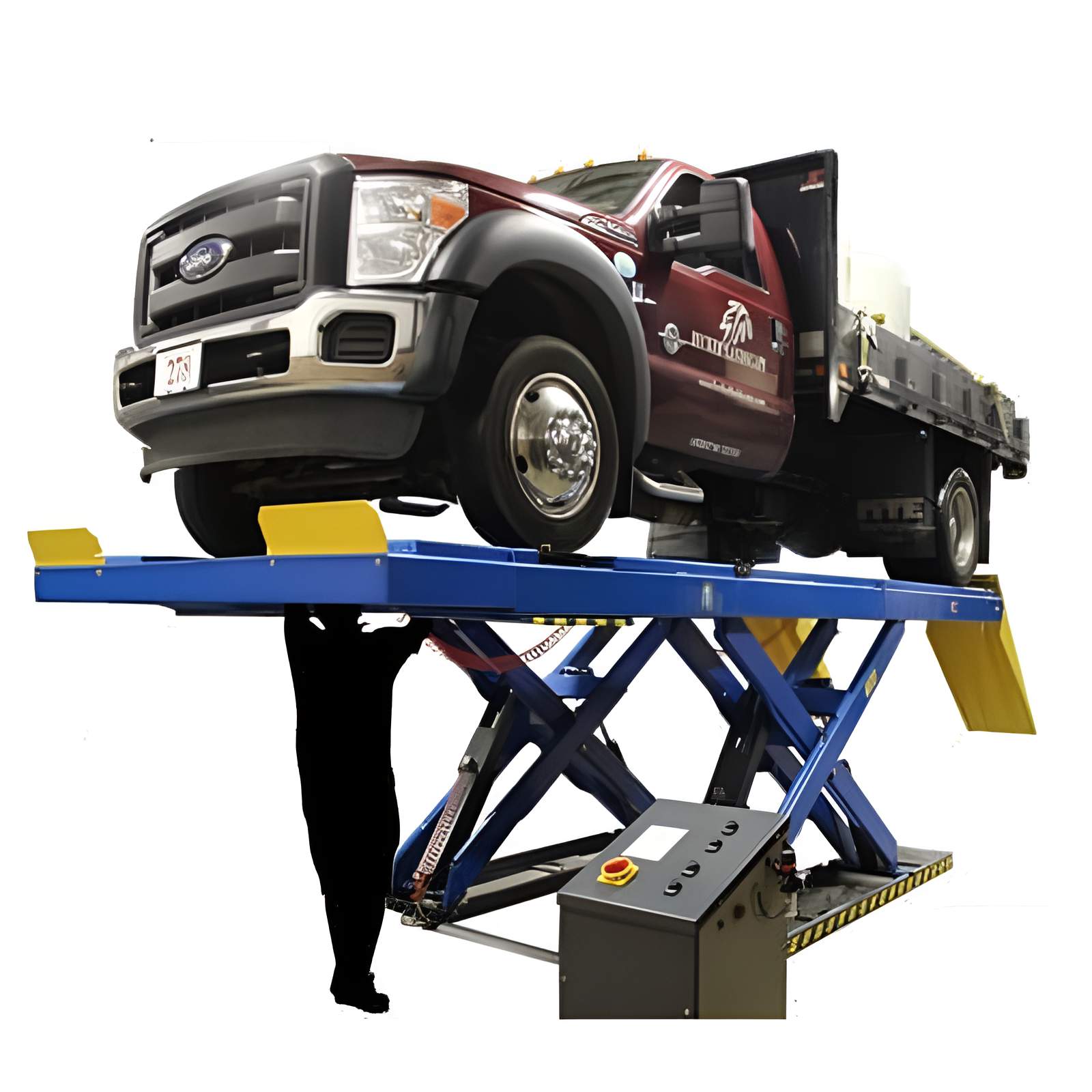

PX16A
Lifting Capacity: 16,000 LB
Lifting Height: 71 1/2" (5' 11 1/2")

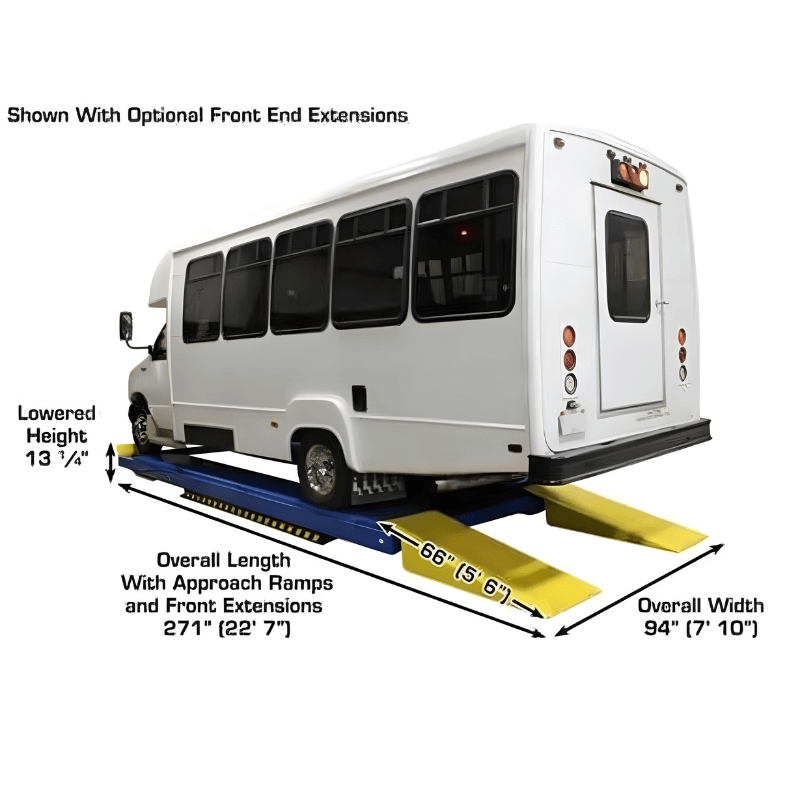

Lowered Height: 13 1/4"
Overall Width: 94" (7' 10")
Overall Length with Approach Ramps: 271" (22' 7")
Overall Length without Approach Ramps: 206 1/2" (17' 2 1/2")
Approach Ramp Length: 66" (5' 6")

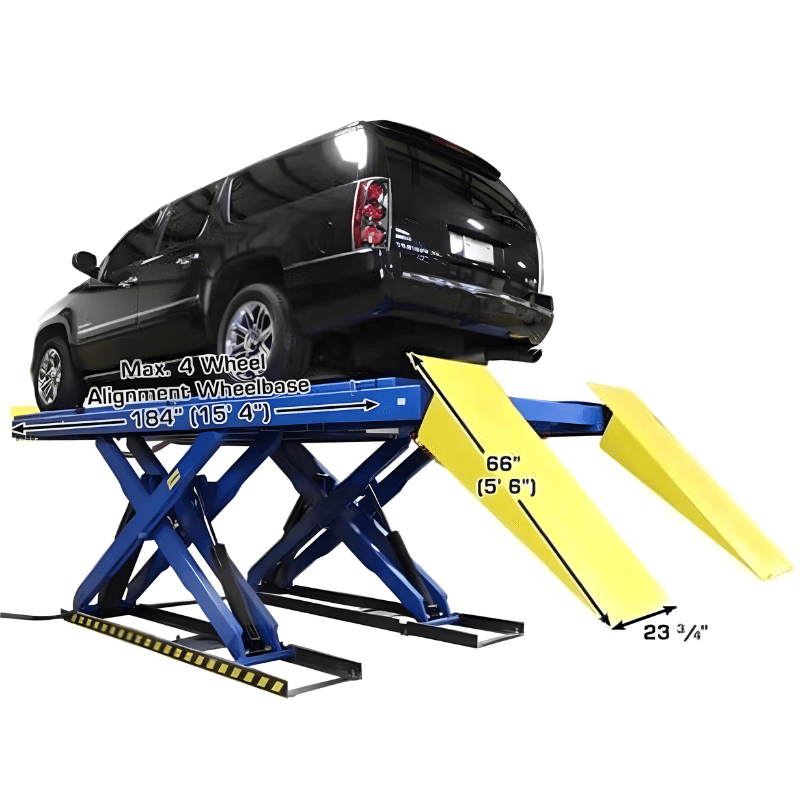

4-Wheel Alignment Wheelbase: Max. 184 in.
4-Wheel Alignment Wheelbase: Min. 96 in.
Runway Width including Rail: 23 3/4" (1' 11 3/4")
Width Between Runways: 44 7/8"
Width Between Runway Rails: 41 3/8"
Air Requirement: 90-120 PSI
Motor/Electrical Requirement: 220 volt +/- 5% (209-231volts) single (1) phase. A 30 amp breaker is required.
Oil Requirement: 3.5 Gallons AW32/AW46

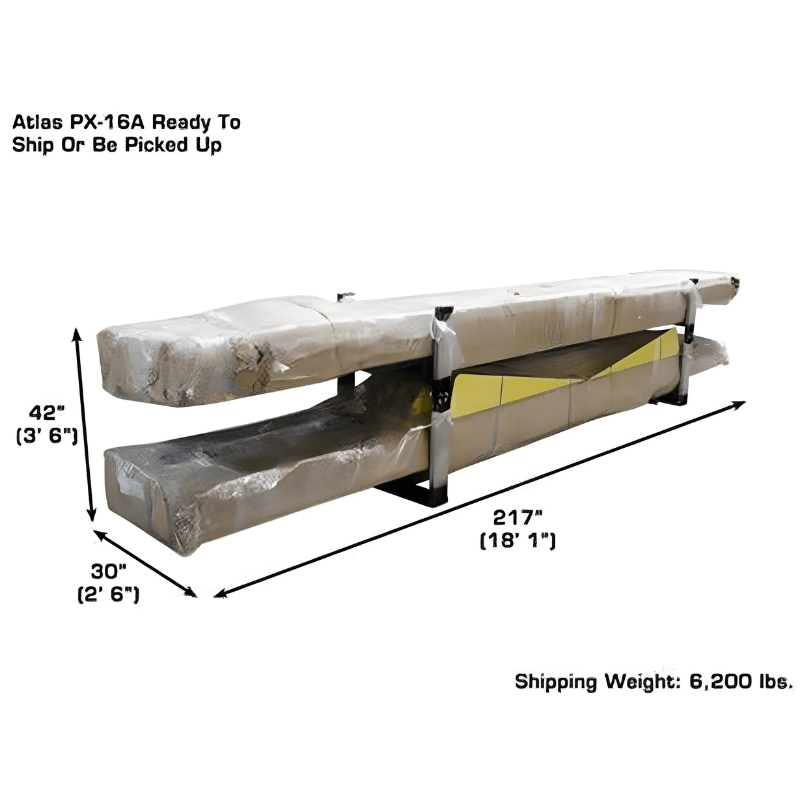

Shipping Weight: 6,200 lbs.
Requires a minimum of 6" of concrete with a 3000 psi. rating

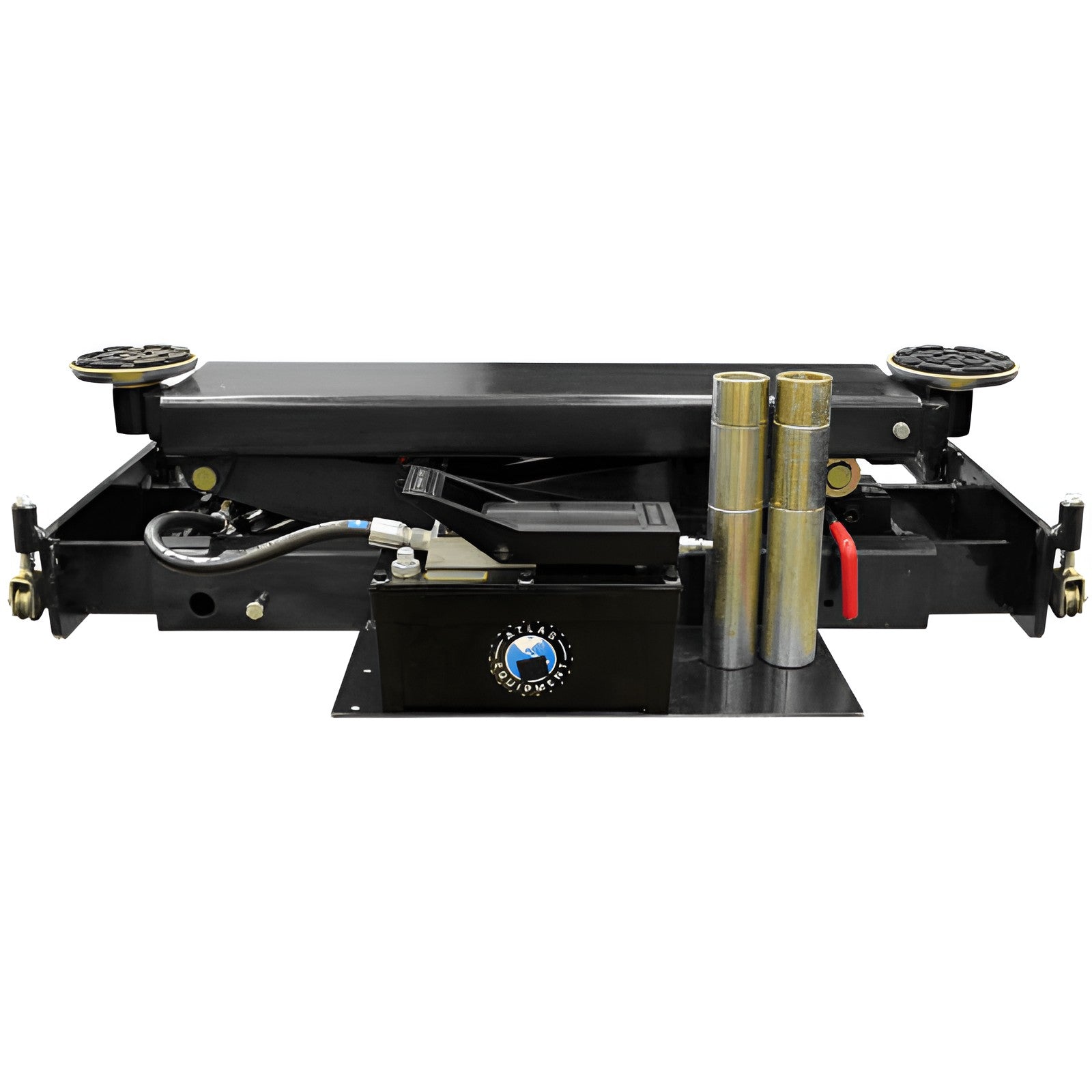

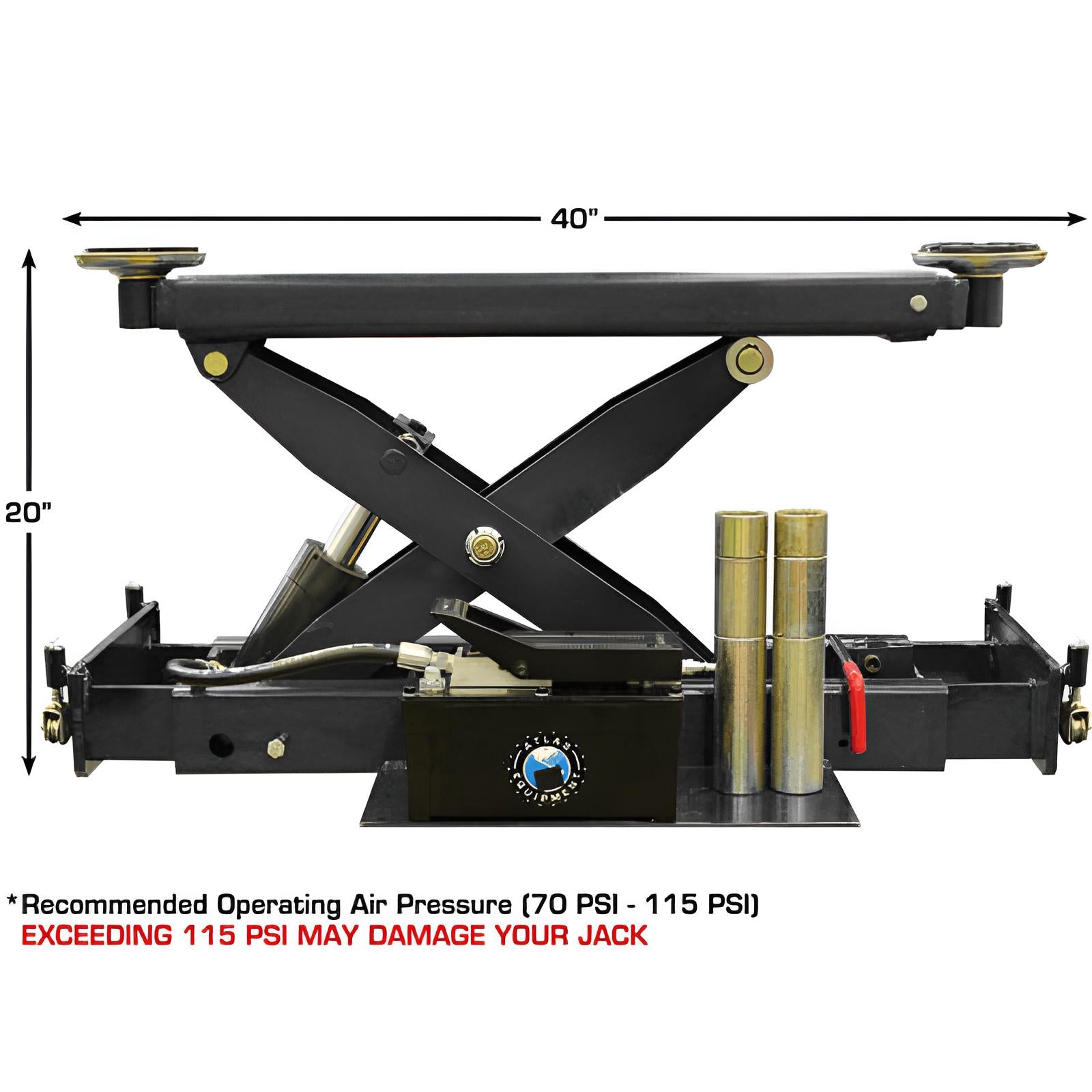

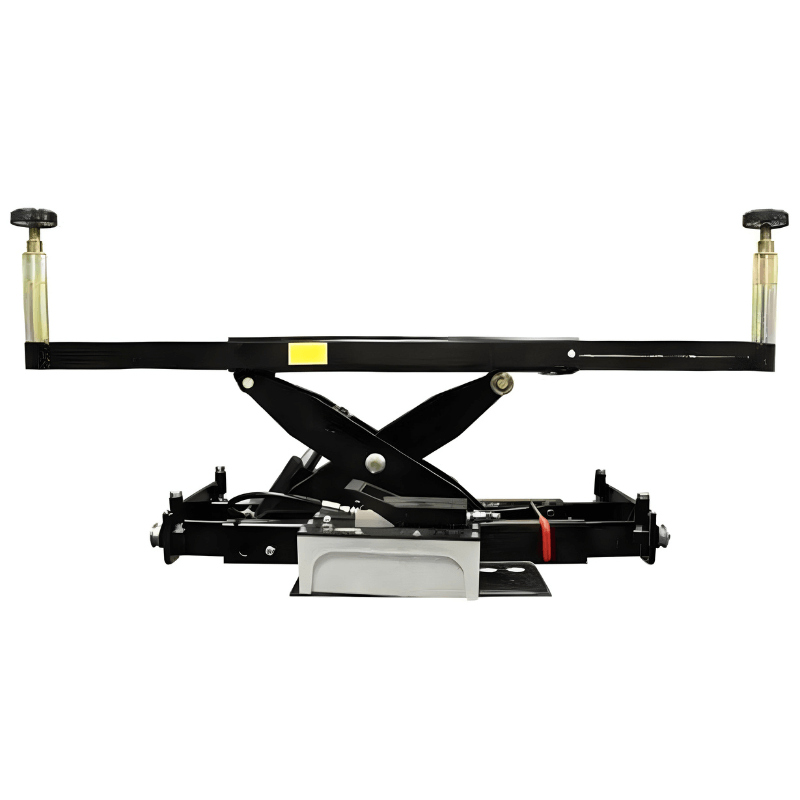

RJ8
Maximum Capacity 8,000 lb.

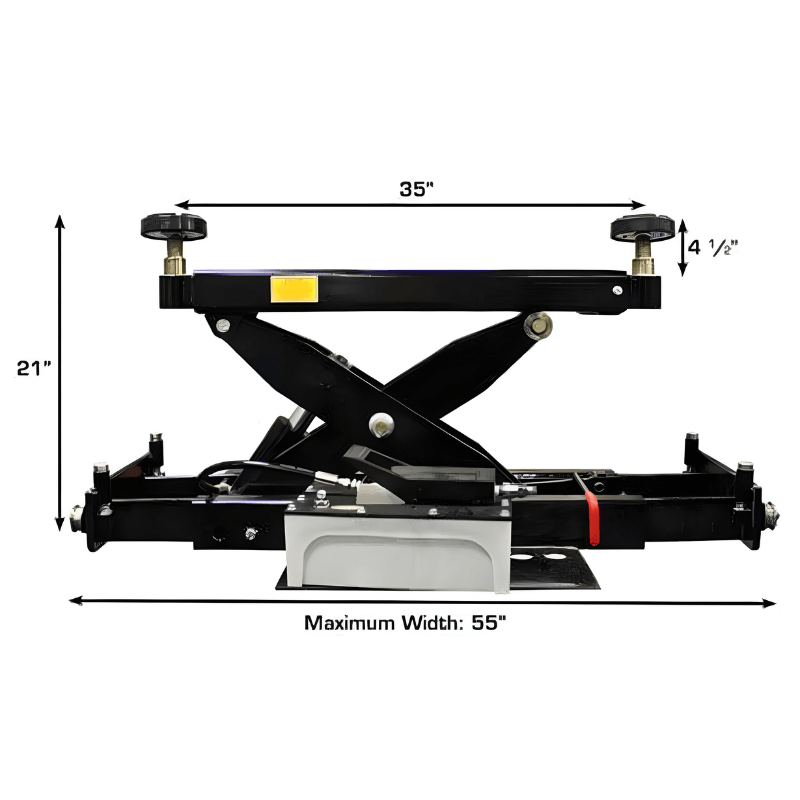

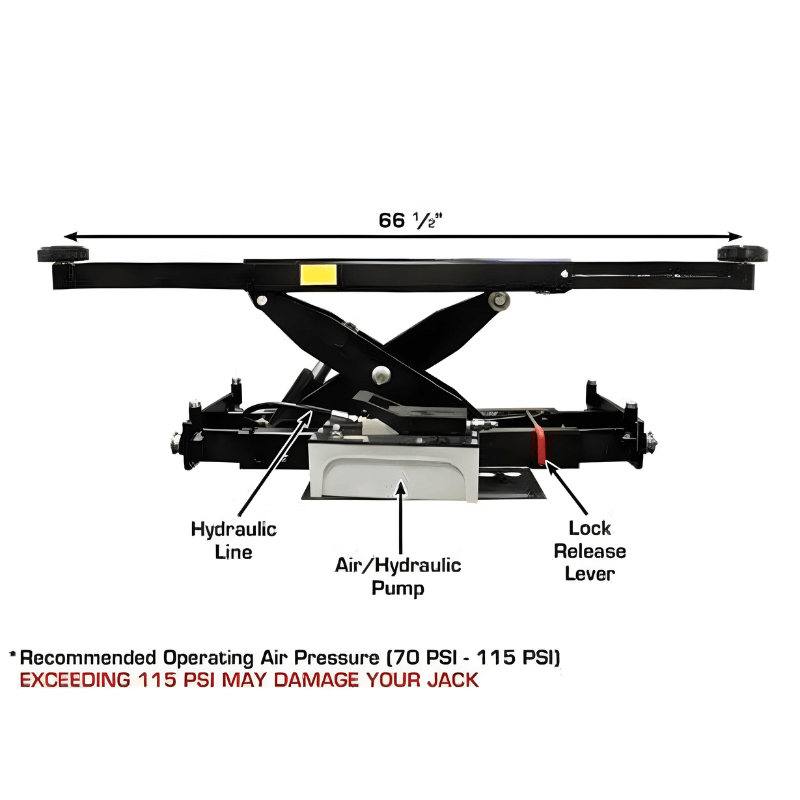

Maximum Width 68" (5' 8")
Minimum Width 40" (3' 4")
Distance Between Runway Capability 33"-53"

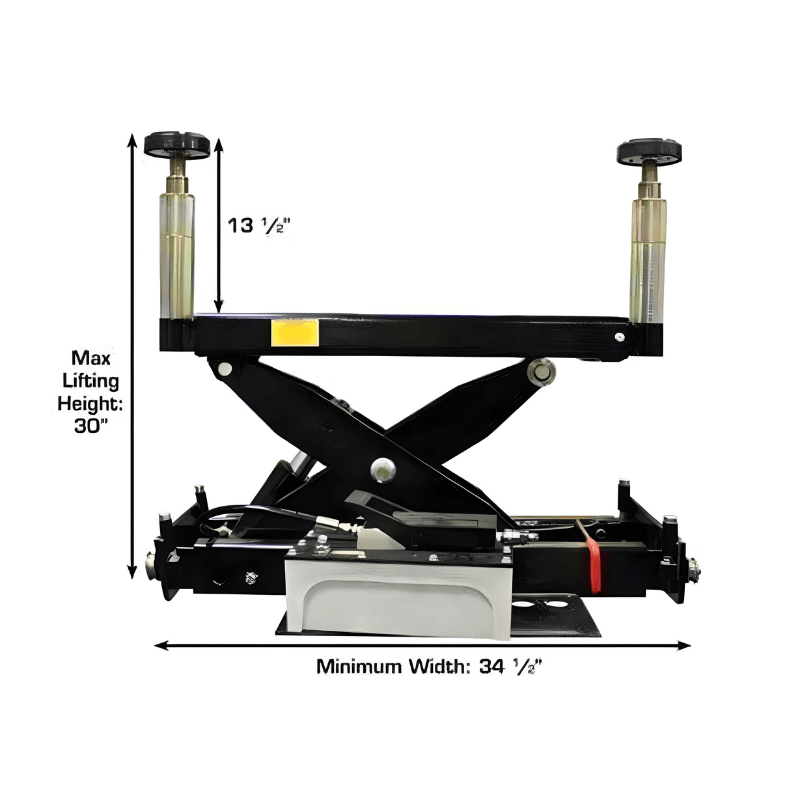

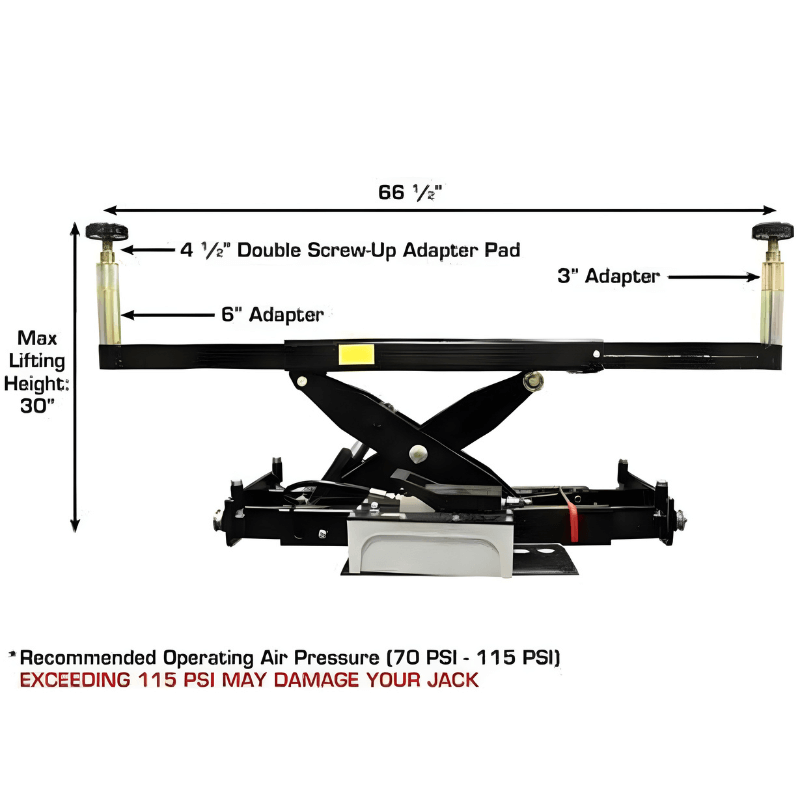

Maximum Lifting Height (With Adapters) 27"
Air Requirement 70-115 PSI
Shipping Weight 390 lbs.

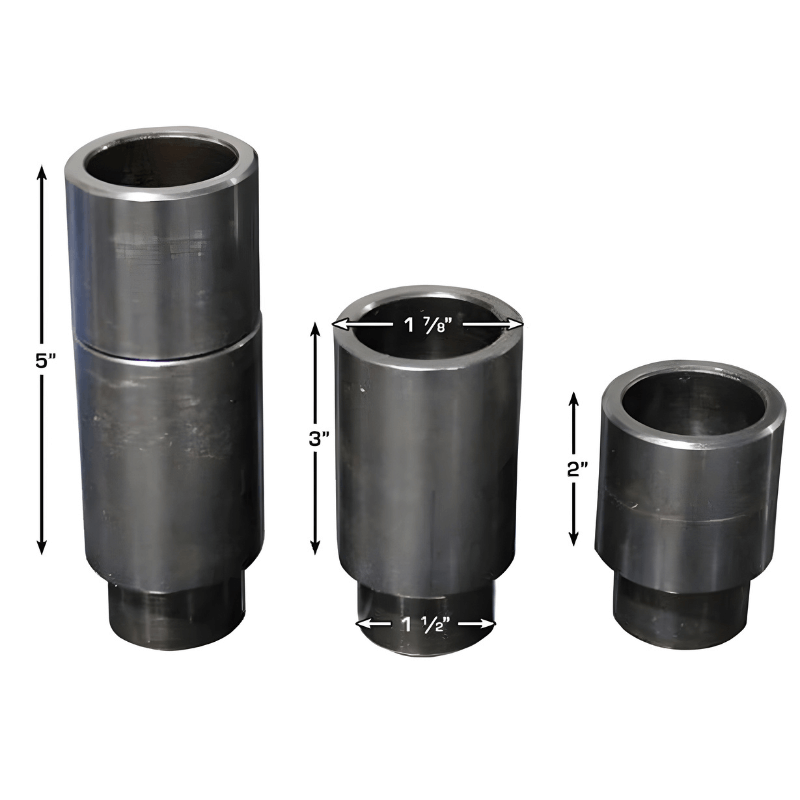

Adapter Heights 2 Each 2", 3"
Arm Hole/Adapter Peg Size 1.5"
PX16A 16,000 lb Scissor Alignment Lift and RJ8 Rolling Special Features:
PX16A
16,000 lb. Capacity
Heavy Duty Commercial Grade Construction
Scissor Alignment Lift
Front Cross-Beam for Added Stability
Super-Balanced with Very Precise Platform Leveling Accuracy for Wheel Alignment

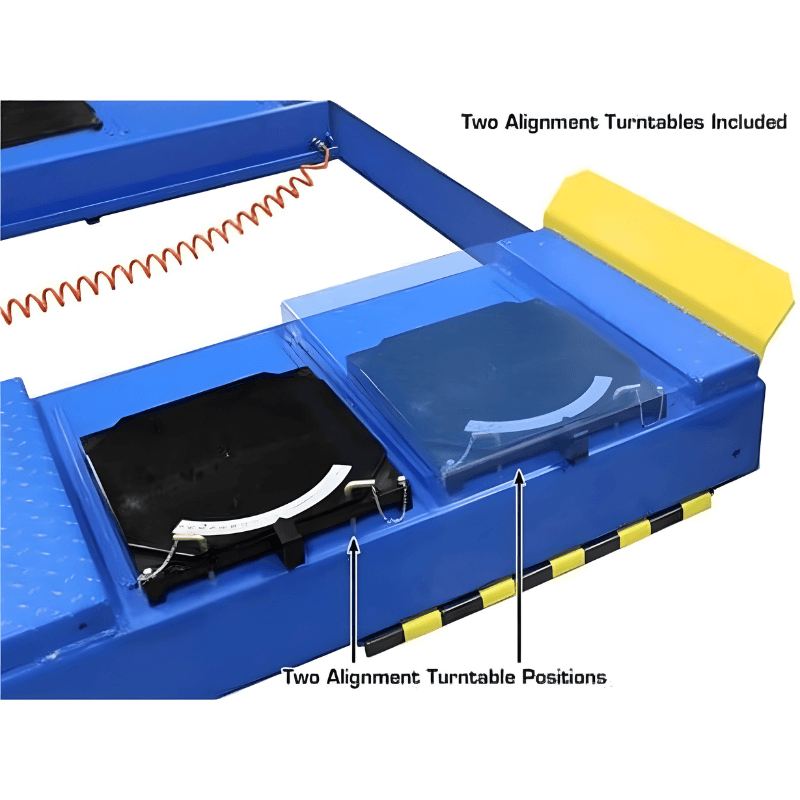

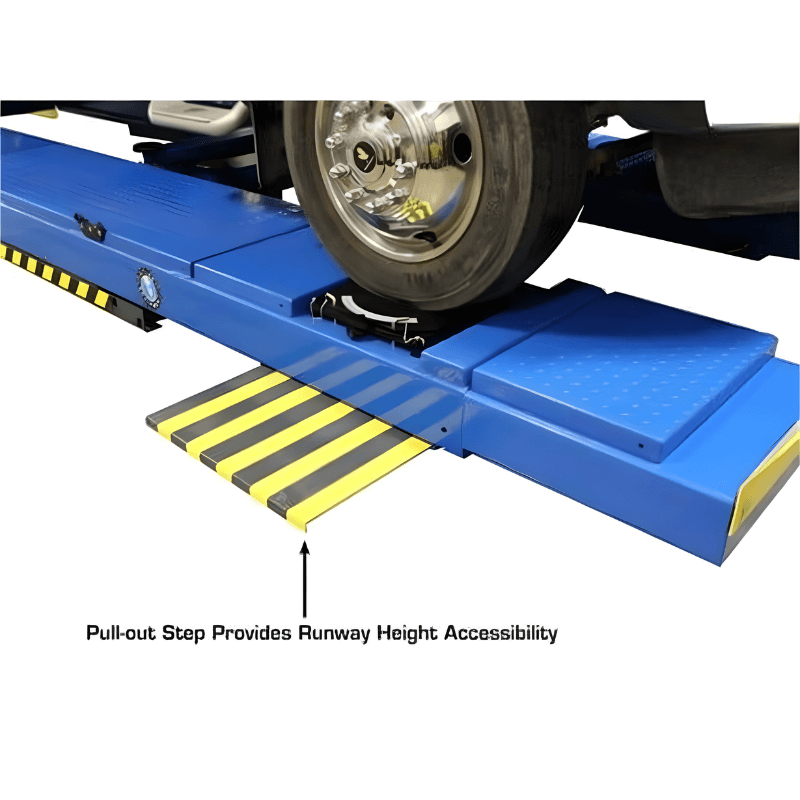

Built-in Slip Plates and Alignment Turntables Included

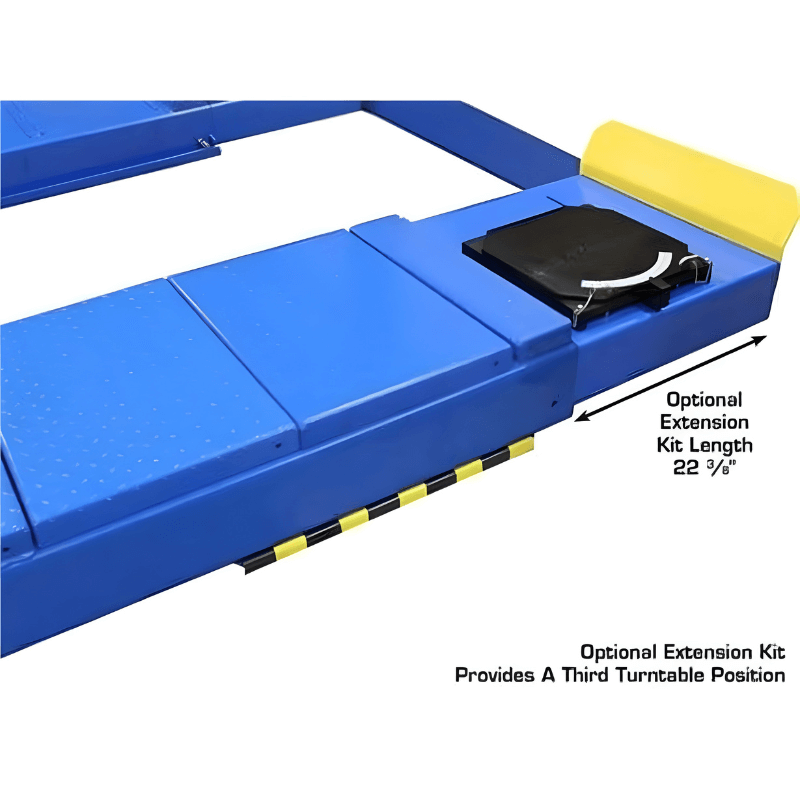

Recessed Positions for Turntables

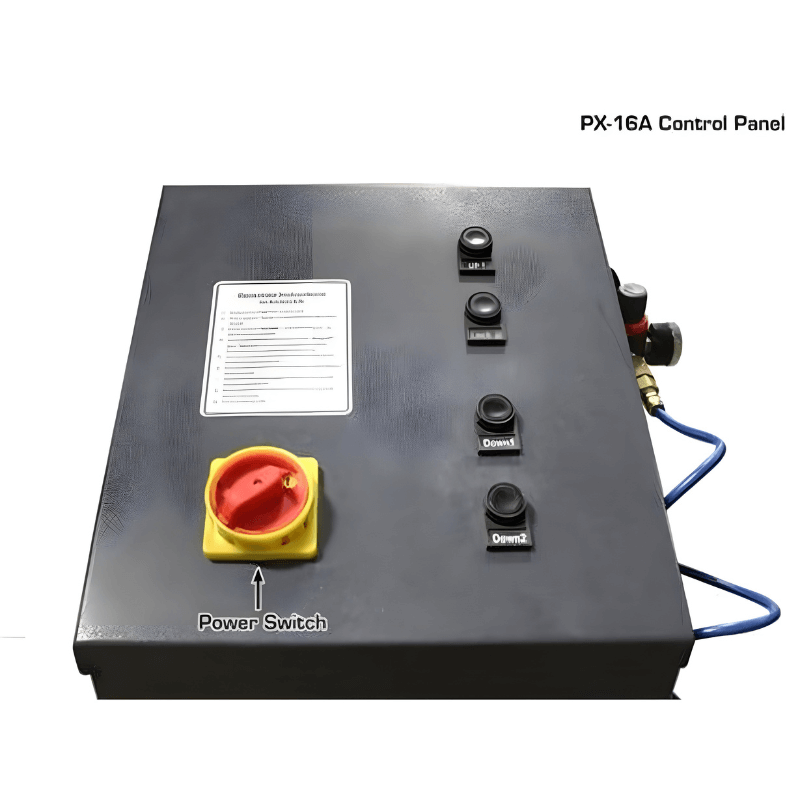

Separate Self-Contained Control Unit

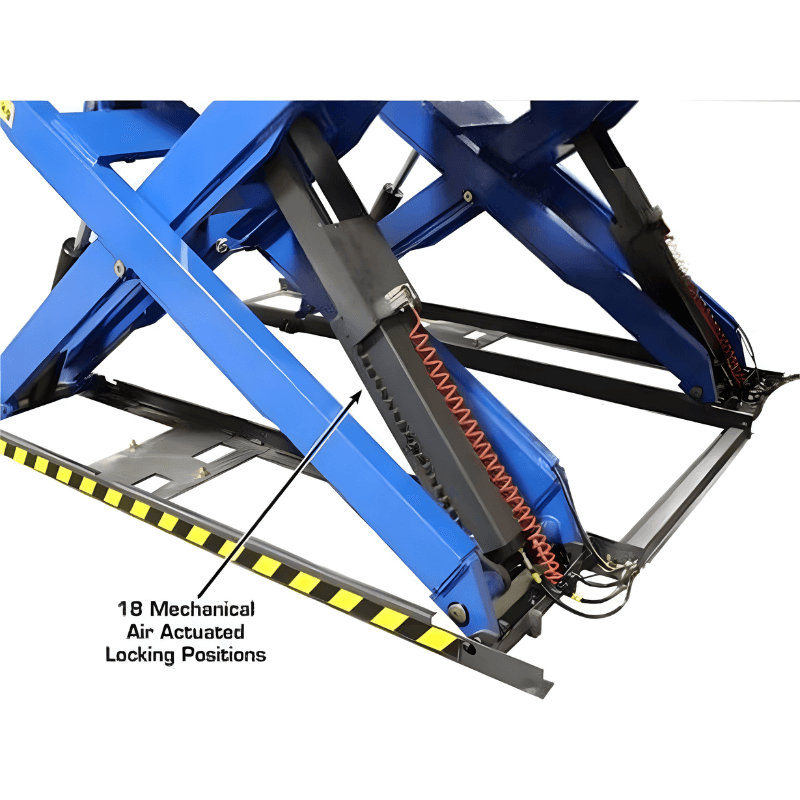

Air Operated Mechanical Safety Locks (External Air Supply Required)
Emergency manual pump for lowering
Overload Valve Included
Lowering Speed Valve Included
Mounting Hardware Included

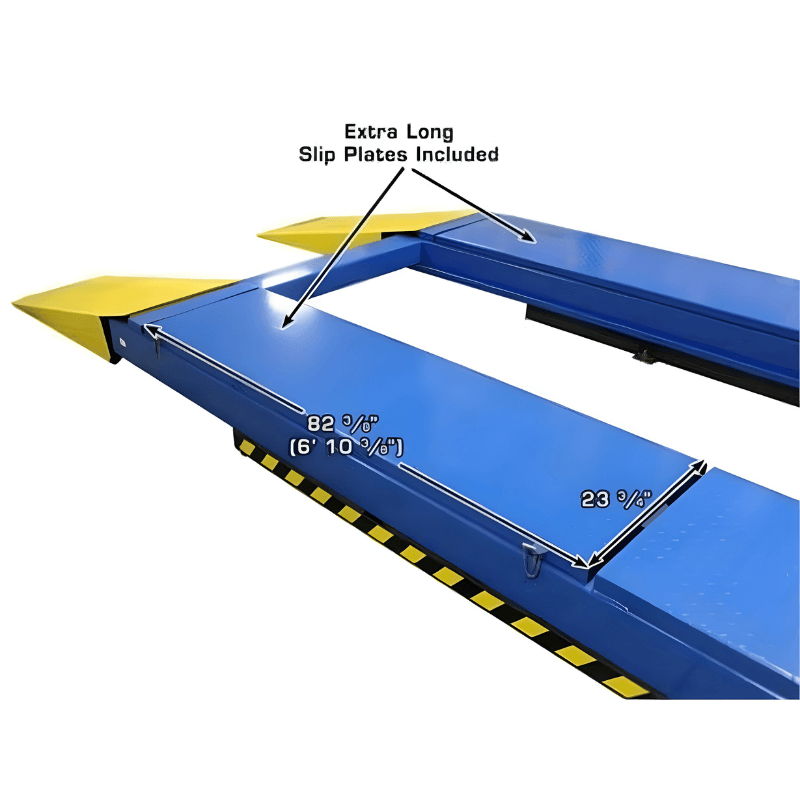

Extra Long Slip Plates Allow For 4-Wheel Aligning Of Wheelbases From 96″ to 184″
Shipping Weight: 6,200 lbs.
2 yr Structural – 1 yr Hydraulic Warranty – Parts Only
RJ8
8,000 lb. Capacity

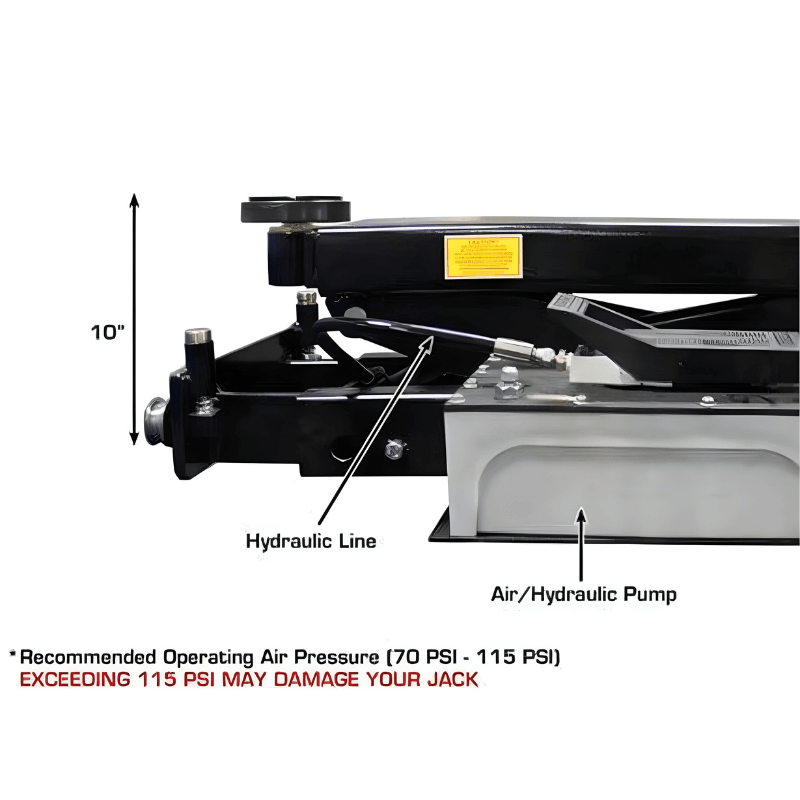

Air/Hydraulic Operated (external air supply required)
