Atlas BP12000X, 12,000 lb 2 Post Lift - Commercial Grade

SKU ATEATTD-BP12000X
by Atlas
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$4,649.00
Free Warehouse Pickup Locations
Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)
*We will find nearest location

Notify me when back in stock

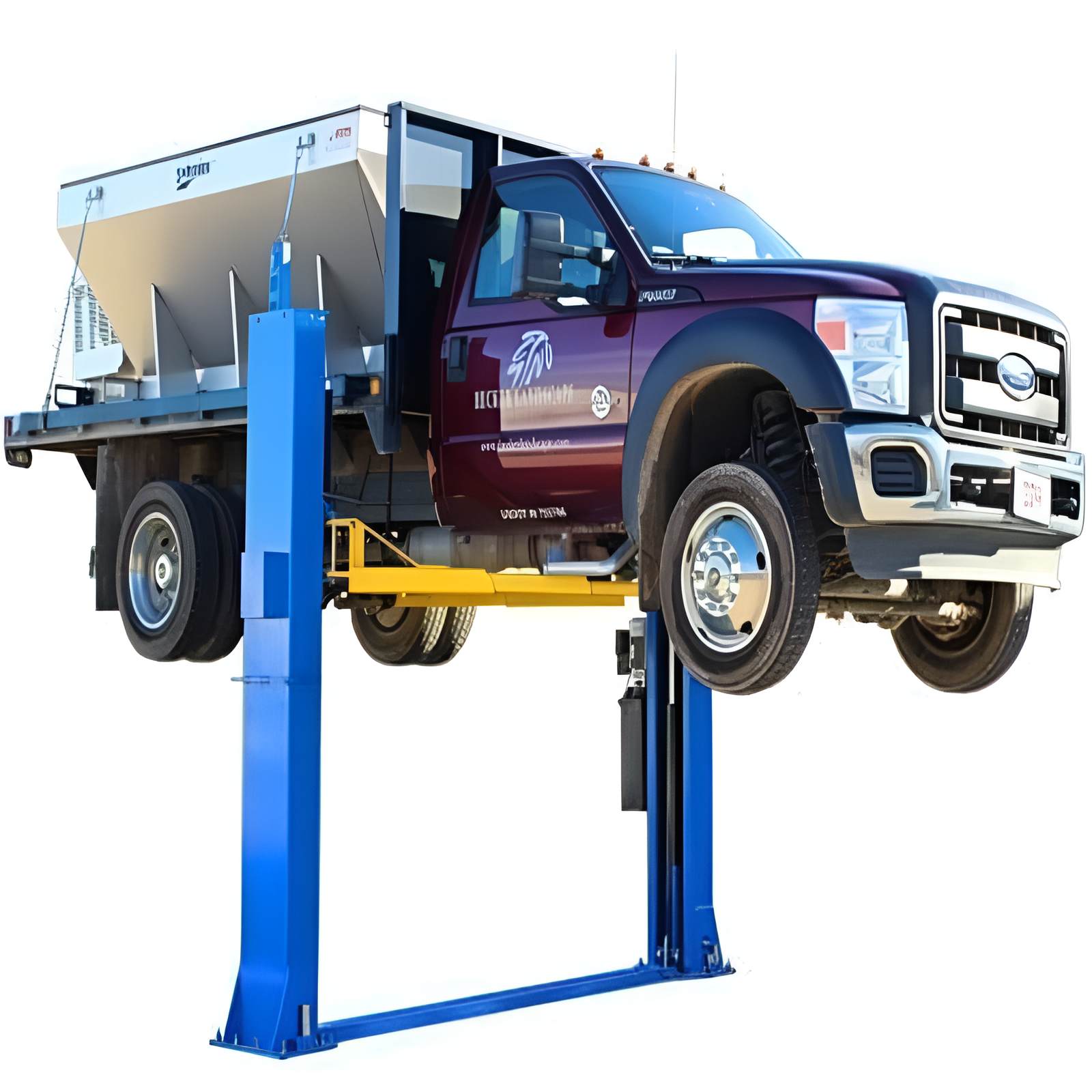

BP12000X 2 Post Lift by Atlas

Is your current lift wheezing under the weight of heavy vehicles? Are you constantly playing a frustrating game of "dodge the ceiling" with taller trucks? Your garage is in dire need of a solution, and your competitors are circling like sharks, ready to snatch those lucrative heavy-duty jobs.

Enter the Atlas® BP12000X – your garage's new best friend. This 12,000-pound capacity titan is the answer to your prayers, with a height of just 122 1/2" that'll slide under your ceiling like a limbo champion. But don't let its low profile fool you – this lift is tougher than a two-dollar steak. With its adjustable width settings, it'll handle everything from wide-bodied trucks to slender sports cars. The BP12000X's symmetric three-stage arms and oversized columns are itching to show you what real lifting power looks like. With the Atlas® BP12000X, you'll be lifting your way to the top of the automotive repair and maintenance food chain!

 2 Post Lift BP12000X Specifications:

  • Capacity 12,000 LB.

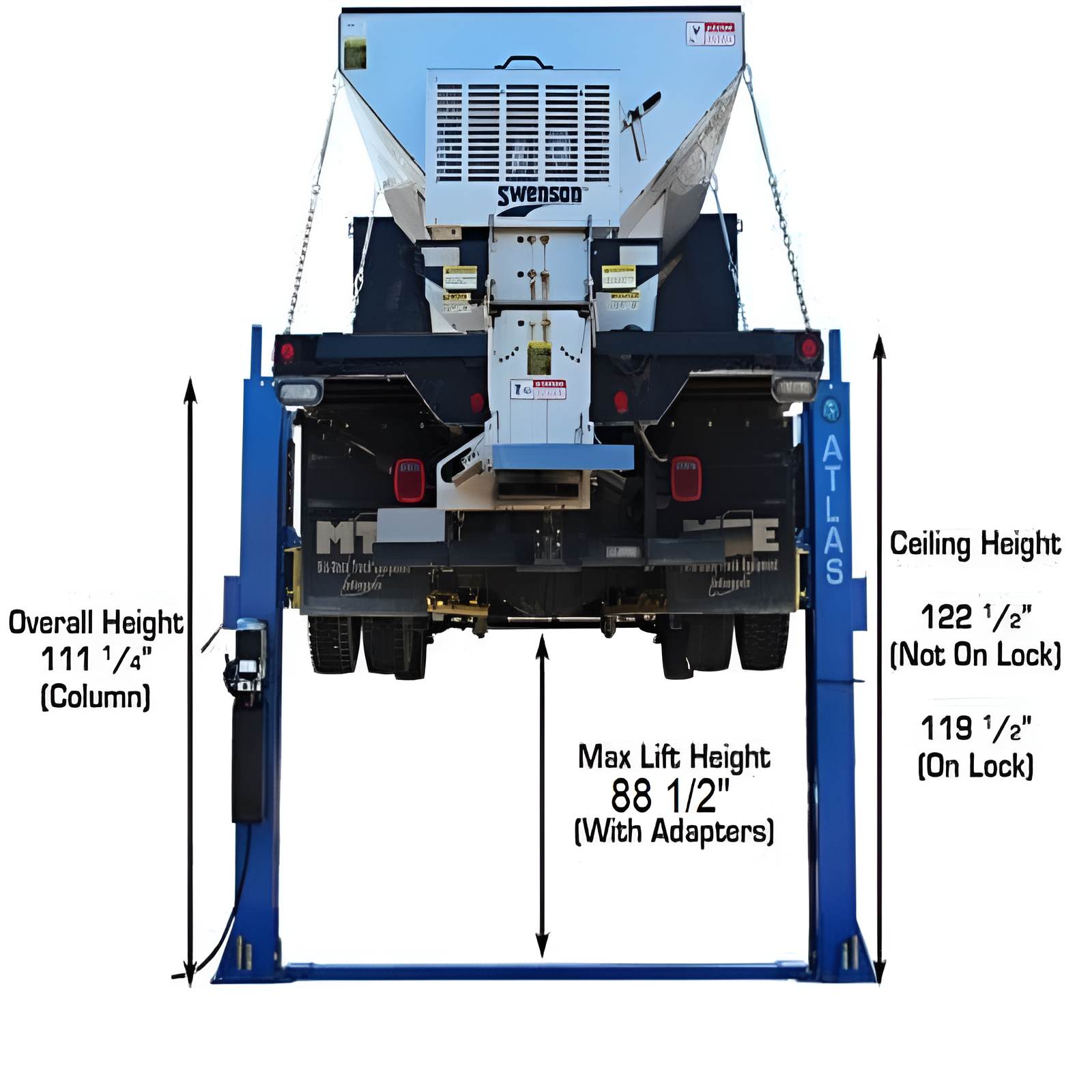

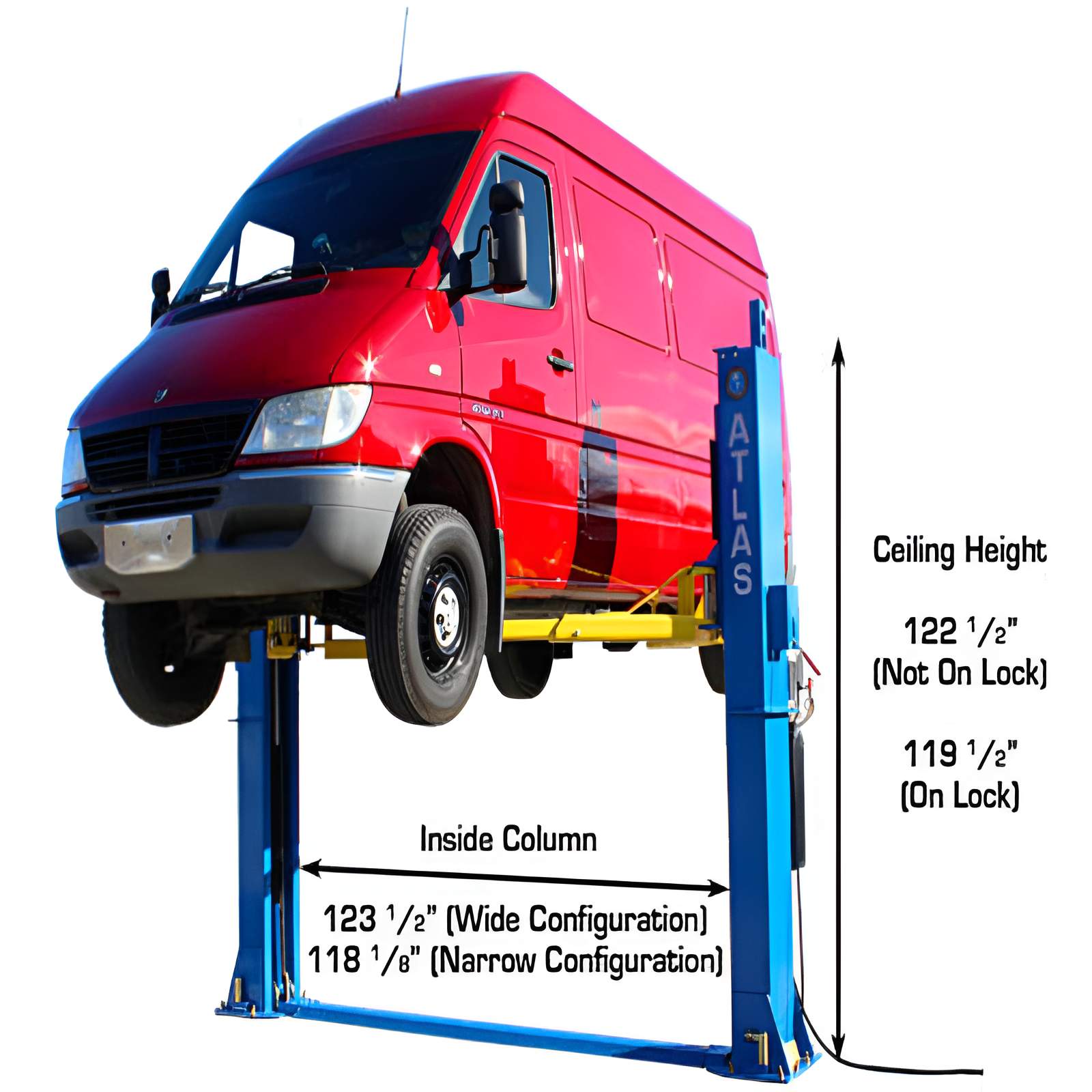

  • Overall Height 122 1/2" (10' 2 1/2")

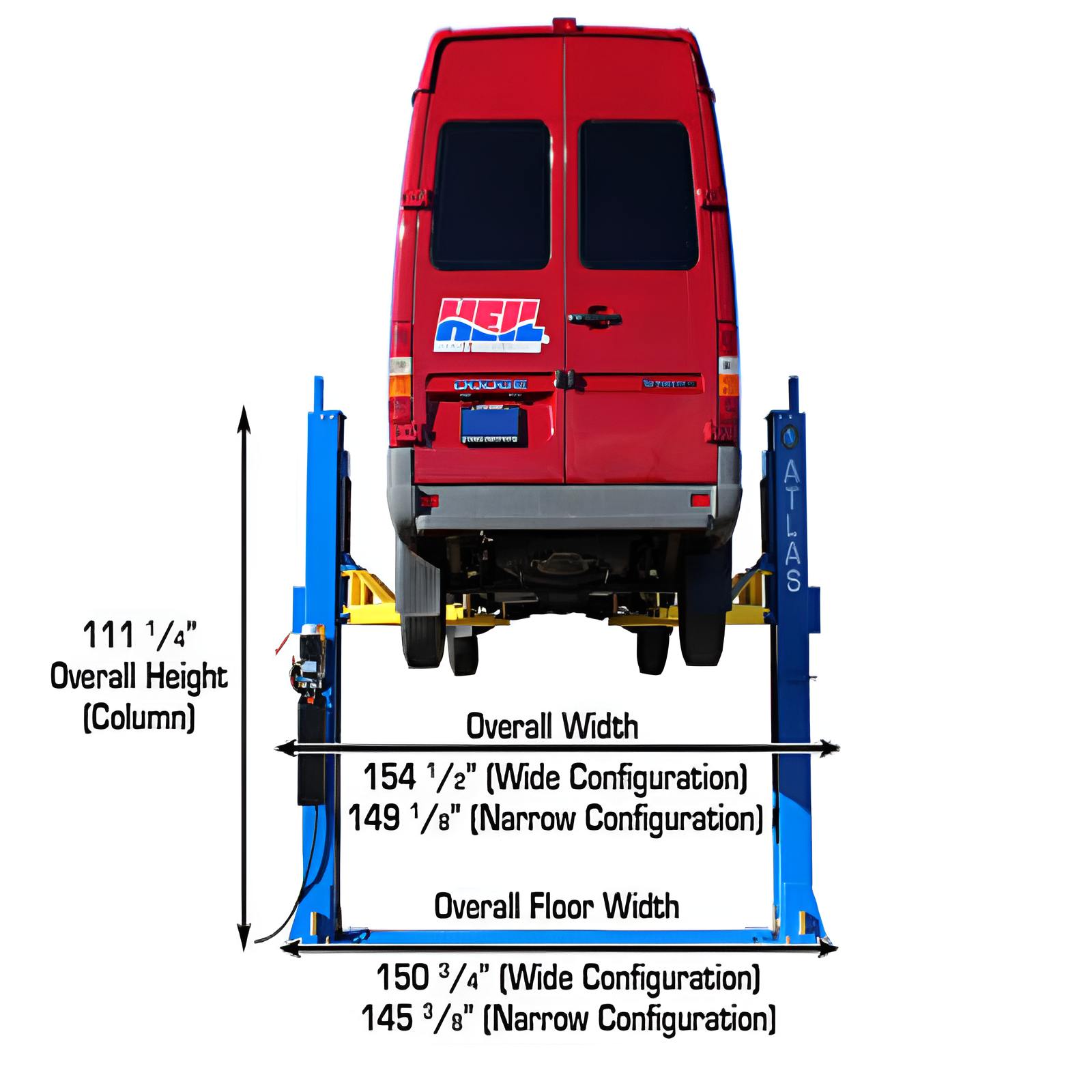

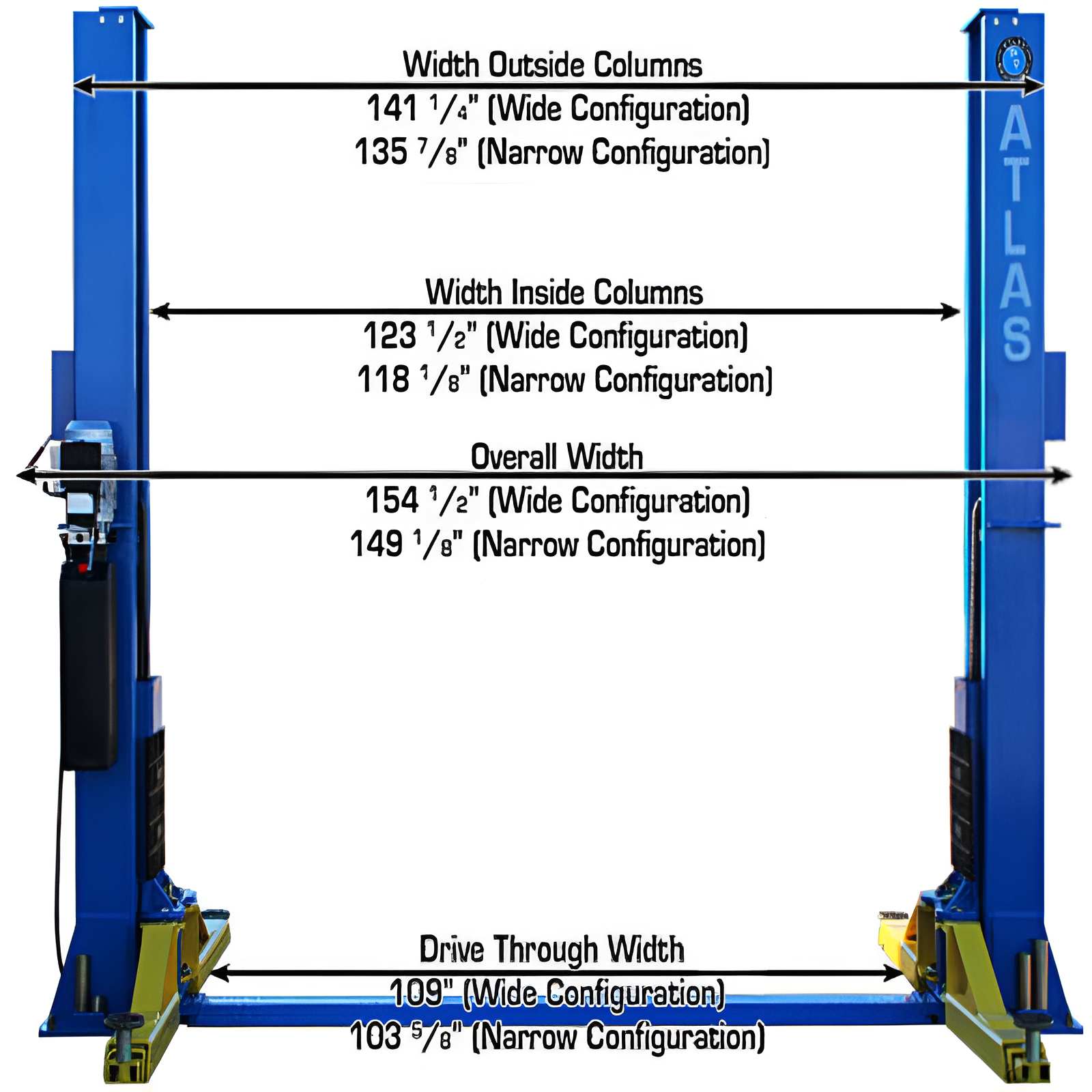

  • Overall Floor Width 149 3/8" (12' 5 3/8") or 154 1/2” (12' 10 1/2”)

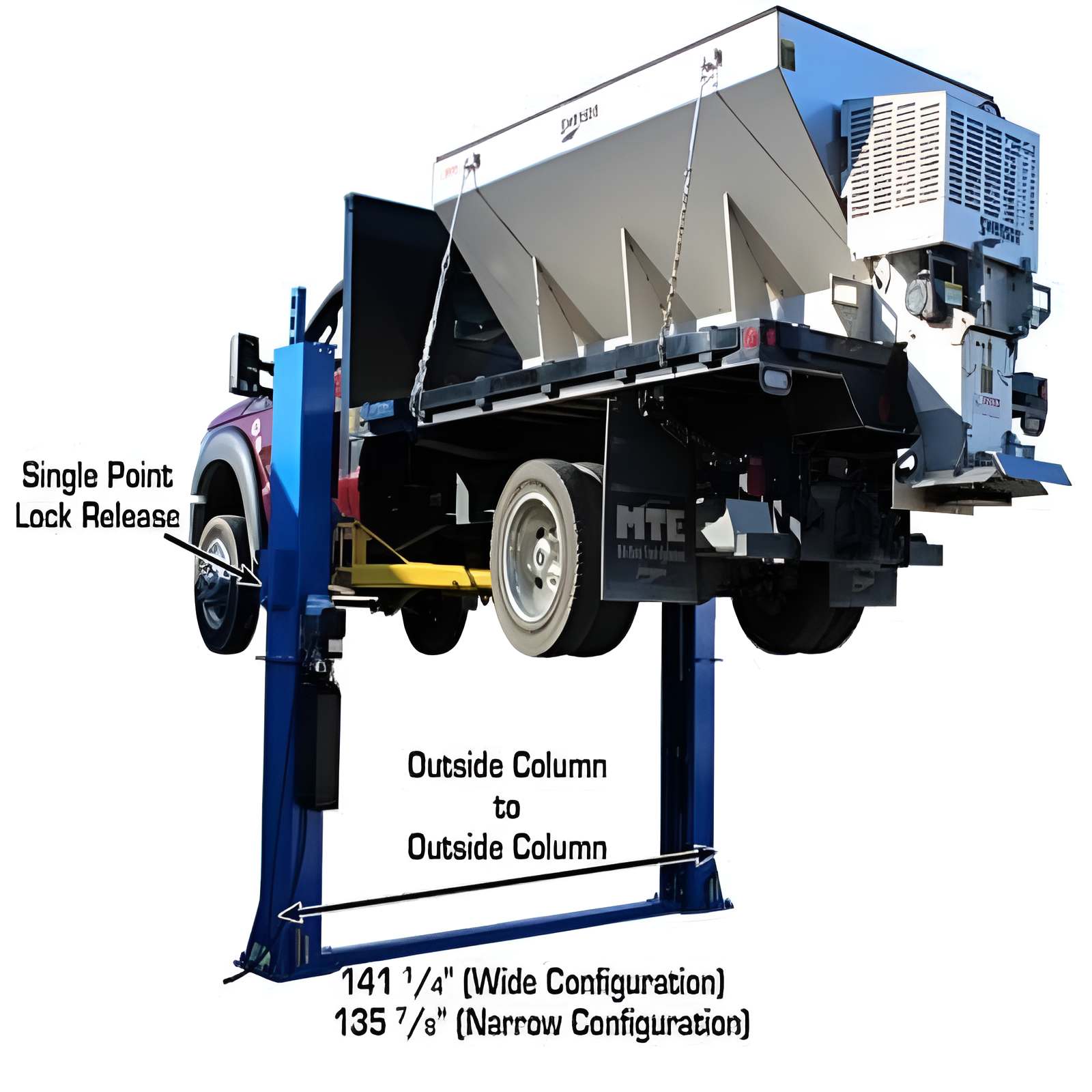

  • Outside Column to Outside Column 135 7/8" (11' 3 7/8") or 141 1/4" (11' 9 1/4”)

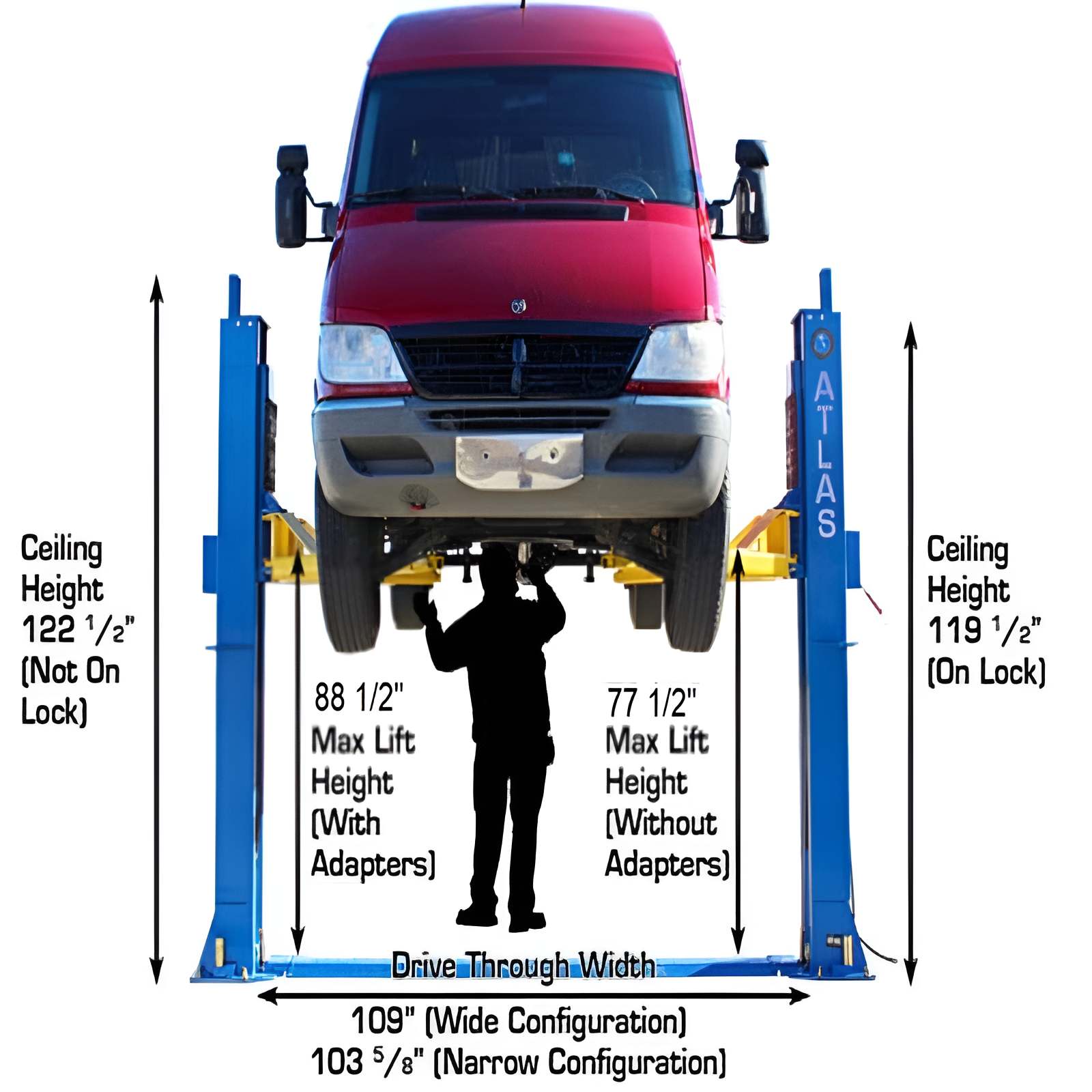

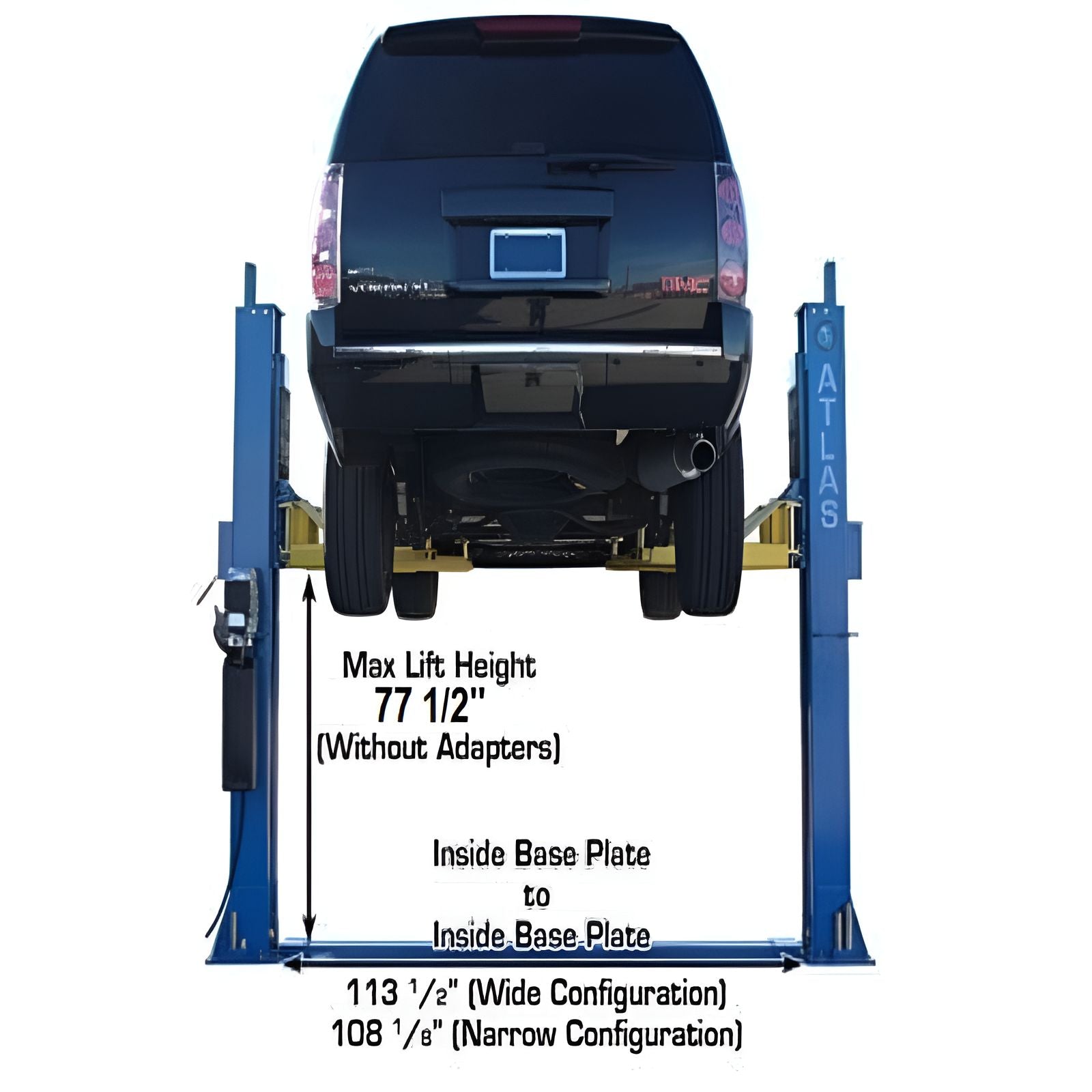

  • Maximum Lift Height (Without Adapters) 77 1/2"

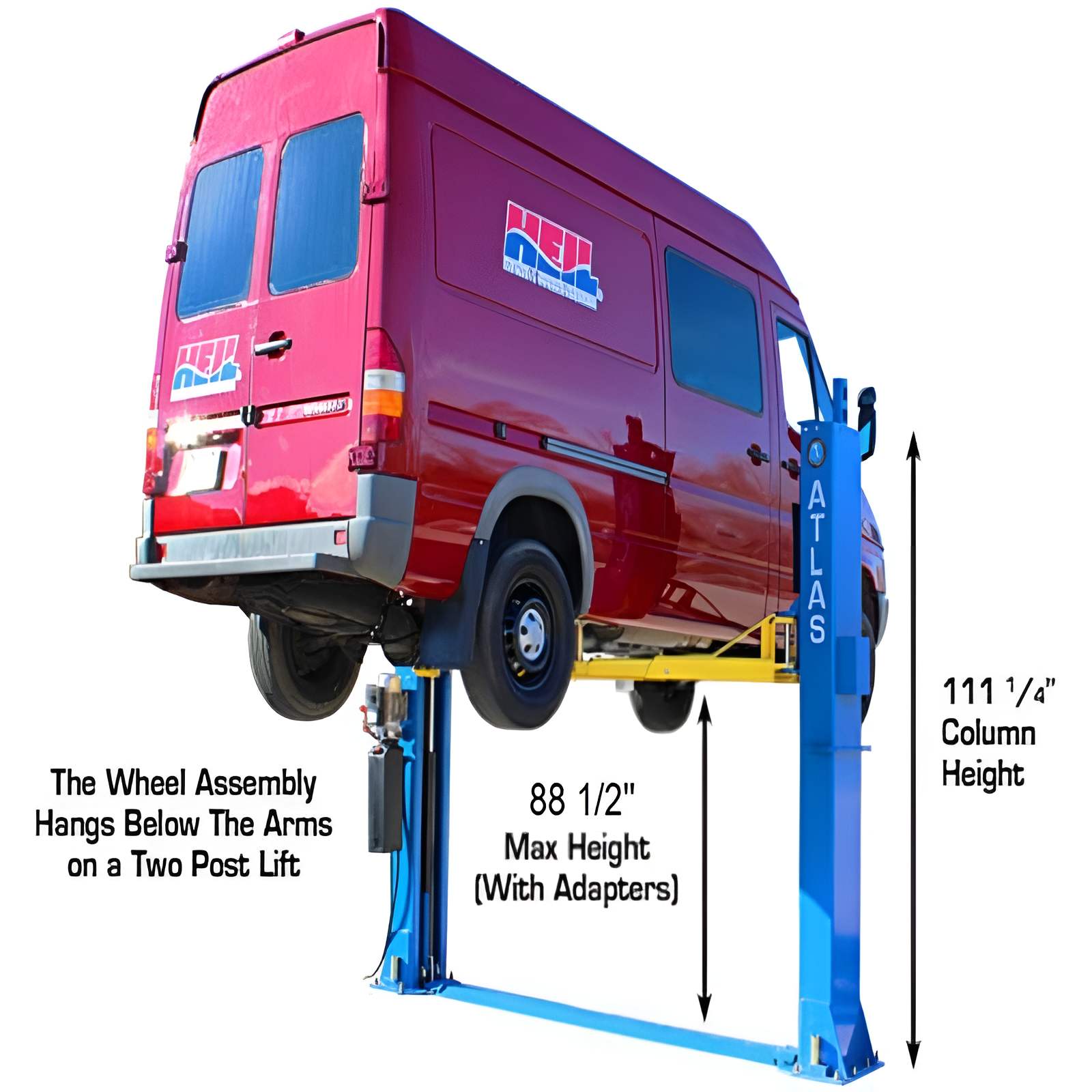

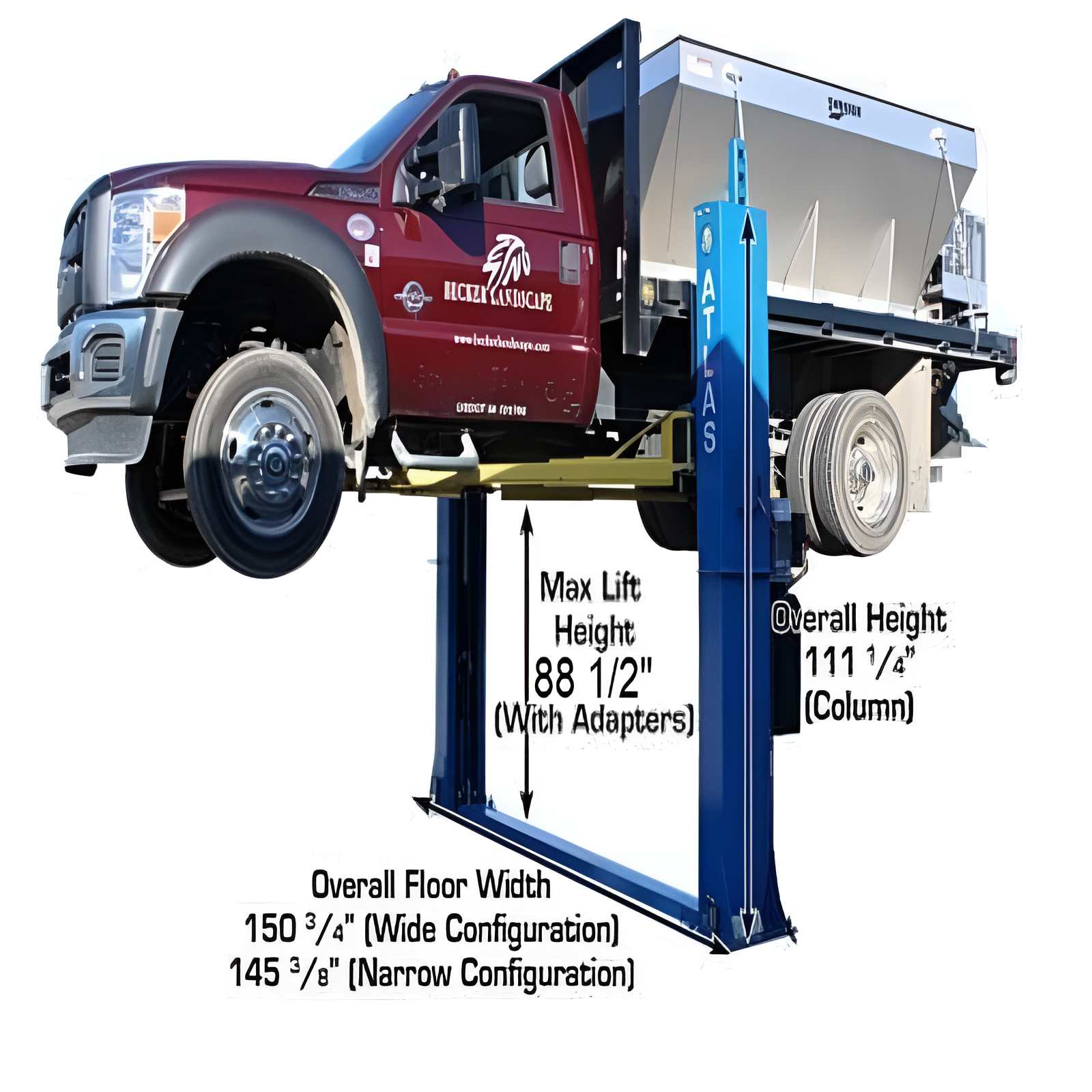

  • Maximum Lift Height (With Adapters) 88 1/2"
  • Minimum Arm Height 4"
  • Inside Column 118 1/8” (9' 10 1/8”) or 123 1/2" (10' 3 1/2")
  • Drive Thru 103 5/8” (8' 7 5/8”) or 109” (9' 1”)

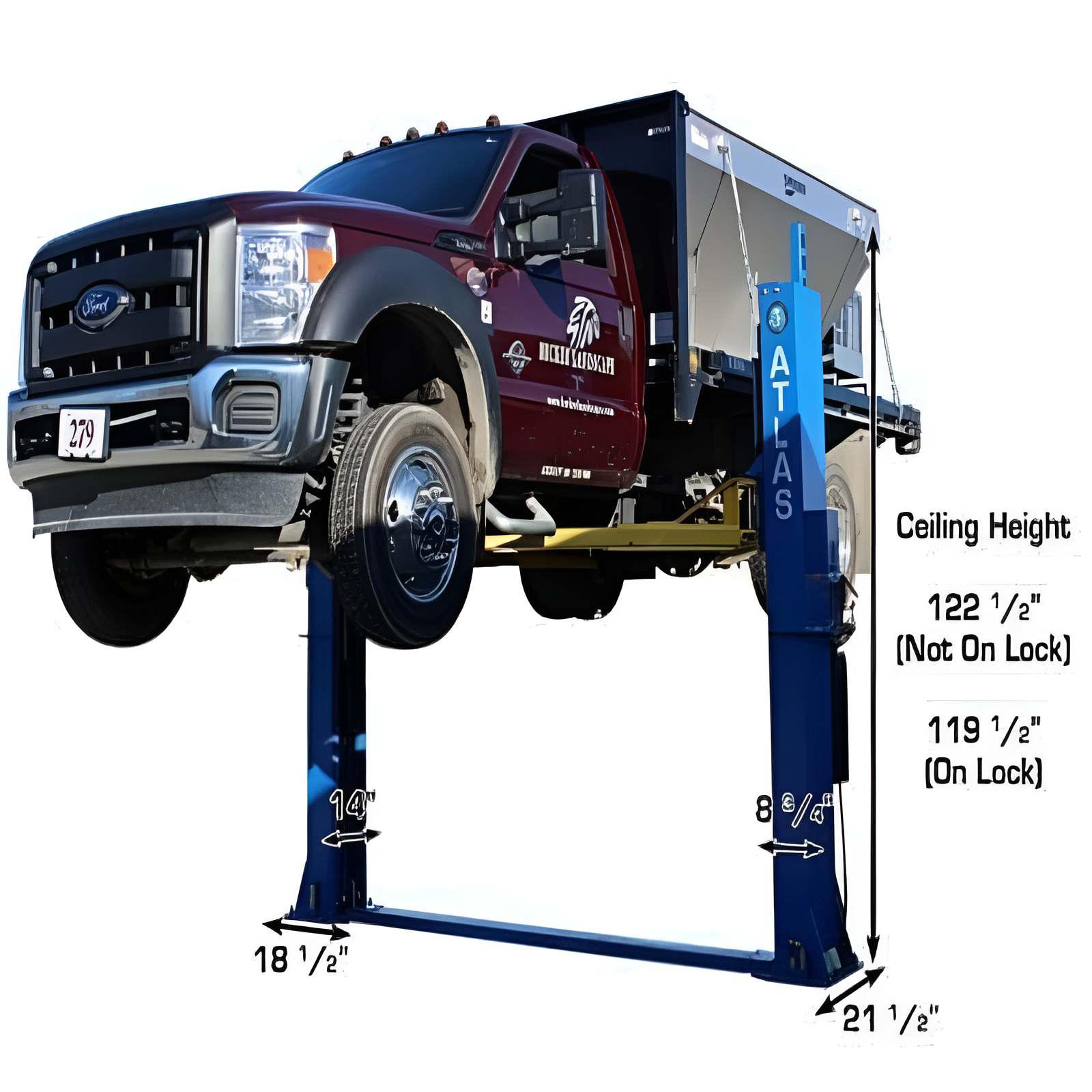

  • Column Size 8 3/4" x 14"
  • Column Thickness of Steel 6mm
  • Base Of Lift 18 1/2" x 21 1/2"
  • Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
  • Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
  • Shipping Weight 2,130 LBS.
  • Pallet Size:  115-1/4" Long x 44" Tall x 22-1/2" Wide
  • Adapter Heights 4 Each 2”, 3”, 6”
  • Arm Hole/Adapter Peg Size 1.5”
  • Requires a minimum of 6" of concrete with a 3000 psi. rating

BP12000X 12,000 lb 2 Post Lift Special Features:

  • Heavy Duty, Commercial Grade Strength

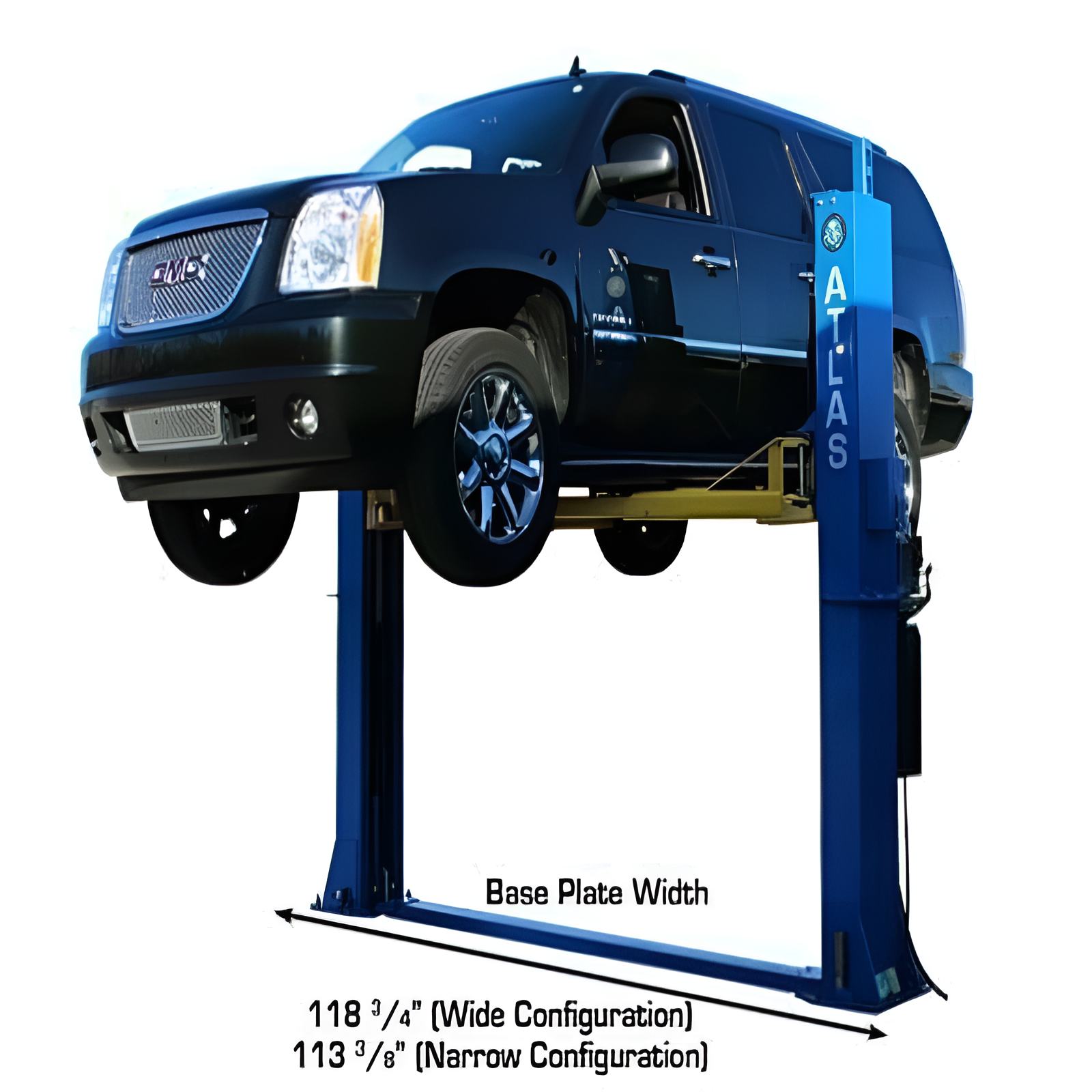

  • Baseplate, Open-Top Design

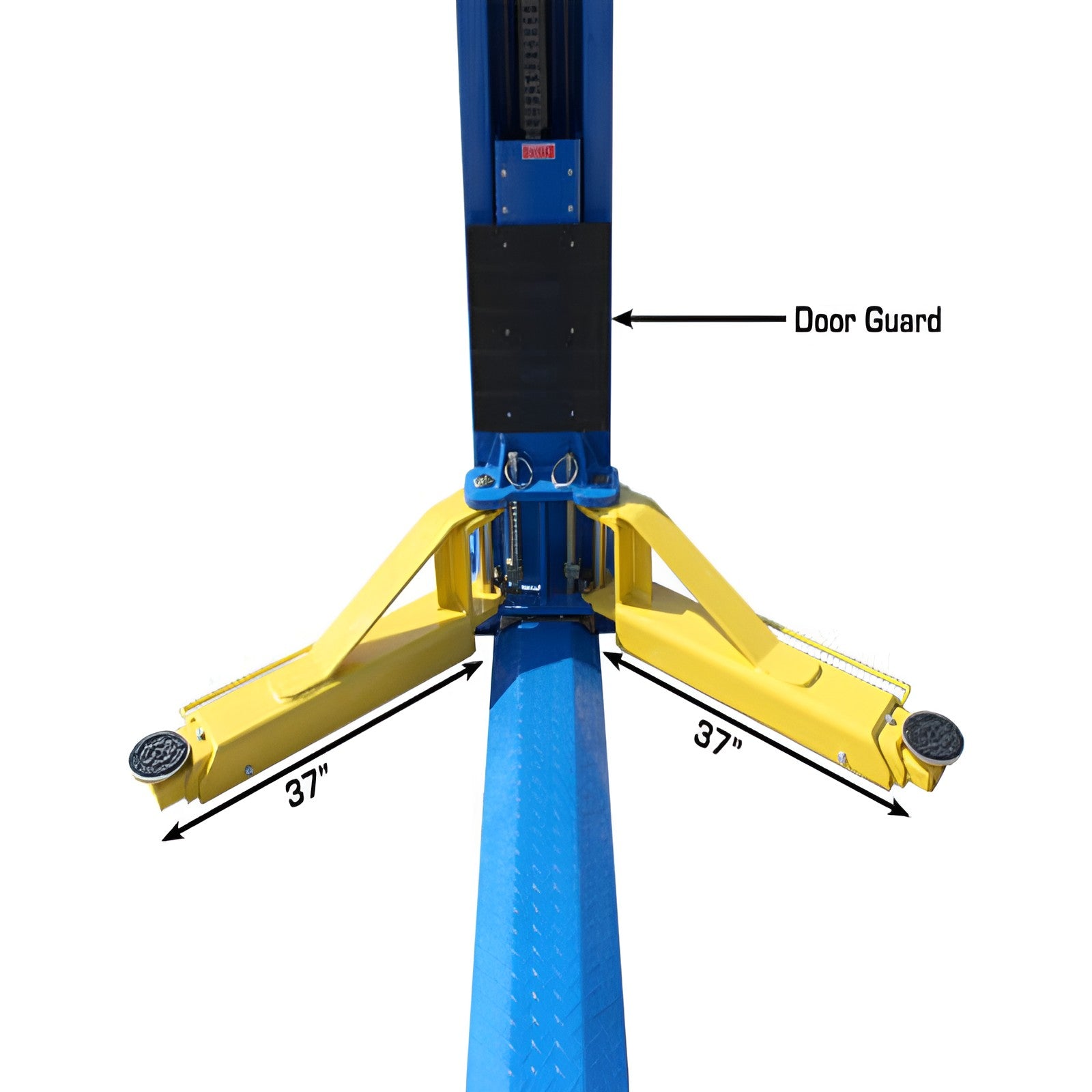

  • 3-Stage Symmetric
  • Adjustable Width
  • Automatic Arm Restraints
  • Rubber Guards on Carriages

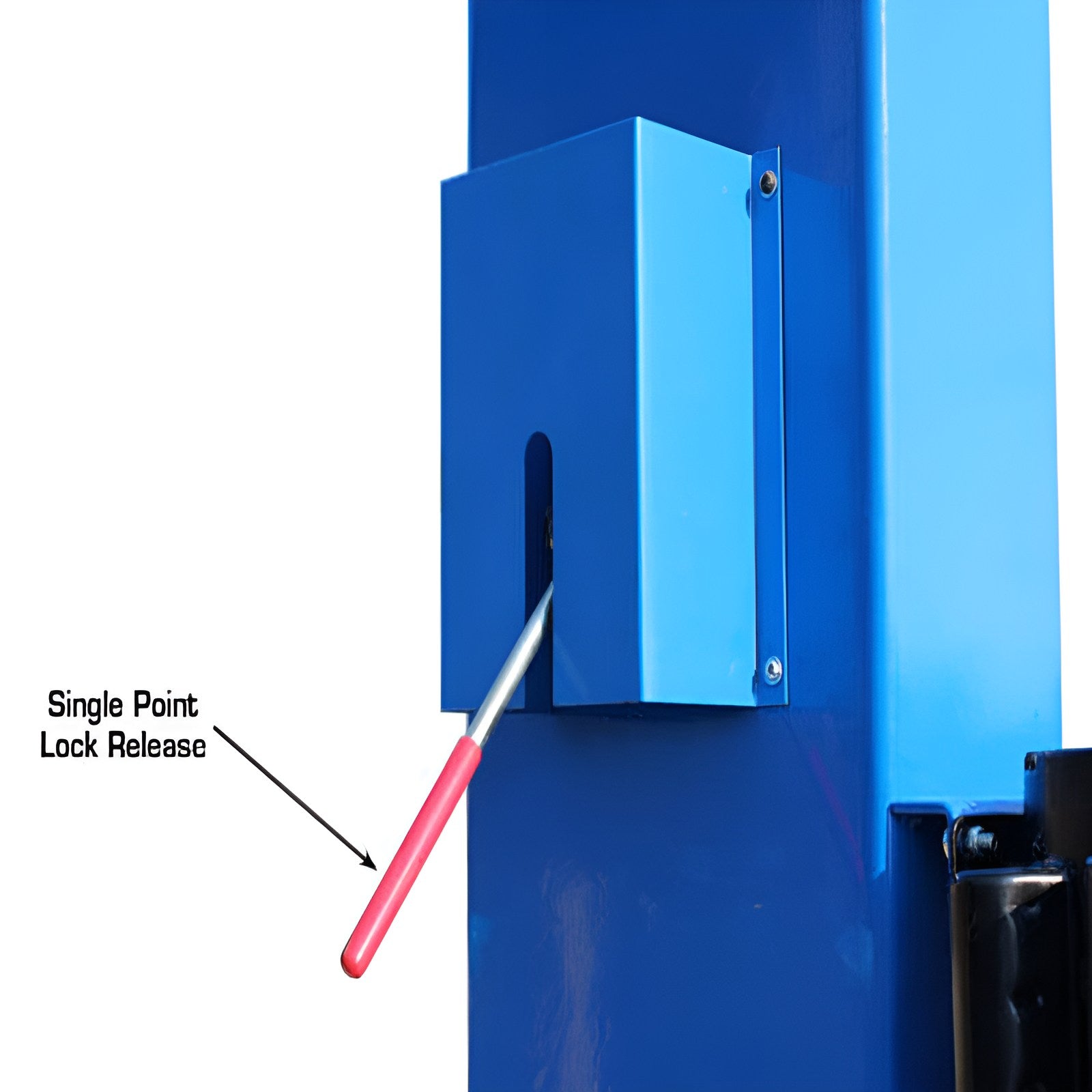

  • Lock Release: Single Point

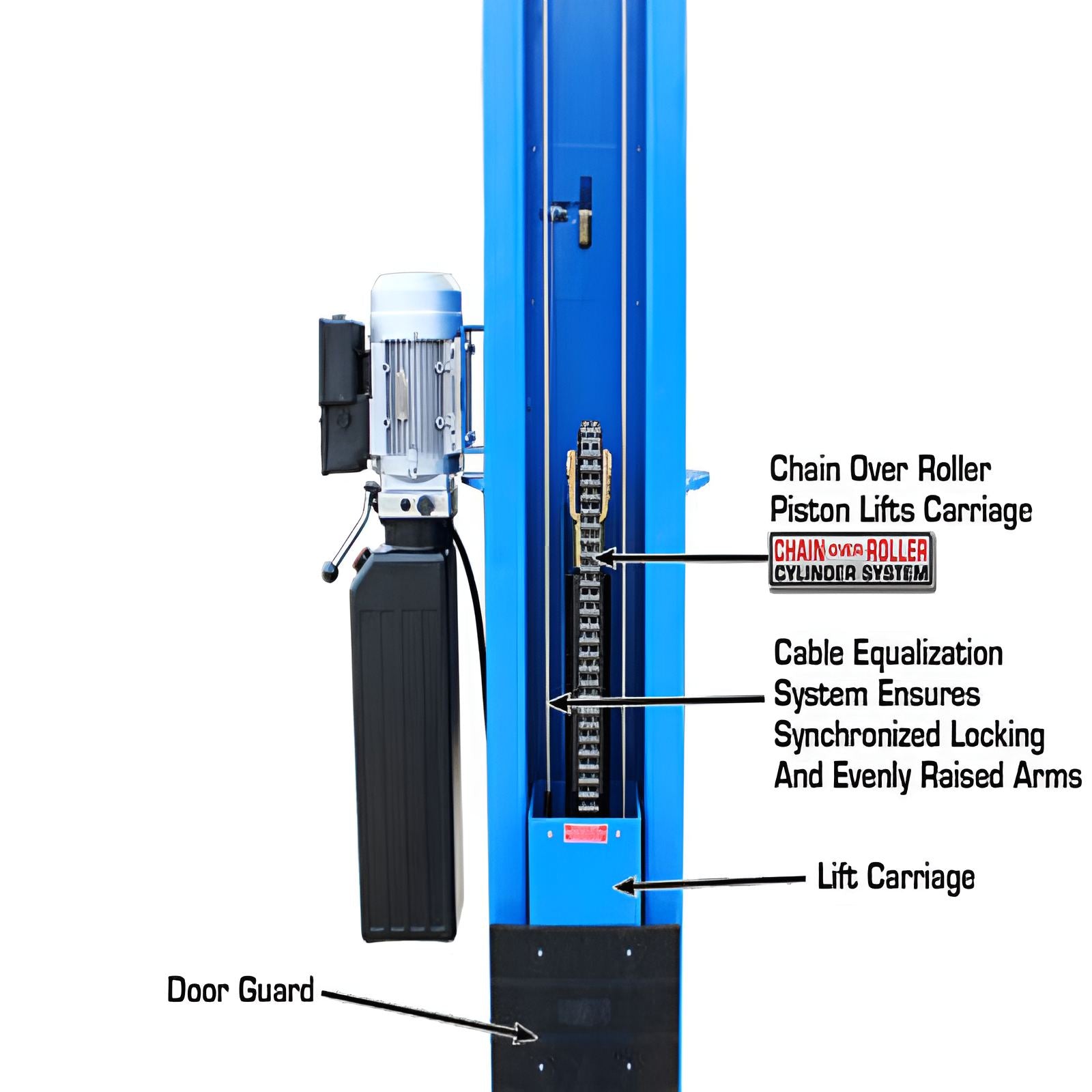

  • Dual Hydraulic Chain Drive Cylinders (ASNI Standard)
  • Powder Coat Finish
  • Warranty: 5 year Structural; 2 year Hydraulic ‐ Parts Only
  • Unit Includes:

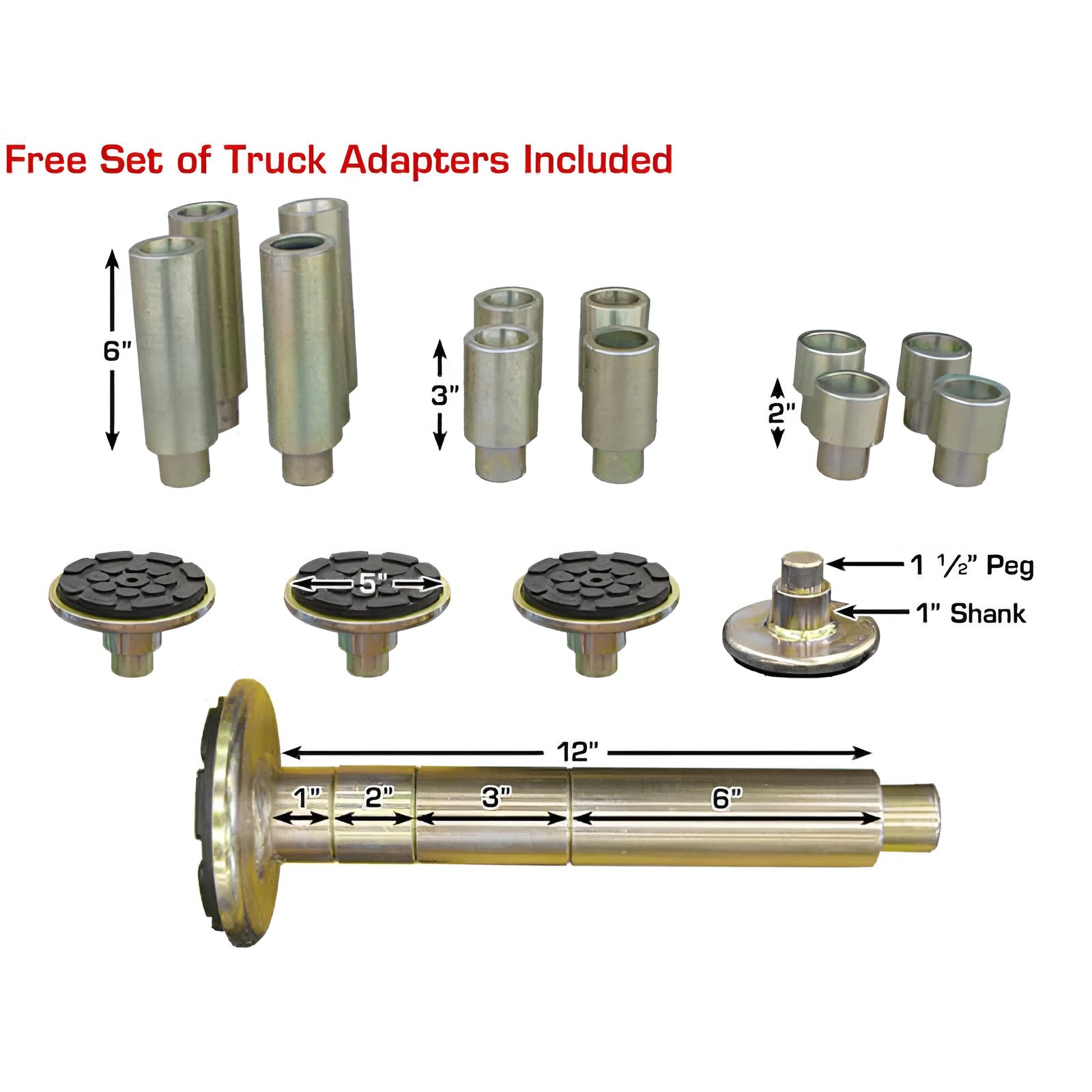

  •     12-piece Truck Adapter Set

Atlas BP12000X Documentation:

Post Lift BP12000X Lift Product Manual   Atlas BP12000X 2 Post Lift Product Manual
