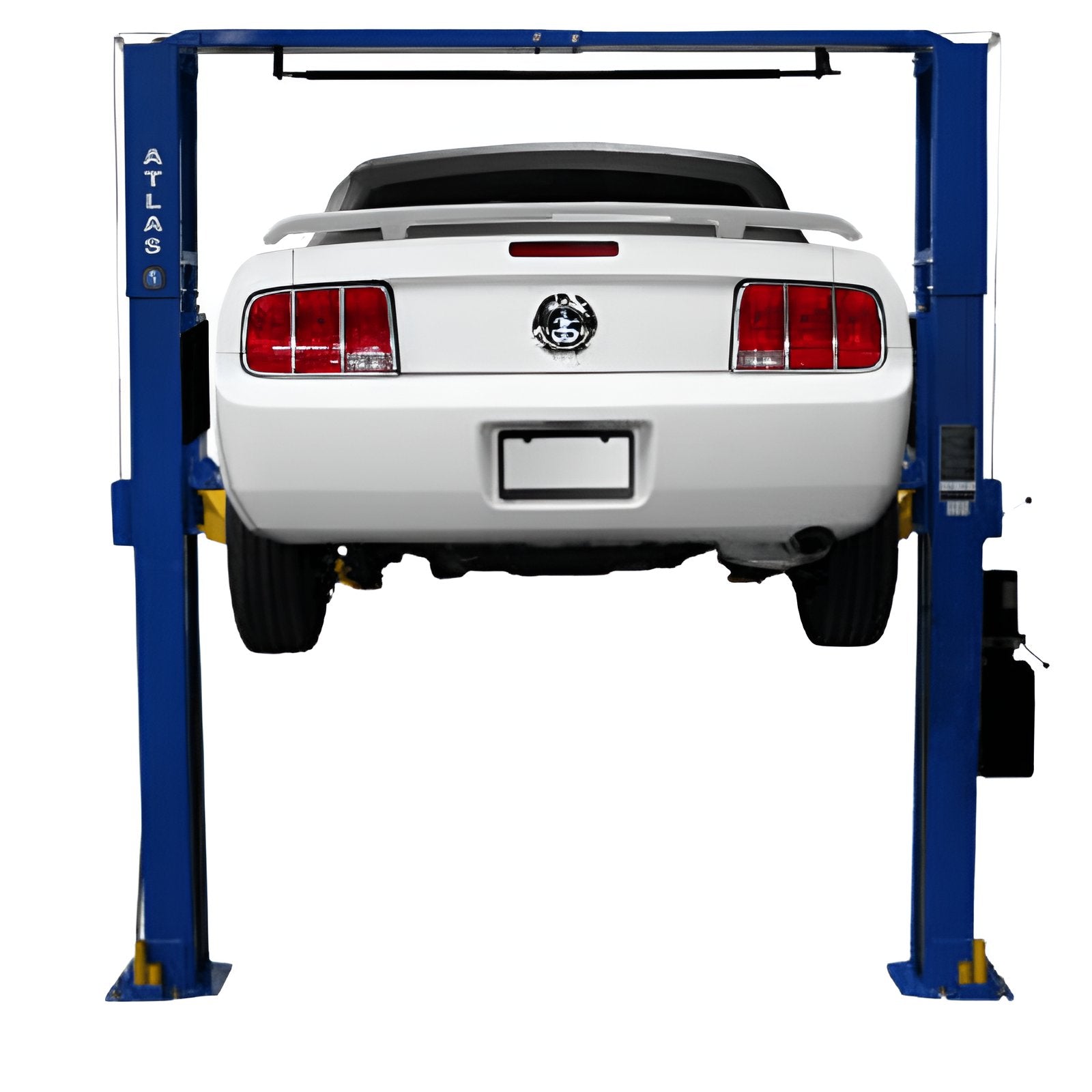

Atlas PV10PX 10,000 lb Overhead 2-Post Lift

PV10PX 10,000 lb Overhead 2-Post Lift by Atlas

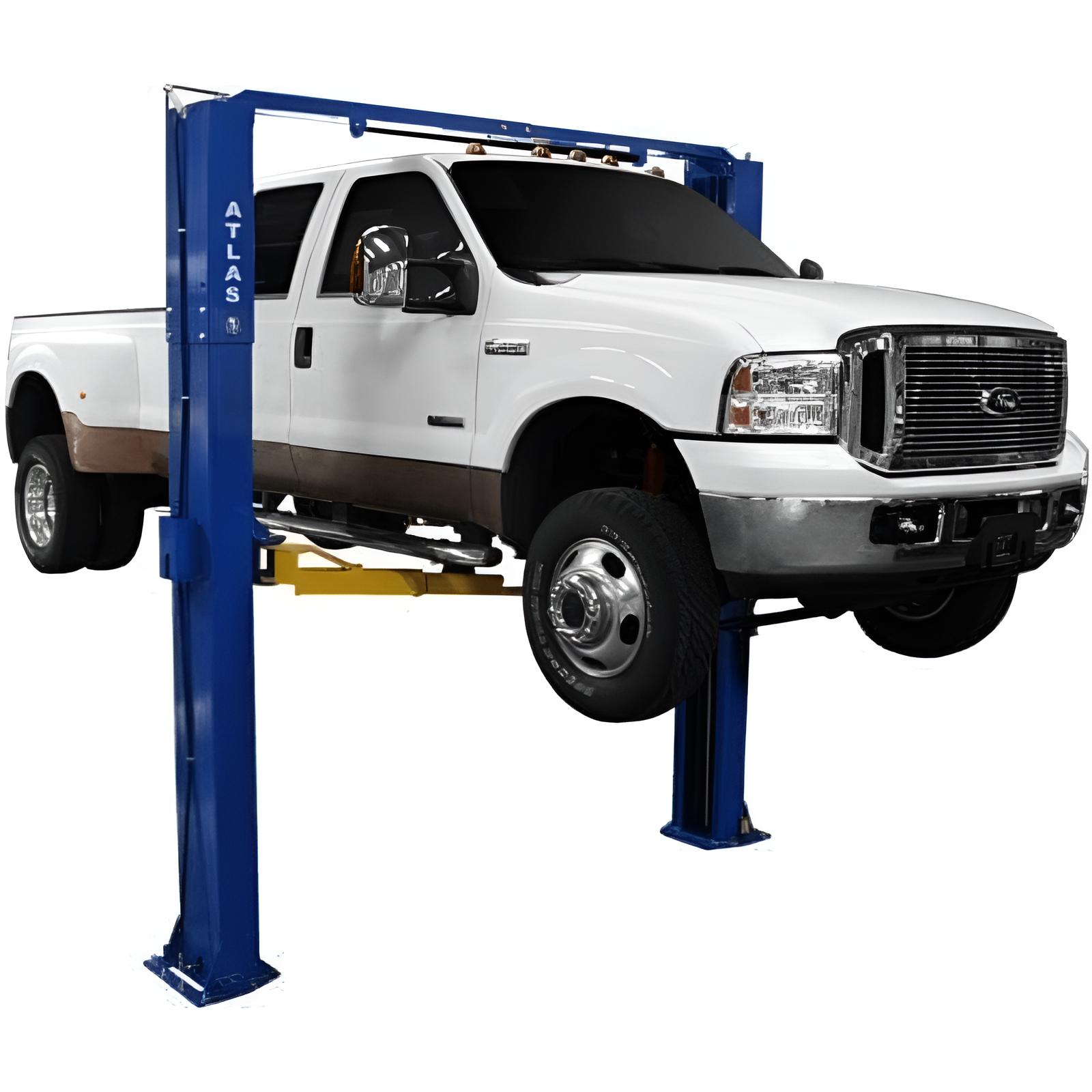

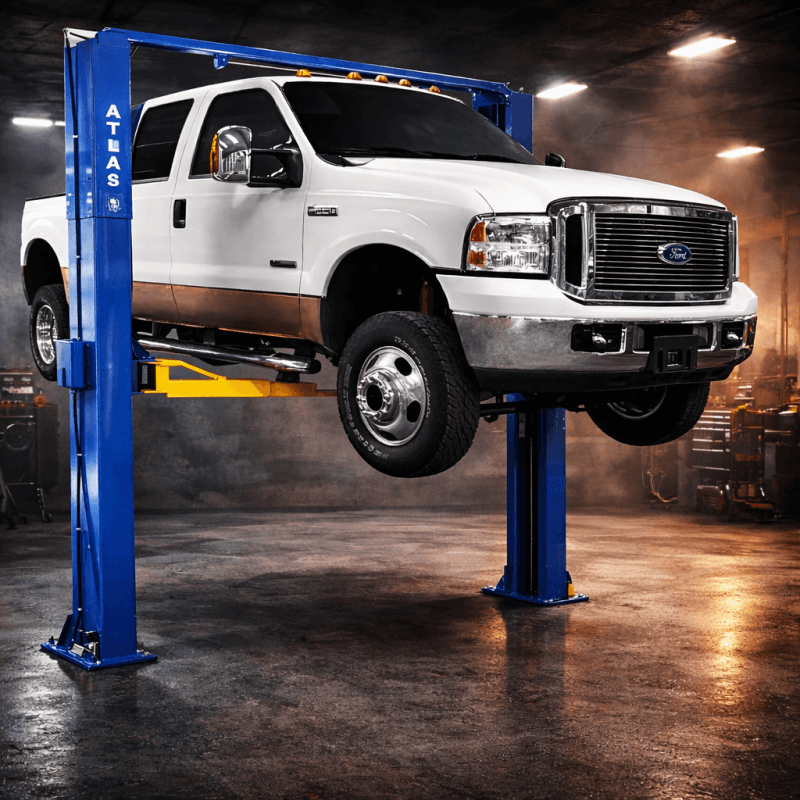

The Atlas PV10PX 10,000 lb Overhead 2-Post Lift is a top-tier lifting solution designed for both commercial garages and home enthusiasts. Built to handle a wide range of vehicles, from compact cars to one-ton diesel duallies, this lift offers exceptional strength and versatility. Its overhead design features a padded shut-off bar, protecting vehicles from making contact with the crossbar during operation. The PV10PX’s rugged construction includes durable rubber protective covers on the carriages to prevent damage to vehicle doors when opened near the columns.

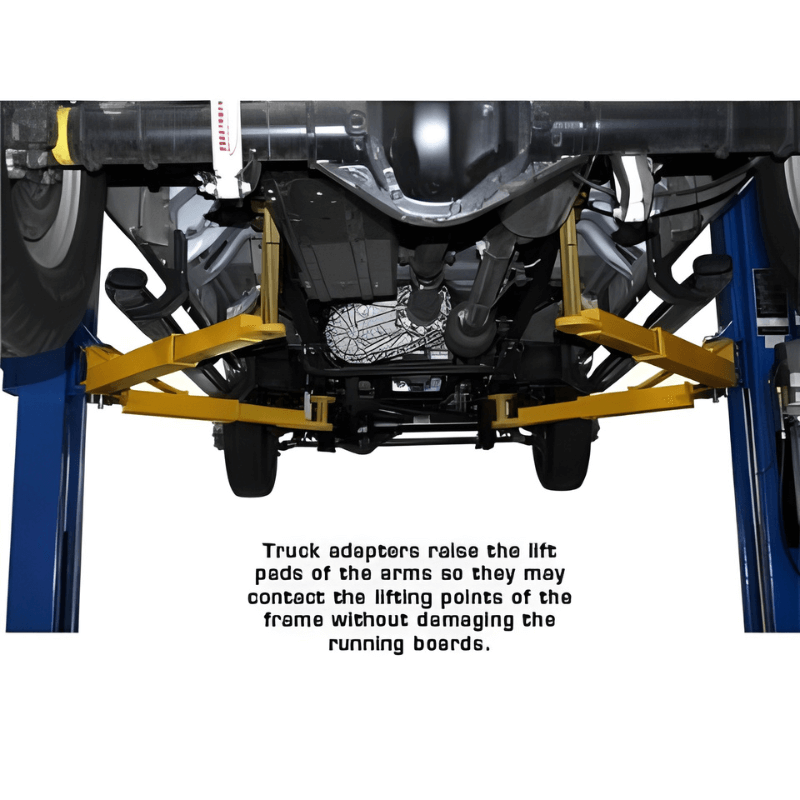

Additionally, the PV10PX is equipped with reinforced rubber lift pads, ensuring a secure grip on vehicle lifting points. The lift also comes with a deluxe 12-piece truck adapter set, offering more versatility compared to the standard 8-piece set. This makes it an ideal choice for professional automotive shops and serious DIY enthusiasts who demand reliable performance and the ability to safely lift a wide variety of vehicles. The Atlas PV10PX is built to deliver professional-grade quality at an unbeatable value.

2-Post Lift PV10PX Specification

• Capacity: 10,000 lb
• Overall Height: 143 1/8" (11’ 11 1/8”) or 147” (12’ 3”)
• Overall Width w/Motor: 145" (11’ 11”)
• Outside Column to Outside Column: 125 1/2" (10’ 5 1/2")
• Maximum Lift Height (Without Adapters): 72 1/2"

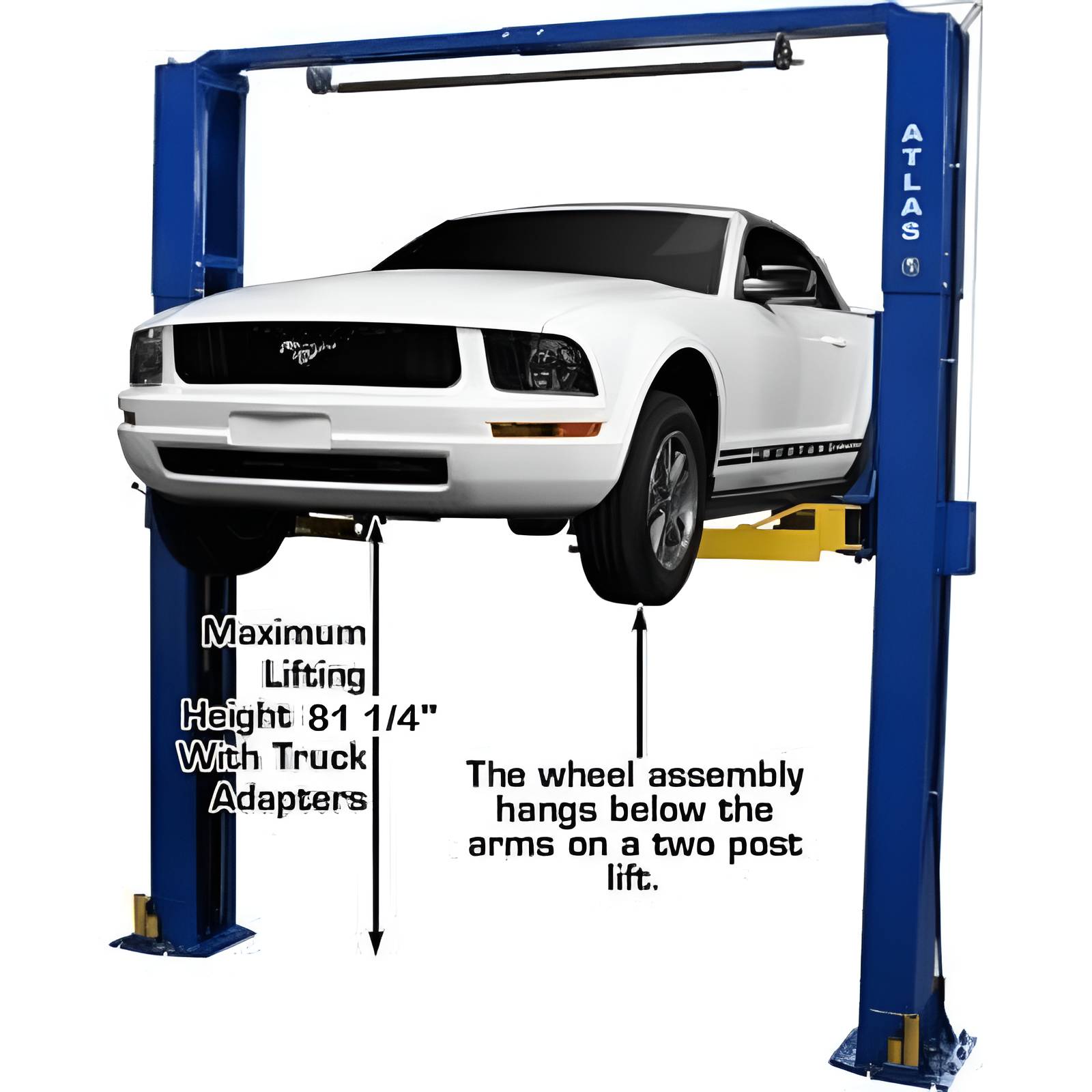

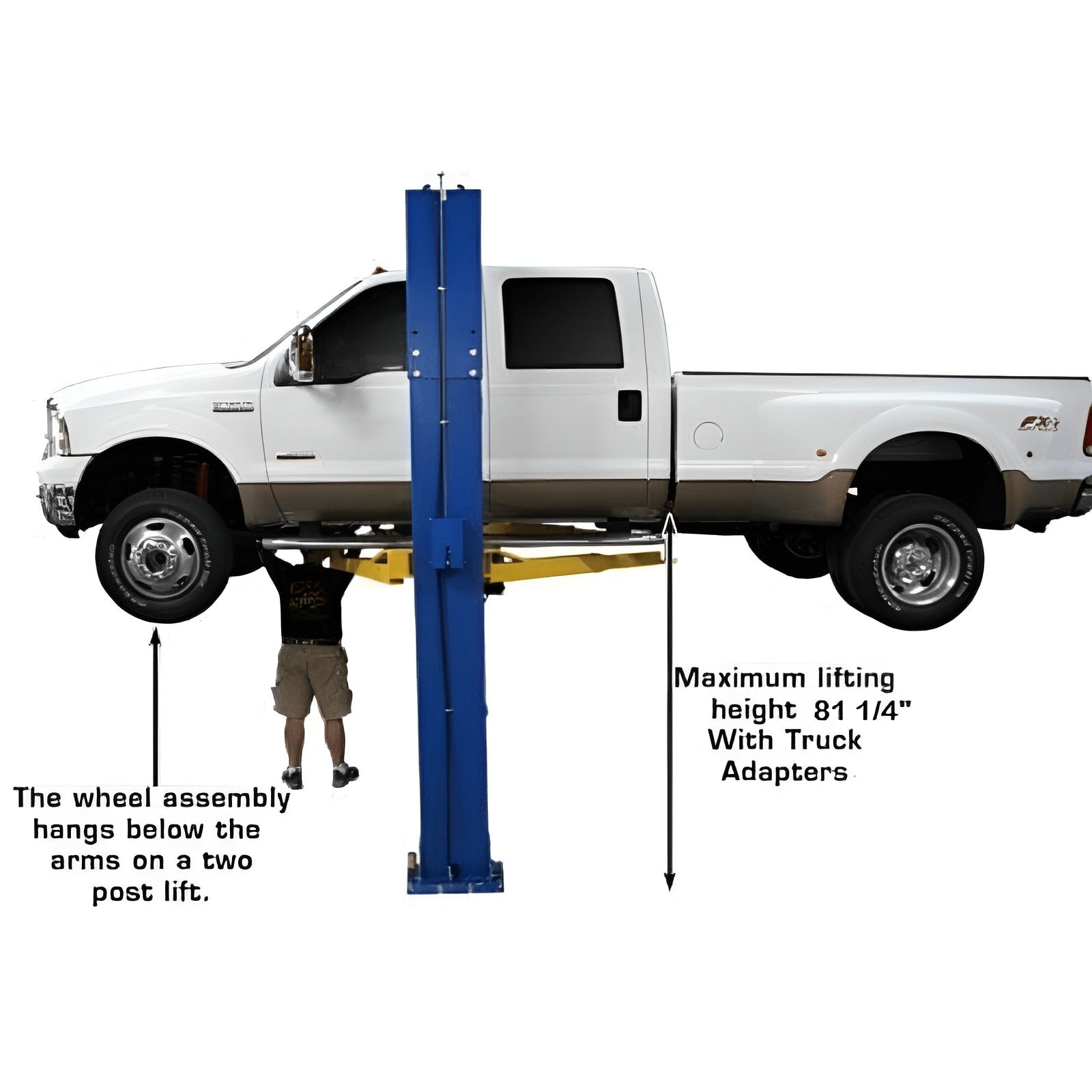

• Maximum Lift Height (With Adapters): 81 1/4"
• Minimum Arm Height: 4 1/2"
• Inside Column Width: 110 1/8” (9’ 2 1/8”)
• Drive Thru Width:
  • Symmetric: 96 1/4” (8’ 1/4")
  • Asymmetric: 90 1/4" (7' 6 1/4")

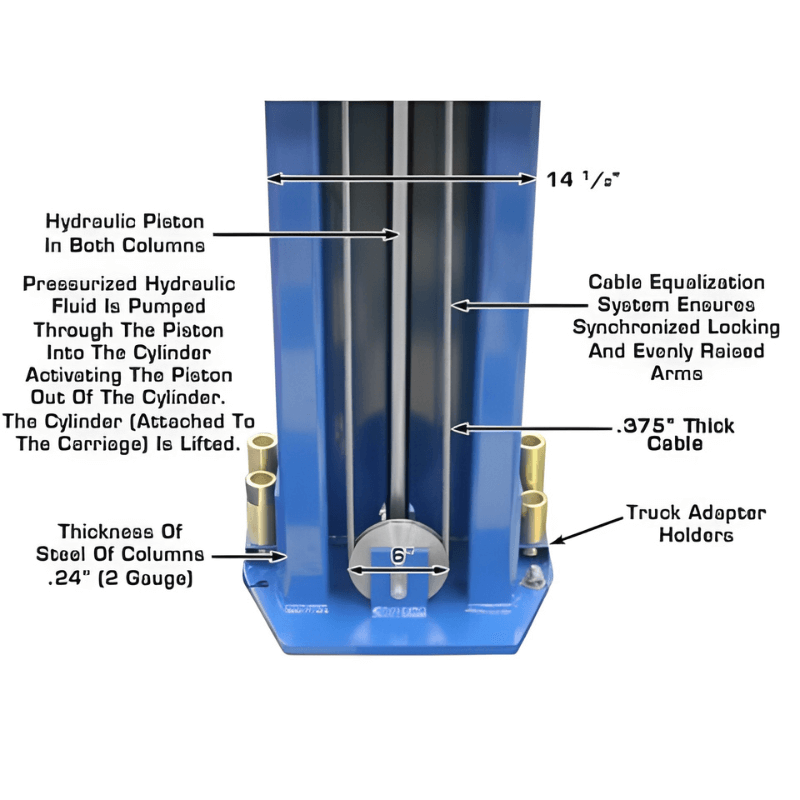

• Column Size: 7 1/2" x 14 1/2"
• Column Steel Thickness: 6mm

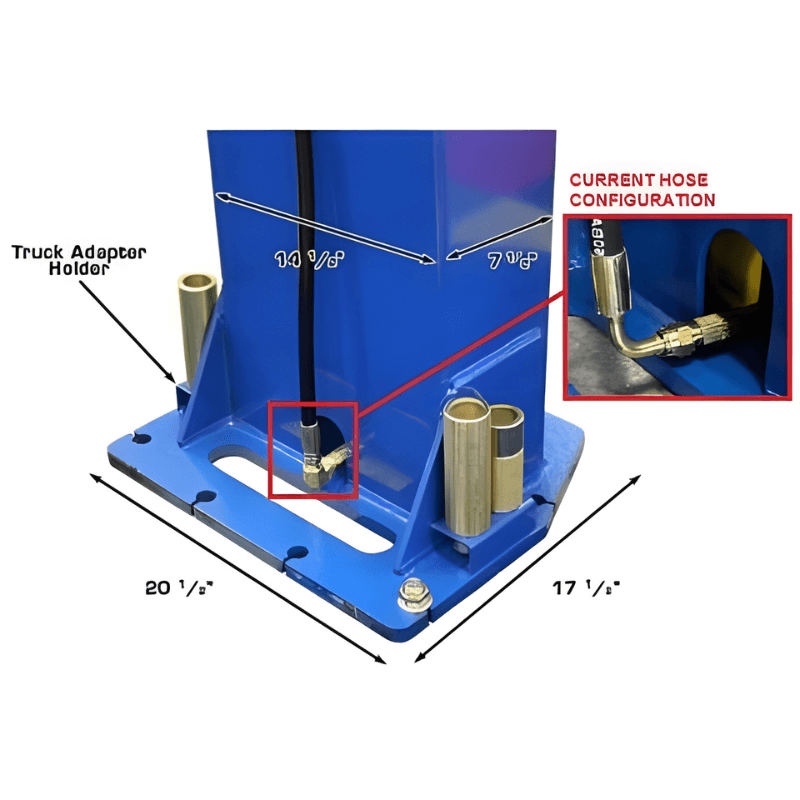

• Base of Lift Dimensions: 17 1/2" x 20 1/2"
• Motor/Electrical Requirement: 220 volt single-phase, 30 amp breaker recommended
• Oil Requirement: 3-5 gallons of AW32/AW46 (not included)

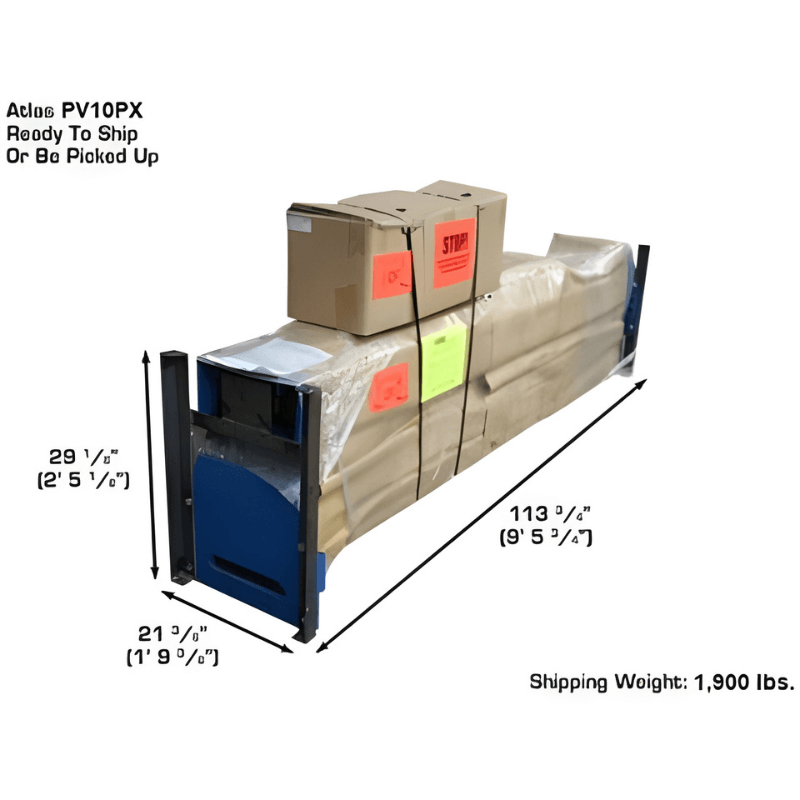

• Shipping Weight: 1,900 lbs
• Adapter Heights: 4 adapters (1.25”, 2.5”, 5”)
• Arm Hole/Adapter Peg Size: 1.5”

PV10PX 10,000 lb 2-Post Lift Special Features

• Capacity: 10,000 lb
• Commercial Grade
• Adjustable Height: 11′ 11 1/8″ or 12’3″

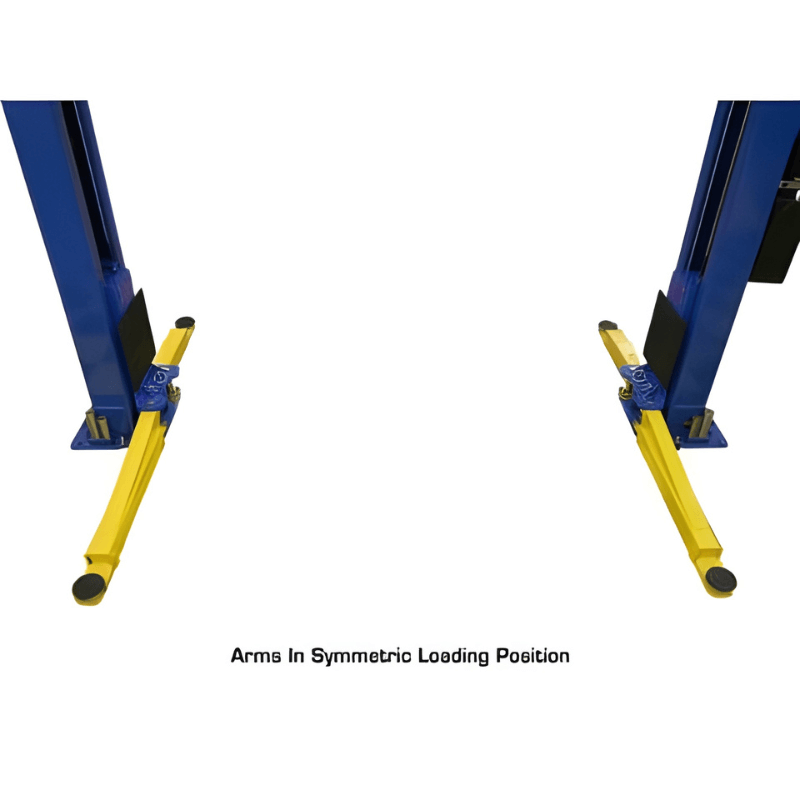

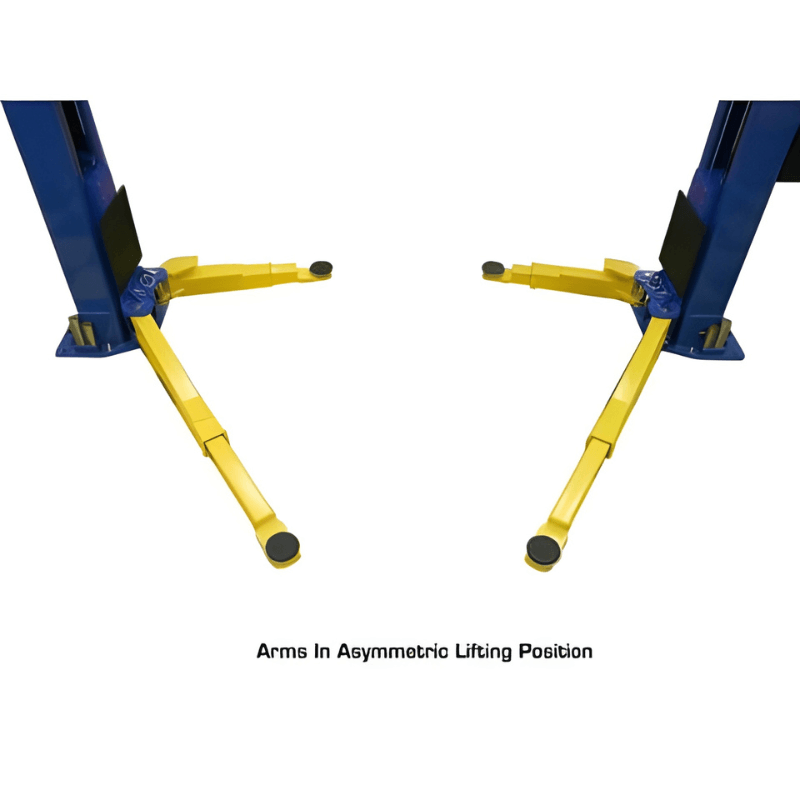

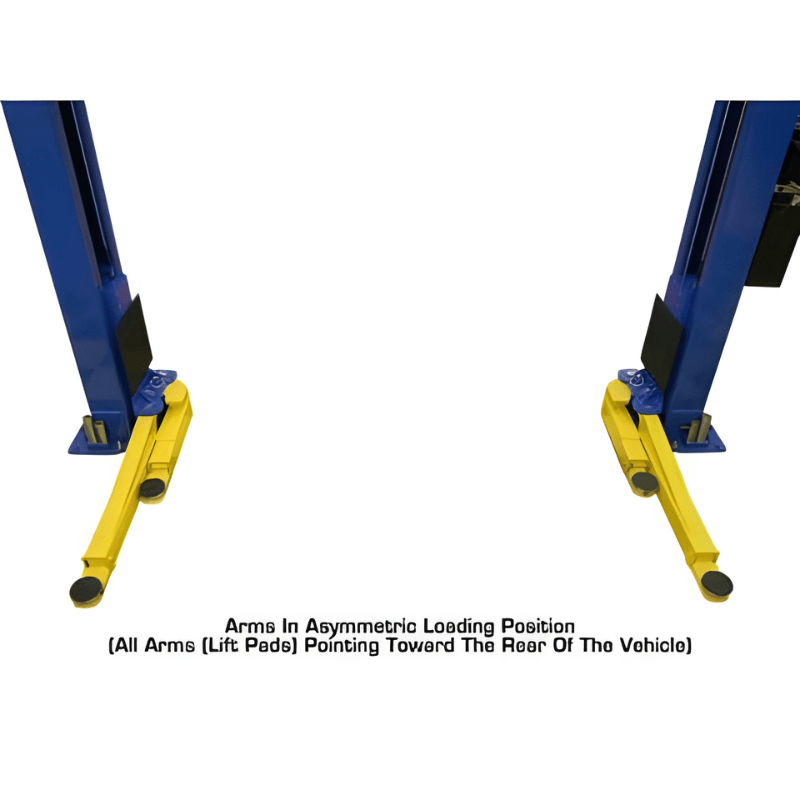

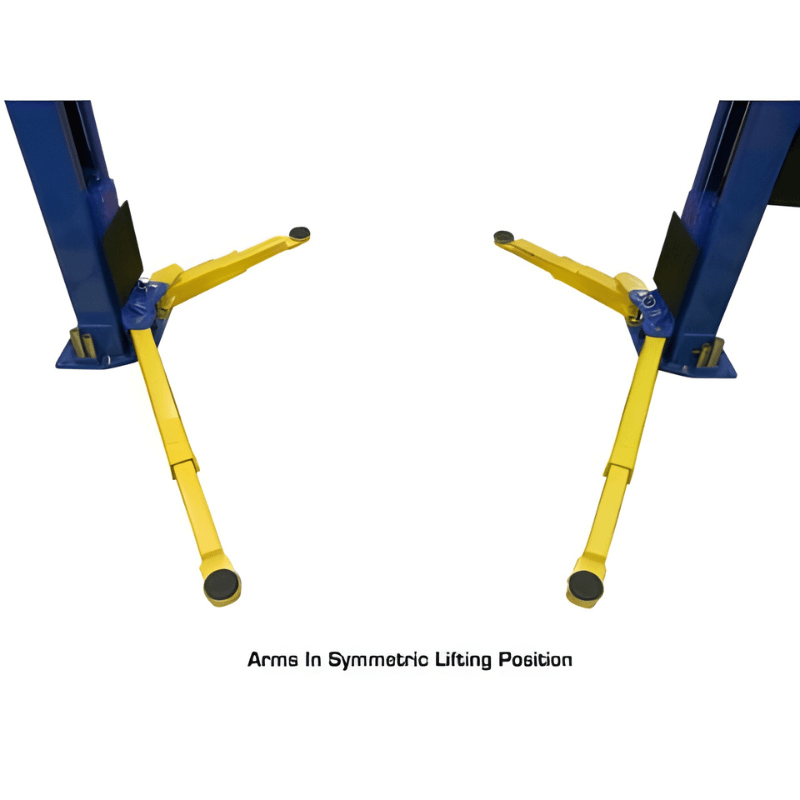

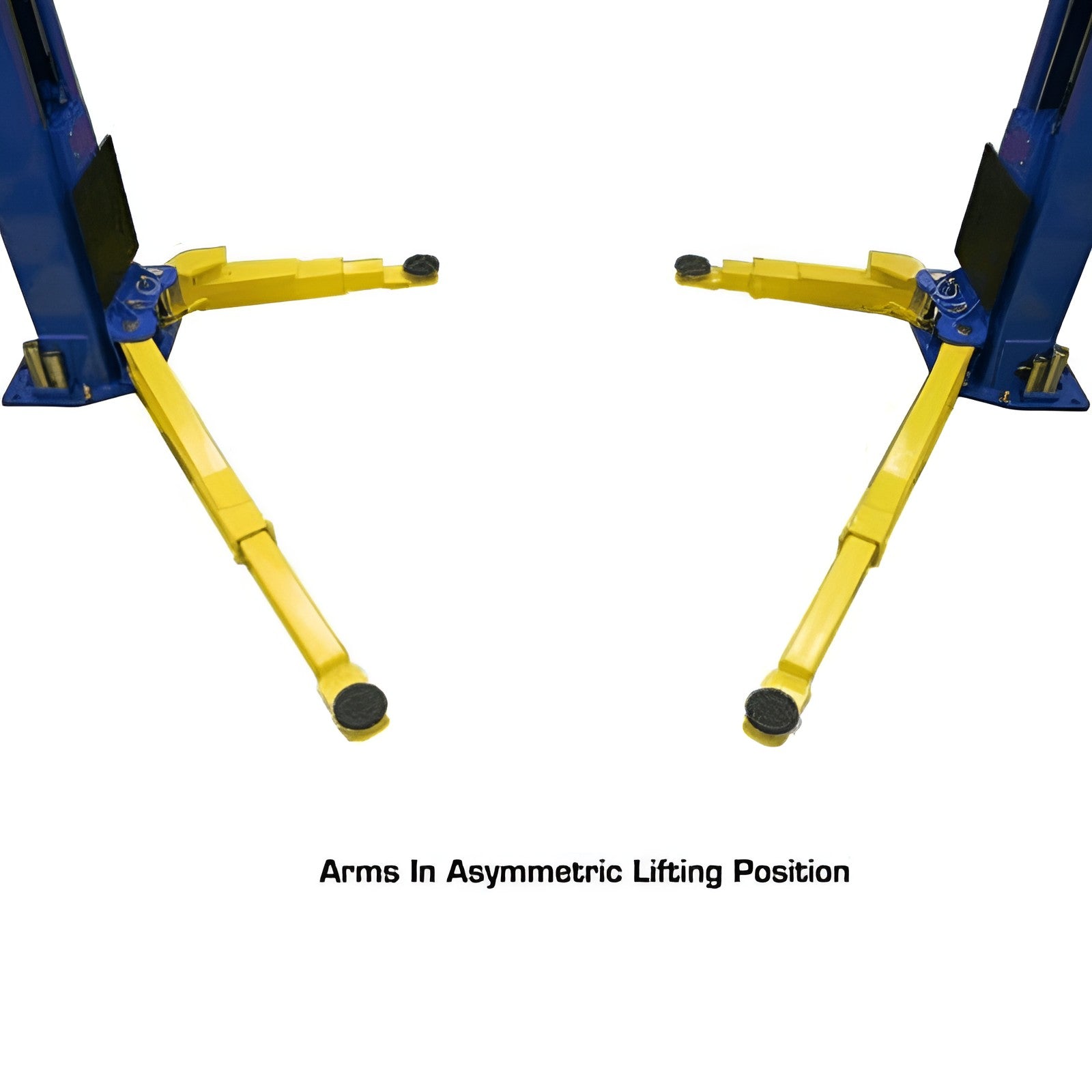

• Asymmetric/Symmetric Arms

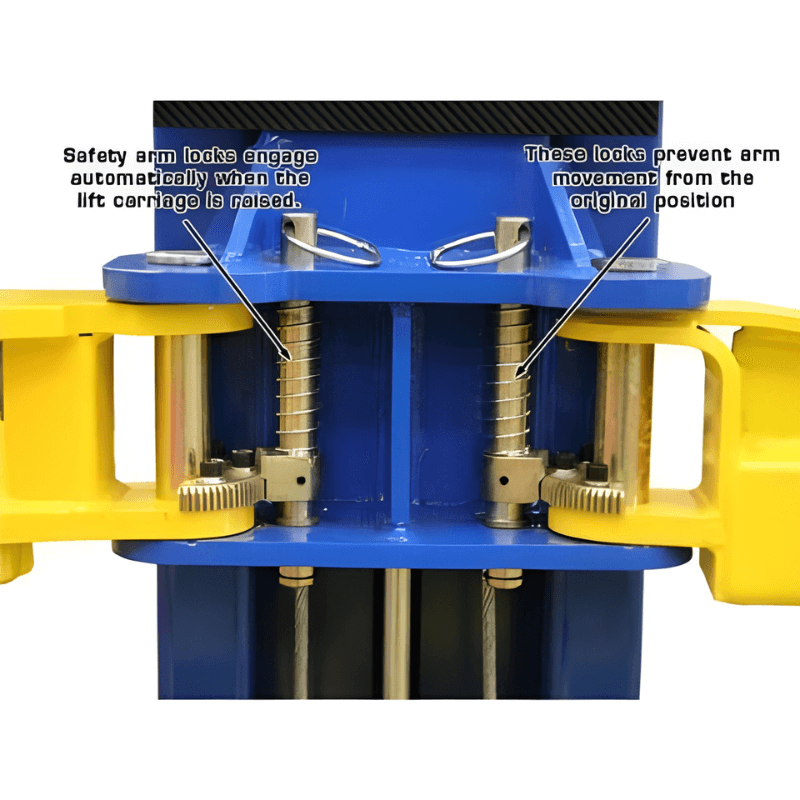

• Automatic Arm Restraints

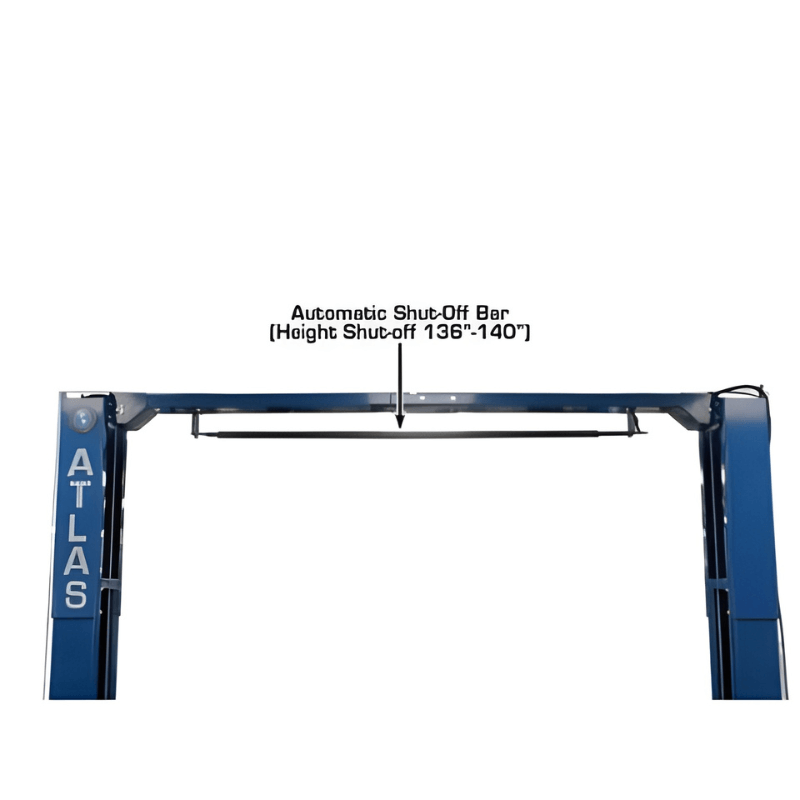

• Padded Shut-Off Bar
• Padded Carriages

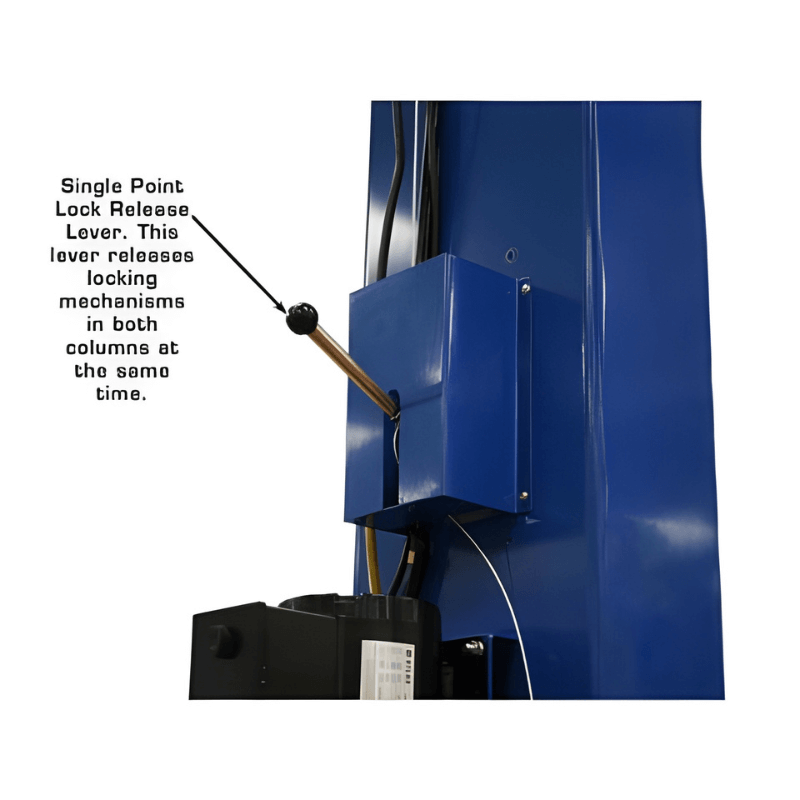

• Single Point Lock Release

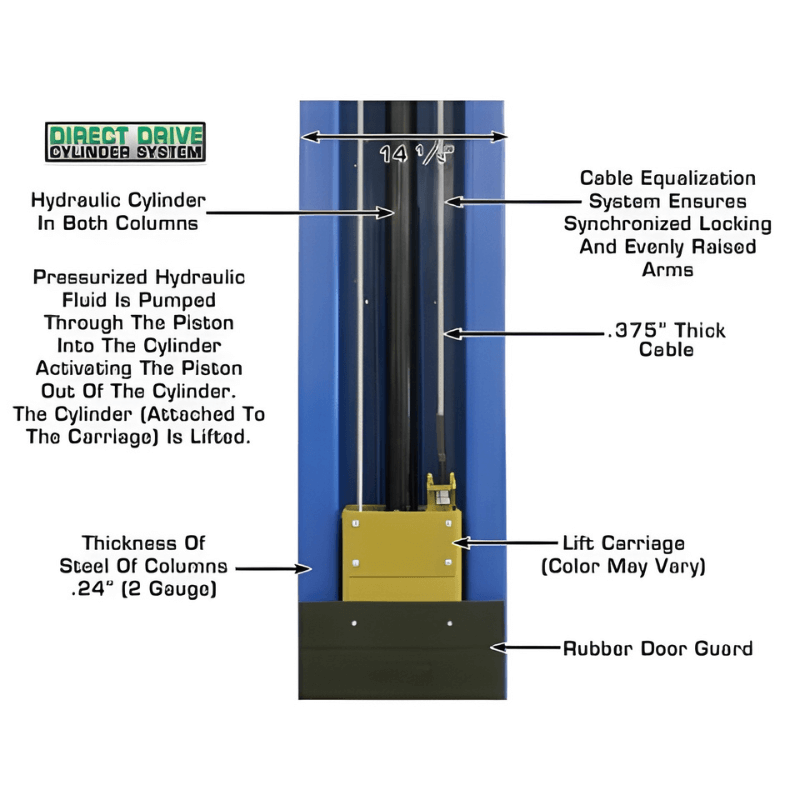

• Direct-Drive Cylinders
• Powder Coat Finish

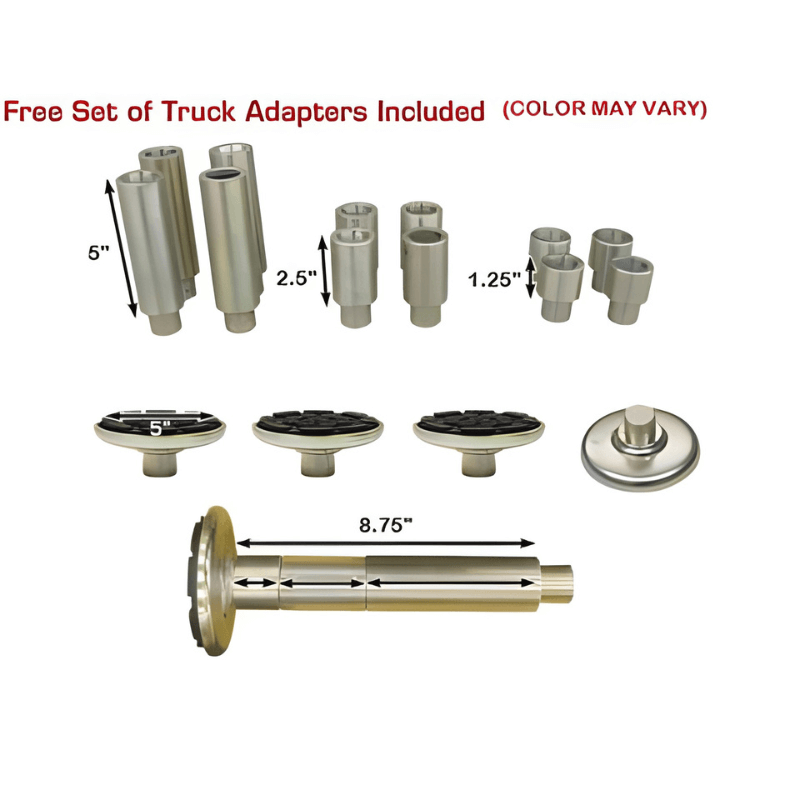

• Includes Free 12-Piece Truck Adapter Set

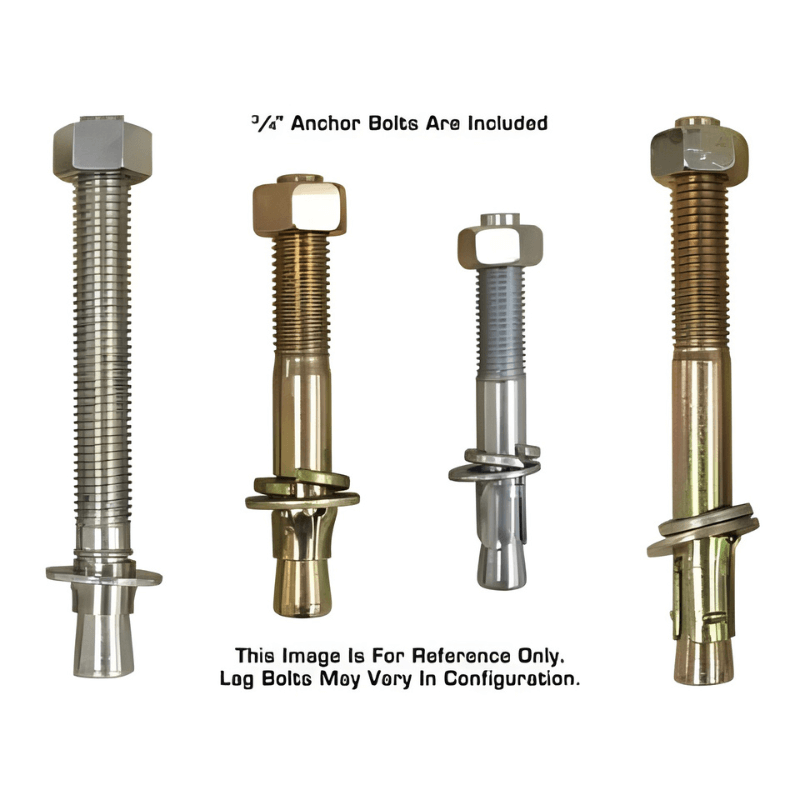

• Mounting Hardware Included
• Shipping Weight: 1,875 lbs
• Warranty: 5 years Structural, 2 years Hydraulic (Parts Only)
• Optional Item:
  • Height Extension (ATTD-PV10 PX) - Adds 24" to Height

Atlas PV10PX Documentation

 Atlas PV10PX 2-Post Lift Installation Operation Manual
