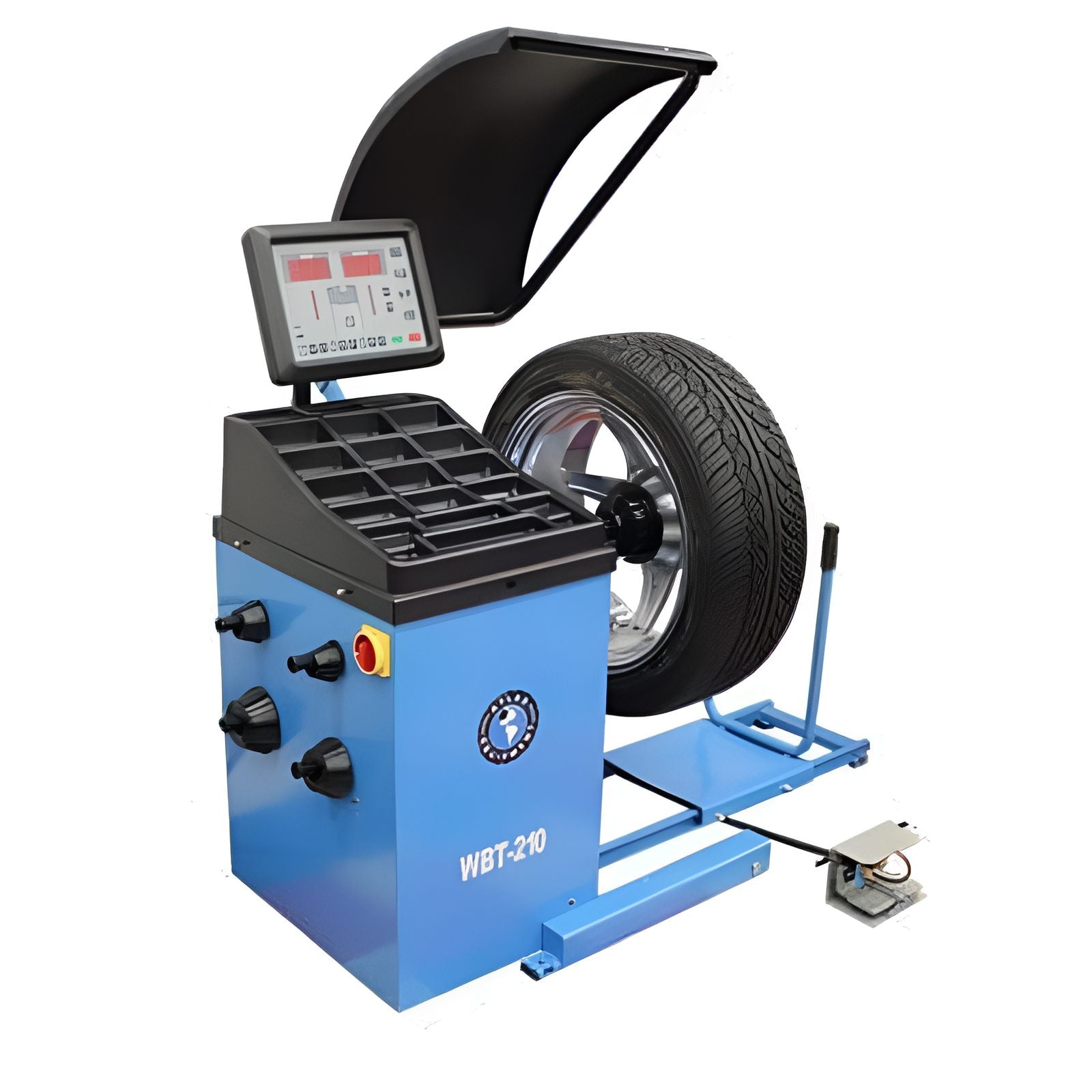

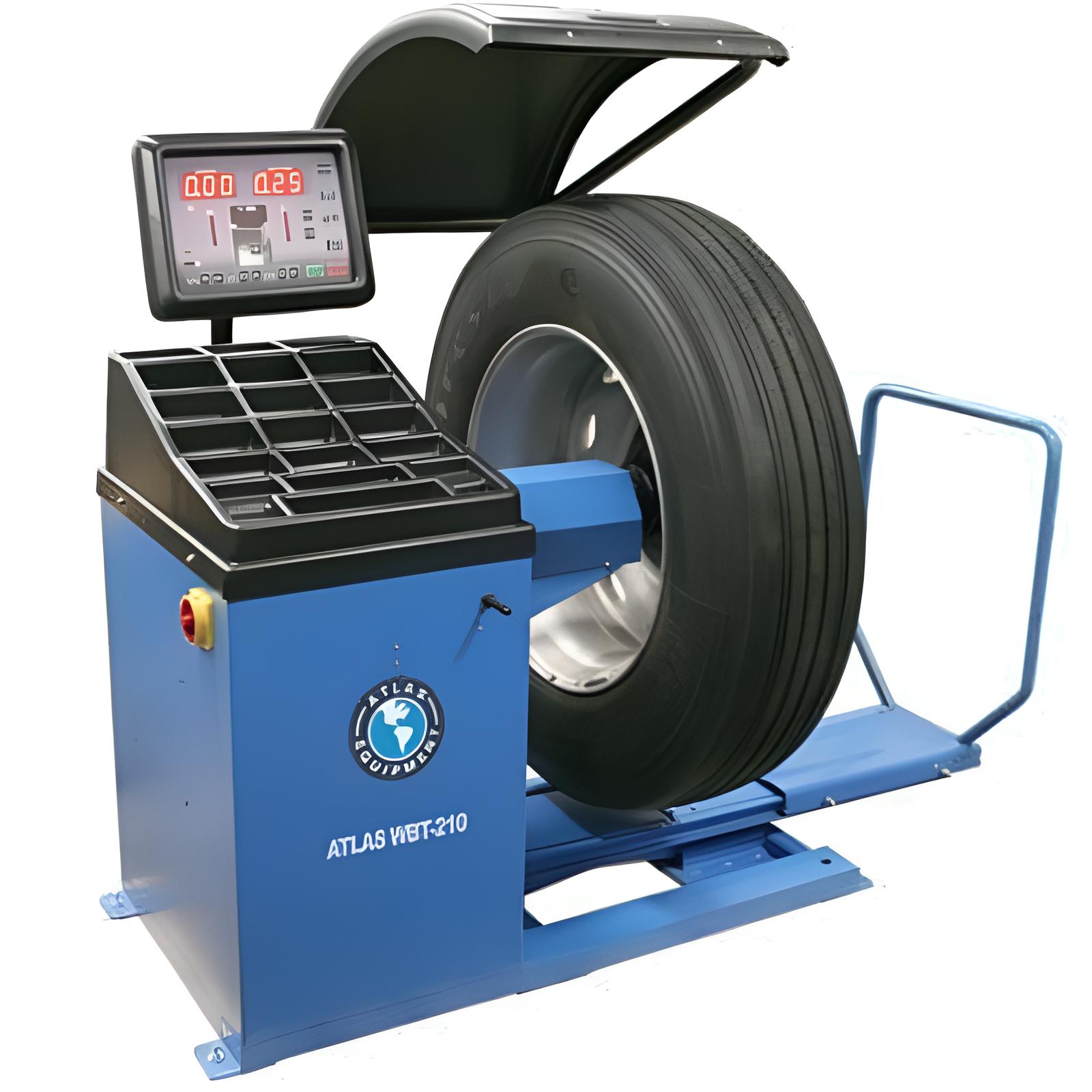

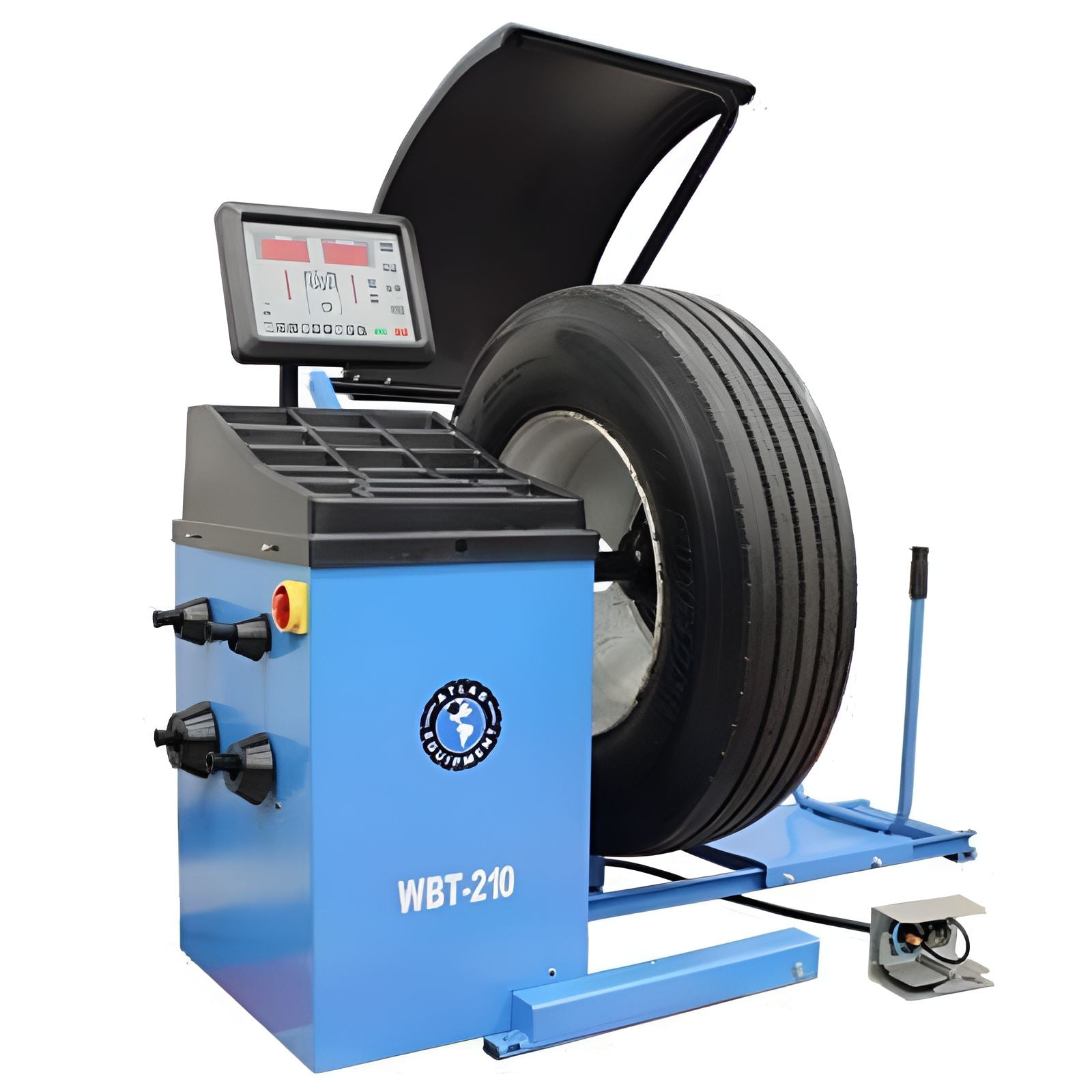

Atlas WBT-210 Heavy Duty Truck Wheel Balancer

WBT-210 Wheel Balancer by Atlas

The Atlas® WBT-210 truck tire wheel balancer stands out as an exceptional value among its counterparts in the realm of large truck tire computer balancers. Despite its competitive pricing, it matches the accuracy and reliability of the leading brands in the market.

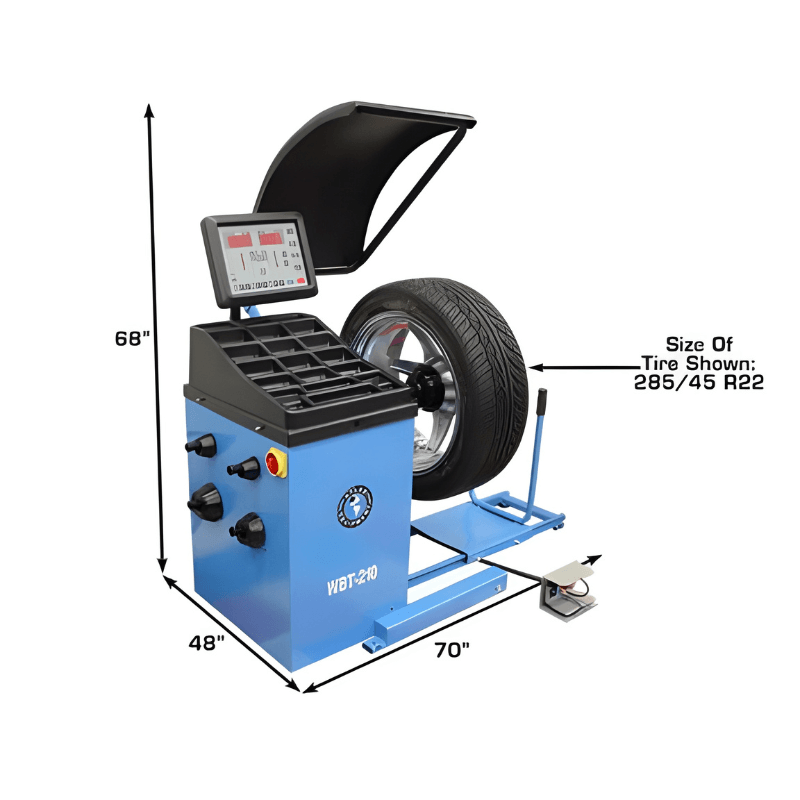

Designed to meet the diverse needs of workshops, the Atlas® WBT-210 effortlessly balances a range of tires, from 14-inch steel rims to hefty 300-pound semi-truck tires. Its versatility extends to accommodating large custom wheels up to 32 inches and oversized "gumbo-mudders" with ease.

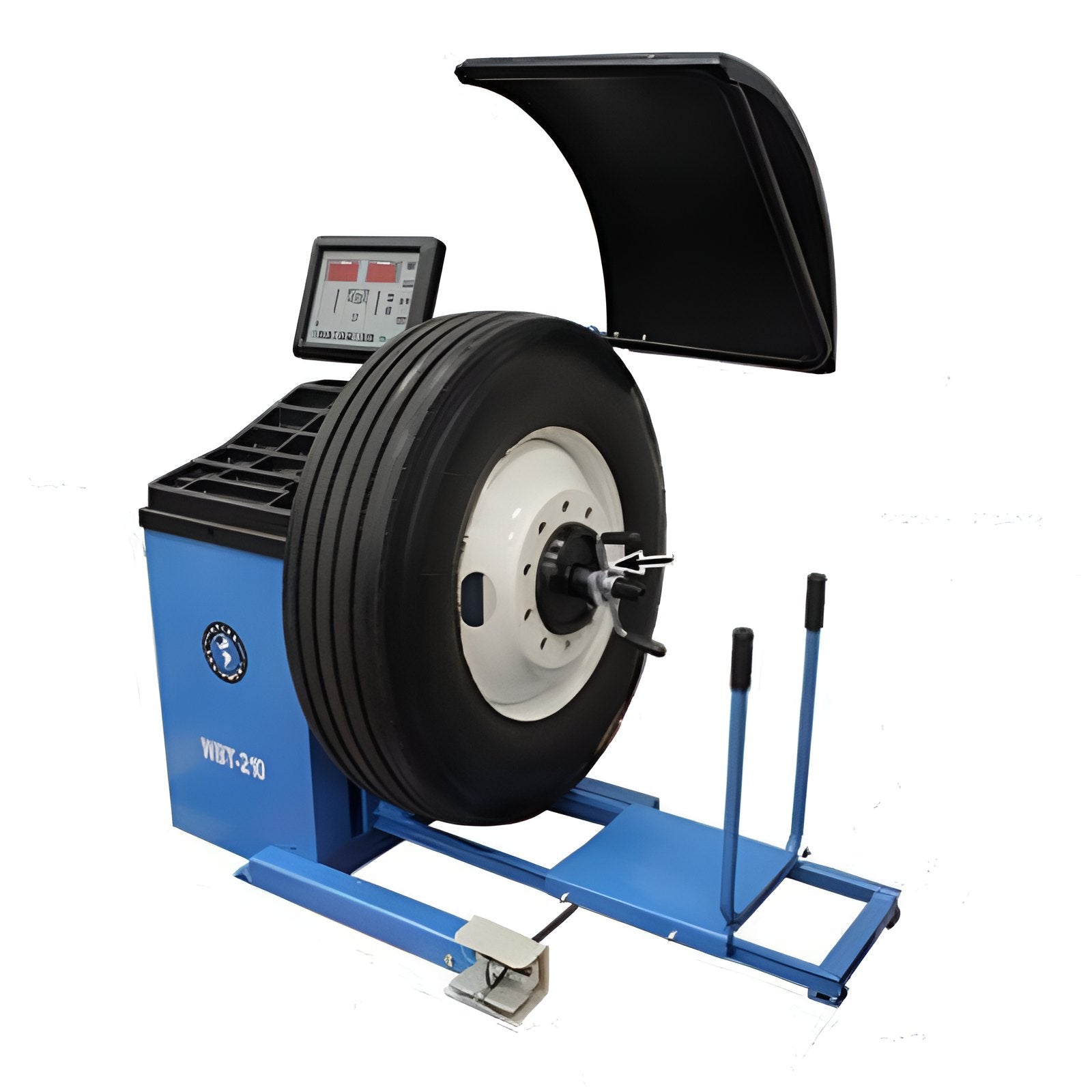

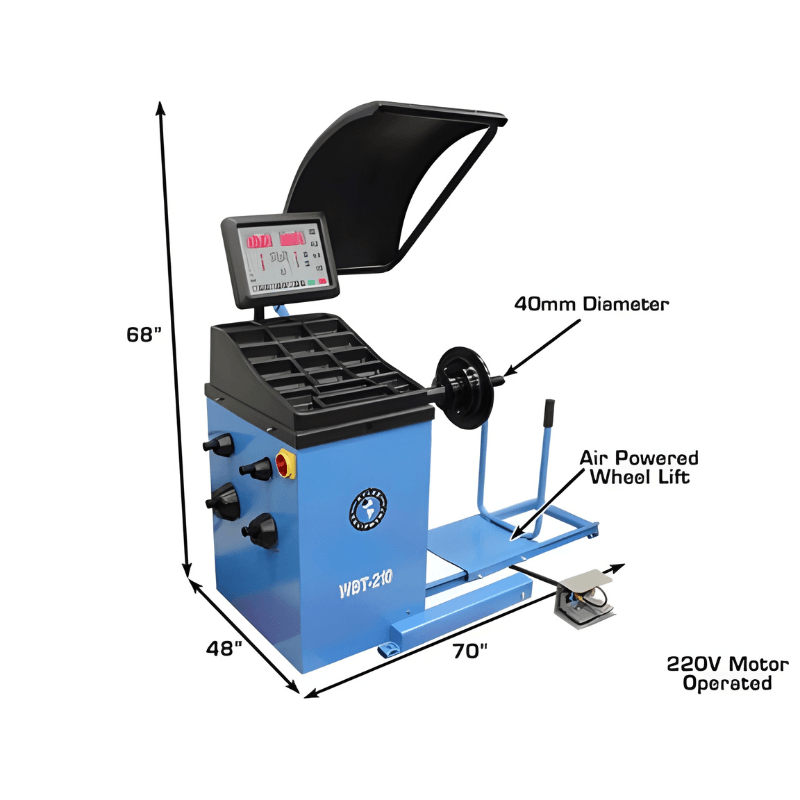

Ideal for a variety of trucking operations, from passenger cars to light trucks to heavy-duty semi tractor/trailer rigs, the Atlas® WBT-210 features a robust 40 mm heavy-duty shaft compatible with standard mounting cones for most vehicles. Moreover, it includes multiple large truck adapters suitable for mounting and balancing most BUDD style wheels.

Despite its sophistication, the Atlas® WBT-210 remains remarkably user-friendly. Its electrical components are designed for straightforward "plug and play" functionality, facilitating easy repairs when needed. Furthermore, the balancer is equipped with self-diagnostic capabilities, promptly displaying error codes to aid operators in making necessary adjustments or repairs without the need for costly service technician visits. In both usability and maintenance, the Atlas® WBT-210 stands out as the optimal choice for any workshop.

Wheel Balancer WBT-210 Specification:

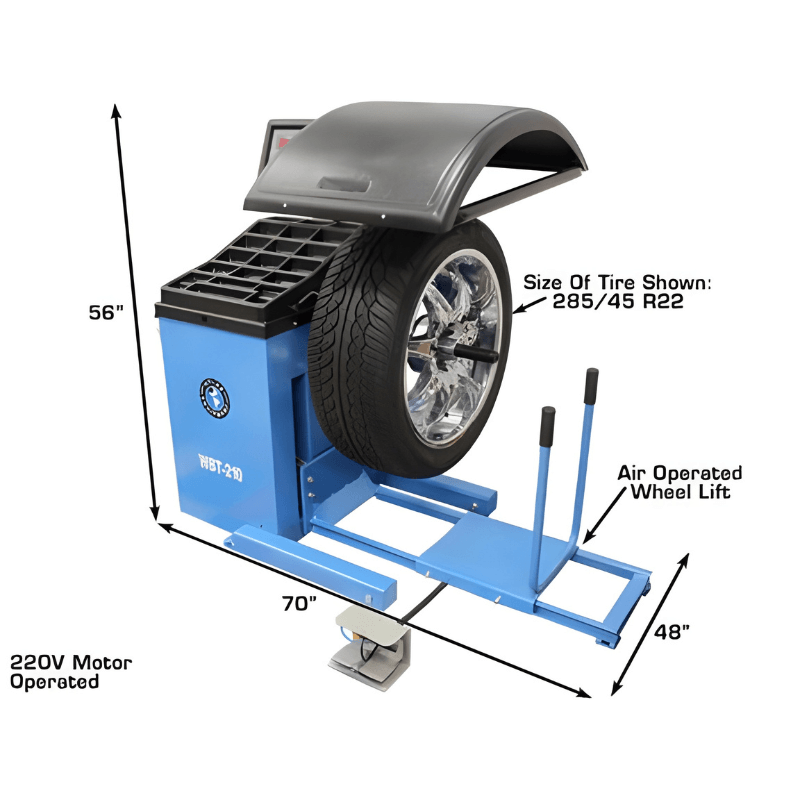

• Max Tire Diameter: 47"
• Rim Sizes (Cars And Light Trucks): 10"-32"
• Rim Width: 1 1/2"-20"
• Shaft Size: 40mm
• Max. Wheel Weight: 440 lbs.
• Balancing Speed: 150 rpm Car-Light Truck Mode/90 rpm Truck Mode
• Data Entry: All Dimensions Manual Entry
• Measurements: Standard Or Metric
• Accuracy: 1 gram Car-Light Truck Mode/10 gram Truck Mode
• Weight Position Resolution: 1.4 Degrees
• Self Calibration: Yes
• Motor: 1/3 HP
• Air Requirement: 115-140 PSI (MUST NOT EXCEED 140 PSI)
• Power Supply: 220volt +/- 5% (209-231 volts) 1phase, 30 amp breaker required

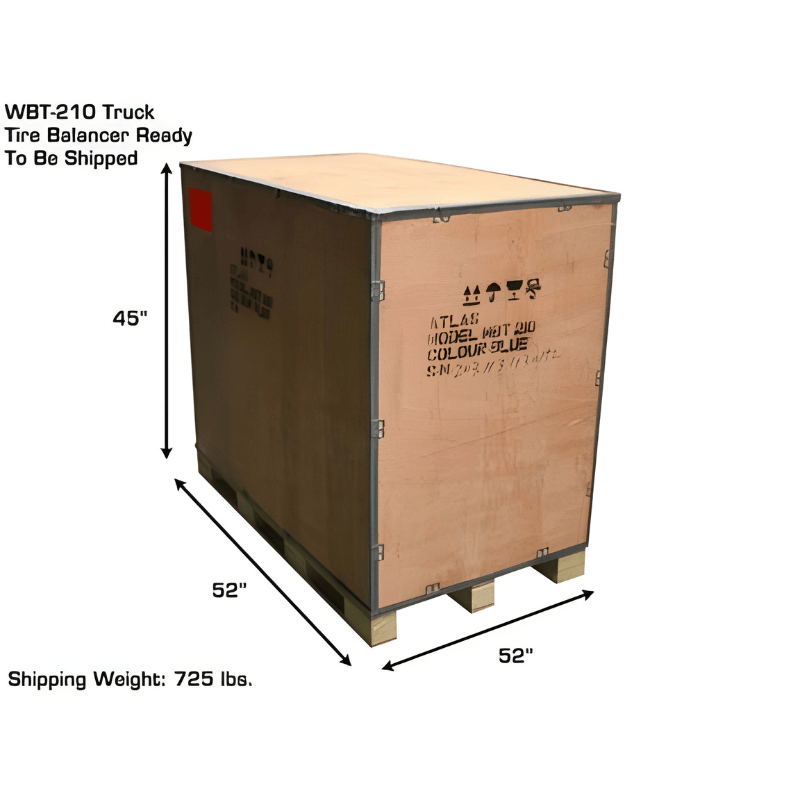

• Shipping Weight: 725 lbs.

WBT-210 Wheel Balancer Special Features:

• Computer Controlled Heavy Duty Spin Balancer

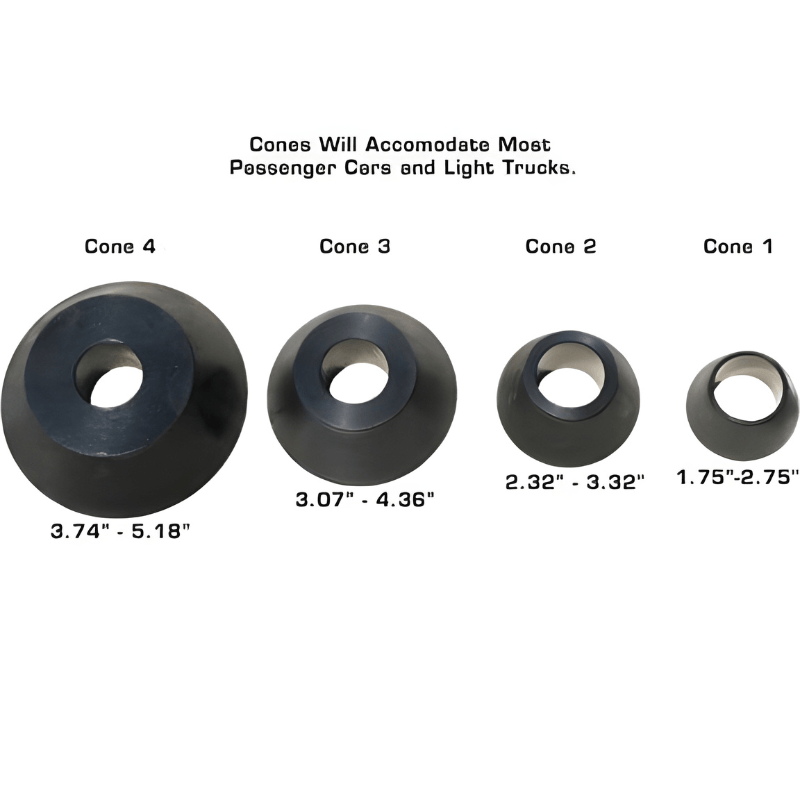

• Cone sets for car and light truck tires
• Cone and spacer set for truck, bus, or implement tires
• Plastic Quick Release Nut included

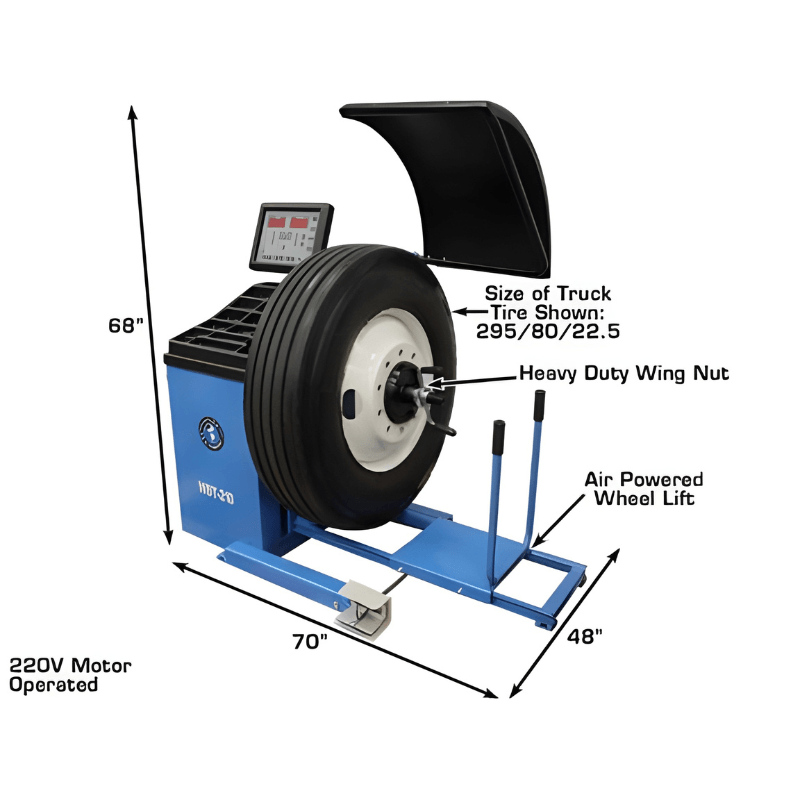

• Heavy duty steel wing nut included

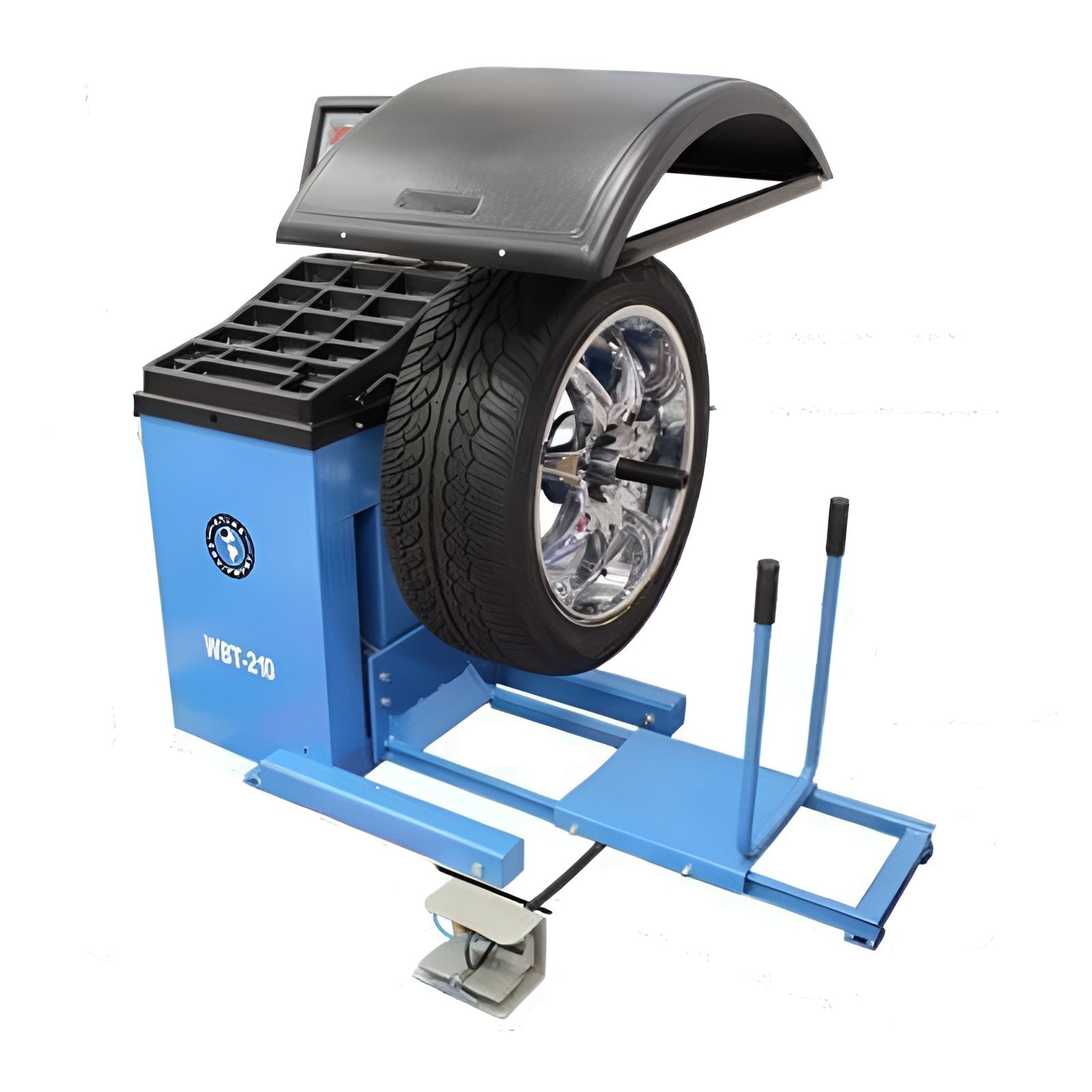

• Pneumatic wheel lift (external air supply required)
• Automatic start/stop when hood is lowered/raised.
• Static and dynamic balancing modes.
• Rapid optimization (OPT)
• Self-diagnosis
• Self-calibration
• Exceptional stability in reading the unbalance between planes

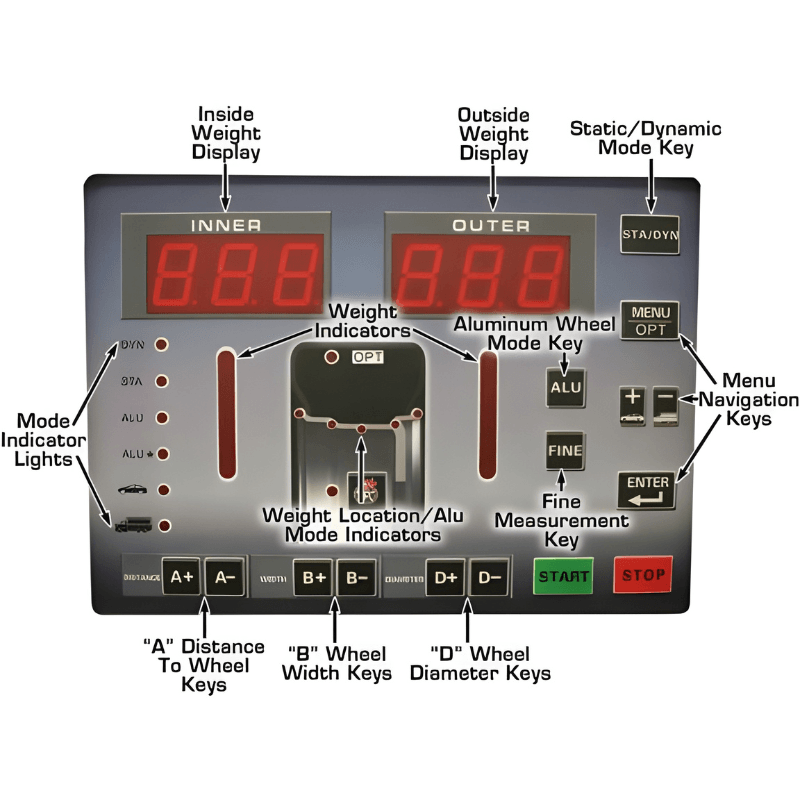

• Display in grams or ounces, and in mm or inches
• Wheel Weight Pliers Included
• Wheel Width Calipers Included
• Replacement Parts & Wear Items Always in Stock
• 1 Year Parts Only Warranty

Atlas WBT-210 Documentation:

  Atlas WBT-210 Wheel Balancer Product Manual
